Basic Info.
Model NO.
D49D1-2420-150
Excitation Mode
Permanent Magnet
Function
Control, Speed Control
Casing Protection
Protection Type
Number of Poles
2
Structure & Working Principle
Brush
Type
Electric Motor
Certification
ISO9001, CCC, RoHS
Torque
5-6n.M
Voltage
12V 24V 36V 42V 48V 60V 72V 110V
Power
20W (Max 500W)
Speed
150rpm (Max 350rpm)
Motor Length
56-71mm
Noise
Less 60dB
Material of Gear
Plastic

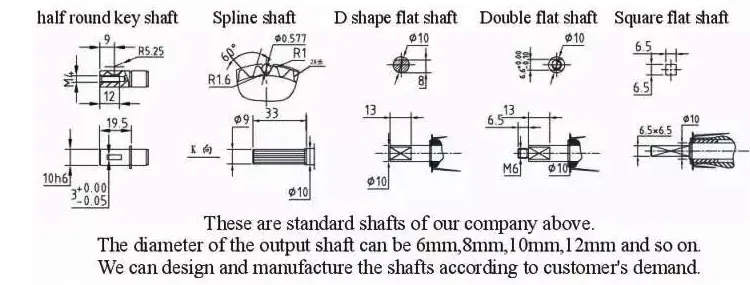

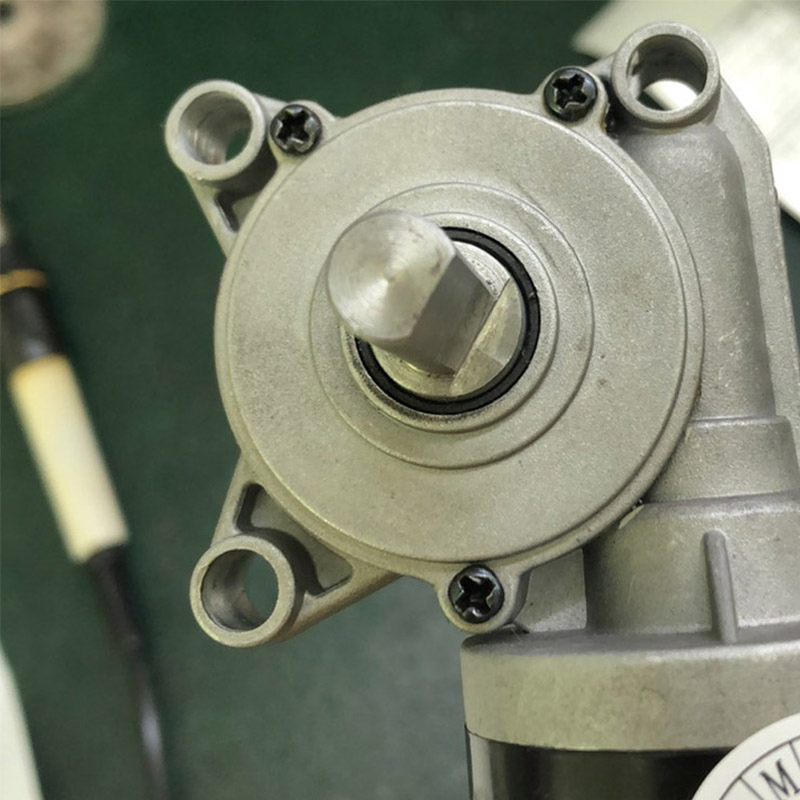

Output Shaft
Customized
Speed Sensor
Hall Sensor, Encoder, Opto Sensor
Usage
Electric Glass Lifter, Electric-Drive Curtain
OEM/ODM Service
Accept
Transport Package
Carton
Specification
Diameter 49mm
HS Code
8501310000
Production Capacity
60000/Month
Product Description
Product Highlight

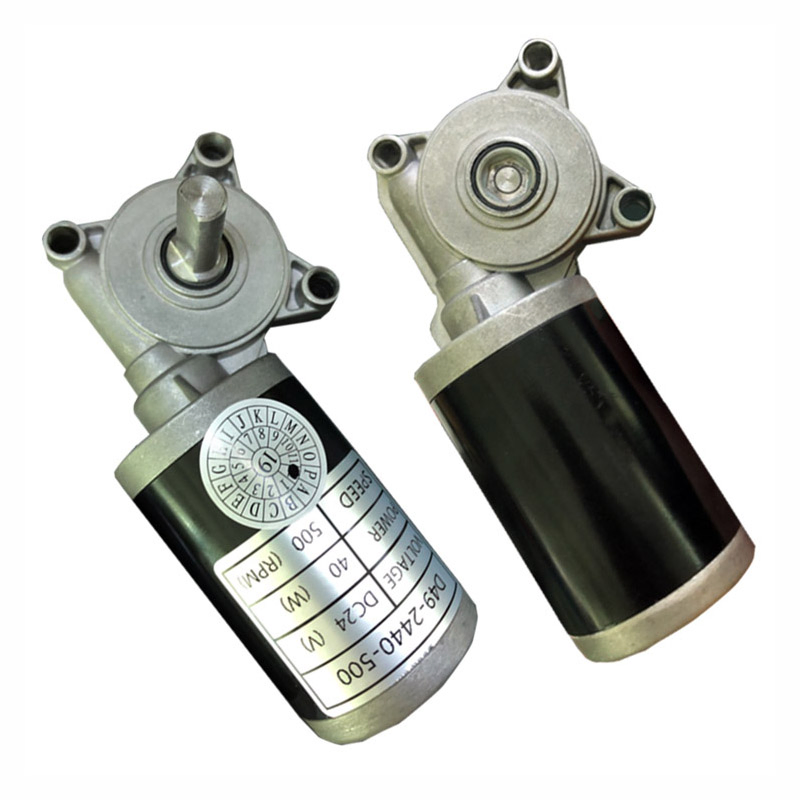

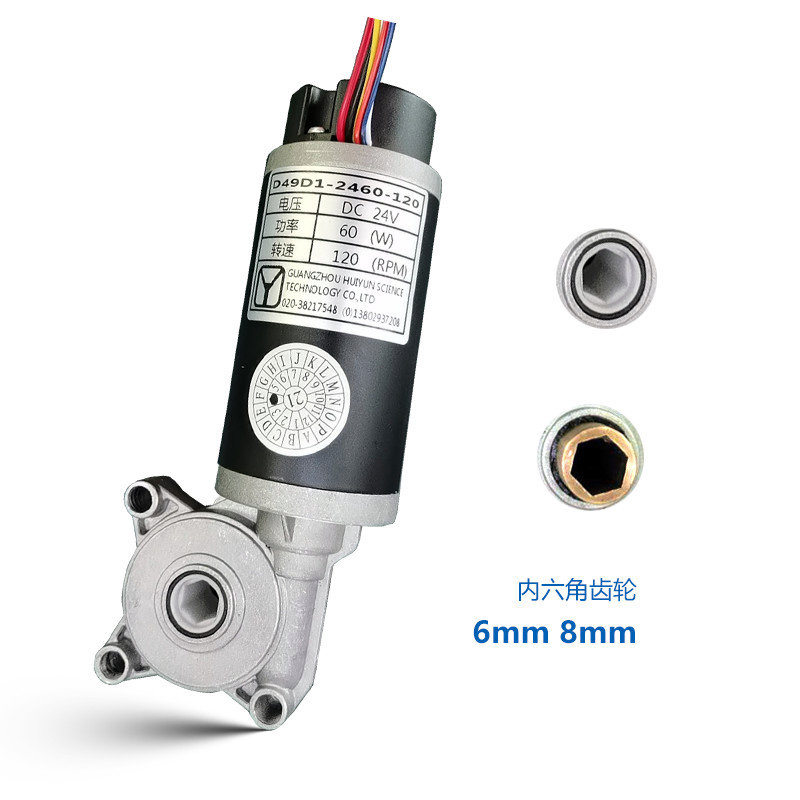

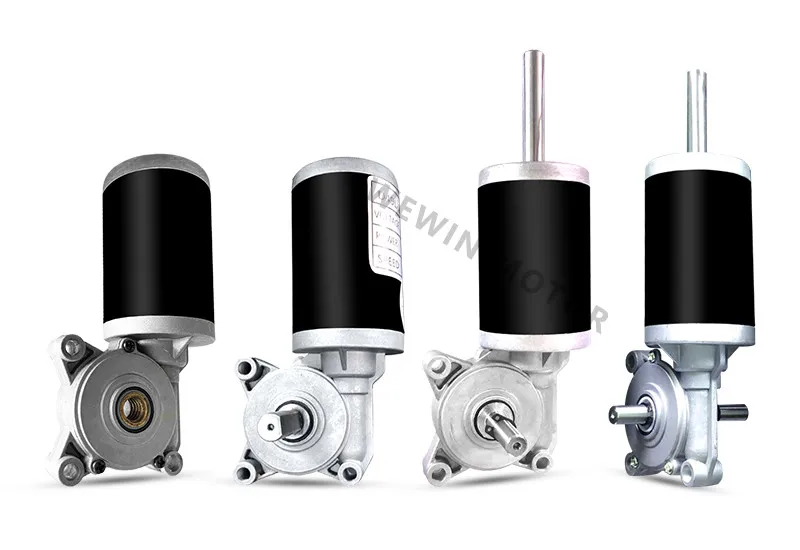

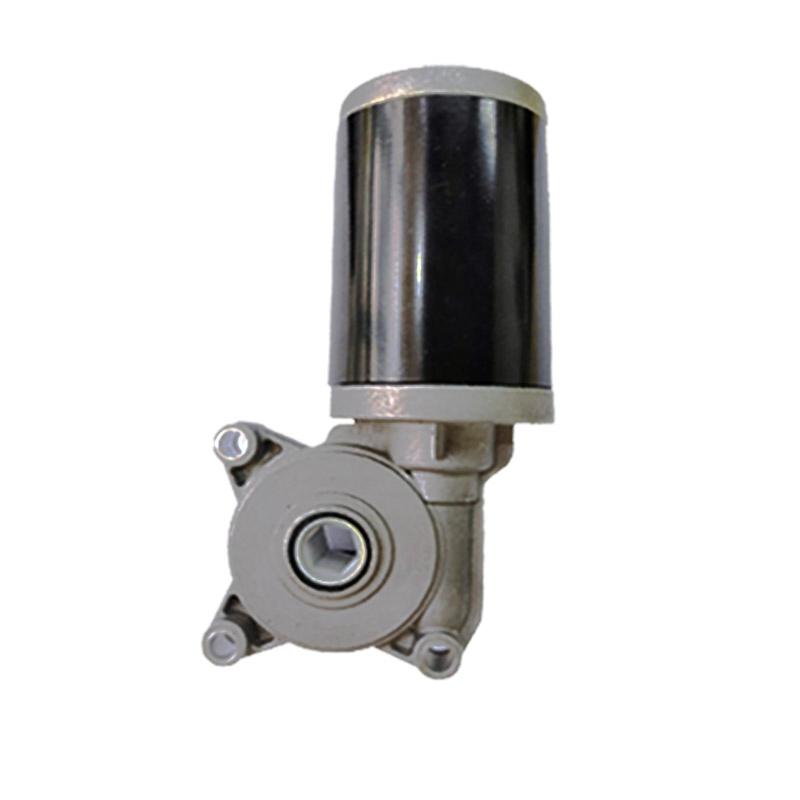

12v DC High Torque Electric Motor for Smart Electric-Drive Curtain
Model: D49D1-24V20W-150RPM

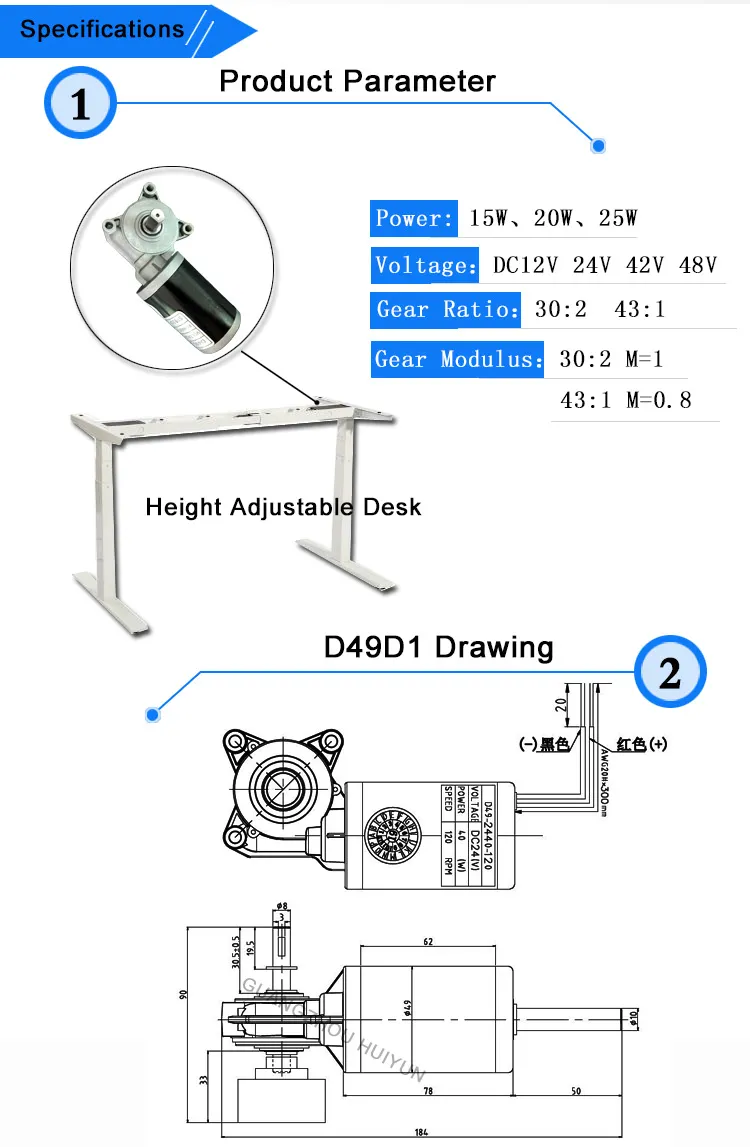

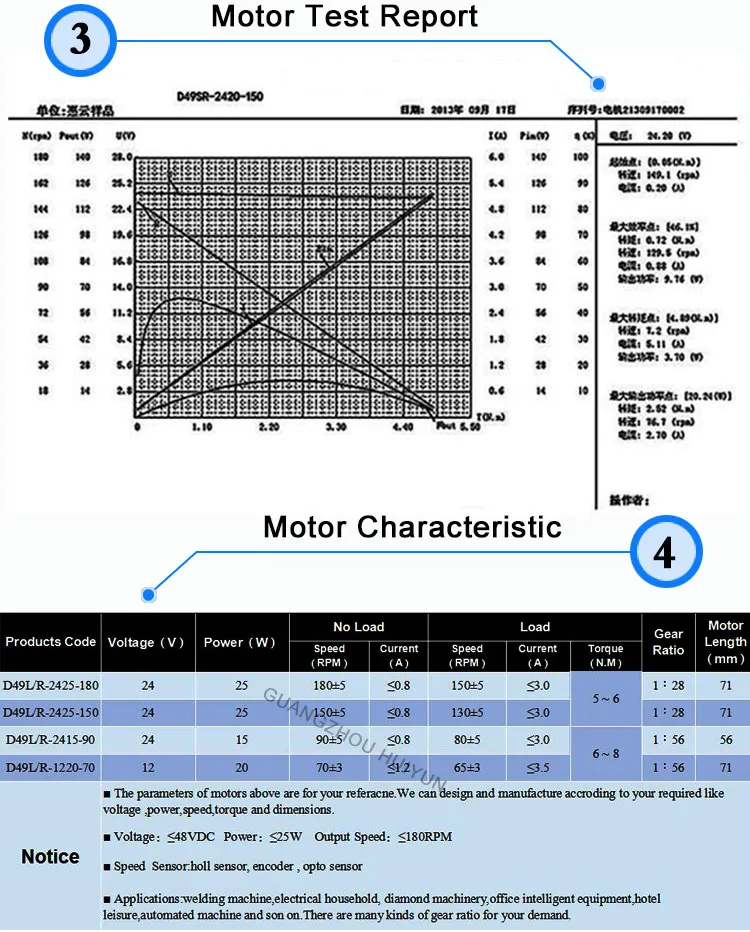

| Technical Parameters |
| Type |
dc worm gear motor |
| Motor Diameter |
49mm |
| Voltage |
12v 24v 36v 42v 48v |
| Power |
≤25W |
| Torque |
≤8N.M |
| Speed |
≤250RPM |
| Gear of ratio |
56:1 28:1 70:1 |
| Gear Modulus |
70:1 M=0.8
56:1 28:1 M=1 |

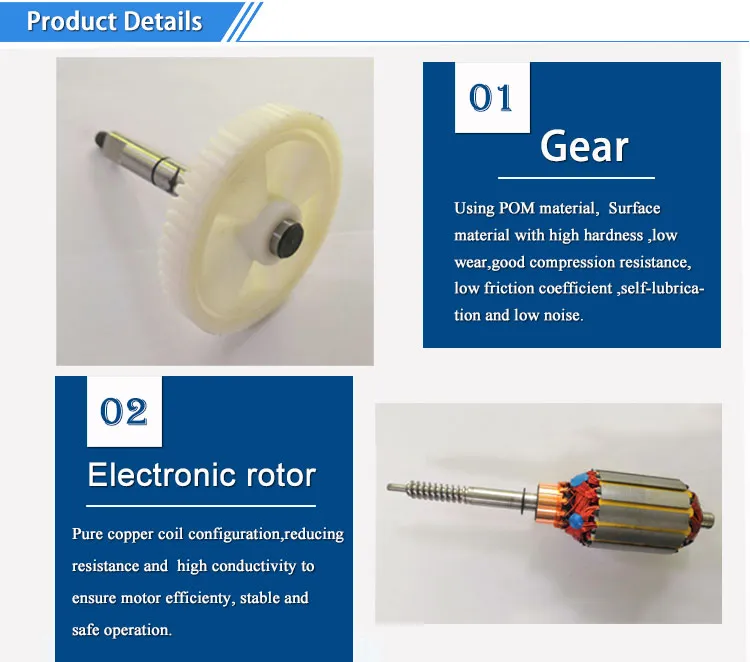

| Material of gear |
Plastic / brass |
| OEM/ODM Service |
Accept |
| Usage |

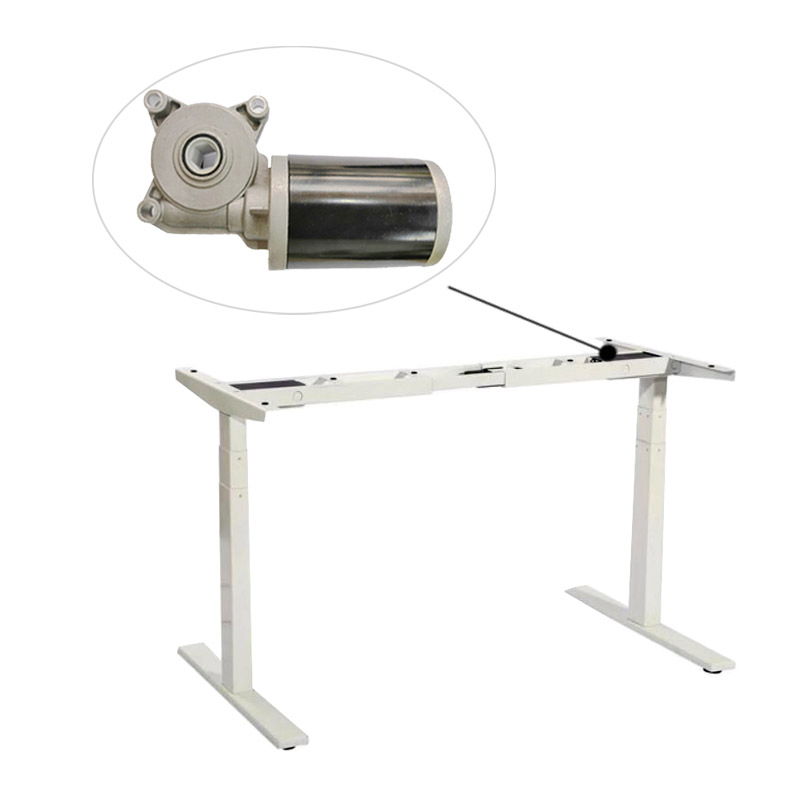

Electric clothes rack, electric height adjustable table, home appliance, vending machine, coffee machine, industrial machine, auto garage door opener, other electric tools. |
We are a professional company specialized in design and customization of small DC worm gear motors. The motor models mainly include D49, D59, D63, D76, and D88 series. All of our motors can be integrated with hall sensors, encoders, opto sensors, and brakes. We accept OEM and ODM orders, tailoring motor performance parameters specifically to your requirements, including voltage, power, speed, torque, dimension, and motor direction.
Our team has over 20 years of experience in motor customization and production. Supported by a professional R&D team and testing centers designed to inspect gears and motors, we guarantee top-quality products.
Key Export Markets
Europe, America, and Asia, including the United Kingdom, Germany, Italy, France, Sweden, the United States, Brazil, India, Korea, and more.
Key Advantages
- High production capacity with fast and reliable delivery schedules.
- Strict Quality Control: 100% inspection processes executed on all items before delivery.
- Comprehensive OEM & ODM support for custom mechanical and electrical specifications.
- 24-hour dedicated online customer service.
- Rapid, accurate responses and quotations for all customer inquiries.
- Engineered for long life, high reliability, and exceptional performance under load.
- Highly competitive prices straight from a professional manufacturer.
- A diverse team of highly skilled, experienced workers.
More Applications
Car simulator, garage door opener, gate operator, wheelchair, electric vehicle, water pump, oil pump, lift gate, glass lifter, floor polisher, truck lift, stair lift, hospital bed, hydraulic pump electric forklift.
Frequently Asked Questions (FAQ)
Q
Are you a trading company or a manufacturer?
We are an integration of industry and trade, with over 20 years of experience in specialized worm gear motors. Our facility boasts skilled production lines, robust management, and highly capable R&D support to meet all dynamic client needs.
Q
What should I do if I don't know which DC motor fits my project?
Please do not worry! If you can share motor drawings, pictures, or give us fundamental specs like voltage, speed, torque, motor dimensions, duty cycle, noise limits, and target lifetime, we will recommend the ideal options for you.
Q
Can I obtain custom samples before ordering in bulk?
Yes, sample testing prior to official bulk ordering is highly encouraged. Since all of our motors are custom-built to customer demands, we do not keep pre-manufactured stock. If MOQ, pricing, and specific custom parameters align, we will build prototypes for your test cycles.
Q
What is the typical Minimum Order Quantity (MOQ)?
Depending on the design configuration, standard production MOQs range between 1,000 and 10,000 pieces. However, we accept smaller runs (ranging from dozens to hundreds of units) during the initial three orders following sample evaluation. Samples have no MOQ constraints.
Q
How do you guarantee production and gear quality?

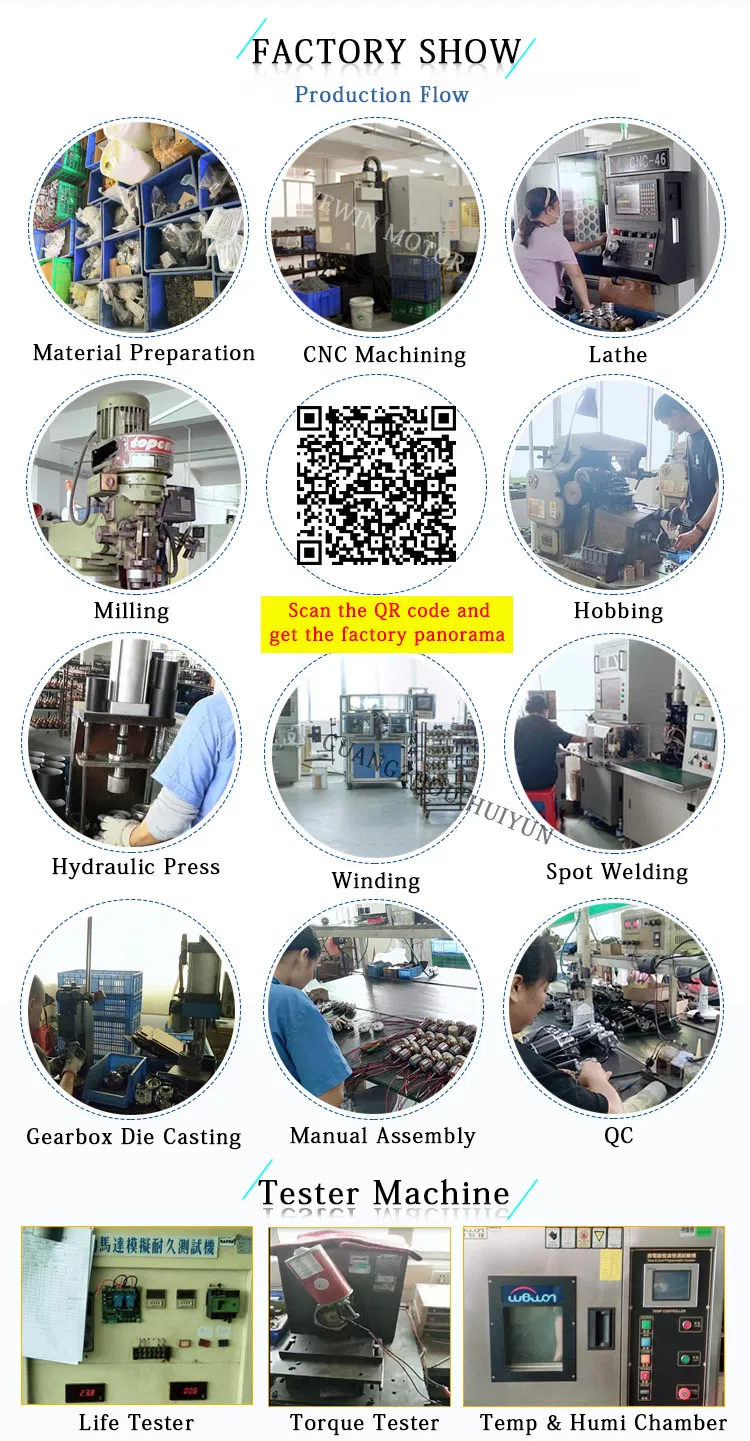

Quality is maintained using strict quality control gates. All incoming components are vetted against approved designs and samples. In the factory lines, we execute routine tour inspections and a final, thorough 100% QC review before shipment.
Q
What is your estimated delivery time?
Standard output shaft motor configurations generally take about 35 days. If your implementation requires custom shafts or non-standard mounts, lead times will depend on exact design parameters and tooling requirements.
