45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
1 / 5
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning
45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning

45mm Standard Tubular Motor for Roller Shutter Window, Roller Blinds, Awning

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SM45S tubular motor
Number of Stator
Single-Phase
Function
Driving, Control
Casing Protection
Closed Type
Certification
ISO9001, CCC
Stroke
Mechanic Limit
Tube Diameter
45mm
Interface
4 Line
Work Voltage
AC120V/AC230V
Torque (N.M)
10nm, 20nm, 30nm, 40nm, 50nm
Origin
China
Production Capacity
10,000,000 PCS/Year
⚙️ Product Description

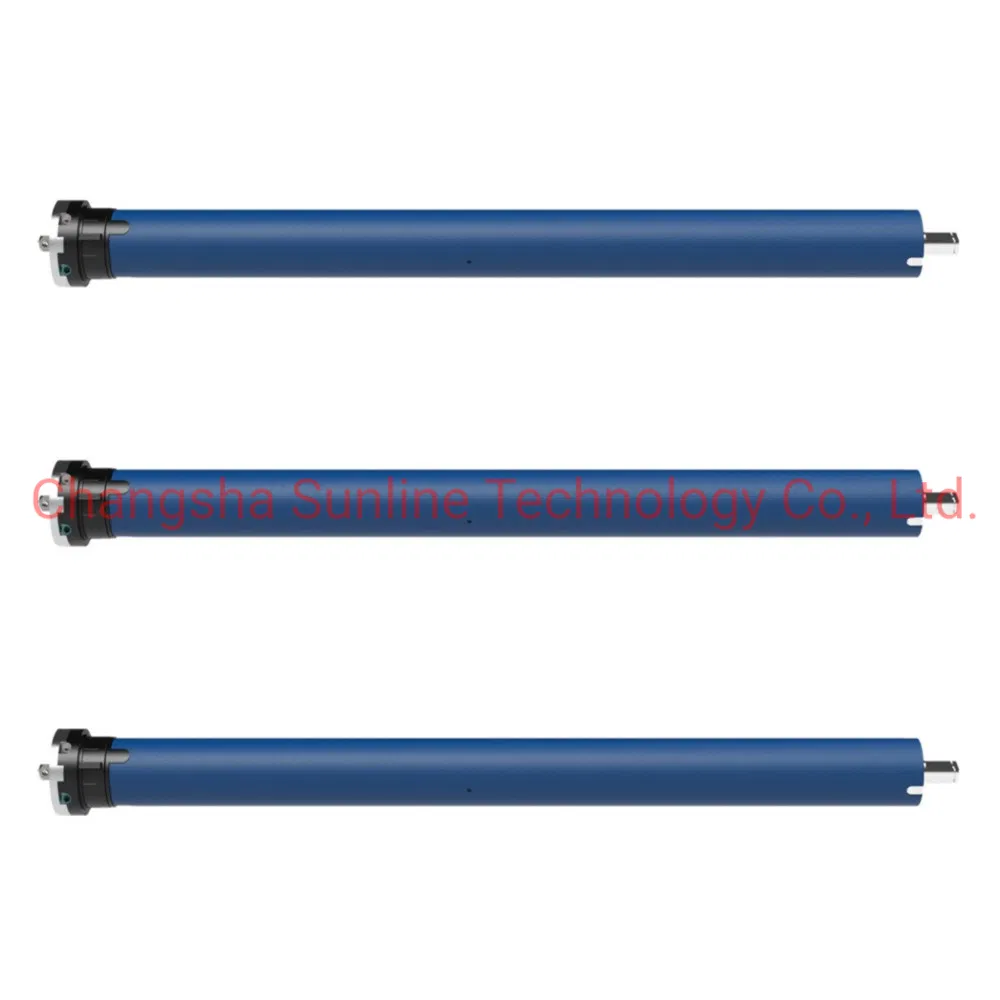

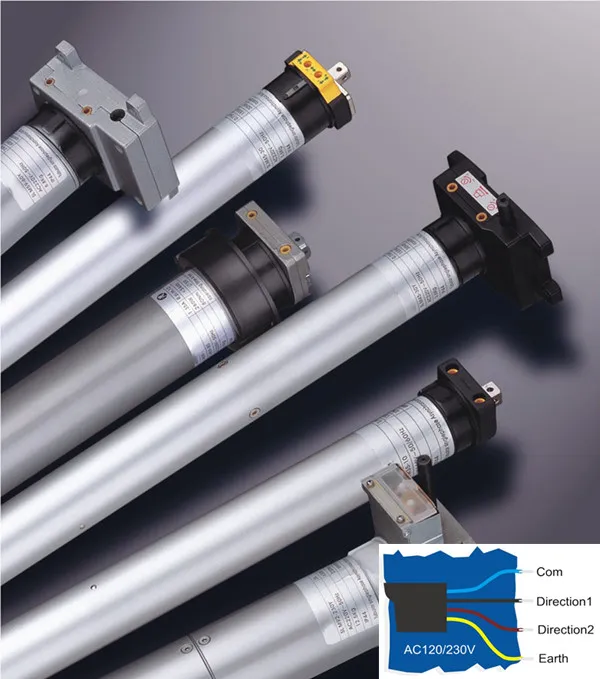

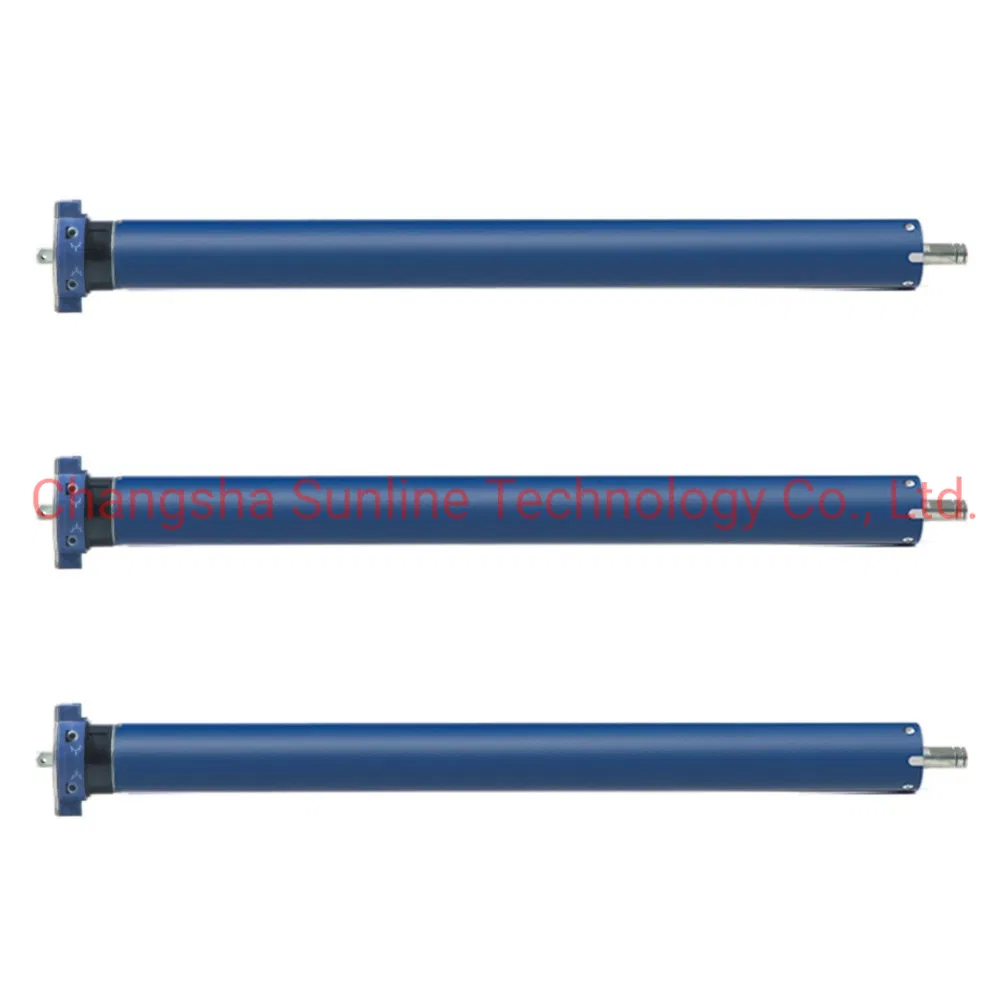

45mm Standard Tubular Motor

Electric Tubular Motor (SM45)

The Electric Tubular Motor features an advanced design integrating electronic, mechanical, and control systems. It is characterized by its compact structure, high torque, sensitive limit switch, and superior accuracy. Ideal for curtains and metal rolling doors with a maximum lift capacity of up to 80kg.

Key Advantages

✓
Non-malfunction Brake: Utilizes double-sided magnetism and cone magnetism electromagnetism brake systems for perfect performance.
✓
Plastic Sealed Technology: Ensures accurate location dimension and low variation, extending service life up to 10 years.
✓
Low Noise: Silent movement design with noise levels less than 38dB, providing a nearly silent operation.
✓
Wear-Resisting Gear: Special high-strength materials increase the durability and toughness of the gear box.
✓
Oil Proof Structure: Sealed design prevents gear oil leakage, ensuring long-term normal operation.
✓
Accurate Limit: Limit accuracy tolerance within <+-0.5 degrees with an effective distance up to 50 circles.
📊 Technical Parameters

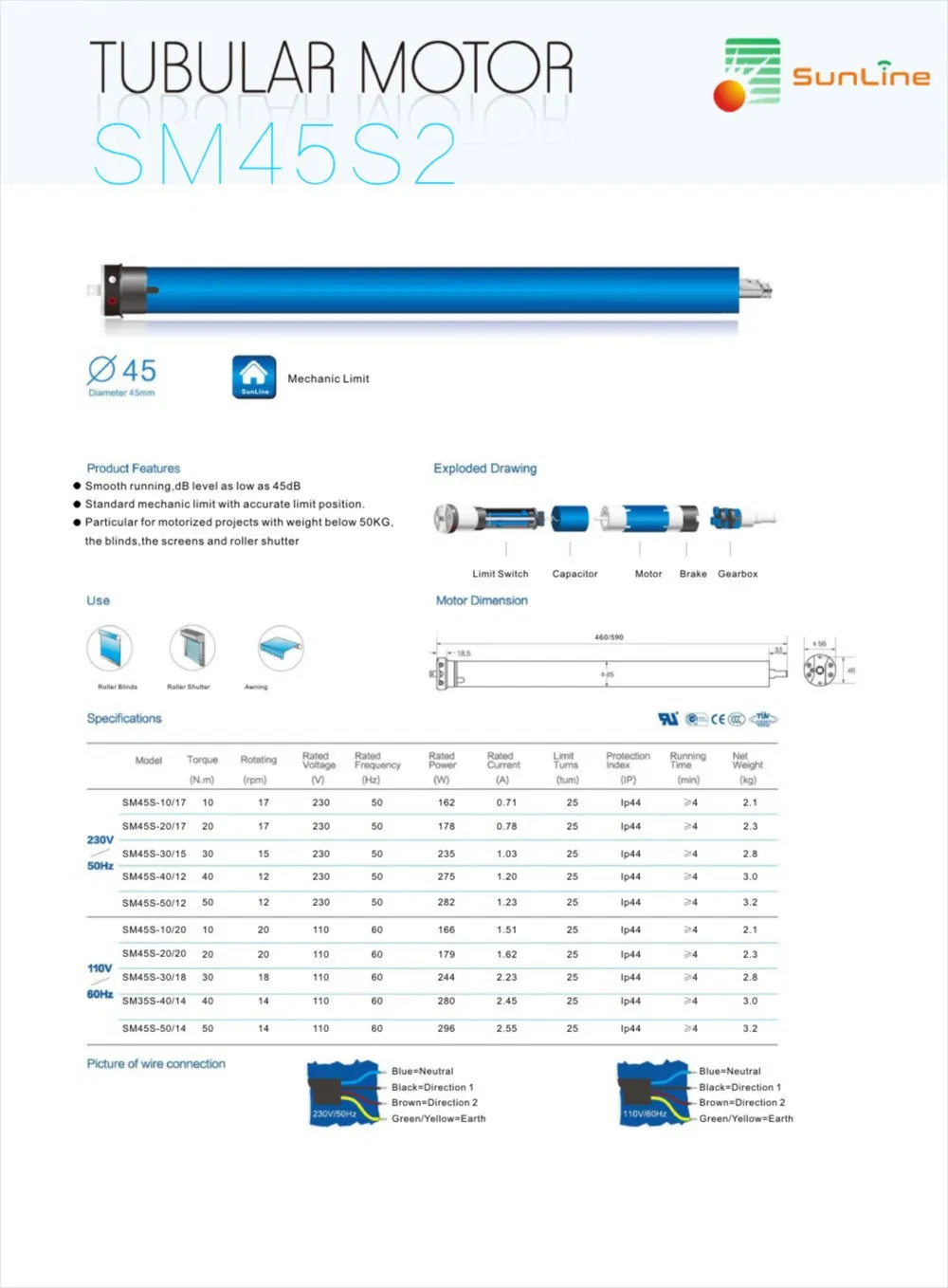

Technical Parameters 1

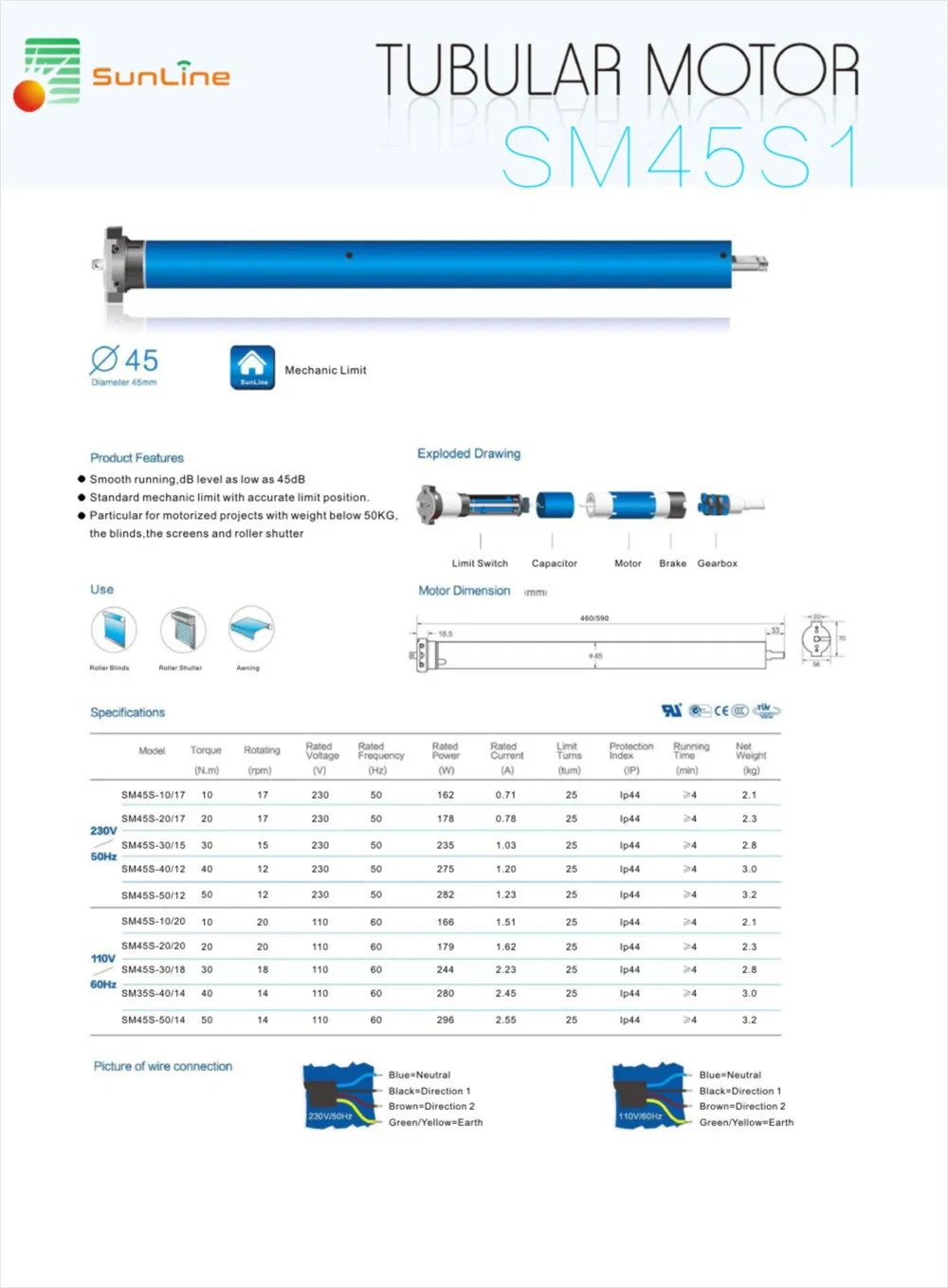

Technical Parameters 2
🛠️ Motor Accessories

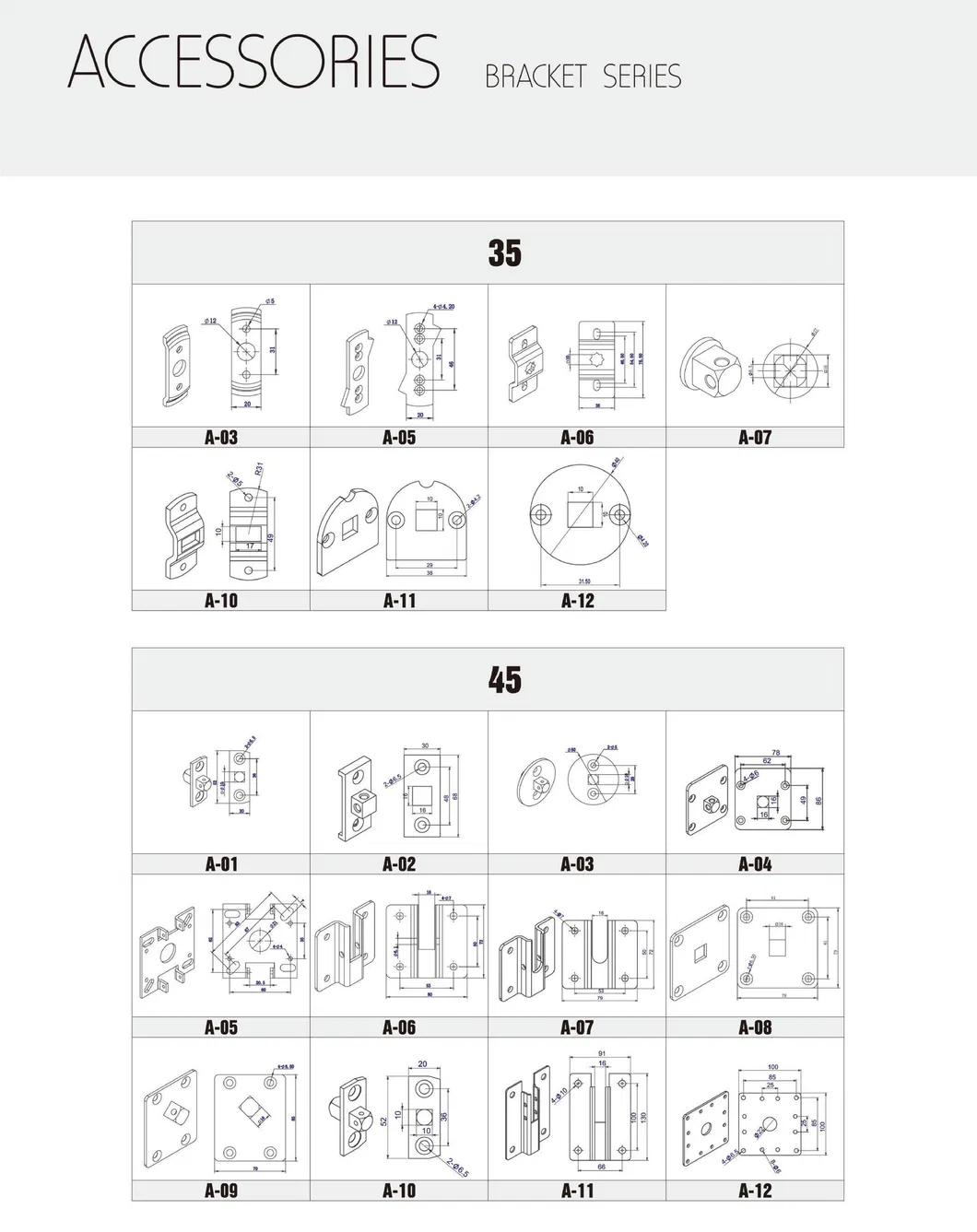

Accessory 1

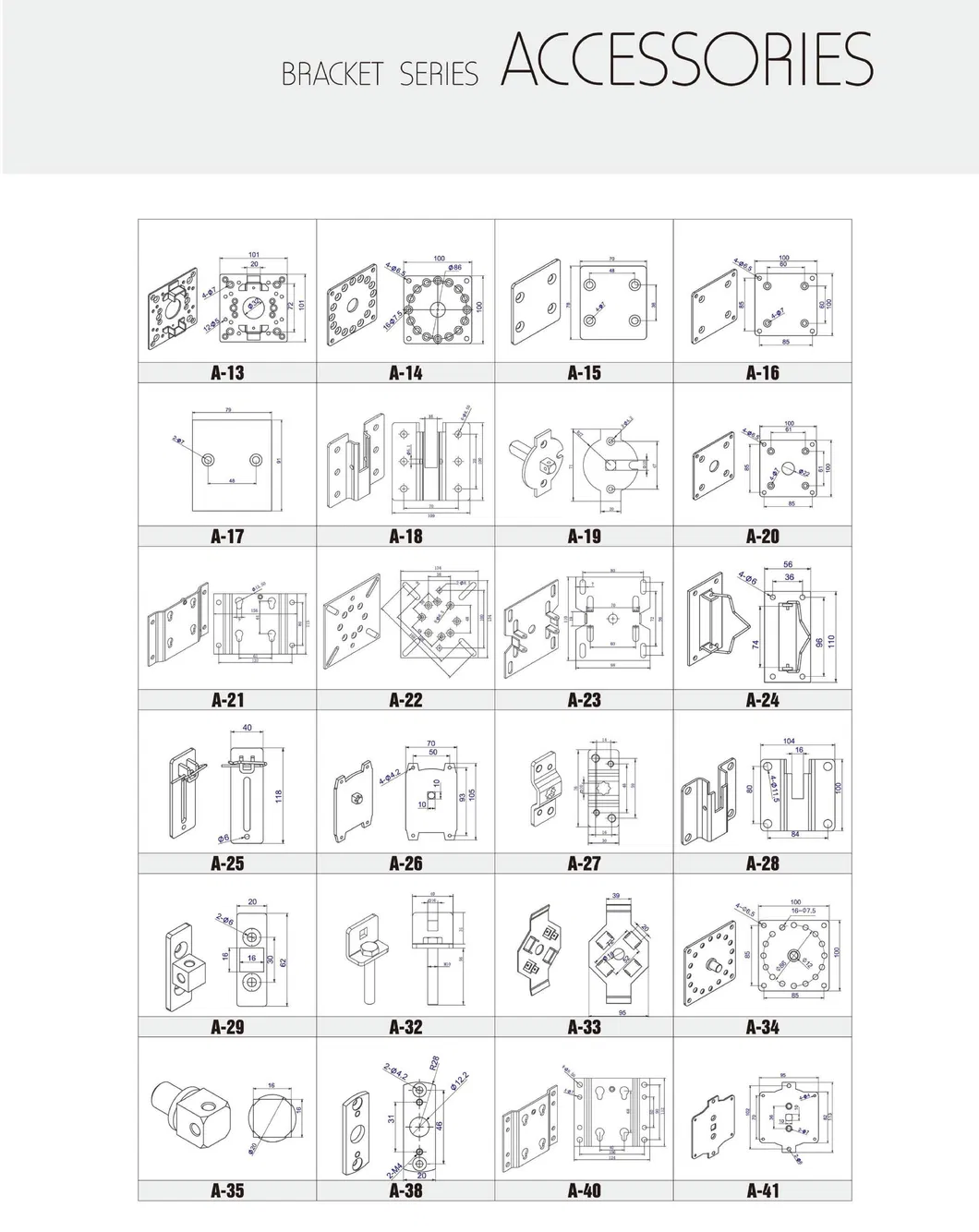

Accessory 2

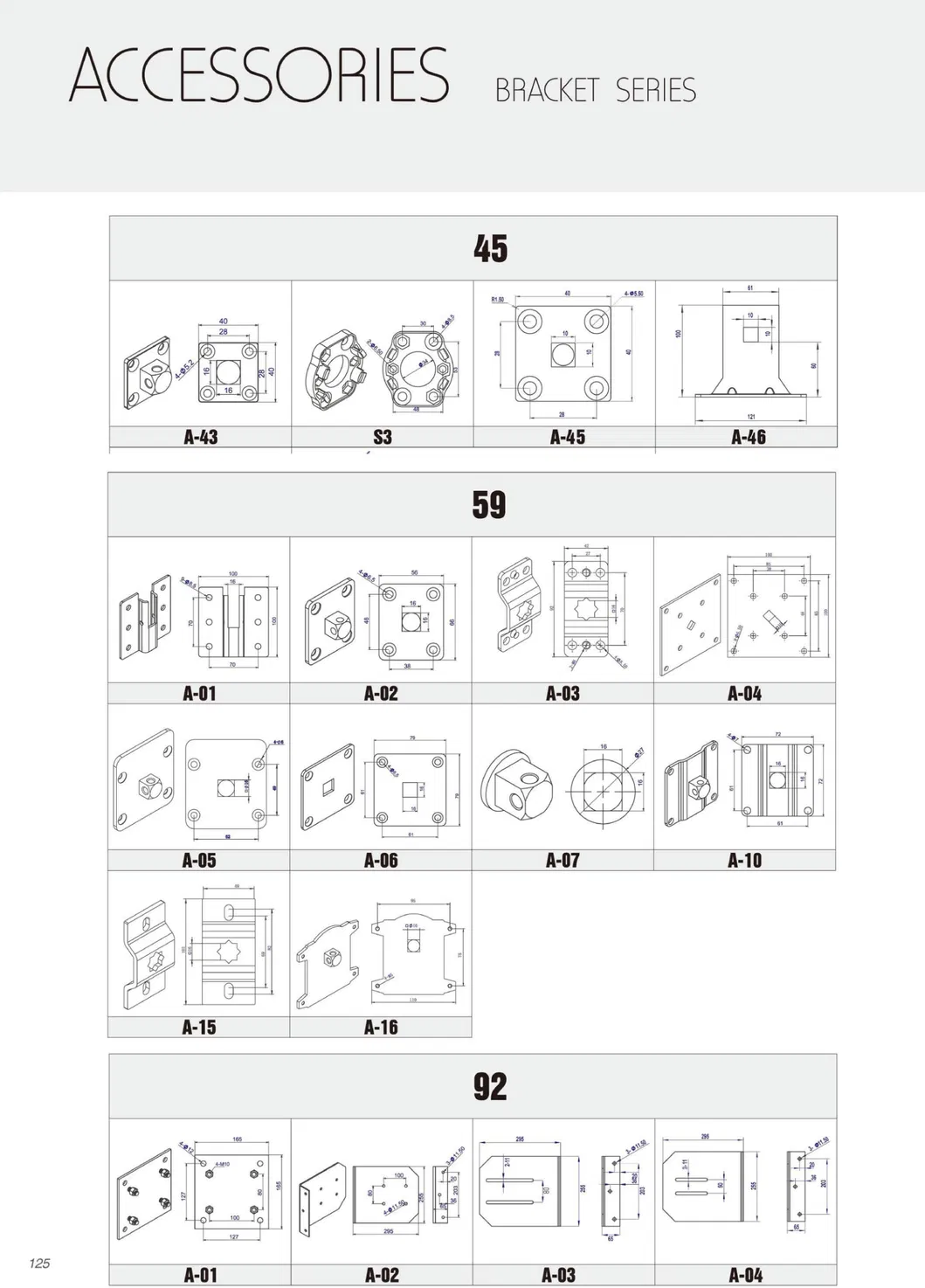

Accessory 3

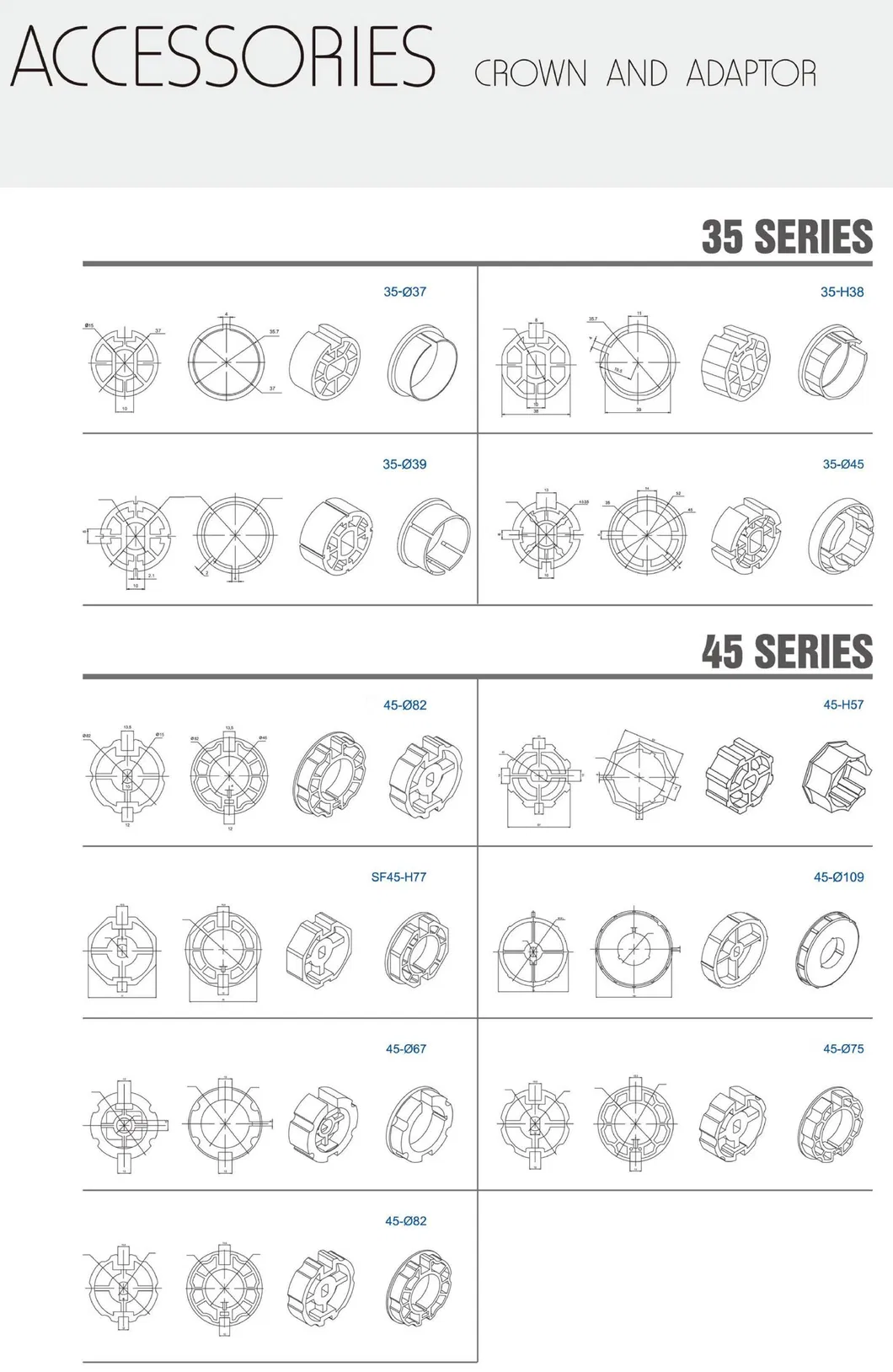

Accessory 4

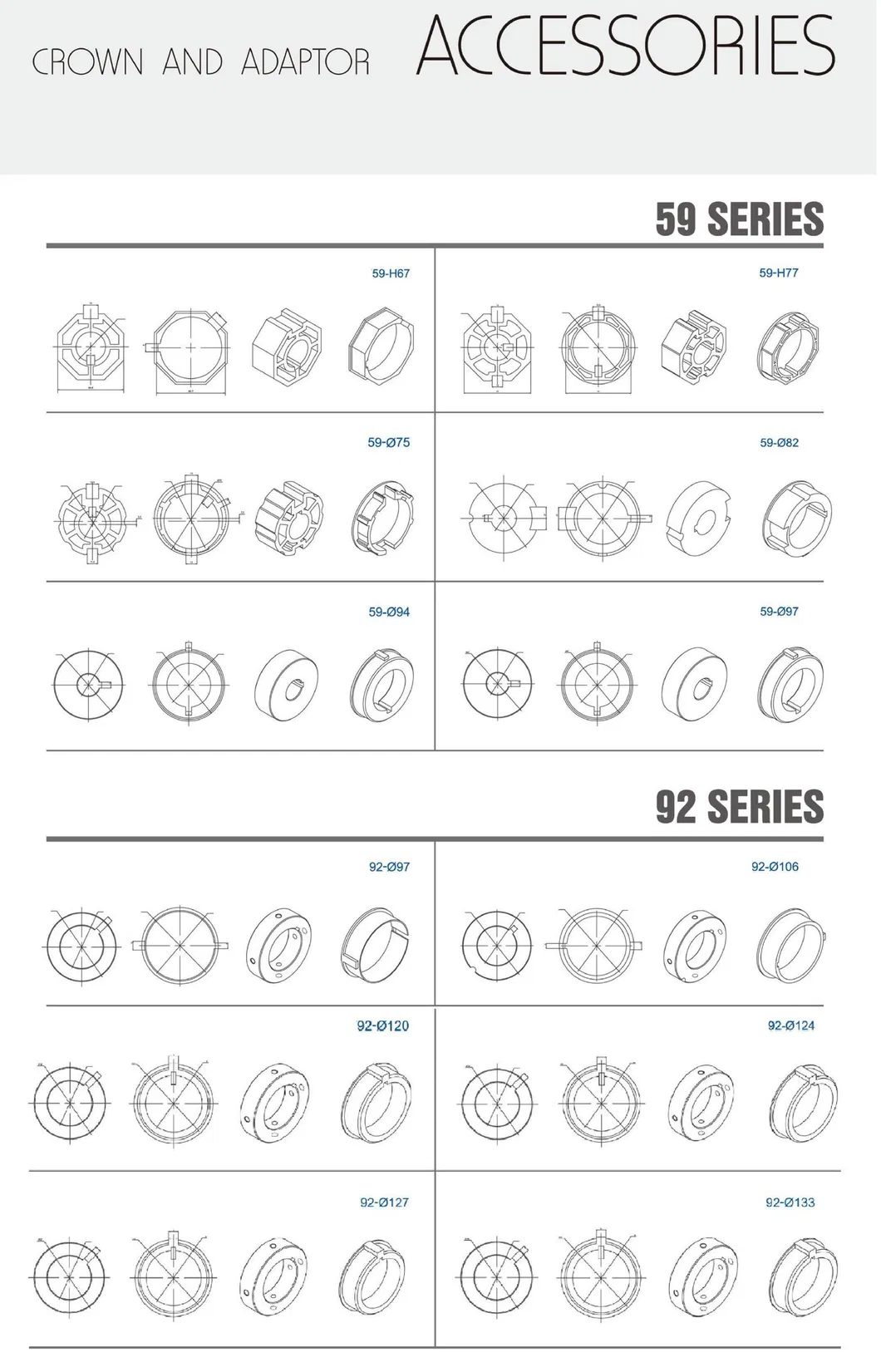

Accessory 5

Frequently Asked Questions

What applications is the SM45S tubular motor suitable for?
It is designed for roller shutter windows, roller blinds, awnings, and metal rolling doors with a maximum lift capacity of less than 80kg.
How noisy is the motor during operation?
The motor is designed for silent operation, with noise levels lower than 38dB, making it nearly silent during movement.
What is the expected lifespan of this tubular motor?
Thanks to the advanced plastic sealed technology and high-quality components, the service life can reach up to 10 years.
Does the motor support different voltages?
Yes, the motor is available in both AC120V and AC230V working voltages to meet different regional requirements.
How accurate is the limit switch system?
The mechanic limit system is highly accurate, with a tolerance of less than +-0.5 degrees.
Is the motor protected against oil leaks?
Yes, the motor features a sealed oil-proof structure that prevents gear oil from leaking, ensuring long-term reliability of the gear box.
