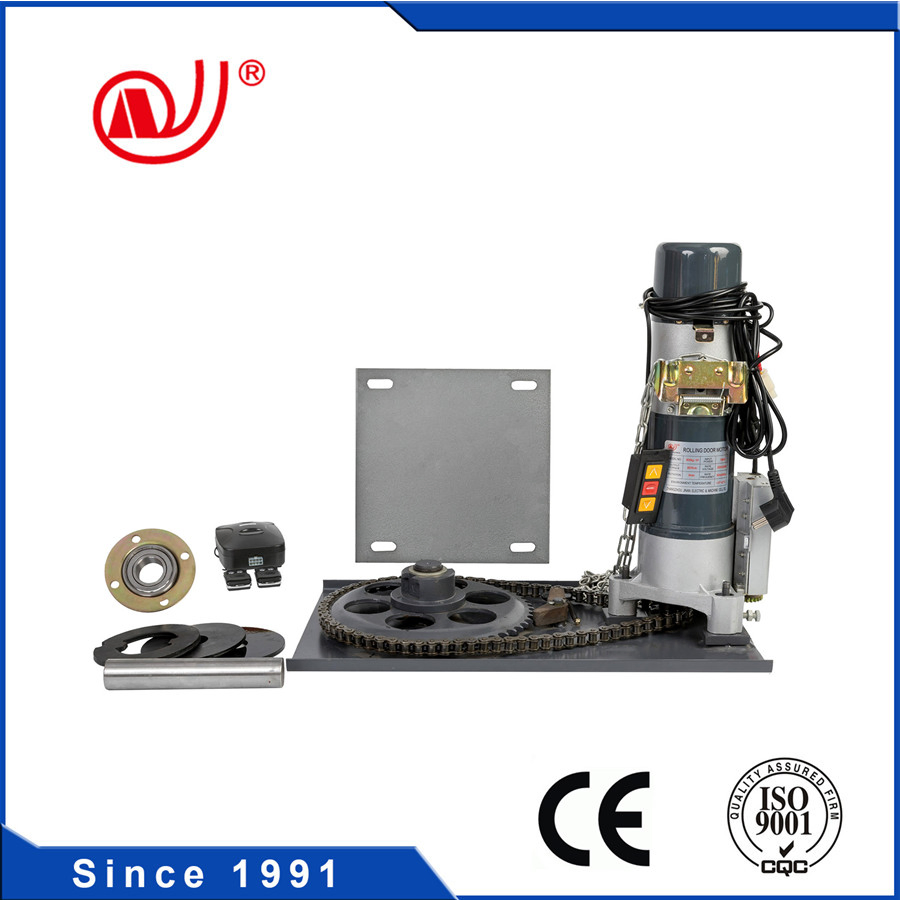

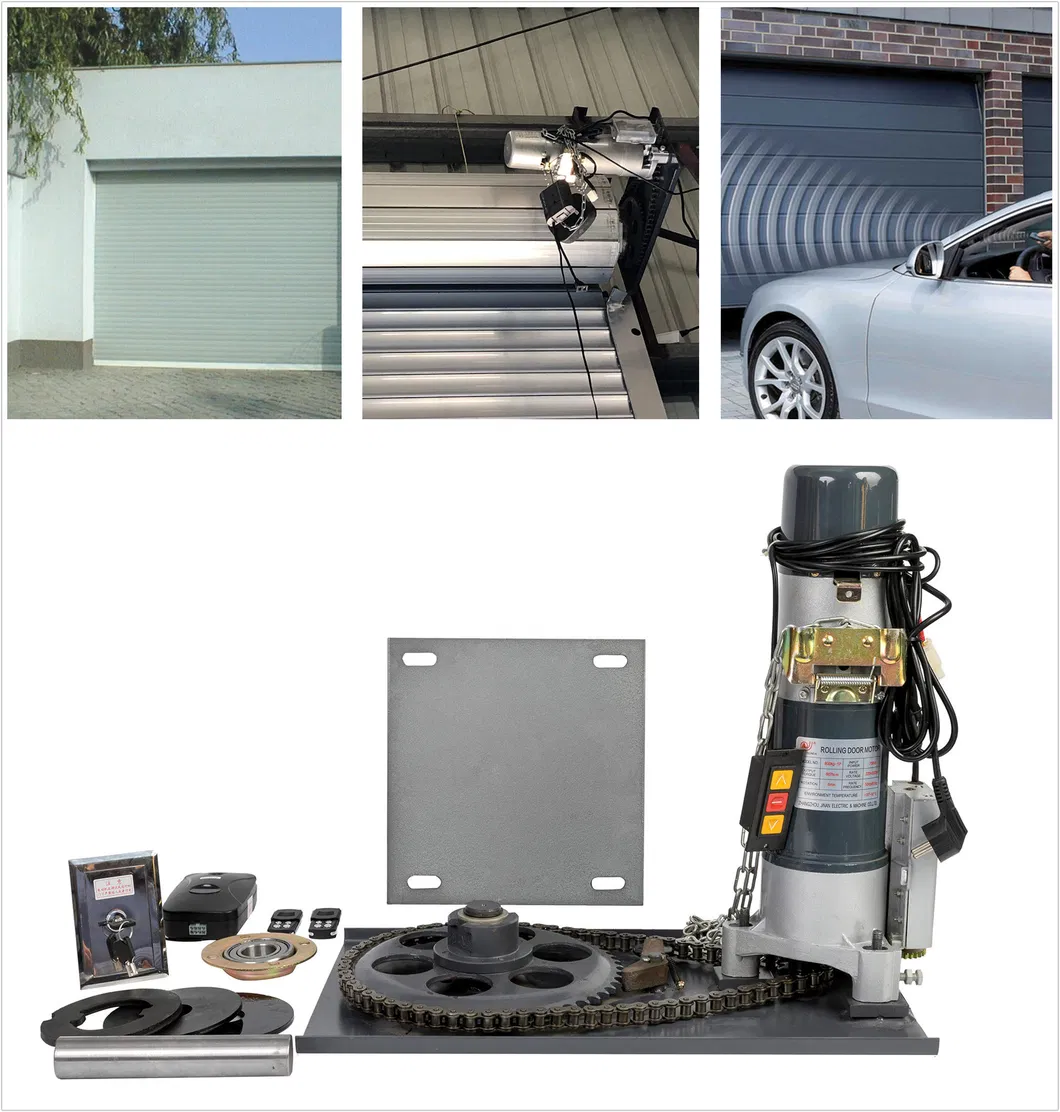

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing with electric and manual function.
Key Features
Shell: Aluminum alloy, solid and light but durable and easy to install.
Gearbox: High-quality alloy steel and special technical treatment to guarantee big lifting power.
Brake structure: Special device mechanical brakes, power cut off in an instant the brakes, to ensure absolute safety brake.
Transmission System:High accuracy, smooth running and low noise.
Technical Parameters
Model No.
Max Lifting Weight (kg)
Max Lifting Height (m)
Rated Input Power (W)
Output Torque (N.m)
Big Reel Sprocket Rotation (r/min)
Chain No.
220V / 50HZ Single Phase
AC300KG-1P
300
6.5
450
168
6.2
10A
AC500KG-1P
500
6.5
450
343
6.2
10A
AC600KG-1P
600
6.5
680
412
6.2
10A
AC800KG-1P
800
7
700
607
4.2
10A
AC1000KG-1P
1000
7
700
1102
3.5
12A
380V / 50HZ Three Phase
AC1000KG-3P
1000
8
400
1102
6.5
12A
AC1300KG-3P
1300
8
600
1372
6.5
12A
AC1500KG-3P
1500
8
600
1610
5.7
12A
AC2000KG-3P
2000
8
700
2200
5.7
12A

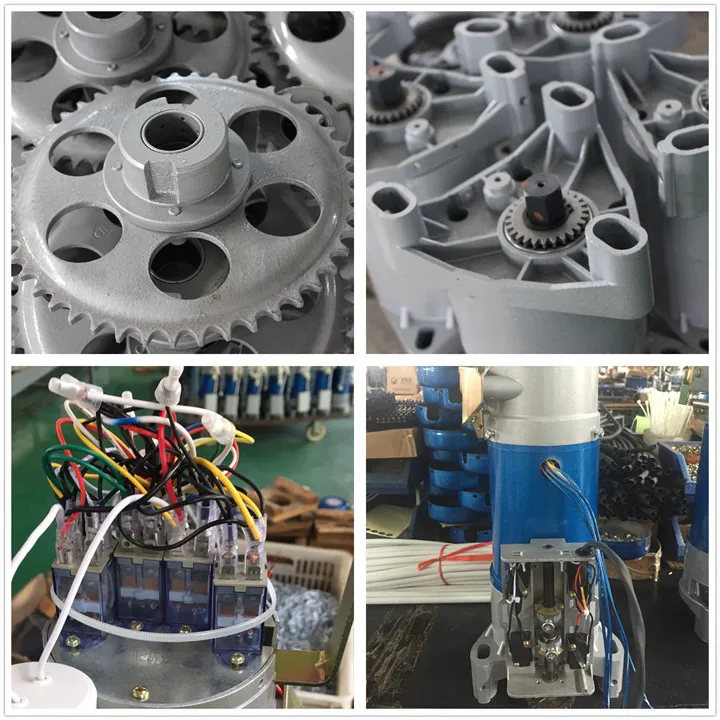

Structural Features
4 relays to make motors work more stable and big lifting power.
100% copper wiring makes Motors with larger capacity, stable current and durable character. Aluminum wiring in different price options is also available.
4 Micro switches in limit utensil for correct control, easy operation and big control range.
An anti-dropping device in bracket board to prevent accidental injury and ensure safety.
Motors can be customized based on your requirements.

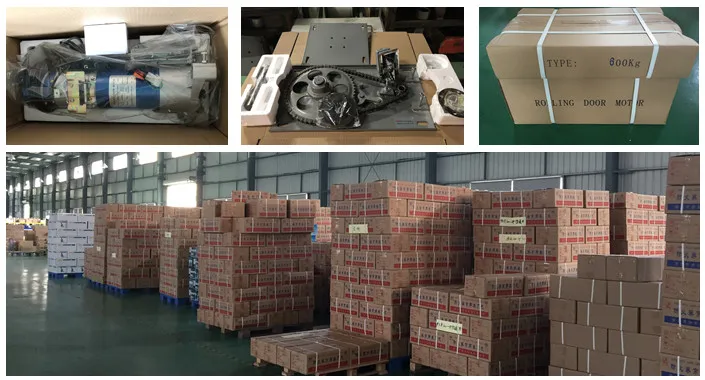

Packing & Delivery
Packing: One set in two cartons, plastic bag inside, carton outside. (The outside cartons can be customized according to customers' requirements, like printing logos or words on it, or according to your own design to print it.)
Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motor. If DC motors, 480-520 PCS is available.
Delivery time: We will deliver the goods in 10-45 days after we receive your deposit, which is subject to your exact quantity and requirements.

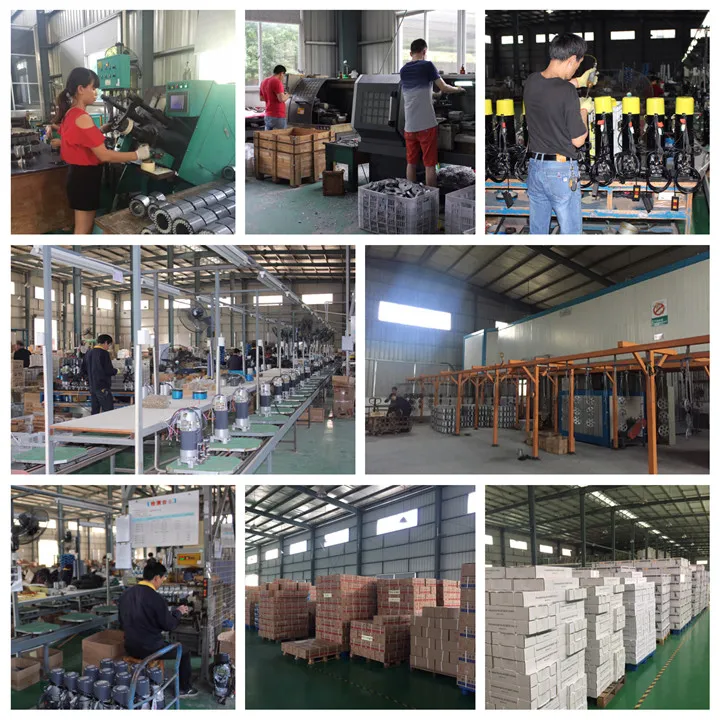

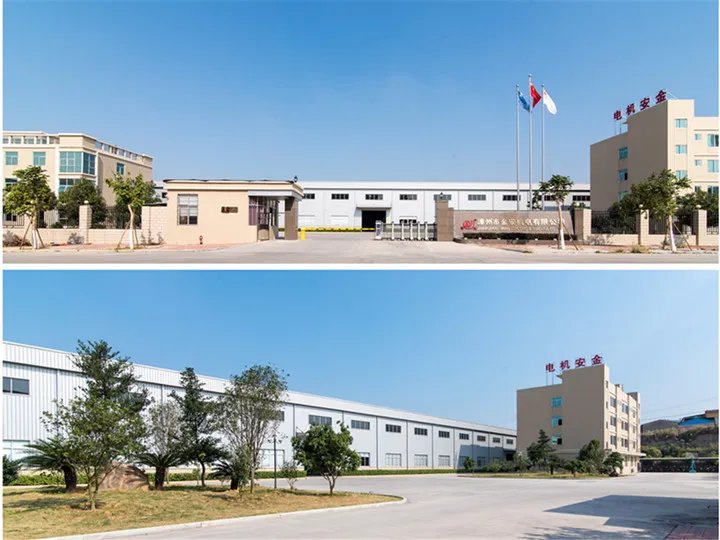

Factory & Production Overview
As a leading professional manufacturer specializing in developing and producing all kinds of rolling door motors for more than 20 years, all our products are CE and ISO9001 approved. We introduce advanced technologies and insist on strict quality control to ensure every motor delivers an elegant design, stable quality, massive power, quiet operation, easy installation, and an exceptionally long service life.
Our products are popular across international markets, including South Africa, Dubai, Iran, India, Malaysia, Myanmar, Thailand, Brazil, and other regions globally. We consistently pursue quality, permanent, and continuous service to satisfy our customers from different countries.
Global Exhibitions
Certificates & Quality Approvals
All of our motors are CE and ISO9001 certificated, verifying high manufacturing standards, reliable performance, and rigorous quality inspection.
Related Products Series
We have various model specifications to match your custom load demands:
1. What applications are these rolling shutter motors suitable for?
Our rolling shutter motors are highly versatile and ideal for commercial, industrial, and residential usage. They are widely applied in shopping malls, warehouses, garages, theaters, hotels, banks, and factories to automate the opening and closing of rolling doors with both electric and manual functions.
2. Can I get a customized rolling door motor?
Yes. All of our motors can be customized based on your specific requirements. We offer support for different configurations (such as standard AC motors or DC motors), motor casing options, customized bracket boards, and customizable carton packaging designs including branding and logos.
3. What safety features do these rolling door motors have?
Safety is our top priority. Our motors are equipped with dedicated mechanical brake devices that cut off the power in an instant to ensure absolute braking. Additionally, our bracket boards feature an integrated anti-dropping safety mechanism to prevent accidental drops or injuries.
4. What is the difference between 100% copper wiring and aluminum wiring?
We offer 100% copper wiring as a standard for optimal performance, which guarantees a larger capacity, stable electrical current, and high durability. For clients requiring different price ranges, we also offer alternative options such as budget-friendly aluminum wiring.
5. What is the typical delivery time and loading capacity for orders?
Our typical delivery timeframe is between 10 to 45 days after receiving your deposit, depending on the exact order volume and customization specifications. For shipping capacity, a standard 20 GP container can accommodate approximately 520 to 550 units of AC motors, or 480 to 520 units of DC motors.
6. What certifications do your rolling door motors hold?
Our complete line of rolling door motors is strictly certified with CE, ISO9001, and CCC safety and quality standards, ensuring full compliance with international engineering and distribution requirements.
