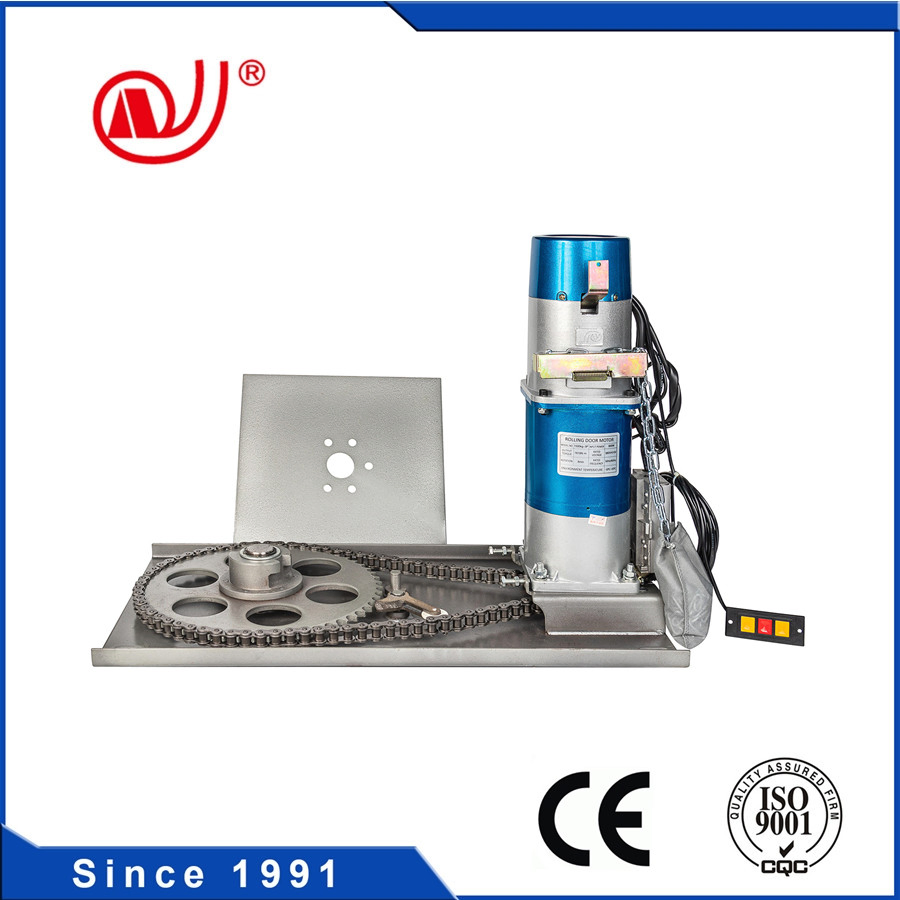

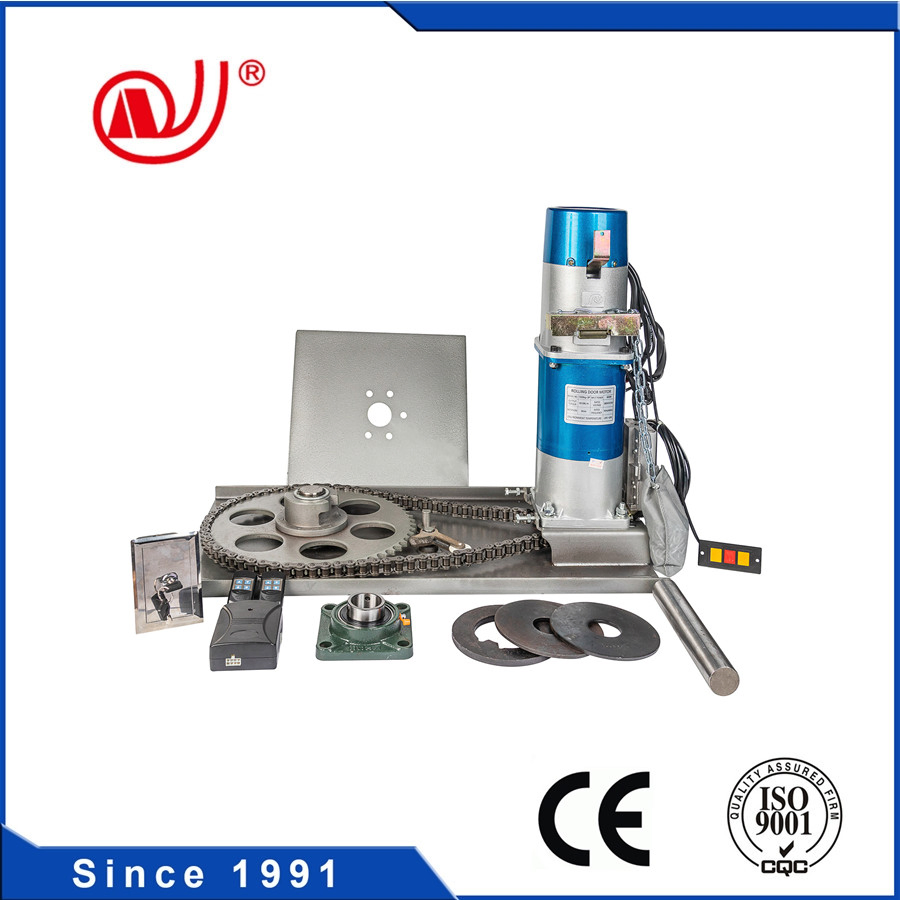

Torsion Motor
1 / 5

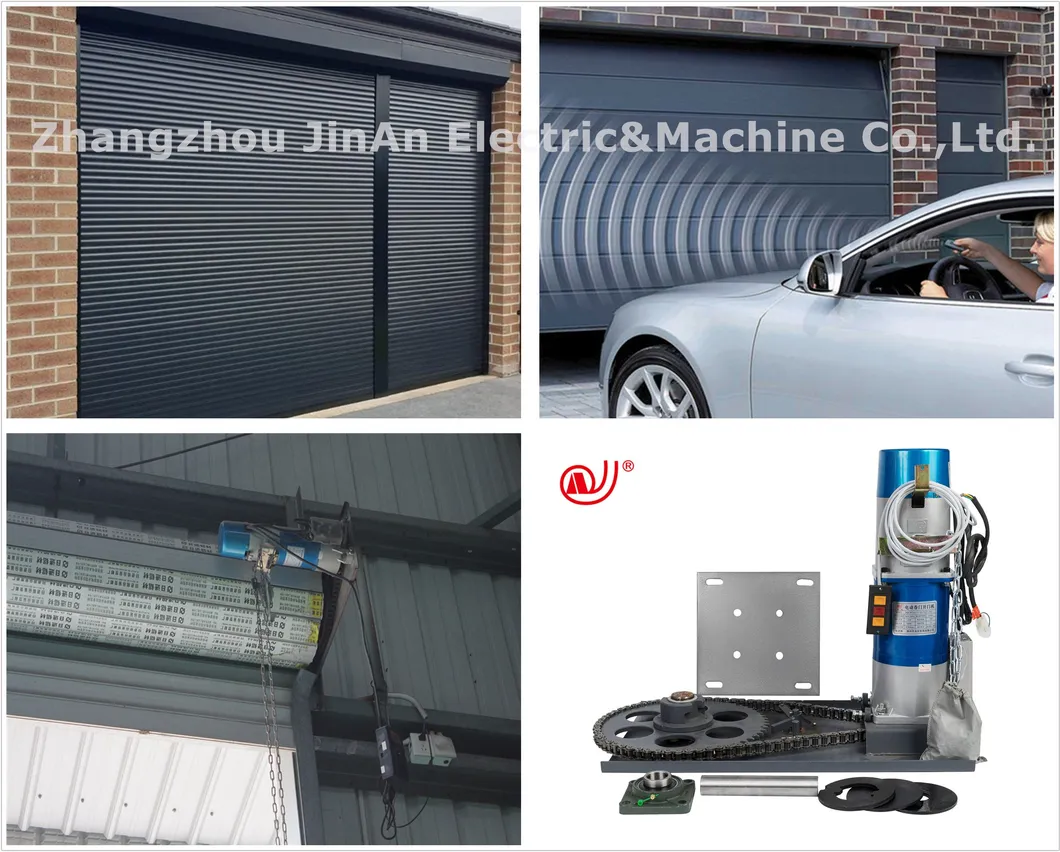

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing, with electric and manual function.
| Model No. | Max Lifting Weight (kg) | Max Lifting Height (m) | Rated Input Power (W) | Output Torque (N.m) | Big Reel Sprocket Rotation (r/min) | Chain No. |
|---|---|---|---|---|---|---|
| 220V / 230V | 50HZ / 60HZ | ||||||
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7 | 700 | 1102 | 3.5 | 12A |
| 380V / 415V | 50HZ / 60HZ | ||||||
| AC1300KG-3P | 1300 | 8 | 600 | 1372 | 6.5 | 12A |
| AC1500KG-3P | 1500 | 8 | 600 | 1610 | 5.7 | 12A |
| AC2000KG-3P | 2000 | 8 | 800 | 2200 | 5.7 | 12A |
| DC Motors (24V) | ||||||
| 300KG-DC24V | 300 | 6.5 | 200 | 168 | 4.7 | 10A |
| 500KG-DC24V | 500 | 6.5 | 250 | 343 | 4.7 | 10A |
| 600KG-DC24V | 600 | 6.5 | 280 | 412 | 4.7 | 10A |
We offer wide range profiles including AC Motors (300kg to 2000kg) and DC Motors (300kg, 500kg, 600kg).
We are a dedicated manufacturer specializing in developing and producing high-grade rolling door motors for more than 20 years. Holding CE and ISO9001:2015 approvals, we integrate advanced technological designs to produce compact, high-efficiency motors characterized by quiet running, easy installation, and durable operation lifecycle. Our exports are widely welcome globally across South Africa, Dubai, Iran, India, Brazil, and Southeast Asia countries.
All our industrial motors are fully compliant with ISO9001 and CE credentials.

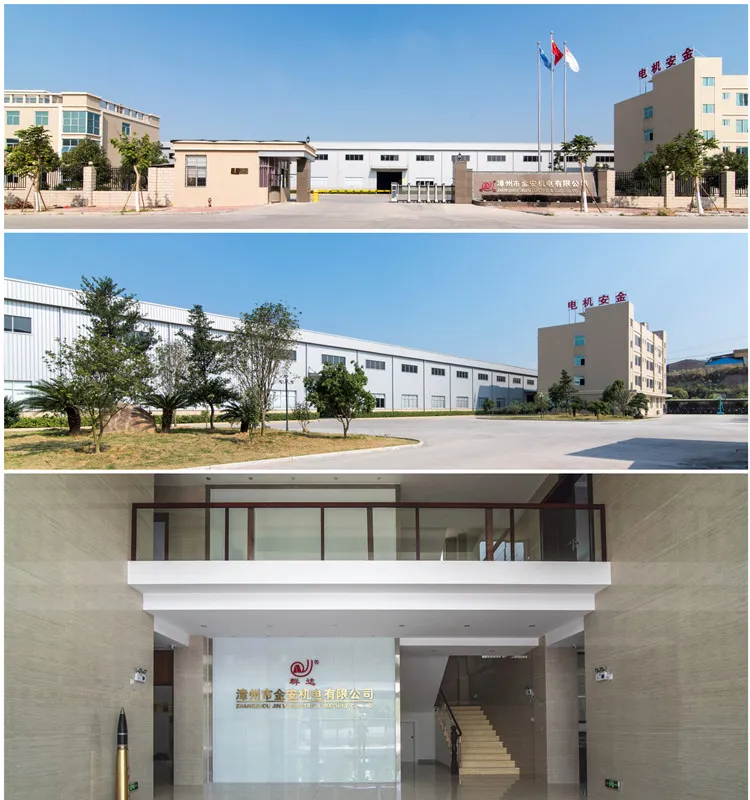

Yes, we are a professional manufacturer of high-quality rolling door motors with our own modern, well-equipped production facility.
Normally, if materials are in stock, it takes 7-10 days. For custom configurations or non-stock batches, the standard timeframe ranges from 15 to 35 days depending on the volume requested.
Yes, we offer fully comprehensive OEM options. Please feel free to reach out with your exact customization demands so we can coordinate tailored configurations and samples.
Our standard configurations use 100% premium copper wire. For specific cost-efficient options, aluminum wire variants are available upon request for our AC motor configurations.
We accept secure company bank transfers. For initial testing sample requests, we require 100% T/T in advance. For standard volume orders, the terms are 30% T/T deposit payment upfront, with the remaining 70% balanced due before shipping dispatch.

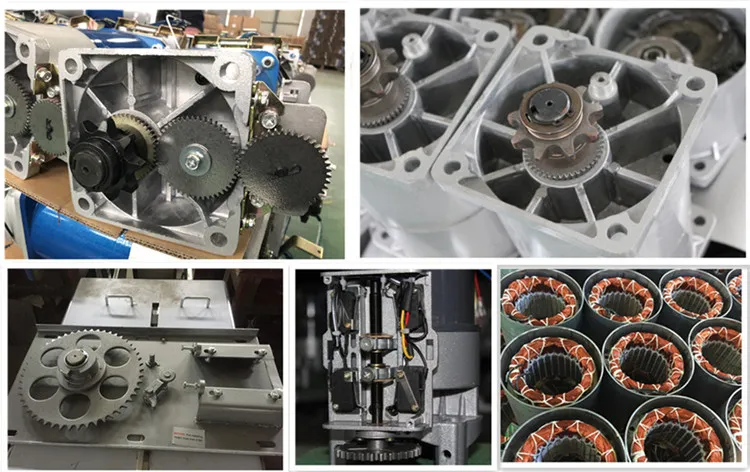

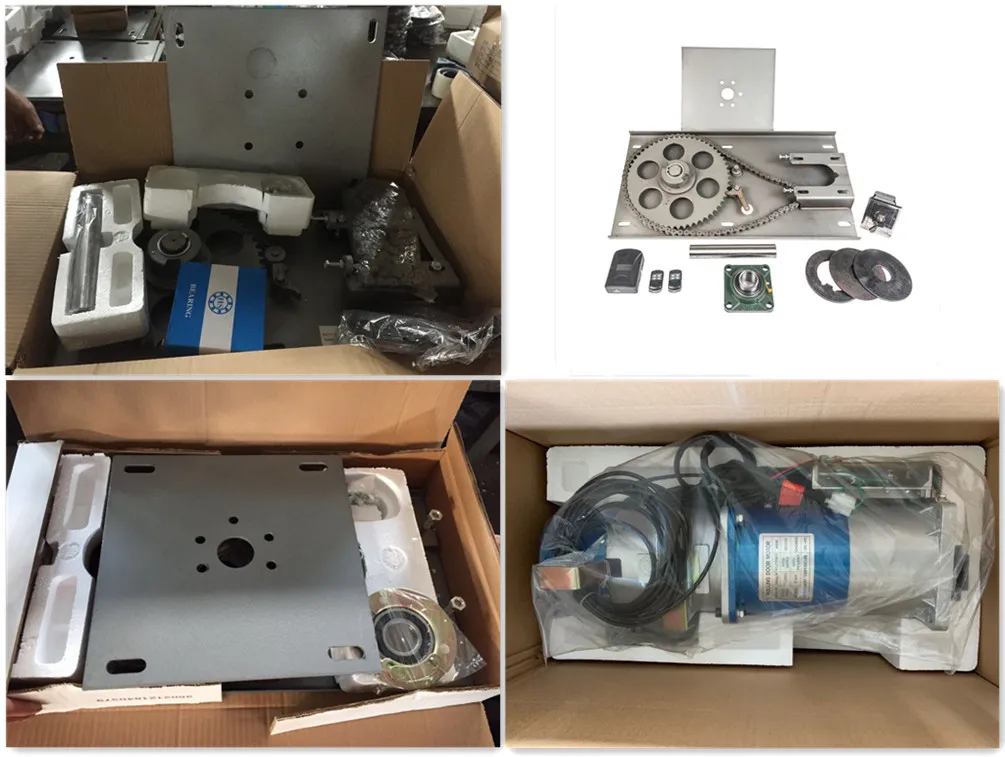

We carry out strict Quality Control via dedicated engineering support, highly stable material sourcing, and thorough individual testing checks. Every motor unit undergoes rigid operating tests before being packed into boxes to guarantee zero failures at customer destinations.
Thank you for your valuable time.
We sincerely welcome your detailed product inquiries. If you have any remaining questions or want further specifications, please feel free to drop us a message.
