Basic Info.

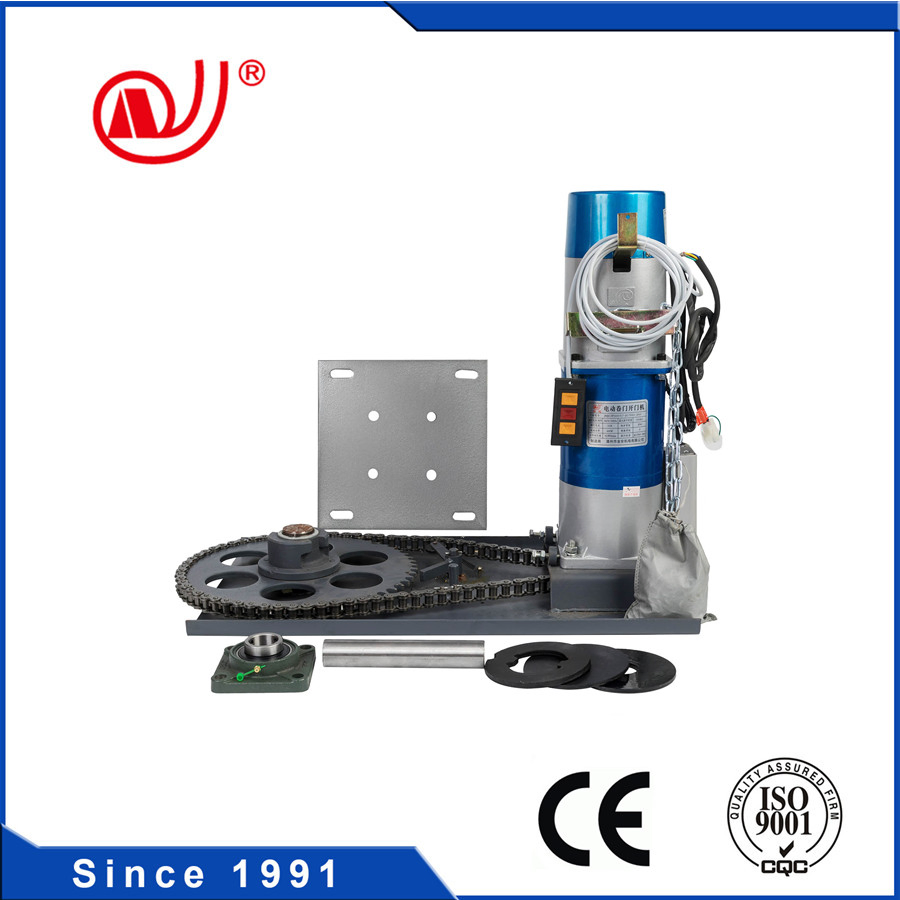

Model NO.AC1300KG-3P
FunctionDriving, Control
Starting Modewith Remote Control
CertificationISO9001, CCC, CE
FeatureEasy Operation
AdvantageLow Noise
Motor Winding100%Copper Wire
ShellAluminum Alloy
UsageControl Rolling Door up and Down
Open StyleAutomatic/ Manual
ColorBlue, Gray, Black, etc
LogoAcceptable
Transport PackageOne Set in Two Cartons
Specification1300kg
TrademarkQUNDA/OEM
Product Description

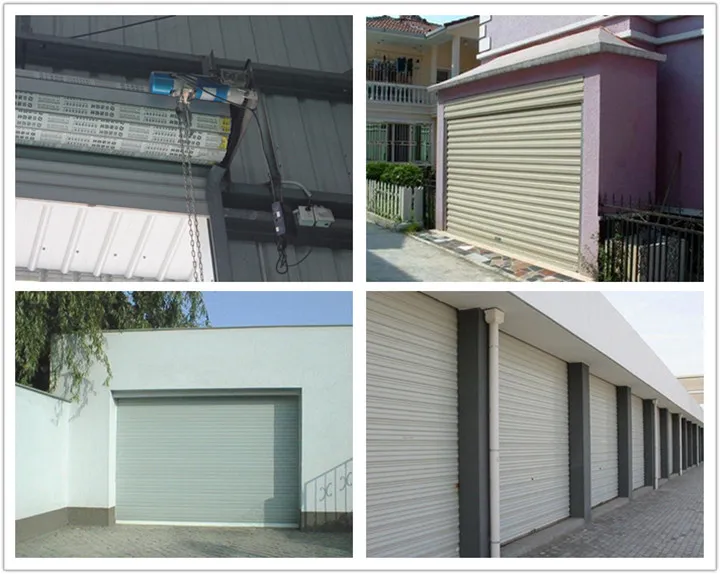

Application Area:
Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing, with electric and manual function.
Working Environment & Conditions
- 1Working Area: Indoor or similar places
- 2Environment Temperature: -20ºC ~ 50ºC
- 3Relative Humidity: ≤90%
- 4Voltage of Power: Fixed voltage × (1 ±10%)V
- 5Frequency of Power: 50Hz ±2Hz
- 6No strong electromagnetic interference source, explosive medium, corroding metal medium around.
- 7Short working hour system, continuous operation should not over 6 minutes.
Feature
- Shell: Aluminium alloy, solid and light but durable and easy to install.
- Low noise: low energy consumption, small vibration.
- Limit System: Correct control, easy operation, and big control range.
- Anti-dropping device: Preventing accidental injury and ensure safety.

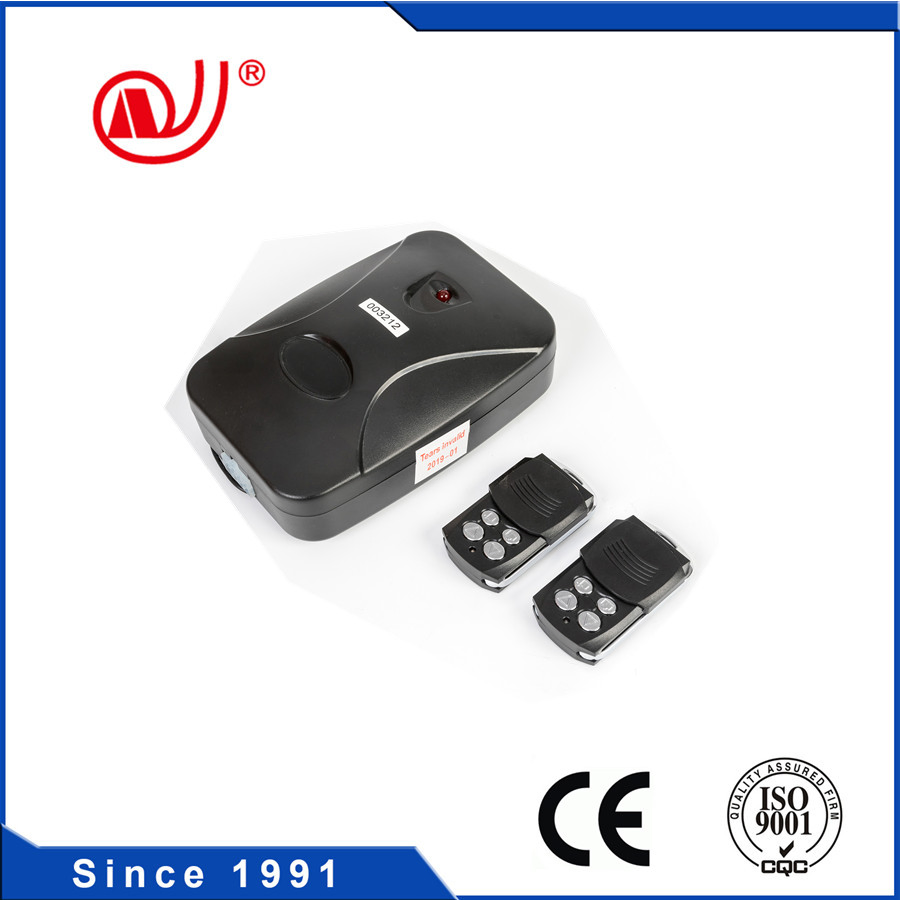

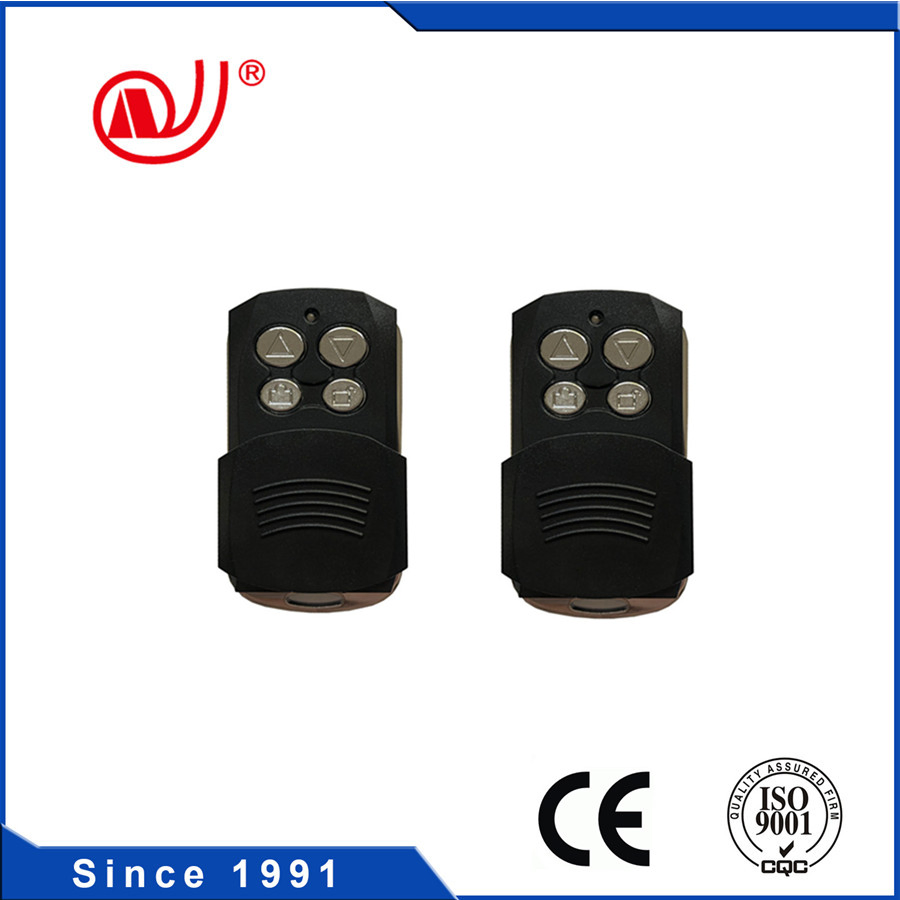

- Transmitters: It outfits with remote control.
Technical Parameter
| Model No. |
Max lifting weight (kg) |
Max lifting height (m) |
Rated Input Power (W) |
Output Torque (N.m) |
Big reel sprocket Rotation (r/min) |
Chain No. |
| 220V / 230V 50HZ / 60HZ |
| AC300KG-1P |
300 |
6.5 |
450 |
168 |
6.2 |
10A |
| AC500KG-1P |
500 |
6.5 |
450 |
343 |
6.2 |
10A |
| AC600KG-1P |
600 |
6.5 |
680 |
412 |
6.2 |
10A |
| AC800KG-1P |
800 |
7 |
700 |
607 |
4.2 |
10A |
| AC1000KG-1P |
1000 |
7 |
700 |
1102 |
3.5 |
12A |
| 380V / 415V 50HZ / 60HZ |
| AC1000KG-3P |
1000 |
8 |
400 |
1102 |
6.5 |
12A |
| AC1300KG-3P |
1300 |
8 |
600 |
1372 |
6.5 |
12A |
| AC1500KG-3P |
1500 |
8 |
600 |
1610 |
5.7 |
12A |
| AC2000KG-3P |
2000 |
8 |
800 |
2200 |
5.7 |
12A |
| DC Motors |
| 300KG-DC24V |
300 |
6.5 |
200 |
168 |
4.7 |
10A |
| 500KG-DC24V |
500 |
6.5 |
250 |
343 |
4.7 |
10A |
| 600KG-DC24V |
600 |
6.5 |
280 |
412 |
4.7 |
10A |

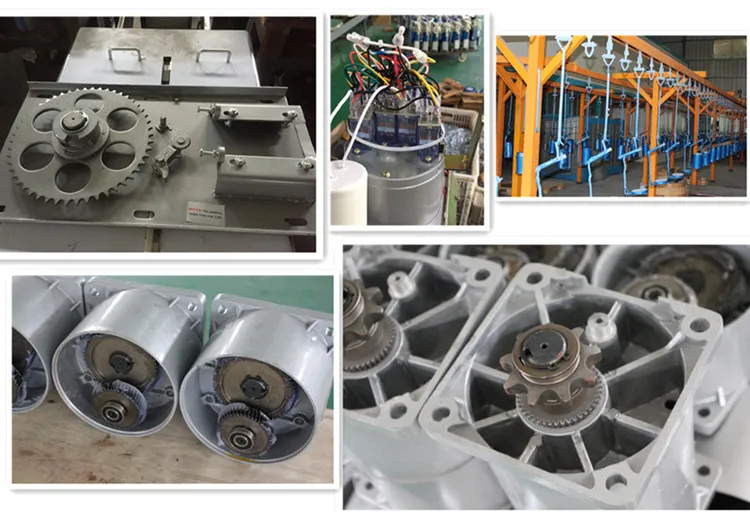

Detailed Images
- 14 relays to make motors work more stable and big lifting power.
- 2100% copper wire with large capacity, stable current, and big power. (aluminum wire for option.)
- 34 Micro Switches in limit utensil for correct control, easy operation, and big control range.
- 4An anti-dropping device in bracket board to prevent accidental injury and ensure safety.
- 5Gear: High-quality alloy steel and special technical treatment to guarantee the strong hoist.

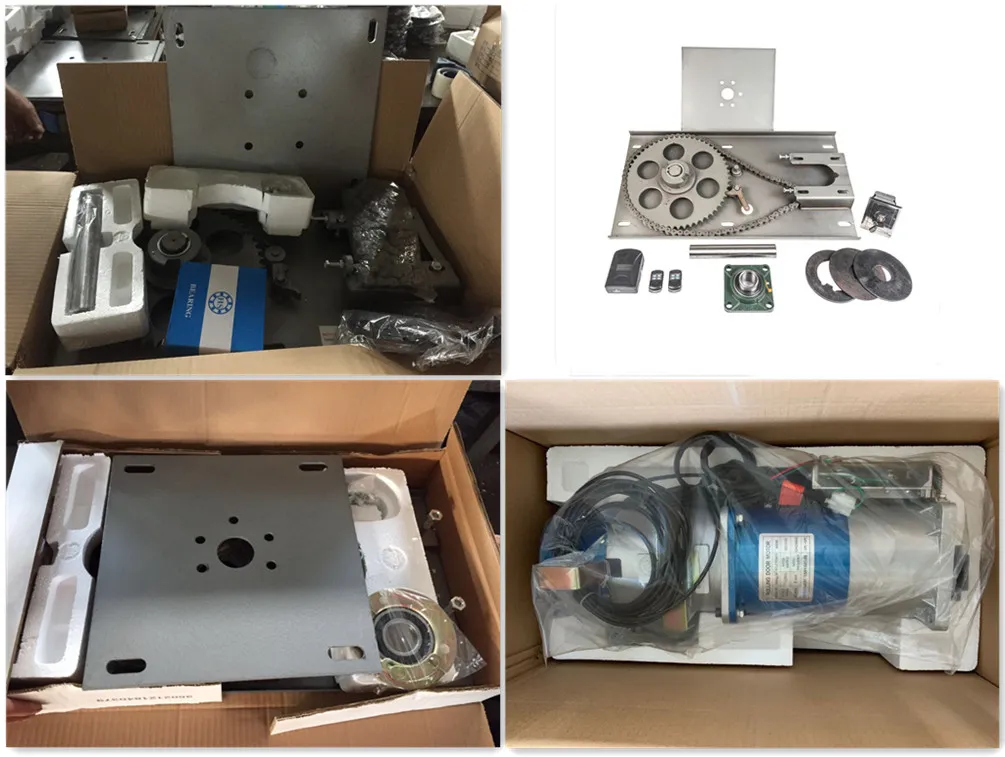

Packing & Delivery
- Packing: One set in two cartons, plastic bag inside, carton outside. (The outside cartons can be customized according to customers' requirements, like printing logo or words on it or according to your own design to print it.)
- Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motor, if DC motors, 480-520PCS is available.
- Delivery time: We will deliver the goods in 10-45 days after we receive your deposit, which according to your exact quantity and requirements~

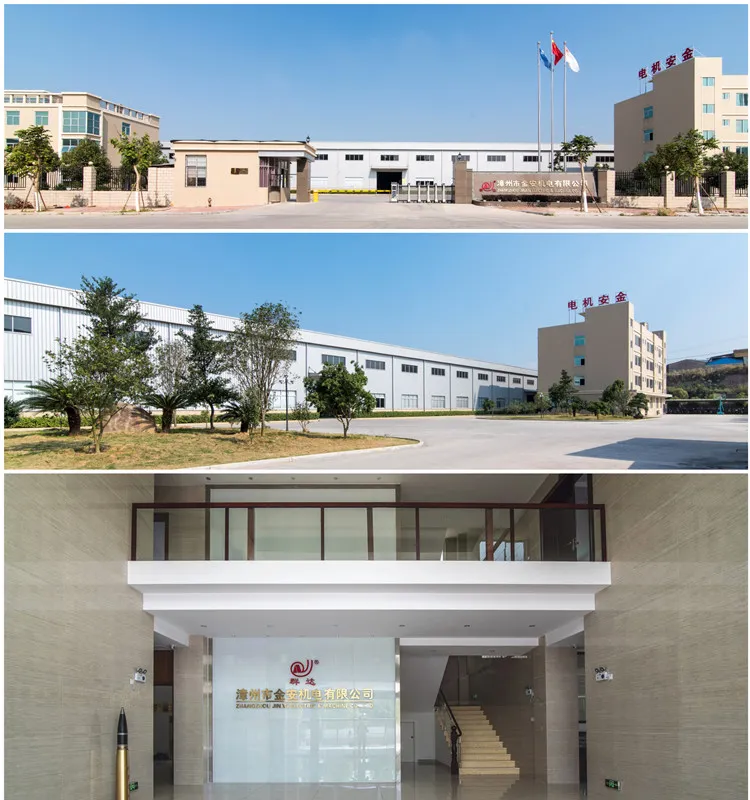

About Us
We are a professional manufacturer who has been specializing in developing and producing all kinds of rolling door motors more than 20 years with CE, ISO9001:2015 approved. We introduce technology from USA and insist on strict quality control to ensure all motors with elegant design, stable quality, big power, quiet running, easy installation, and long life. Our motors are popular with our customers from South Africa, Dubai, Iran, India, Malaysia, Myanmar, Thailand, Brazil, etc. We consistently insist on our motto "Pursuing quality, permanent and continuous service" to satisfy our customers from different countries.
Certificates
Exhibition
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer of rolling door motors with our own production facilities.
How about the delivery time?
Normally, if the goods are in stock it takes 7-10 days. If the goods are not in stock, it will take 15-35 days depending on the customer's quantity and requirements.
Can you do OEM for me?
Yes, OEM is acceptable. Please contact us with your detailed requirements, and we will provide reasonable pricing and samples as soon as possible.
What's the material of your Motor Winding?
The primary winding material is 100% Copper Wire. Aluminum wire is also available as an option for AC motors.
May I know the minimum Order Quantity?
Any order quantity is welcome. Sample orders are fully supported for quality testing and verification.
What are your terms of payment?
We accept bank transfers. For samples, 100% T/T in advance is required. For bulk orders, 30% T/T in advance is required, with the remaining 70% balance payable before delivery.
