Torsion Motor
1 / 5

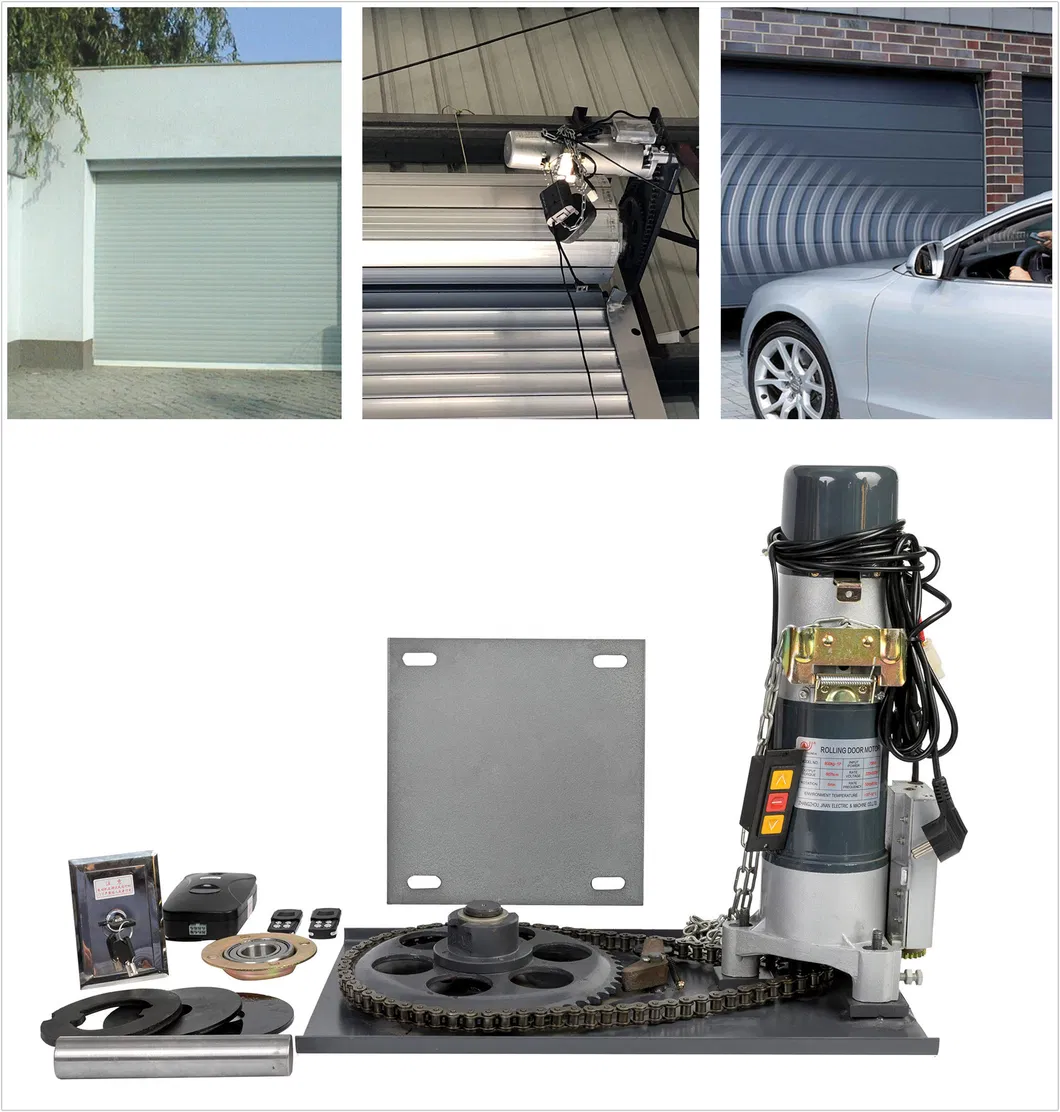

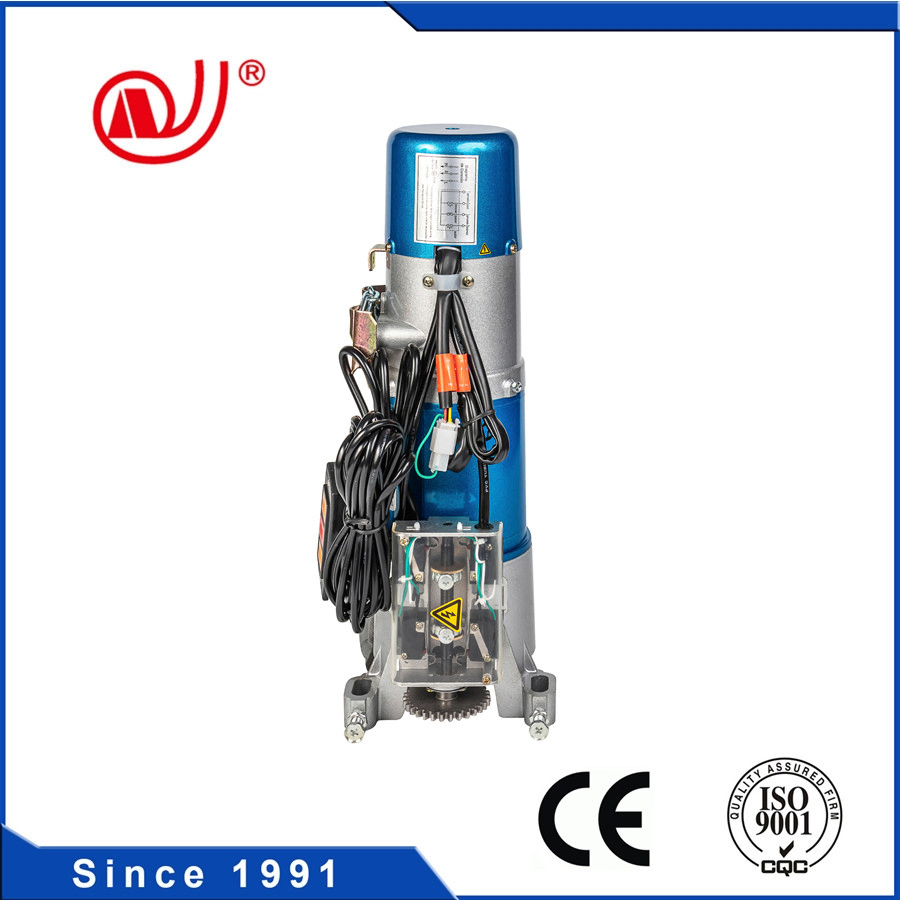

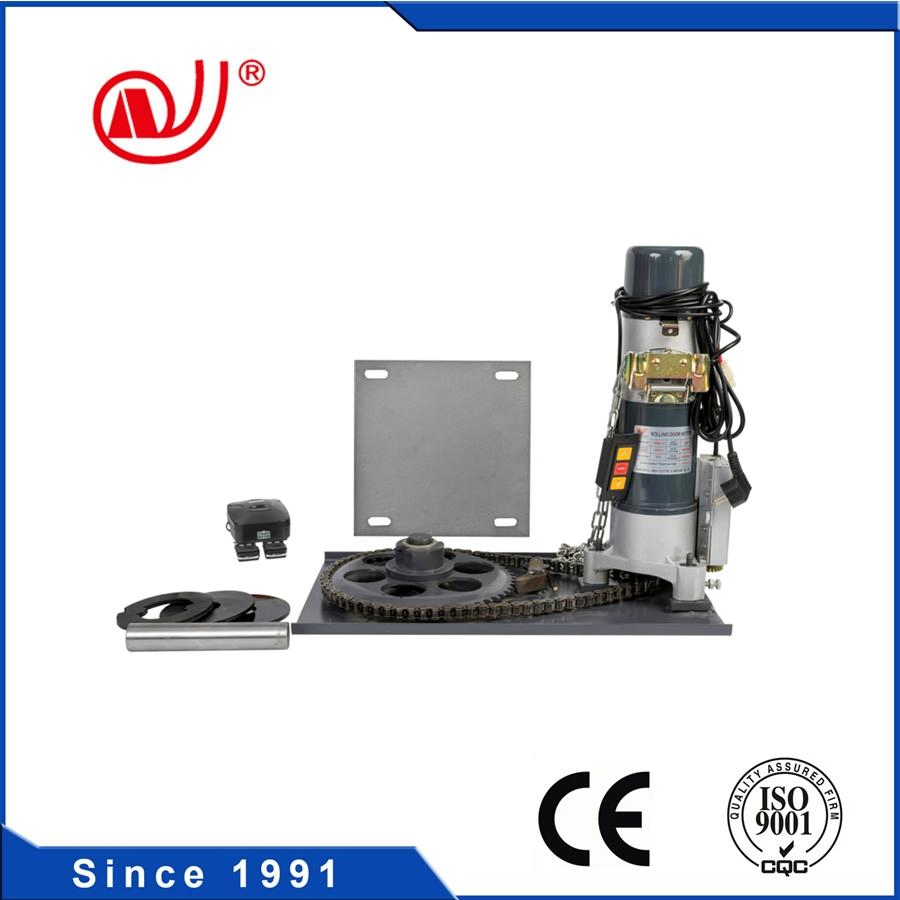

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories, and other buildings' rolling shutter doors' opening and closing with electric and manual functions.
| Model No. | Max Lifting Weight (kg) | Max Lifting Height (m) | Rated Input Power (W) | Output Torque (N.m) | Sprocket Rotation (r/min) | Chain No. |
|---|---|---|---|---|---|---|
| 220V/50HZ | ||||||
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7 | 700 | 1102 | 3.5 | 12A |
| 380V/50HZ | ||||||
| AC1000KG-3P | 1000 | 8 | 400 | 1102 | 6.5 | 12A |
| AC1300KG-3P | 1300 | 8 | 600 | 1372 | 6.5 | 12A |
| AC1500KG-3P | 1500 | 8 | 600 | 1610 | 5.7 | 12A |
| AC2000KG-3P | 2000 | 8 | 700 | 2200 | 5.7 | 12A |

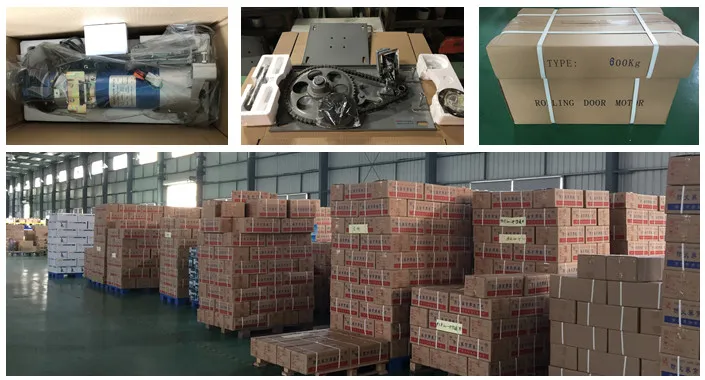

Packing: One set in two cartons, plastic bag inside, carton outside. Cartons can be customized according to requirements.
Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motor.
Delivery time: Goods will be delivered in 10-45 days after receiving the deposit, depending on quantity and requirements.
As a manufacturer specializing in developing and producing all kinds of rolling door motors since 1991, we have gained CE and ISO9001 quality certifications. With advanced production technology and a strong quality-oriented workforce, we ensure 100% full inspection of all products.

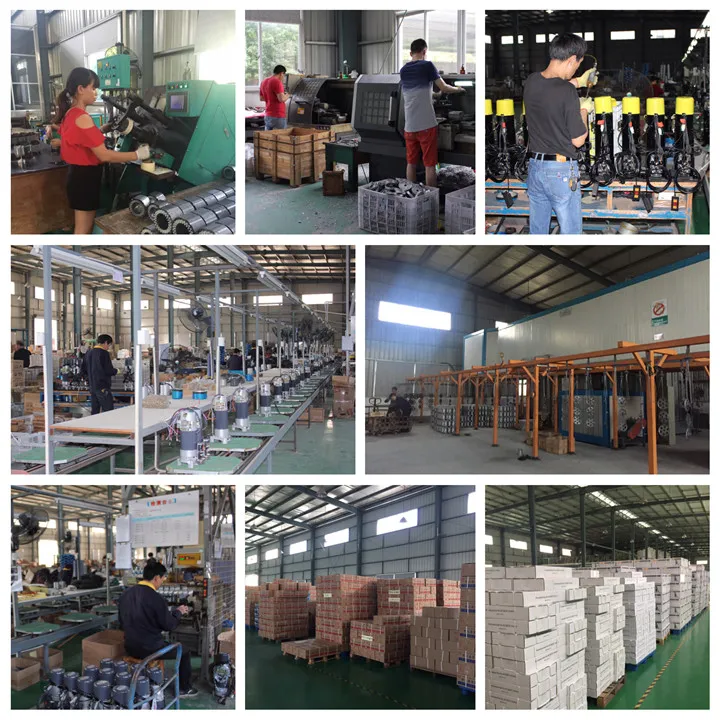

Equipments, Production Line, Automatic Spray-painting Line, Testing Line, and Warehouse.
AC300KG, 500KG, 600KG, 800KG, 1000KG, 1300KG, 1500KG, 2000KG and DC options are available.
