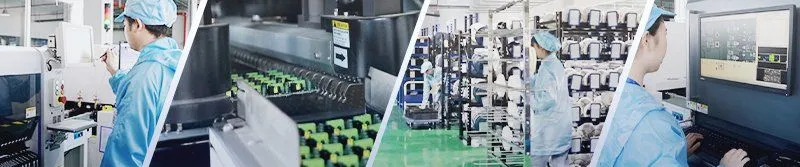

We have 3 SMT lines, 2 DIP lines with capacity for 200,000pcs controllers per year, and 3 Automatic winding machines with capacity of 120,000pcs motors per year.

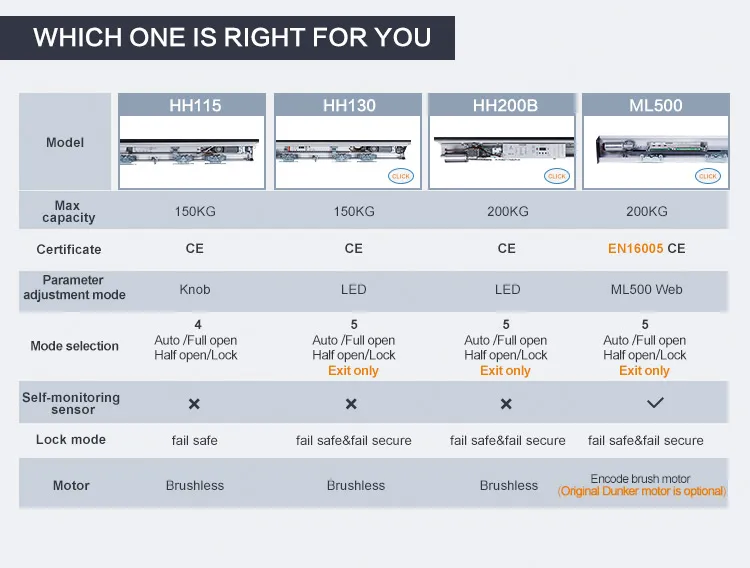

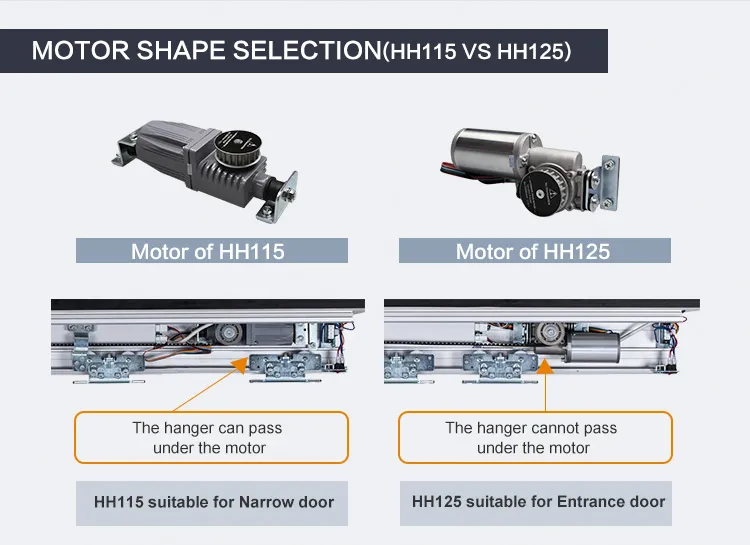

| Specification | HH115 Operators | HH125 Operators | HH130 Operators |
|---|---|---|---|
| Motor Detail | Brushless DC motor: 24V 65W 3200rpm | Brushless DC motor: 24V 55W 2300rpm | Brushless DC motor: 24V 100W 3000rpm |
| Max Door Weight | Single open: 1*150Kg / Double open: 2*140Kg | ||
| Voltage | AC 90-240V, 50Hz-60Hz | ||
| Operating Temp. | -20ºC to +50ºC | ||
| Holding Time | 0-20s (Adjustable) | 0-60s (Adjustable) | |

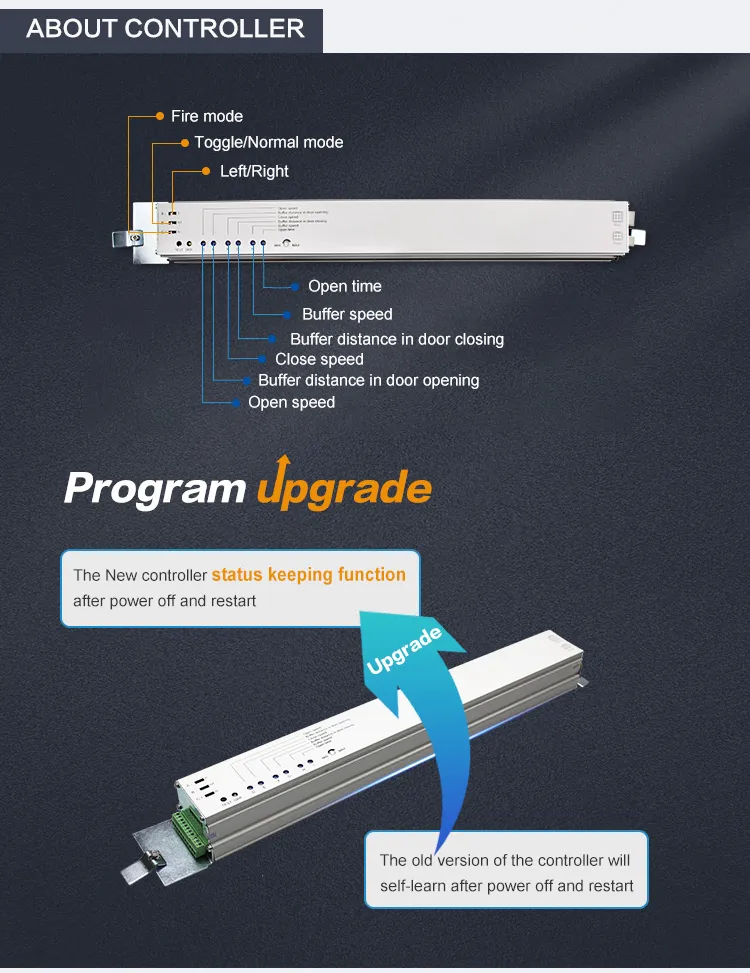

| Adjustment Mode | Knob adjustment | Digital display adjustment | |
| E-stop Function | - | YES | |
| Always Open (Fire) | YES | ||
| Specification | HH150 Operators | DT120 Operators | XC90 Operators |
|---|---|---|---|
| Motor Detail | Brushless DC motor: 24V 55W 2300rpm | Brushless DC motor: 24V 65W 2800rpm | Brushless DC motor: 24V 55W 2300rpm |
| Max Door Weight | Single open: 1*150Kg / Double open: 2*140Kg | ||
| Voltage | AC 90-240V, 50Hz-60Hz | ||
| Operating Temp. | -20ºC to +50ºC | ||
| Holding Time | 0-60s (Adjustable) | ||
| Adjustment Mode | Digital display adjustment | ||
| E-stop Function | YES | ||
| Always Open (Fire) | YES | ||

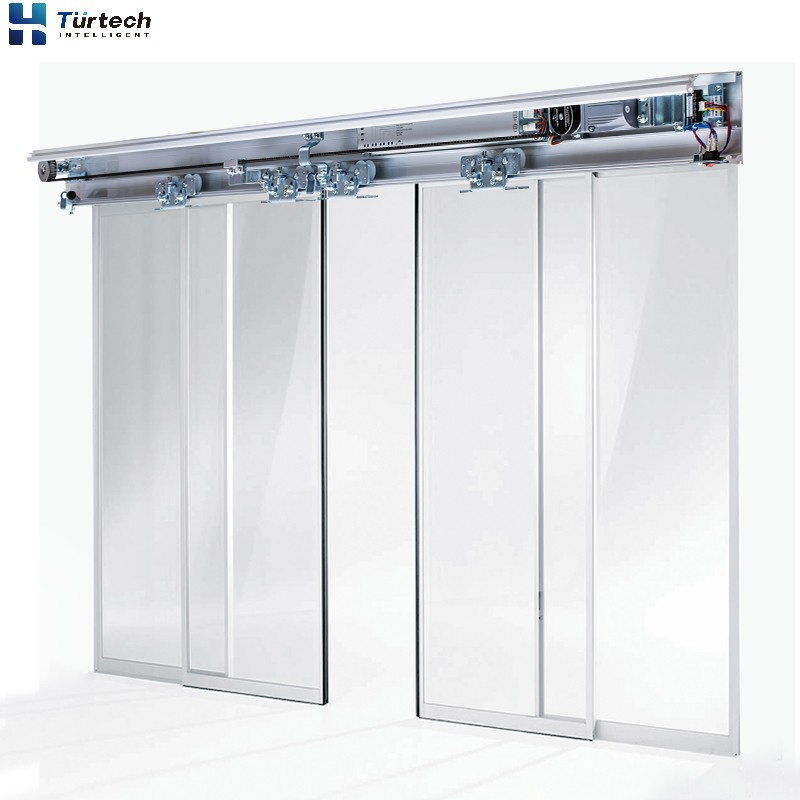

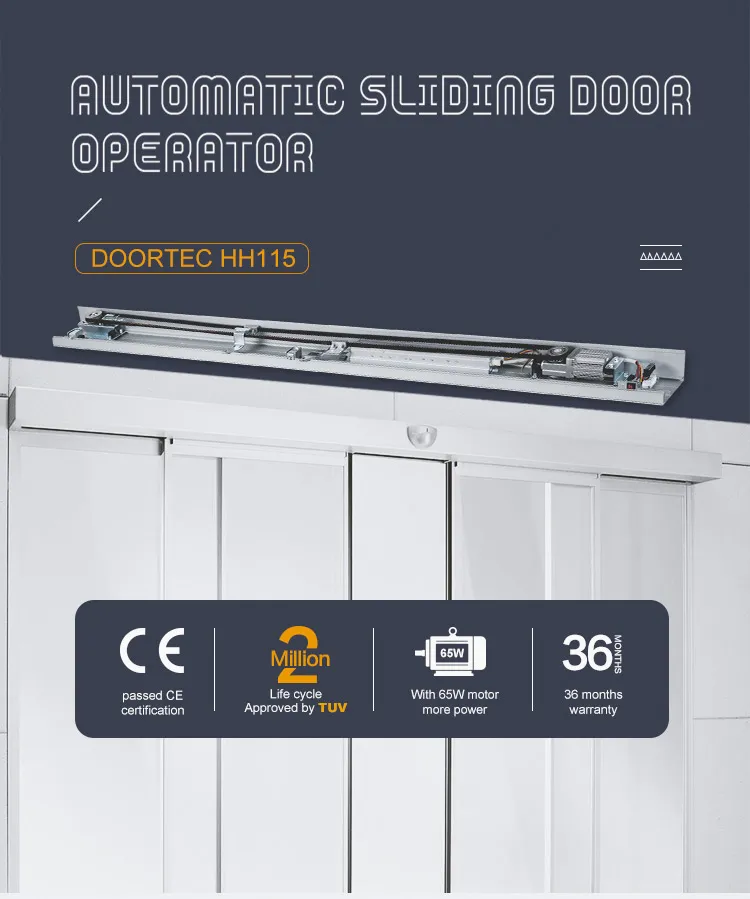

| Specifications | HH115 Automatic Door Operators | ||
|---|---|---|---|

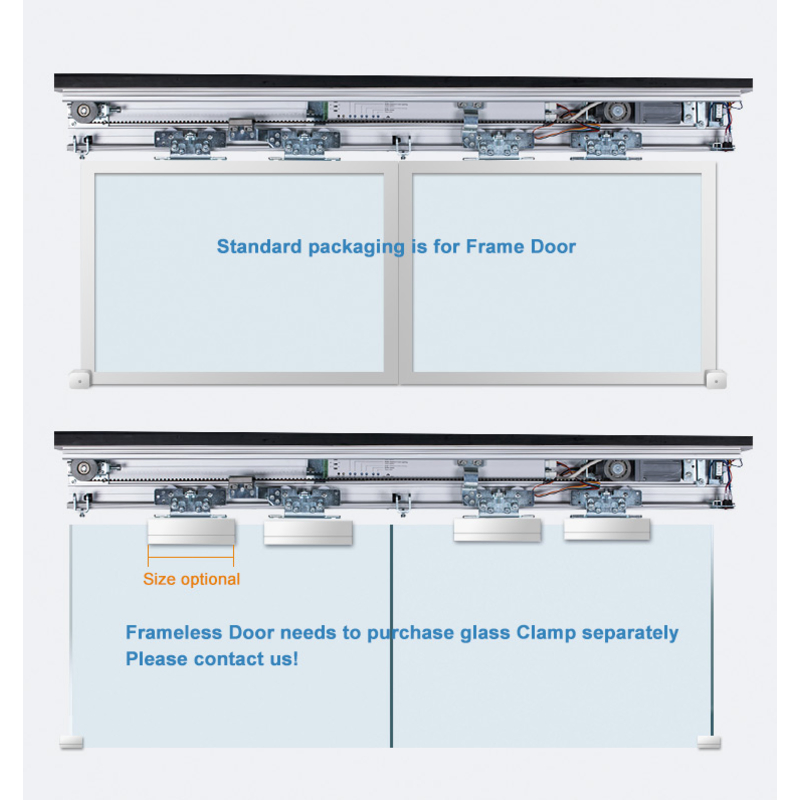

| Door Leaf Mode | Single-opening | Double-opening | |
| Door Leaf Weight | Max 150kg | Max 2*140kg | |
| Door Leaf Width | DW=500-2000mm | DW=500-2000mm | |

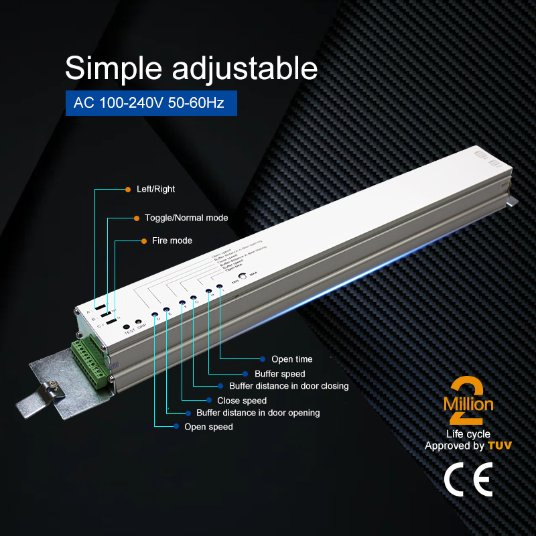

| Voltage | AC 100-240V, 50Hz-60Hz | ||
| Opening Speed | 10-55cm/s (Adjustable) | ||
| Closing Speed | 10-55cm/s (Adjustable) | ||
| Opening Time | 0-20second (Adjustable) | ||
| Manual Open Force | <40N | <50N | |

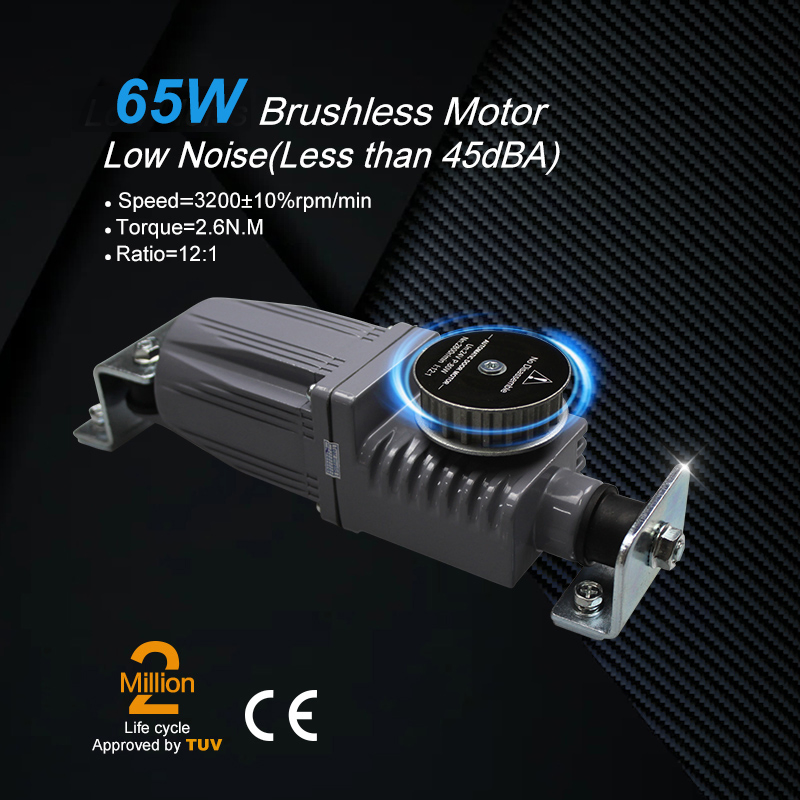

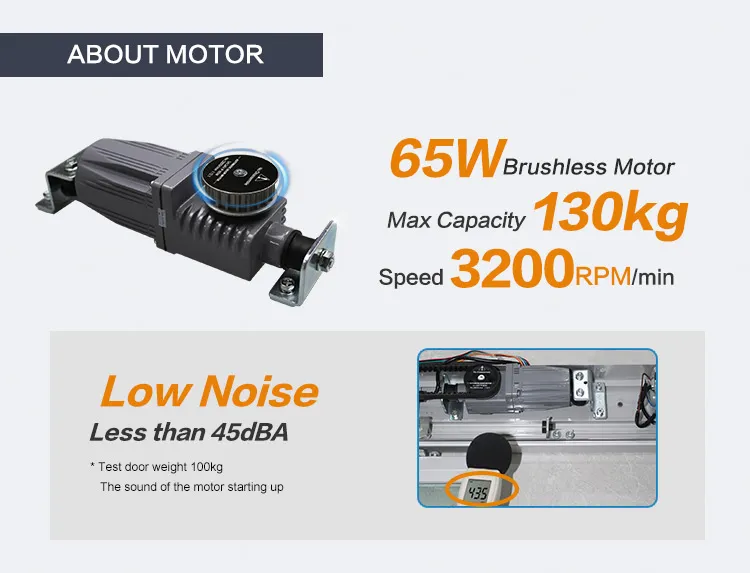

| Motor | 24V, 65W 3200rpm Brushless DC Motor | ||
| Operating Temp. | -10ºC ~ +70ºC | ||

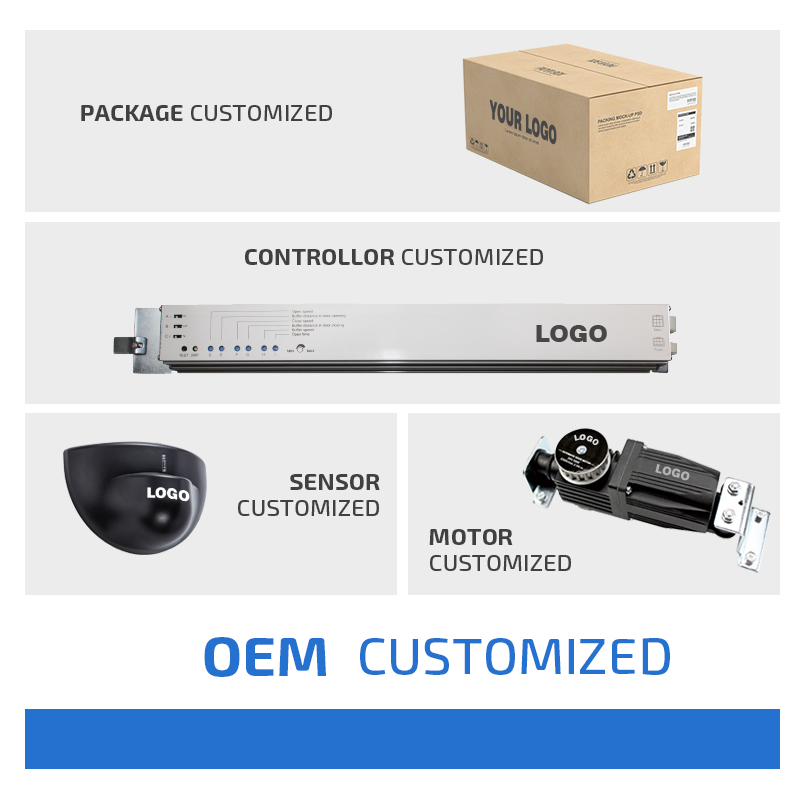

Our company specializes in the research, development, production, and sales of automatic doors. Our main products include automatic doors, automatic gates, automatic windows, customized motors, customized control systems, and related accessories.
Since 2010, we have been focused on the automatic door industry for over 15 years. In addition to robust domestic sales, our products are exported globally to Europe, America, the Middle East, South America, and Southeast Asia, earning unanimous praise from worldwide customers. We welcome you to visit and cooperate with us!
| Professional Manufacture | Excellent Work Team | Rich Technical Experience |
|---|---|---|

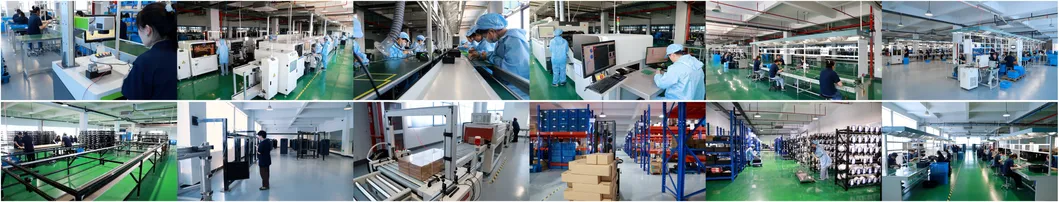

| We have manufacturing bases of 34,000m² with advanced production lines. | We have an excellent management system and dedicated teams for R&D, QC, shipping, sales, and service. | Our experienced technology department is devoted to providing the best solutions to our customers. |
| High Quality | Global Market | One-Stop Service |
| Professional QC inspectors rigorously check every single step of production. | We work with customers in over 100 countries in the automatic door business. | Complete workflow: Demand -> Solution -> Recommendation -> Contract -> Purchase -> Production -> Shipping -> Service. |
As a company integrating industry and trade, we possess extensive and rich experience in participating in major global exhibitions. Our products have been well-received and recognized across various professional exhibition scenarios, demonstrating high quality and robust competitiveness. We leverage our exhibition experiences to constantly optimize product features and services.
For many years, we have been deeply committed to the field of automatic door opening and closing devices. We actively participate in the formulation and improvement of industry standards to ensure that our products always meet the highest quality, durability, and safety requirements.
