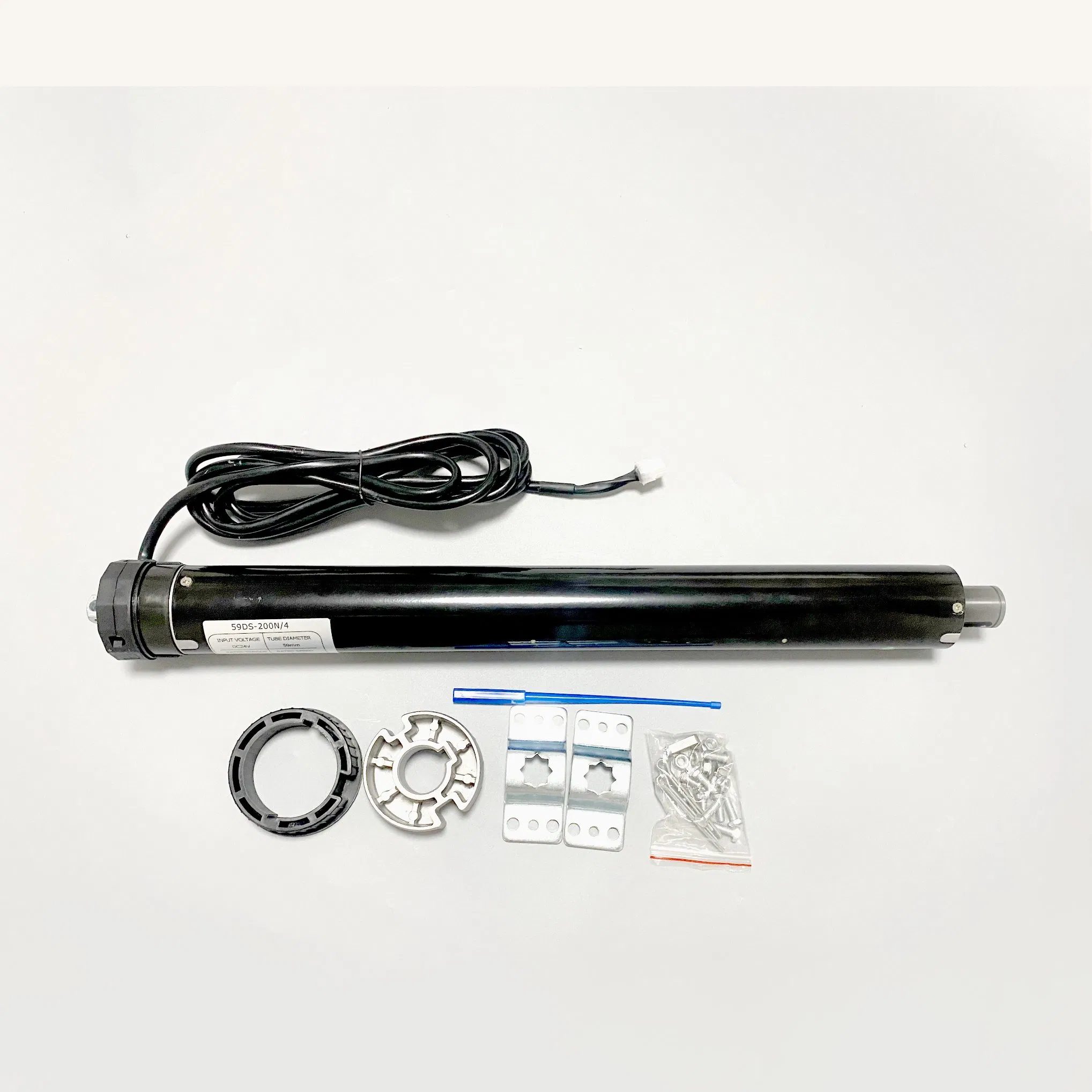

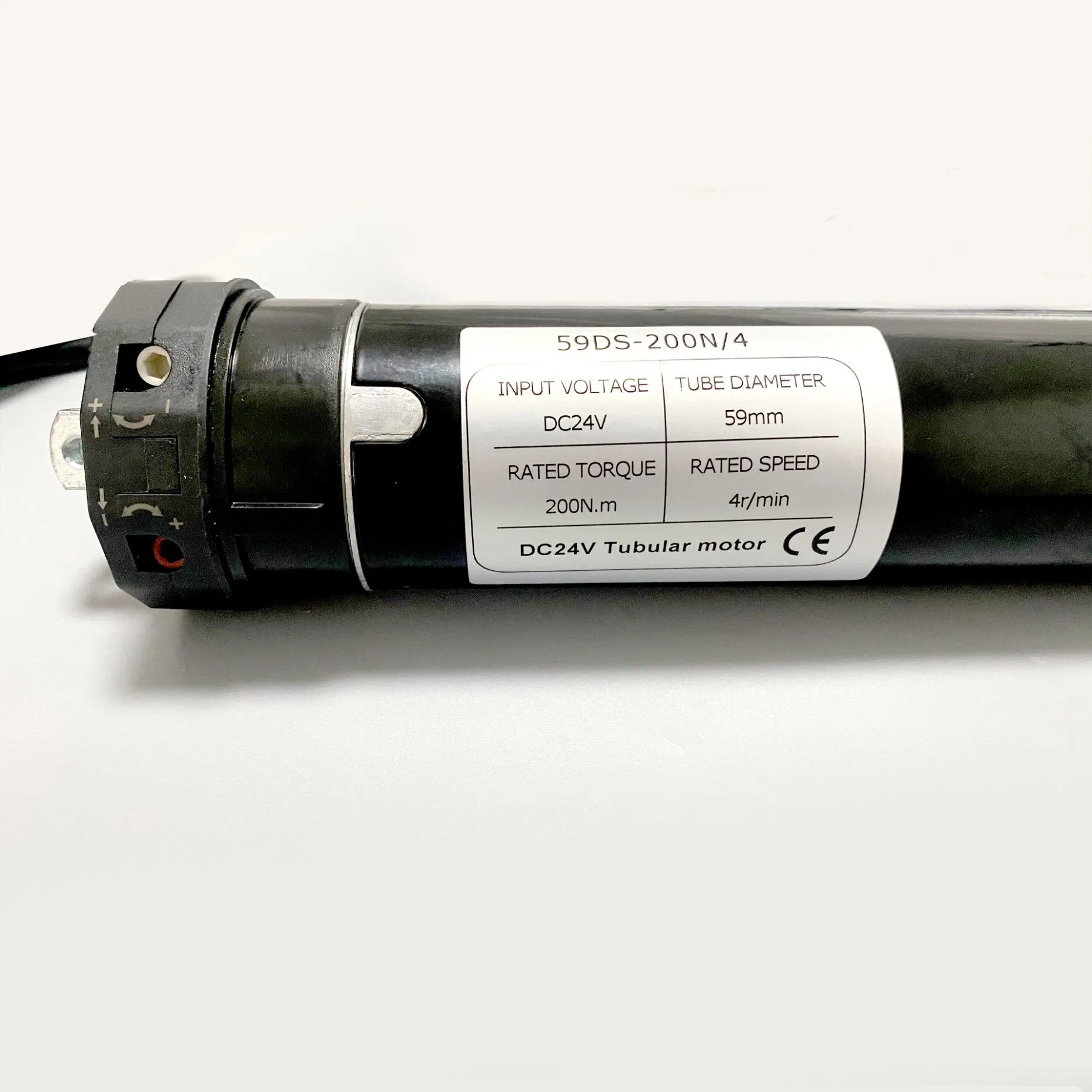

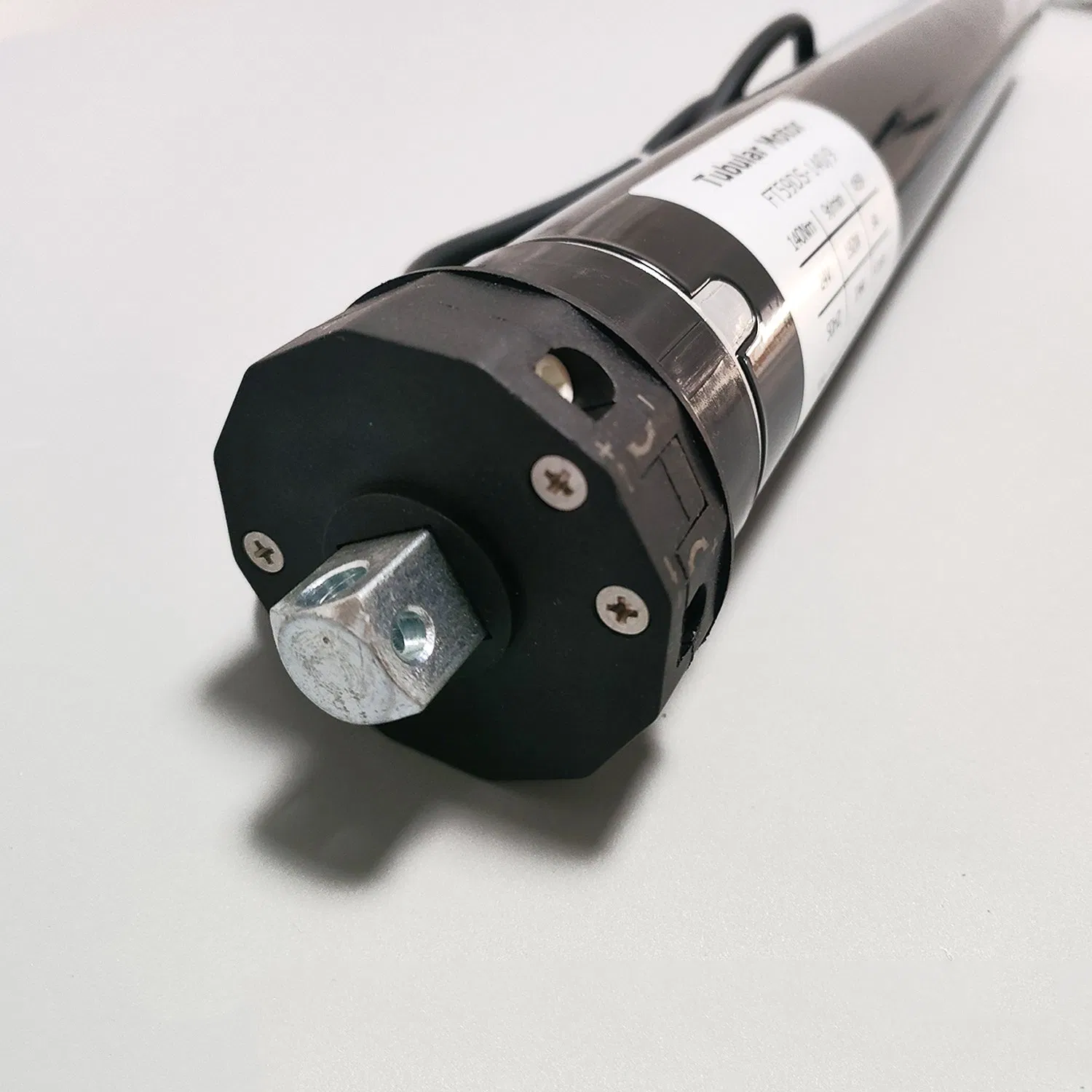

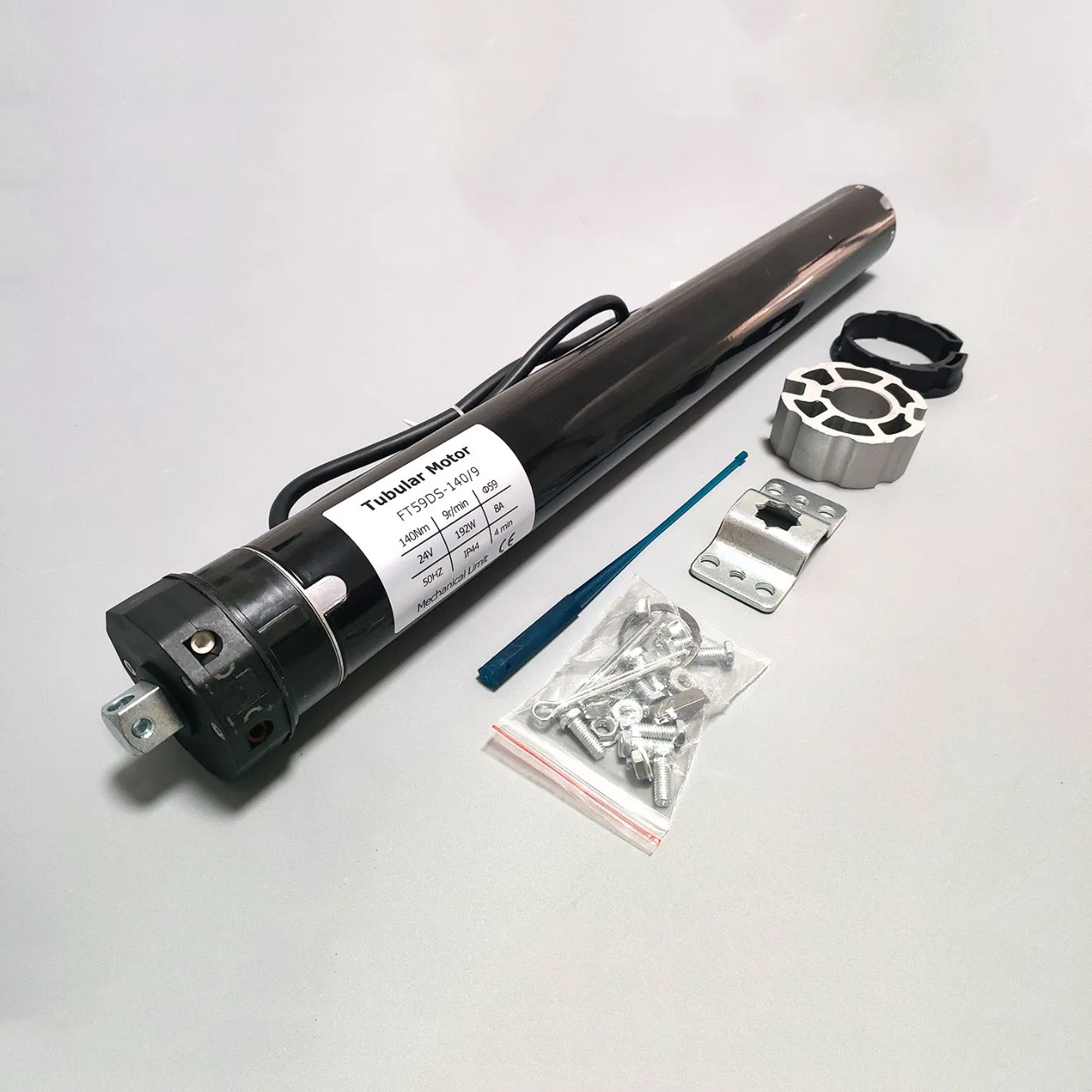

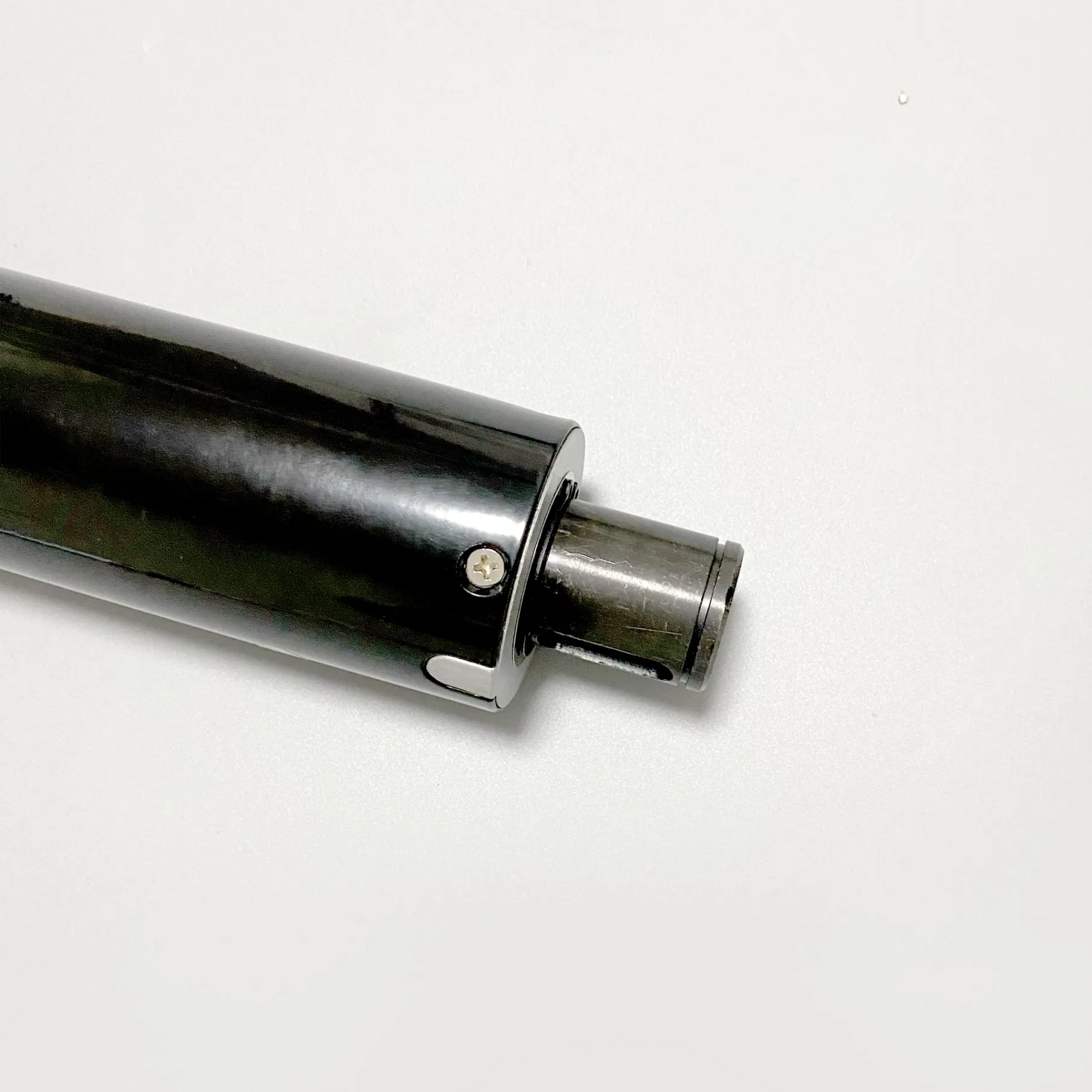

59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
1 / 5
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor
59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor

59ds 24V Mechanical Electric Rolling Shutter Door High Torque DC Tubular Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:FT59DS-80N
Excitation Mode:Excited
Function:Control
Casing Protection:Closed Type
Number of Poles:2
Working Principle:Brush
Type:Z4
Certification:ISO9001
Rated Torque:80n.M
Rated Voltage:24V
Rated Speed:12rpm
Customizable:Yes
Production Capacity:50000 Units
HS Code:8501310000
Product Description
DC Tubular Motor

Product Performance Features

  • Mechanical limit of max 22 turns for precise control
  • DC motor technology eliminates heating issues, allowing longer continuous run time
  • 24V DC input, perfectly compatible with solar panels and battery power

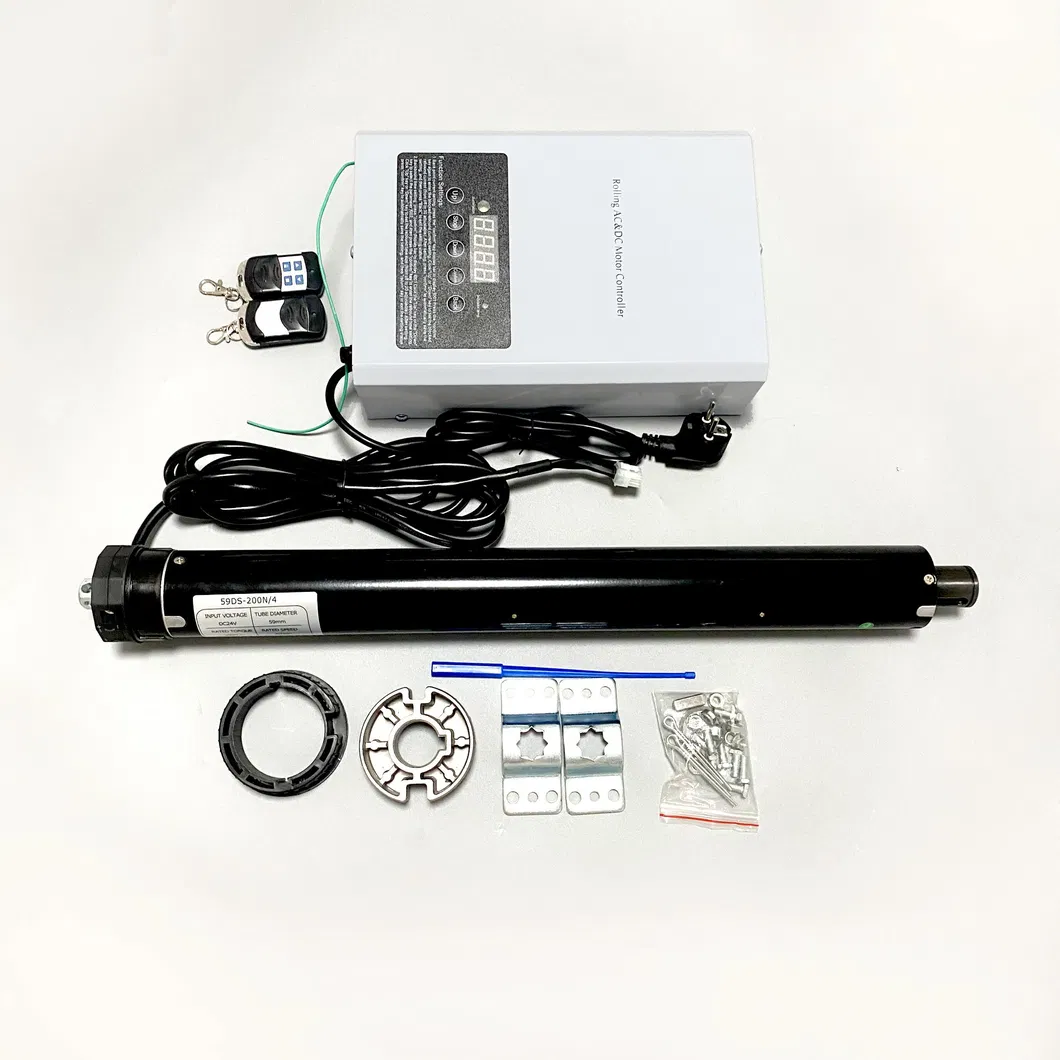

Motor Part A Motor Part B
Model Rated Torque (N.m) Rated Speed (rpm) Tube Dia (mm) Voltage (V) Power (W) Current (A) Protection Max Turns Length (L1/L2)
FT59DS-80/12 80 12 59 24 240 10 IP44 22 646/625
FT59DS-140/6 140 6 59 24 192 8 IP44 22 646/625
FT59DS-200/4 200 4 59 24 204 8.5 IP44 22 646/625

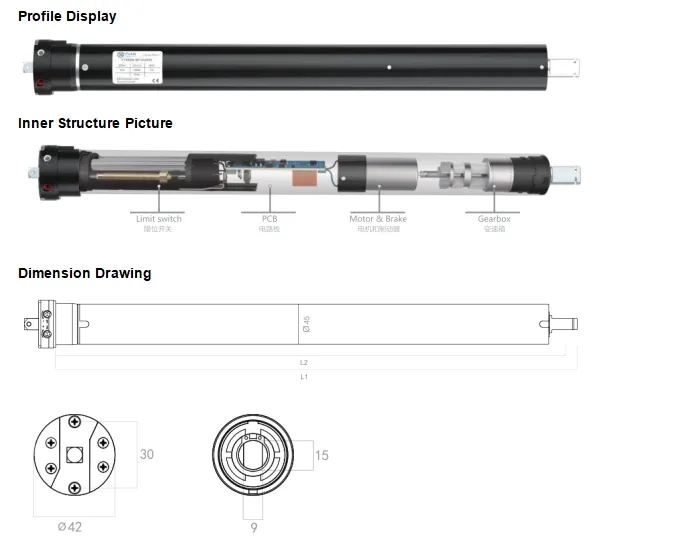

Dimensions
Detailed View 1 Detailed View 2 Detailed View 3
Packaging & Shipping
Packaging Shipping
Manufacturing Excellence
Production Line

Our manufacturer is specialized in the design, manufacturing, sales, and service of high-end automatic motors, operators, safety contact edges, and control devices for various types of doors and windows. We adhere to the principle of "fine, precise, and beautiful" manufacturing ideas.

2005 Engaged in window and door automation, focusing on tubular motor products.
2014 Registered and founded research facilities for safety edges and tubular motors, obtaining multiple patents.
2018 Expansion to a 2000 square meter factory area with advanced R&D equipment.
2020 Integration of modern testing tools, including silent rooms and motor life testing units.
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a specialized manufacturer with our own advanced production facility, ensuring direct quality control and competitive pricing.
Q2: How do you ensure product and service quality?
All processes adhere to ISO-9001 procedures. We perform spot checks on raw materials, regular inspections during production, and a 100% final inspection before packaging.
Q3: Can these motors be used with solar power?
Yes, our 24V DC tubular motors are specifically designed to be compatible with solar panels and battery storage systems for energy-efficient operation.
Q4: What is the typical delivery lead time?
Estimated delivery times range from 2 to 5 weeks, depending on the specific product model and order quantity.
Q5: Do you offer OEM/ODM services?
Yes, we have extensive experience in providing OEM services and can customize motor specifications to meet your specific technical requirements.
Q6: What shipping methods are available?
For small batches, we recommend air or express shipping. For bulk orders, sea freight is the most cost-effective solution.
