Torsion Motor
1 / 5

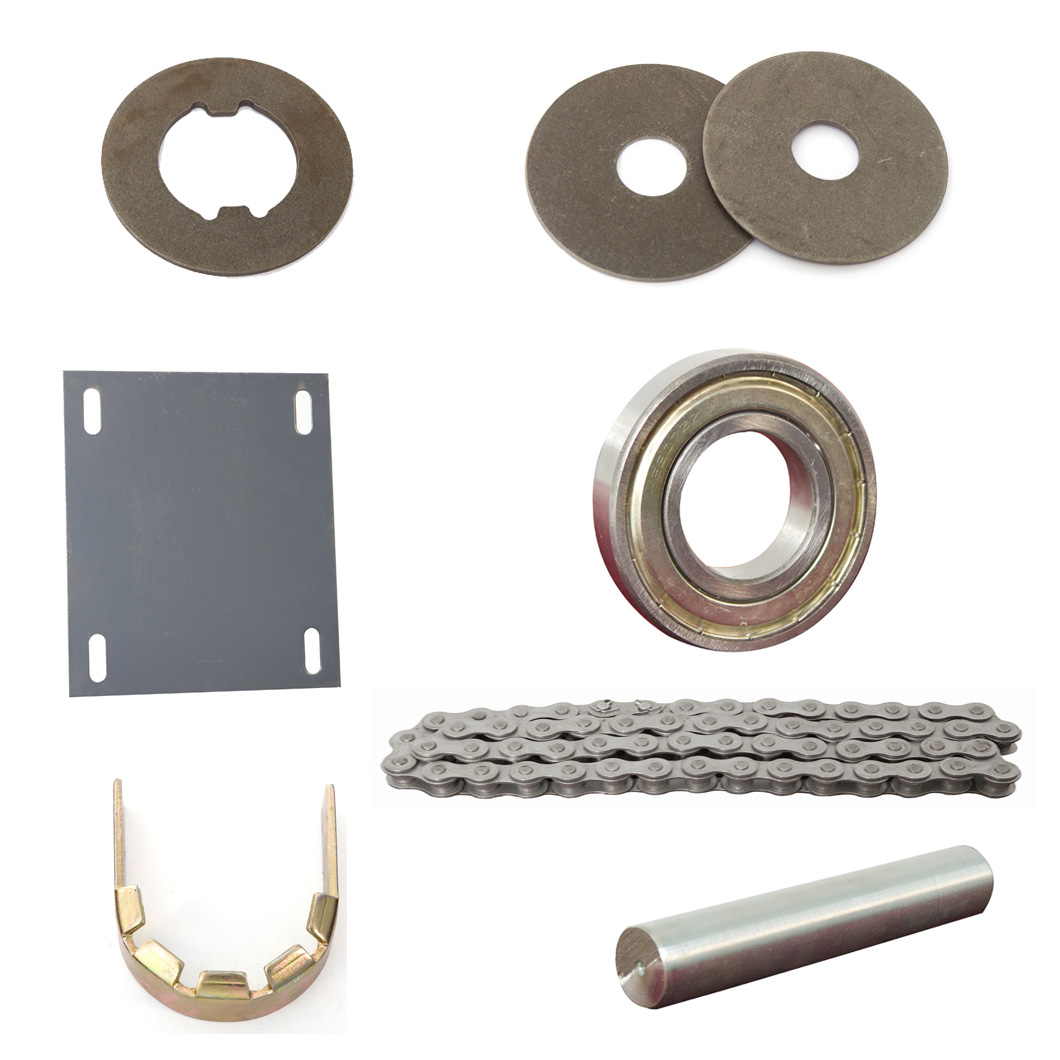

| Quantity | Accessory Description |
|---|---|
| 1 pc | DRIVING PLATE |
| 2 pcs | SHOPE PLATE |
| 1 pc | BEARING |
| 1 pc | U TYPE BEARING BLOCK |
| 1 pc | MANDREL |
| 1 pc | SIDE PLATE |
| 1 pc | 5-Division Transmission Belt |

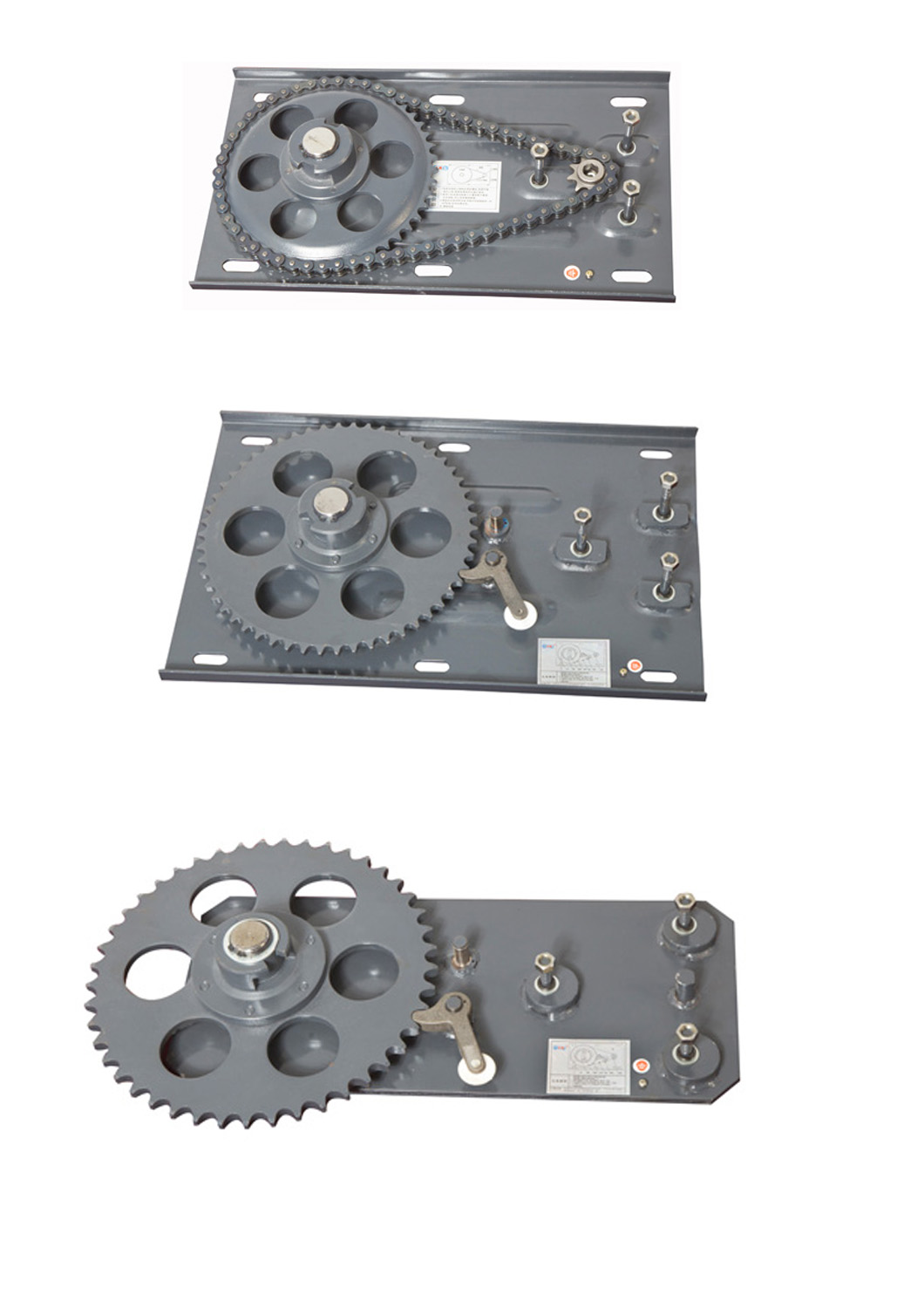

We manufacture a comprehensive scale of AC rolling shutter motors optimized for different weight demands:

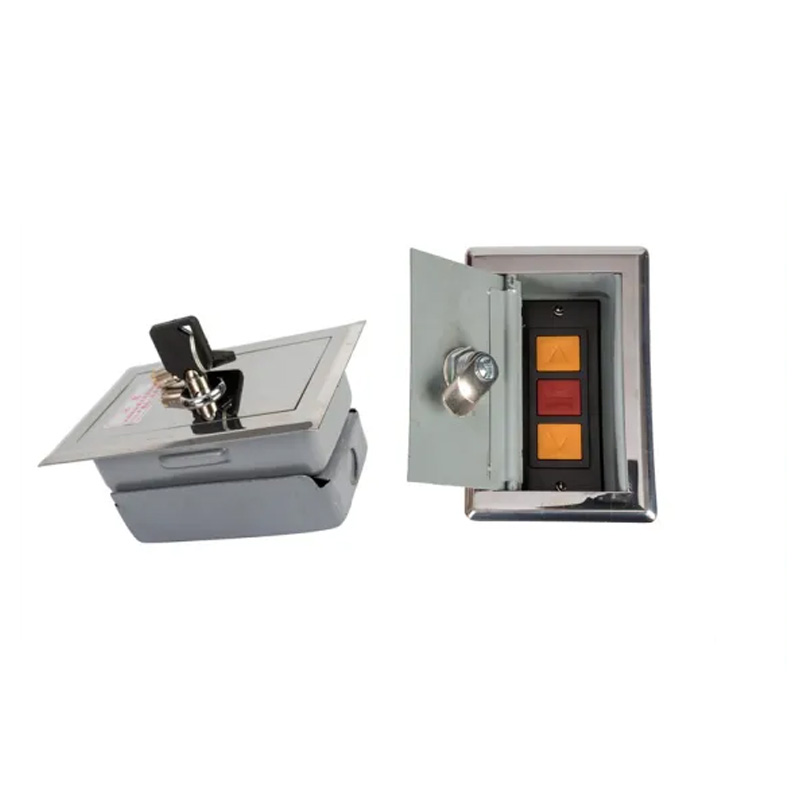

Secure locking enclosure to safeguard shutter mechanisms and manual configurations.

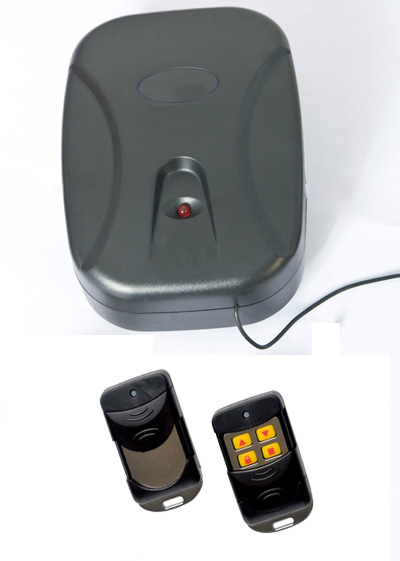

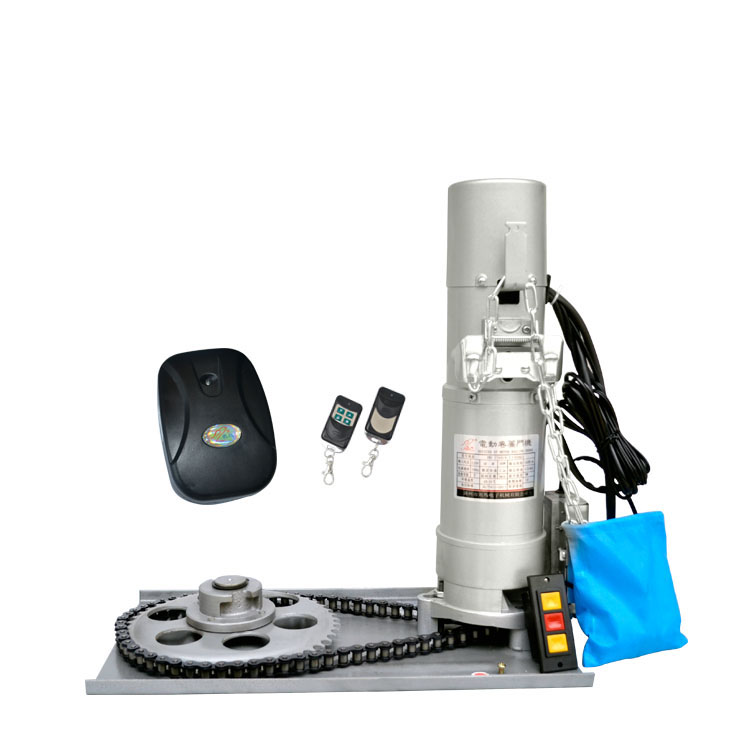

High-security radio receiver system utilizing advanced rolling code frequencies.

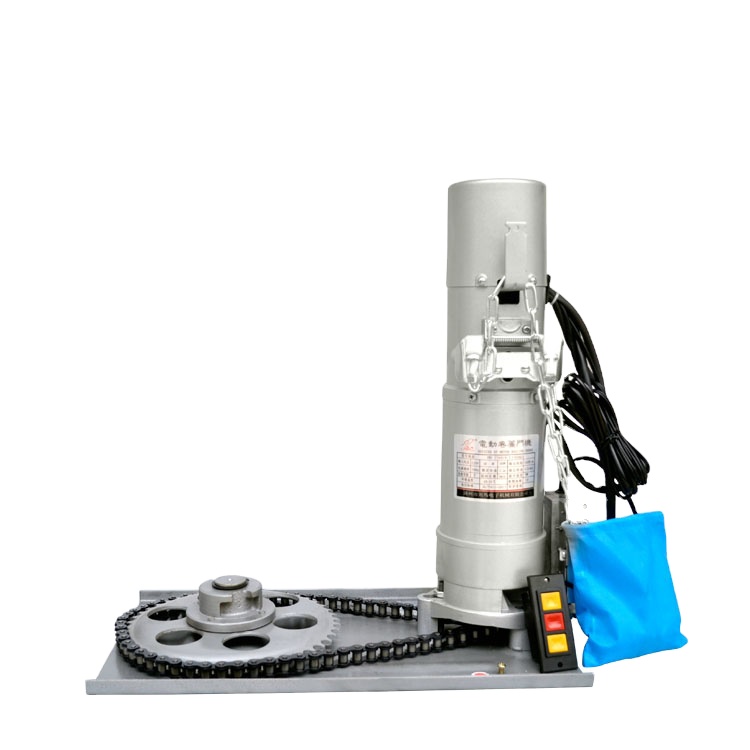

Our electric rolling shutter motors utilize general AC motor design integrated with standard mature processes, stable quality control systems, and reasonable cost effectiveness. These products are widely distributed and highly appreciated across major global regions, including South America, the Middle East, Southeast Asia, and various other international markets.
| Model No. | Max Lifting Height (M) | Max Lifting Weight (kg) | Rated Power (W) | Rotation (R/min) | Chain No. | Torque (N.m) | Current (A) |
|---|---|---|---|---|---|---|---|
| Single Phase Motor 230V / 50Hz | |||||||
| MN-AC300KG-1P | 6 | 300 | 250 | 6.2 | 10A | 168 | 3.3 |
| MN-AC500KG-1P | 6 | 500 | 280 | 6.2 | 10A | 343 | 3.9 |
| MN-AC600KG-1P | 6 | 600 | 370 | 6.2 | 10A | 412 | 3.9 |
| MN-AC800KG-1P | 9 | 800 | 460 | 3.4 | 10A | 607 | 4.5 |
| MN-AC1000KG-1P | 9 | 1000 | 550 | 3.2 | 10A | 1102 | 4.5 |
| Three Phase Motor 380V / 50Hz | |||||||
| MN-AC800KG-3P | 9 | 800 | 500 | 4.6 | 10A | 650 | 1.2 |
| MN-AC1000KG-3P | 9 | 1000 | 580 | 4.4 | 10A | 800 | 1.5 |
| MN-AC1300KG-3P | 9 | 1300 | 800 | 4.4 | 12A | 1050 | 1.7 |
| MN-AC1500KG-3P | 9 | 1500 | 900 | 4.4 | 12A | 1520 | 1.9 |

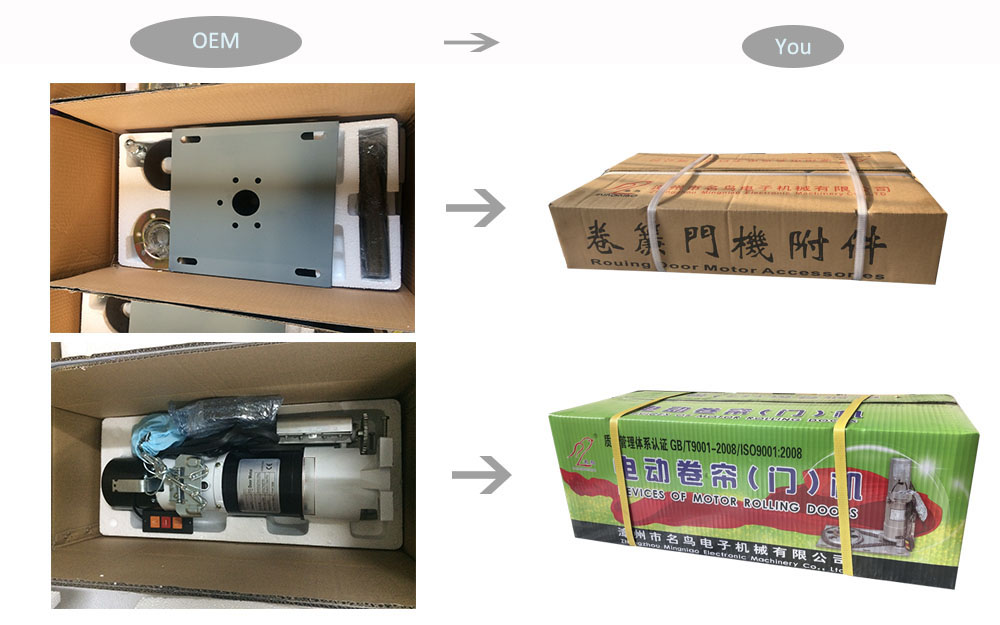

One complete set of the rolling shutter motor is packed secure-tightly across two robust cartons:
We are a highly specialized professional manufacturer of rolling shutter motors and tubular motors. Following 20 years of active industrial development, integrating structural elites, high-end technical architectures, and advanced engineering systems, our capacity has rapidly modernized, positioning the enterprise as an industry leader in specialized shutter motor manufacturing.
Our production frameworks are fully aligned with standardized international qualities, successfully passing certifications including the ISO9001:2008 Quality Management System Certification, CCC (China Compulsory Certification), and European Union CE Certification. We have acquired prestigious honorary recognitions highlighting our corporate credit standing and tech innovation capabilities.

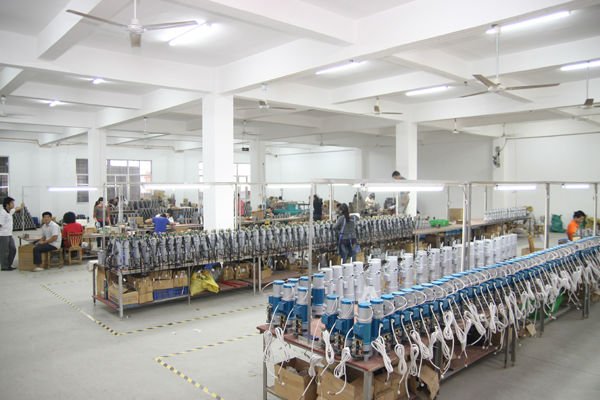

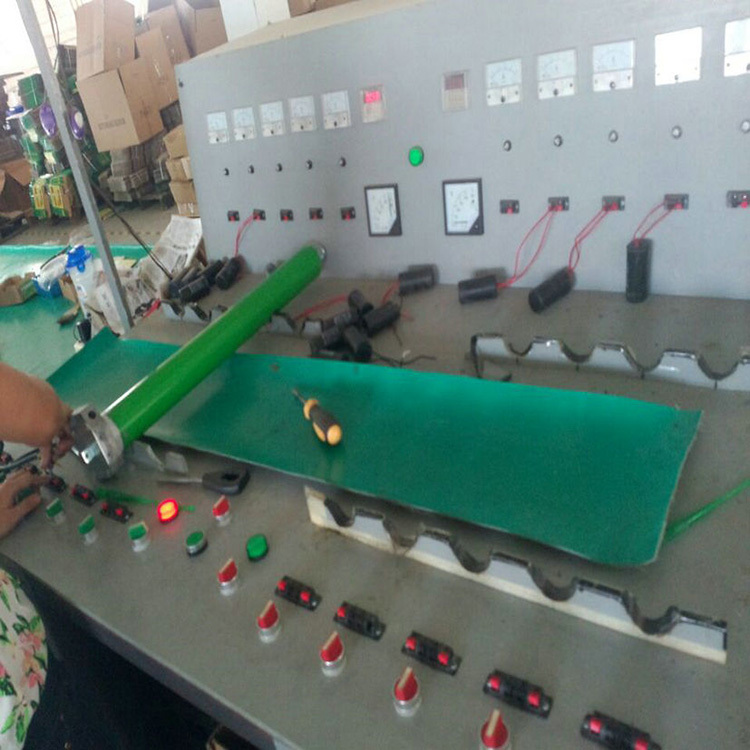

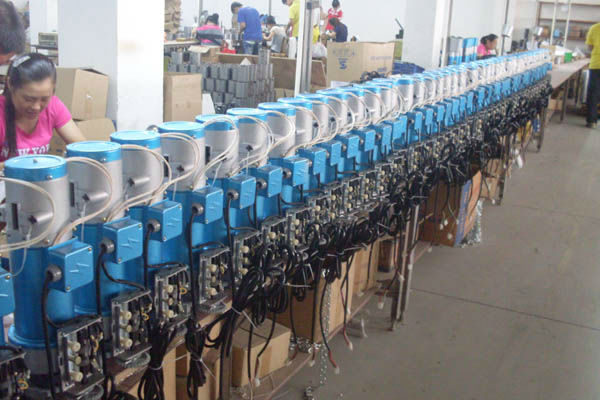

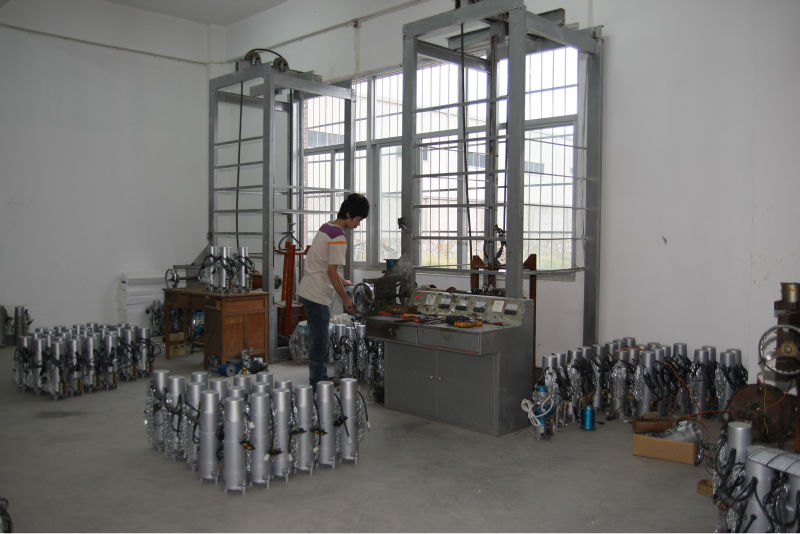

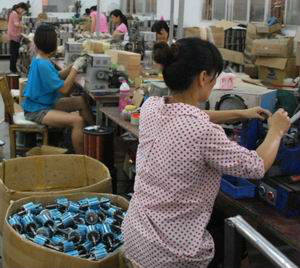

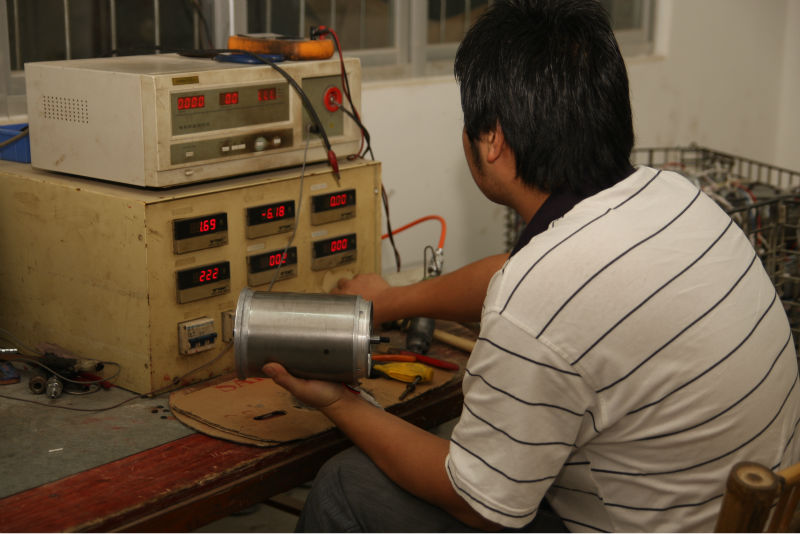

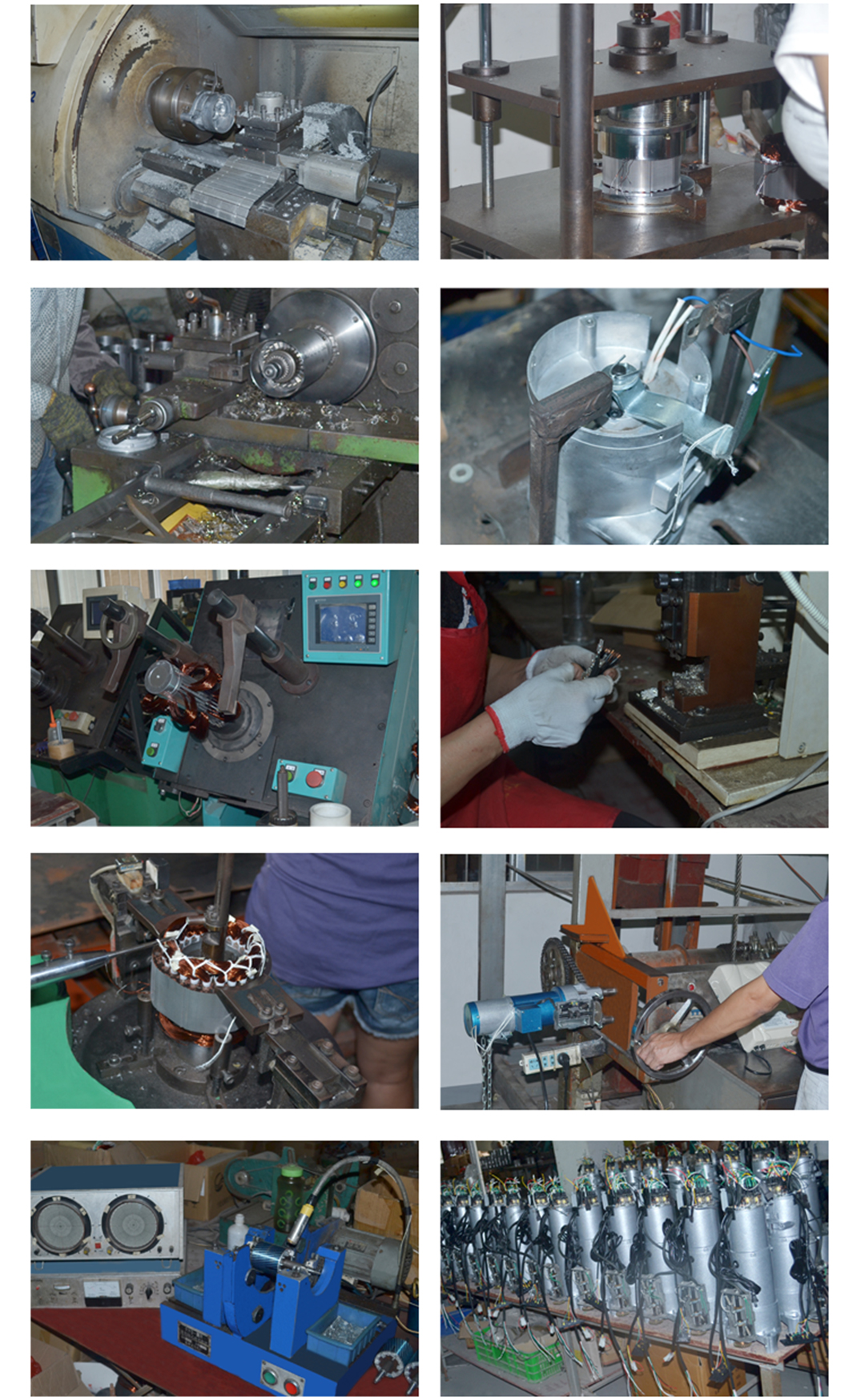

Operating multiple automated painting assembly lines, CNC lathes, pressing, punching, shearing, and automatic winding systems, we manage complete quality checks from stators to comprehensive rotor test units. Our optimized aluminum alloy shell casings offer safe, high-strength properties with solid aesthetic qualities, lightweight designs, low-noise performance, minimal vibration, and minimal running consumption.
Driven by rigorous 5S management models and optimized standard operating processes, our facility continuously improves storage, quality surveillance, raw material processing, and logistics workflows. We look forward to supplying our partners worldwide with superior, reliable products for shared development.
