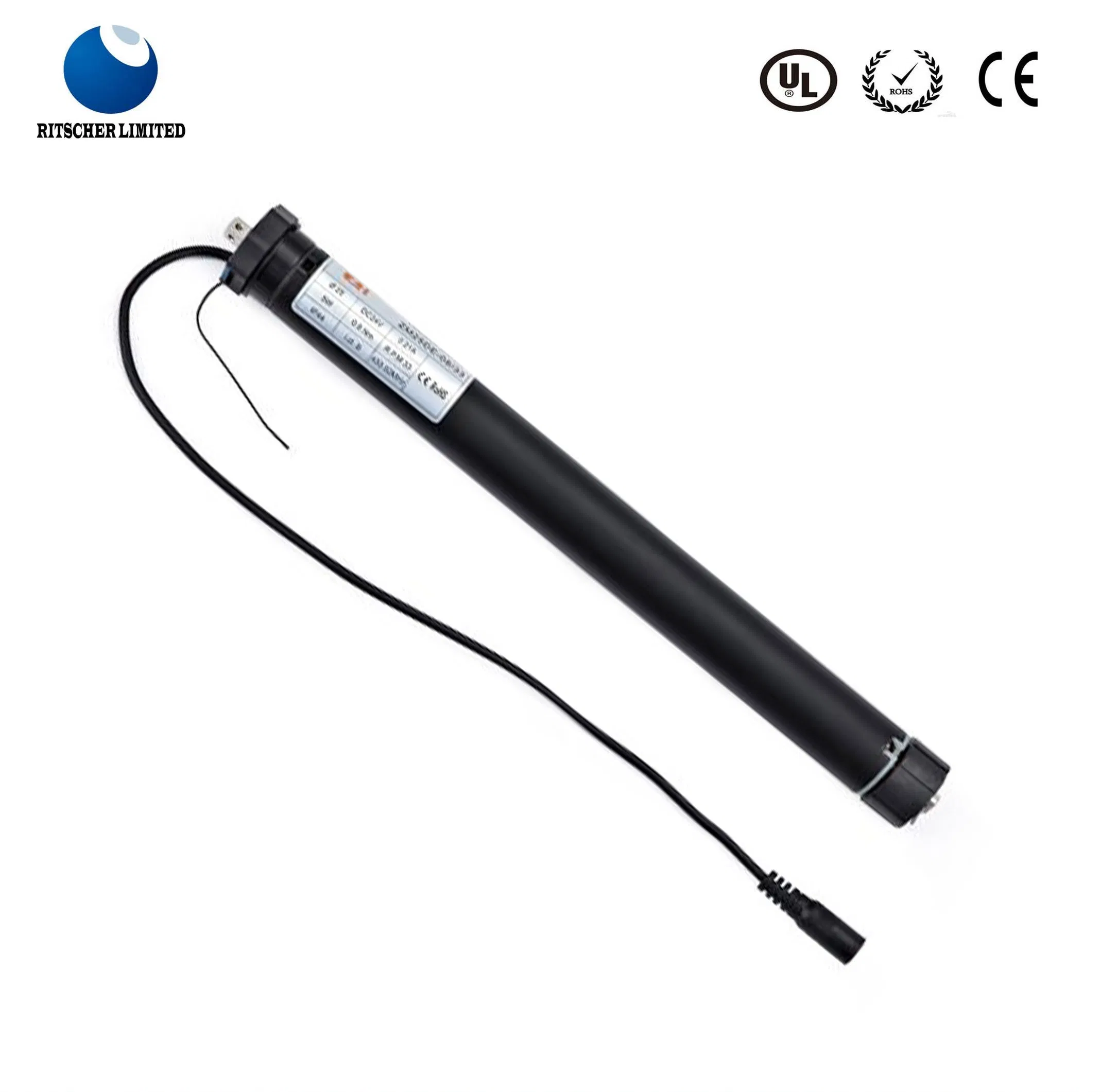

AC/DC Electric Tubular Motor Dia 45mm for Roller Shutter Awning Sunshade Blinds Curtain Garage Door

1 / 2

AC/DC Electric Tubular Motor Dia 45mm for Roller Shutter Awning Sunshade Blinds Curtain Garage Door

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Number of Stator

Single-Phase

Function

Driving, Control

Casing Protection

Protection Type

Number of Poles

Starting Mode

Direct on-line Starting

Certification

ISO9001, CCC, CE, RoHS

Voltage

110/230V

Power

10-300W

Rpm

10-25

Diameter

35-92mm

Motor Speed

10-50rpm

Transport Package

Cartons

Specification

CE, RoHS

Trademark

OEM

Origin

China (Mainland)

HS Code

8501109990

Production Capacity

5000piece/Pieces / Month

Product Description

High Torque AC Universal Roller Shutter Door Motor

Engineered for high performance, reliability, and long life cycles. Ideal for food processing equipment, industrial systems, and household appliances.

Key Performance Features

Optional Stator Size: Customizable design configurations to fit specific machine envelopes.
High Safety & Low Noise: Safe, reliable start-ups with optimized running acoustics and extended service life.
Strong Power Output: Supports a wide operating voltage range from 5~120V / 220~240V at 50/60Hz.
Thermal Protection: Equipped with premium built-in thermal protection featuring both one-shot and multi-shot fuses.

Tubular Motor Features & Applications

Exquisite Blue Finish: Clean aesthetic coupled with simplified structural installation.
Smooth Operation: Ultra-quiet mechanical movement with low decibel (DB) level performance.
Standard Limit Switch: Precision electric limit control with silent operation.
Built-in Wireless Control: Optional integrated receiver for seamless remote operating systems.
Broad Application Scope: Extensively used in roller blinds, venetian blinds, honeycomb blinds, and pleated blinds.

SF35 Series Specifications (230V / 110V)

Power Source	Model	Torque (N.m)	Speed (RPM)	Voltage (V)	Frequency (Hz)	Power (W)	Current (A)	Limit Turns	IP Rating	Run Time (min)	Net Wt. (kg)
230V/50Hz	SF35-3R	3	28	230	50	139	0.61	42	IP44	>4	1.7
	SF35-6R	6	17	230	50	155	0.68	42	IP44	>4	1.7
	SF35-10R	10	17	230	50	161	0.71	42	IP44	>4	1.7
	SF35-12R	12	17	230	50	170	0.75	42	IP44	>4	1.7
110V/60Hz	SF35-3R	3	33	110	60	141	1.29	42	IP44	>4	1.7
	SF35-6R	6	20	110	60	154	1.41	42	IP44	>4	1.7
	SF35-10R	10	20	110	60	162	1.48	42	IP44	>4	1.7
	SF35-12R	12	20	110	60	173	1.58	42	IP44	>4	1.7

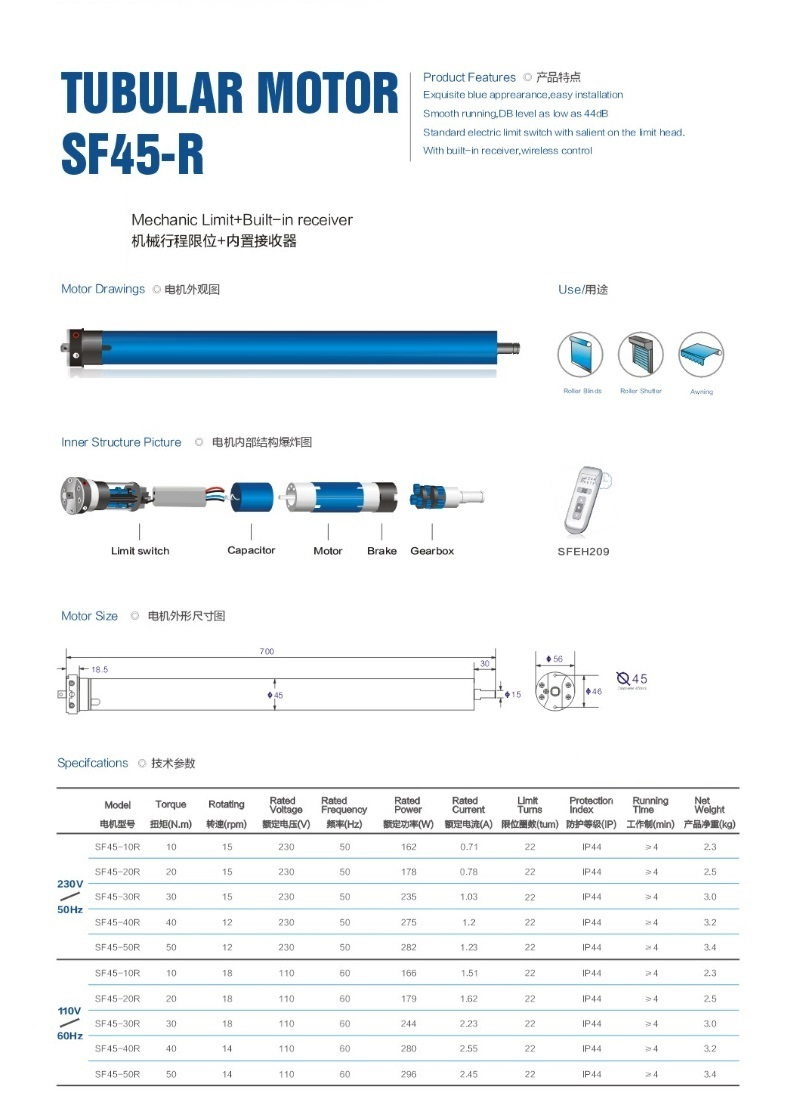

SF45 Series Specifications (230V / 110V)

Power Source	Model	Torque (N.m)	Speed (RPM)	Voltage (V)	Frequency (Hz)	Power (W)	Current (A)	Limit Turns	IP Rating	Run Time (min)	Net Wt. (kg)
230V/50Hz	SF45-10R	10	15	230	50	162	0.71	22	IP44	>4	2.3
	SF45-20R	20	15	230	50	178	0.78	22	IP44	>4	2.5
	SF45-30R	30	15	230	50	253	1.03	22	IP44	>4	3
	SF45-40R	40	12	230	50	275	1.2	22	IP44	>4	3.2
	SF45-50R	50	12	230	50	282	1.23	22	IP44	>4	3.4
110V/60Hz	SF45-10R	10	18	110	60	166	1.51	22	IP44	>4	2.3
	SF45-20R	20	18	110	60	179	1.62	22	IP44	>4	2.5
	SF45-30R	30	18	110	60	244	2.23	22	IP44	>4	3
	SF45-40R	40	14	110	60	280	2.55	22	IP44	>4	3.2
	SF45-50R	50	14	110	60	296	2.45	22	IP44	>4	3.4

Product Gallery & Technical Diagrams

AC/DC Electric Tubular Motor Dia 45mm for Roller Shutter Awning Sunshade Blinds

Frequently Asked Questions

What kinds of motors can you provide?

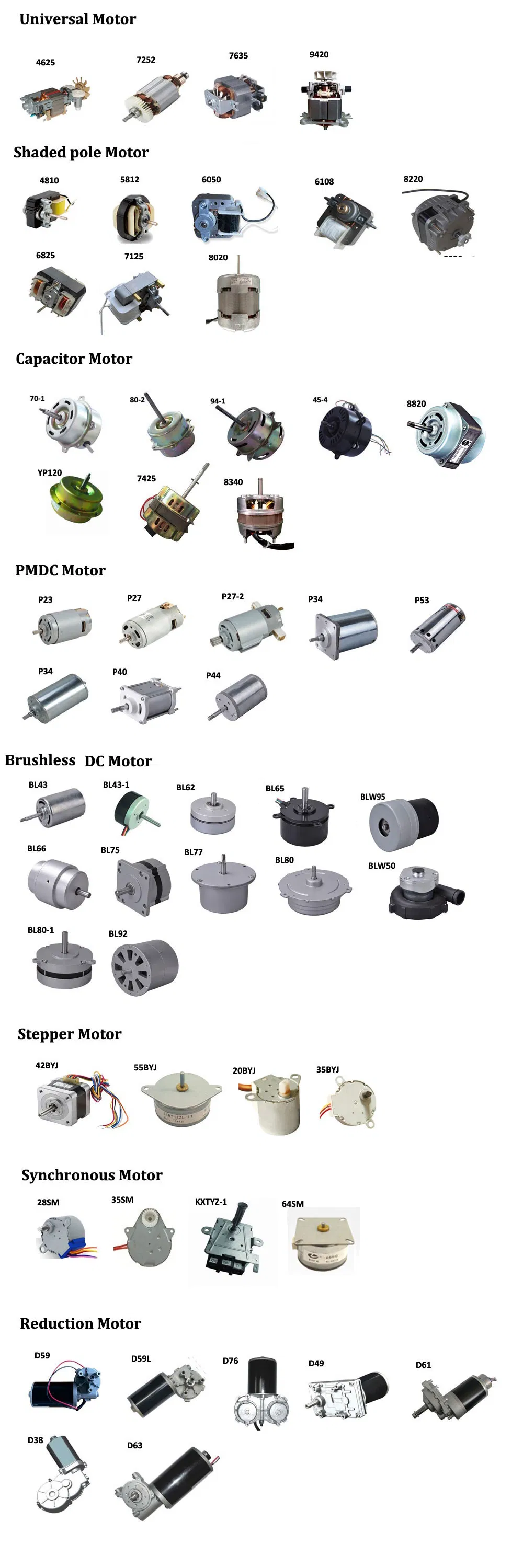

We supply a diverse array of professional motor systems, including Kitchen Hood Motors, DC Motors, Gear Motors, Fan Motors, Refrigerator Motors, Hair Dryer Motors, Blender/Mixer Motors, Shaded Pole Motors, Capacitor Motors, BLDC Motors, PMDC Motors, Synchronous Motors, and Stepping Motors.

Is there a Minimum Order Quantity (MOQ) for your motors?

Yes, our standard production MOQ typically ranges from 1,000 to 10,000 pieces depending on the specific model requirements. However, we can accommodate smaller pilot batches (such as a few dozen or hundreds of units) for the initial three custom development orders.

Can I obtain testing samples before placing a bulk order?

Yes, sample provision is highly welcomed. If you require standard samples to verify mechanical and electrical compatibility before starting official production, we are happy to arrange custom testing samples under agreed-upon project specifications and target quantities.

What are the primary applications for your tubular motors?

These performance tubular motors are extensively applied in architectural automation, window shading, and control equipment, specifically including roller shutters, roller blinds, traditional venetian blinds, custom honeycomb blinds, pleated blinds, awnings, and projection screens.

What safety mechanisms are built into these heavy-duty electric motors?

Our electric tubular motors feature built-in thermal protection components equipped with robust one-shot or multi-shot thermal fuses. The motors also possess an IP44 protection rating to shield against dust ingress and splashing water, guaranteeing safe and smooth operation.

Do these motors support worldwide voltage environments?

Yes, we provide distinct modular configurations tailored for regional electrical frameworks, featuring highly efficient 230V/50Hz variants for European and international distribution, alongside high-starting torque 110V/60Hz options optimized for North American installations.
