DC Rolling Shutter Motor, Rolling Door Motor

1 / 5

DC Rolling Shutter Motor, Rolling Door Motor

Send Inquiry

Product Description

Product Introduction

Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories, and other buildings' rolling shutter doors' opening and closing with electric and manual functions.

300kg.f & 600kg.f DC Type Roller Door Motor

Functional even when AC power is off

Optional alarm and anti-theft function

Optional rebound resistance function

Optional infrared sensor function

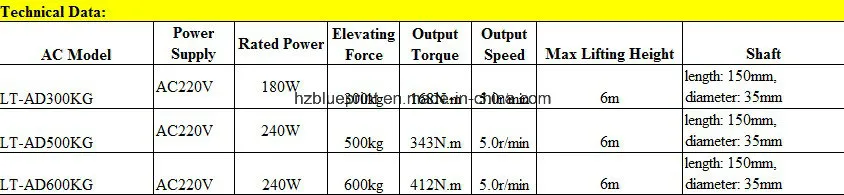

Rated Voltage: 110V/220VAC

Rated Power: 150W / 250W

Max Elevator Height: 6m

Max Elevator Power: 300 or 600 kg.f

Output Speed: 5 r/min

Output Torque: 168 N.M

Working Temp: -20 to 45 Degree

Remote Distance: > 50m

Working Time: < 20 minutes

Key Features

1) Shell Aluminium alloy construction: solid and light, yet durable and easy to install.

2) Gearbox High-quality alloy steel with special technical treatment to guarantee high lifting power.

3) Brake Structure Special mechanical brakes; cuts power instantly to ensure absolute safety.

4) Transmission System Designed for high accuracy, smooth running, and low noise operation.

FAQ

Q: Can this motor work during a power failure?

A: Yes, these DC type motors are specifically designed to be operational even when the AC power is off.

Q: What is the maximum weight capacity available?

A: We offer models with maximum elevator power of either 300kg.f or 600kg.f.

Q: What safety features are included?

A: The motor features a special mechanical brake structure for instant stopping. Optional features include infrared sensors, rebound resistance, and anti-theft alarms.

Q: What materials are used in the construction?

A: The shell is made of high-strength aluminium alloy for lightness and durability, while the gearbox uses high-quality alloy steel.

Q: What is the remote control range for the motor?

A: The remote control distance for these units is more than 50 meters.

Q: What is the maximum lift height for the rolling door?

A: These motors are capable of a maximum elevator height of up to 6 meters.
