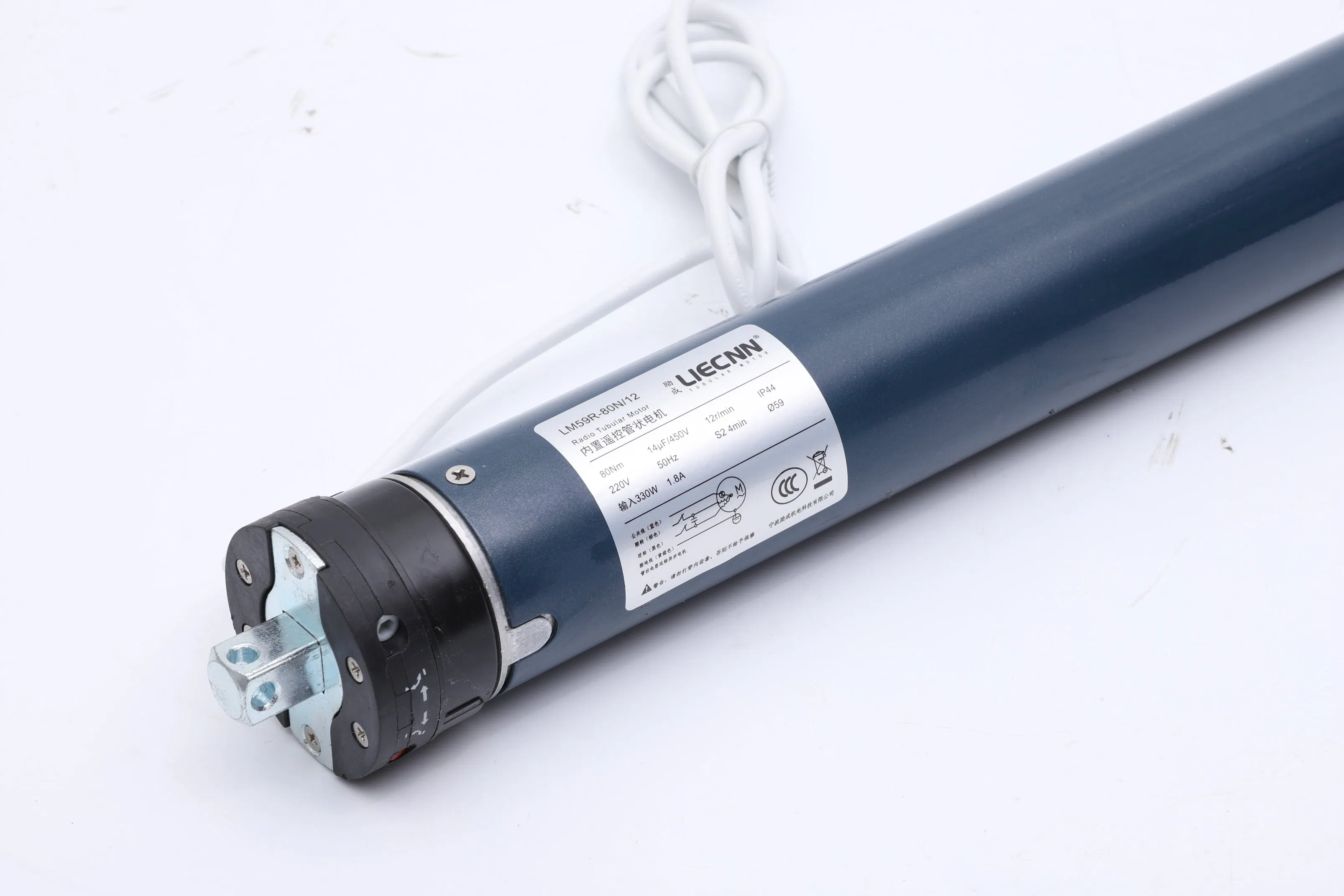

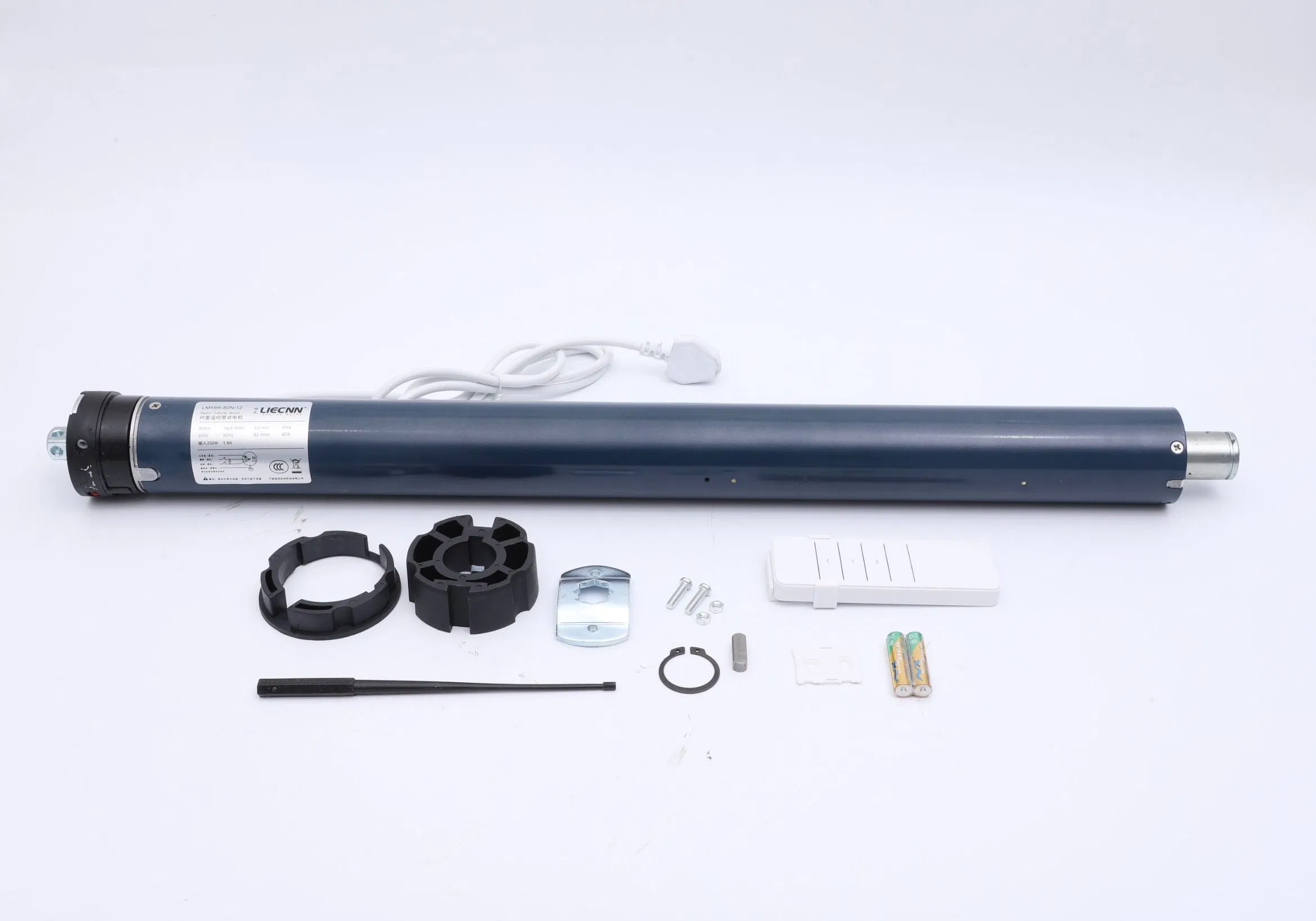

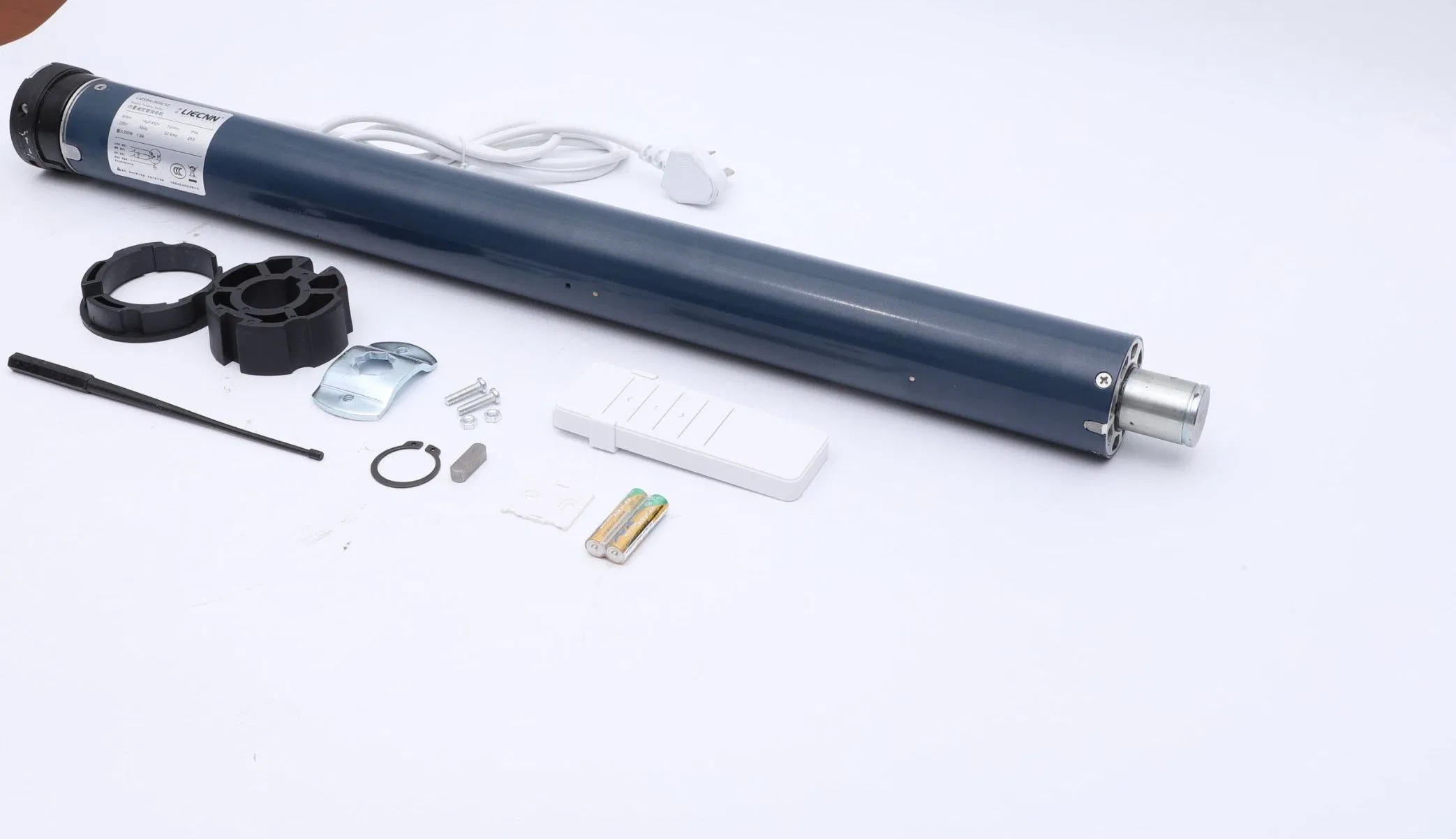

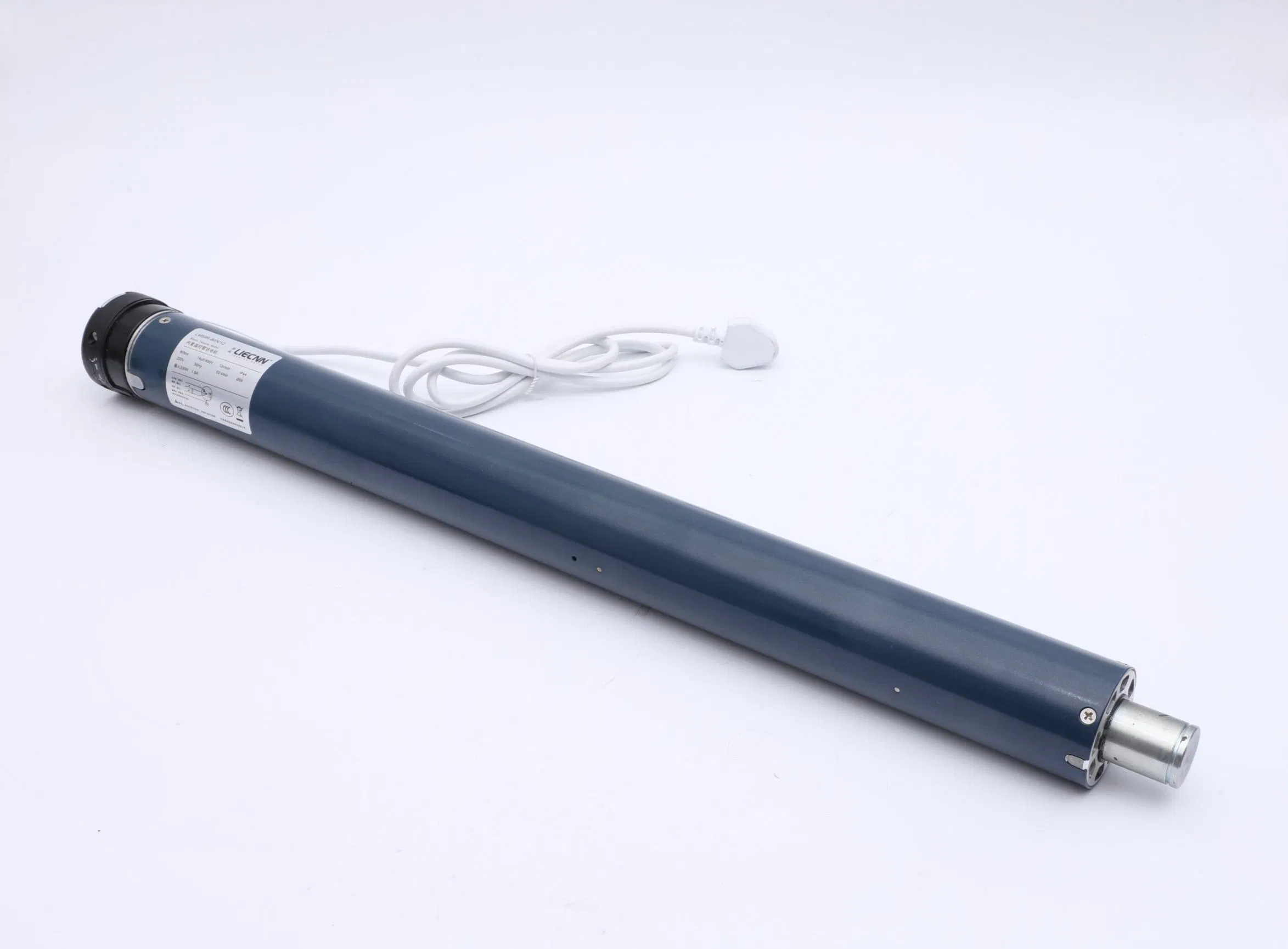

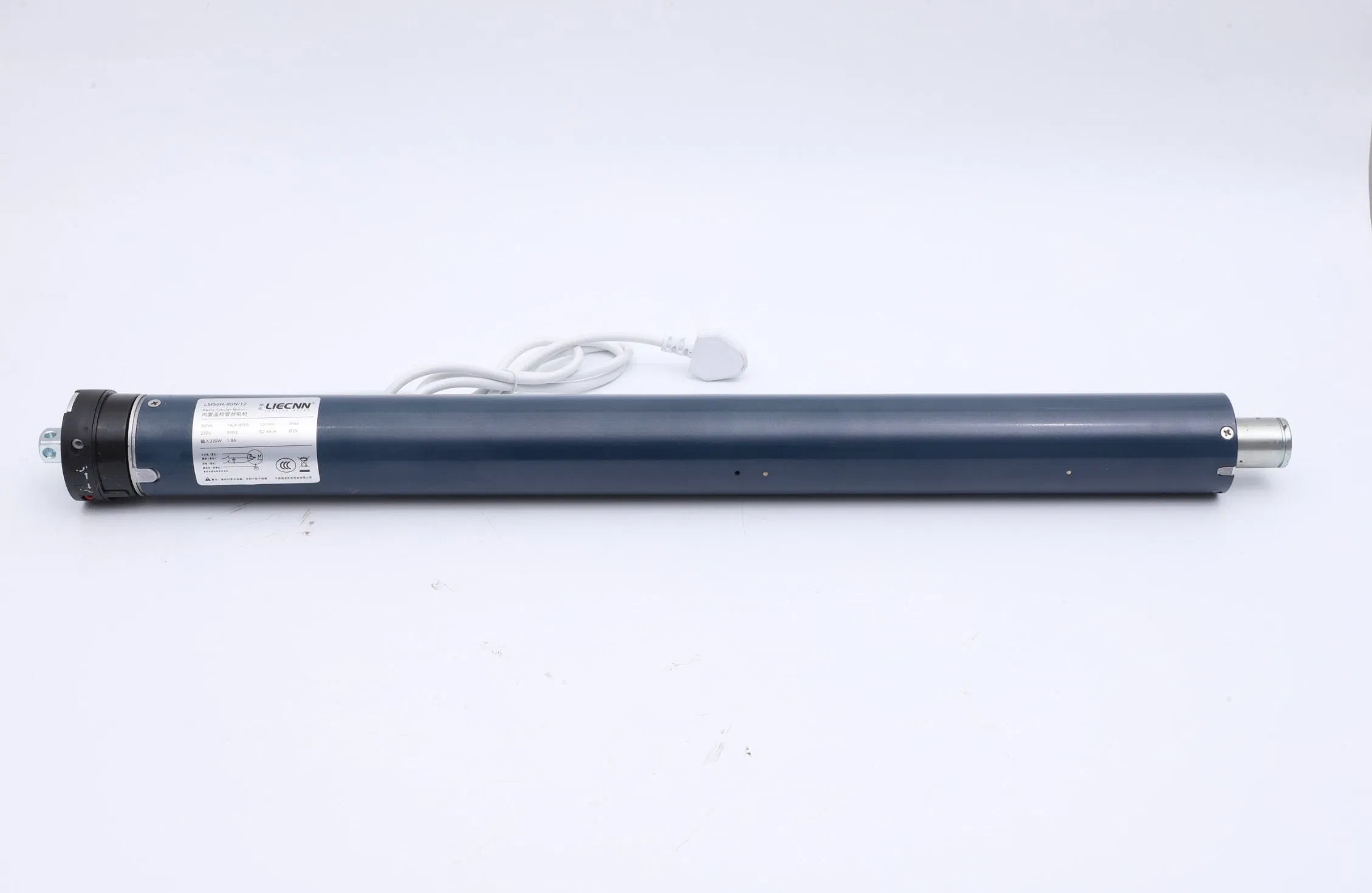

Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
1 / 5
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.
Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.

Built - in Tubular Motor for Traverse Curtains with a Lifting Force of 120n.

Customization: Available
Pipe Diameter: 59mm
Rated Voltage: 220V/110V/24V/12V
Send Inquiry

Product Description

Basic Specifications

Model NO.
LM59R-120N/9R
Rated Torque
9r
Ingress Protection
IP44
Rated Current
1.54 a
Rated Power
470W
Tpt
4min
Insulation Class
H
Lifting Force
80n/100n/120n/140n/180n
Transport Package
Box
Specification
780*240*240
Origin
China
HS Code
8501400090

Product Description

Model: LM59S-120N/9R

  • Support batch customization.
  • Voltage Options: 220v, 110v, 24v, 12v
  • Multiple Lifting Forces: 80N, 100N, 140N, 160N, and 180N respectively.
  • Pipe Diameter: 59 millimeters.

Compatible Control Systems:

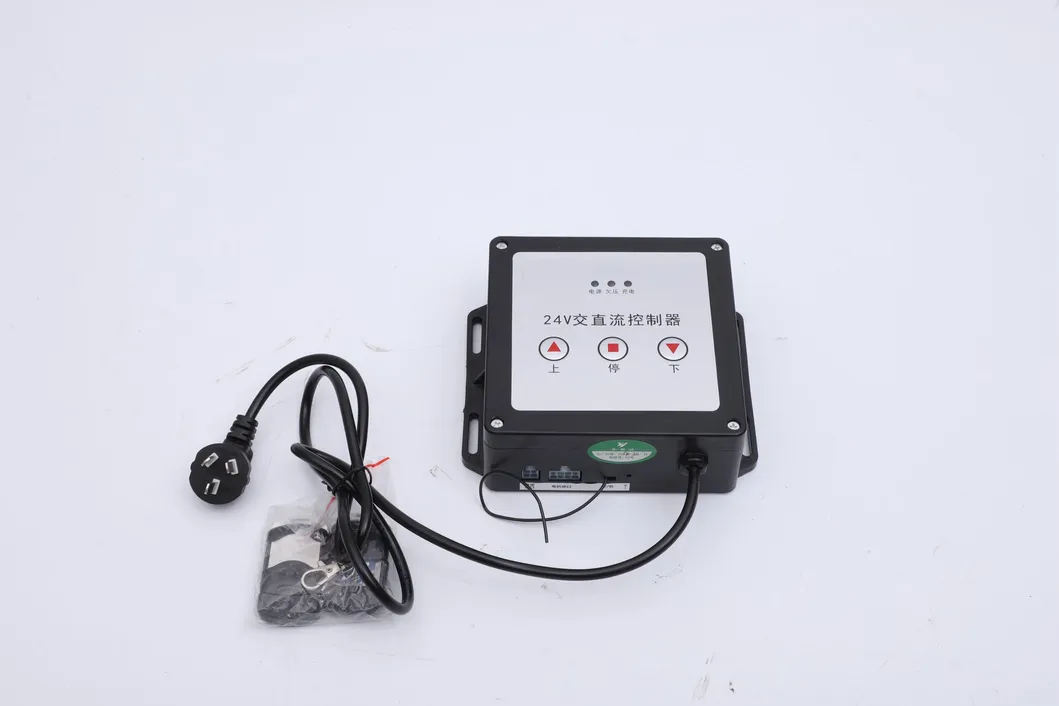

Control System 1

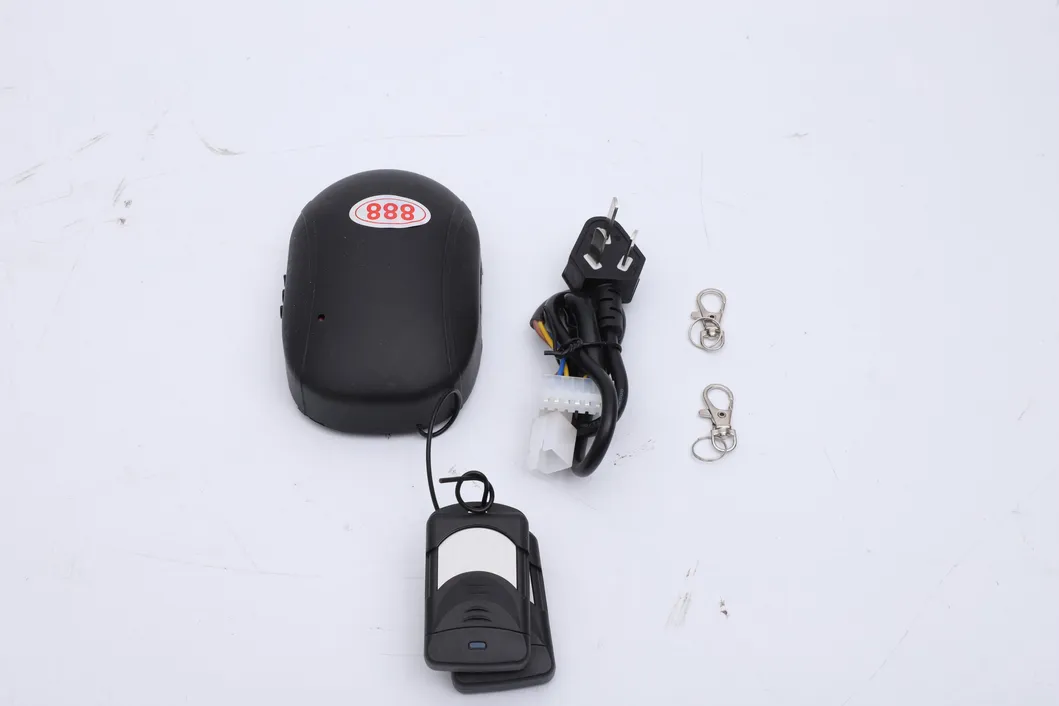

Control System 2
Control System 3

Compatible Accessories / Adaptable Accessories:

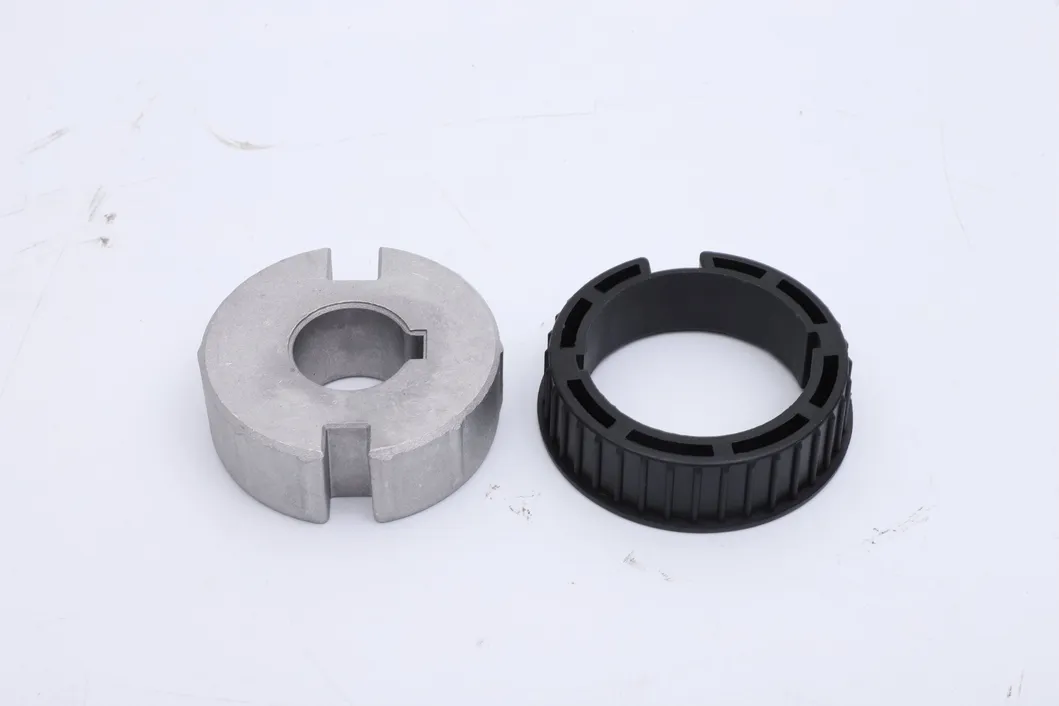

Accessories 1

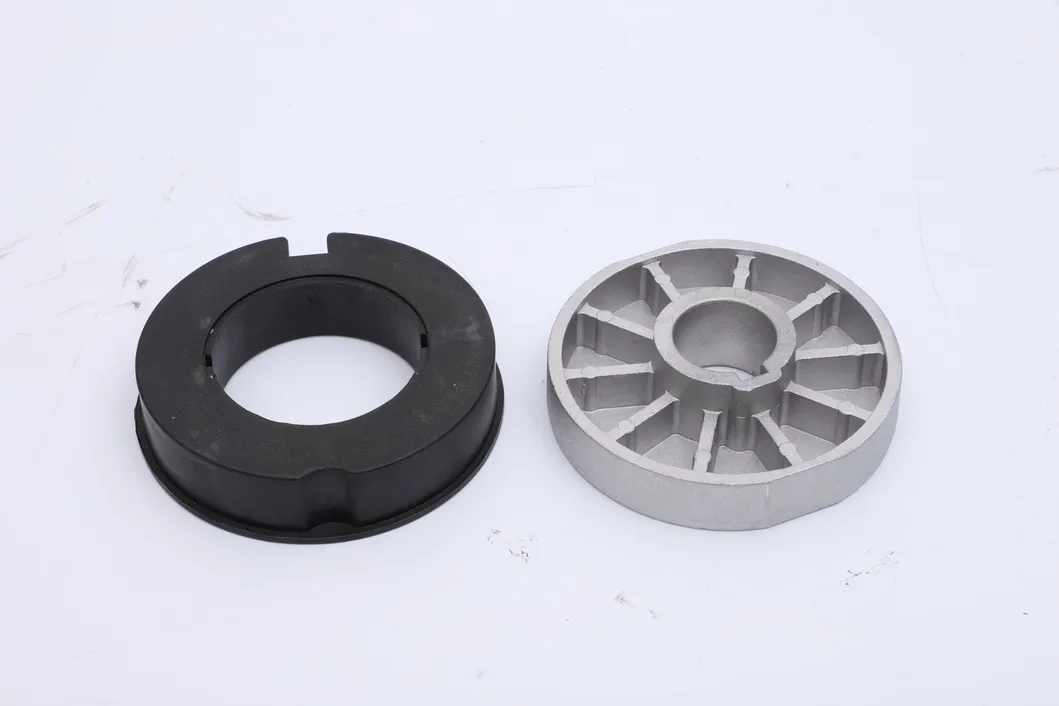

Accessories 2

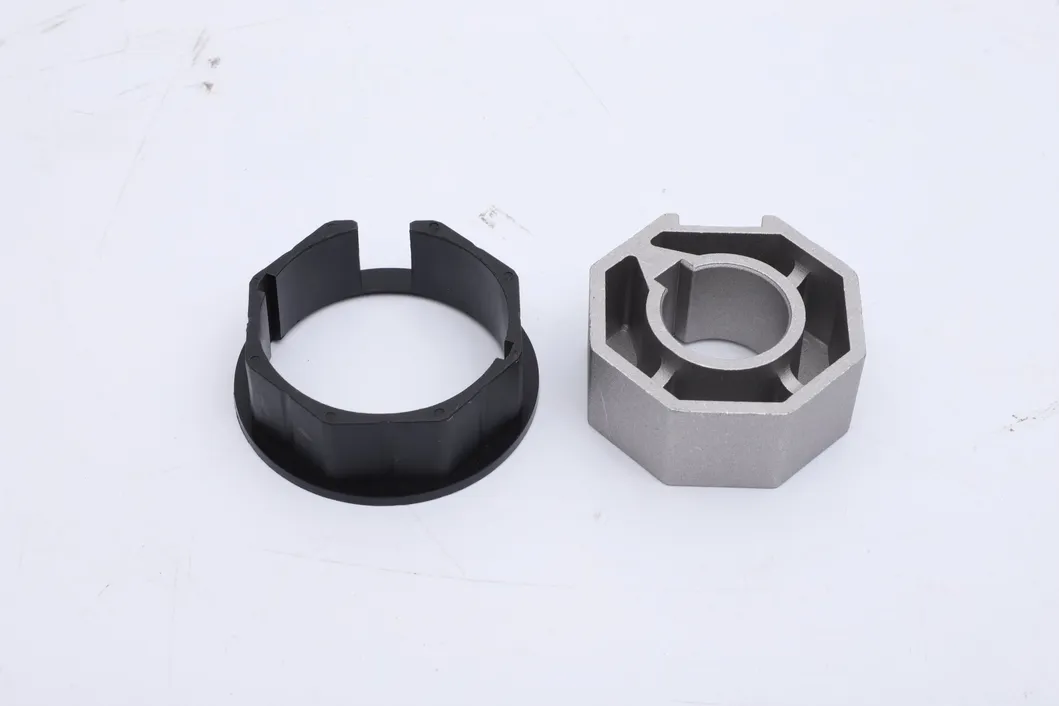

Accessories 3

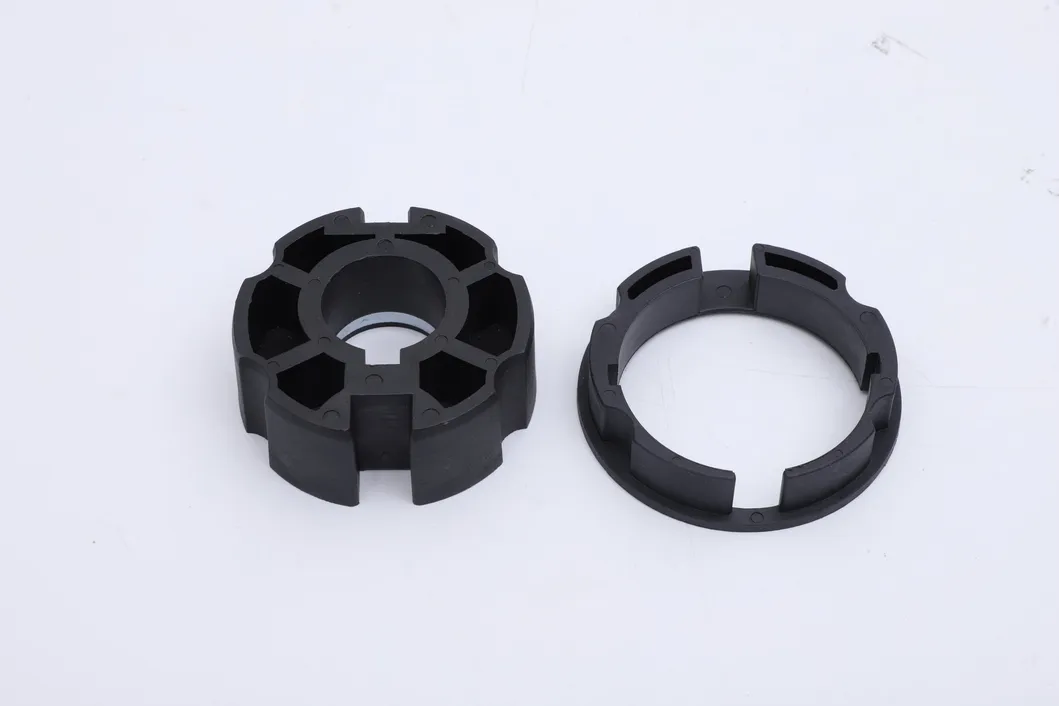

Accessories 4

The 45 standard tubular motor is primarily utilized across various industries including automatic projection screens, electric curtains, electric blinds, electric Roman shades, electric awning curtains, and Shangri-La blinds. The AC rated voltage is 220V and 110V, while the DC rated voltage is 24V and 12V. Both packaging and nameplates are fully customizable to meet specific requirements.

LM59R-100N/12R Specifications
100Nm230V12r/min
14uf/450V50HzΦ59
350W1.54AS2:4min
5.6kgIP44I.CI.F
LM59R-120N/10R Specifications
120Nm230V10r/min
14uf/450V50HzΦ59
460W1.8AS2:4min
5.6kgIP44I.CI.F

Frequently Asked Questions

What is the diameter of the LM59 series motor?
The pipe diameter for these tubular motors is 59 millimeters, making them suitable for heavy-duty applications.
What lifting forces are available for this motor?
We offer various lifting forces including 80N, 100N, 120N, 140N, 160N, and 180N to suit different curtain and blind weights.
Can I customize the voltage and nameplates?
Yes, we support batch customization for voltages (220V, 110V, 24V, 12V) as well as personalized packaging and nameplate branding.
Is the motor suitable for outdoor use?
With an Ingress Protection rating of IP44, the motor is protected against splashing water, making it suitable for many indoor and sheltered outdoor applications like electric awnings.
What applications are these motors commonly used for?
They are widely used for automatic projection screens, electric curtains, roller blinds, Roman shades, electric awnings, and Shangri-La blinds.
What is the thermal protection time (Tpt)?
The thermal protection time (S2) is rated at 4 minutes, ensuring the motor shuts off to prevent overheating during continuous operation.
