35/45/59/92mm High Performance Electric AC Tubular Motor for Electric Curtain/Blinds/Roller Shutter Door

Product Description

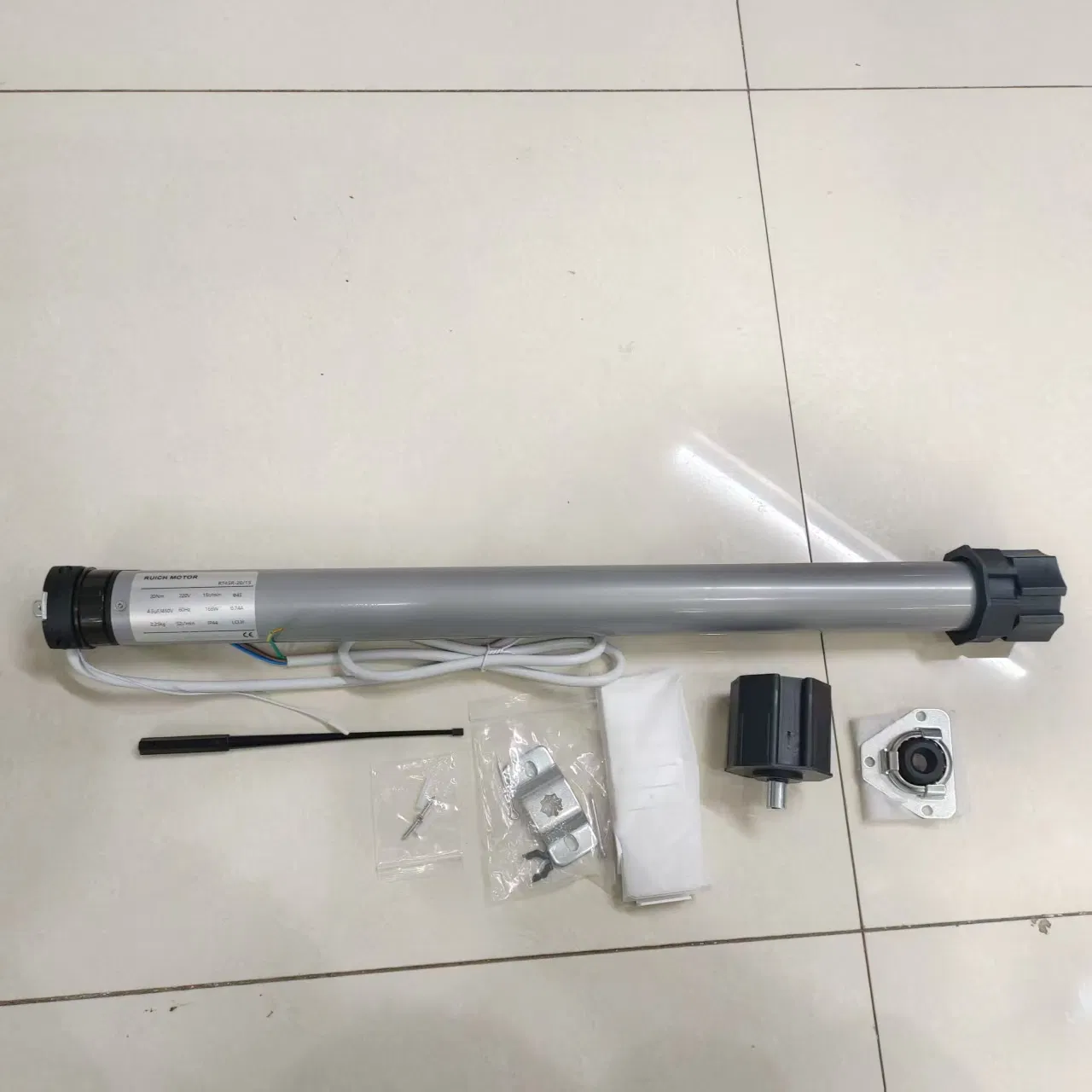

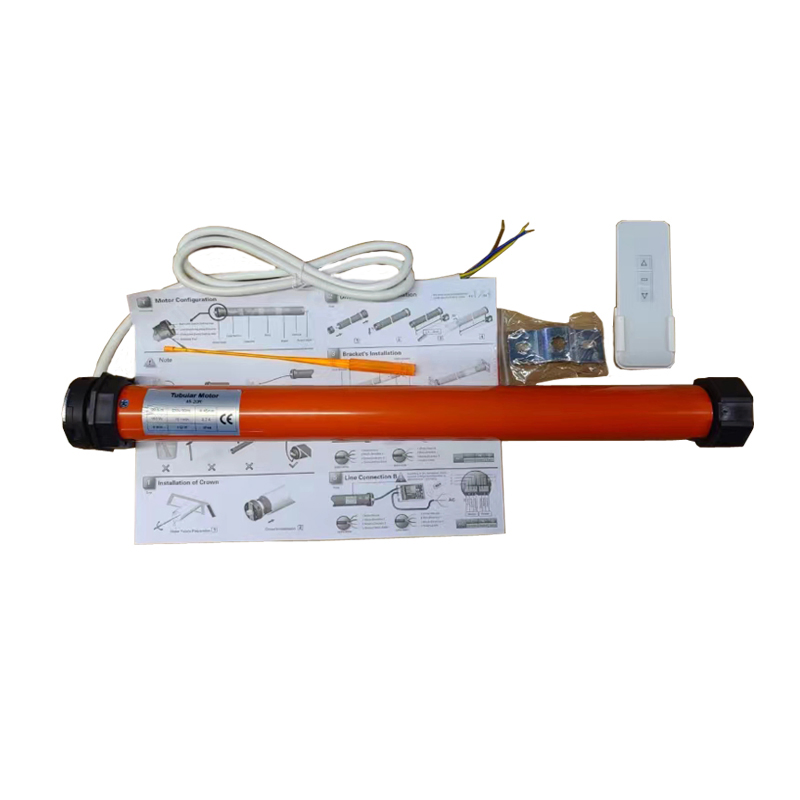

35/45/59/92mm High Performance Electric AC Tubular Motor for Electric Curtain/Blinds/Roller Shutter Door

Key Advantages
  • Highly integrated, saving space
  • High torque, low consumption
  • High efficiency, energy saving
  • Precise control, low noise
  • Various types (manual type, standard type, remote control type, Wi-Fi type, Lithium battery type), to meet the needs of different application scenarios
Applications
  • Rolling Shutter Window & Rolling Shutter Door
  • Auto Door & Awning
  • Electric lifting door and window
  • Automatic Clothes Hanger
  • Projection Screen, etc.
Product Description Images

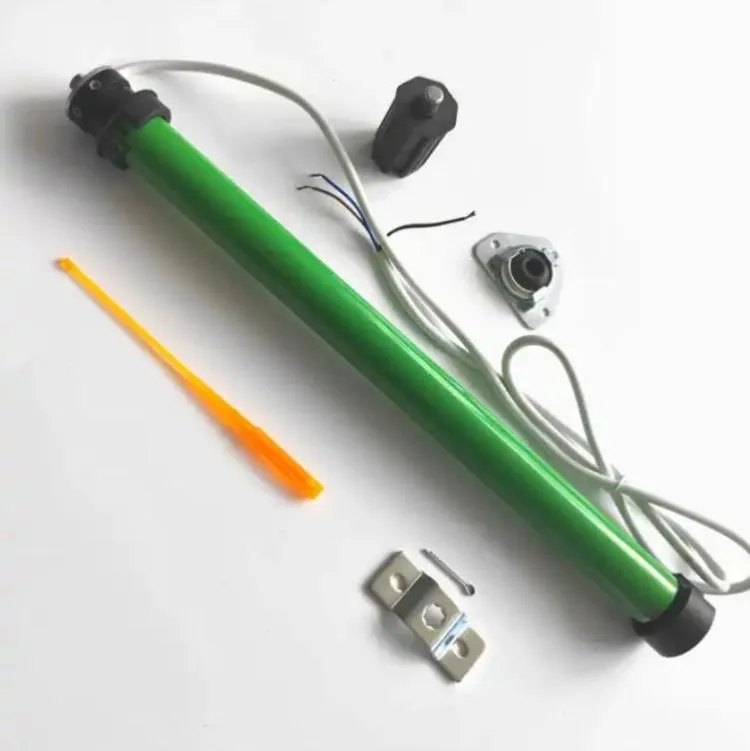

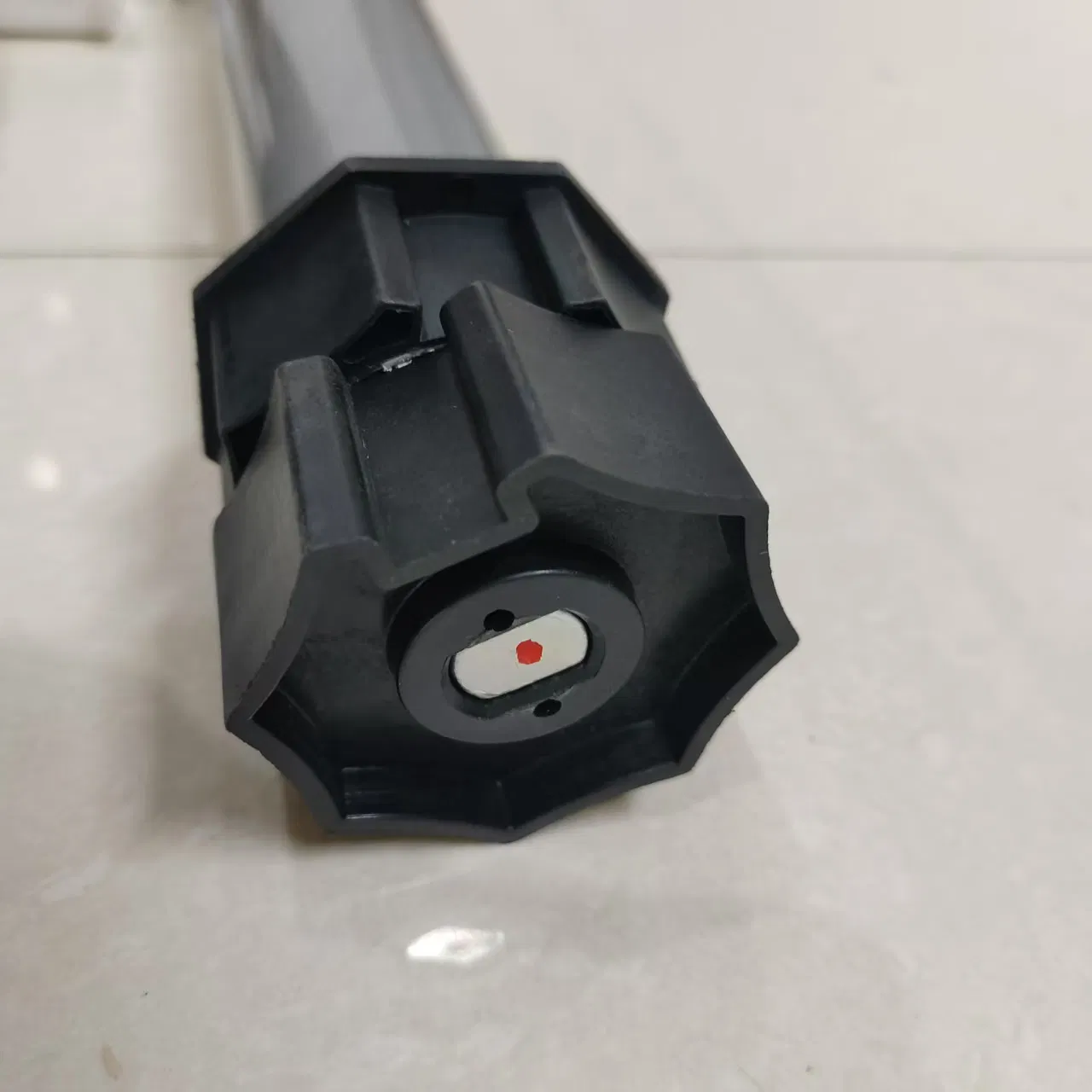

Electric AC Tubular Motor Structure Details

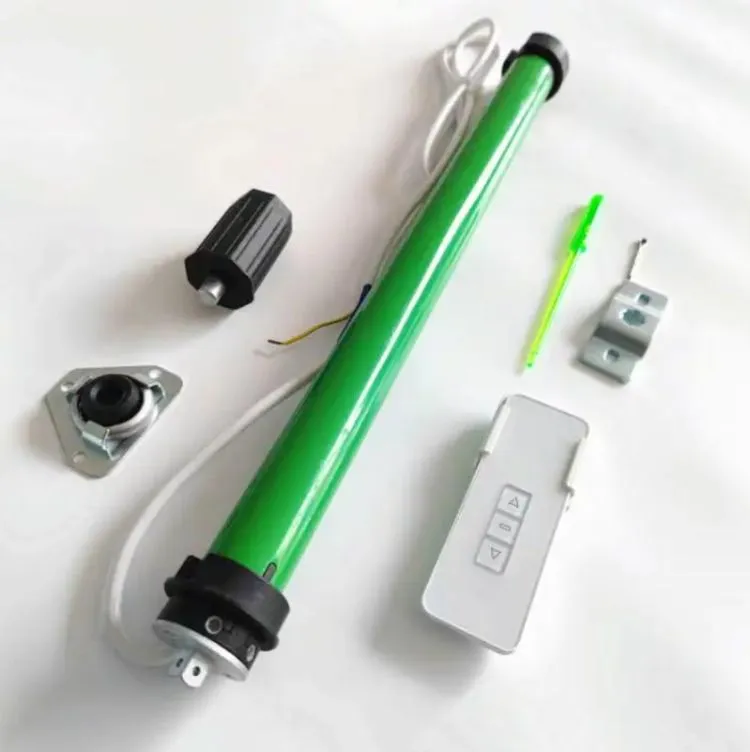

Tubular Motor Performance Details

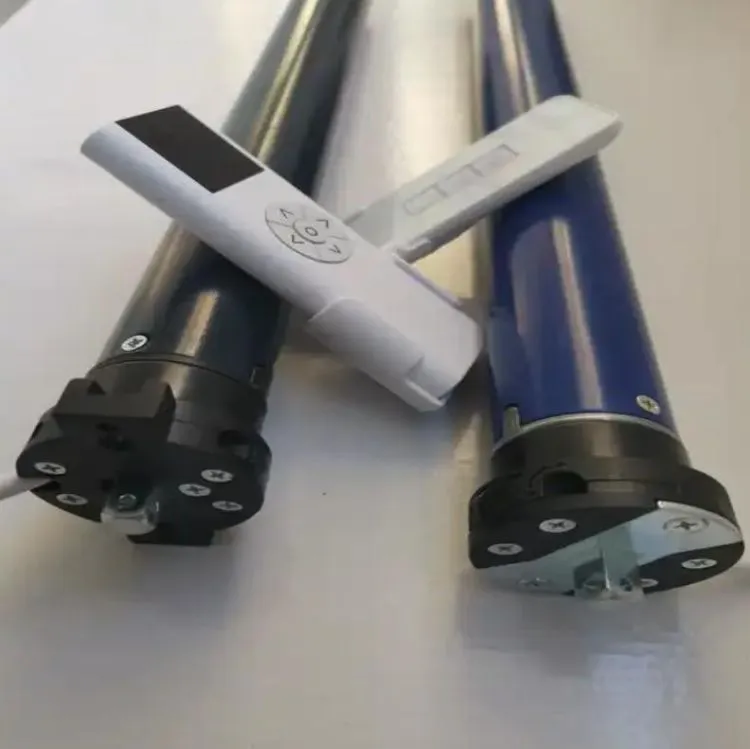

High Performance Tubular Motor Features

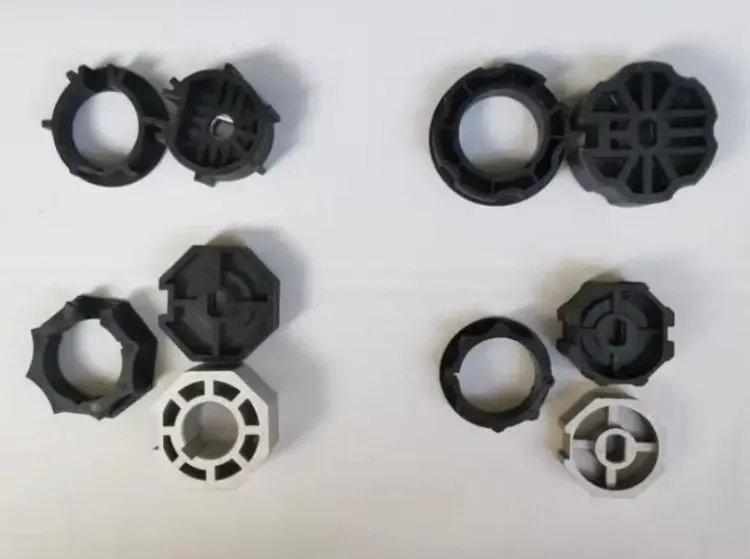

Standard Electric Motor Parts
Electric Blinds Shutter Motor Mechanism
AC Tubular Motor Controller Systems

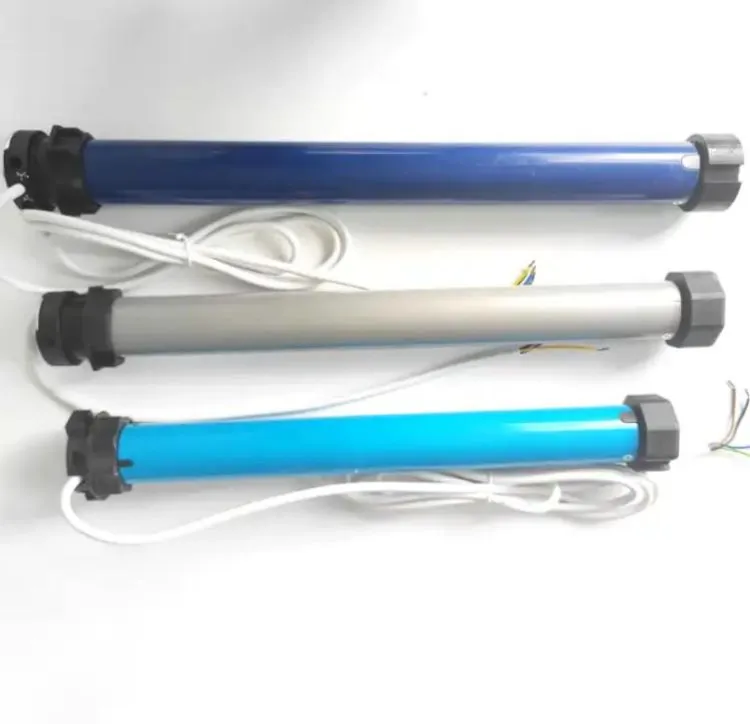

Blinds and Roller Shutter Motor Quality Test
Product Parameters
Tube Diameter 45mm
Voltage AC110-120V/220-240V
Frequency 50/60Hz
Torque 10/20/30/40/50 Nm
Speed 12/13/15/18/28/32 RPM
Power 151/166/187/206/225/234/316W
Tube Length 520/580mm
Type Standard/Manual/Remote Control/Wifi/Bluetooth/Lithium battery, etc.
Remote Controller Single channel/5 channel/15 channel

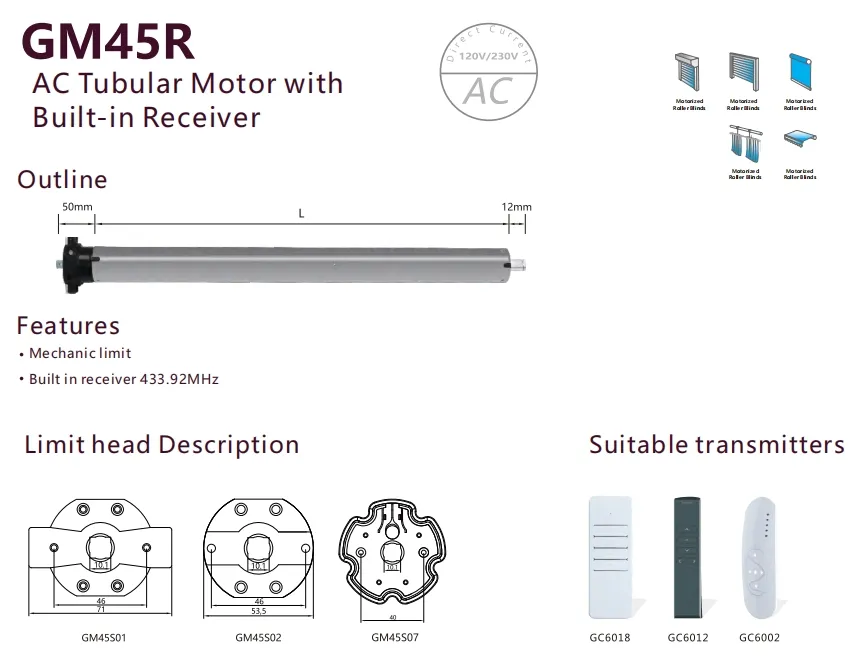

AC Tubular Motor Specifications chart

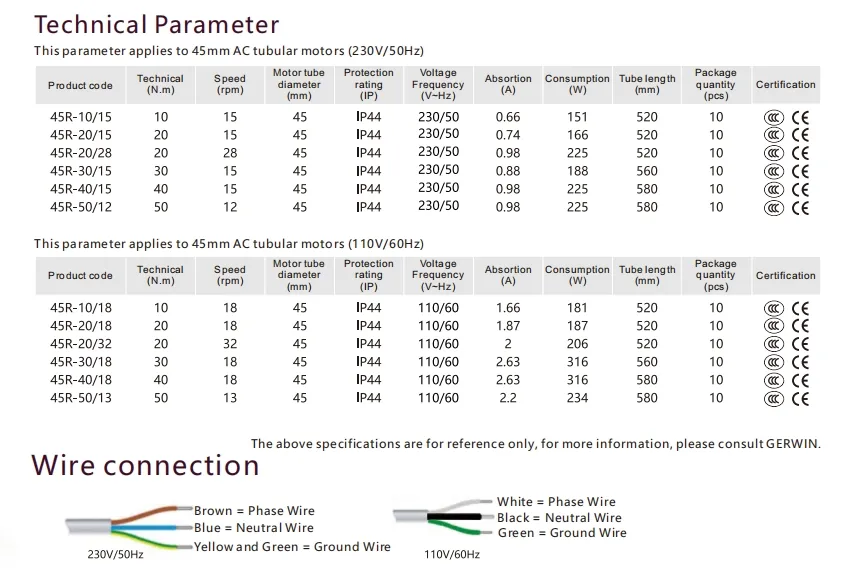

AC Tubular Motor Dimension Specs
Product Application
Tubular Motor Application scenarios
Production & Quality Control

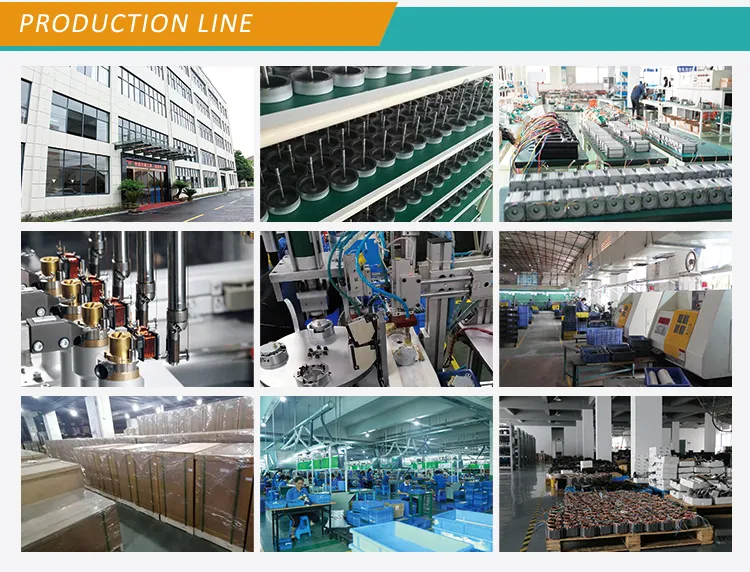

Production Workshop Equipment

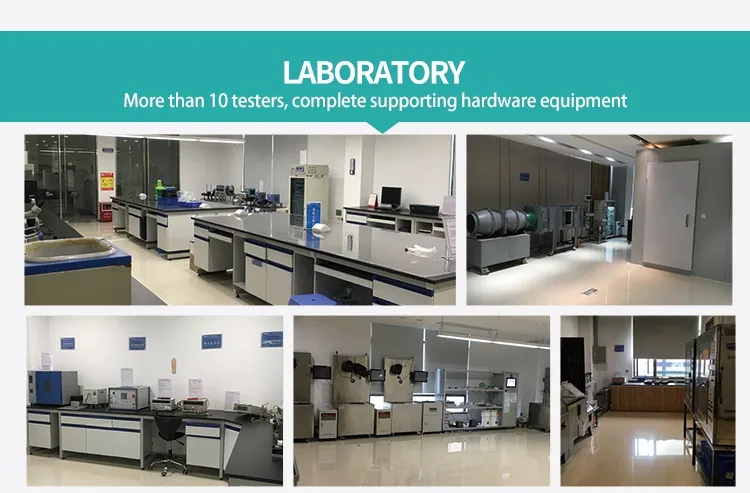

Assembly Line Manufacturing
Advanced Testing Machinery
Quality Management System
Main Products
Main Product Line Catalog
Customer Visits & Exhibitions
Global Customers and Partners
Packaging & Shipping
Secure Export Packing and Delivery logistics
Frequently Asked Questions
Q1What kind of motors can you provide?

For now, we mainly provide Kitchen Hood Motor, DC Motor, Gear Motor, Fan Motor, Refrigerator Motor, Hair Dryer Motor, Blender Motor, Mixer Motor, Shaded Pole Motor, Capacitor Motor, BLDC Motor, PMDC Motor, Synchronous Motor, Stepping Motor, etc.

Q2Is it possible to visit your factory?

Sure. Please kindly keep us posted a few days in advance. We need to check our schedule to see if we are available then.

Q3Can I get some samples?

It depends. If only a few samples for personal use or replacement, it will be difficult for us to provide because all of our motors are custom made and no stock is available if there is no further needs. If it is sample testing before the official order and our MOQ, price, and other terms are acceptable, we'd love to provide samples.

Q4Is there a MOQ for your motors?

Yes. The MOQ is between 1,000 to 10,000pcs for different models after sample approval. However, it's also okay for us to accept smaller lots like a few dozens, hundreds, or thousands for the initial 3 orders. For samples, there is no MOQ requirement, but less is better (no more than 5pcs) in case any changes are needed after initial testing.

Q5What electrical specifications do these tubular motors support?

These AC tubular motors support a voltage range of AC 110-120V / 220-240V at a frequency of 50/60Hz, with multiple power options available (from 151W up to 316W).

Q6What torque and speed options are available for the 45mm motor?

The 45mm tubular motor supports torques of 10 / 20 / 30 / 40 / 50 Nm, with speed selections ranging from 12 / 13 / 15 / 18 / 28 to 32 RPM to handle different shutter and curtain weights.
