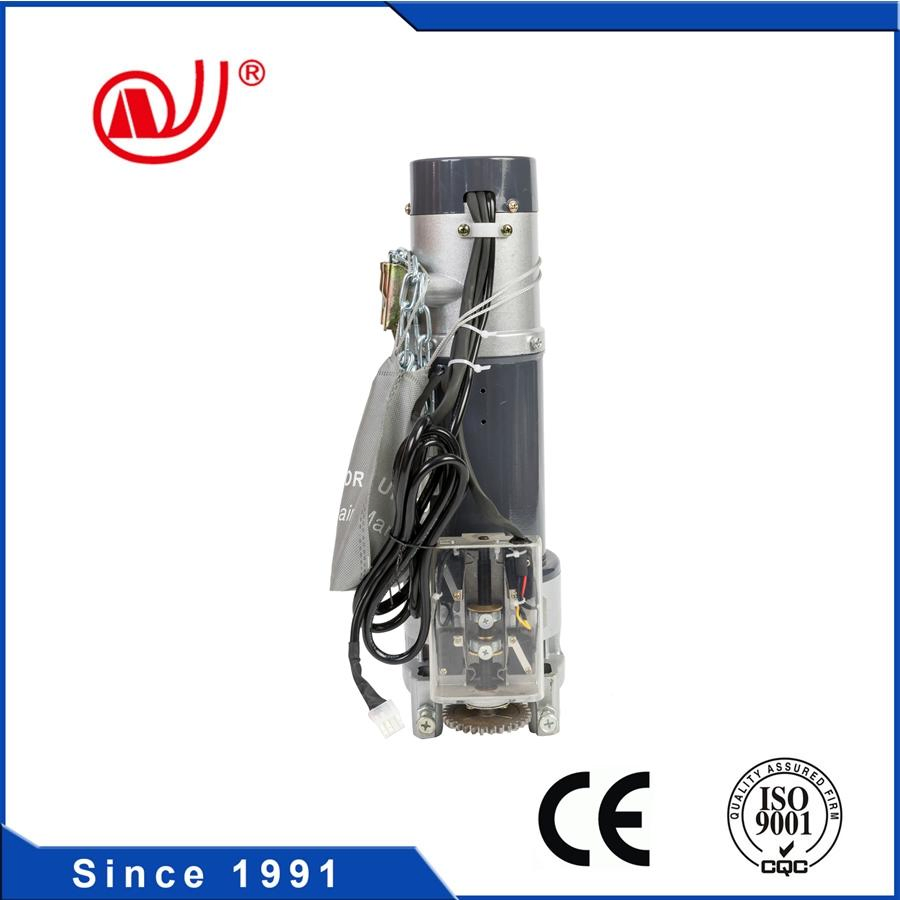

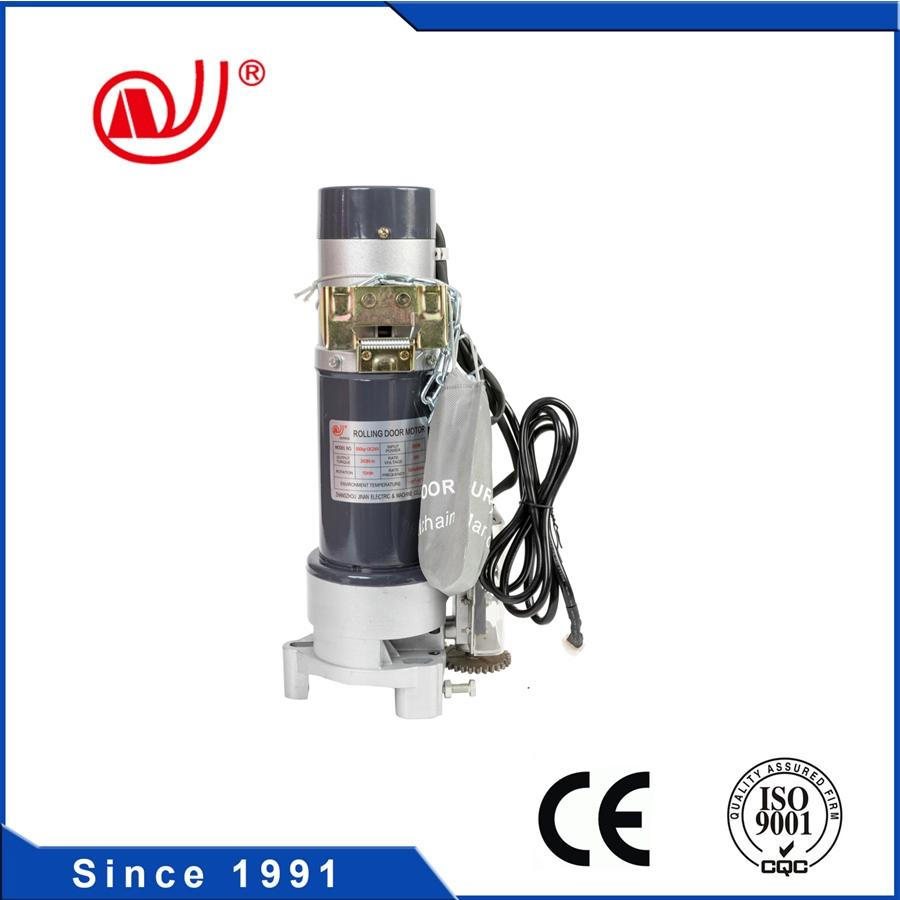

Widely Used in Factories DC Shutter Motor Reasonable Price Rolling Door Motor

1 / 5

Widely Used in Factories DC Shutter Motor Reasonable Price Rolling Door Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Product Overview

Model NO.

500KG-DC24V

Function

Control, Driving

Casing Protection

Protection Type

Certification

ISO9001, CCC

Application Area

Supermarket, Hotel, Bank, Factory, etc

Usage

Control Rolling Door up and Down

Color

Gray, Black, Blue, Can Be Customized

Feature

Easy Operation

Motor Winding

100% Copper Wire

Max. Lifting Height

6.5m

Output Torque

343 N.m

Material

Aluminum Alloy

Rated Power

250W

Frequency

50/60Hz

Motor Input Voltage

DC24V

Voltage

220V

Transport Package

One Set in Two Cartons

Specification

46.4*31.7*26cm

Origin

Fujian, China

Production Capacity

12000sets/Month

Technical Parameters

Model No.	Max lifting weight (kg)	Max lifting height (m)	Rated Input Power (W)	Output Torque (N.m)	Big reel sprocket Rotation (r/min)	Chain No.
AC Motors (220V/230V 50HZ/60HZ)
AC300KG-1P	300	6.5	450	168	6.2	10A
AC500KG-1P	500	6.5	450	343	6.2	10A
AC600KG-1P	600	6.5	680	412	6.2	10A
AC800KG-1P	800	7	700	607	4.2	10A
AC1000KG-1P	1000	7	700	1102	3.5	12A
AC Motors (380V/415V 50HZ/60HZ)
AC1000KG-3P	1000	8	400	1102	6.5	12A
AC1300KG-3P	1300	8	600	1372	6.5	12A
AC1500KG-3P	1500	8	600	1610	5.7	12A
AC2000KG-3P	2000	8	800	2200	5.7	12A
DC Motors (24V)
300KG-DC24V	300	6.5	200	168	4.7	10A
500KG-DC24V	500	6.5	250	343	4.7	10A
600KG-DC24V	600	6.5	280	412	4.7	10A
800KG-DC24V	800	6.5	380	607	4.7	10A

Detailed Features

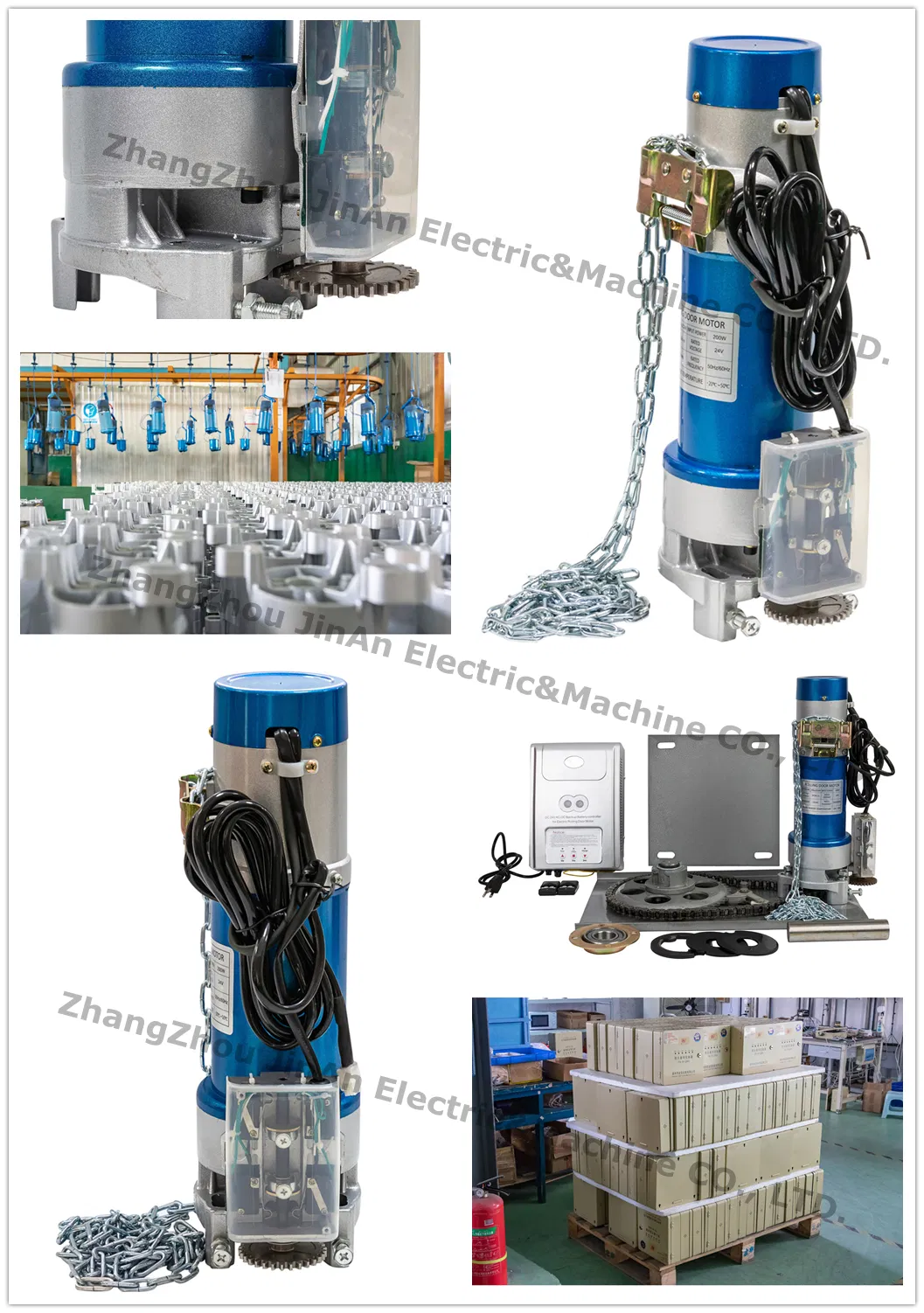

Detailed views of DC Shutter Motor showing internal relays and copper wiring

Key Components Overview

4 Relays: Promotes highly stable motor operational execution and increased lifting power.
100% Copper Wiring: Ensures larger load capacities, highly stable electrical current flow, and long-lasting durability.
4 Micro Switches: Integrated into the limit system to deliver exact accuracy, simple operations, and extensive range control.
Anti-Dropping Device: Built straight into the bracket board to proactively avoid accidental drops and guarantee overall safety.
Customized Motors: Tailored manufacturing parameters engineered directly around your application requirements.

Product Description

Working Environment & Conditions

Working Area: Designed strictly for indoor installations or dry, similar environments.
Environment Temperature: High structural resilience from -20ºC up to 50ºC.
Relative Humidity: Optimal operations at levels ≤90% RH.
Voltage of Power: Operates at fixed standard rated voltage × (1 ±10%)V.
Frequency of Power: Configured for 50Hz ±2Hz systems.
Media Restrictions: Keep away from strong electromagnetic interference, explosive media, and metal-corroding vapors.
Working Duty: Short-term operation rating; continuous run-times should not exceed 6 minutes.

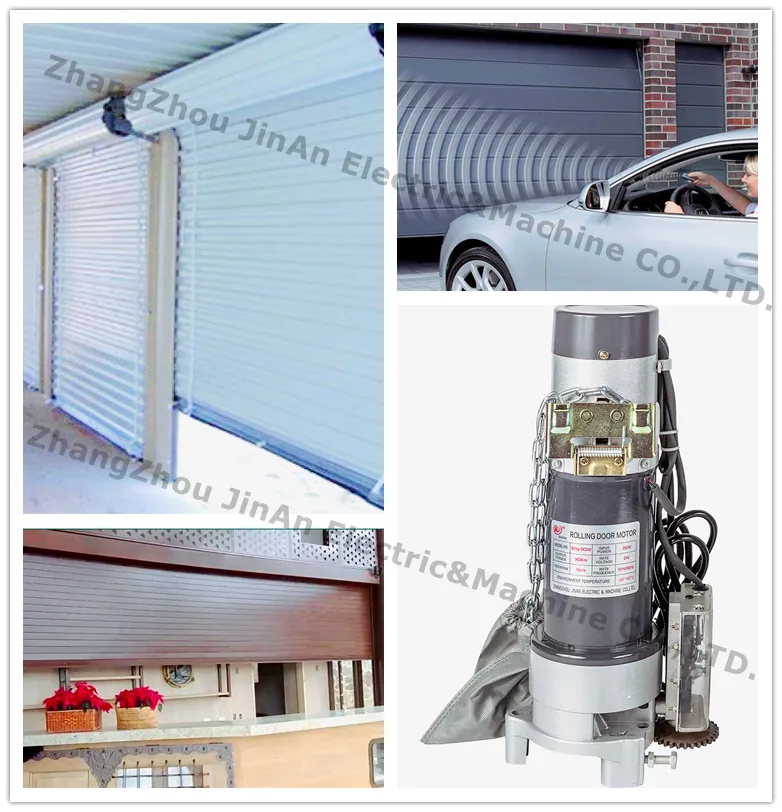

Heavy duty rolling door motor applied to a physical roller shutter setup

Outstanding Structural Features

Aluminium Alloy Shell: Solid yet highly lightweight design makes mounting quick and effortless.
Minimal Noise Profile: Specially optimized to reduce operating noise, vibration, and general power draw.
Limit Configuration: Engineered for absolute precise control, convenient adjustments, and generous range limits.
Advanced Transmitters: Features robust remote-control modules for high-frequency signal reach.

Our specialized heavy-duty motors are widely implemented inside shopping malls, large-scale warehouses, home garages, multiplex theaters, corporate offices, hotels, banks, and major factories to automate rolling shutter doors, providing smooth electric and reliable manual configurations.

Packaging & Delivery

Packaging Specifications

Standard Packing: Securely packaged as one complete set inside two reinforced cartons, with a protective inner plastic bag and robust outer corrugated carton wraps.

(Outer cartons can be fully customized based on client requirements, matching print artwork, logos, and custom structural branding specifications).

Loading Capacity

AC Motors: A 20-foot GP cargo container safely fits approximately 520 to 550 units.
DC Motors: A 20-foot GP cargo container accommodates between 480 to 520 units.

Delivery Timeline

Orders are typically shipped out in 10 to 45 business days following the receipt of your primary deposit, subject strictly to order volume and customized engineering specs.

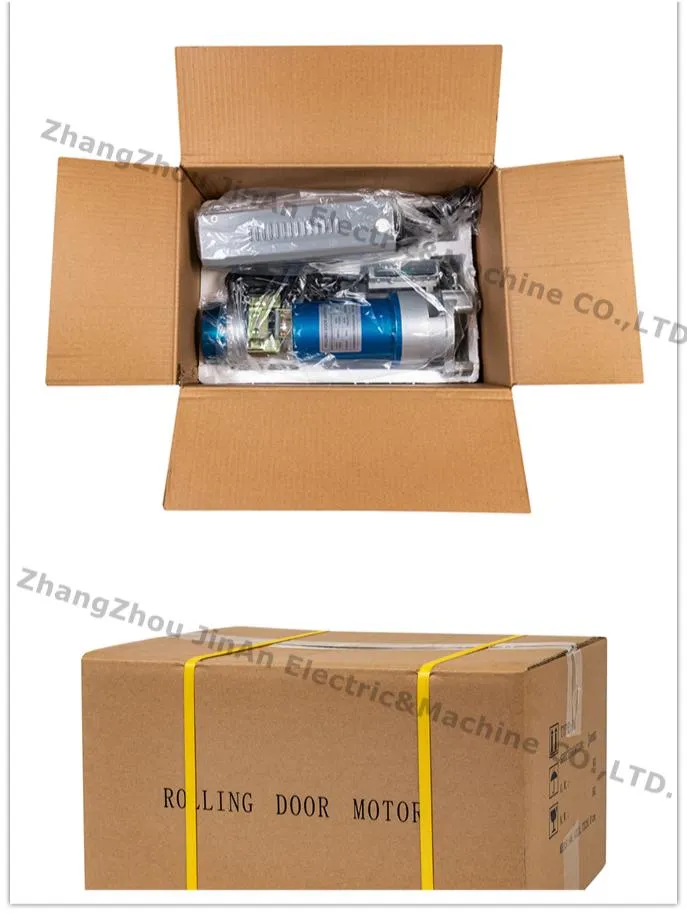

Double carton box packaging system for secure motor shipment

Multiple packaged motors ready for shipping container loading

Certificates

More Choices for You

To provide tailored options matching diverse commercial requirements, we supply a wide range of standard load weight models:

AC Shutter Motors: 300kg, 500kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, and 2000kg configurations.
DC Shutter Motors: 300kg, 500kg, and 600kg configurations.

Alternative motor series available for multi-load options

Frequently Asked Questions (FAQ)

Are you a manufacturer?

Yes, we are a professional manufacturer of rolling door motors with our own dedicated production factory and development facility.

How about your standard delivery time?

Normally, if the goods are fully in stock, processing takes 7 to 10 days. If the ordered items are not in stock, manufacturing and fulfillment takes 15 to 35 days depending strictly on order volume and configurations.

Can you accept OEM orders?

Yes, custom OEM services are accepted. Please send us your physical or technical specifications, and we will prepare a highly reasonable pricing estimation and physical testing sample as soon as possible.

What material is used for the Motor Windings?

The primary baseline material is 100% pure copper wire. Lightweight aluminum wiring is also available as an alternative option for specific AC motor lines.

What are your standard terms of payment?

We process transactions through direct bank transfer. Sample configurations require 100% T/T paid upfront. Larger bulk production orders require a 30% T/T deposit, with the remaining 70% balanced and cleared before final shipping.

How do you manage overall quality control?

We utilize a strict quality control loop featuring professional engineering audits, top-tier raw material partners, and full structural product tests. Each individual motor unit goes through strict testing before final packaging.
