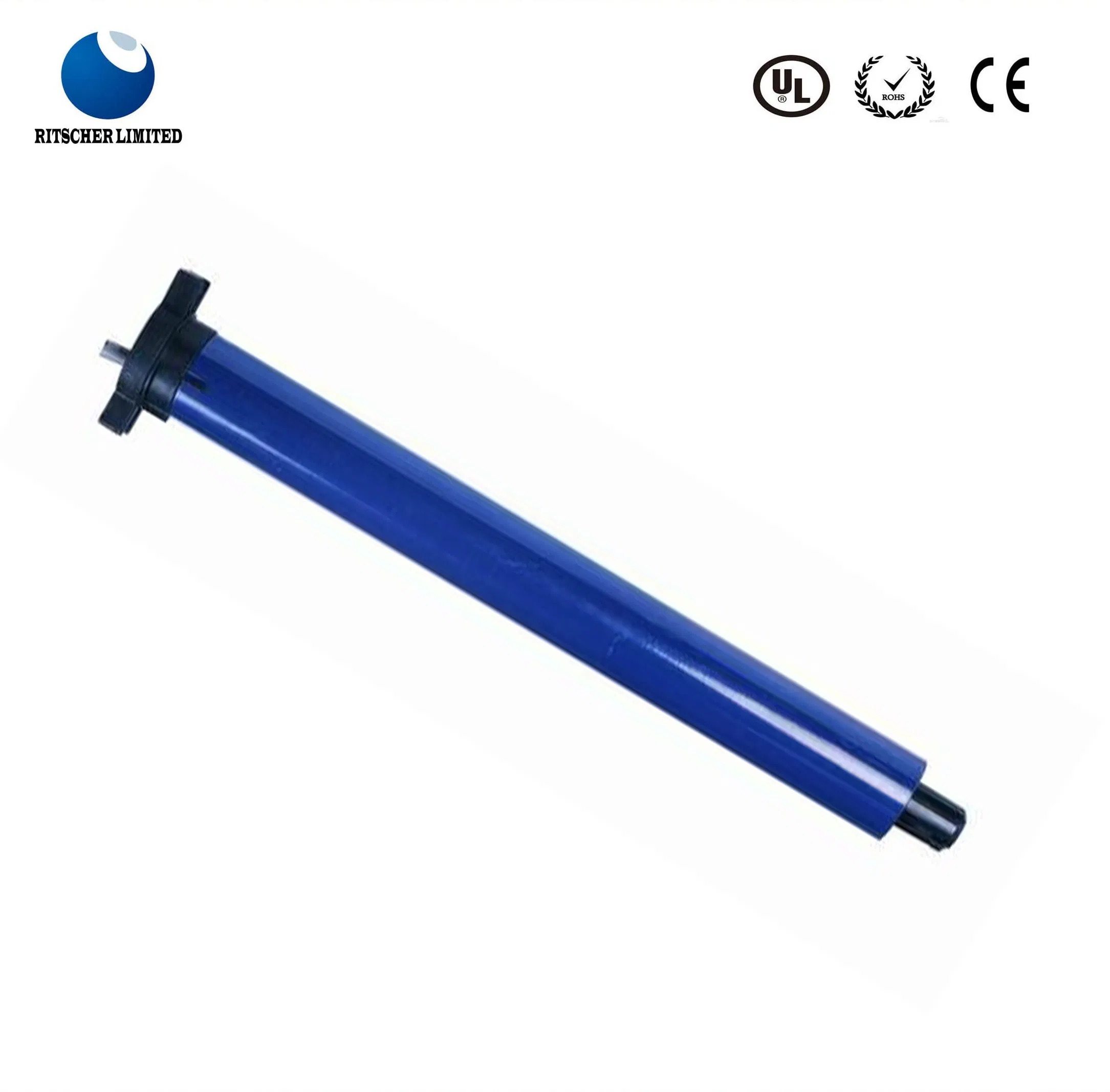

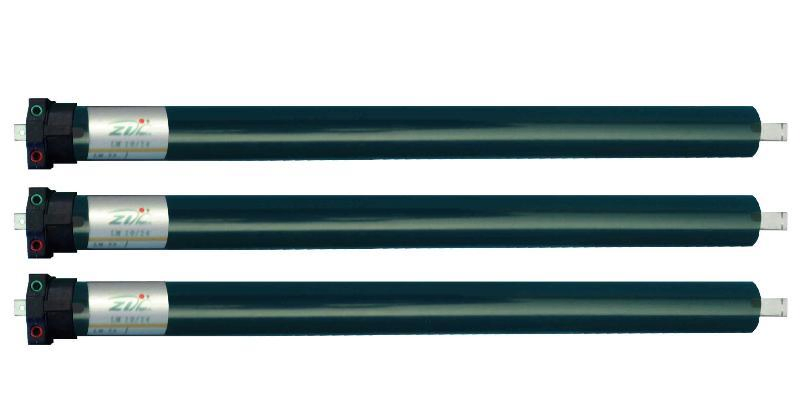

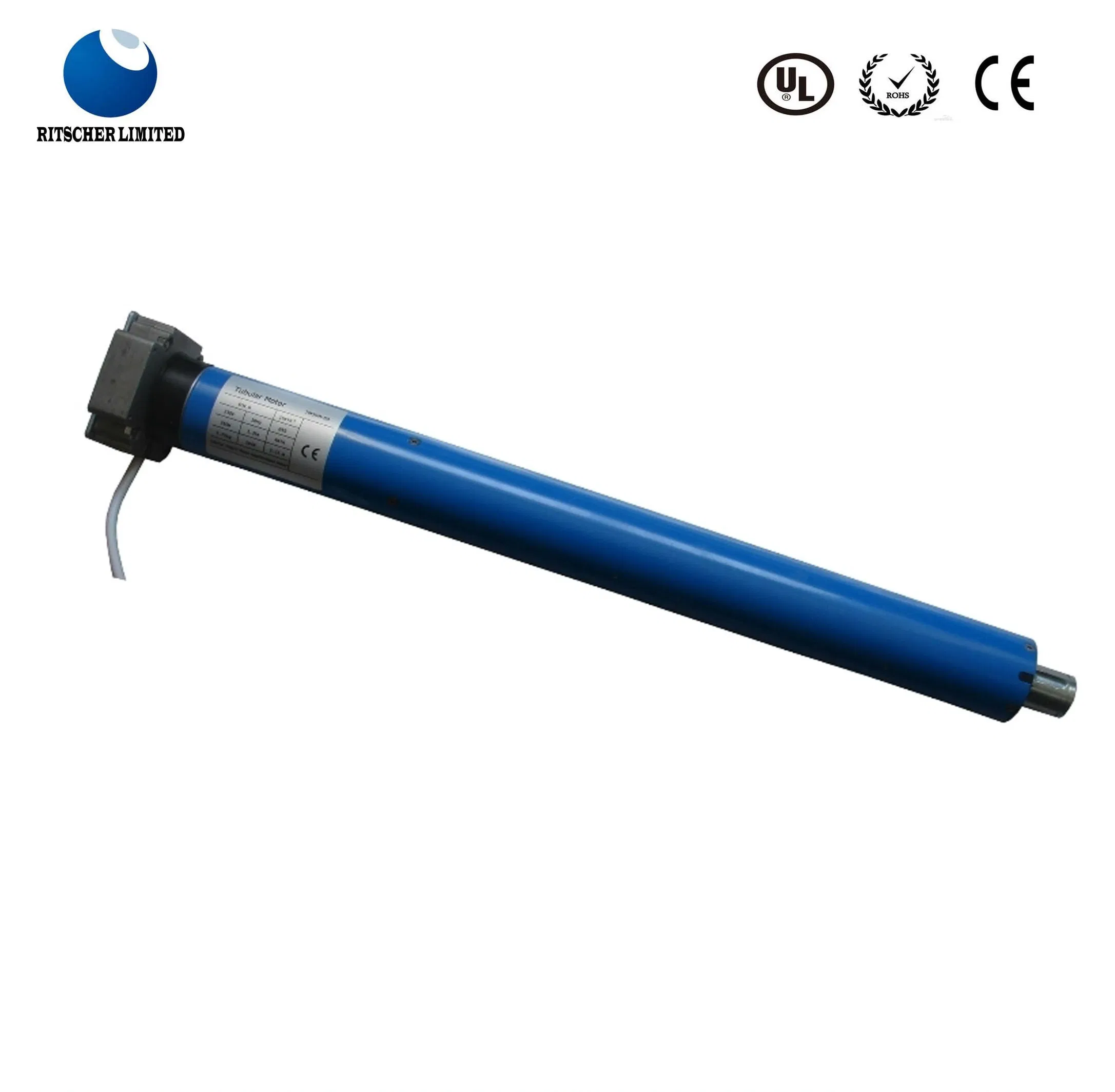

Electric High Torque Tubular Motors for Roller Shutter

Basic Specifications

Model NO.

45

Number of Stator

Single-Phase

Function

Driving, Control

Casing Protection

Protection Type

Number of Poles

2

Starting Mode

Direct on-line Starting

Certification

ISO9001, CCC

Trademark

OEM

Scope of Application

Home Appliances

Speed Rated

2300rpm (Customizable)

Voltage

110V-220V

Power Rated

15W (Customizable)

Torque

67m.Nm

Frequency

50/60Hz

Current

0.1A

Power

30-100W

Transport Package

40PCS Per Carton

Specification

ROHS/CE/UL

HS Code

8501109990

Production Capacity

50,000 Pieces / Month

Product Description

High Quality Tubular Motors DC 9V

Stator size is optional to fit various application demands.
Safe, highly reliable operation with low noise output, excellent starting performance, and long service life.
Strong, robust power delivery built for durability.
Rated Voltage: 110~120V / 220~240V - 50/60Hz.
Equipped with standard thermal protector featuring a one-shot fuse or multi-shot fuse for optimal safety.

Typical Applications

Exhaust Fan Air Purifier Micro-oven Fan Induction Cooker Refrigerator Pump Heater Hood Oven Blower Air Conditioner Heater Machines Dehumidifiers

Electric High Torque Tubular Motors for Roller Shutter

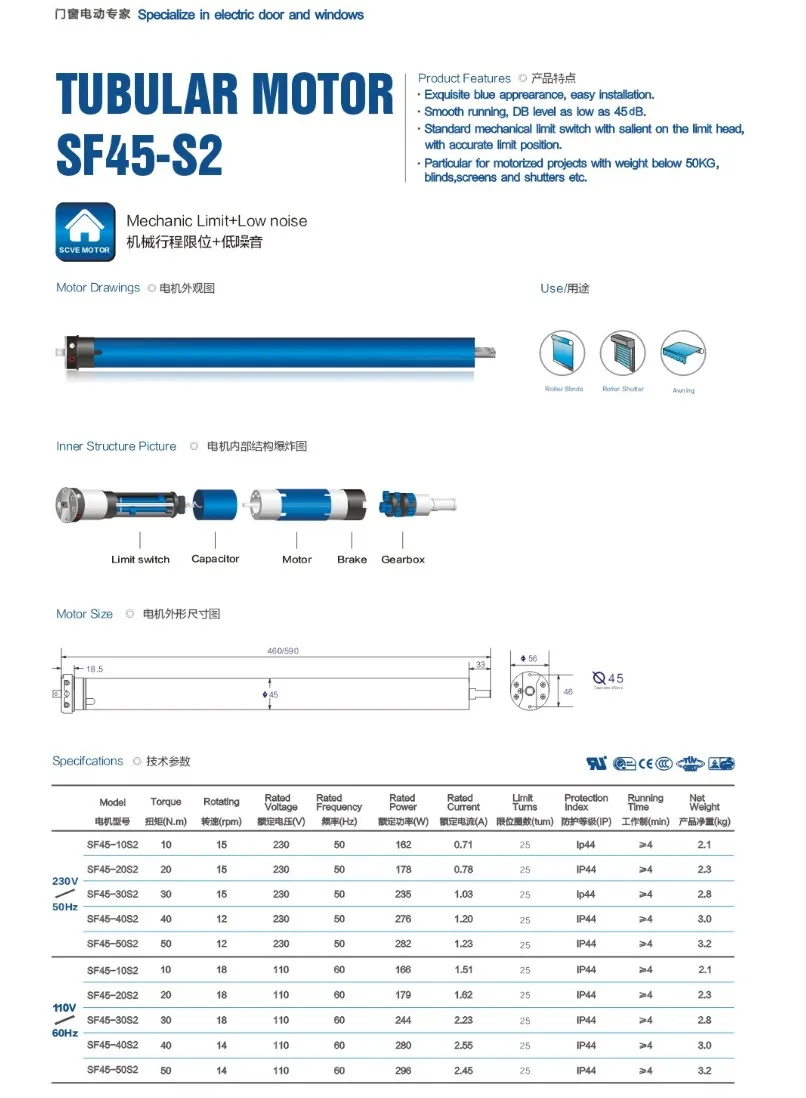

Technical Performance Parameters

Power Rating	Model Size	Torque (N.m)	Speed (RPM)	Rated Voltage (V)	Frequency (Hz)	Rated Power (W)	Rated Current (A)	Limit Turns (Turn)	IP Index	Running Time (min)	Net Weight (kg)
230V / 50Hz	35mm	3-12	17-28	230	50	139-170	0.6-0.75	42	IP44	>4	1.7
	45mm	10-50	12-15	230	50	162-282	0.71-1.23	15-36	IP44	>4	2.1-3.2
	59mm	60-140	9-12	230	50	288-465	1.25-2.12	26-36	IP44	>4	5.9-7.1
	64mm	140-180	9	230	50	460-520	2.0-2.4	36	IP44	>4	7.8-8.2
	92mm	140-330	8-12	230	50	580-910	2.6-4	11-16	IP44	>4	10-14
	115mm	500-600	7	230	50	1650-1750	7.2-7.6	11	IP44	>4	20
110V / 60Hz	35mm	3-12	20-33	110	60	141-173	1.29-1.58	42	IP44	>4	1.7
	45mm	10-50	14-18	110	60	166-296	1.51-2.55	15-36	IP44	>4	2.1-3.2
	59mm	60-140	11-14	110	60	300-501	2.73-4.62	26-36	IP44	>4	5.9-7.1
	64mm	140-180	11	110	60	465-534	4.3-5.1	36	IP44	>4	7.8-8.2
	92mm	140-330	9.5-14	110	60	588-930	5.35-8.47	11-13	IP44	>4	10-14
	115mm	500-600	8.4	110	60	1650-1750	15.7-16.5	11	IP44	>4	20

Product Diagrams & Gallery

Electric High Torque Tubular Motor Specifications Diagram

Electric High Torque Tubular Motor Structural Dimensions

Frequently Asked Questions

Q1: What motor models and types can be supplied?

A variety of custom motors can be supplied, including Kitchen Hood Motors, DC Motors, Gear Motors, Fan Motors, Refrigerator Motors, Hair Dryer Motors, Blender Motors, Mixer Motors, Shaded Pole Motors, Capacitor Motors, BLDC Motors, PMDC Motors, Synchronous Motors, and Stepping Motors.

Q2: Are product samples available for quality testing?

Yes. If you require samples for testing prior to placing an official order, samples can be prepared provided that the target order quantity, pricing, and other general terms are mutually acceptable. Please note that standard stock is not maintained as all motors are custom-built to specific order parameters.

Q3: What is the Minimum Order Quantity (MOQ) requirement?

The standard MOQ ranges between 1,000 and 10,000 pieces depending on the specific motor model after initial sample approval. However, smaller production lots (ranging from dozens to thousands) are acceptable for the first three trial orders. No strict MOQ applies specifically to testing samples.

Q4: Can the rated speed and power be customized to match specific application demands?

Yes, technical parameters like speed (e.g. 2300rpm) and rated power (e.g. 15W) can be fully customized and adjusted to align perfectly with your technical equipment designs and requirements.

Q5: What standard safety mechanisms are integrated into these tubular motors?

These motors prioritize safety and reliability. They are equipped with premium built-in thermal protection, featuring either a single-shot fuse or a multi-shot fuse layout, coupled with an IP44 casing protection rating to ensure steady long-term operation.

Q6: What certifications do these motors comply with?

All motors are built to precise international specifications and are fully compliant with prestigious certifications including ISO9001, CCC, ROHS, CE, and UL standard benchmarks.
