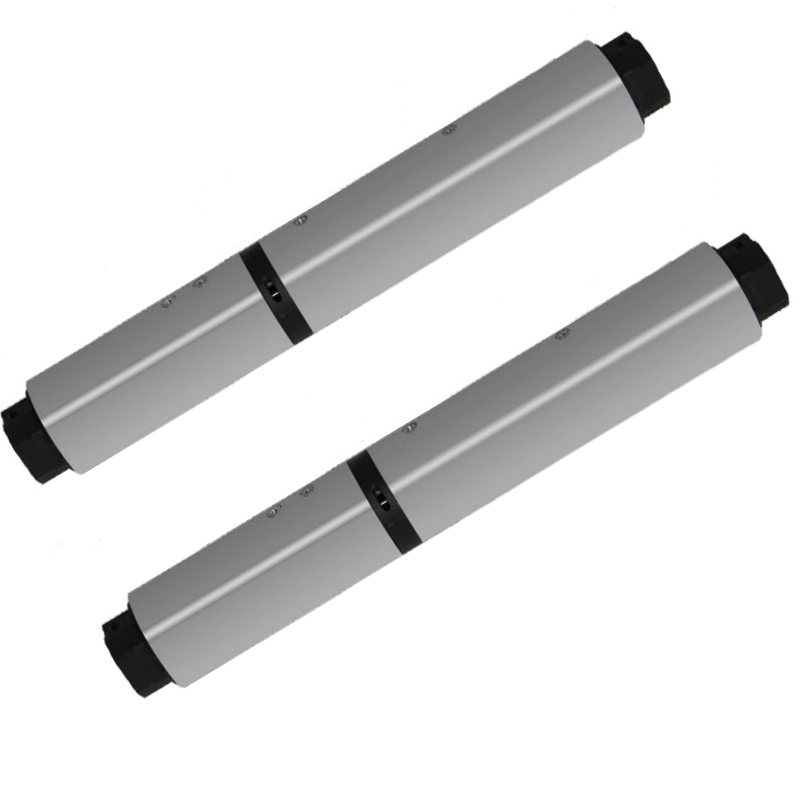

12V-24V GM24tfq-0.8/30 Zigbee WiFi Venetian Blinds Tubular Motor with APP Control/Scene Set Control/Voice Control

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview Product Description Product Parameters Detailed Photos Company Profile FAQ

Overview

Basic Info
Model NO. GM24TFQ-0.8/30
Number of Stator Single-Phase
Function Driving, Control
Casing Protection Protection Type
Number of Poles 2
Starting Mode Direct on-line Starting
Certification ISO9001, CCC, CE, RoHS
Trademark OEM
Voltage 12V
Power 3.6W
Rpm 30 Rpm
Motor Tube Diameter 24mm
Torque 0.8nm
Limit Function Electric Limit
Feature Two Shaft Direction

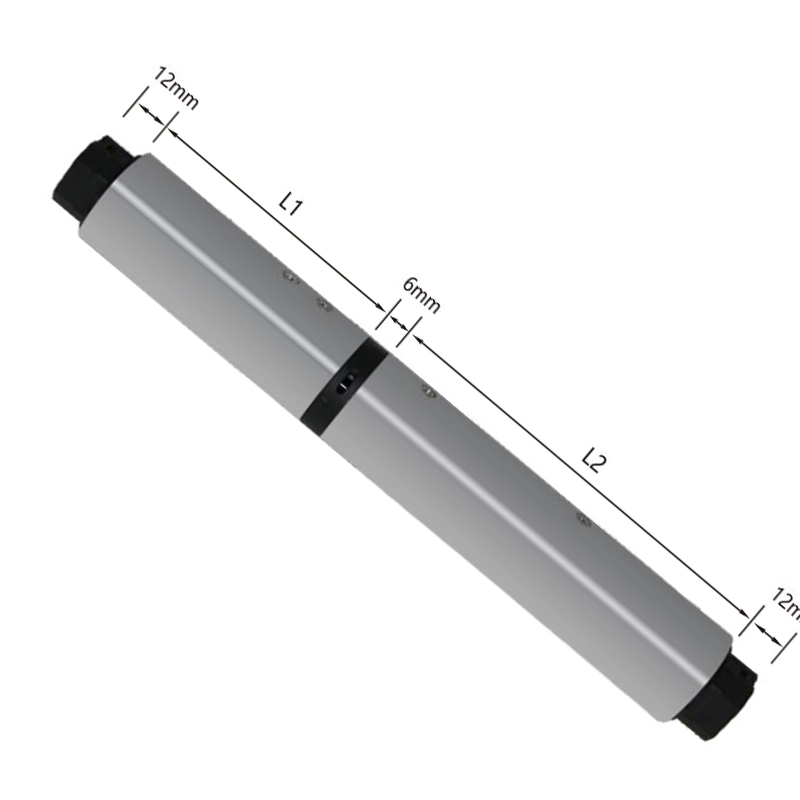

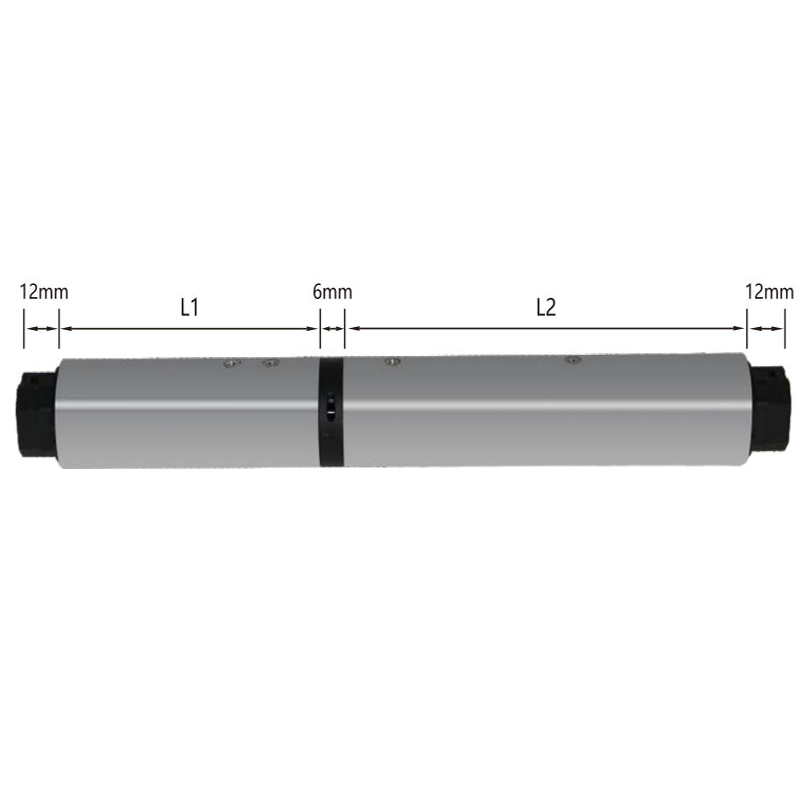

Tube Length L1:70mm L2:108mm
Built in Receiver 433.92MHz

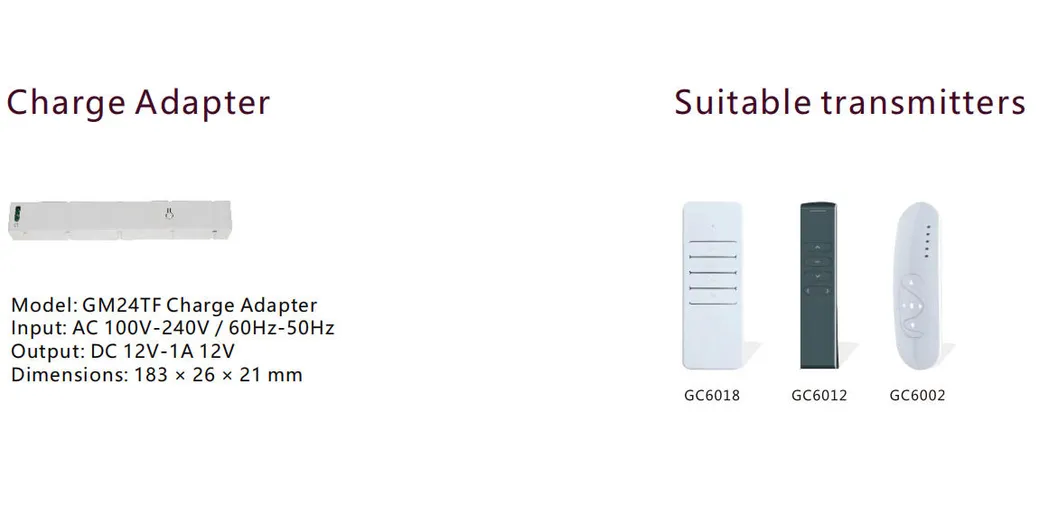

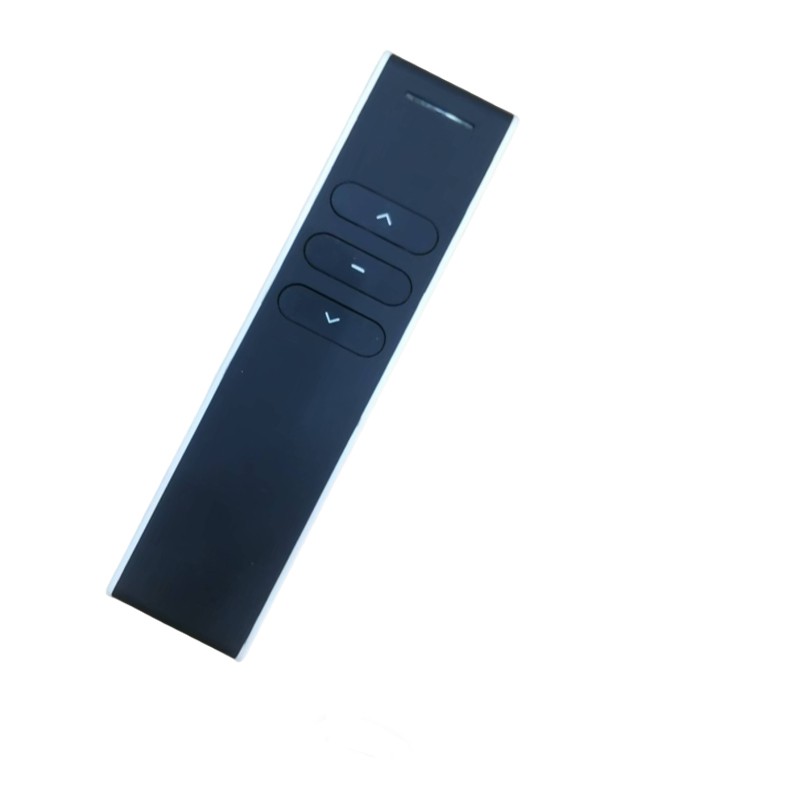

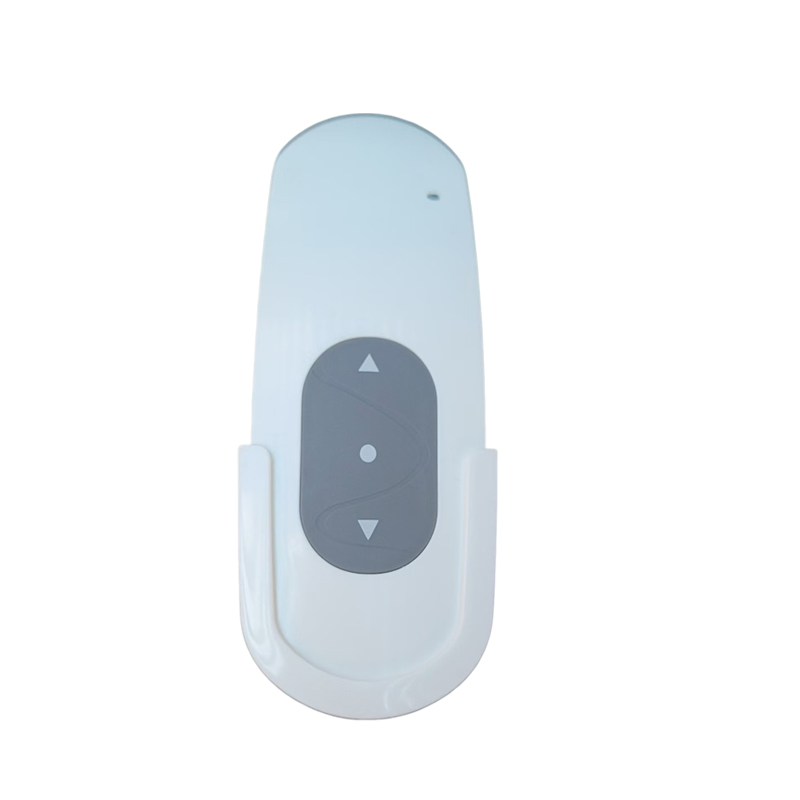

Suitable Transmitters Gc6018, Gc6012, Gc6002
IP Class IP44
Advantage Support WiFi/Zigbee/Bluetooth/Matter
Transport Package Cartons
Specification CE, RoHS
Origin China (Mainland)
HS Code 8501109990
Production Capacity 5000piece/Pieces / Month
Packaging & Delivery
Package Size 25.00cm * 15.00cm * 15.00cm
Package Gross Weight 2.000kg

Product Description

24TFQ-0.8/30 Two-Speed Venetian Blinds Motor for Pleated Blinds
Key Features:
  • DC motor
  • Electric Limit
  • Fine-Tunable limit
  • Two shaft Direction
  • Third limit position
  • Adjustable speed - two level
  • Auto/Manual Limit set
  • Built in receiver 433.92MHz
  • App Control
  • Scene Set Control
  • Voice Control

Product Parameters

Product code Torque(N.m) Speed(rpm) Motor tube diameter (mm) Protection rating (IP) Voltage (V) Absorption (A) Consumption (W) Tube length (mm)
24TFQ-0.8/30 0.8 30 24 IP44 12 1 3.6 L1:70/L2:108

Detailed Photos

Company Profile

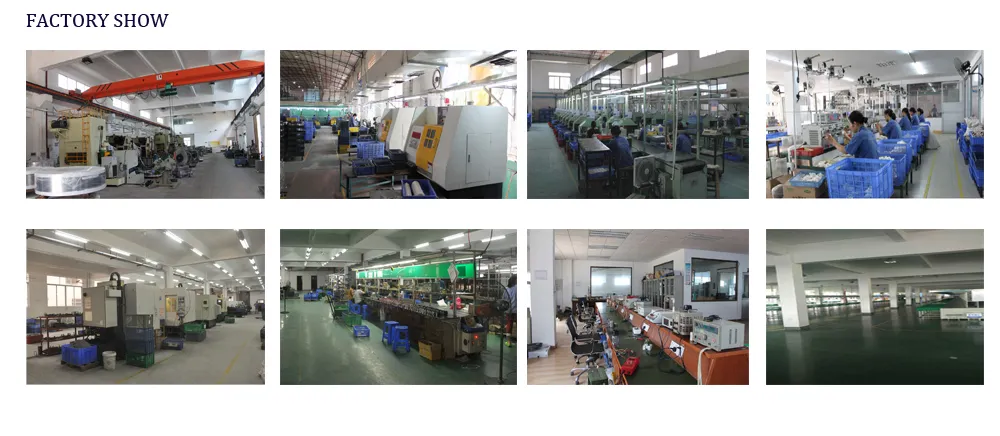

Our group was established in 2006. We always focus on micro-motors for household and industrial electrical appliances. Currently, we operate professional micro-motor factories. Our facilities feature over 50,000 square meters of production plants and employ more than 500 employees, with an annual output of 5 million units and a total capacity of 10 million units. Over years of development, we have established an excellent reputation in domestic and international markets, earning the trust of global clients.

Starting with shaded pole motors, our catalog has evolved over a decade to include BLDC motors, capacitor motors, synchronous motors, stepping motors, servo motors, and PMDC motors. These solutions are extensively utilized in refrigerators, freezers, microwave ovens, air heaters, exhaust units, ventilators, ovens, air purifiers, massage apparatus, and various other industrial systems.

In order to design modern-technology motors that strictly align with consumer needs, we rely on a highly qualified R&D team. Production and quality control follow rigid management standard workflows to maximize structural reliability and optimize purchasing costs. We remain strictly committed to perfecting every single detail.

We are constantly moving forward step by step to expand our business scope and deliver premier engineering quality worldwide.

FAQ

Q: What kind of motors can you provide?
A: Currently, we mainly provide Kitchen Hood Motors, DC Motors, Gear Motors, Fan Motors, Refrigerator Motors, Hair Dryer Motors, Blender Motors, Mixer Motors, Shaded Pole Motors, Capacitor Motors, BLDC Motors, PMDC Motors, Synchronous Motors, and Stepping Motors.
Q: Is it possible to visit your manufacturing facilities?
A: Absolutely. However, please notify us a few days in advance. We will need to check our operational schedule to coordinate and prepare for your visit.
Q: Can I get some product samples?
A: It depends. If it is only for personal use or replacement, it may be difficult as our products are custom-made to order. However, if you require sample testing before an official order, and both our MOQ and general terms are acceptable, we would be pleased to supply samples for evaluation.
Q: Is there a Minimum Order Quantity (MOQ) for your motors?
A: Yes. The regular MOQ ranges between 1,000 to 10,000 pcs for different models post-sample approval. We are open to accepting smaller batch sizes (dozens, hundreds, or thousands) for the first 3 initial orders to support trial phases.
Q: What smart integration features does this tubular motor support?
A: The GM24TFQ-0.8/30 model supports a robust array of smart wireless solutions including WiFi, Zigbee, Bluetooth, and Matter protocols. These allow seamless App Control, customized Scene Set Control, and voice command integrations.
Q: What is the physical dimensions and structural specs of this model?
A: This tubular motor features a outer diameter of 24mm. The tube lengths are configured with L1 at 70mm and L2 at 108mm. It functions at a rated torque of 0.8 N.m and speed of 30 RPM, ideal for pleating and venetian blind installation requirements.
