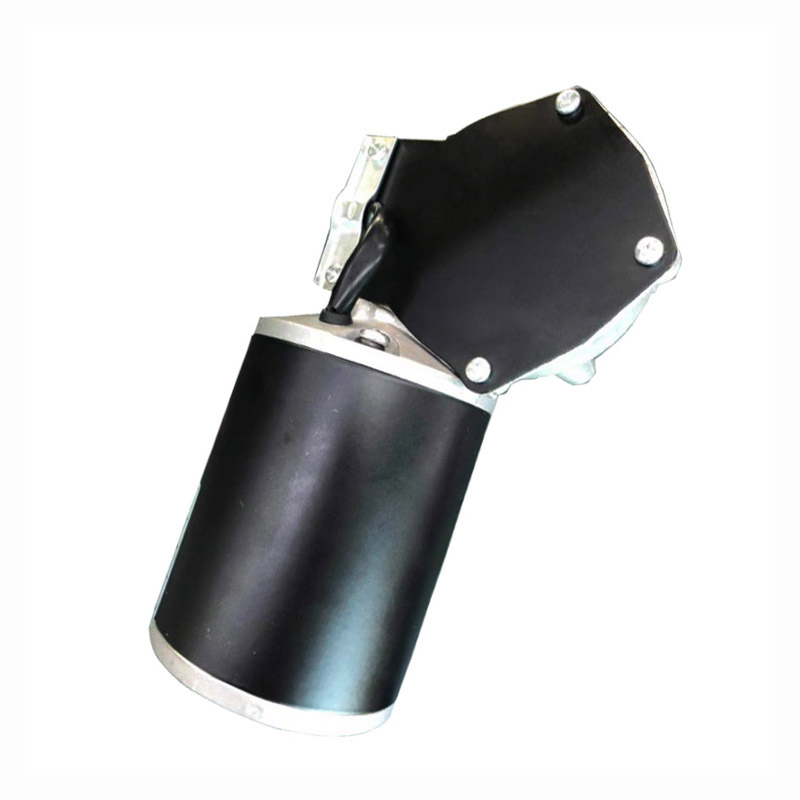

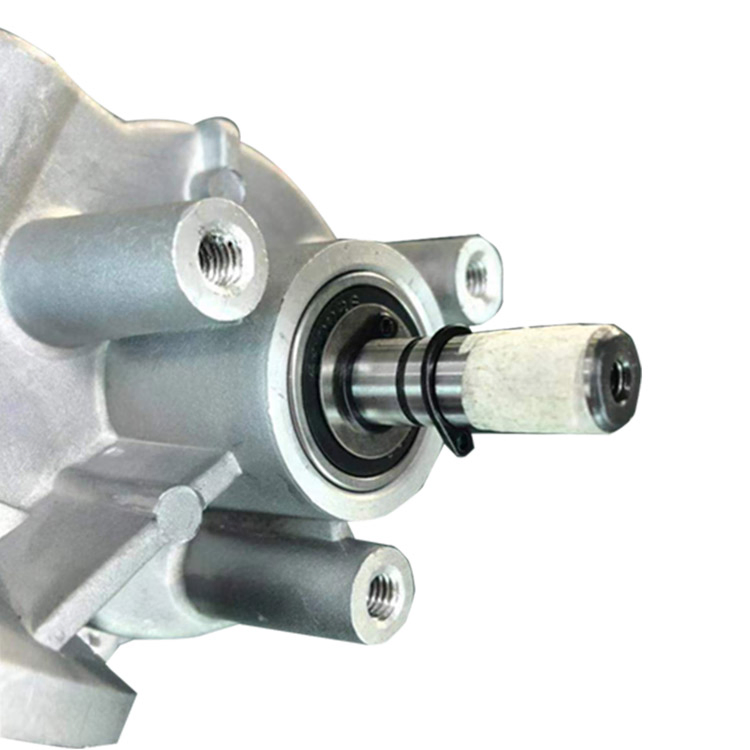

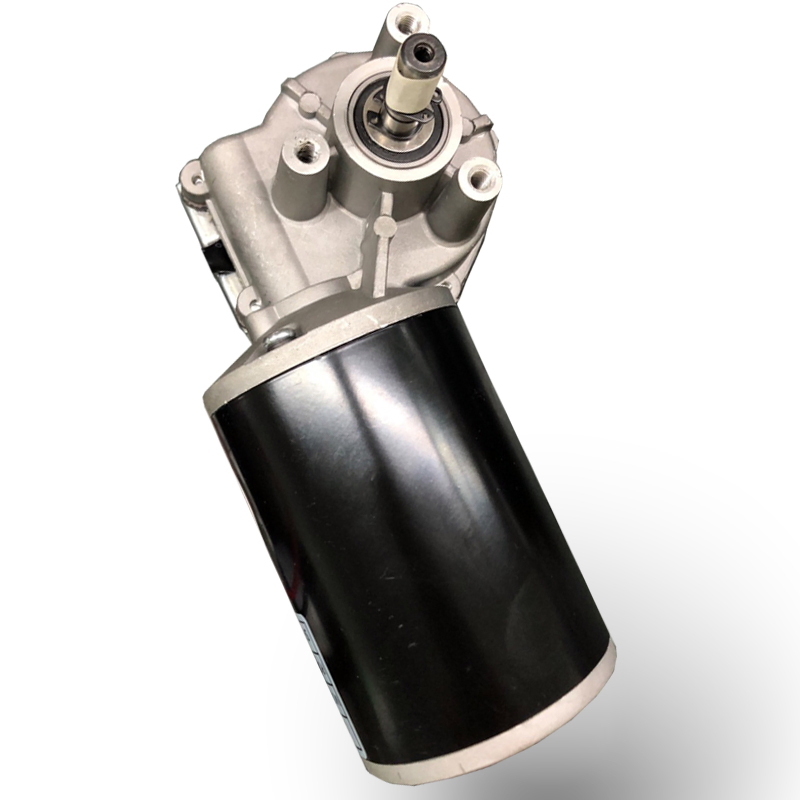

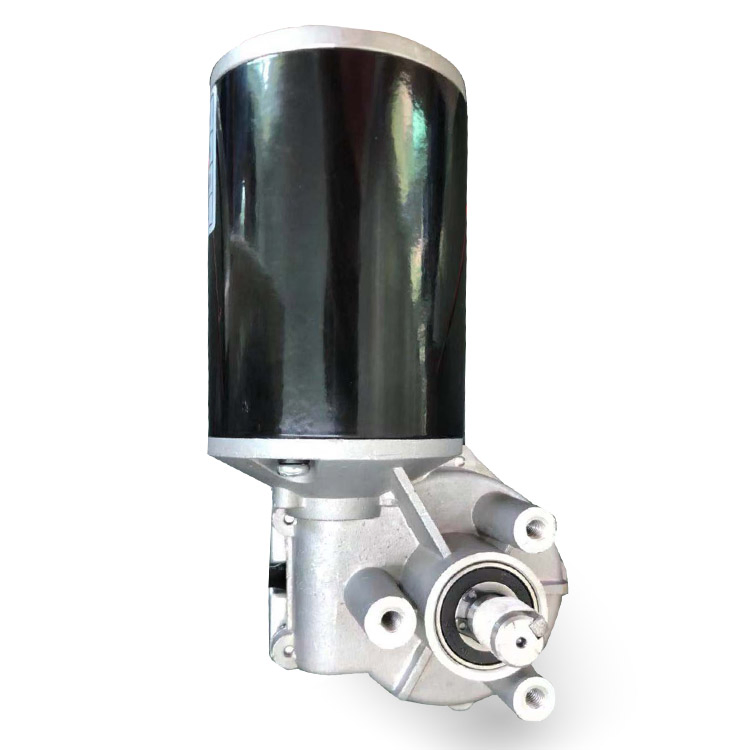

High Efficiency Roller Shutter Door DC Motor 12V 24V Small Gear Motors

1 / 5

High Efficiency Roller Shutter Door DC Motor 12V 24V Small Gear Motors

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

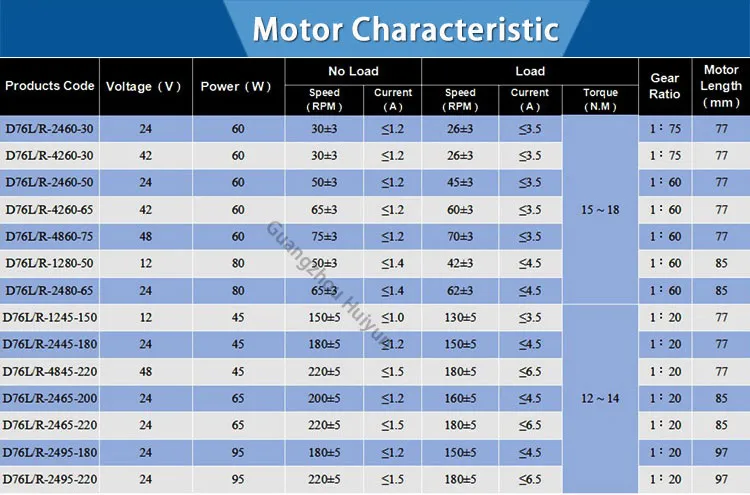

Basic Specifications

Model NO.

D76L-2480-55

Excitation Mode

Permanent Magnet

Function

Control, Speed Control

Number of Poles

Structure

Brush

Type

12V Small Gear Motor

Certification

ISO9001, CCC, RoHS

Motor Diameter

76mm

Motor Length

77-97mm

Torque

15-18n.M

Voltage Options

12V 24V 36V 42V 48V 60V 72V 110V

Power Output

80W (Max 500W)

Speed

55rpm (Max 350rpm)

Gear Material

Plastic / Brass

Noise Level

Less than 60dB

Sensor Options

Hall, Encoder, Opto

Product Description

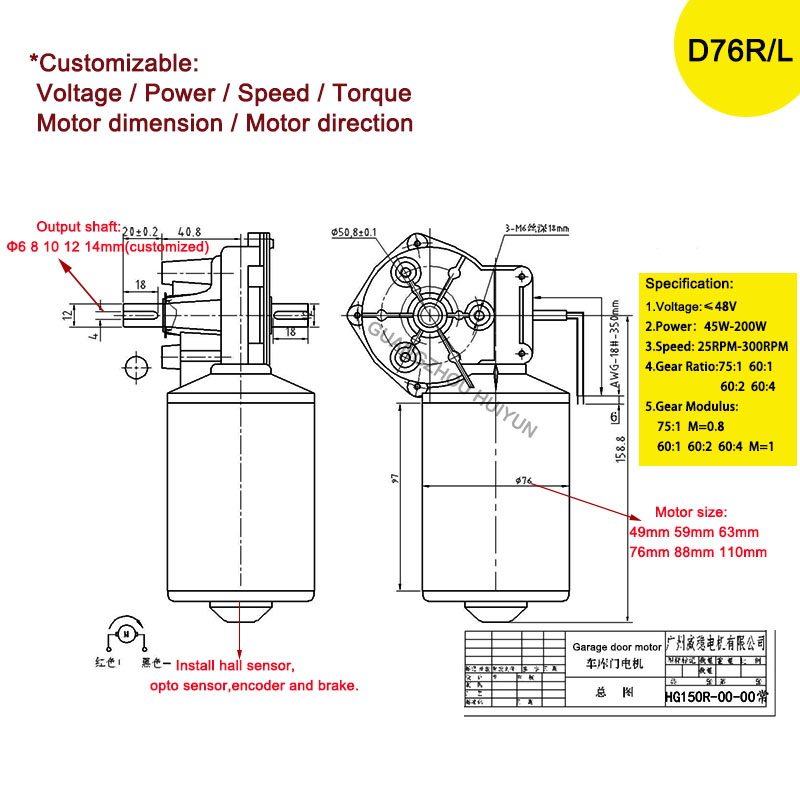

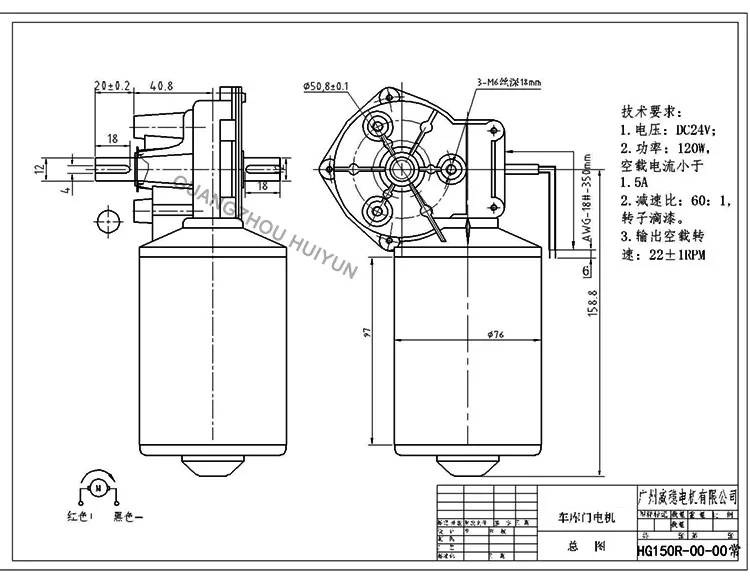

High Efficiency Roller Shutter Door DC Motor 12v 24v Small Gear Motors

Type	DC worm gear motor
Diameter	76mm
Voltage	12v 24v 36v 42v 48v
Power Range	≤150W
Max Torque	≤20N.M
Speed Range	≤300RPM
Gear Ratios	75:1, 65:1, 60:1, 47:2, 20:1
Usage Applications	Hydraulic pump, electric forklift, vending machine, auto sliding garage door, sliding gate, electric glass sliding door, other electric tools.

Customization & Expert Service

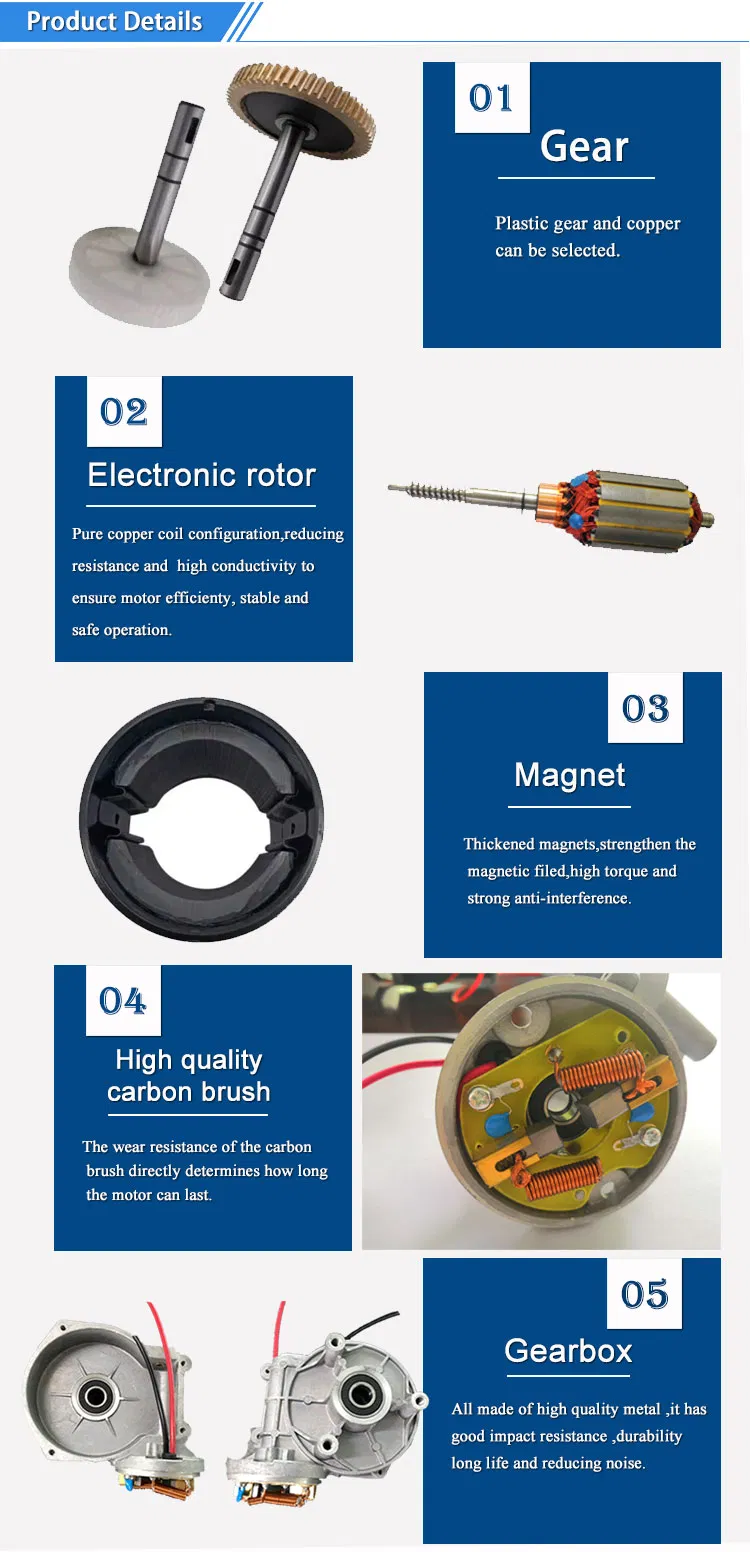

Specialized in the design and customization of small DC worm gear motors, including D49, D59, D63, D76, and D88 series. All motors can be integrated with hall sensors, encoders, opto sensors, and brakes. We manufacture motors based on your specific requirements for voltage, power, speed, torque, and dimensions.

With over 20 years of experience in motor production, we utilize professional R&D teams and testing centers to guarantee high-quality results for every client.

Company Advantages

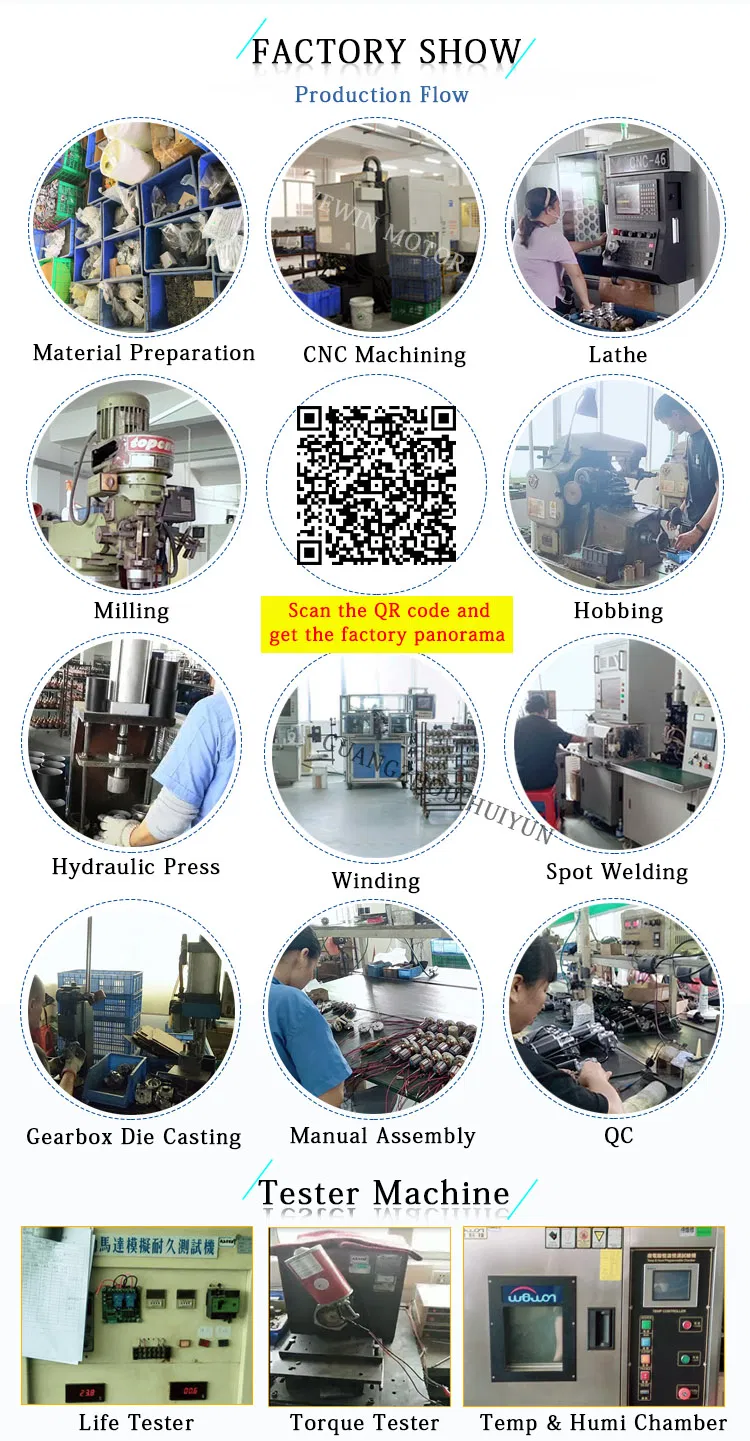

Large production capacity with fast delivery.
Strict QC rules: 100% inspection before delivery.
OEM/ODM services tailored to your needs.
24-hour online support and prompt quotations.
High reliability and long product lifespan.
Professional manufacturer offering competitive pricing.

Wider Applications

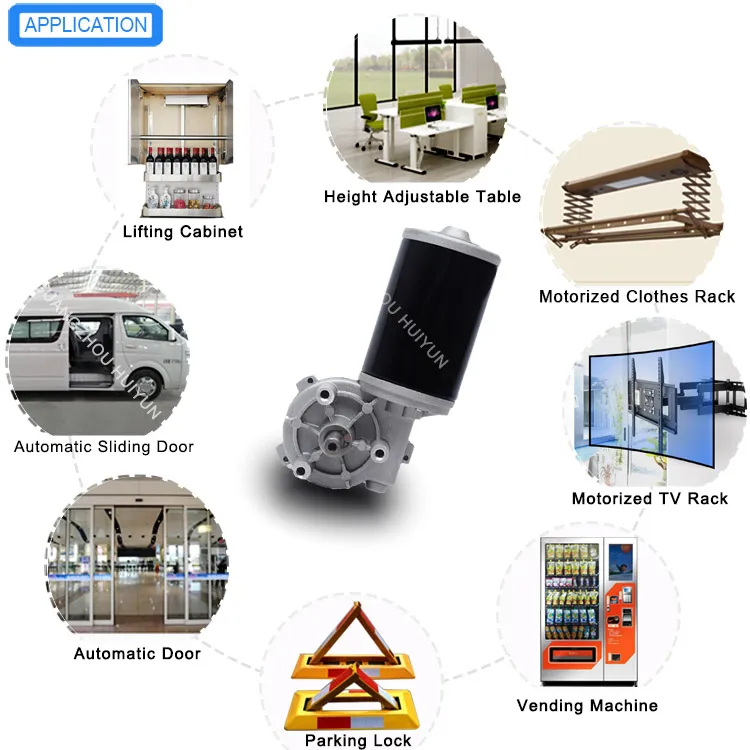

Our motors are ideal for: Car simulators, garage door openers, gate operators, parking locks, wheelchairs, electric vehicles, water/oil pumps, vending machines, washing machines, welding equipment, office intelligent devices, floor polishers, truck lifts, hospital beds, and hydraulic pumps.

Frequently Asked Questions

Q: Are you a trading company or a manufacturer? A: We are an integrated industry and trade enterprise with over 20 years of experience in worm gear motor production, supported by a skilled production line and robust research capabilities.

Q: What are your main product lines? A: Our primary focus is DC Motors (geared and micro motors) and welding equipment including wire feeders and rectifiers.

Q: Can I get samples for testing? A: Yes, we provide samples for testing before official orders. Since all motors are custom-made, we generally do not keep stock for personal single-unit replacements.

Q: What is the typical MOQ for orders? A: The standard MOQ is between 1,000 and 10,000 units depending on the model. However, we accept smaller batches for the initial three orders following sample approval.

Q: Do you offer individual design services? A: Yes, we can design motors individually for customers, though this may involve specific mold and design charges.

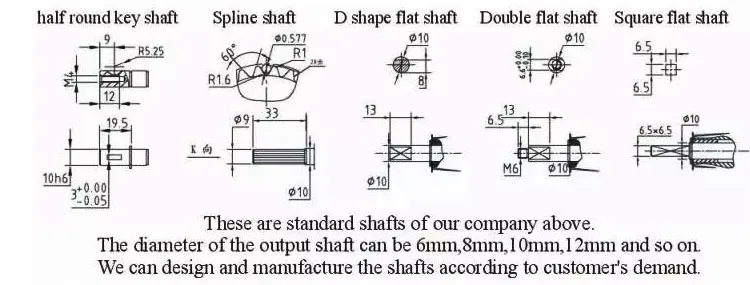

Q: How long is the standard delivery time? A: Delivery usually takes about 35 days for standard output shafts. Customized shafts may vary based on specific requirements.
