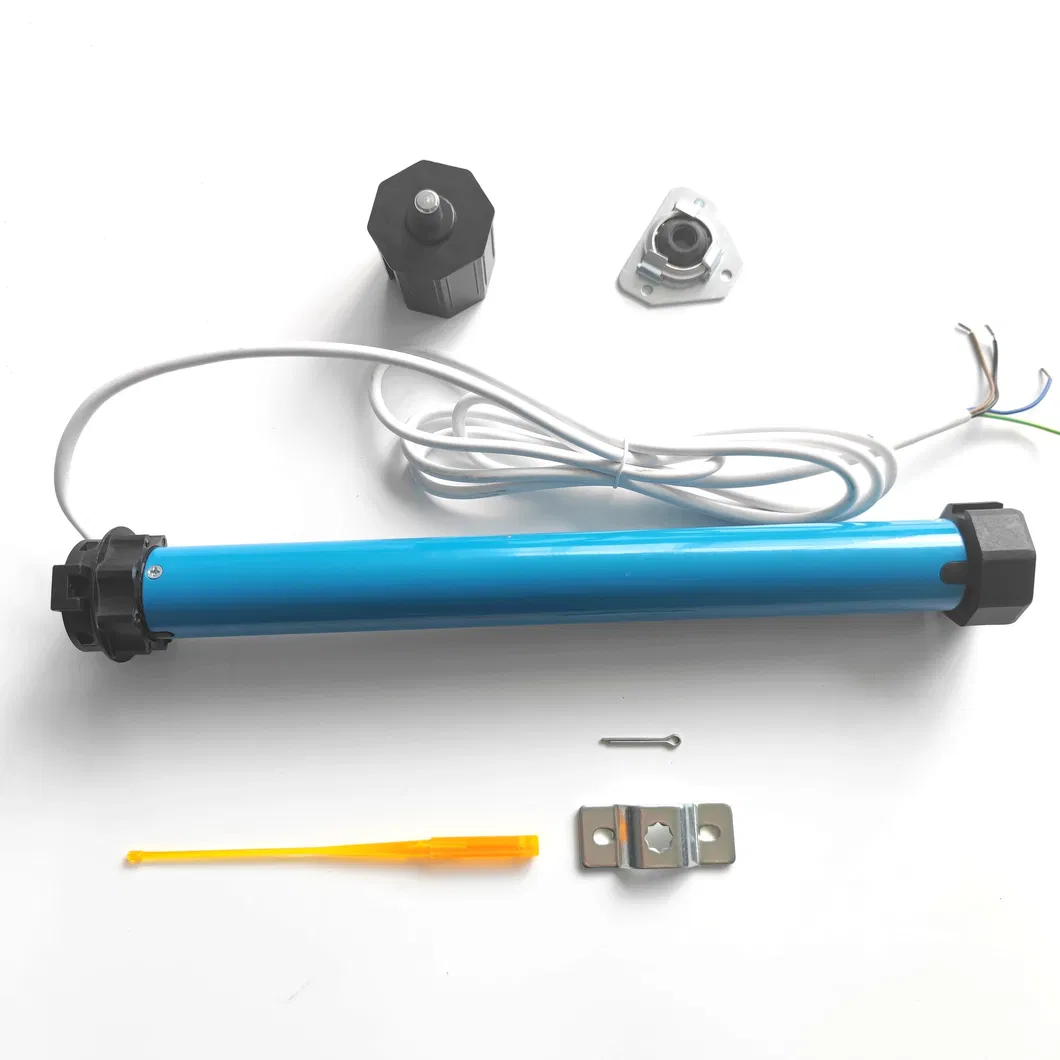

High Torque Roller Shutter Motor 220V for Blinds and Shutters

Customization: Available
Speed: Constant Speed
Number of Stator: Single-Phase

Product Description

Basic Specifications

Model NO. YM45-8S
Function Driving, Control
Casing Protection Closed Type
Certification ISO9001, CCC, CE, RoHS
Torque 8nm
Transport Package Carton and Pallet
Specification 0.5m * 0.04m * 0.15m
Origin China
HS Code 8501400000
Production Capacity 1,000,000 Sets/Year

Packaging & Delivery

Package Size 68.00cm * 7.00cm * 7.00cm
Package Gross Weight 2.000kg

YM45-8S Technical Parameters

Parameters YM45-8S Option 1 YM45-8S Option 2
Rated Torque (N.m) 8 8
Rated Speed (rpm) 15/17 17/19
Rated Power (W) 135/140 135/140
Rated Current (A) 0.5/0.6 0.8/0.9
Running Time (min) >4 >4
Limit Rating (turn) 30 30
Complete Length (mm) 480 480
Complete Weight (KG) 1.9 1.9
Rated Voltage (V) 220-230 100-110
Rated Frequency (Hz) 50 60
Tube Diameter (mm) 45 45

YM45S-30/15 Specifications

Specification Feature Details
Model YM45S-30/15
Diameter 45 mm
Rated Torque 30 N.m
Rated Speed 15rpm
Rated Power 180 W
Rated Current 0.7 A
Running Time > 4 min
Limit Rating 37 turns
Complete Length 490mm
Rated Voltage 230V / 110V
Rated Frequency 50Hz / 60Hz

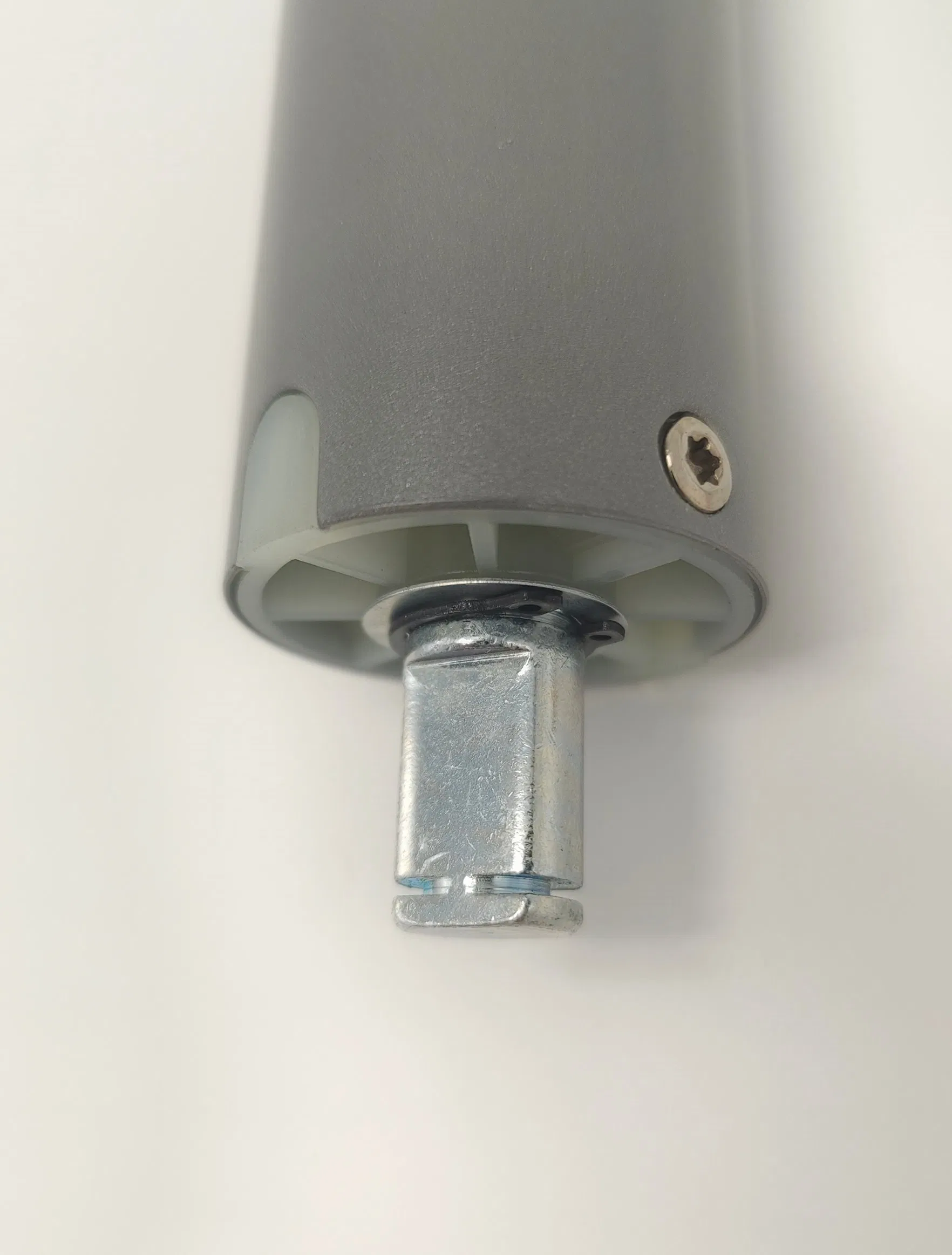

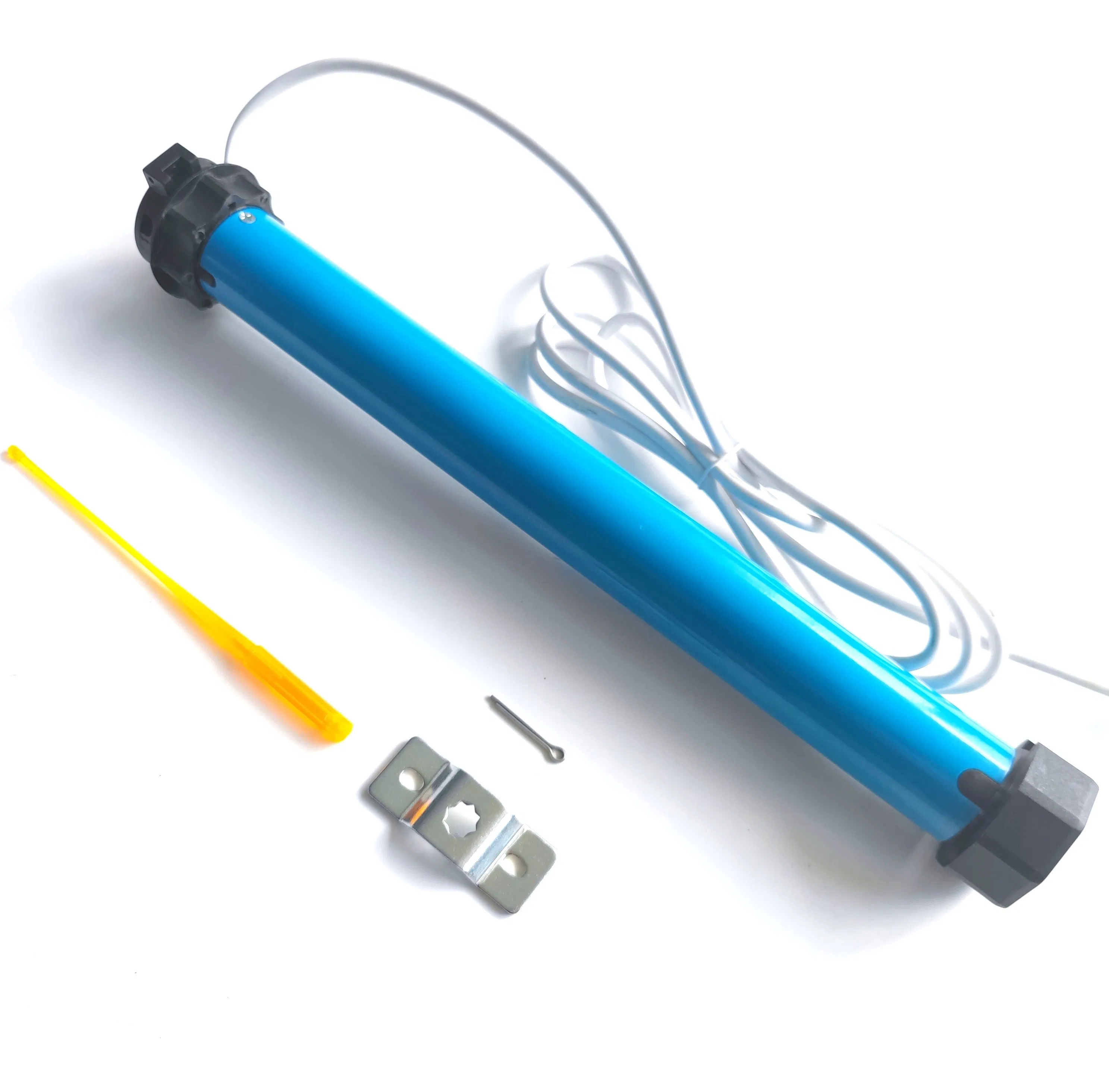

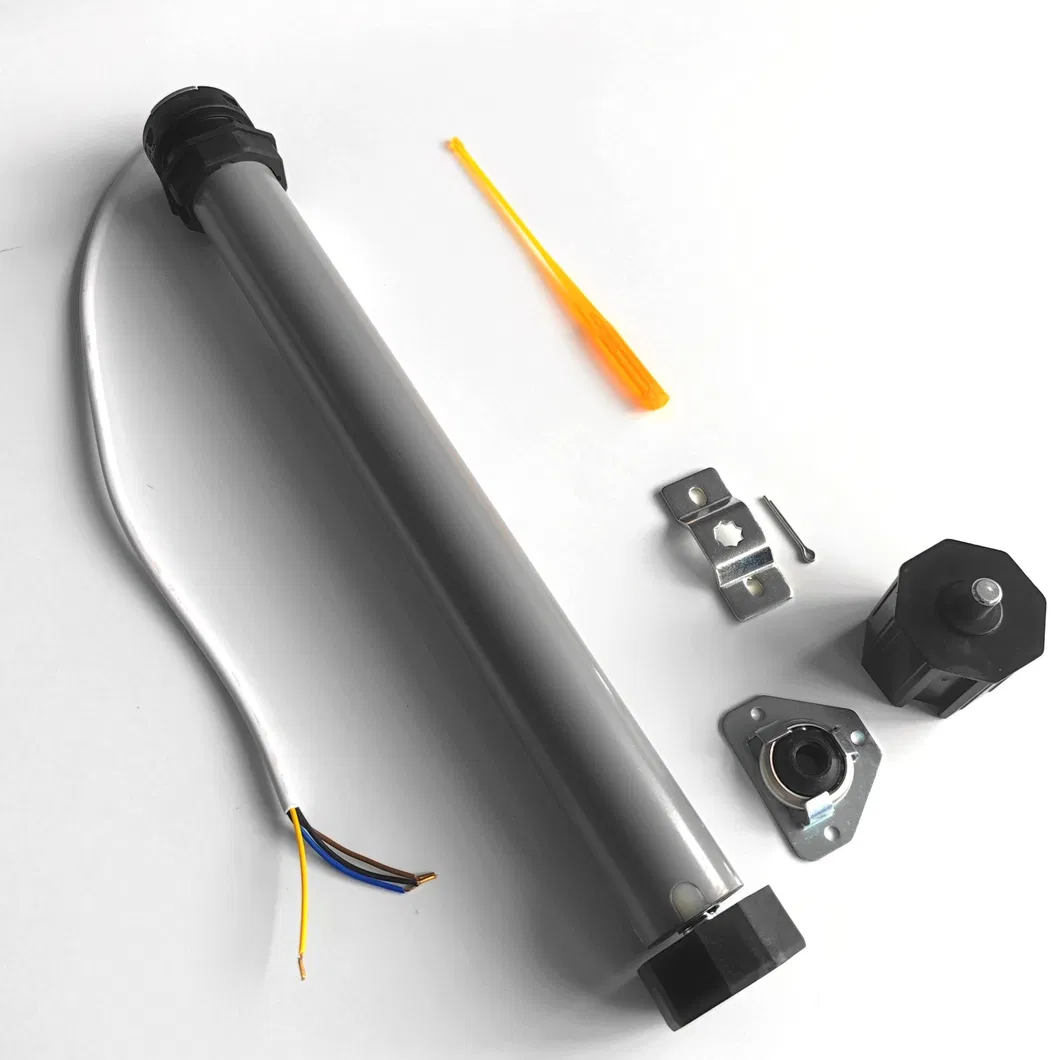

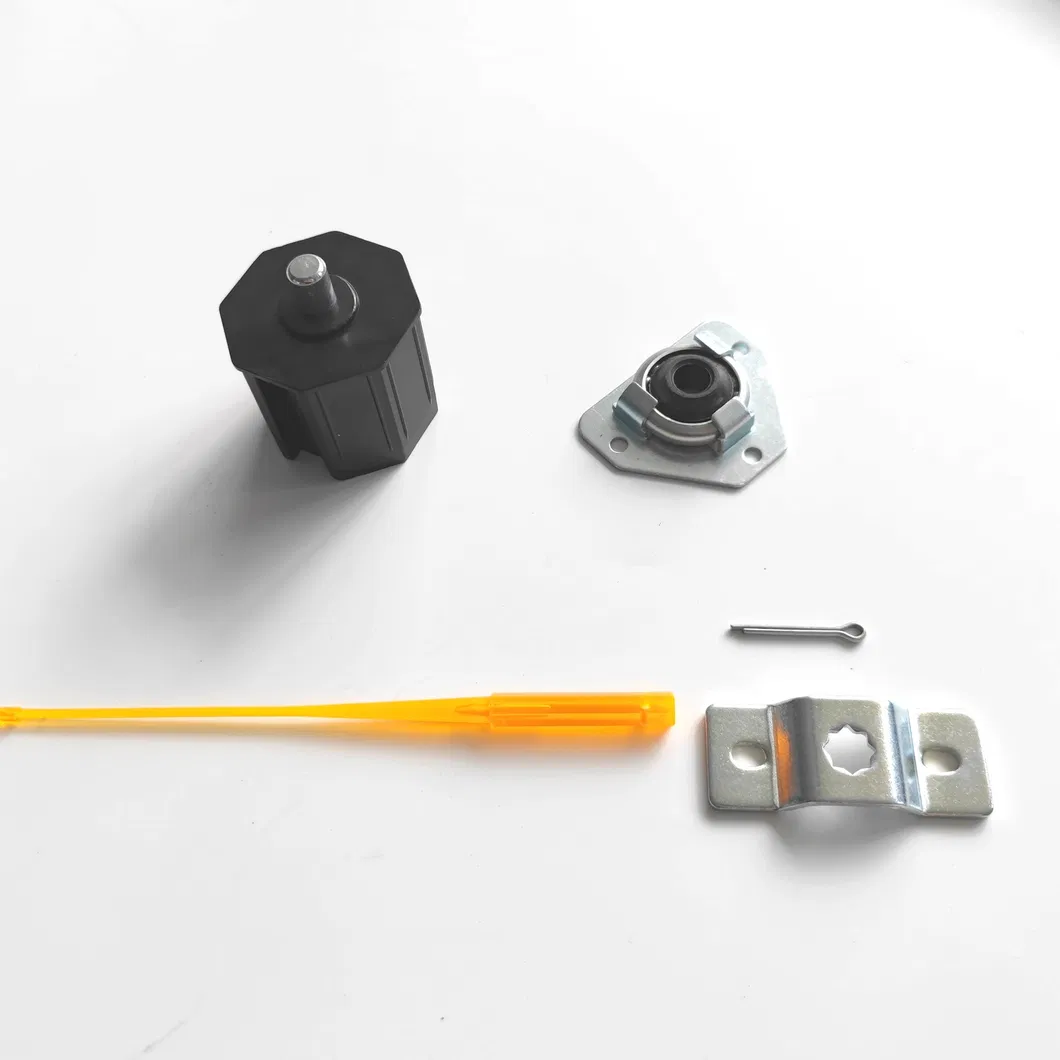

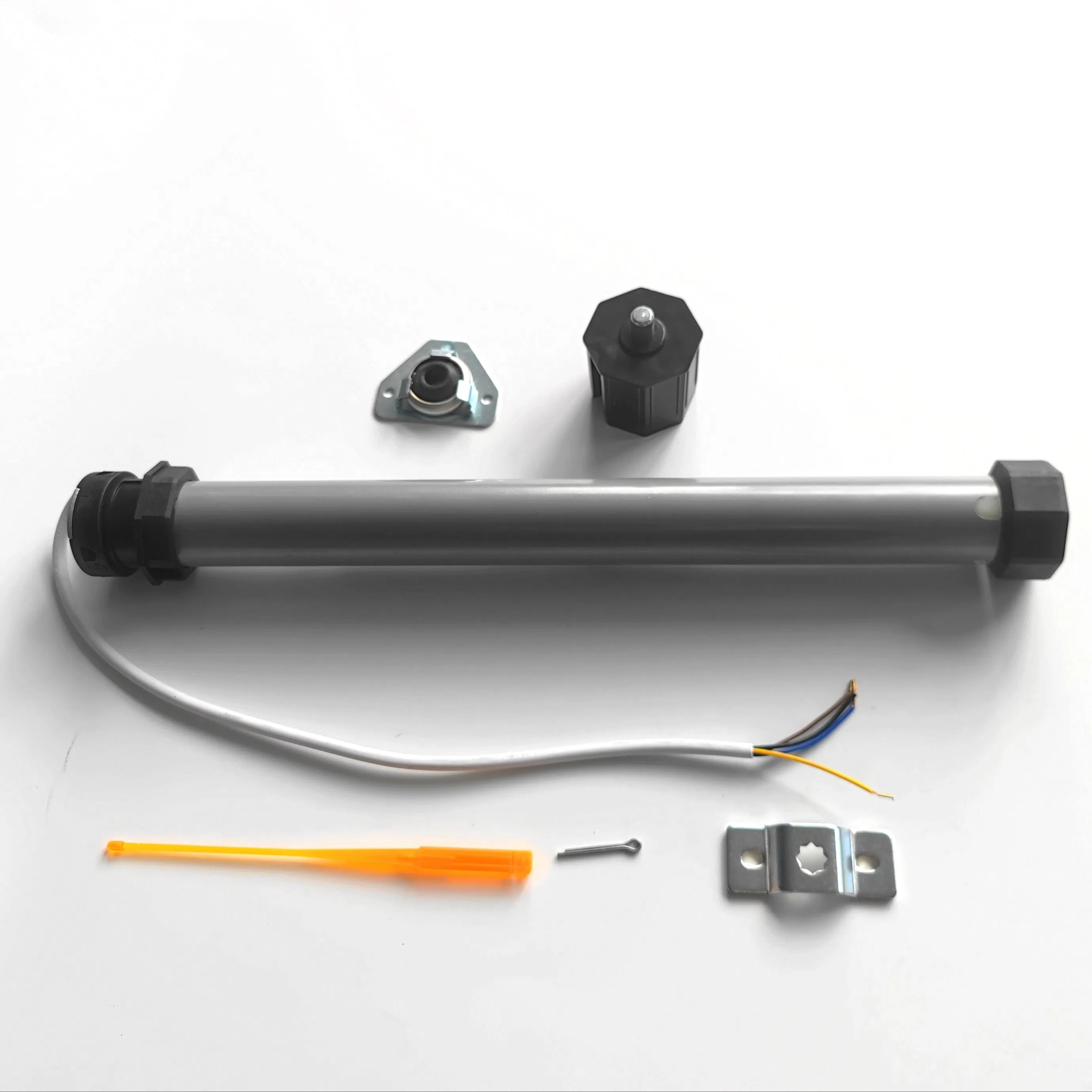

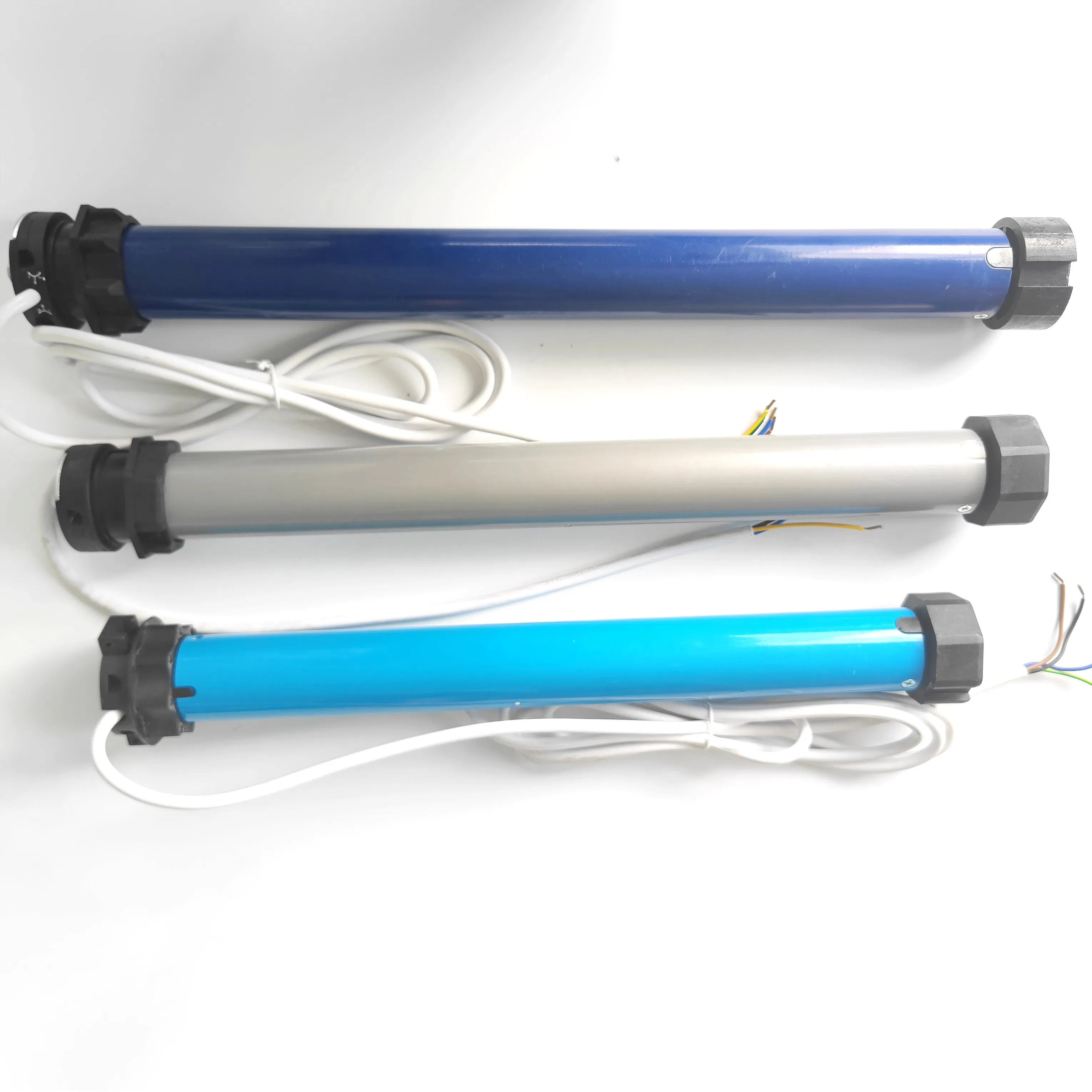

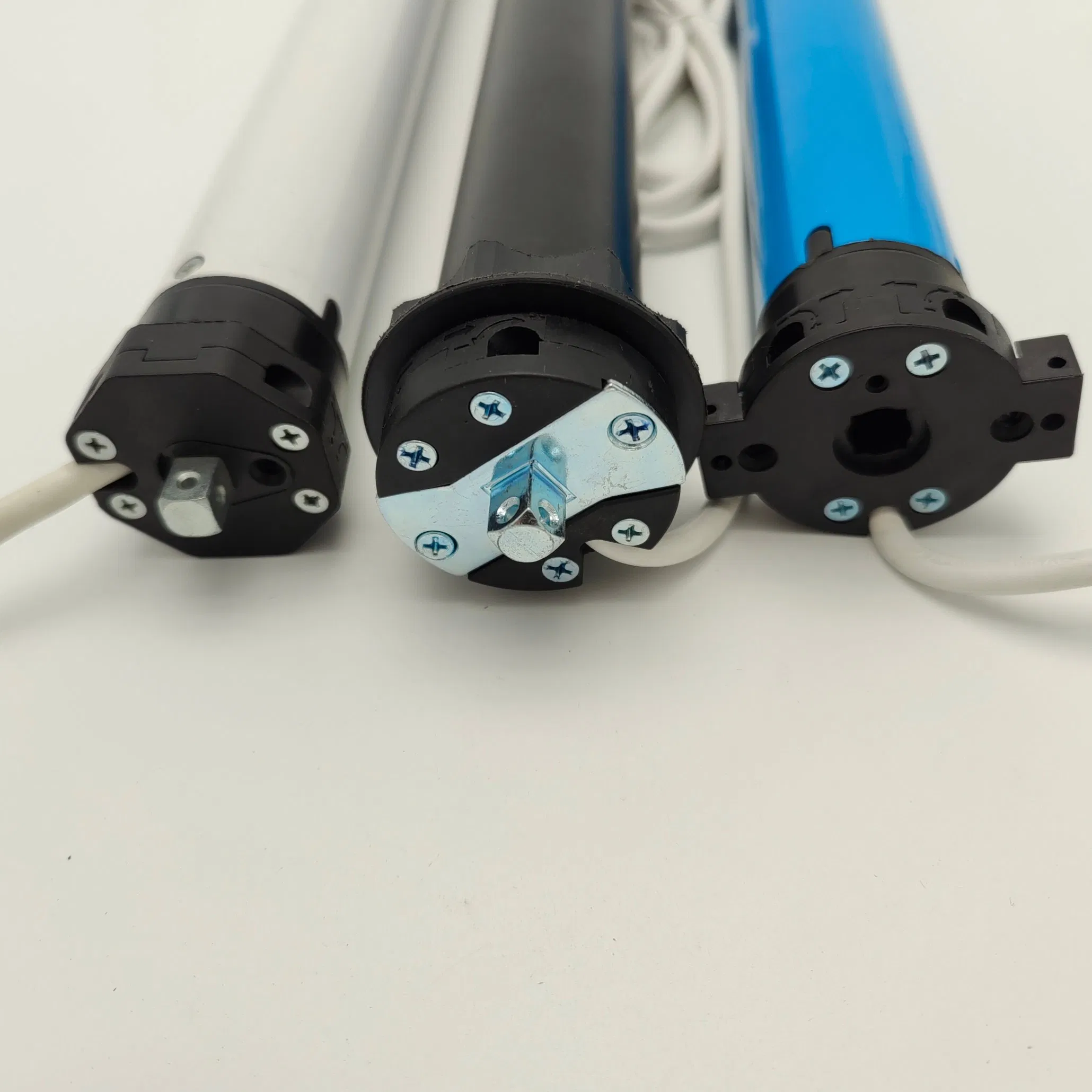

Detailed Photos

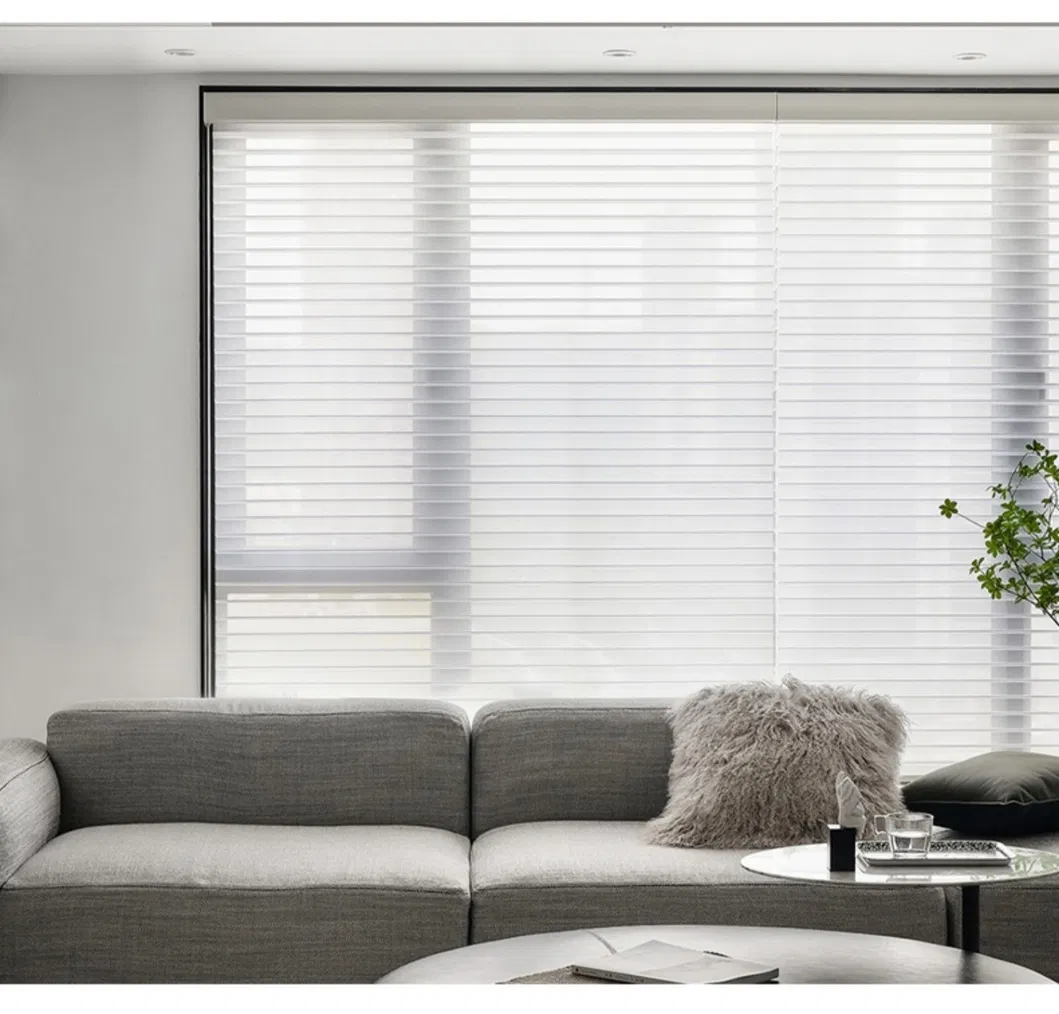

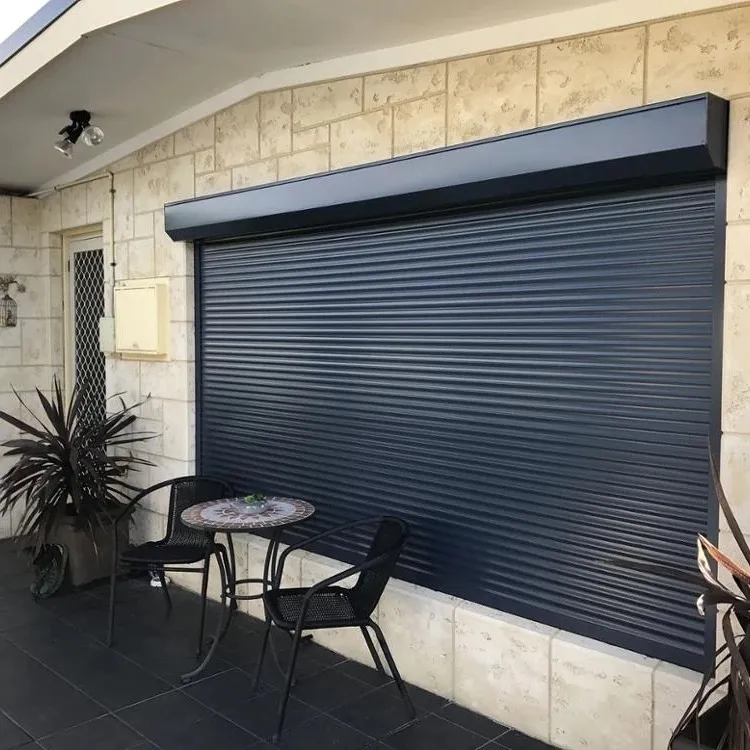

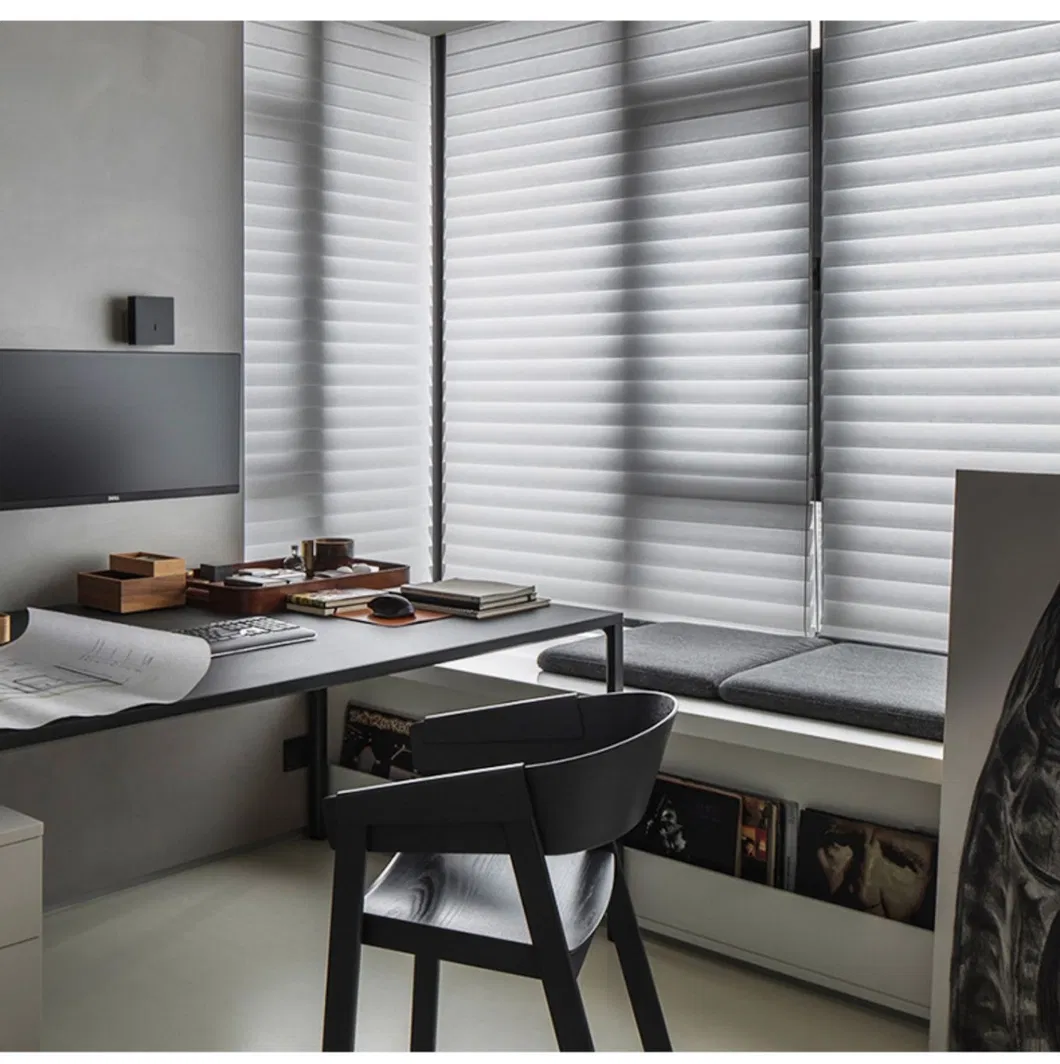

Usage Application

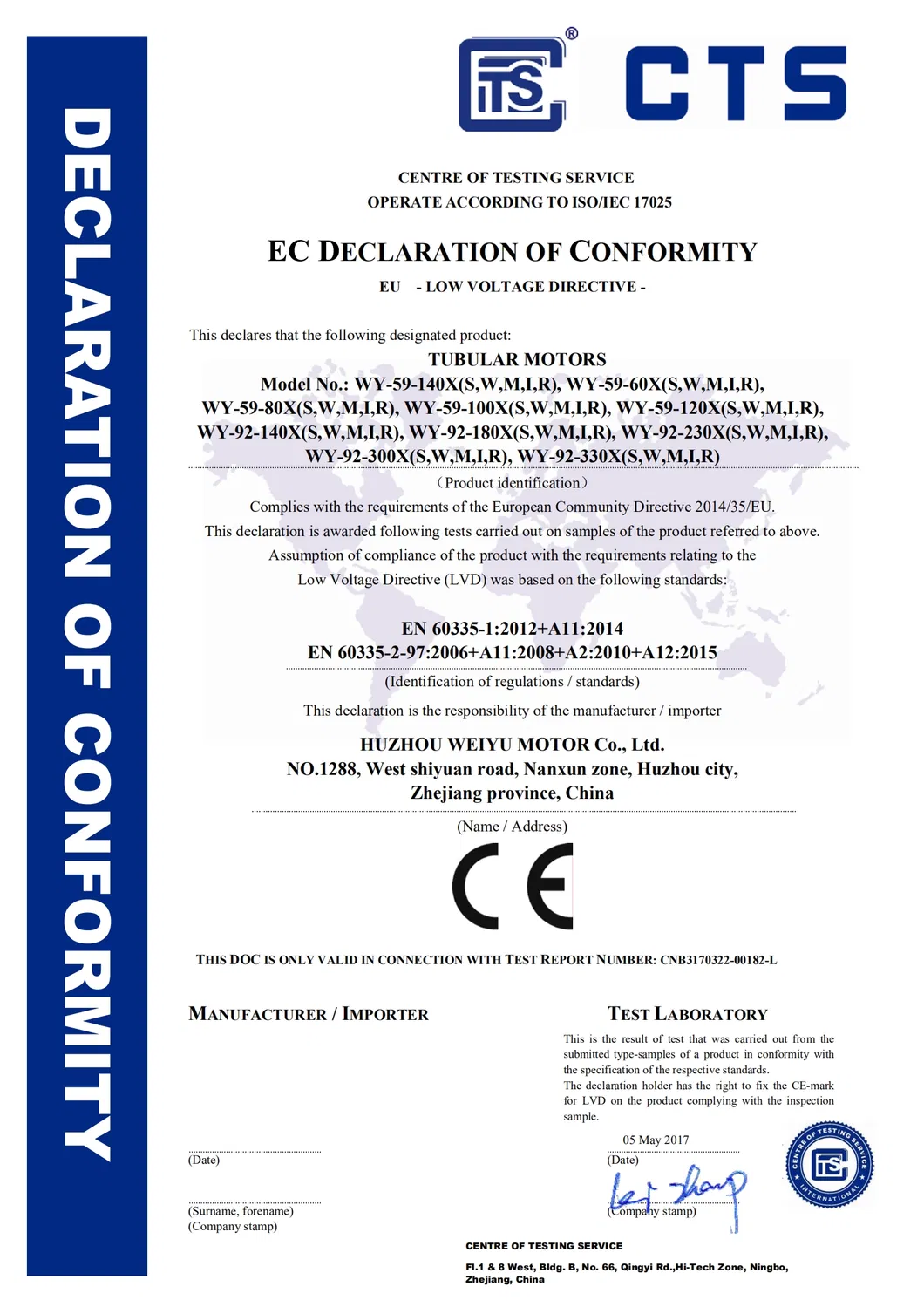

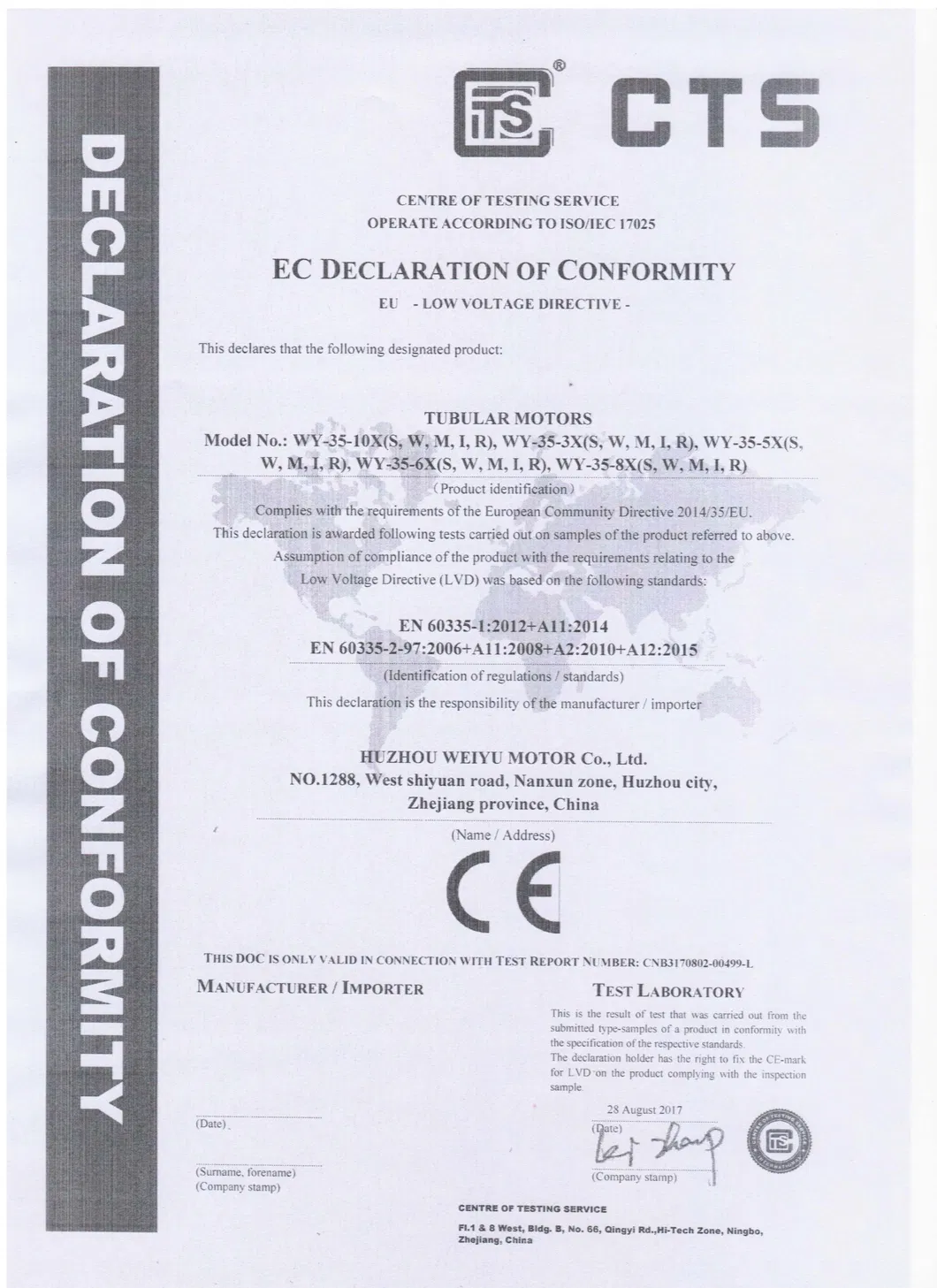

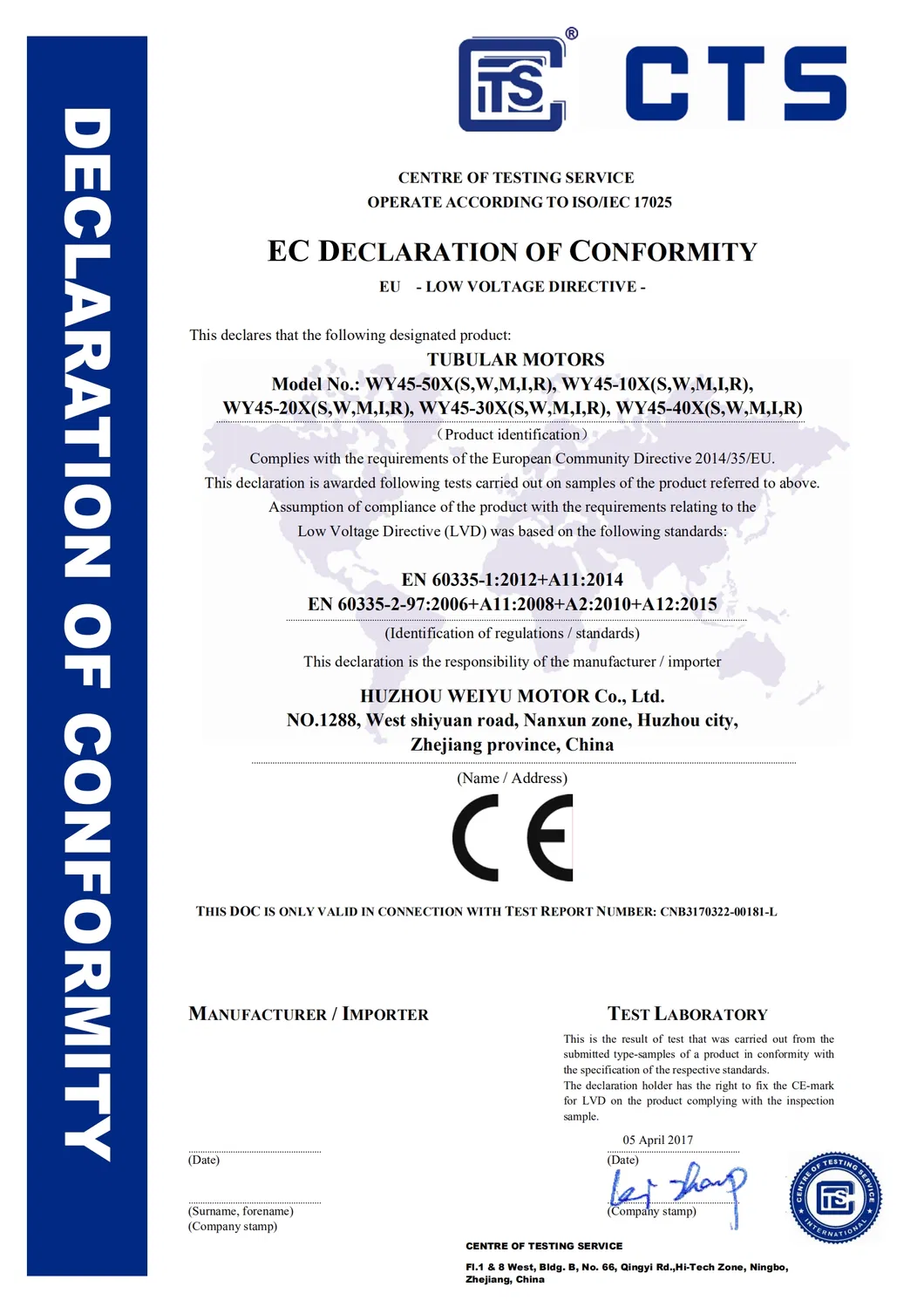

Certifications

Packaging & Shipping

High Torque Roller Shutter Motor 220V for Blinds and Shutters

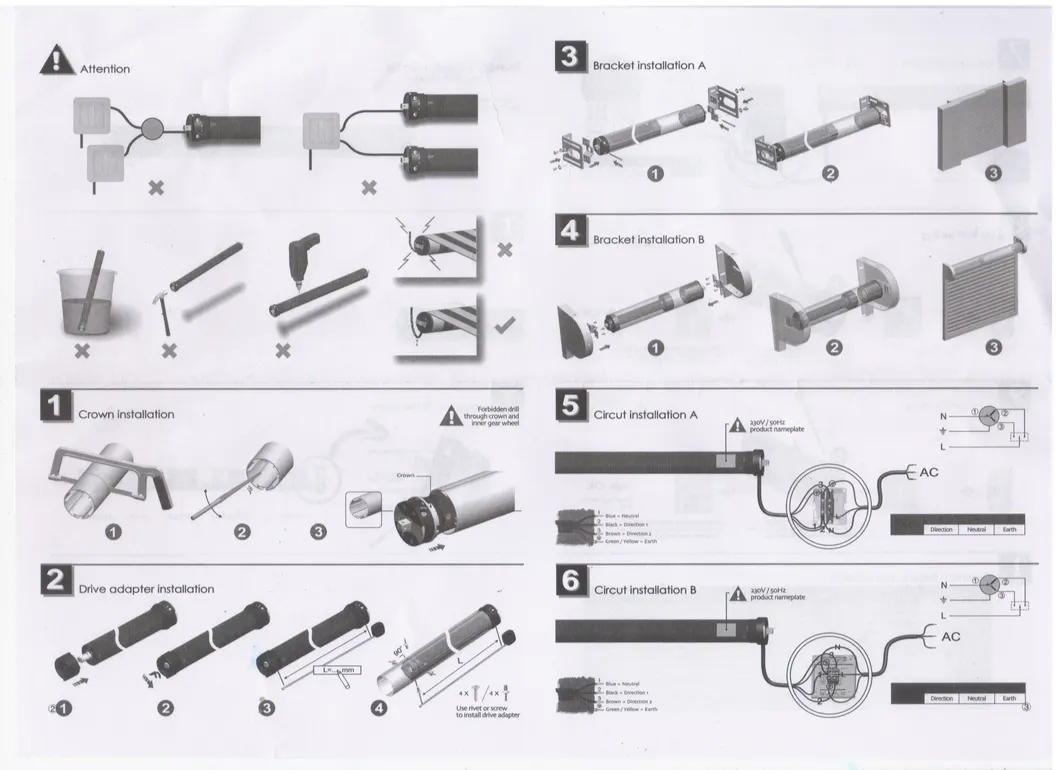

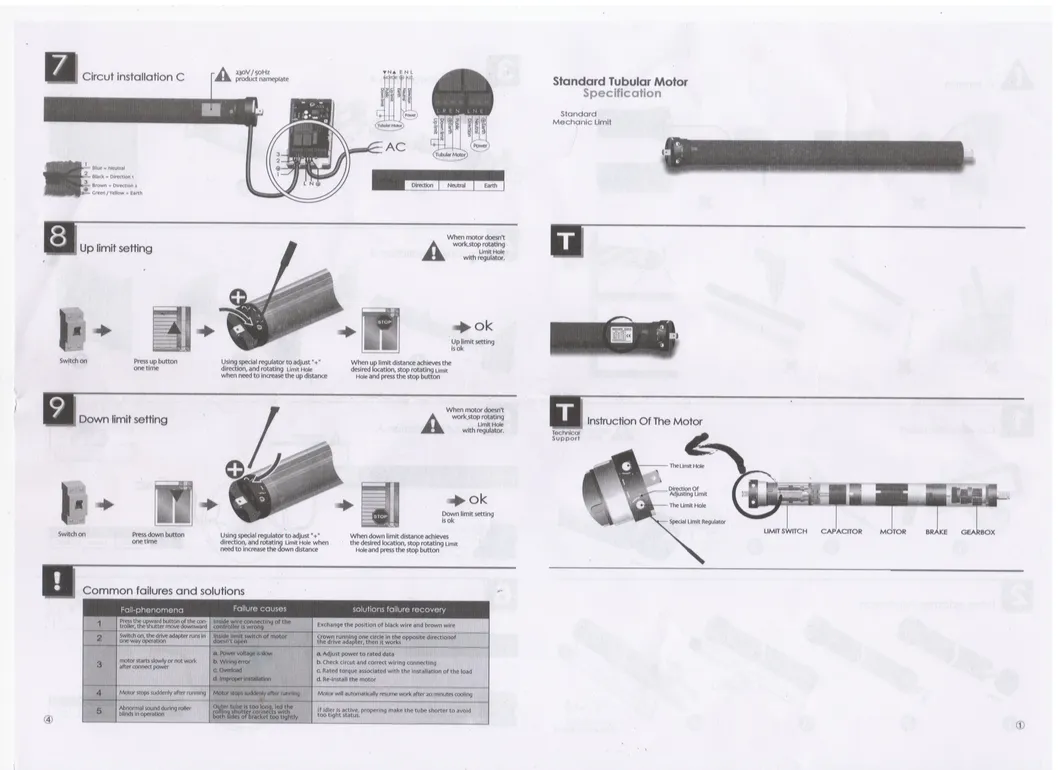

Installation Instructions

About Our Operations

We are a professional manufacturer and exporter producing TUBULAR MOTORS with optimum quality and superior service. We mainly produce tubular motors, receivers, remotes, and accessories for roller shutters, awnings, projection screens, and more. Our motors are designed for smart home integration and come with a 5-year warranty to guarantee exceptional quality. We help our clients find a variety of products to meet their diverse demands, adhering to the management principles of "quality first, customer first." We always strive to satisfy the potential needs of our customers.

Frequently Asked Questions

Q1: What is your payment term?
A: We accept 30% T/T in advance, and the remaining 70% upon receiving the B/L copy. Alternatively, we also accept irrevocable L/C at sight.
Q2: How about the sample delivery time?
A: Samples are usually dispatched within 7 working days after receipt of payment.
Q3: Do you offer OEM services?
A: Yes, we provide comprehensive OEM services. We can custom-design products engineered for any specific application according to your needs.
Q4: How do you ensure the motor has adequate driving capacity for the machine?
A: Our factory carefully selects 100% pure copper wire and capacitors with appropriate volumes. Our professional technical managers will also guide you through the process to ensure an accurate purchase matching your requirements.
Q5: How do you guarantee product quality?
A: Quality is strictly monitored. Our production team meticulously checks all technical drawings during processing of the shaft and end cover. Additionally, our inspectors repeatedly execute dynamic balance tests on every motor.
Q6: What warranty is provided for the motors?
A: All of our smart-home compatible motors are backed by a comprehensive 5-year warranty to guarantee ultimate product quality and customer satisfaction.
