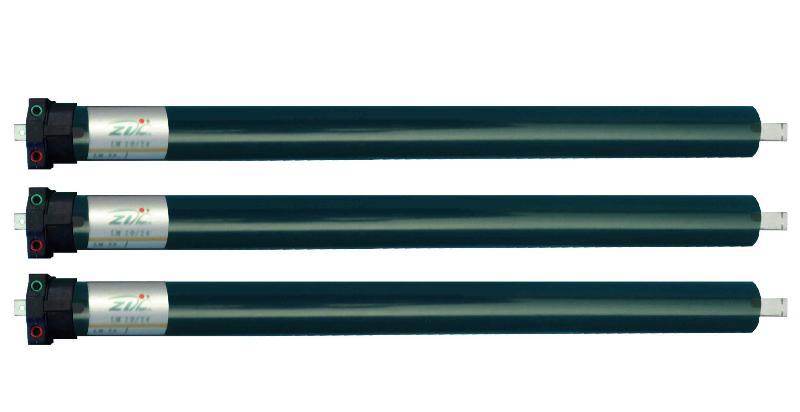

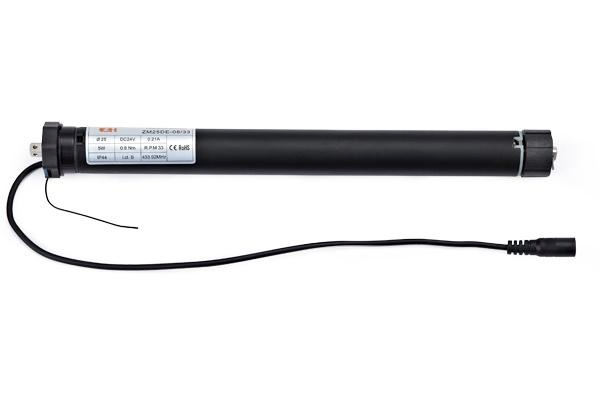

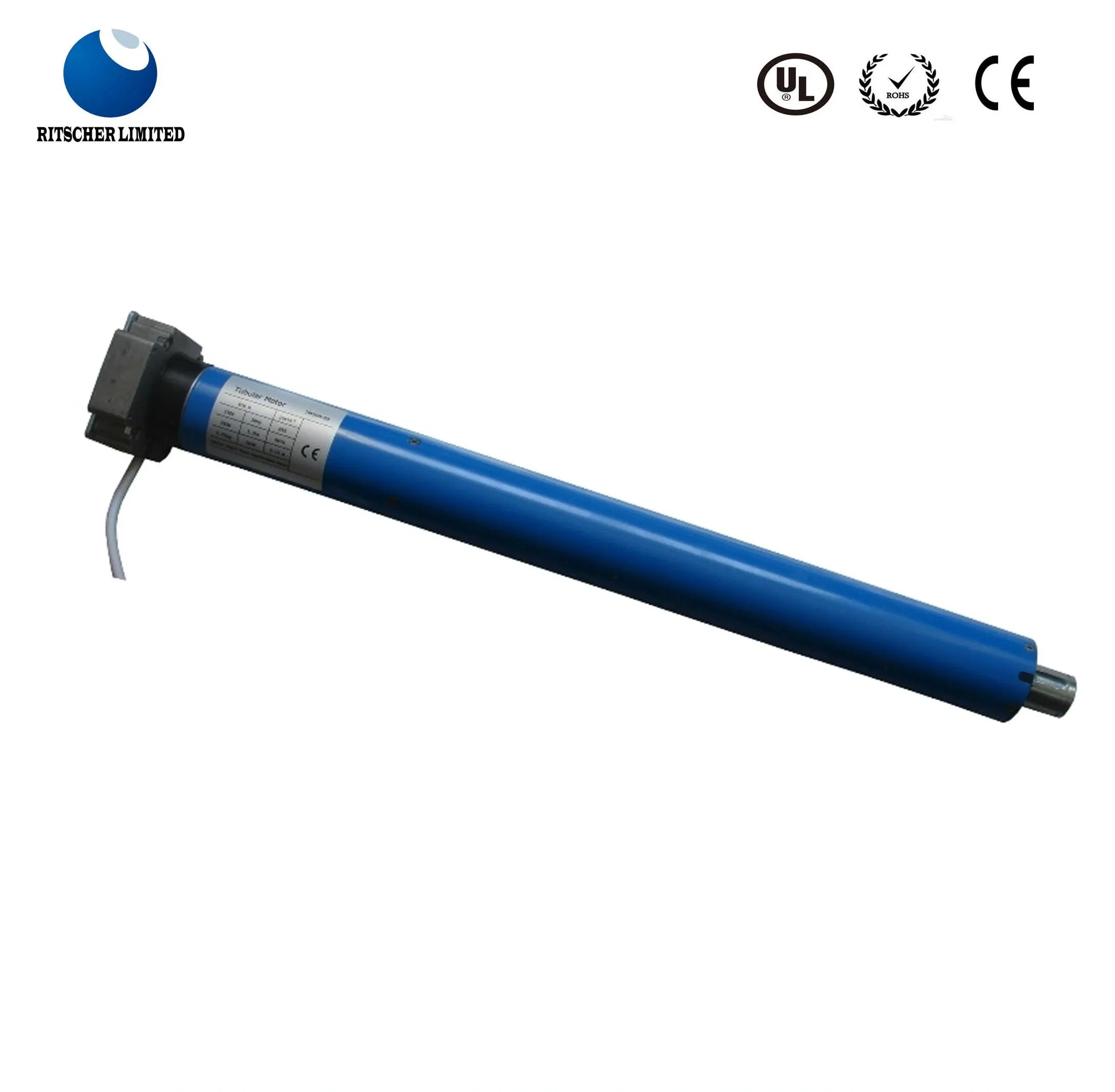

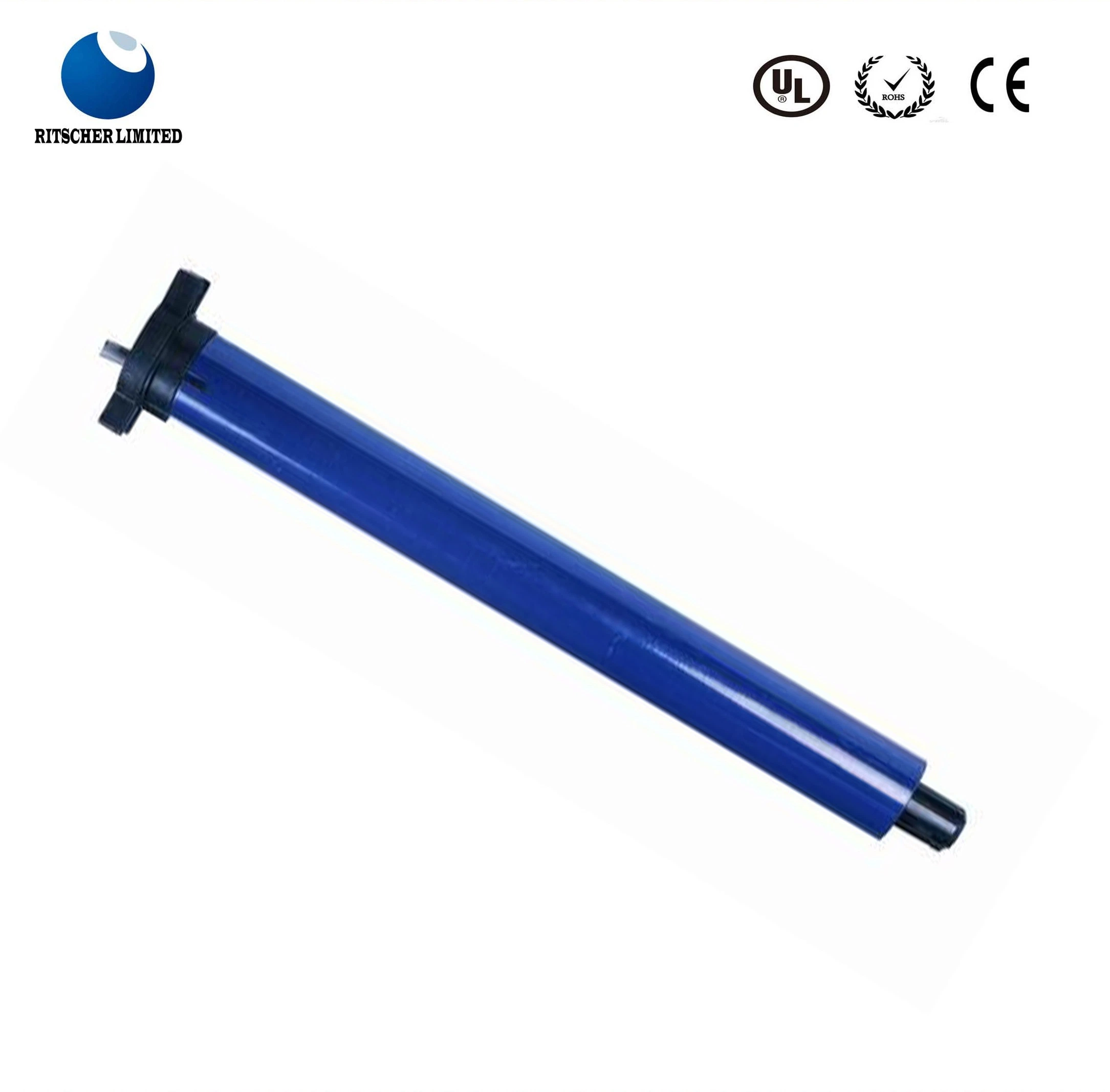

230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds
230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds
230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds
230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds
1 / 4
230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds
230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds
230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds
230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds

230V High Torque Tubular Motors for Motorized Windproof Roller Shutter/Motorized Wooden Venetian Blinds

Send Inquiry

Product Description

1

High Quality Tubular Motors DC 9V

  • Stator size is optional for various applications.
  • Safe, reliable, and operates with low noise.
  • Excellent starting performance and exceptionally long life.
  • Strong power delivery with rated voltage options: 110~120V / 220~240V - 50/60Hz.
High Torque Tubular Motor
2

Technical Parameters

Voltage Model Torque (N.m) Speed (RPM) Voltage (V) Freq (Hz) Power (W) Current (A) Turns IP Grade Time (min) Weight (kg)
230V/50Hz 35mm3-1217-2823050139-1700.6-0.7542IP44>41.7
45mm10-5012-1523050162-2820.71-1.2315-36IP44>42.1-3.2
59mm60-1409-1223050288-4651.25-2.1226-36IP44>45.9-7.1
64mm140-180923050460-5202.0-2.436IP44>47.8-8.2
92mm140-3308-1223050580-9102.6-411-16IP44>410-14
115mm500-6007230501650-17507.2-7.611IP44>420
110V/60Hz 35mm3-1220-3311060141-1731.29-1.5842IP44>41.7
45mm10-5014-1811060166-2961.51-2.5515-36IP44>42.1-3.2
59mm60-14011-1411060300-5012.73-4.6226-36IP44>45.9-7.1
64mm140-1801111060465-5344.3-5.136IP44>47.8-8.2
92mm140-3309.5-1411060588-9305.35-8.4711-13IP44>410-14
115mm500-6008.4110601650-175015.7-16.511IP44>420
3

Product Visualization

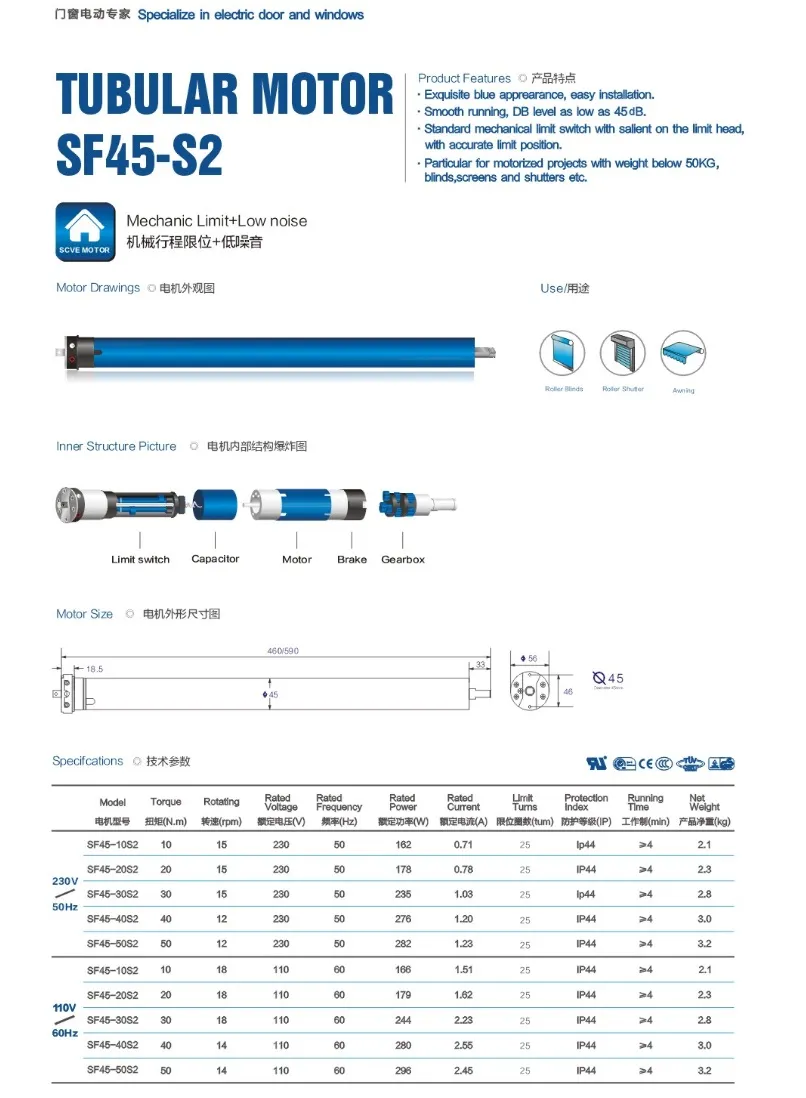

Motor Component Diagram
Motor Structure

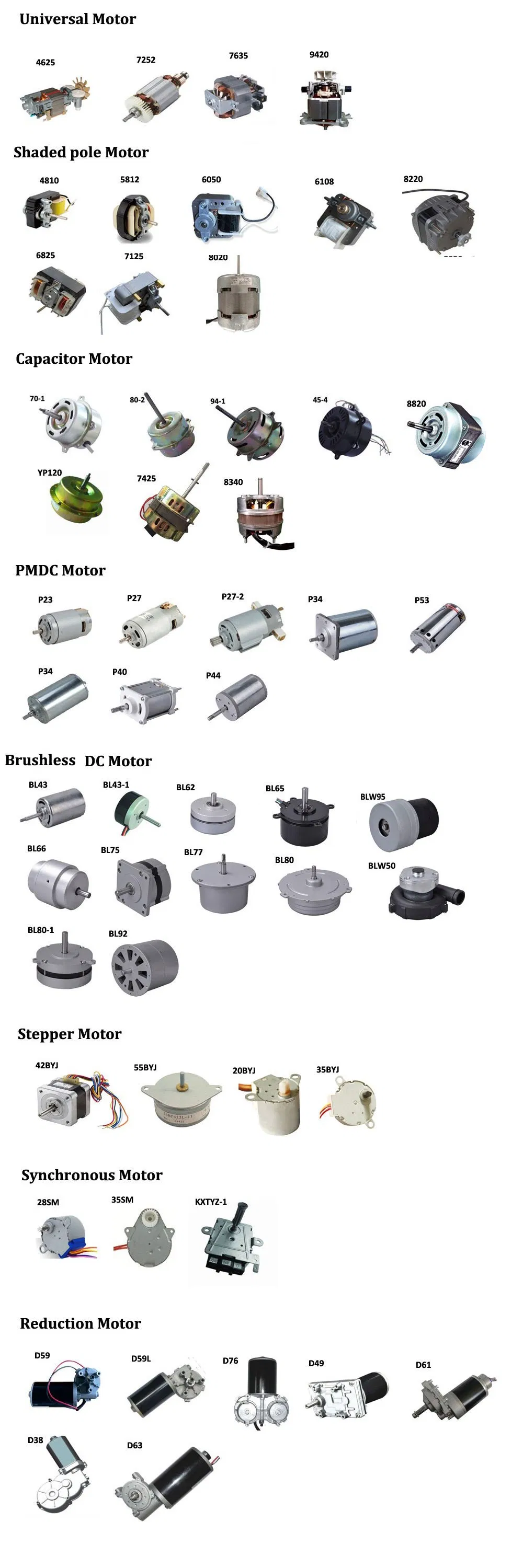

Production Details
Application Showcase
?

Frequently Asked Questions

Q1: What range of motors do you specialize in?
We provide a wide variety of micro-motors including Tubular Motors, Kitchen Hood Motors, DC Motors, Gear Motors, Fan Motors, BLDC Motors, and Synchronous Motors, among others.
Q2: Are the motor specifications customizable?
Yes, stator sizes are optional and many of our motors are custom-made to meet specific technical requirements and application needs.
Q3: What is the Protection Index (IP) for these tubular motors?
The tubular motors listed in our specifications are rated at IP44, providing protection against solid objects and water splashes.
Q4: Can I request samples before placing a bulk order?
Sample testing is available before official orders. While we don't typically keep stock due to custom manufacturing, we provide samples if the MOQ and terms are acceptable.
Q5: What is the typical Minimum Order Quantity (MOQ)?
The standard MOQ ranges between 1,000 and 10,000 pieces depending on the model. However, we can accommodate smaller lots for initial trial orders after sample approval.
Q6: What makes these tubular motors suitable for residential use?
They are designed for low noise operation, high reliability, and long service life, making them ideal for motorized blinds, shutters, and household appliances.
