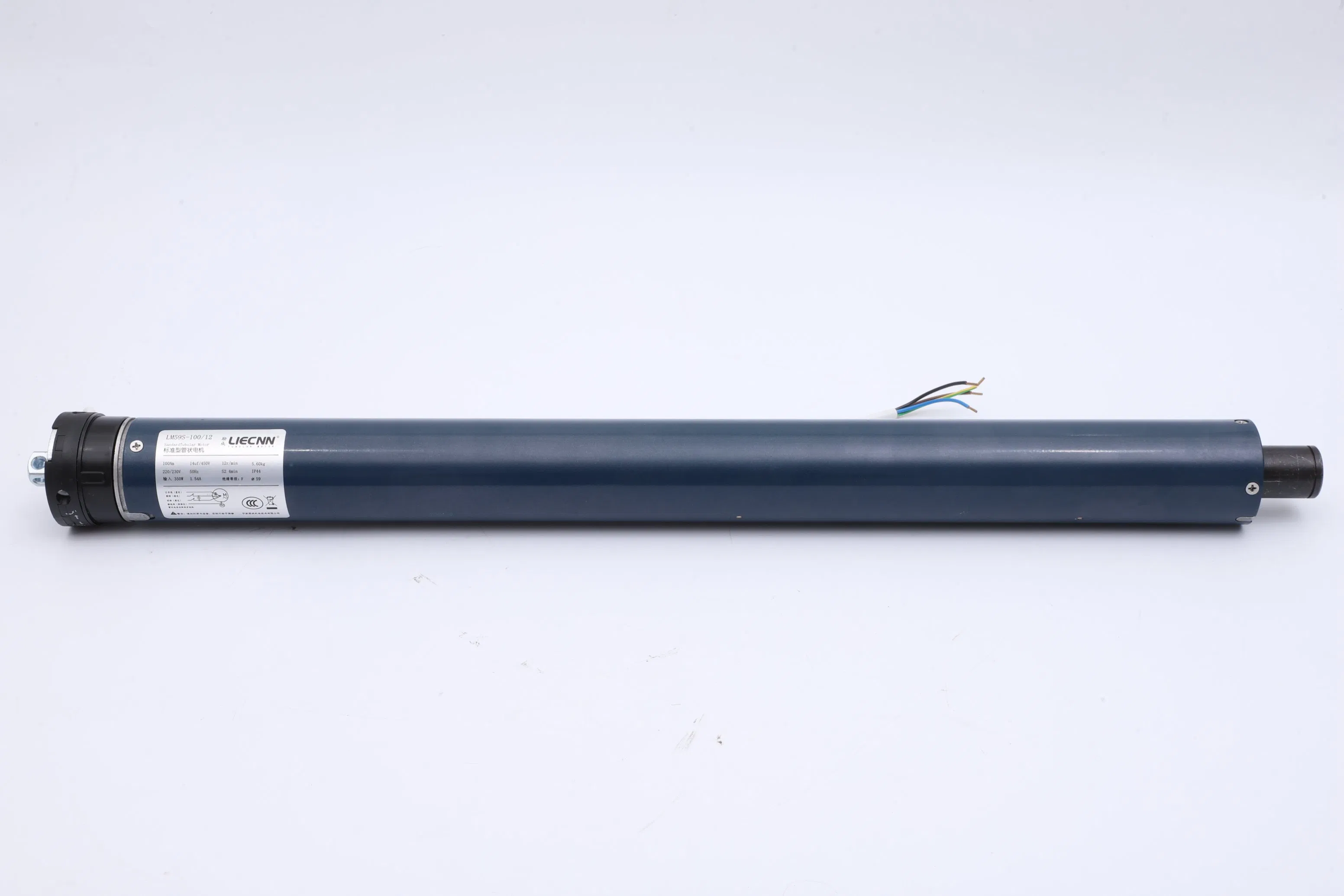

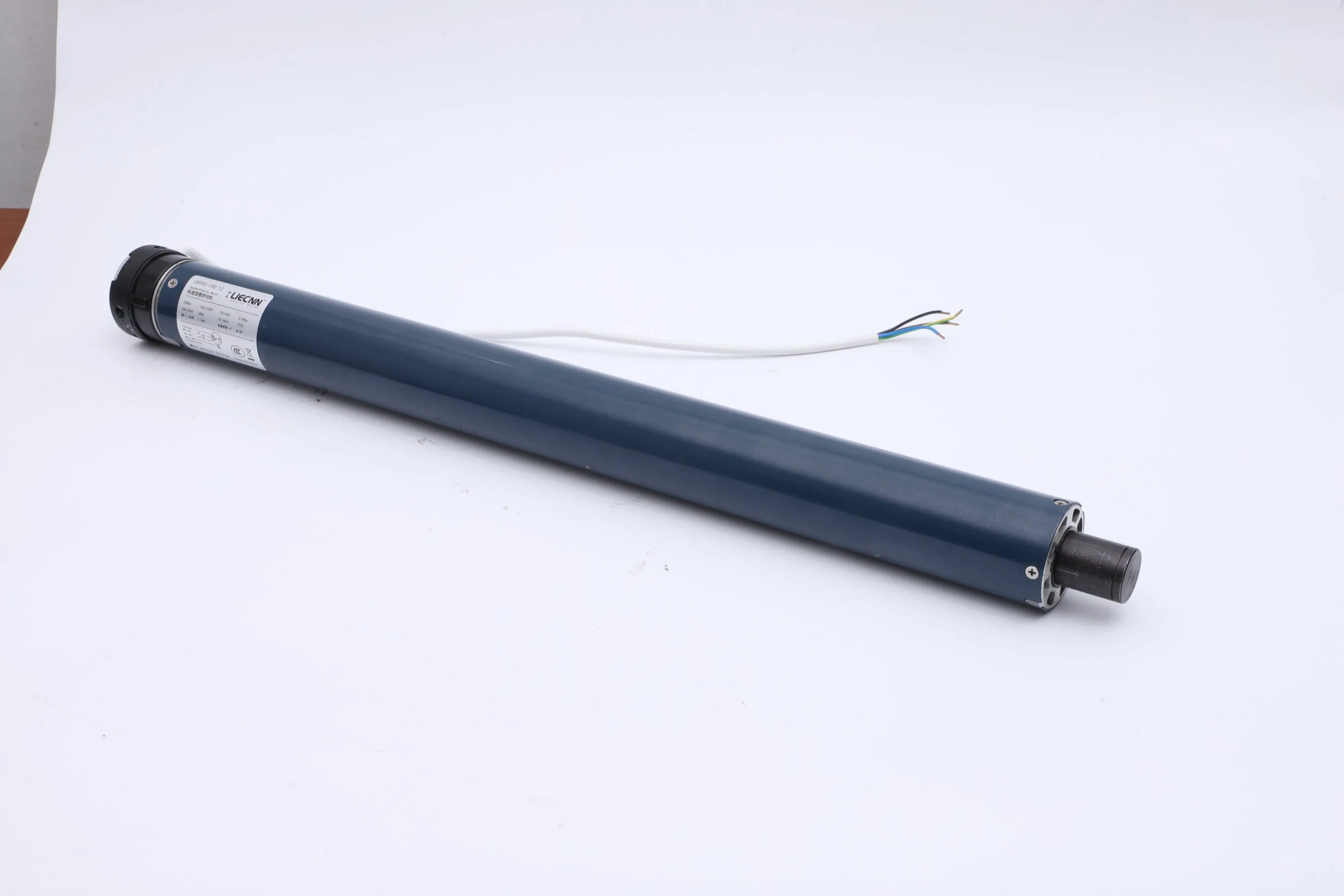

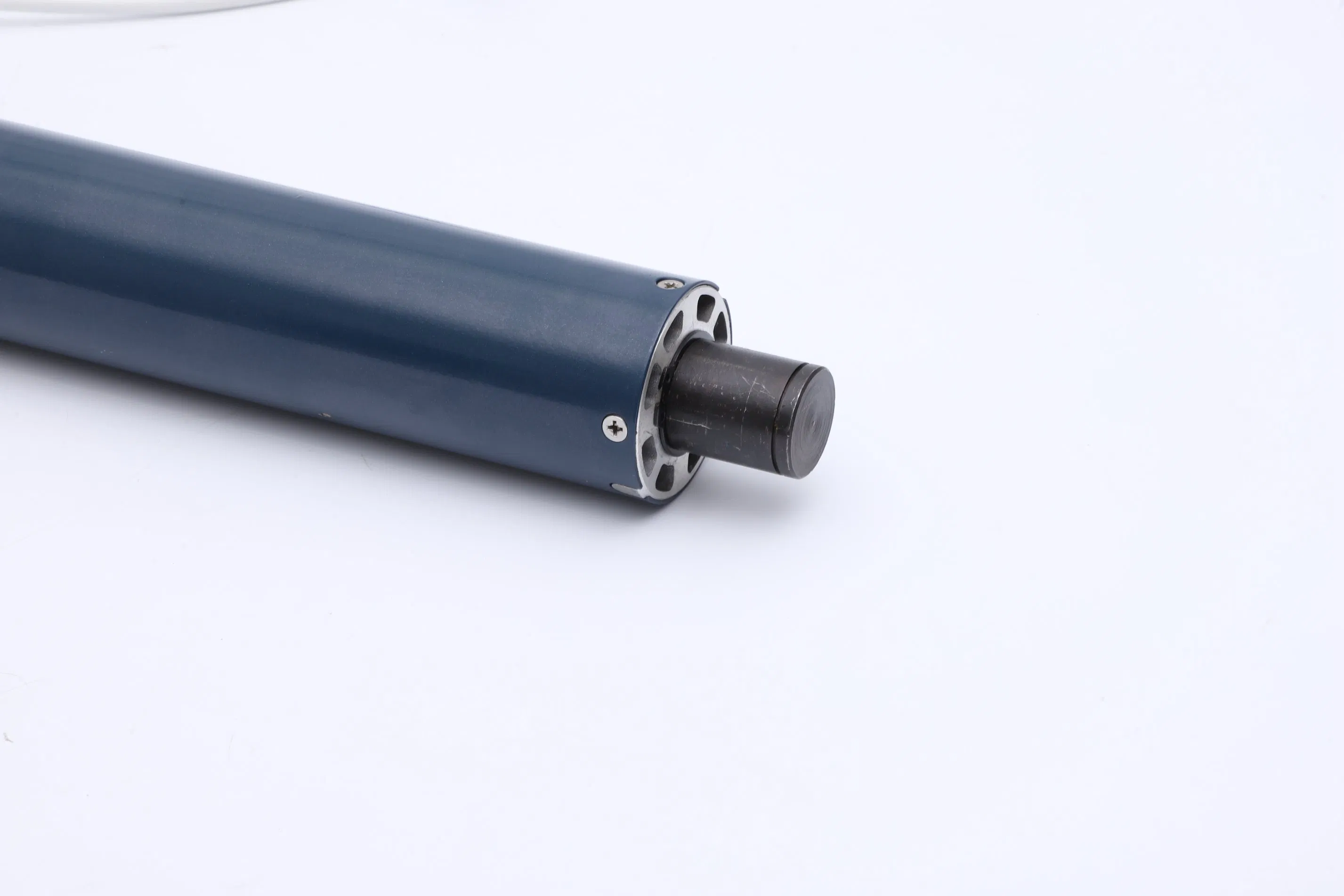

ISO9001 59mm Tubular Motor with High Torque for Electric Roller Shutters and Projector Screens

Customization:	Available
Pipe Diameter:	59mm
Rated Voltage:	220V/110V/24V/12V

Basic Specifications

Model NO. LM59S-120N/9R

Rated Torque 12r

Ingress Protection IP44

Rated Current 1.54 a

Rated Power 470W

Tpt 4min

Insulation Class H

Lifting Force 80n/100n/120n/140n/180n

Transport Package Box

Specification 780*240*240

Origin China

HS Code 8501400090

Packaging & Delivery

Package Size 780.00cm * 240.00cm * 240.00cm

Package Gross Weight 22.500kg

Product Description

■ Model: LM59S-120N/9R

■ Support batch customization.

■ Voltage Compatibility: 220v / 110v / 24v / 12v

■ The lifting forces of the motor are 80N, 100N, 140N, 160N, and 180N respectively.

■ The pipe diameter is 59 millimeters.

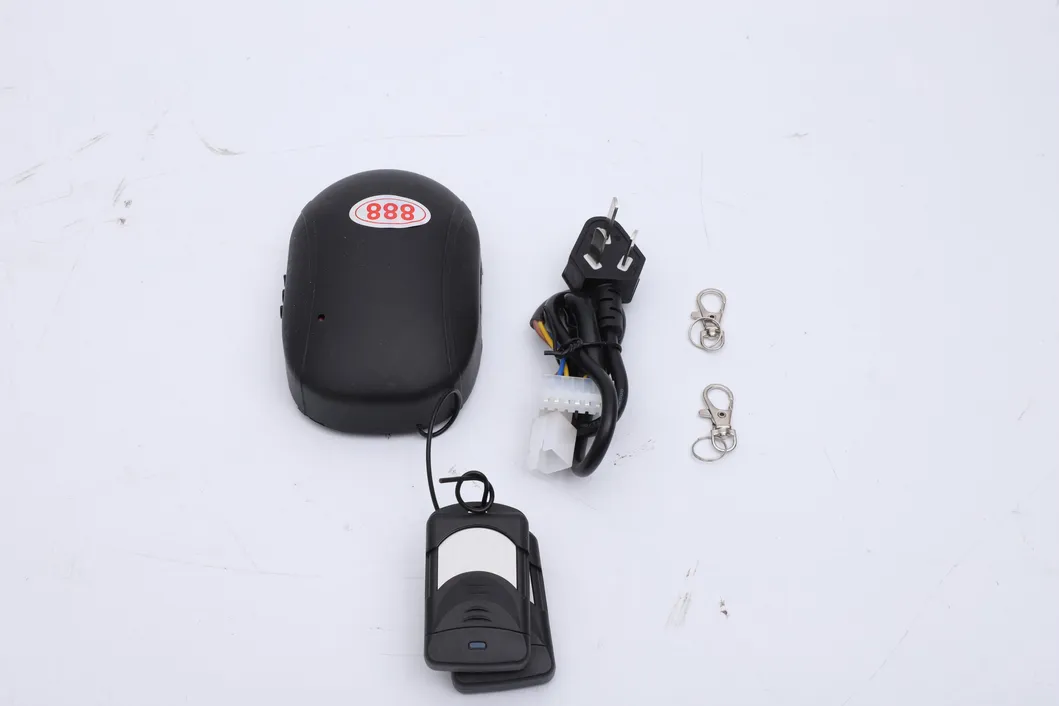

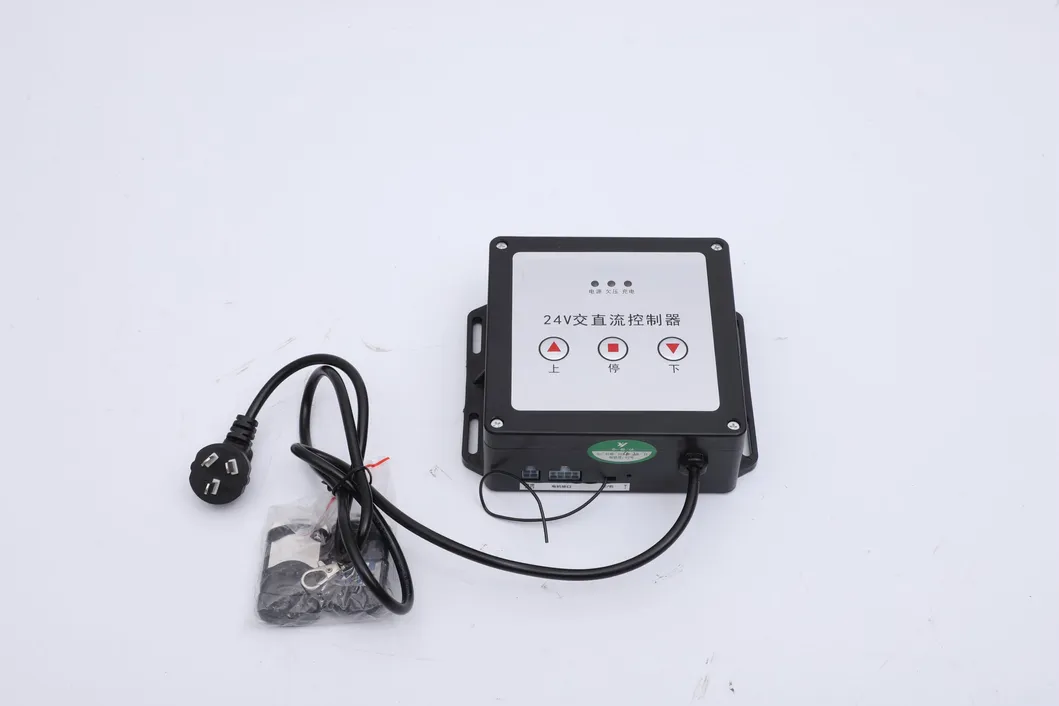

Compatible Control Systems:

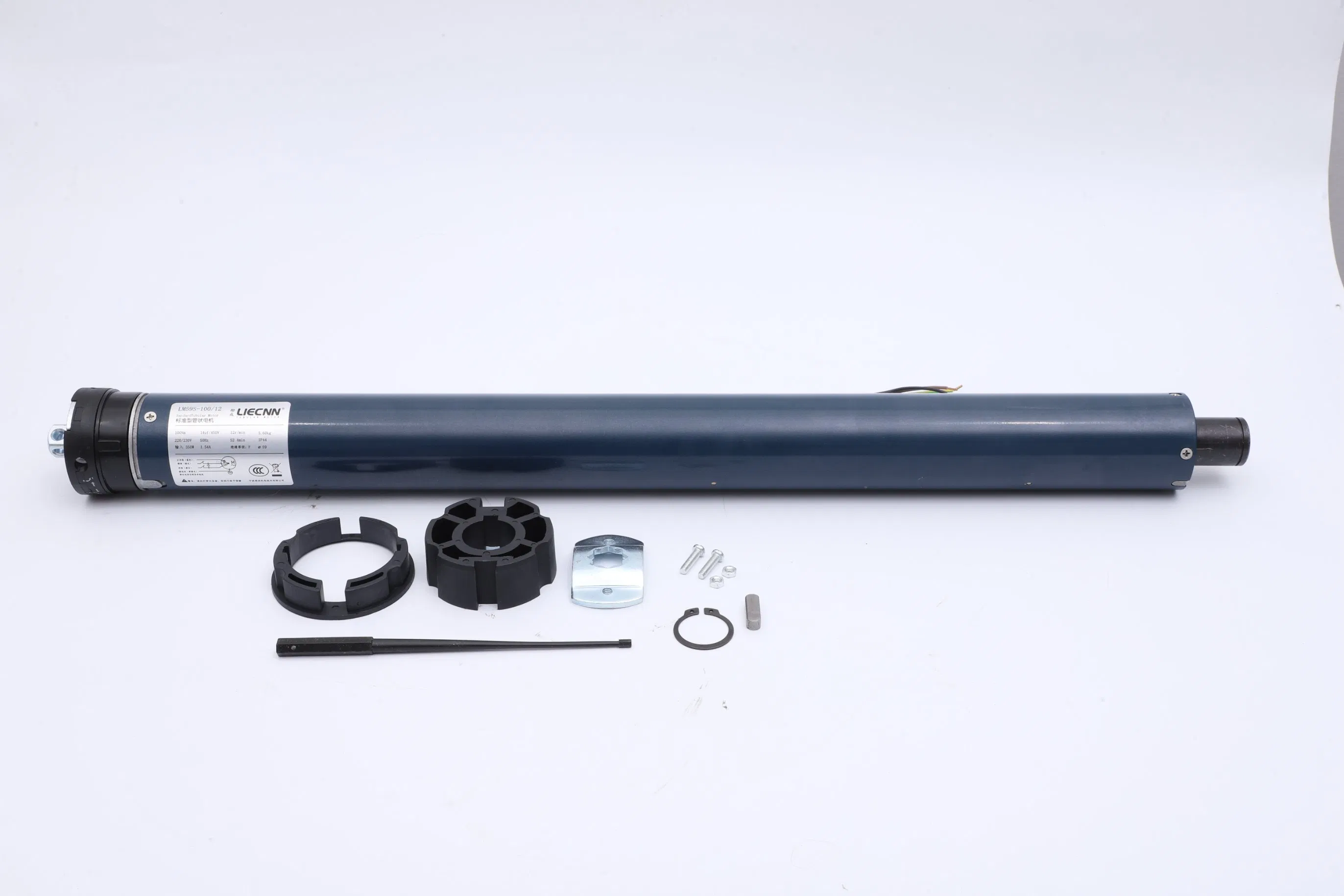

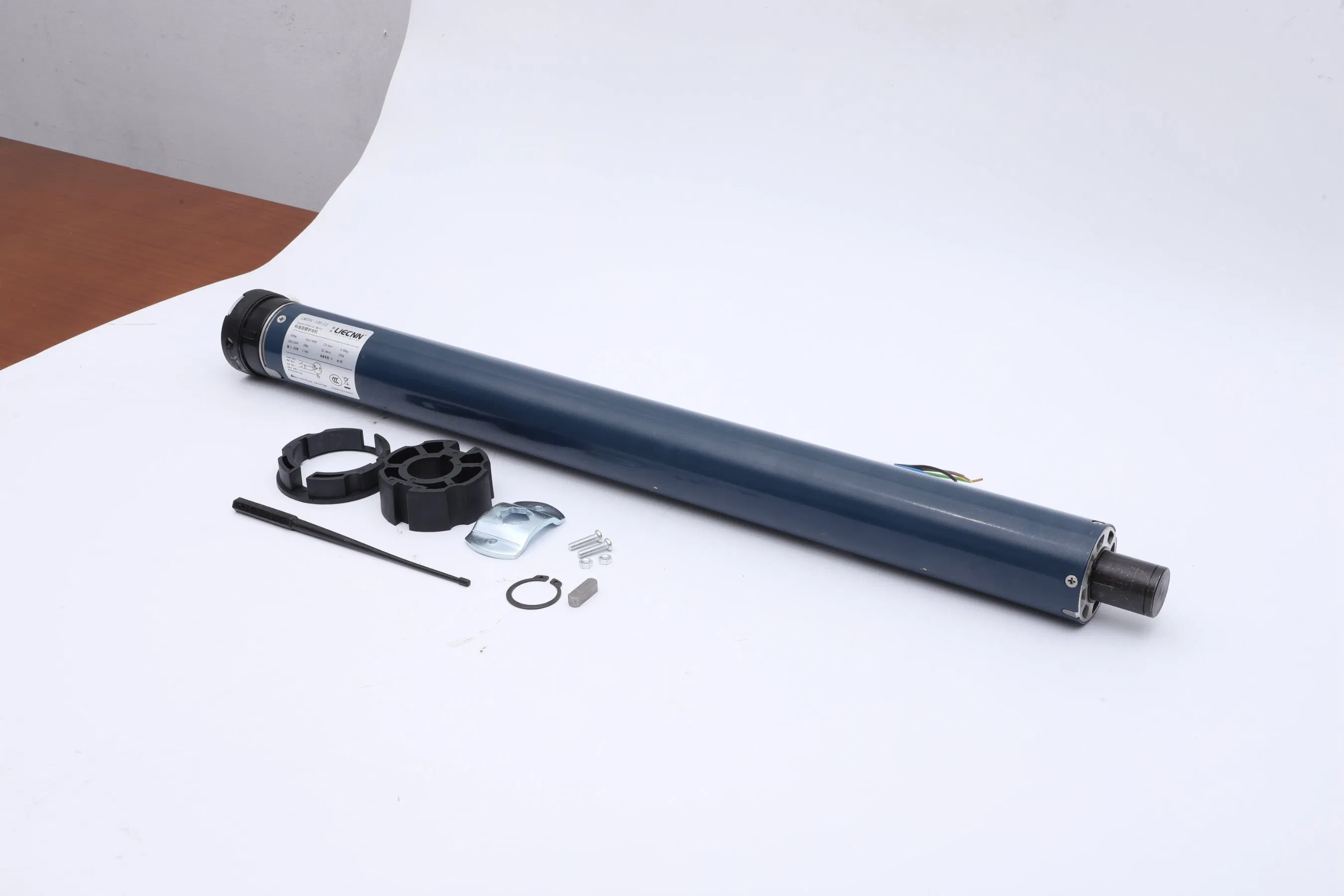

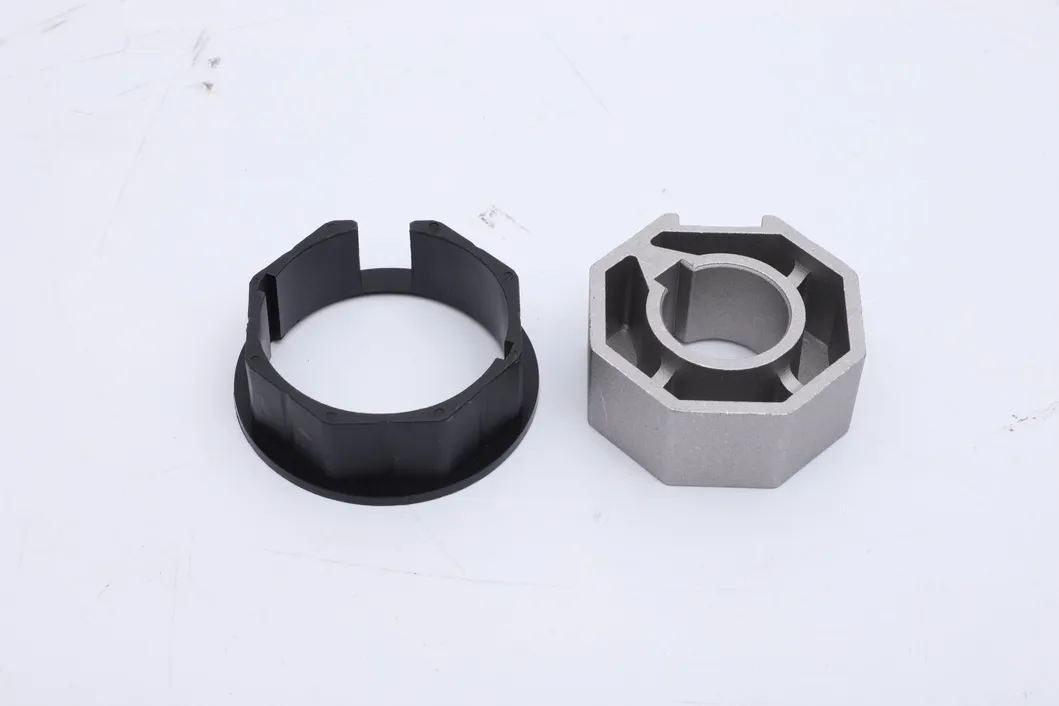

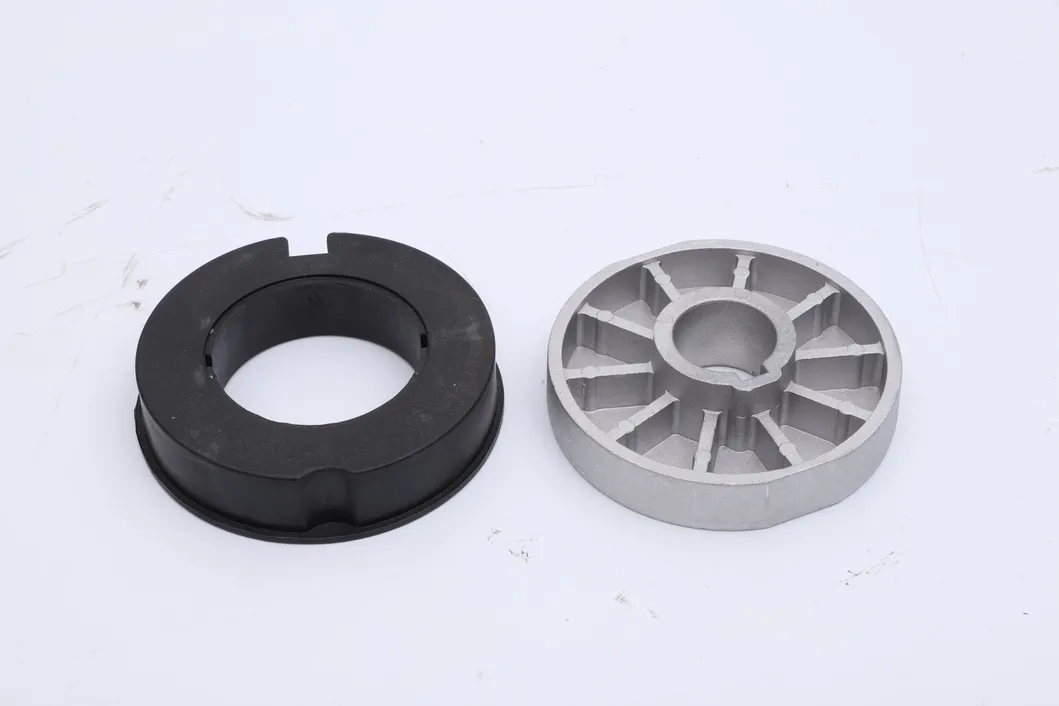

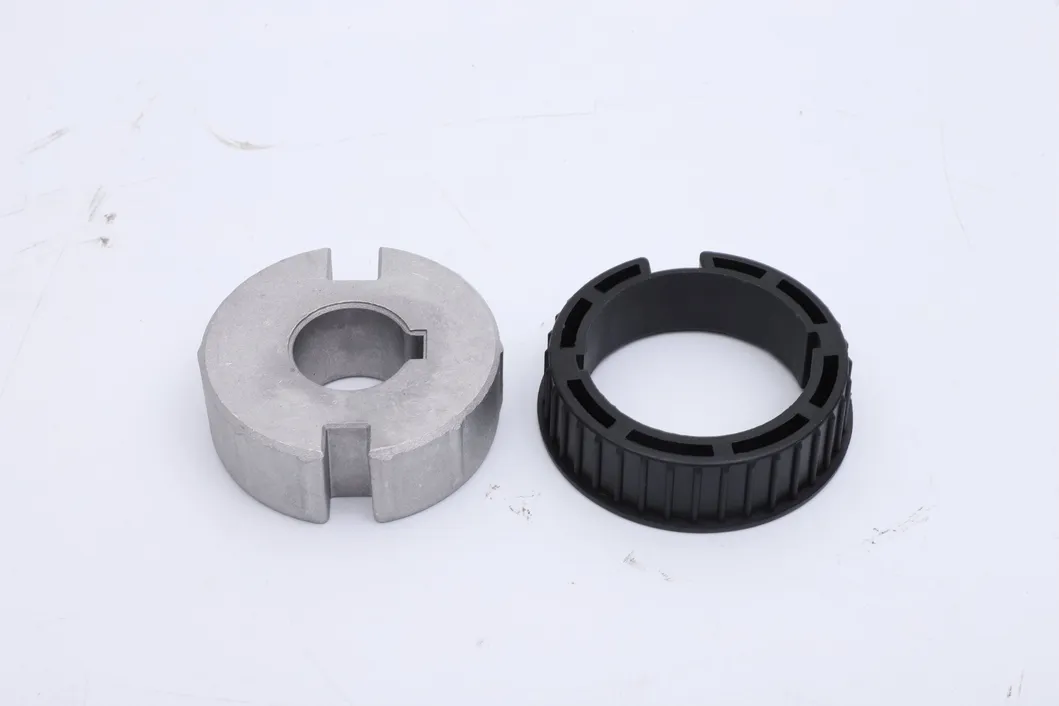

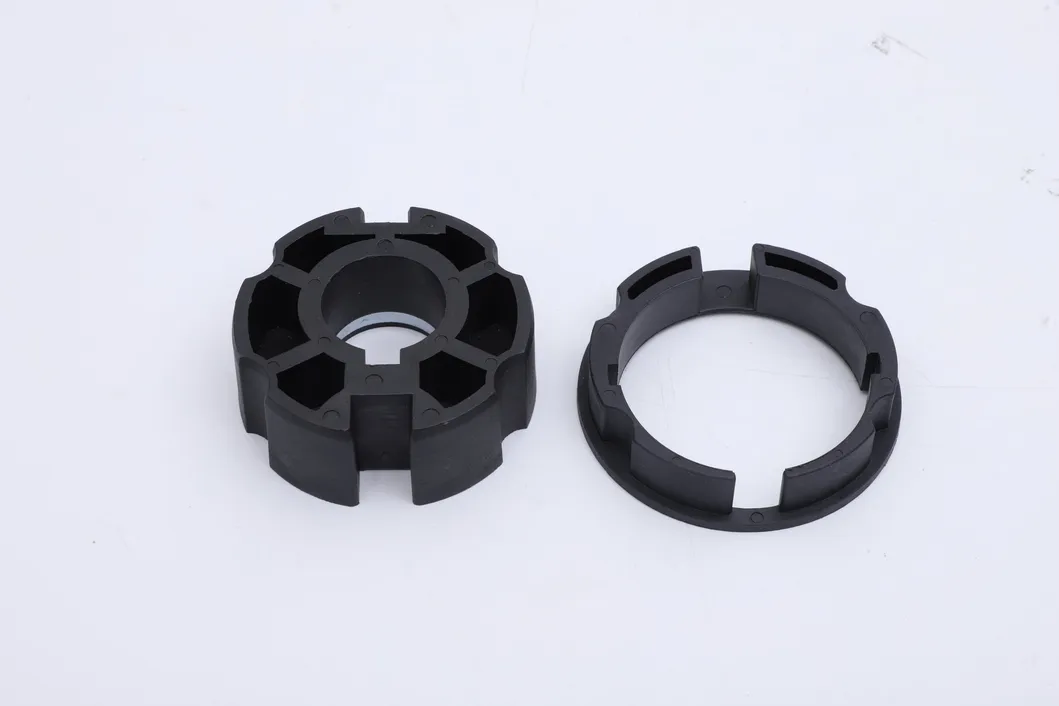

Compatible Accessories / Adaptable Accessories:

The 45 standard tubular motor is mostly used in industries such as automatic projection screens, electric curtains, electric blinds, electric Roman shades, electric awning curtains, and Shangri-La blinds. The AC rated voltage is 220V and 110V, while the DC rated voltage is 24V and 12V. Both the packaging and nameplates support customization.

Model Parameters & Specifications:

LM59S-100N/12R
100Nm	230V	12r/min
14uf/450V	50Hz	Φ59
350W	1.54A	S2:4min
5.6kg	IP44	I.CI.F

LM59S-120N/10R
120Nm	230V	10r/min
14uf/450V	50Hz	Φ59
460W	1.8A	S2:4min
5.6kg	IP44	I.CI.F

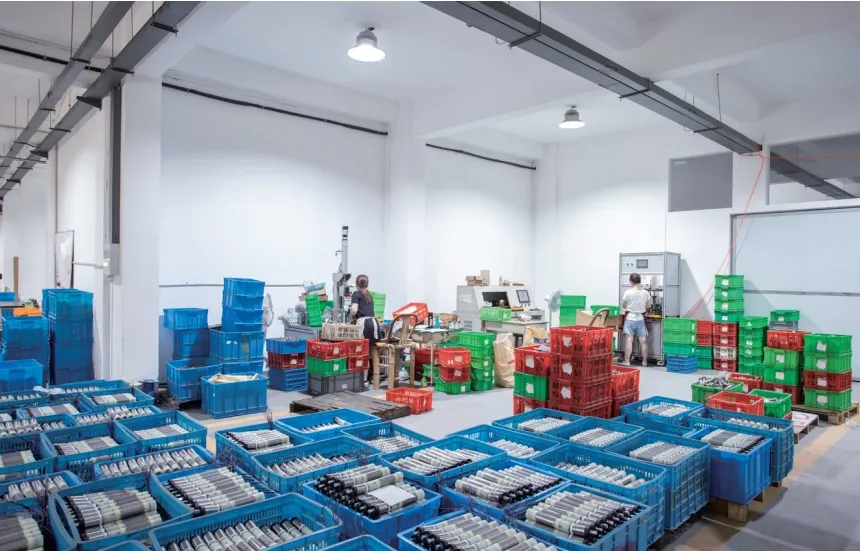

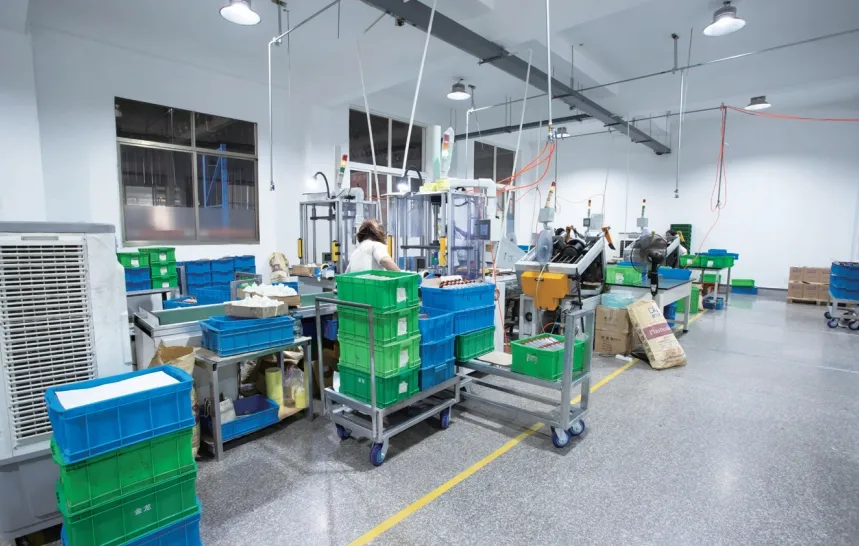

Advanced Production & Manufacturing Facilities:

Manufacturing Capabilities & Quality Standards

Advanced Production Lines

First-Class Testing Equipment

Top R&D Technical Team

Perfect Quality Control System

Frequently Asked Questions

What voltage options are available for the tubular motors?

We support standard voltage options compatible with global systems, including AC rated voltages of 220V and 110V, and DC rated voltages of 24V and 12V. Customization is supported to meet specific application requirements.

What lifting forces are supported by this motor?

This tubular motor offers a wide range of lifting force selections, specifically available in 80N, 100N, 120N, 140N, 160N, and 180N to accommodate different loading sizes and weights.

In which industries are these tubular motors commonly applied?

They are highly popular in motorized shaded window systems, automatic projection screens, electric curtains, electric blinds, electric Roman shades, electric awning curtains, and Shangri-La blinds.

Can we customize the product nameplate and packaging?

Yes, we support batch customization for both the product packaging boxes and the technical nameplates to align with your customized brand specifications.

What are the safety protection and insulation specifications of the motors?

The motor is rated with Ingress Protection class IP44, providing reliable dust and splash water protection. It features a superior H-class / F-class insulation standard for long-term operational safety.

What is the standard pipe diameter for this model series?

This motor model is built with a standard pipe diameter of 59 millimeters, offering optimal torque and steady rotational speed for heavy-duty shutter and curtain applications.
