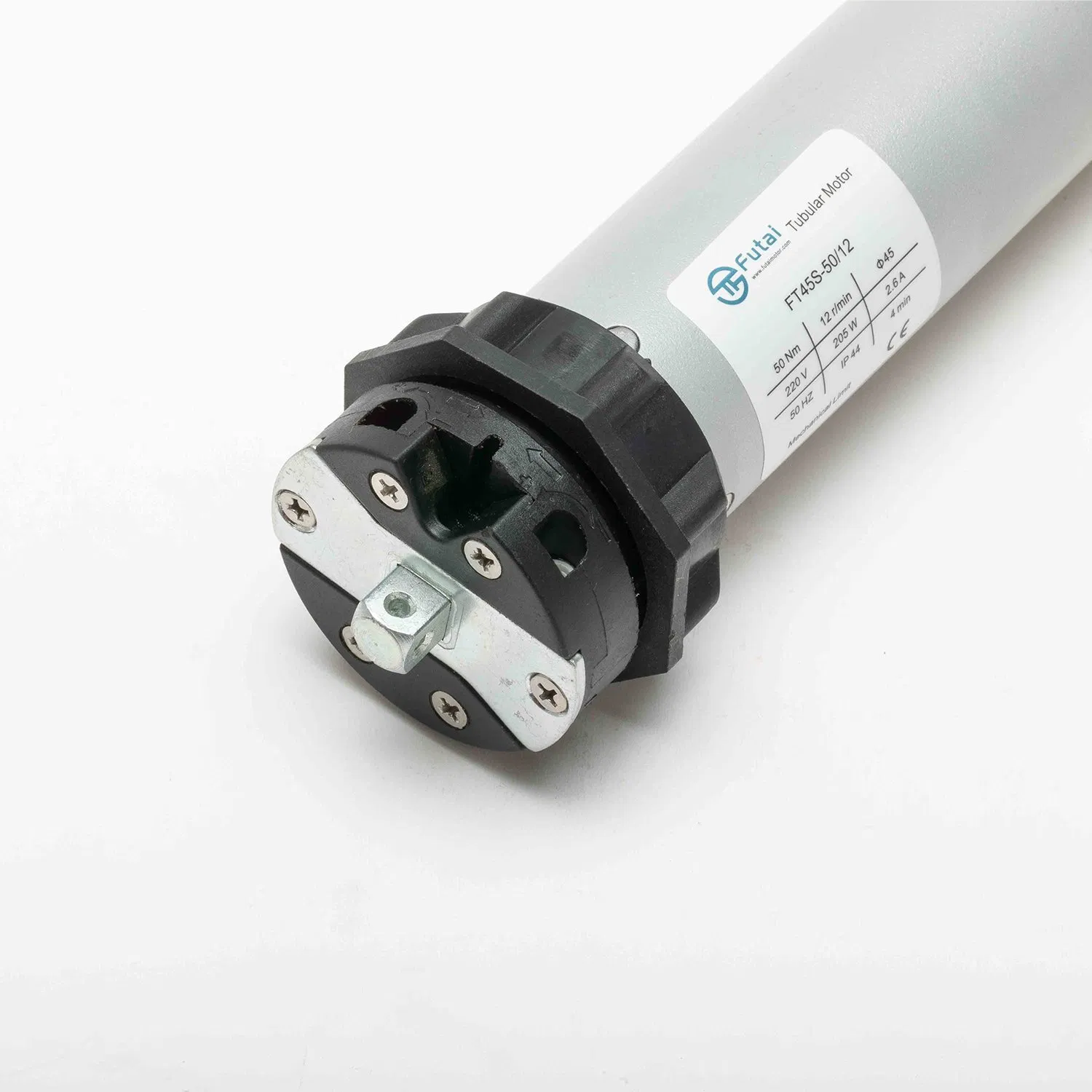

Torsion Motor
1 / 5

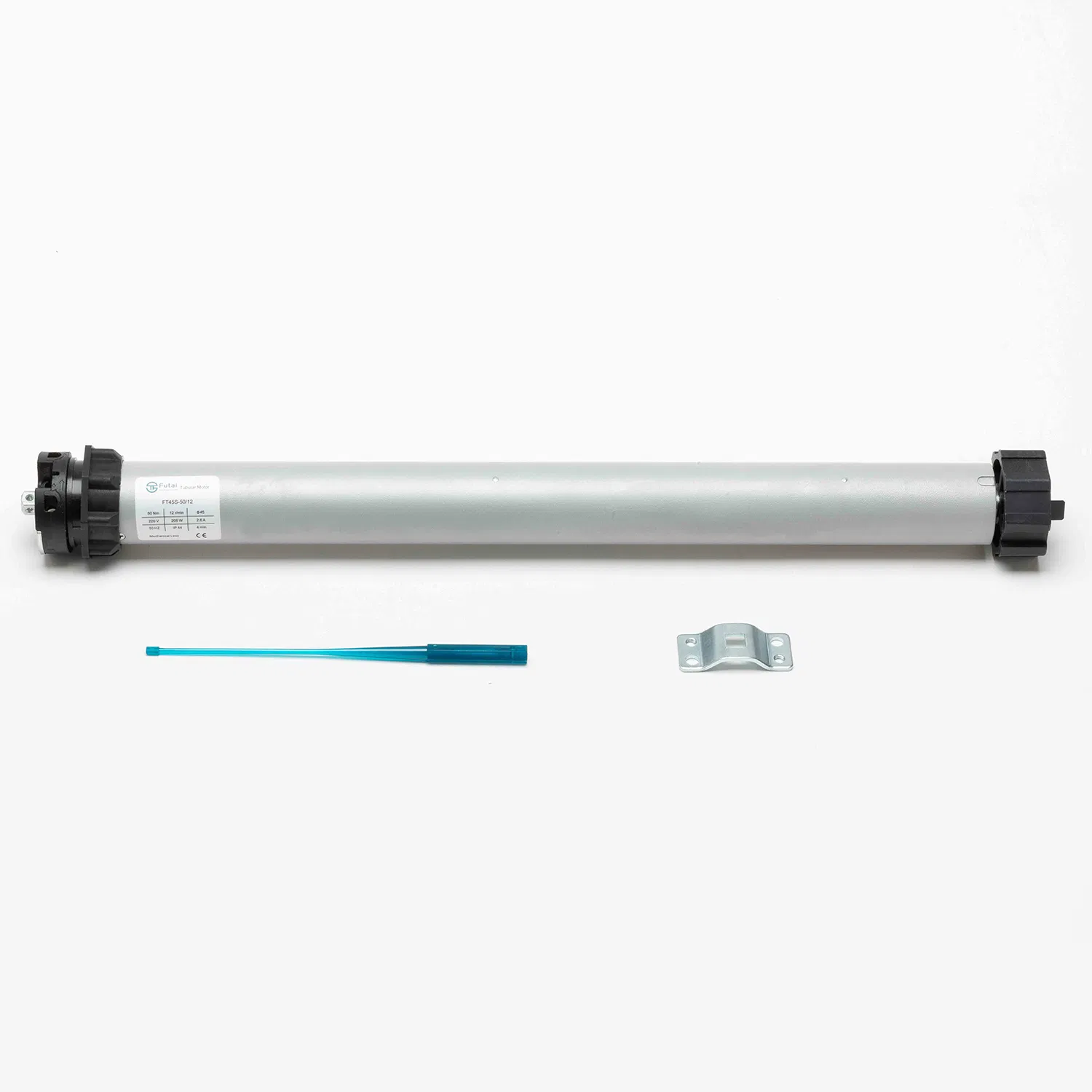

1. 60MM Crown, Drive adapter × 1SET
2. Arch support × 1PCS

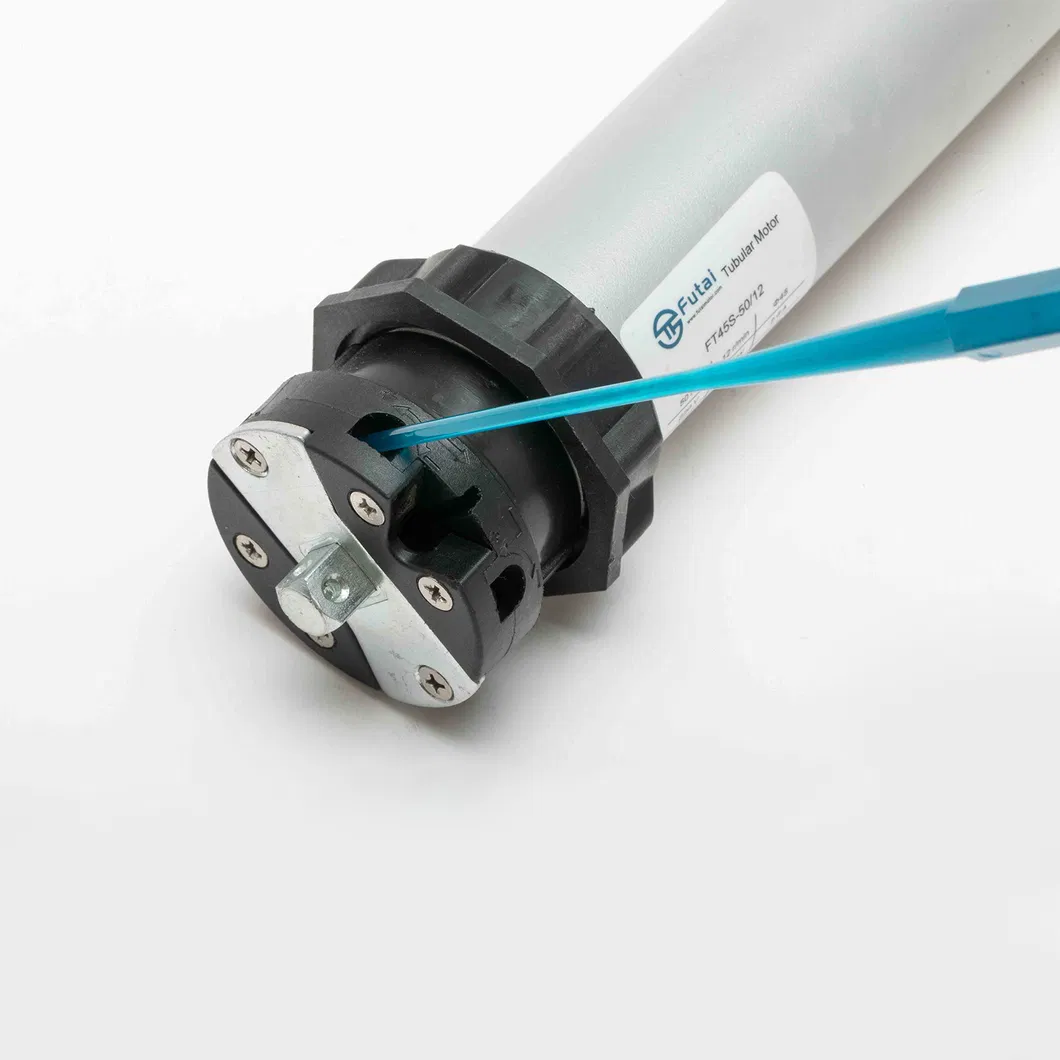

3. Plastic adjustment rod × 1PCS
4. Specification × 1PCS
Other accessories: Idler, Triangular bearing bracket (optional).
| Model | Torque | Speed | Diameter | Voltage | Power | Current | Protection | Turns | L1/L2 | Time |
|---|---|---|---|---|---|---|---|---|---|---|
| FT45S-10/15 | 10 | 15 | 45 | 230 | 135 | 0.59 | IP44 | 22 | 455/442 | 4 |
| FT45S-20/15 | 20 | 15 | 45 | 230 | 145 | 0.63 | IP44 | 22 | 455/442 | 4 |
| FT45S-30/15 | 30 | 15 | 45 | 230 | 191 | 0.83 | IP44 | 22 | 475/462 | 4 |
| FT45S-40/15 | 40 | 15 | 45 | 230 | 198 | 0.86 | IP44 | 22 | 525/512 | 4 |
| FT45S-50/12 | 50 | 12 | 45 | 230 | 225 | 0.98 | IP44 | 22 | 525/512 | 4 |
| FT45S-60/9 | 60 | 9 | 45 | 230 | 230 | 1 | IP44 | 22 | 525/512 | 4 |
Specializing in the design, manufacturing, sales, and service of high-end automatic motors, operators, safety contact edges, and control devices for various types of doors and windows.
Our products are mainly used for shutters, screens, awnings, roof windows, garage doors, and roller blinds. Products are ISO9001, CE, TUV, and RoHS approved, with a strong global presence in Europe, USA, Middle East, South America, Australia, and Southeast Asia.
