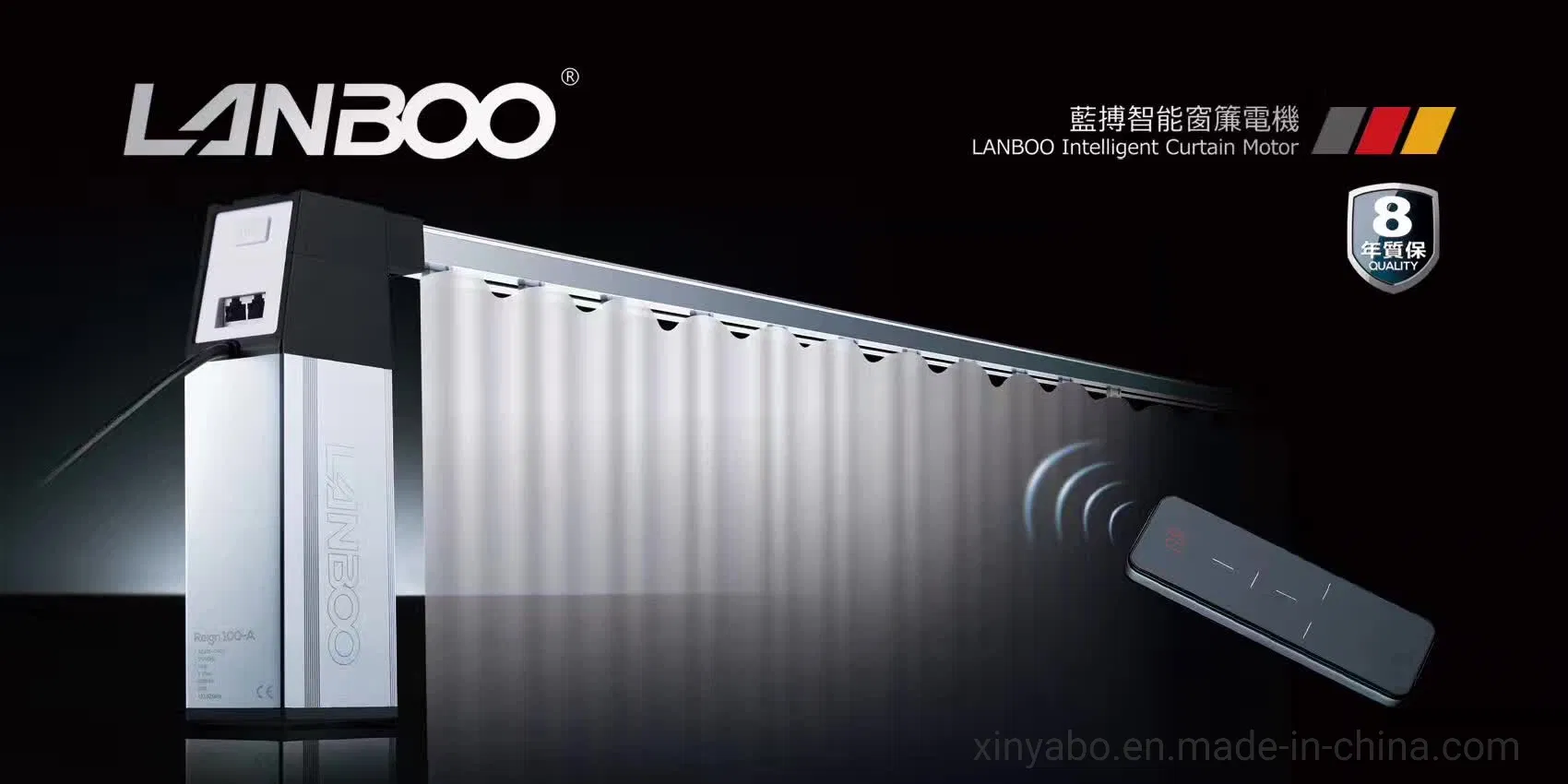

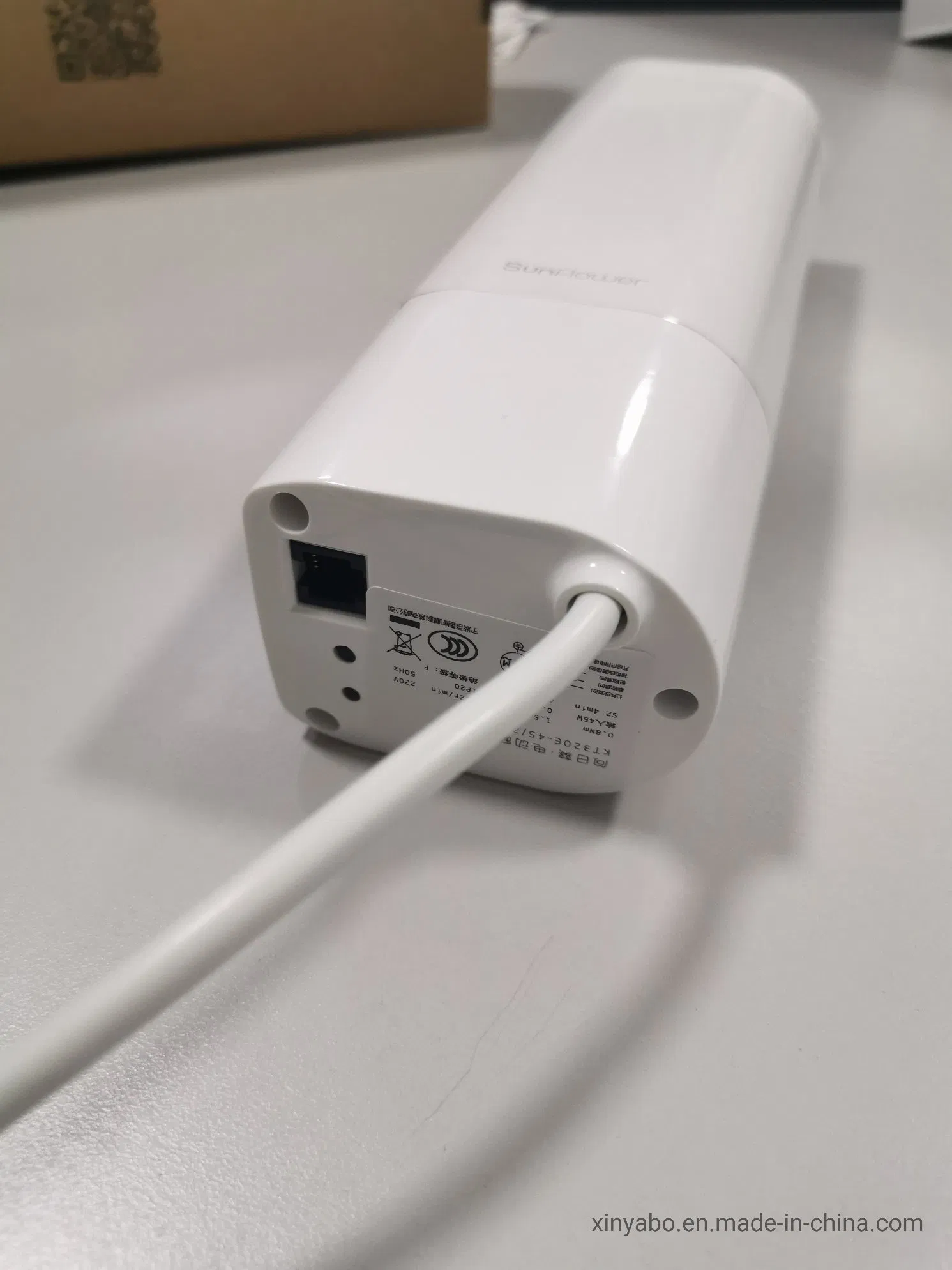

Remote Control, WiFi Automation Smart Curtain System, Electric Curtain Motor

1 / 5

Remote Control, WiFi Automation Smart Curtain System, Electric Curtain Motor

Send Inquiry

Product Description

Product Specifications

Product Name	Curtain motor pole
Suitable Place	Hotel, flat, office, bed room, Apartment, villa etc
Motor	DC110-240V
Certificate	CE, RoHS, UL, CCC
Warranty	5 years

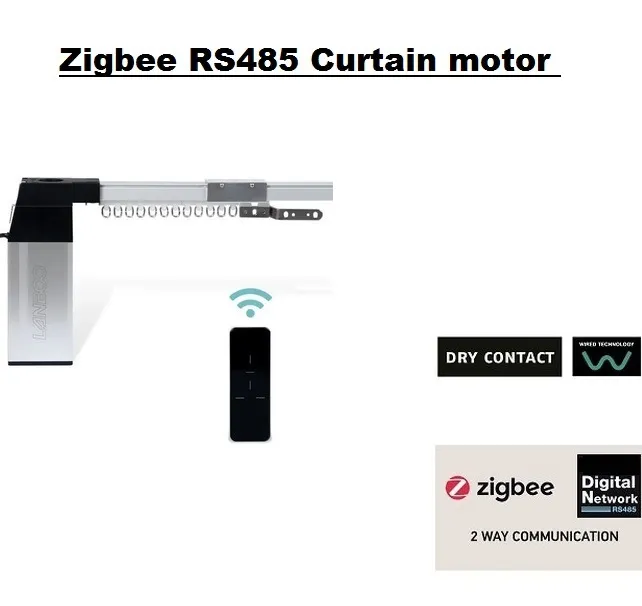

Control	Wireless remote, switch, Timer, Home automation system, Wifi, Dry contact, RS485, Z-wave, Zig-Bee
Track	Aluminum, white colour
Delivery time	6-25 days
Shipping Method	Small quantity by DHL, FEDEX, TNT, UPS or LCL by sea

Technical Parameters

Rated voltage	Frequency	Currency	Power	Speed	Torque	Line speed	IP class
DC100-240V	50Hz	0.36A	24W	80rpm	1.5N.m	0.2m /s	IP41

Weight	1.7Kg	Motor size	2158660mm

Weight

1.7Kg

Motor size

215*86*60mm

Track System Features

● System length: Max. 12 mtrs

● Capacity: 5m within Max. 50 kgs

● Transmission: 11.5mm toothed belt

● Flexability: The track can be bended within Min. R500

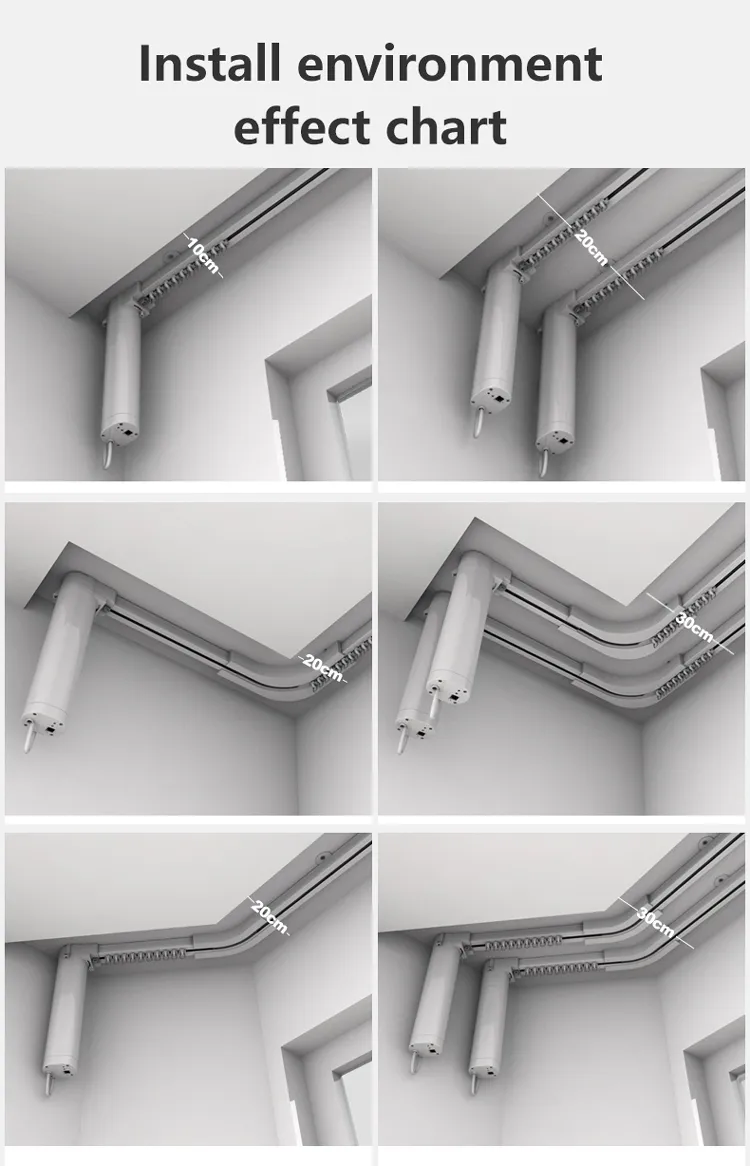

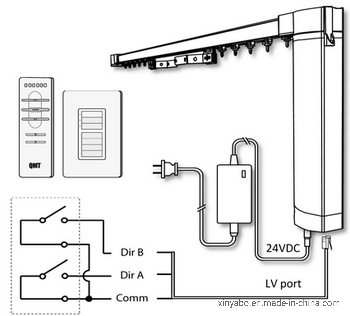

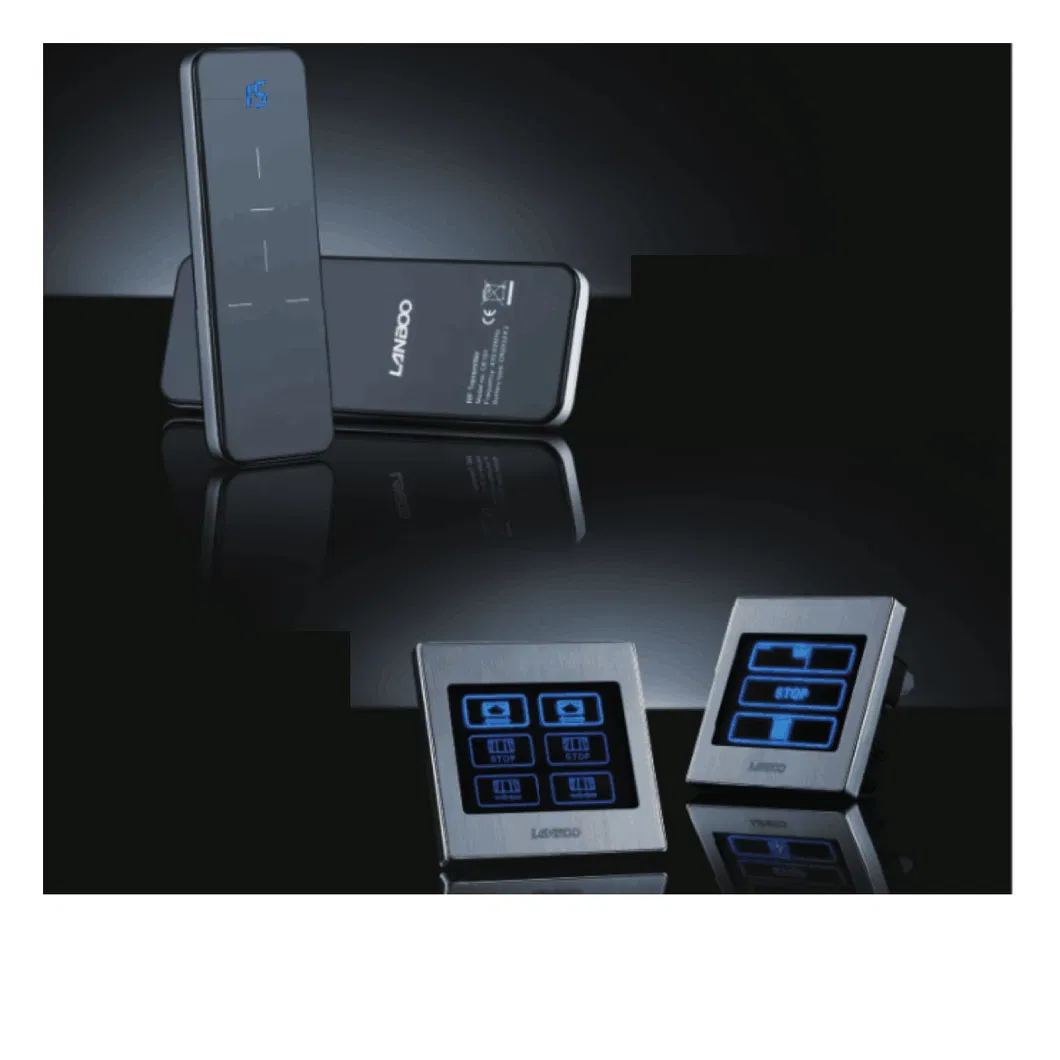

Control & Installation

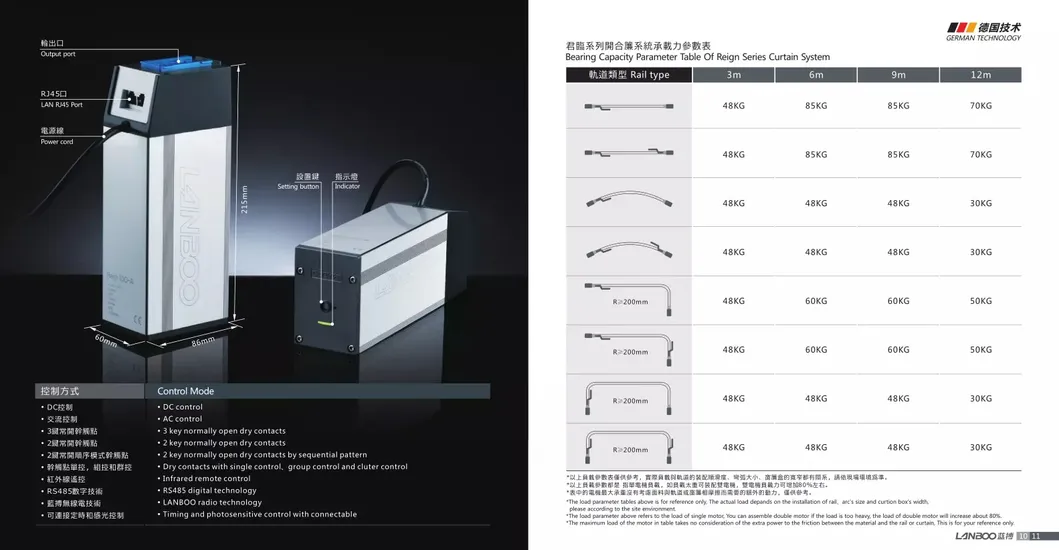

Integration & Dimensions

Frequently Asked Questions

What control methods are available for the smart curtain system?

The system supports multiple control methods including wireless remote, wall switches, timers, WiFi smartphone apps, and integration with home automation systems via RS485, Z-wave, or Zig-Bee.

What is the maximum weight the motor can handle?

The curtain motor has a capacity to handle up to 50kg for a track length of up to 5 meters.

Can the curtain track be customized for curved windows?

Yes, the aluminum track can be bent with a minimum radius of R500 to accommodate curved architectural requirements.

What is the warranty period for the curtain motor?

We provide a comprehensive 5-year warranty on the motor to ensure long-term reliability and customer satisfaction.

Is the motor compatible with international power standards?

Yes, the motor is designed to operate on a wide range of voltages from DC100V to 240V at 50Hz, making it suitable for global use.

What safety certifications does this product hold?

The smart curtain system is fully certified with CE, RoHS, UL, and CCC standards, meeting rigorous international safety and environmental requirements.
