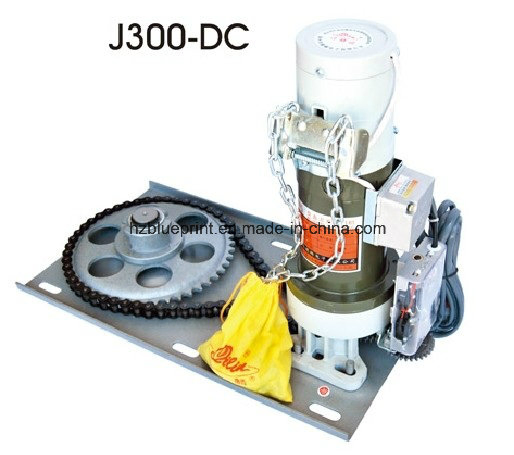

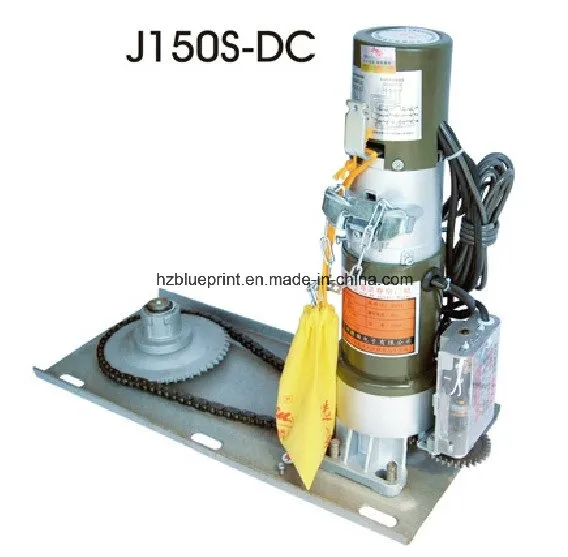

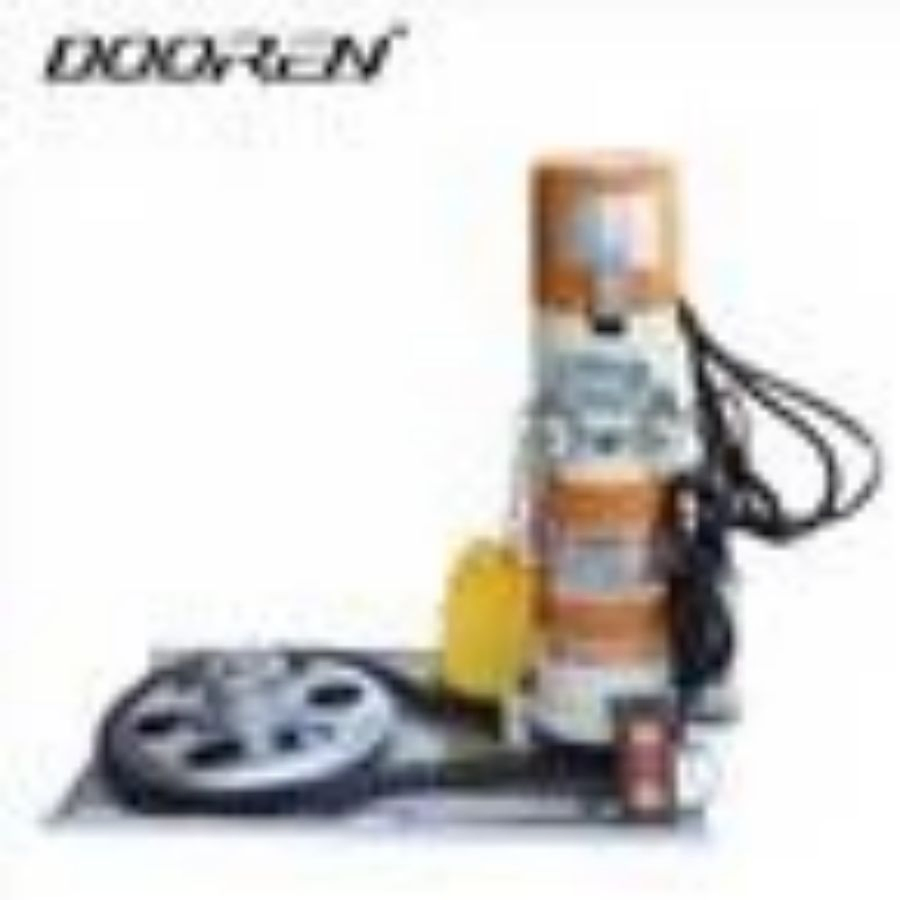

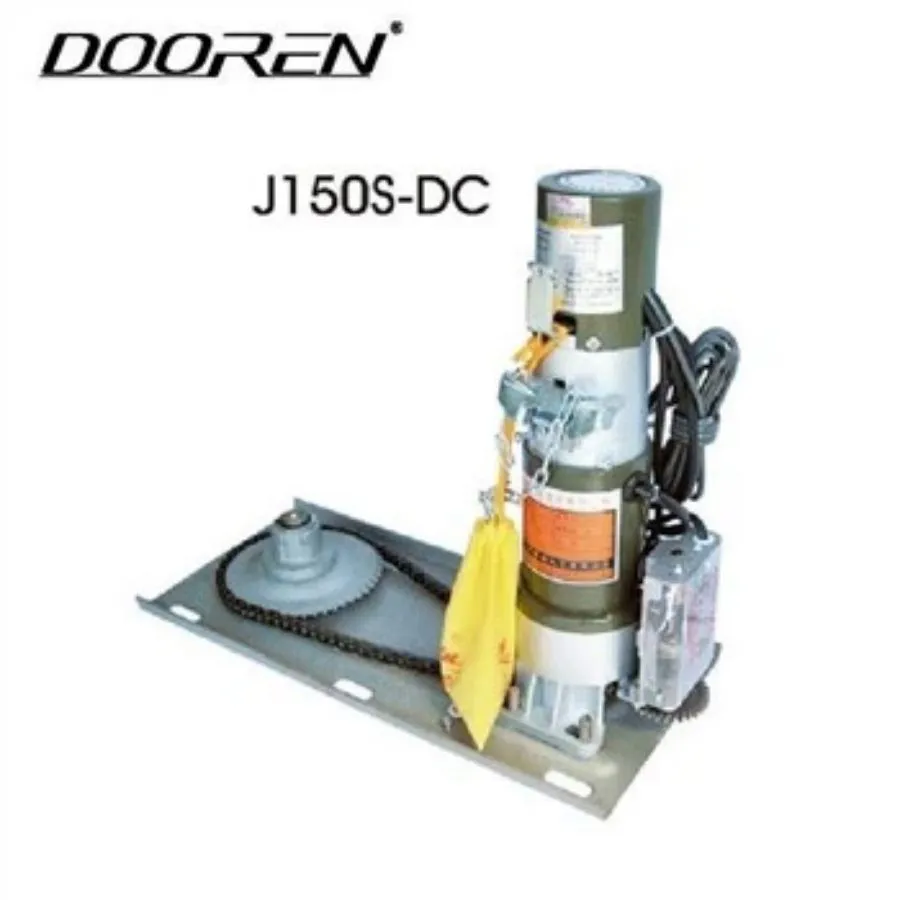

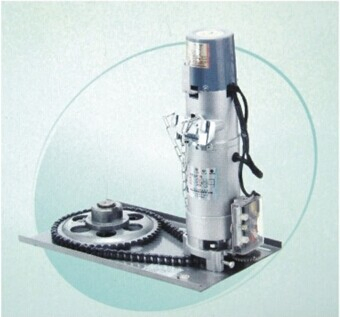

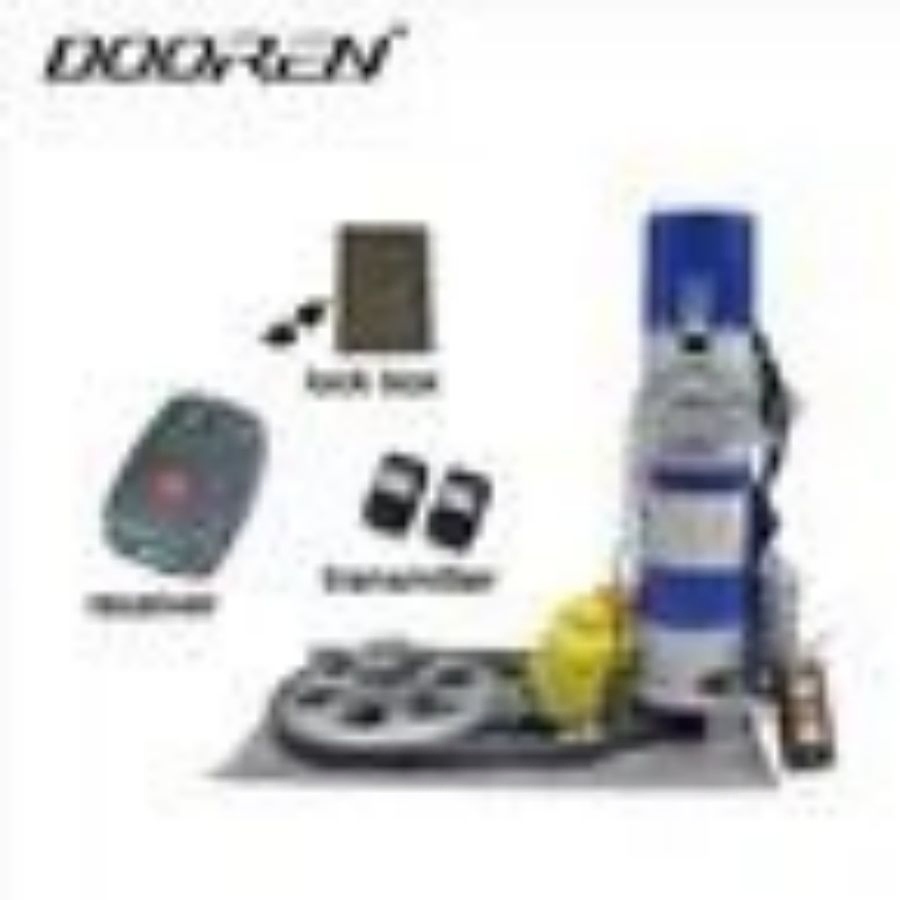

Roller Shutter Motor for 300-1500kgs Security Rolling Door Operator series Type: Lt300, lt60, lt800, lt800s, lt1000s, lt1300s, lt1500s
Model
Max Lifting Weight (KG)
Max Lifting Height (M)
Power Supply (W)
Rated Power (A)
Output Torque (N.m)
Output Speed
Elevating Force
Shaft
220V/50HZ
lt300
300
6.5
250
3.3
168
6.5
11.6
08B
lt600
600
6.5
300
3.9
412
6.5
12.6
10A
lt800
800
7.5
550
4.5
647
5.1
15.5
10A
380V/50HZ
lt800s
800
7.5
550
2.0
850
5.1
15.5
10A
lt1000s
1000
8.5
550
2.3
875
5.5
19.5
12A
lt1300s
1300
8.5
600
3.0
1400
6.4
21.0
12A
lt1500s
1500
8.5
800
3.2
1610
4.9
21.0
16A
Our product ranges includes belows:
Automatic door
Industrial door opener
Garage door opener
High speed rolling door system
Gate opener system
Road barrier system includes barrier, bollard and road blocker system
All related control system and accessories
Product introduction of direct selling industrial rolling shutter door
Energy saving, high-speed automatic opening and closing. Applicability: any inner or outer door of the plant. (when the wind pressure of the outer door is large, it can provide a stacked fast door resistant to strong wind). Opening speed: 0.8-1.5m opening speed per second (equipped with frequency converter, the speed can be adjusted), so as to realize high-frequency opening more than 1500 times all day without fault. Safety performance: safety photoelectric: infrared safety light is installed at the bottom of the door about 30cm from the ground, When the door is closed down, when someone or car passes through the safety light, the door will automatically stop down and go up to play a safety role. In addition, it can also be used as an opening method of the door, that is, the door can rise by itself as soon as people touch it with their feet, which is safe and fast.
Automatic swing gate opener motor/swing gate opener used for external gate such as iron gate.
Frequently Asked Questions (FAQ)
Q1. What is the lifting weight range covered by this rolling door operator series?
This series covers a wide lifting weight range starting from 300kgs (for the light-duty lt300 model) up to 1500kgs (for the heavy-duty lt1500s model), matching various industrial and security rolling door sizes.
Q2. What power supply requirements do these roller shutter motors support?
The operators support dual power configurations depending on the model: 220V/50HZ models (including lt300, lt600, and lt800) and 380V/50HZ models (including lt800s, lt1000s, lt1300s, and lt1500s).
Q3. How fast does the industrial rolling shutter door open?
The door achieves a rapid opening speed of 0.8 to 1.5 meters per second. Equipped with a frequency converter, the speed is fully adjustable to meet customized industrial operational requirements.
Q4. What safety mechanisms are integrated to prevent accidental closing?
The system utilizes high-quality safety photoelectric features: an infrared safety light sensor is installed approximately 30cm above the ground. If a person or vehicle crosses this line while the door is closing, it automatically stops and reverses upwards.
Q5. Can the safety sensor act as an activation switch for opening the door?
Yes, the bottom infrared sensor can double as a touchless trigger method. When workers touch the proximity boundary with their feet, the door automatically rises, providing a highly efficient and safe operational method.
Q6. How durable are these industrial operators for high-frequency daily usage?
Engineered for intense industrial workflows, these systems are constructed for high-frequency operations, enabling them to reliably open and close more than 1500 times per day without technical failure.
