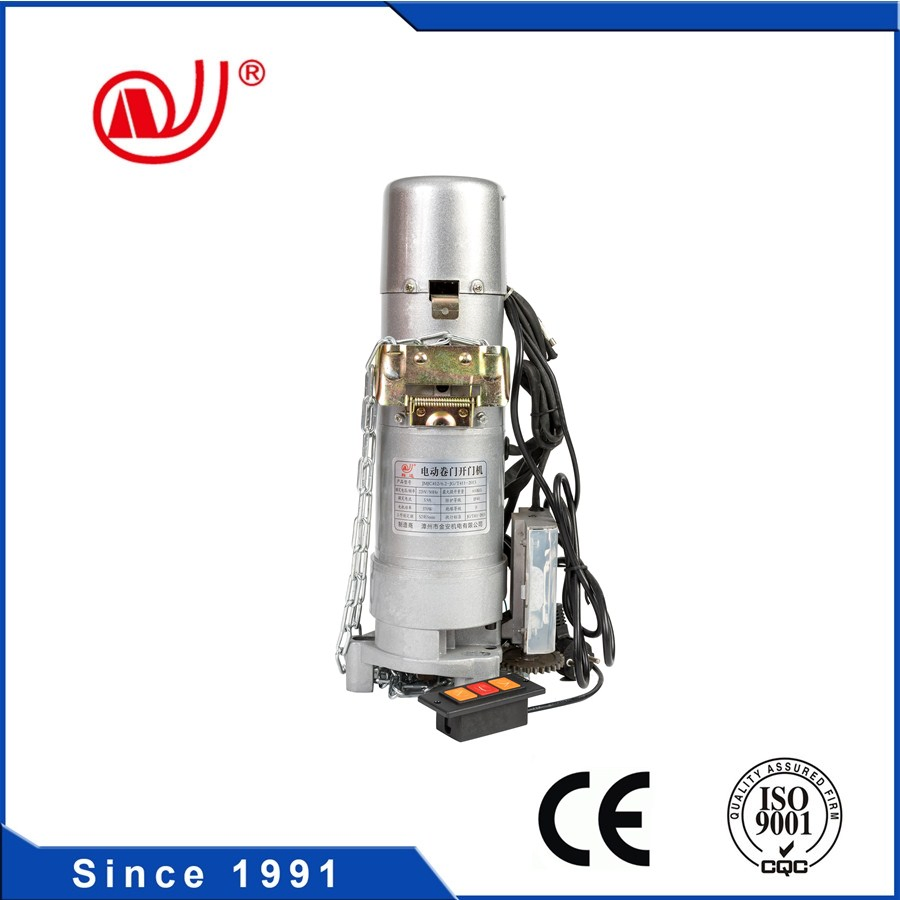

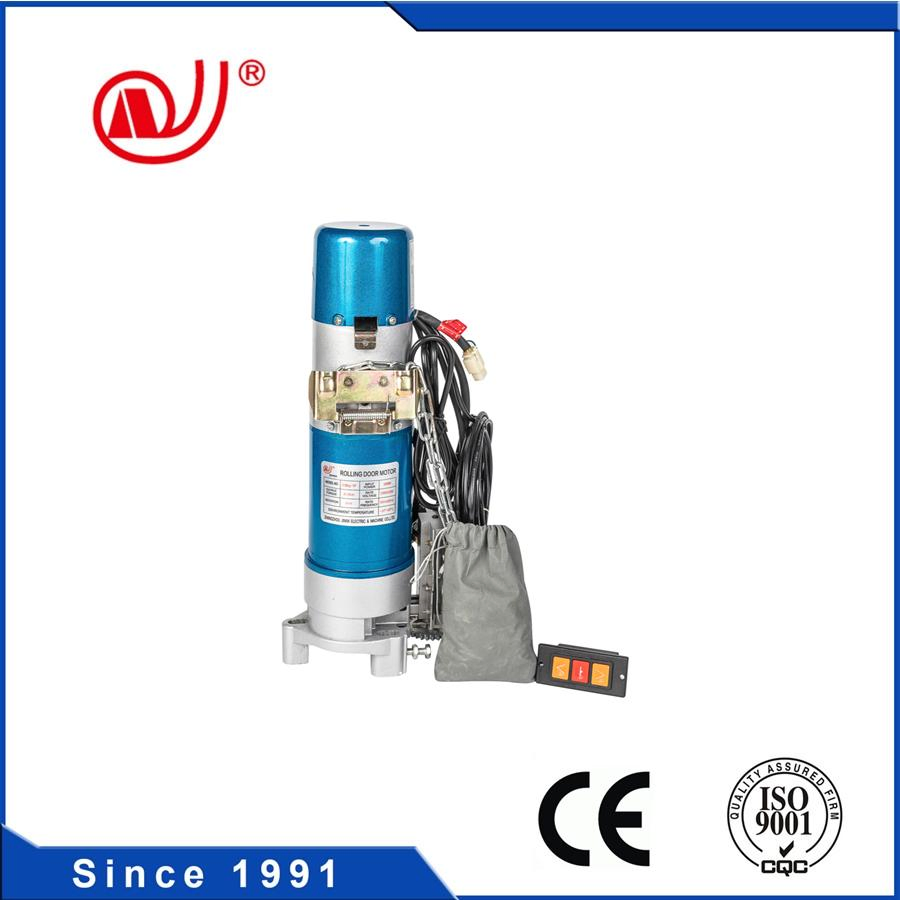

Rolling Gate Motor Roller Shutter Motor for Aluminium Door
Rolling Gate Motor Roller Shutter Motor for Aluminium Door
Rolling Gate Motor Roller Shutter Motor for Aluminium Door
Rolling Gate Motor Roller Shutter Motor for Aluminium Door
Rolling Gate Motor Roller Shutter Motor for Aluminium Door
1 / 5
Rolling Gate Motor Roller Shutter Motor for Aluminium Door
Rolling Gate Motor Roller Shutter Motor for Aluminium Door
Rolling Gate Motor Roller Shutter Motor for Aluminium Door
Rolling Gate Motor Roller Shutter Motor for Aluminium Door
Rolling Gate Motor Roller Shutter Motor for Aluminium Door

Rolling Gate Motor Roller Shutter Motor for Aluminium Door

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
AC600KG-1P
Material
Aluminum Alloy
Type
Rolling
Open Style
Rolling
Opening Type
With Remote Control
Special Function
Security/ Anti-Thief
Certification
CCC, ISO9001, CE
Surface Finishing
Finished
Motor Winding
100% Copper/Aluminum Option
Advantage
Low Noise, Easy Install
D

Product Description

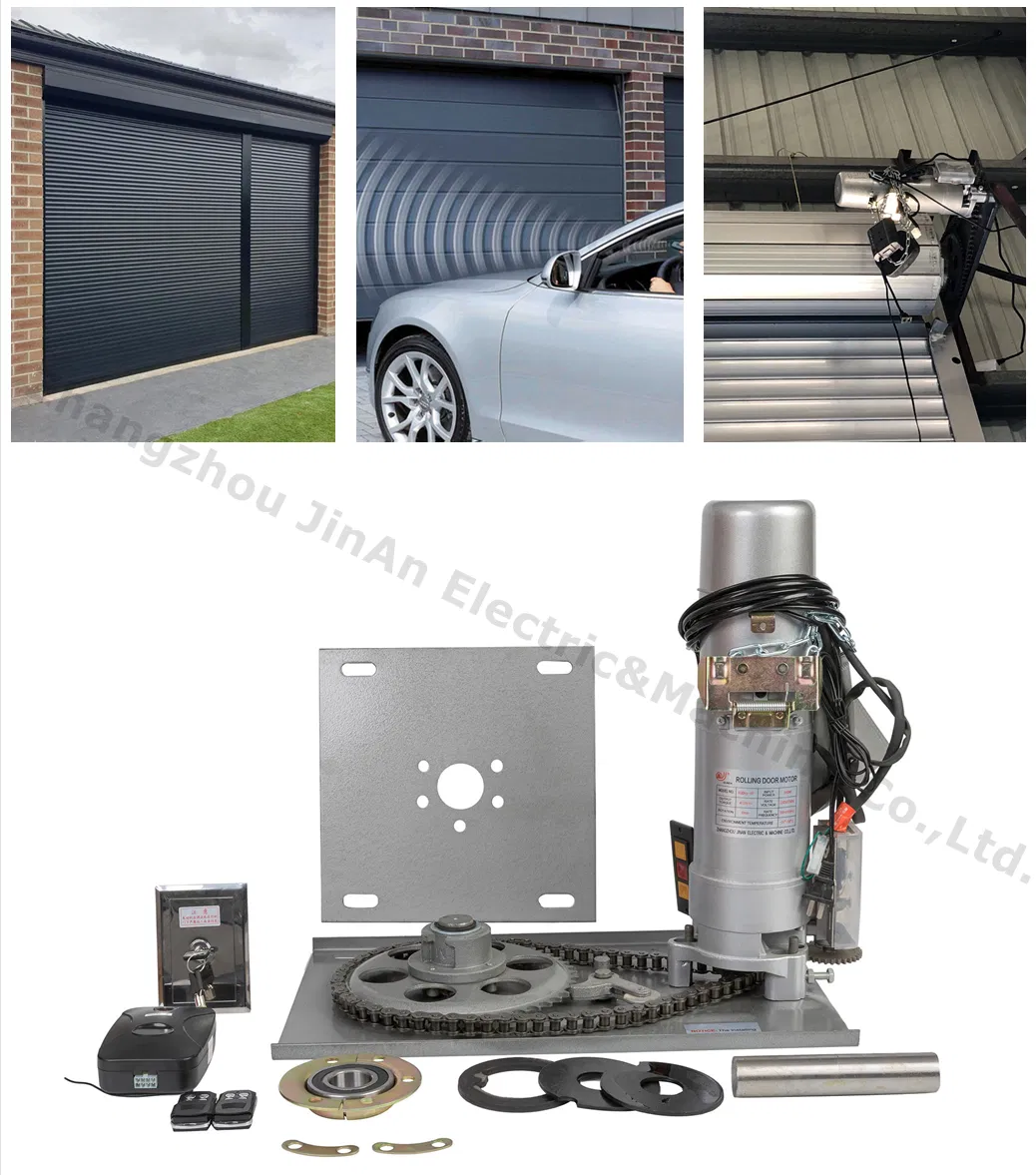

Application Area

Application Area Rolling Gate Motor

Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks, factories and other buildings' rolling shutter doors' opening and closing, with electric and manual function.

Key Features

  • Shell: Aluminum alloy, solid and light, easy to install.
  • Installation: Left or Right installations supported.
  • Versatility: Options from 300kg to 2000kg lifting weight.
  • Operation: Operated by both Electricity and Manual.
  • Stability: Four Relays inside for stable performance.
  • Safety: Mechanical brakes for instant power cut-off.

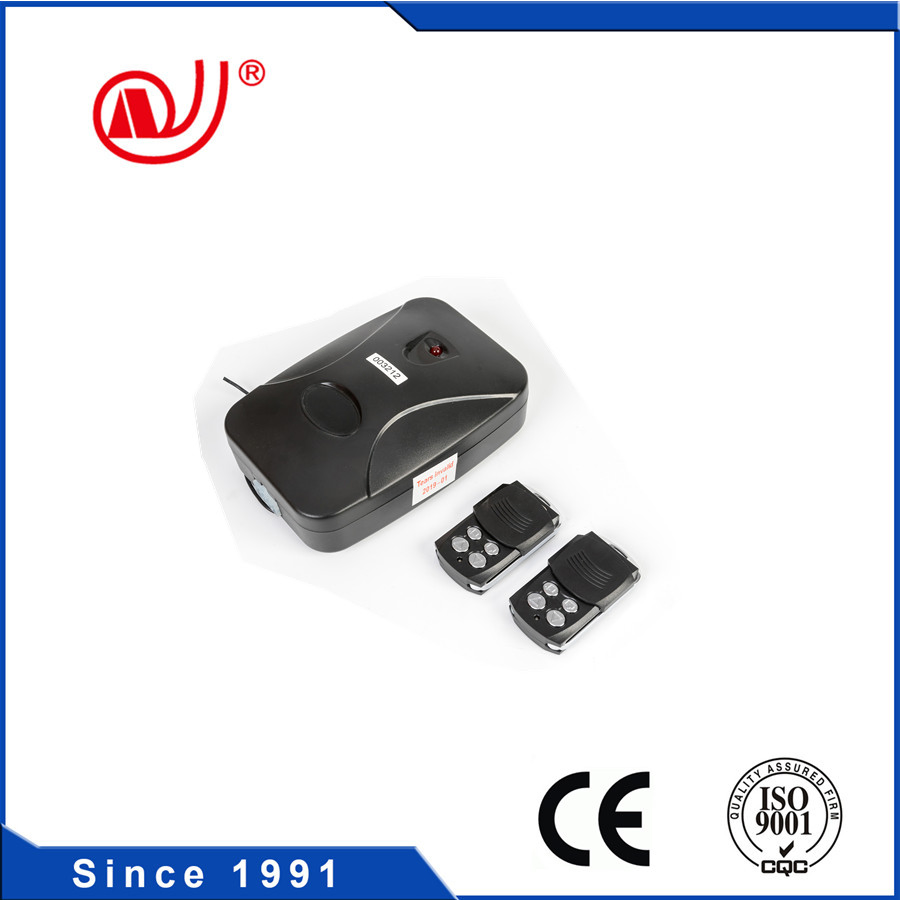

  • Remote Control: Long-distance wireless operation.
  • Protection: Thermal efficiency protection prevents motor burn.
T

Technical Parameters

Model No. Max Lifting (kg) Max Height (m) Input Power (W) Torque (N.m) Rotation (r/min)
AC300KG-1P3006.54501686.2
AC500KG-1P5006.54503436.2
AC600KG-1P6006.56804126.2
AC800KG-1P8007.07006074.2
AC1000KG-1P10007.070011023.5
V

Detailed Images

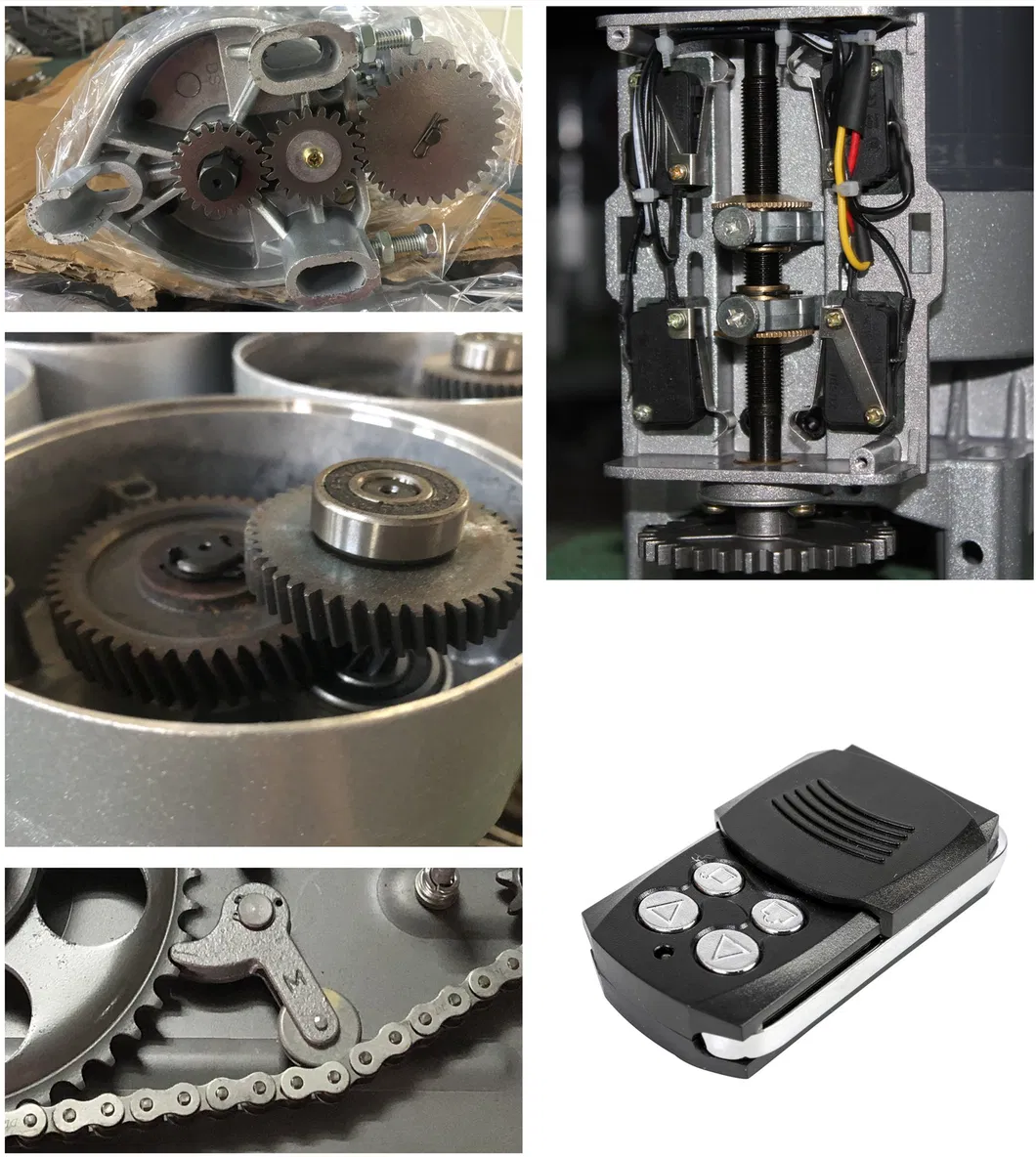

Motor Components

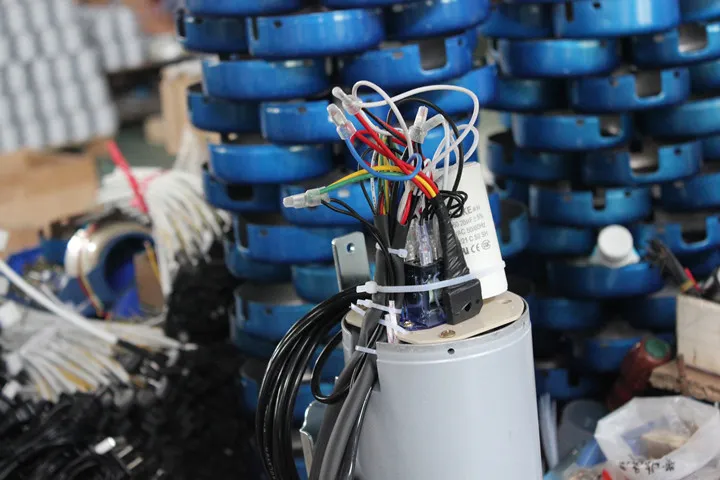

Internal Parts
Control System

1) 4 Relays ensure stable work and high lifting power.

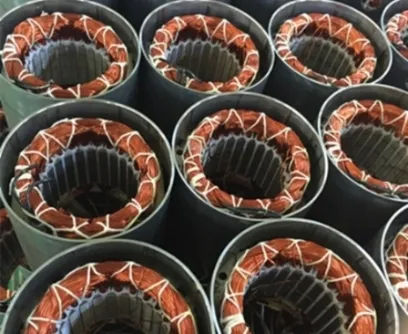

2) 100% Copper Wire for large capacity and stable current.

3) 4 Micro Switches in the limit system for precise control.

L

Packing & Delivery

Packing Process
  • Packing: One set in two cartons, plastic bag inside.
  • Loading: 20GP container holds approx 520-550 PCS AC motors.
  • Delivery: 10-45 days after deposit receipt, depending on quantity.
Q

Certificates & Exhibition

Certificates
Exhibition Presence
Factory Testing
?

Frequently Asked Questions

Are you a manufacturer?
Yes, we are a professional manufacturer specializing in rolling door motors since 1991, with our own dedicated production facility.
How long is the delivery time?
In-stock items take 7-10 days. For custom or large orders, it typically ranges from 15-35 days based on requirements.
Do you support OEM services?
Yes, OEM is fully acceptable. We can customize printing, logos, and designs according to your specific requirements.
What materials are used in the motor winding?
Our standard high-quality motors use 100% Copper Wire. Aluminum wire options are also available for AC motors to suit different budget needs.
How do you ensure product quality?
We maintain strict quality control with professional engineers and 100% full inspection. Every motor is tested individually before packaging.
What are the payment terms for orders?
We generally accept 30% T/T in advance and a 70% balance before delivery. For samples, we require 100% T/T in advance.
