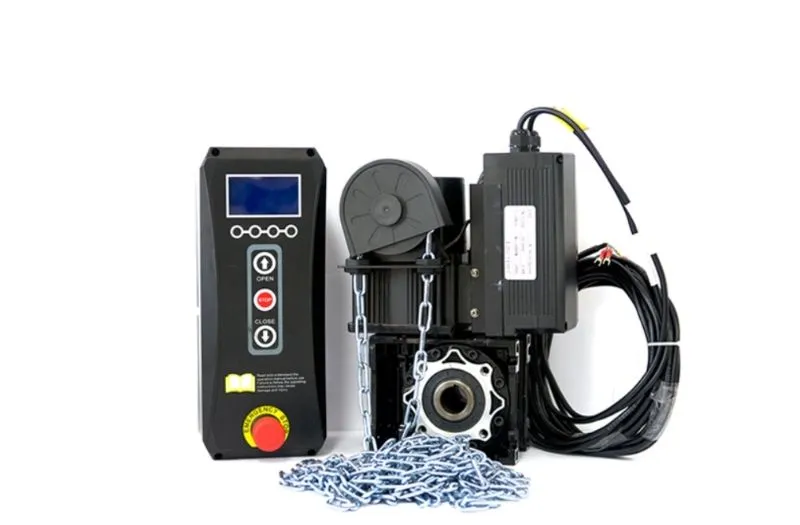

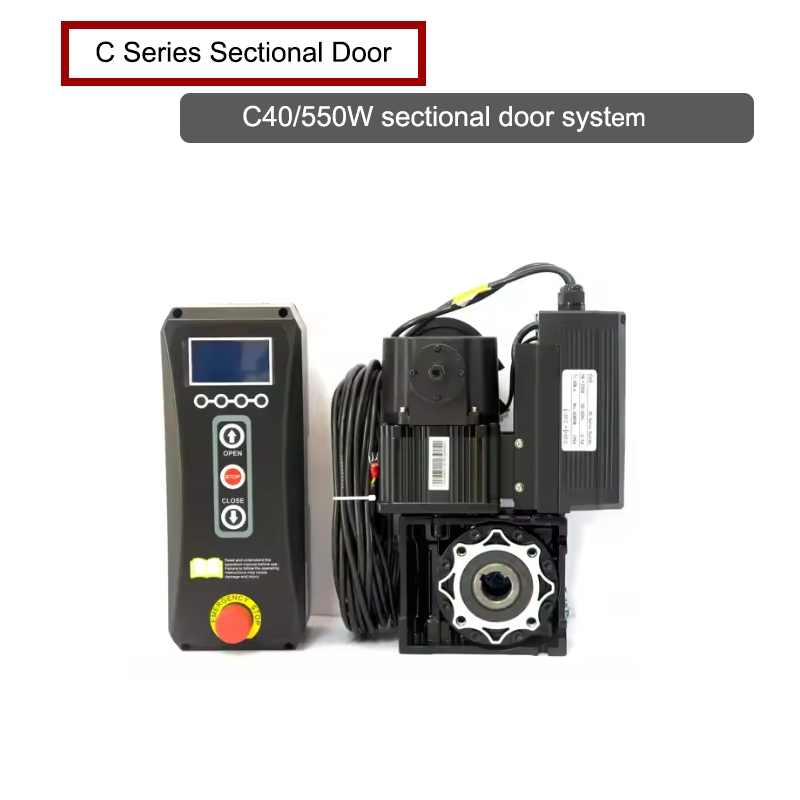

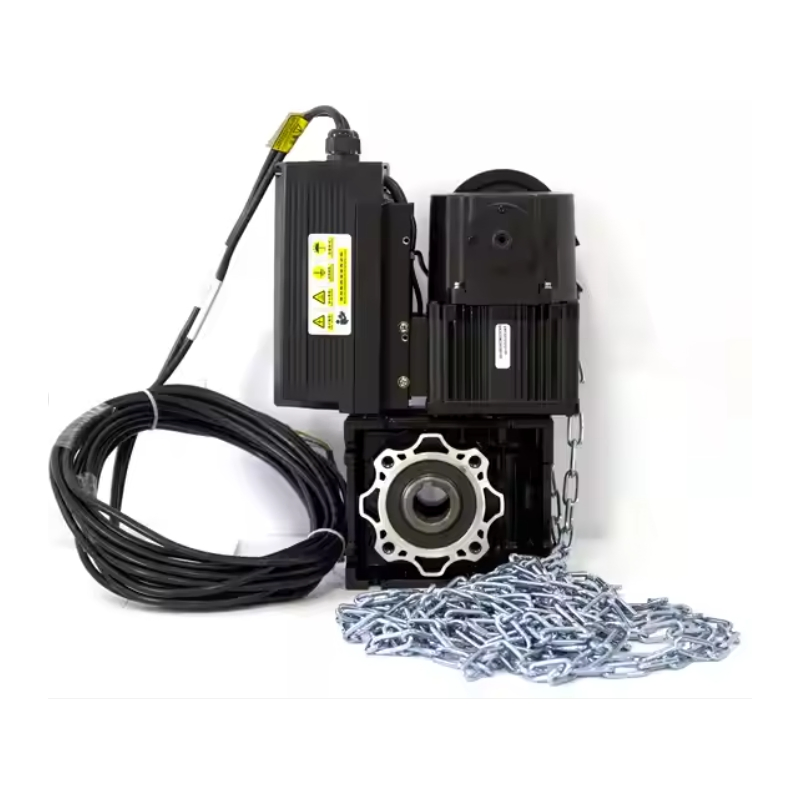

The C40 high-speed door servo system for industrial sectional doors is a sophisticated and efficient mechanism designed to enhance the operational performance and safety of industrial doors. Below is a detailed description of the system.
What's the feature of the servo motor?
1
The system uses full closed-loop servo control and double encoder design. This is to ensure a long operating life and to prevent overshooting during operation.
2

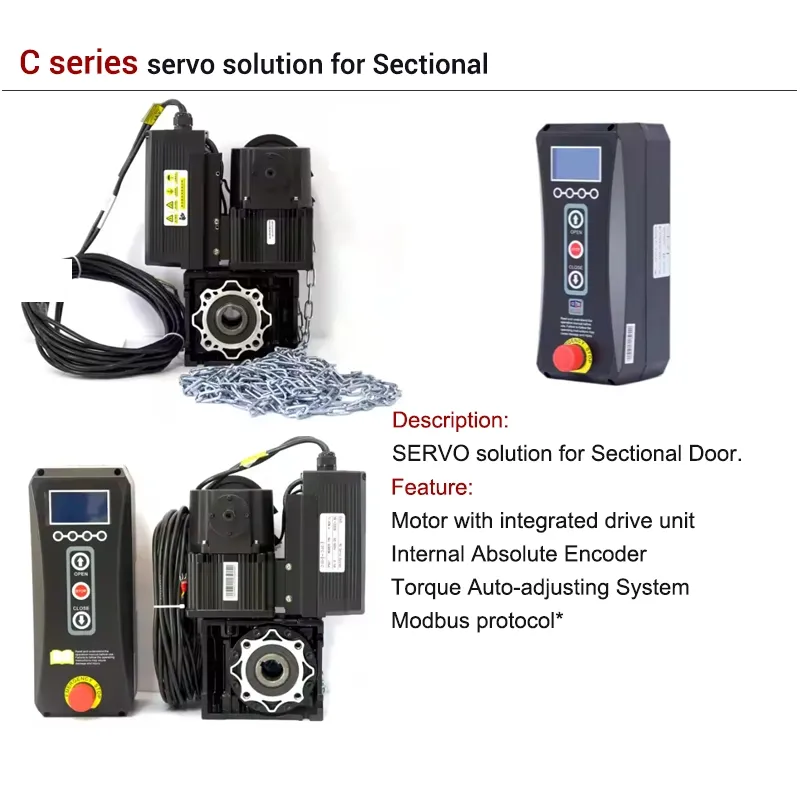

The system utilizes an integrated design concept in order to simplify internal wiring and to prevent malfunctions caused by wiring and terminal connections.
3
The torque servo system can adjust torque to the load automatically, and it uses S-speed curve mode step-less speed regulation to ensure a smooth operation.
4
The system has a built-in emergency stop signal and control order. The motor can be activated within 30 milliseconds after receiving the order to ensure maximum safety.
5
The rare earth permanent magnet synchronous motor utilizes rare earth PMSM's output, and its overload capacity is twice as high as an asynchronous motor. Compared to the asynchronous motor, the rare earth PMSM is more energy-efficient, lighter, has a slower heating rate, and provides bigger torque.
How does the closed-loop control system improve operations?
The full closed-loop servo control, paired with a double encoder design, ensures extremely precise movement tracking. This layout effectively prevents overshooting during start or stop actions and significantly extends the overall operational life of the door system.
Why is the integrated design of the C40 system beneficial?
The integrated design concept drastically simplifies the internal wiring of the system. By reducing complex connections and terminal links, it mitigates common electrical malfunctions and improves system reliability.
How does the S-speed curve mode ensure smooth operation?
The torque servo system automatically senses the physical load and adapts its torque output. The S-speed curve mode enables step-less speed regulation, which delivers seamless acceleration and deceleration without sudden mechanical jerks.
What is the safety response time for emergency situations?
Safety is a priority; the C40 system features a dedicated built-in emergency stop signal configuration. Once an emergency command is received, the motor responds and executes the instruction within a mere 30 milliseconds.
What makes the rare earth PMSM motor superior to standard asynchronous motors?
The rare earth PMSM offers double the output and overload capabilities of standard asynchronous alternatives. Additionally, it operates with higher energy efficiency, retains a lower heating rate, outputs larger torque, and features a lighter, more compact profile.
