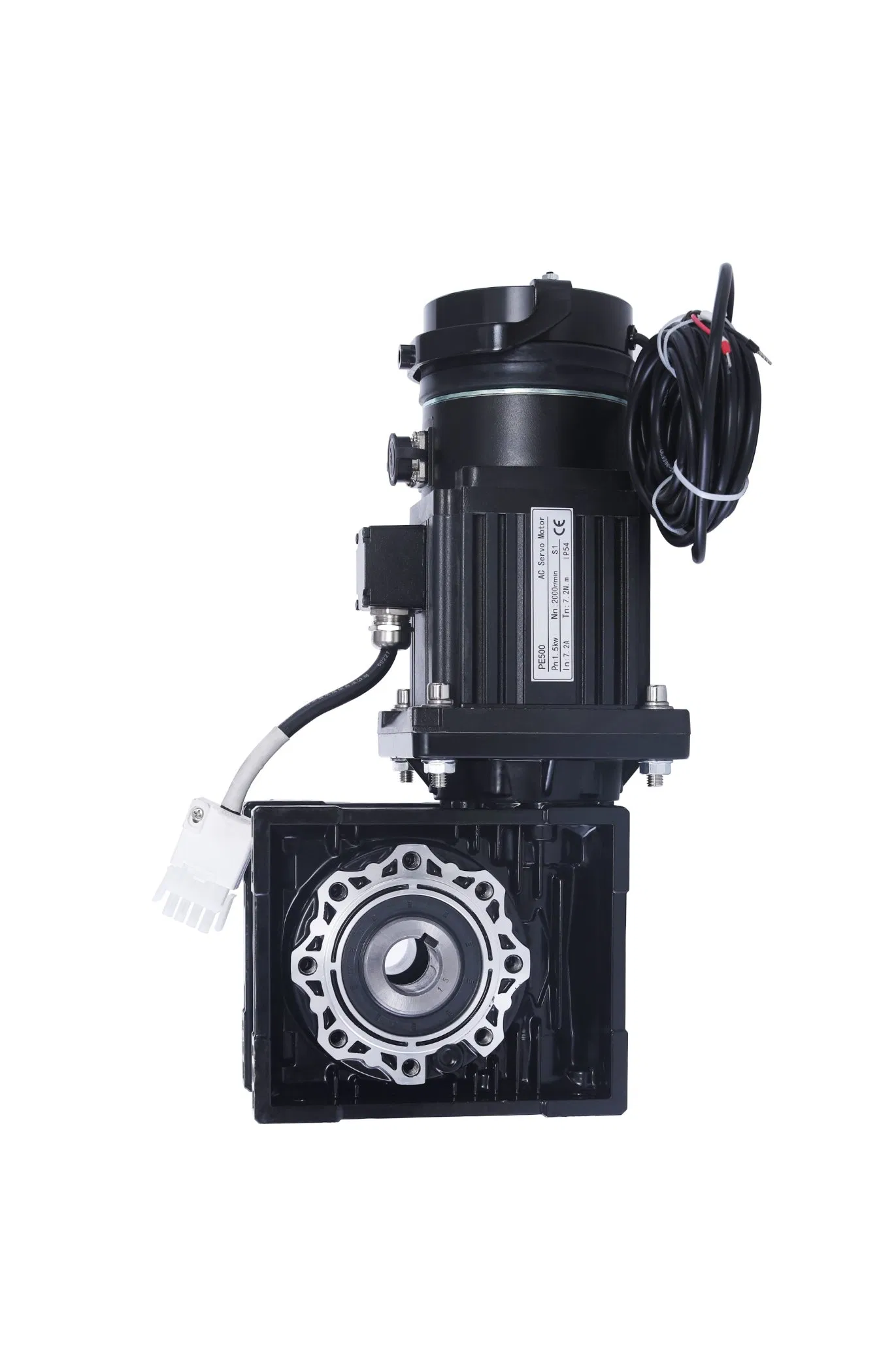

High-Speed Industrial Door Servo Motor Solution Durable Servo Motor

ℹ️

Basic Info

Model NO. A4 series soft fast door servo system PE 200B / 0

Number of Stator Single-Phase

Function Control

Casing Protection Open Type

Number of Poles 2

Starting Mode Variable Frequency Starting

Certification ISO9001, CCC

Rated Output Power 0.75kw

Rated Speed 2,000 Rpm

Rated Torque 3.6nm

Torque Management System Automatic Torque

Max Door Area Less Than 16 Square Meter

Limit Mode Absolute Encoder

Self Locking Mode Electro Mechanical Brake

Manual Release Hand Crank

Transport Package Carton Packing

Specification 8.3Kg (include RV reducer)

HS Code 8479899990

Production Capacity 100000pics/Year

📦

Packaging & Delivery

Package Size 45.00cm * 33.00cm * 21.50cm

Package Gross Weight 11.700kg

🛠️

Product Description

Sophisticated Control Box
Advanced Configuration Model: A4 Series PE200B
Configuration Power: Dynamic 0.75KW for Smooth Fast Operations
Dual Language LCD Screen: Chinese & English for Seamless Display

Robust Motor Group
Standardized Configuration Model: A4 Series PE200B
Consistent Working Power: 220V ± 10% for Optimal Performance
Shielded Wire Length: 4M for Secure Connections

📐 1. Control Box Size Diagram

A4 Control Box Size Line Diagram for Precision

⚡ 2. Electric Unit Size Diagram

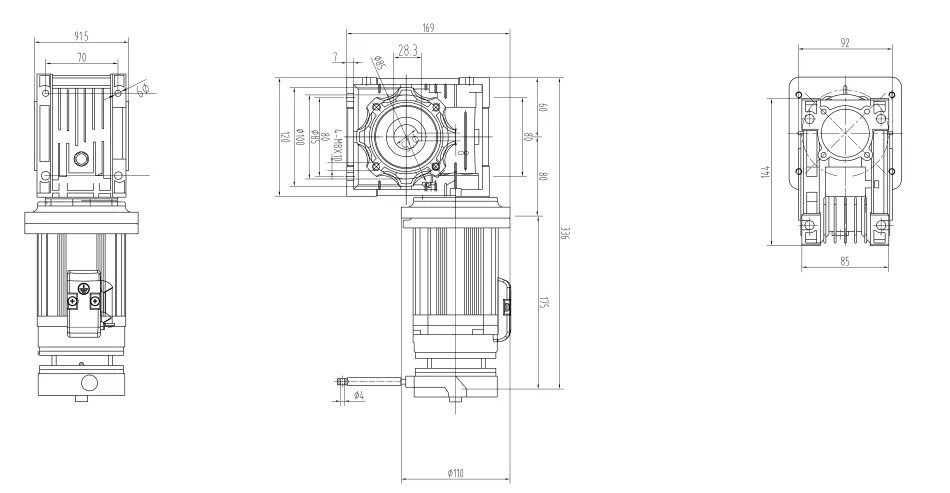

A4 Electric Unit Size Line Diagram for Comprehensive Understanding

📋 3. Comprehensive A4 Series Specifications & Applicable Guidance

Basic parameters PE200B (0.75kw / soft fast / hard fast)
Power		750W
Power supply		220V ± 10%
Rated ambient operating temperature		-10°C - 40°C
Maximum operating ambient temperature		-25°C - 60°C
Reducer		Worm Gear Reducer (RV50)
Motor working system		S3 working system
Motor IP grade		IP42
Standard shielded wire length		4m
Limit		built-in encoder + external absolute encoder
Self-locking		electro-mechanical brake
Maximum number of operations per day		1000
Control Panel Features
LCD		Display (Chinese and English)
Door opening speed setting		stepless speed regulation
Door closing speed setting		stepless speed regulation
Opening deceleration interval setting		Customizable configuration
Closing deceleration interval setting		Customizable configuration
Automatic door closing delay time (seconds)		0-240 (0: Prohibit automatic door closing)
Partial opening height (%)		Any height within limit
Operation status display selection		Customizable configuration
Control Panel Extensions
Fault		tips in Chinese and English
Data statistics		Supported
Historical Fault Query		Supported
Maintenance Reminder		Supported
jog mode		Supported
Reverse motor operation		Supported
Interface logic switching (NC/NO)		Supported
Low temperature antifreeze jitter function		Supported
Moment follow-up function		Supported
Control Box Interface
Networking communication physical interface	RS485
Safety protection signal 1 input	Emergency stop action
Safety protection signal 2 input	reverse door opening action
Automatic full door opening signal input	Supported
Partial door opening signal input	Supported
Single key cycle switch	Supported
Door opening limit (origin) switch input	Supported
Door Close Limit Switch Input	Supported
Interlock input	Supported
Programmable relay output	2 groups
Manual/automatic switching input	Supported
Emergency stop input	Supported
Can support limit type	motor built-in incremental encoder
	External absolute encoder
	Mechanical limit
	Proximity switch

⚙️ Detailed A4 Worm Gear Series Output Specifications

Reducer ratio	10	15
Output torque (Nm)	23	35
Output Speed (RPM)	200	125
Motor power (KW)	0.75KW

⚙️ In-depth A4 Gear Series Output Specifications

Reducer ratio	15	20
Output torque (Nm)	40	55
Output speed (RPM)	133	100
Motor power (KW)	0.75KW

💡 Expert A4 Motor Adaptation Suggestions

Motor Power	Reducer ratio	applicable area 114 drum	applicable weight 114 drum	Applicable area 140 drum	applicable weight 140 drum	hard fast fit area
750W	1:10	Within 12	Within 40KG	within 10	within 30KG	/
	1:15	Within 17	within 60KG	within 14	within 45KG	within 8
	1:20	Within 20	within 70KG	within 17	within 55KG	/
	1:25	Within 23	within 80KG	within 19	Within 65KG	Within 12

⚠️ Attention

Consider Curtain Weight Variations: Actual Curtain Weight Takes Precedence.

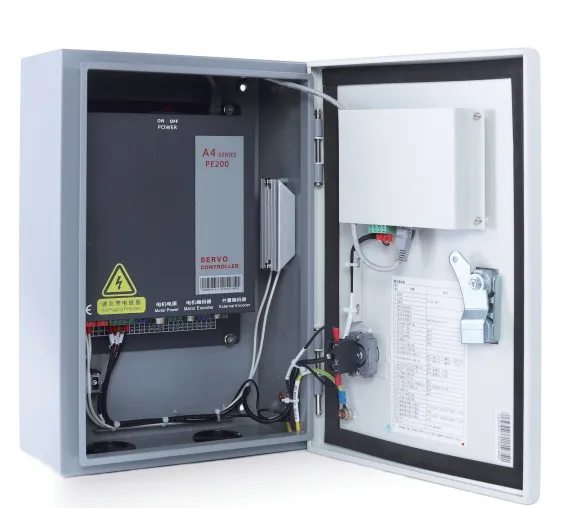

High-Speed Industrial Door Servo Motor Detail

High-Speed Industrial Door Servo Motor Assembly

❓

Frequently Asked Questions (FAQ)

Q1. What is your MOQ?

No limit. We accept orders greater than 1 set.

Q2. What is the delivery time?

The delivery time is approximately 15 to 30 days.

Q3. What packaging options do you provide?

We pack our products using high-quality and protective polywood boxes to ensure absolute safety during transport.

Q4. How can I get an exact price quote for my requirements?

Please provide the exact size and quantity of your required door. We will provide a detailed quotation based on your specific requirements.

Q5. Do you manufacture other types of industrial doors?

Yes, we produce a comprehensive range of solutions including sectional garage doors, industrial doors, roll shutter doors, high-speed doors, hangar doors, and more.

Q6. Which limit switch types are compatible with the A4 system?

The A4 control system supports motor built-in incremental encoders, external absolute encoders, mechanical limits, and proximity switches.
