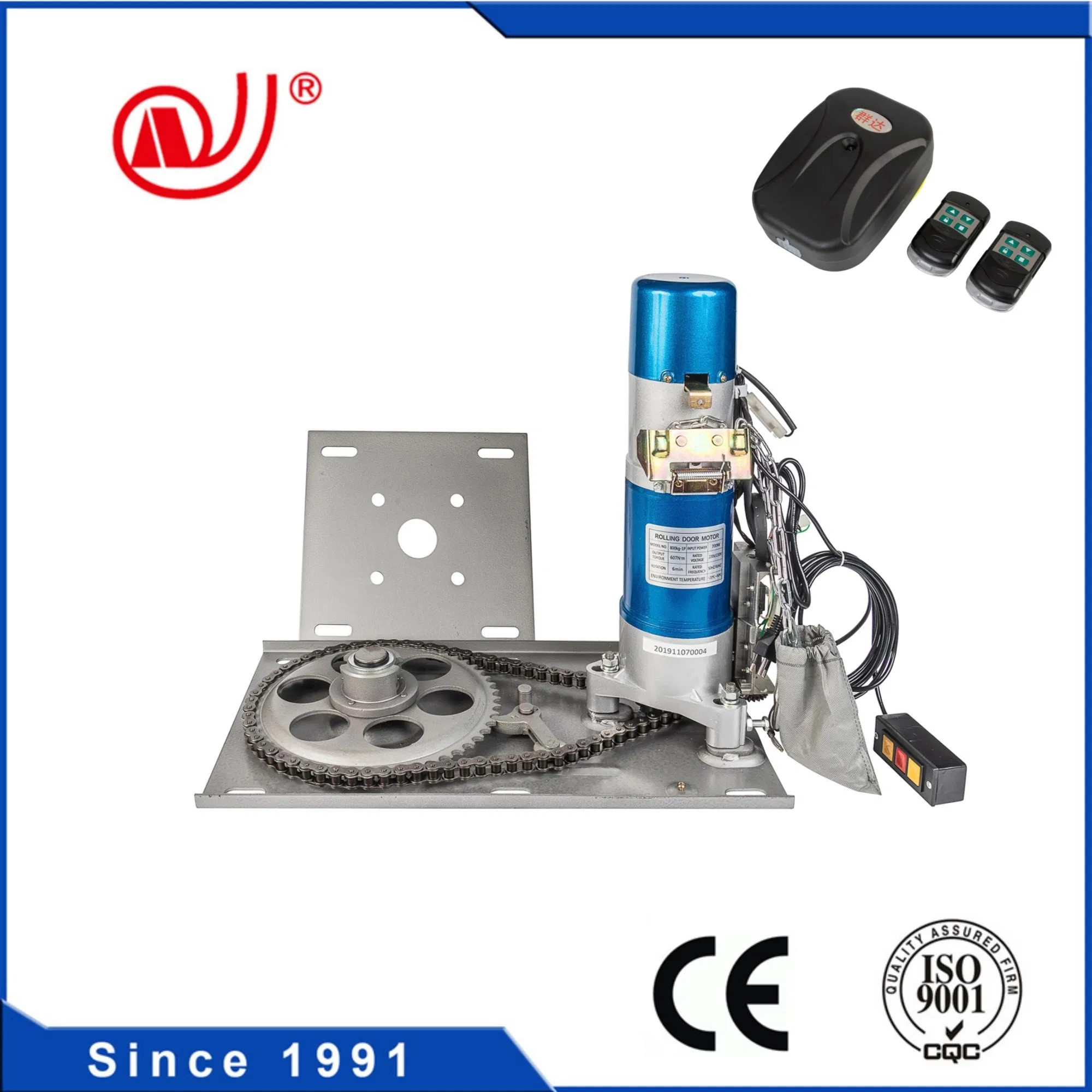

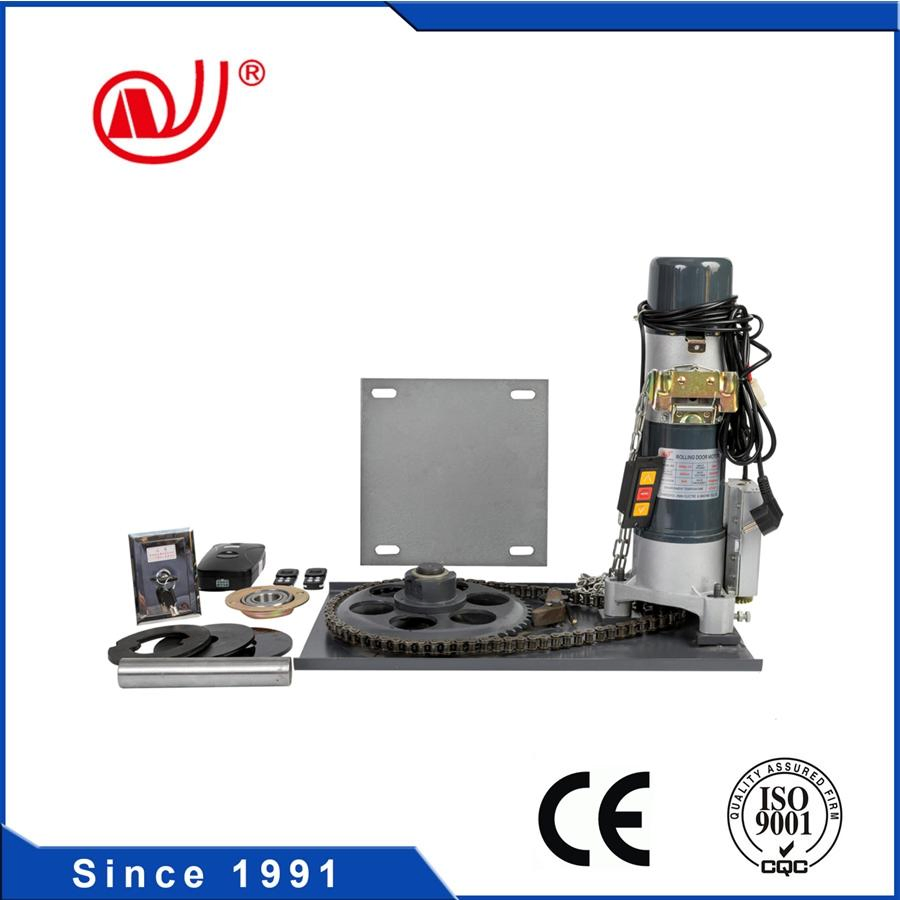

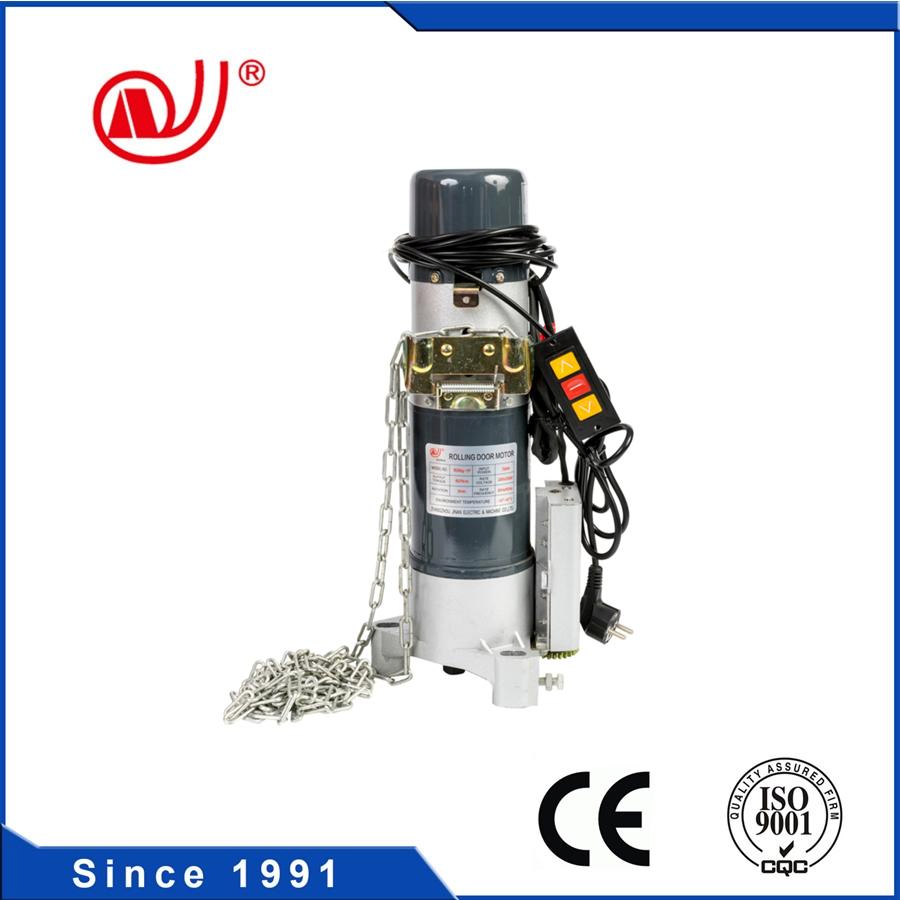

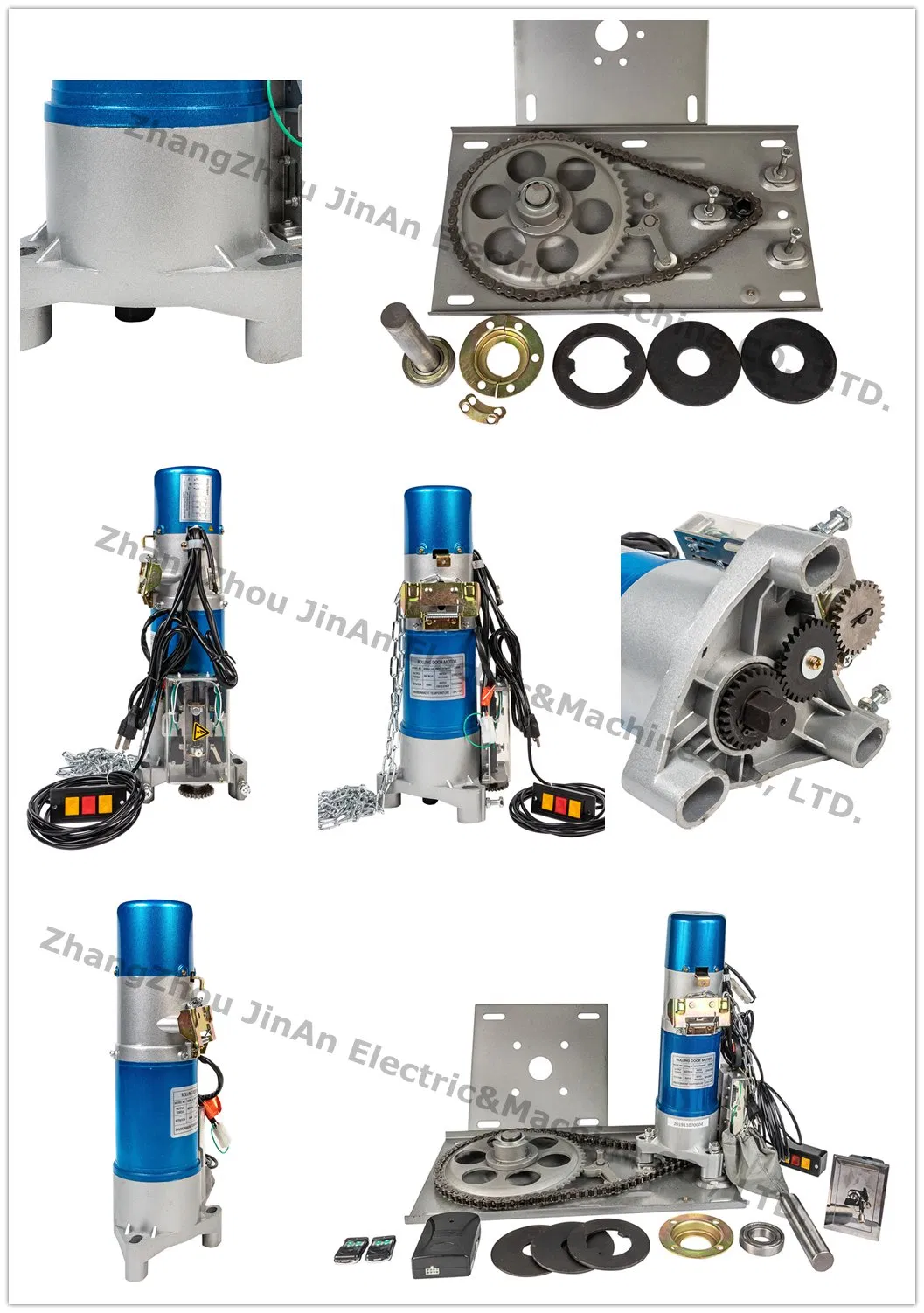

Torsion Motor
1 / 5

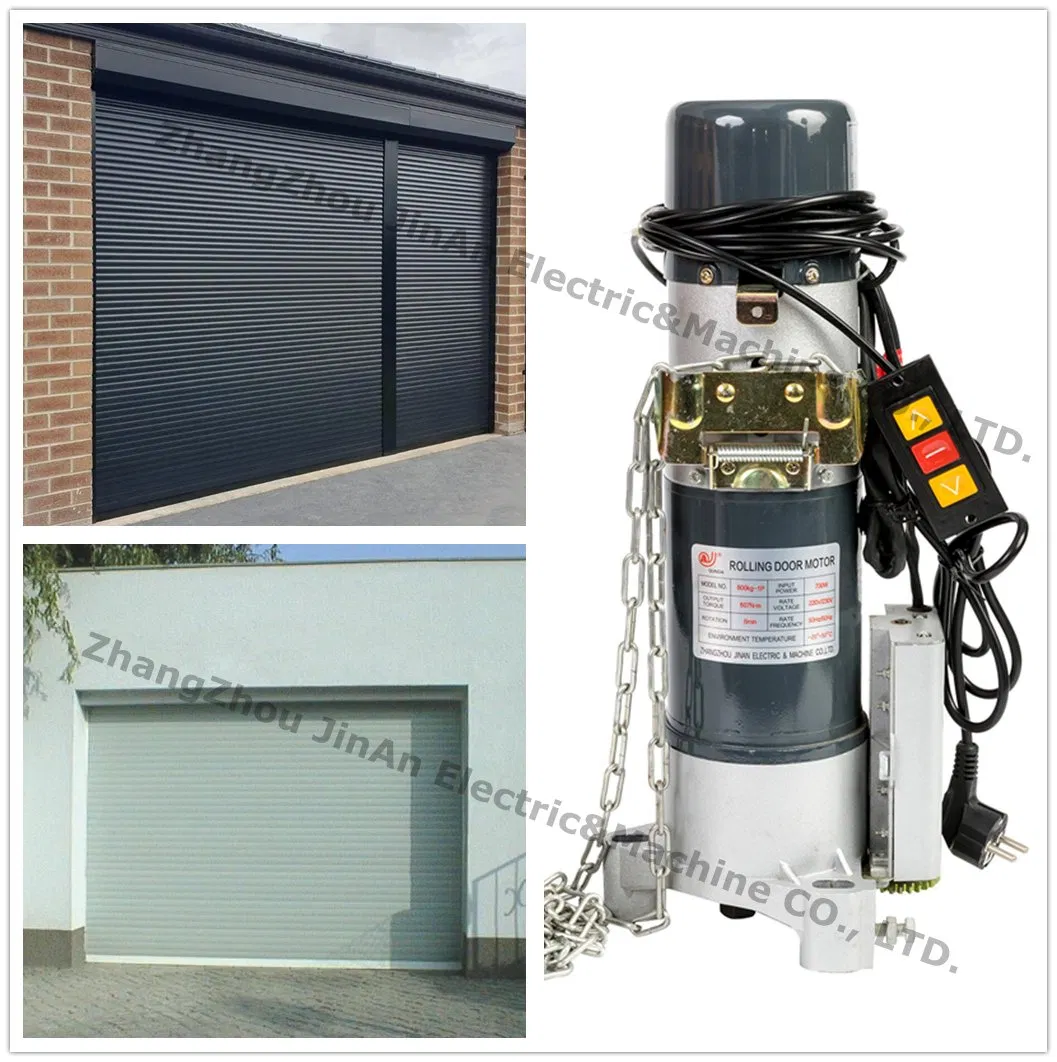

Application Area: Our motors are applied to shopping centers, warehouses, garages, theaters, hotels, banks, factories, and other buildings' rolling shutter doors' opening and closing, with electric and manual functions.
Aluminium alloy, solid and light but durable and easy to install.
Low energy consumption, small vibration, and quiet operation.
Correct control, easy operation, and wide control range.
Anti-dropping device preventing accidental injury and ensuring safety.
| Model No. | Max Lifting Weight(kg) | Max Lifting Height(m) | Rated Input Power(W) | Output Torque(N.m) | Rotation(r/min) | Chain No. |
|---|---|---|---|---|---|---|
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7 | 700 | 1102 | 3.5 | 12A |

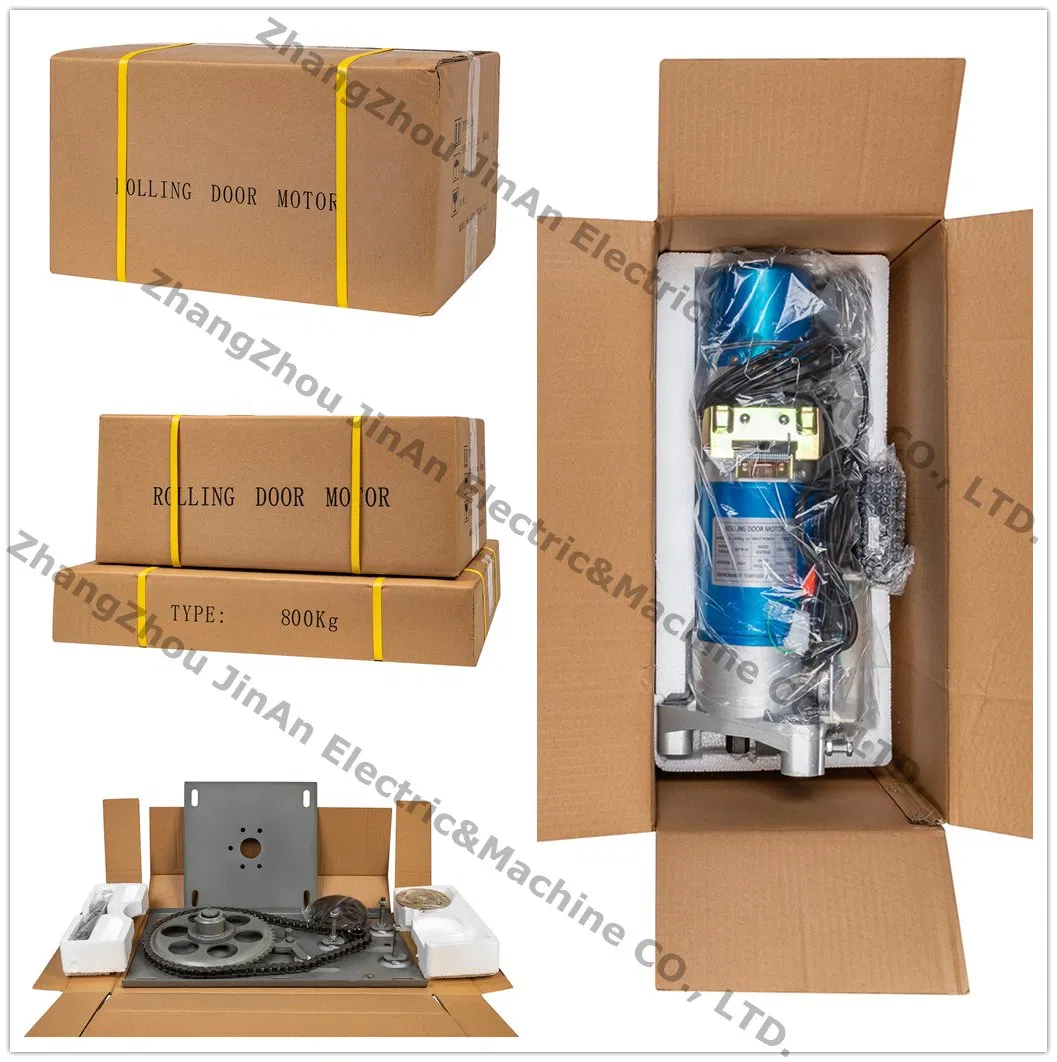

Packing: One set in two cartons, plastic bag inside, carton outside. The outside cartons can be customized according to requirements.
Loading Capacity: A 20 GP container can hold about 520-550 PCS AC motors.
Delivery Time: Goods will be delivered in 10-45 days after receiving the deposit, depending on quantity.

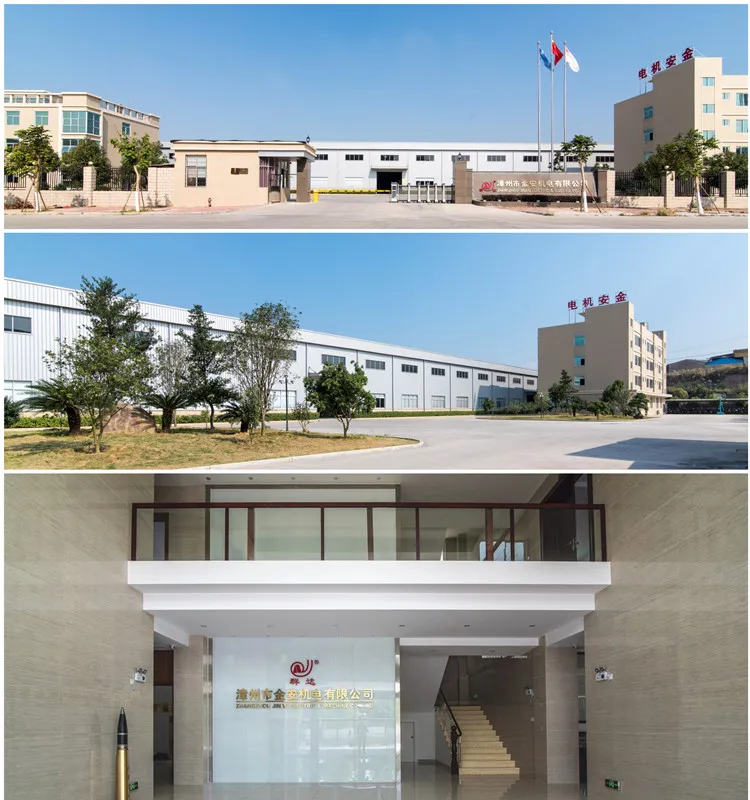

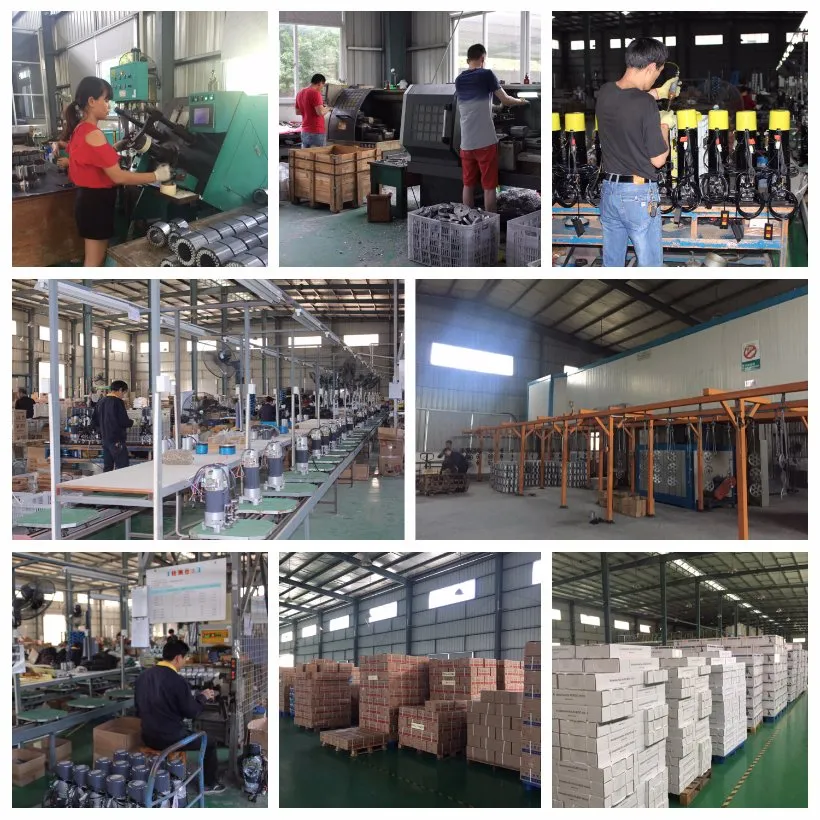

We are a manufacturer who has been specializing in developing and producing all kinds of rolling door motors since 1991. Through advanced production technology and a strong quality-oriented workforce, we have gained CE and ISO9001 certification. With strict quality control under 100% full inspection, we ensure all products are in good quality.
