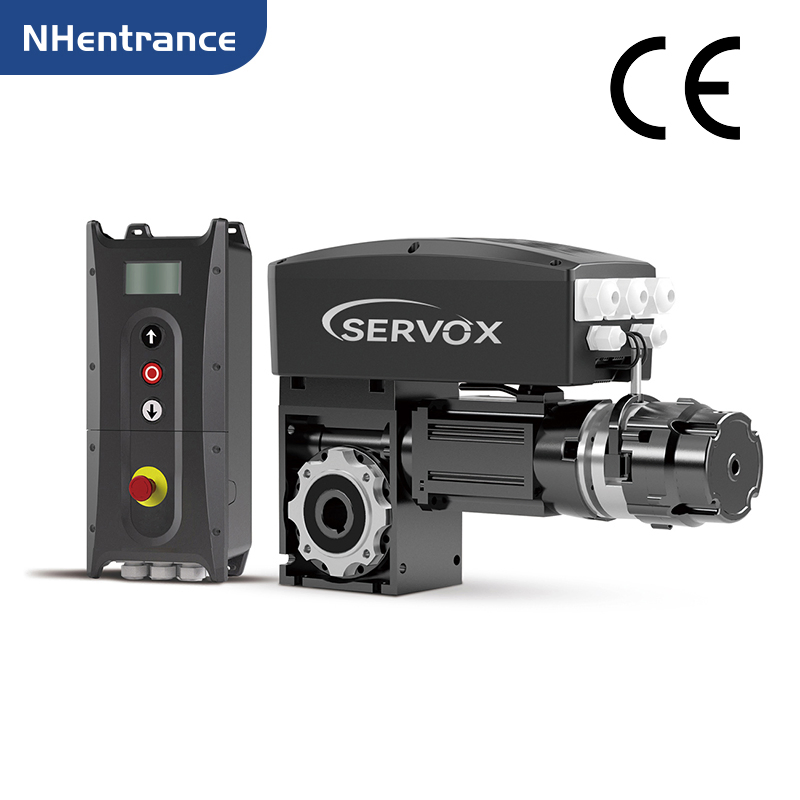

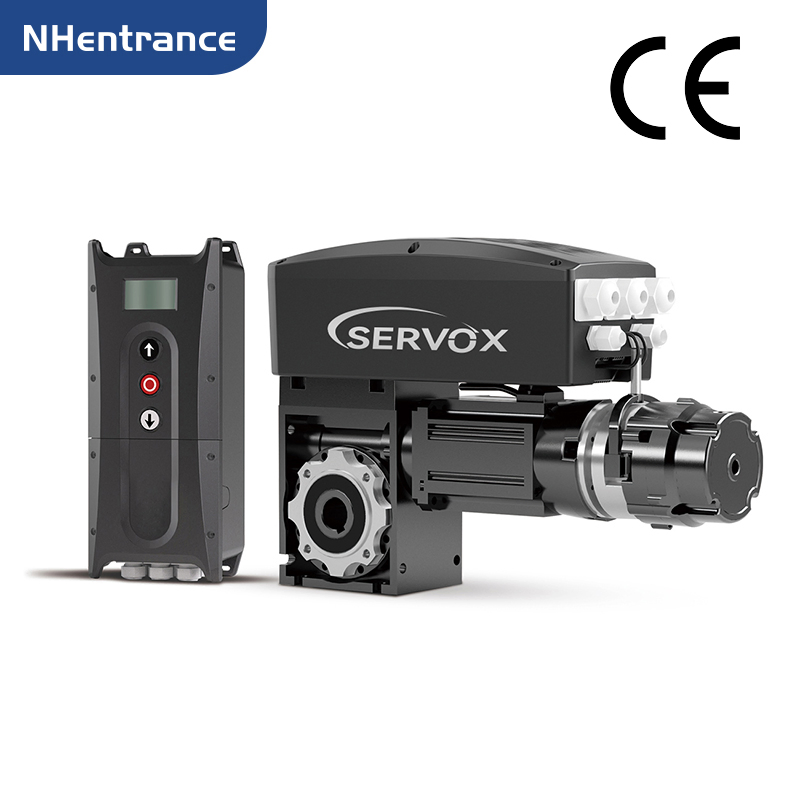

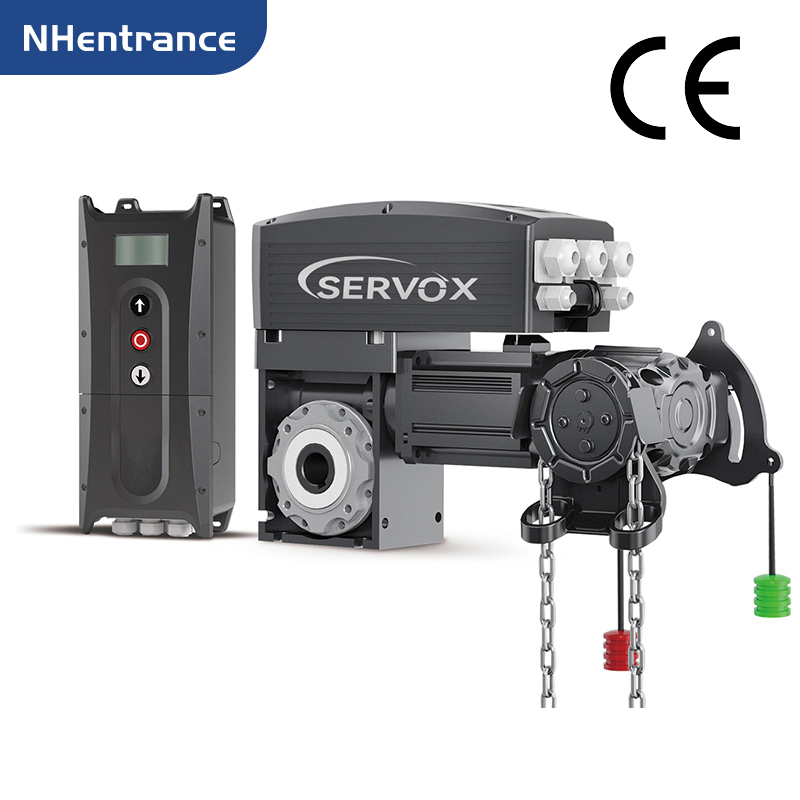

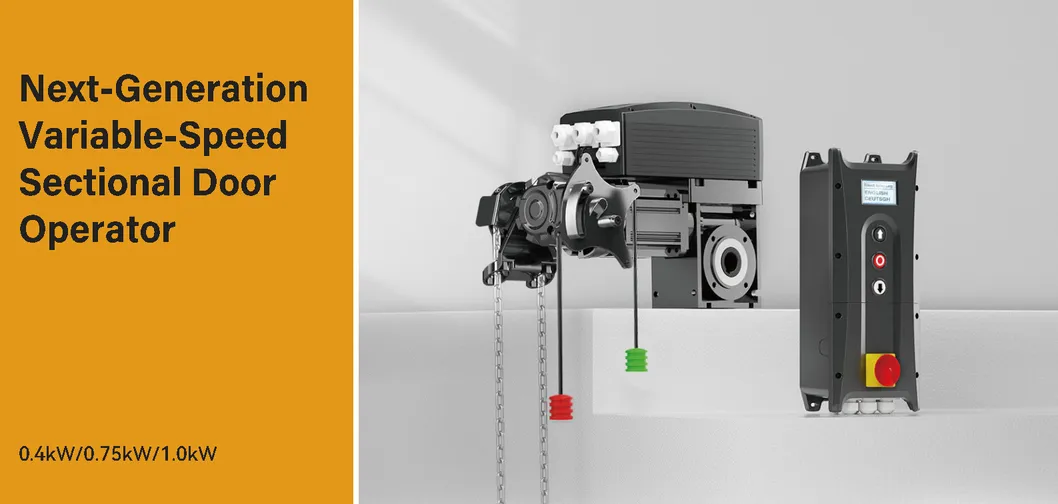

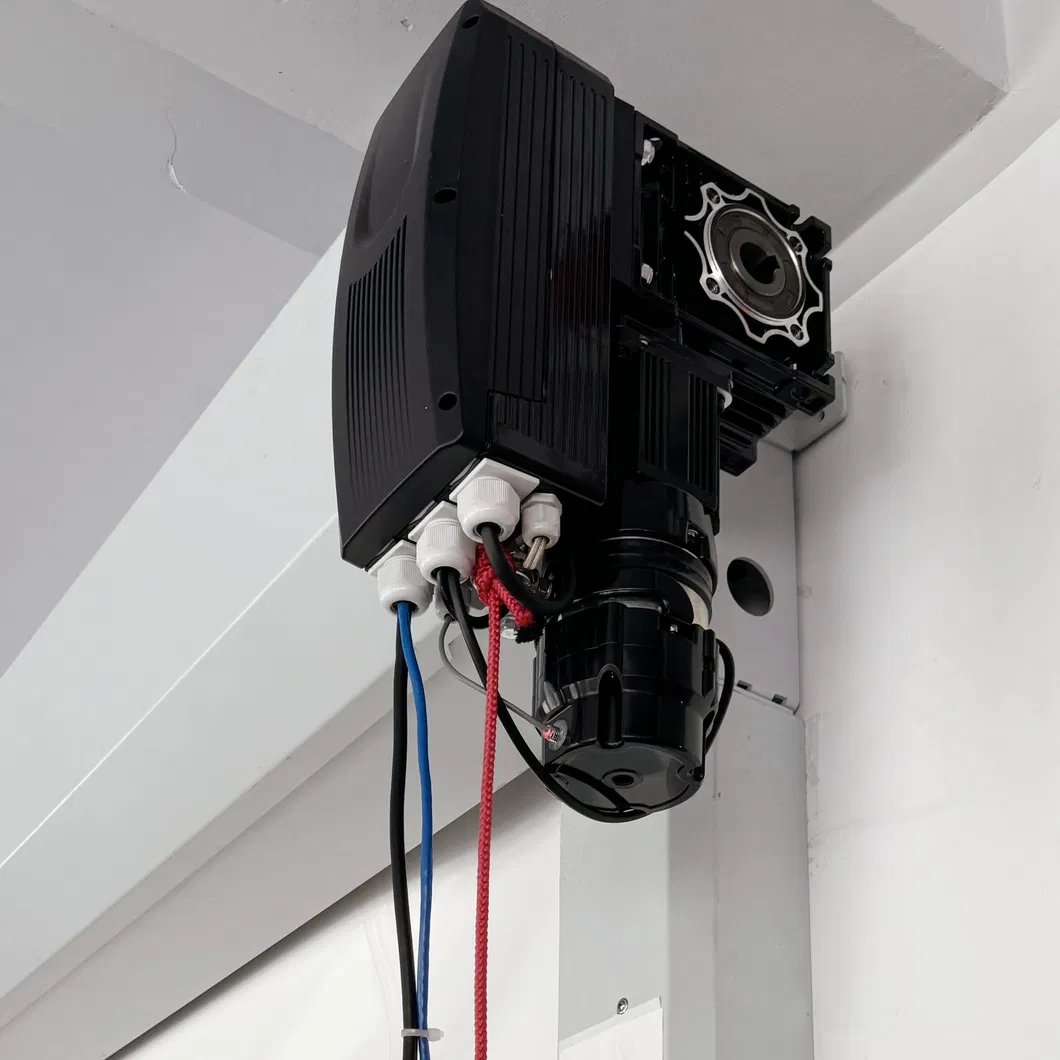

Our Servo Motor System for Industrial Sectional Doors is engineered for efficient and reliable performance in industrial applications. Available in 0.4kW, 0.75kW, and 1.0kW options, it delivers consistent power with a rated output torque range between 60 and 140 Nm. Designed for high endurance and frequency, this motor supports door systems with areas up to 49 square meters, maintaining smooth operation under rigorous conditions.
| Parameter | Value |
|---|---|
| Model | SV80 ISD / SV120 ISD / SV140 ISD |
| Motor Power (kW) | 0.4 / 0.75 / 1.0 |
| Rated Output Torque (Nm) | 60 / 100 / 120 |
| Max Output Torque (Nm) | 80 / 120 / 140 |
| Hollow Shaft Diameter (mm) | 25.44 / 31.75 |
| Max Door Area (m²) | 49 |
| Speed (RPM) | 60 |
| Voltage | 1N110-120VAC / 1N220-240VAC, 50/60Hz |
| Endurance (cycles/hour) | 60 |
| Waterproof and Dustproof Rating | IP54 (IP65 optional) |
| Limit Setting | Absolute encoder |

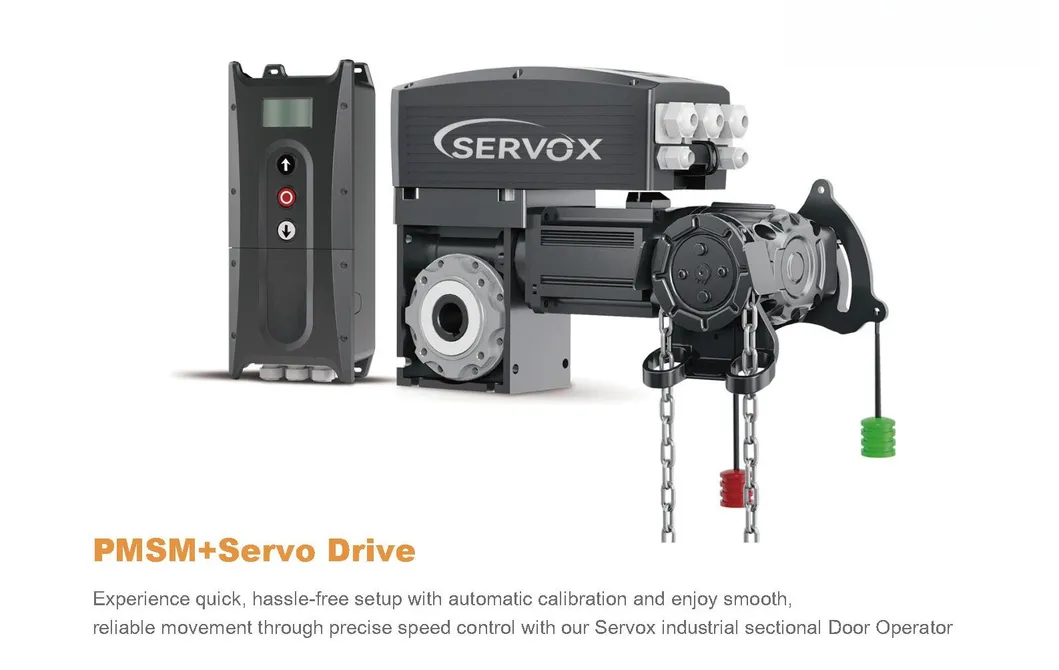

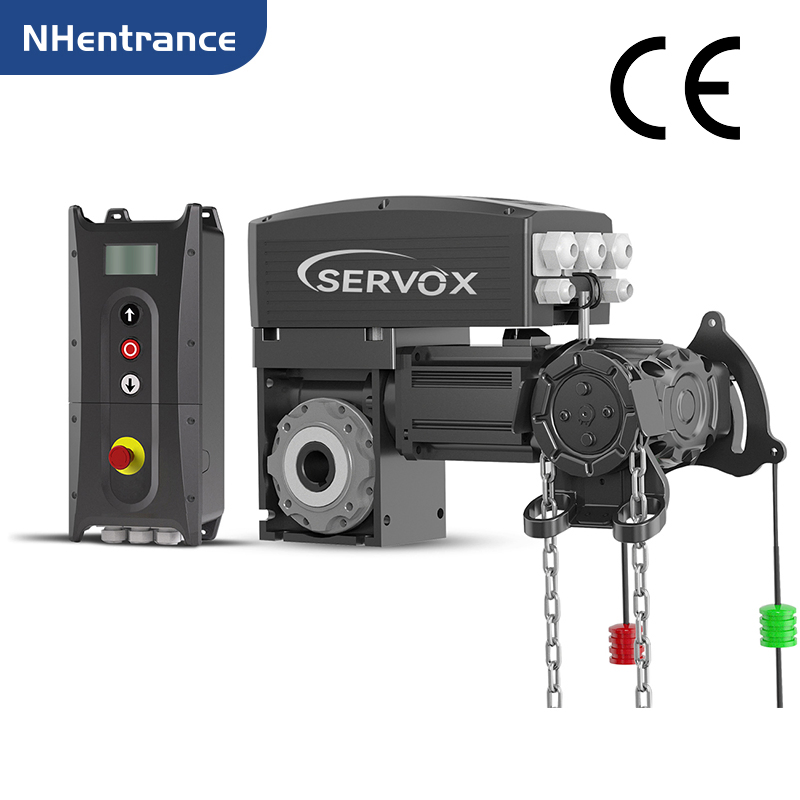

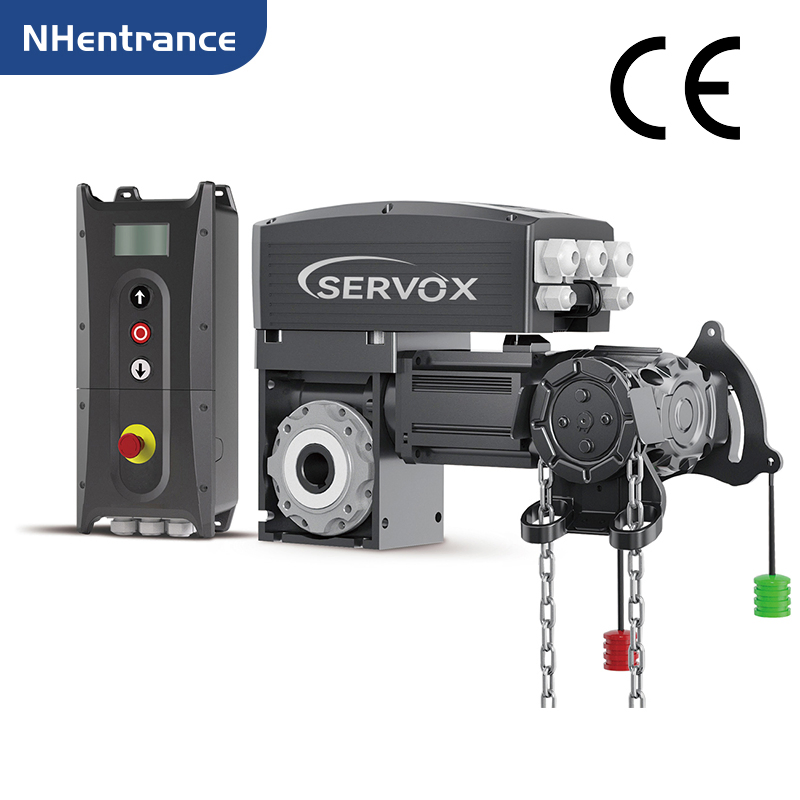

| Emergency Release | Chain hoist |

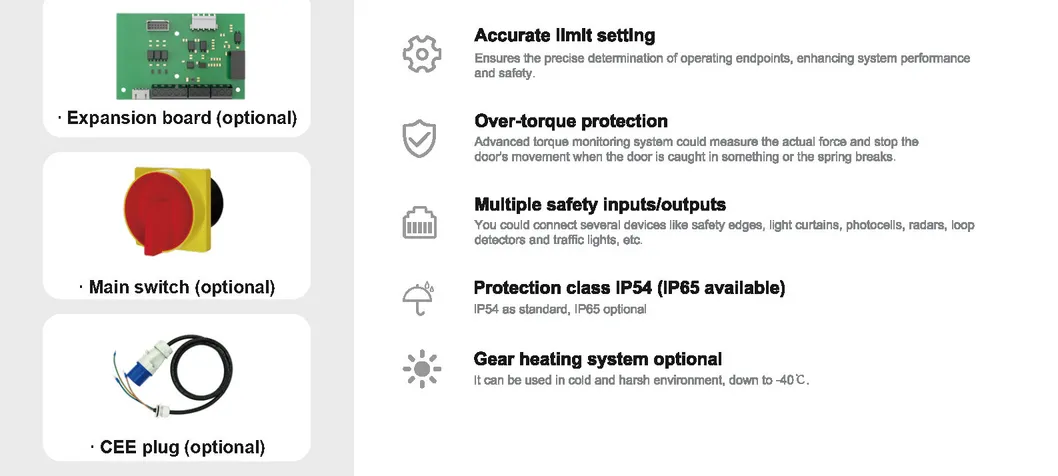

| Optional Features | Main switch, CEE plug, expansion board |

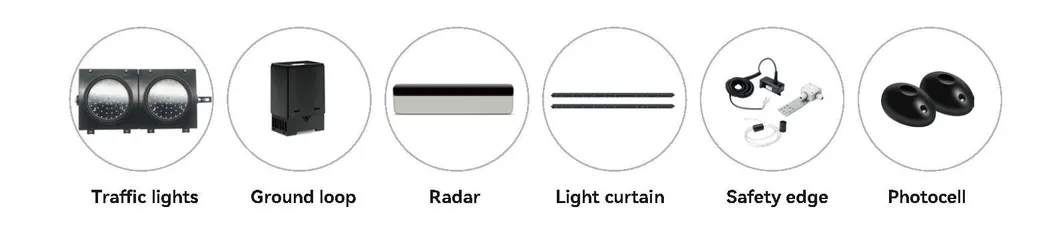

| Compatible Safety Devices | Traffic lights, photocell, radar, ground loop, safety edge, light curtain |
Offers optimized power output with options for different motor capacities (0.4kW to 1.0kW), accommodating various sectional door requirements.
High endurance rating ensures continuous operation in demanding industrial environments.
Equipped with advanced features such as absolute encoders and optional emergency release mechanisms, ensuring precise control and reliable performance.
Compatible with multiple safety and control options, including traffic lights, photocells, and light curtains, providing adaptable solutions for diverse industrial needs.
IP54 standard for dust and water resistance (IP65 optional), suitable for harsh environments.
