Industrial Heavy-Duty Vertical Sliding Door Servo Motor System

1 / 5

Industrial Heavy-Duty Vertical Sliding Door Servo Motor System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO. C40 40N

Number of Stator Single-Phase

Function Control

Casing Protection Open Type

Number of Poles 2

Certification ISO9001, CCC

Place of Use Indoor, No Direct Sunlight, No Dust, Corrosive Gas

Ambient Humidity 30%-85%, No Condensation

Enclosure Material ABS

Rated Output Torque 40nm

Rated Output Speed 30rpm

Motor Power 0.45 Kw

Power Supply 1n ~ AC200-240 V

Power Frequency 50/60Hz

Power Current 4A

Hollow Shaft [Φ] 25.4 mm

IP Degree IP54

Limit Mode Absolute Encoder

Self Locking Mode Gear Self-Braking

Gear Self-Braking Rapid Hand Chain

Weight(Net) 13kg

Transport Package Carton Packing

Specification 303x123x145 MM

HS Code 8479899990

Production Capacity 100000pics/Year

Packaging & Delivery

Package Size 43.00cm * 29.00cm * 24.00cm

Package Gross Weight 13.000kg

Product Description

Dustproof

Waterproof

Low Temperature Resistant

High Temperature Resistant

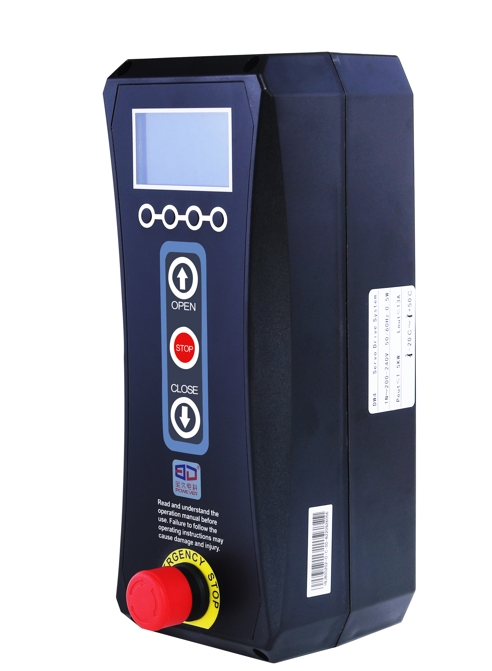

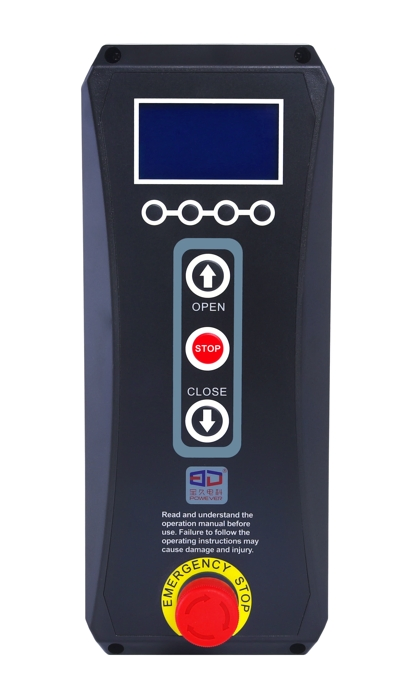

Control Box: The essential brain behind seamless industrial door operations, ensuring smooth and efficient functionality.

Configuration Model: Industrial Door C40 Model
Rated Torque: 40N.M
Display Screen: Chinese and English LCD screen

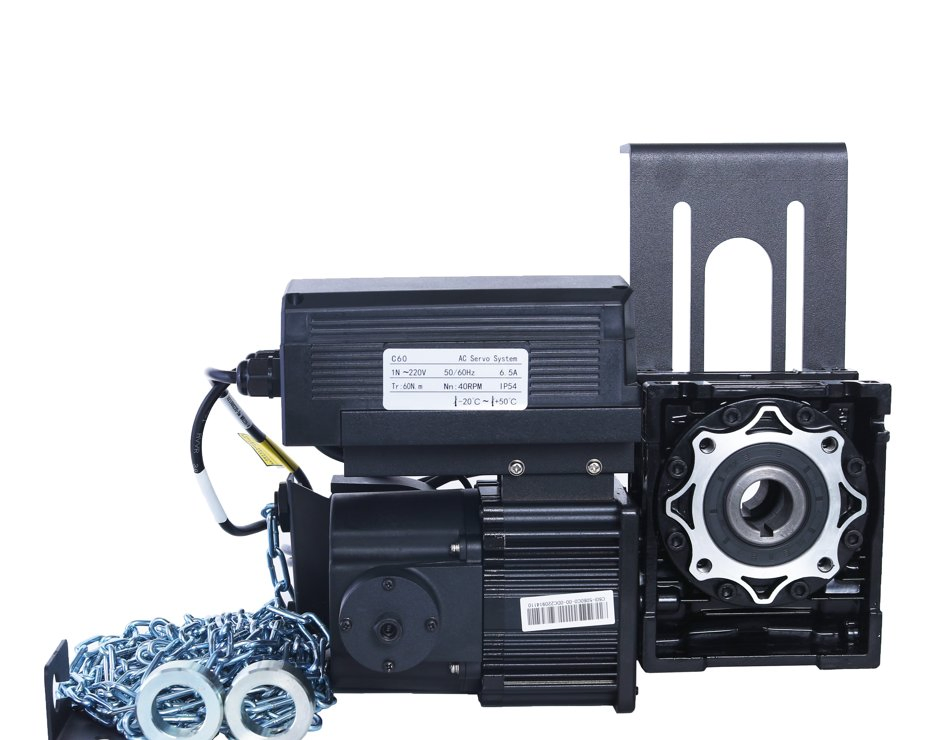

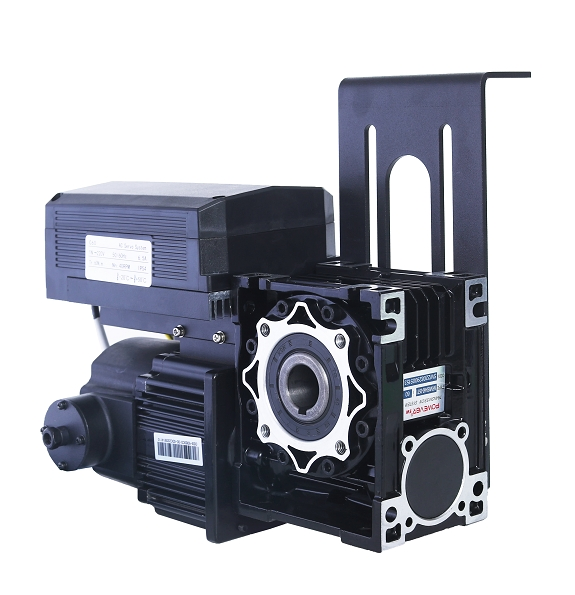

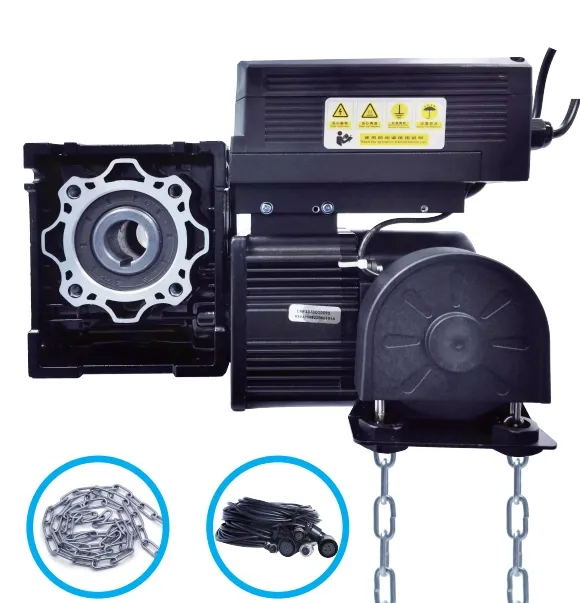

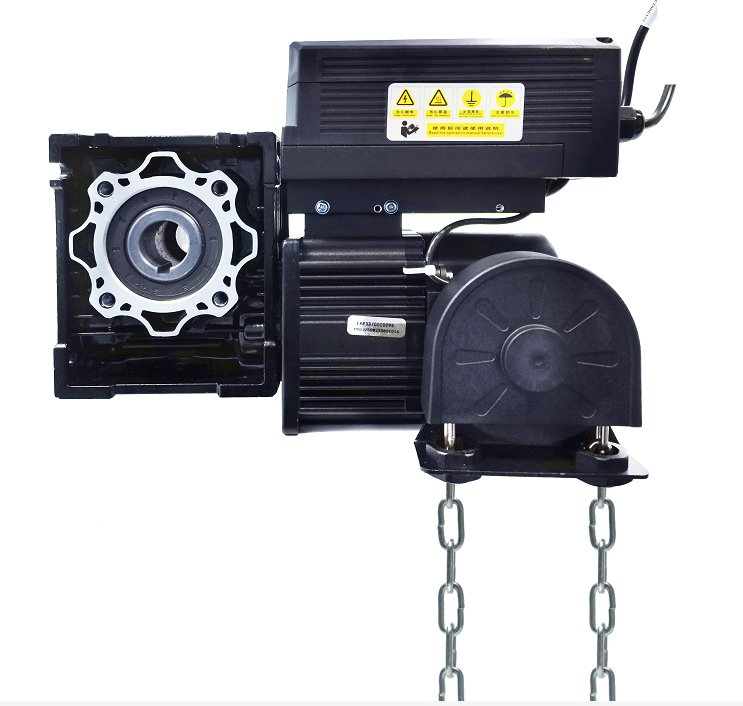

Motor Group: Engineered for excellence, the powerhouse for your high-speed doors.

Configuration Model: Industrial Door C40 Model
Input Power: Single-phase AC200-240
Standard Line Length: 5M

1. Basic Information

Parameter	Specification
model	C40 Series
materials	stainless steel
Open style	roll
special function	safety
location	industrial engineering
origin	China
guarantee	1year
type	roll
Opening type	power wheel drive
colour	silver
surface treatment	accomplish

Dimensions & Diagram Layouts

Industrial Door Control Box Size Line Diagram

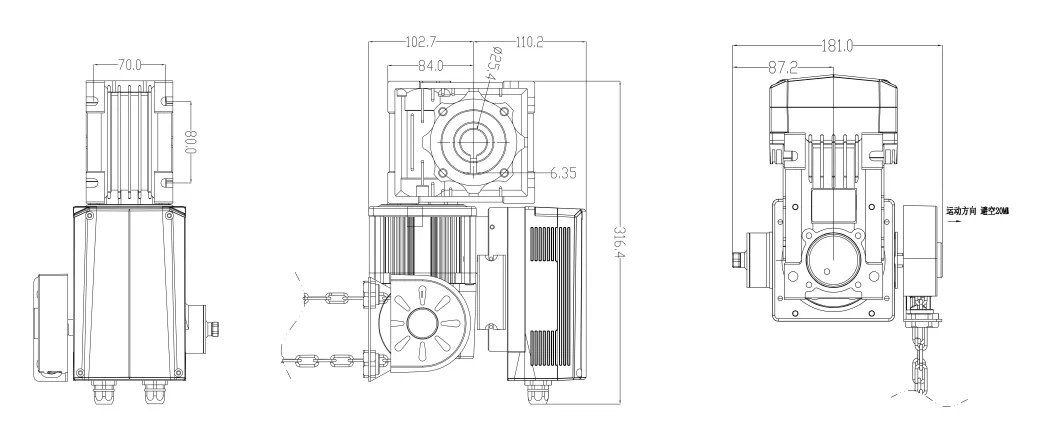

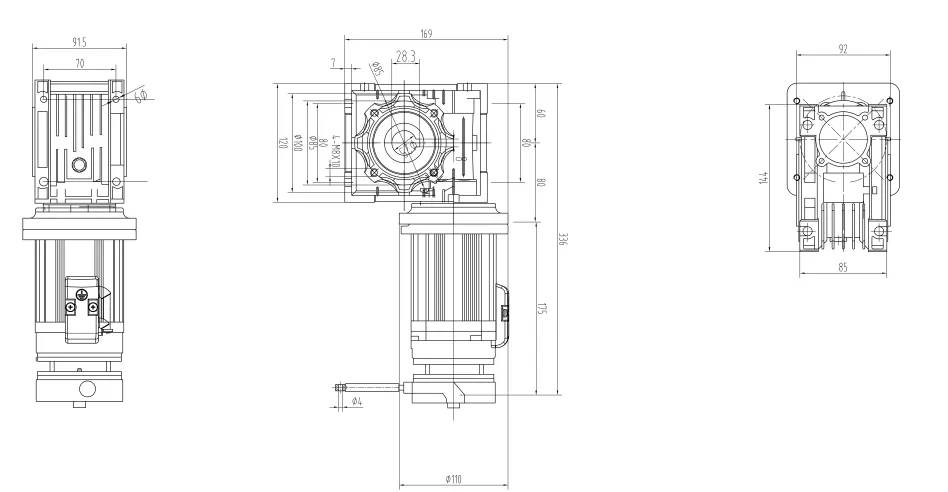

Industrial Door Electric Unit Size Line Diagram

2. Industrial Door Series Specification/Application Guide

Basic parameters	C40 model
Output rated torque	40N.m
Motor power	550W
Reducer specifications	RV50 1:60
Output rated speed	40 rpm
Maximum adaptation area	20
Input power	single-phase AC200-240
Input power frequency	50/60Hz
Input current	4.8A
Maximum limit turns	50
Motor IP grade	IP54
Hand zipper length	4m (longest extended to 8m)
Standard line length	5m
Working environment temperature	-20 ºC - 50 ºC
Maximum number of runs per hour	10

System Features
viewing screen	LCD Display(Chinese and English)
Limit mode	electronic limit
Slow start and slow stop function	standard
Self-test function	standard
Active maintenance reminder	standard
RS485 communication	optional
Various operation modes	electric/inching/hand zipper

Control Panel Features
Door opening speed setting	stepless speed regulation
Door closing speed setting	stepless speed regulation
Opening deceleration interval setting	-
Closing deceleration interval setting	-
Automatic door closing delay time (seconds)	prohibited -240s
Safety signal failure height setting	-
Operation status display selection	-

Control Panel Extensions & Interfaces
Fault tips / Data statistics	-
Historical Fault Query / Maintenance Reminder	-
Reverse motor operation	-
Interface logic switching (NC/NO)	-
Manual door opening / closing / stop signal input	-
Reversal door opening action of safety	protection signal input
Door signal input / Emergency stop input	-
Programmable relay output	2 groups

Industrial K Fast Door C40: Experience unparalleled speed and efficiency with our top-of-the-line model.

Frequently Asked Questions

FAQ What are the key environmental features of the C40 control system?

The C40 Industrial Door Servo Motor System is fully optimized for harsh conditions with a dustproof and waterproof structure, performing reliably in low-temperature and high-temperature environments.

FAQ What is the rated output torque and motor power for this system?

The C40 model delivers a robust rated output torque of 40 N.m, a rated motor power of 550W (0.45 Kw in standard specs), and supports an output rated speed of 30 to 40 rpm.

FAQ What viewing screen and limit modes are integrated?

The system features a dual-language LCD display screen (available in Chinese and English) and supports absolute encoder and electronic limit modes for highly precise positioning.

FAQ How does the control panel handle speed regulation and automatic closing?

It supports stepless speed regulation for both door opening and closing. Additionally, it offers adjustable automatic door closing delay settings from prohibited up to 240 seconds.

FAQ What manual operating options are available in case of power failure?

For emergency situations or maintenance, the system is designed to support multiple operating modes, including a rapid hand chain (manual zipper), electric control, and inching.
