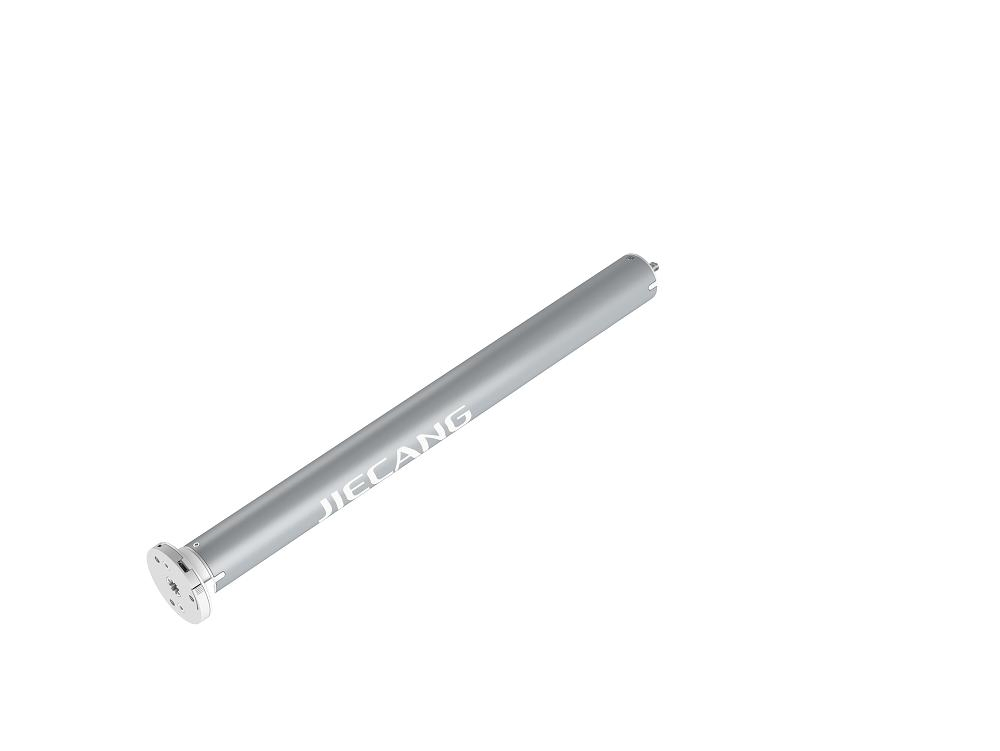

Jiecang Jcd30qae1 Window Open Close Smart Curtain WiFi Rod Electrical Shutter Motor

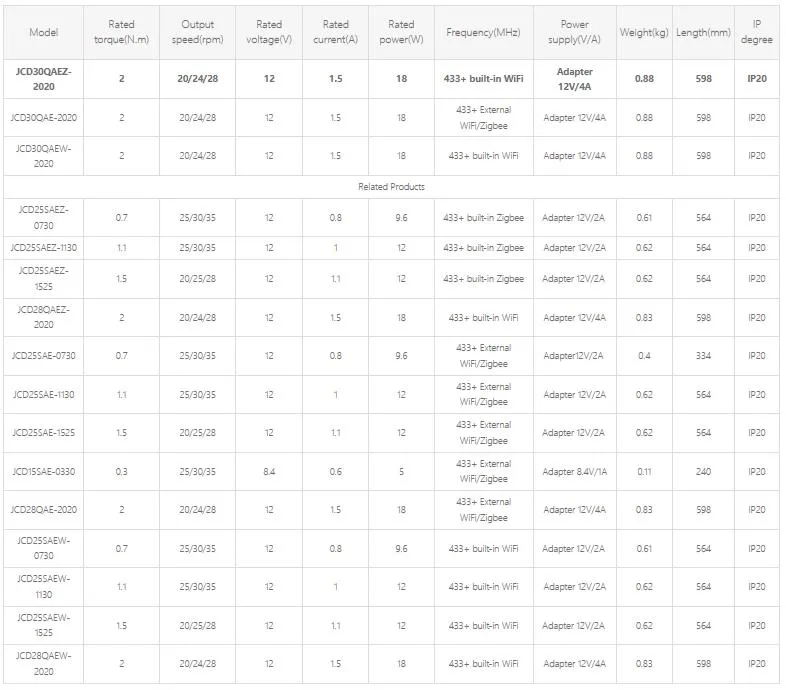

Basic Specifications

Model NO.

JCD30QAE1

Number of Stator

Single-Phase

Function

Control

Casing Protection

Closed Type

Number of Poles

2

Starting Mode

Direct on-line Starting

Certification

ISO9001, CCC

Rated Torque (N.M)

10

Rated Speed (Rpm)

17

Rated Voltage (V)

AC230 50Hz

Rated Power (W)

146

Rated Current (A)

0.64

Max Number of Turns (Turn)

38

Weight (Kg)

1.4

Length (mm)

493

Transport Package

Carton Export Packing

Specification

JCA35

Product Description

JCD30QAE1 Window Open Close Smart Curtain Wifi Rod Electrical Shutter Motor

Built-in Zigbee module, App and Smart speaker control
External adapter, short motor length
Built-in wireless receiver, electronic limit

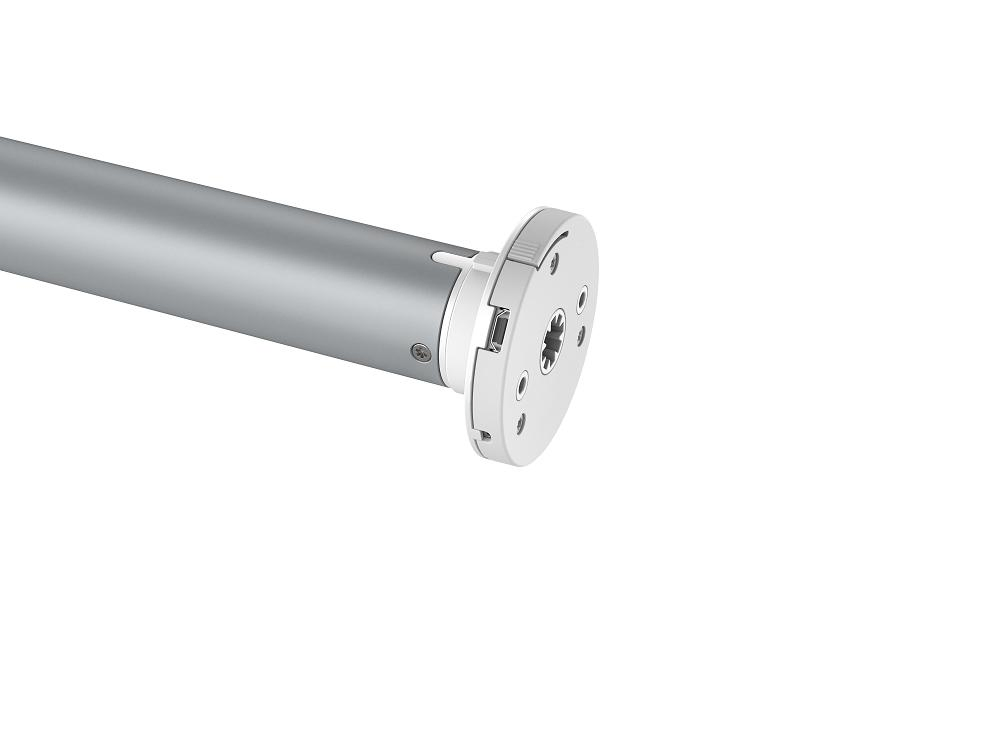

Patented spring arm button design on motor head
Thinnest motor head design, minimize light transmission gap
Patented silent motor design, running noise <31dB
3 speeds adjustable
Stall Protection
Easily set up/down limit, and favorite position

Silent Technology

The unique noise reduction and shock absorption structure design ensures that the motor runs quietly and smoothly, bringing outstanding acoustic comfort. Running noise is <= 31dB.

Intelligent Control

External WiFi or Zigbee modules can be connected to achieve smart control via mobile apps and voice command, and easily integrates into smart home automation systems.

Sensitive Hall Scan

The highly sensitive Hall sensor scan allows convenient manual operation, where simply pulling the fabric 3cm triggers and starts the motor automatically.

Product Diagram

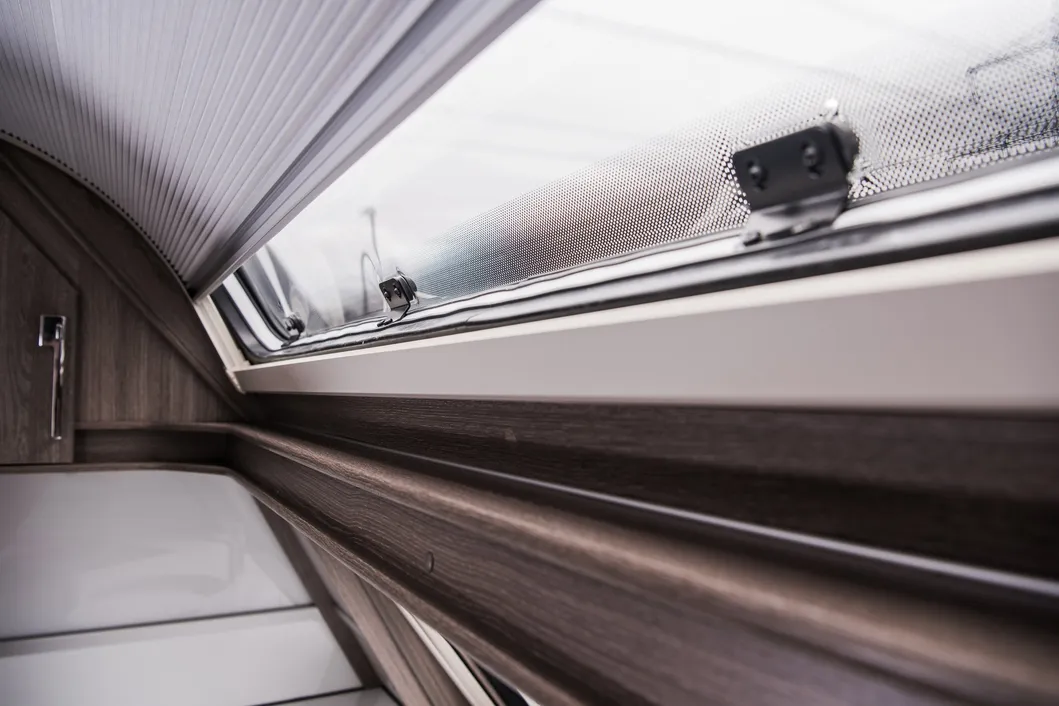

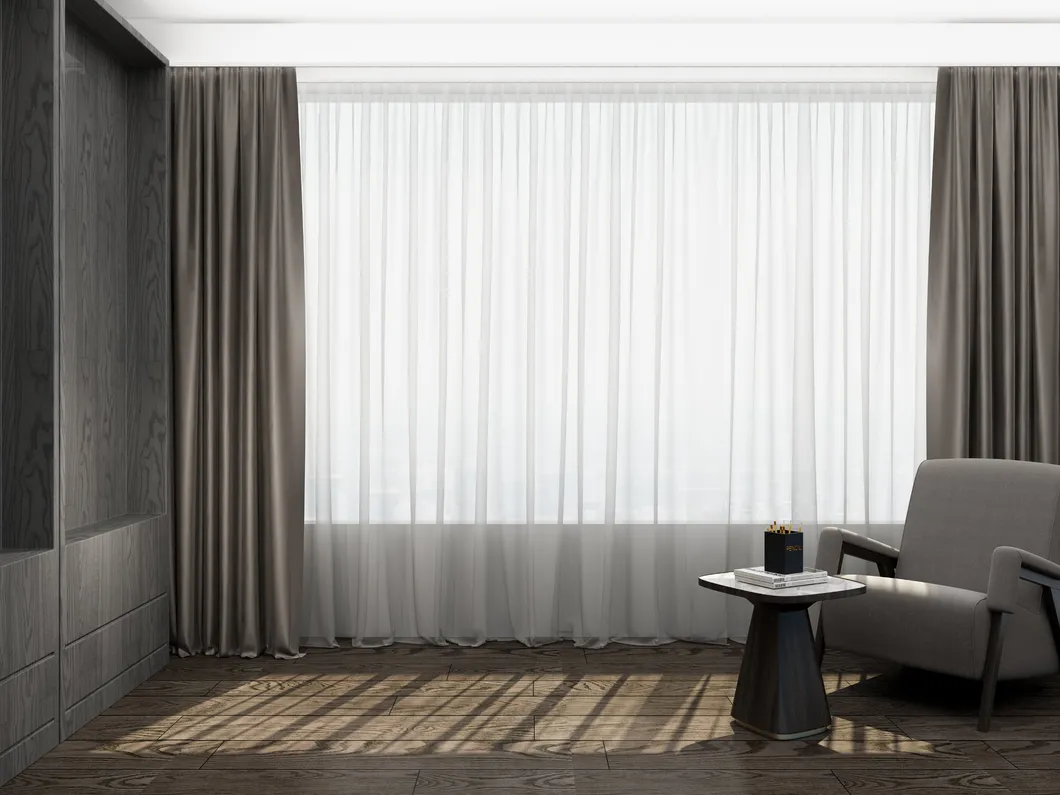

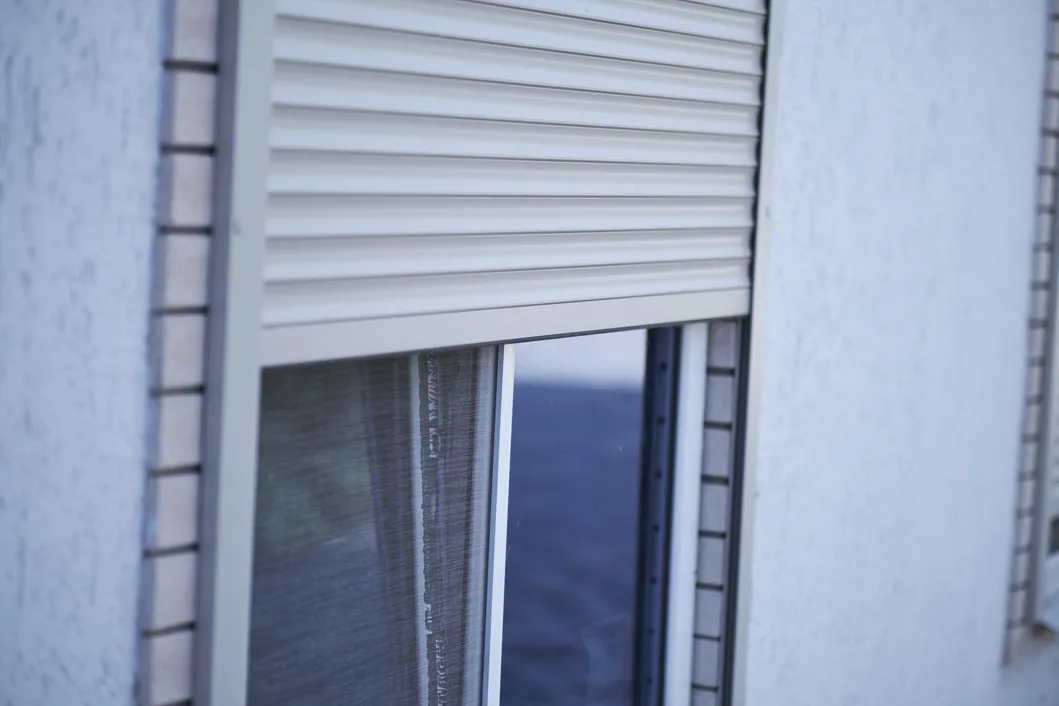

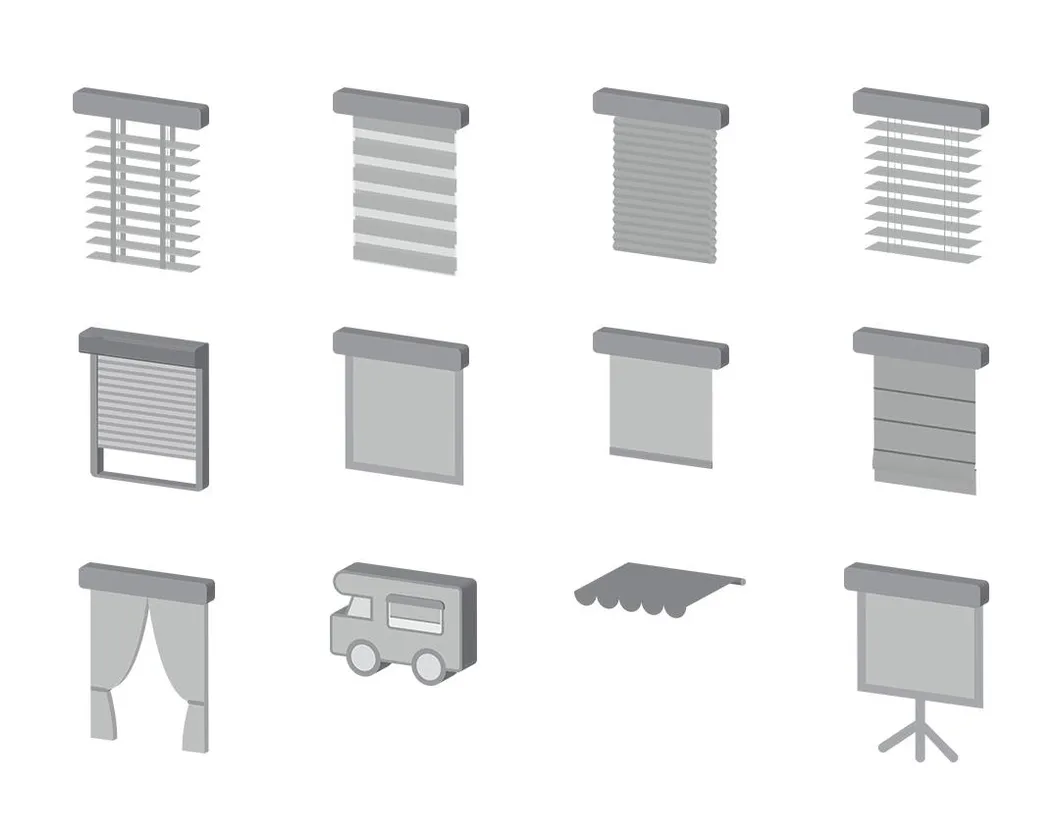

Application Display

Company Profile

DRIVE A BETTER AND HIGH-QUALITY LIFE

We are committed to becoming the world's leading provider of linear drive solutions, creating smart and healthy emerging technologies to help partners succeed and drive a better and high-quality life.

Frequently Asked Questions

What is the shipping port?

Shanghai or Ningbo Port.

How can I get the quotation?

You need to send us your requirements. We will have our regional sales team contact you. Please provide the key details such as material requirements, size, input, load capacity, quantity, color, speed, or frequency.

May I have a sample order before placing a bulk order?

Of course, we can provide a sample order for quality testing and verification before bulk purchase.

Do you hold the relevant quality and safety certifications?

Yes, we have obtained certifications including CE, TUV, UL, PSE, KC, SAA, RoHS, ISO9001:2015, ISO14001:2015, and OHSAS18001:2007.

What is the noise level of the smart curtain motor during operation?

The motor is designed with a patented silent noise-reduction and shock-absorption structure, ensuring that the running noise is extremely low, measuring less than or equal to 31dB.

Does this smart curtain motor support intelligent home control?

Yes, the motor features a built-in Zigbee module and supports an external WiFi adapter. This allows you to achieve smart control via mobile applications and popular smart speaker voice assistants, and it integrates seamlessly into home automation setups.
