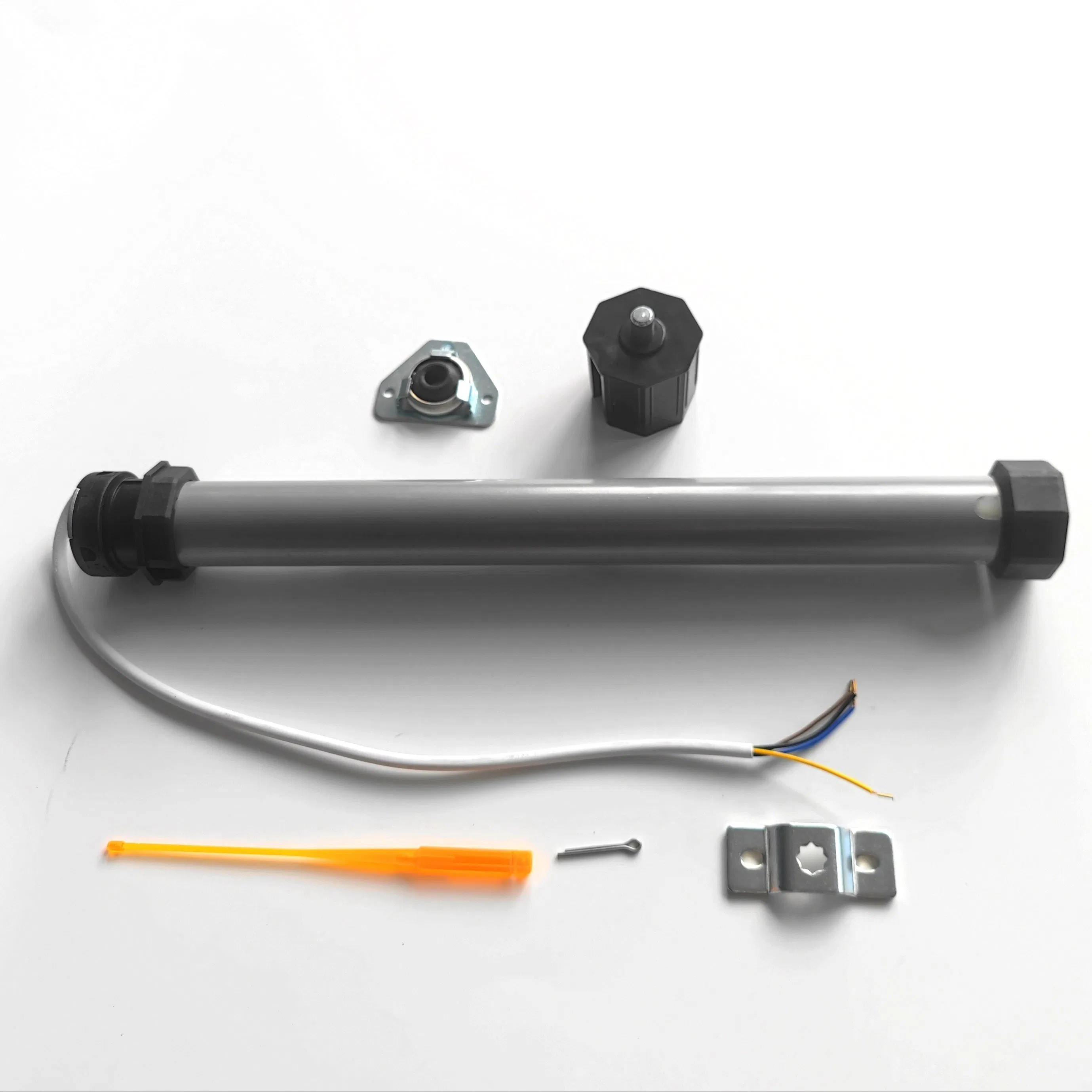

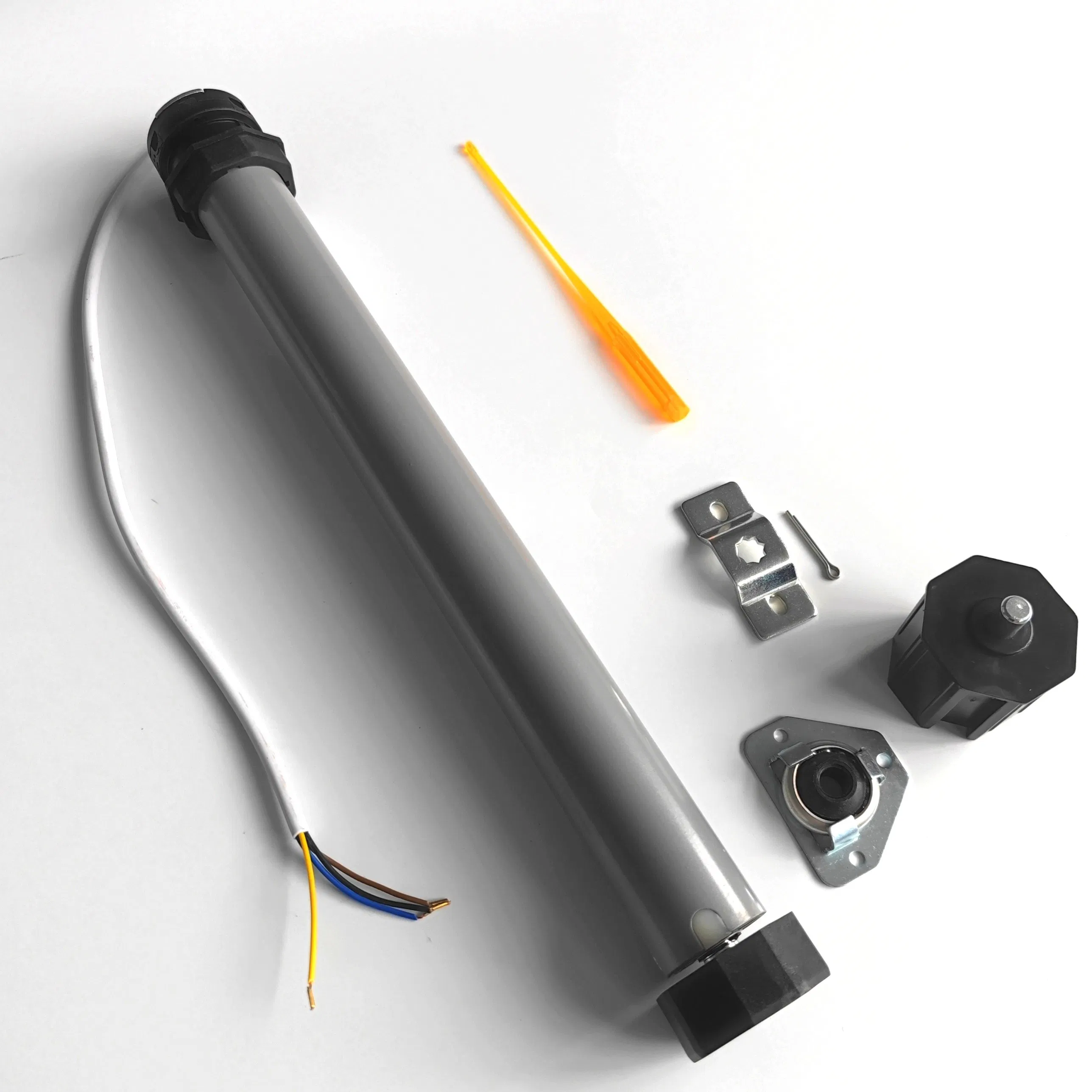

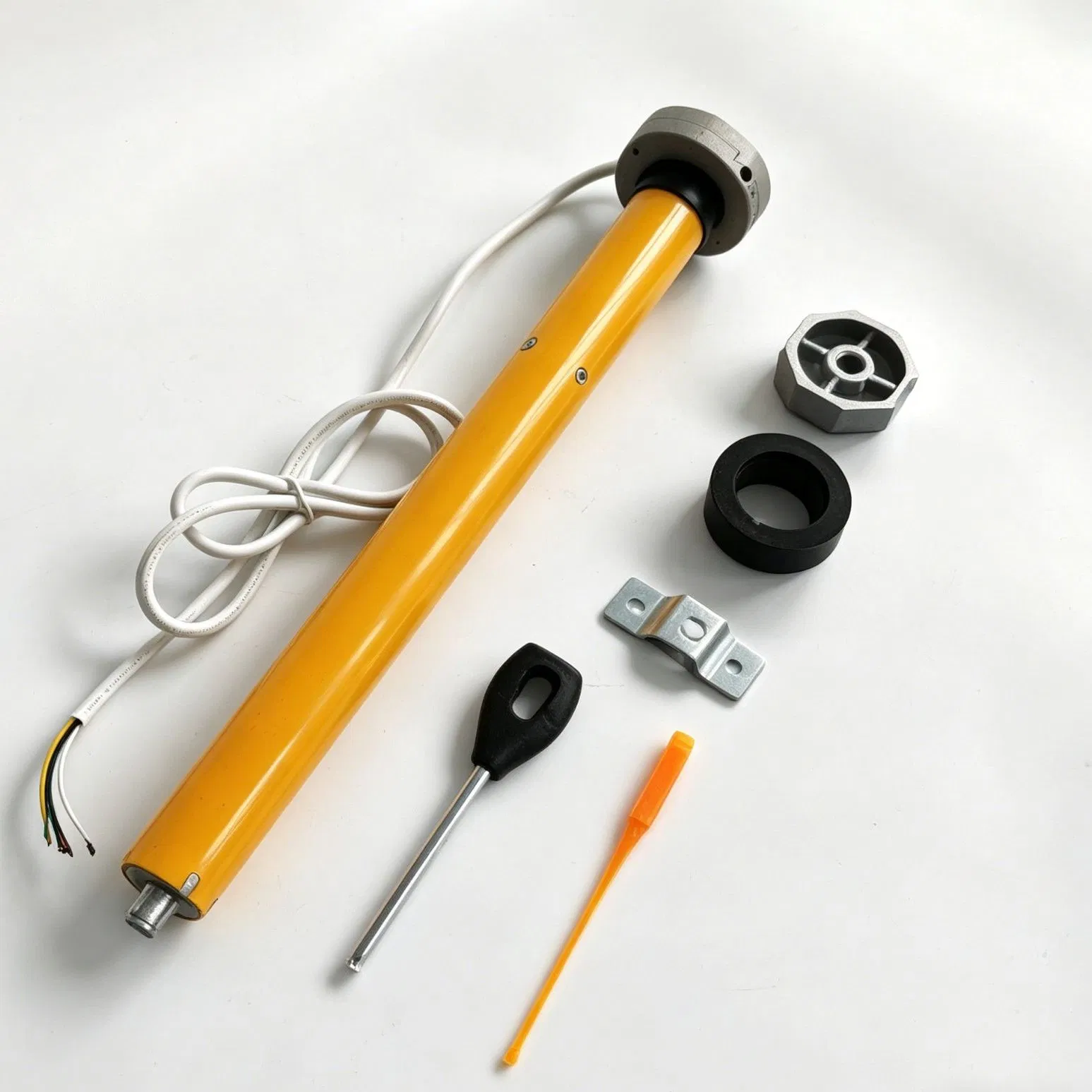

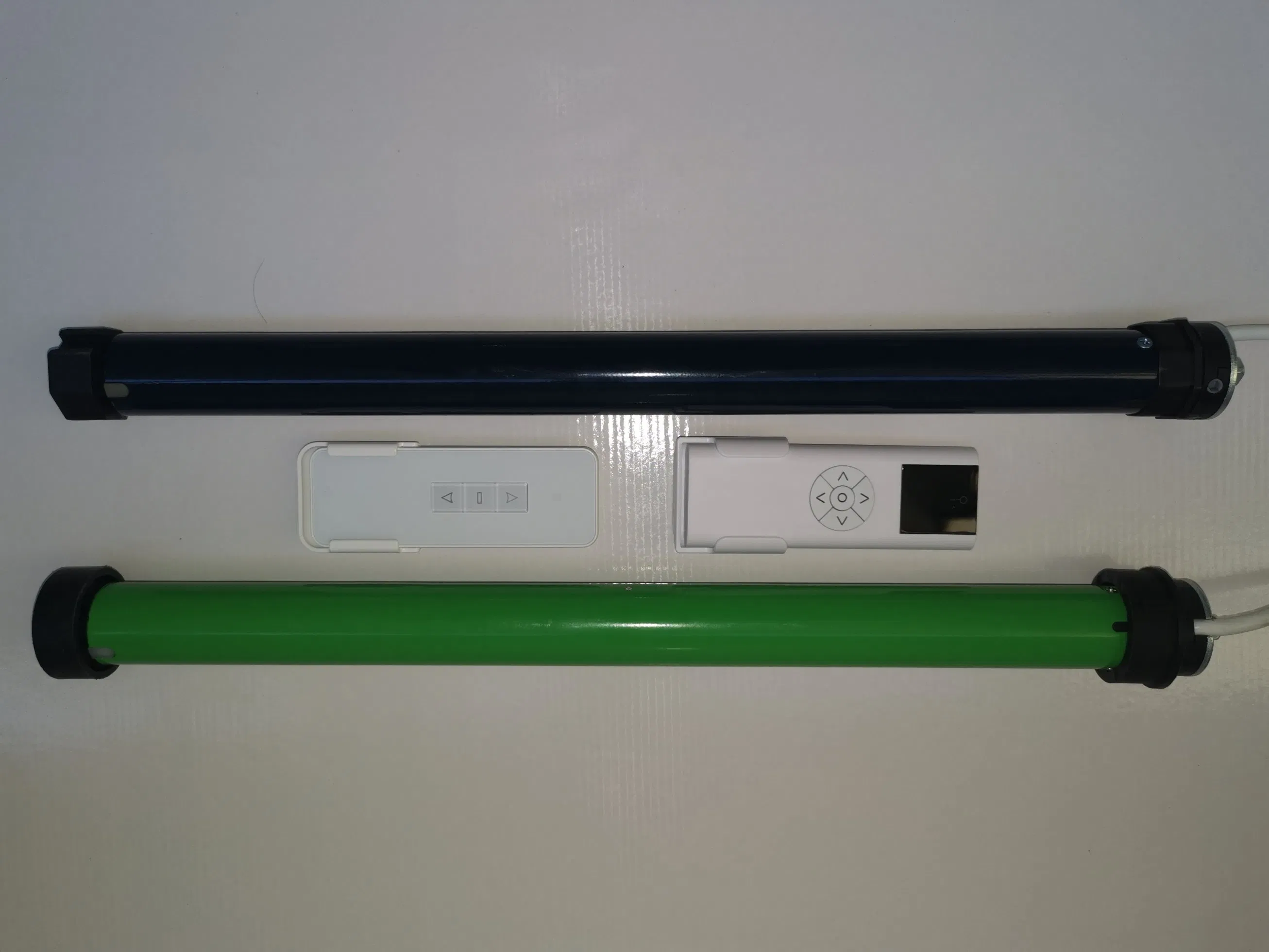

Smart Roller Shutter Motor for Automatic Doors and Windows

Customization:	Available
Speed:	Constant Speed
Number of Stator:	Single-Phase

Send Inquiry

Product Description

Overview

Basic Info.

Model NO. 59R

Function Driving, Control

Casing Protection Closed Type

Certification ISO9001, CCC, CE, RoHS

Torque 60nm-140nm

Transport Package Carton and Pallet

Specification 40mm, 60mm, 70mm

Origin China

HS Code 8501400000

Production Capacity 1000000 Sets/Year

Packaging & Delivery

Package Size 60.00cm * 7.00cm * 7.00cm

Package Gross Weight 4.000kg

Smart Roller Shutter Motor feature details

Smart Roller Shutter Motor cross section

Smart Roller Shutter Motor inner structure

Smart Roller Shutter Motor installation setup

Product Description

Technical Parameters	Model YM59-60RM (220-230V)	Model YM59-60RM (100-120V)
Rated Torque (N.m)	60	60
Rated Speed (rpm)	12	14
Rated Power (W)	330	330
Rated Current (A)	1.2	1.9
Running Time (min)	>4	>4
Limit Rating (turn)	25	25
Complete Length (mm)	600	600
Complete Weight (KG)	5	5
Rated Voltage (V)	220-230	100-120
Rated Frequency (Hz)	50	60
Tube Diameter (mm)	59	59

Smart Roller Shutter Motor technical specifications drawing

Usage:

The tubular motor can be used in roller shutters, garage doors & windows, projection screens, and awnings.

FAQ

What is your payment term?

30% T/T in advance, 70% when receiving B/L copy. Or irrevocable L/C.

What is the normal lead time for product orders?

Generally it is 5-7days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Do you offer OEM service?

Yes. We can custom-designed for any specific application.

How can you ensure the motor can drive the machine?

Our factory elaborately chooses 100% pure copper wire and capacitor with appropriate volume; Our professional manager provides you accurate purchase guide;

How can you guarantee the quality?

Our producers carefully check the drawing and process the shaft and end cover; Our inspectors check the dynamic balance repeatedly;

What is your standard packaging method?

All goods will be packed in cartons and loaded on pallets. Special packaging methods can also be adopted if necessary.

Product Detail

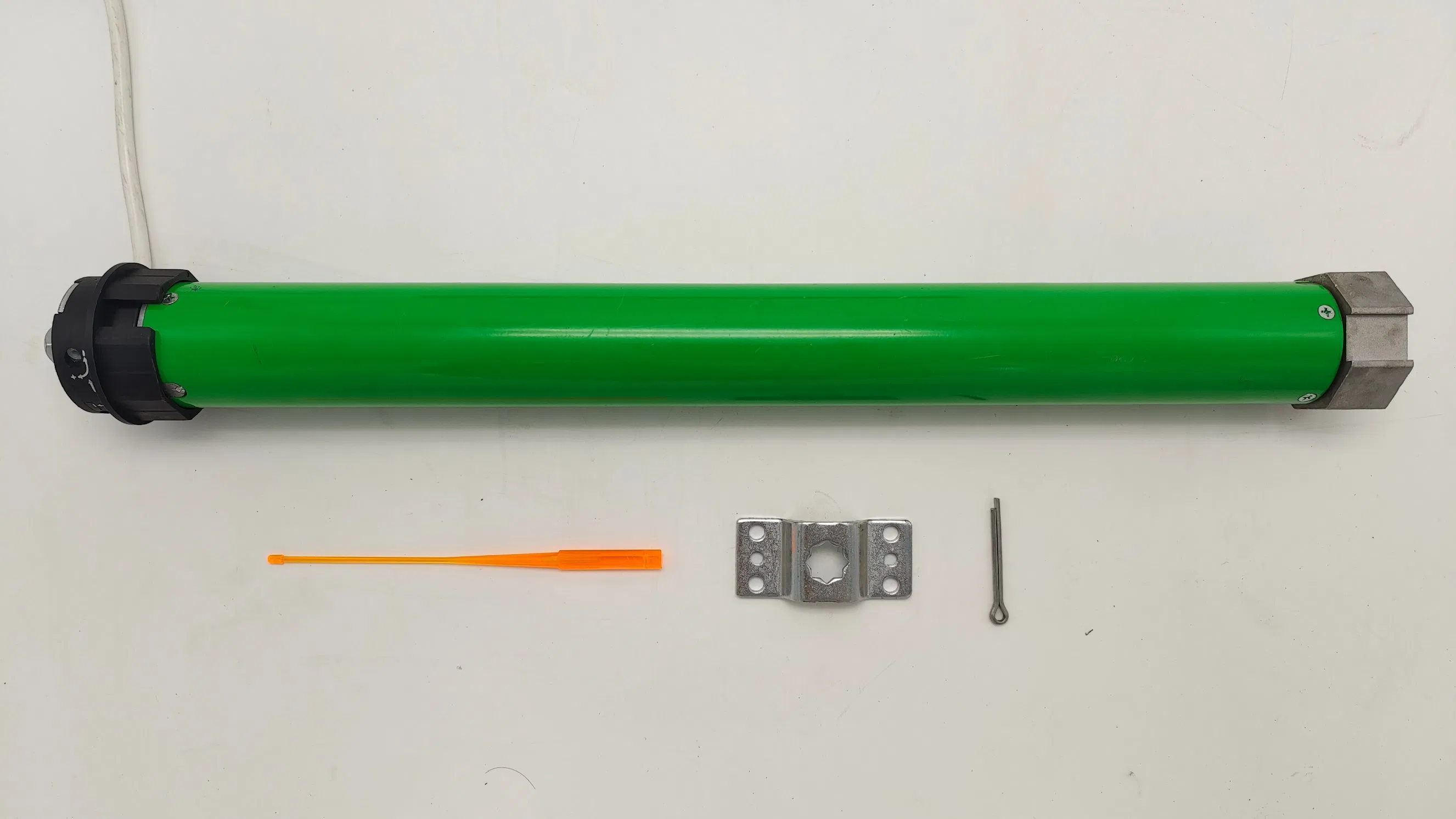

Smart Roller Shutter Motor for Automatic Doors and Windows
