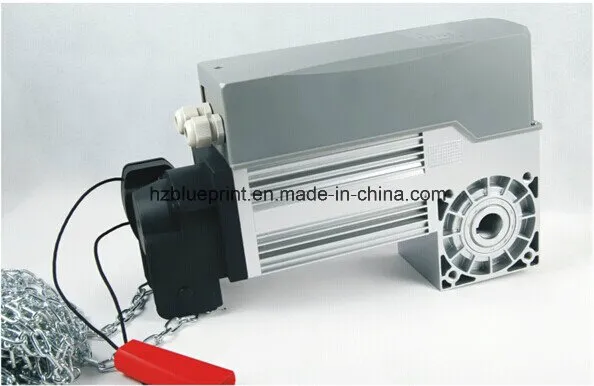

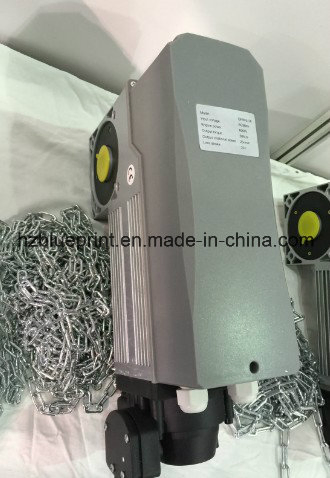

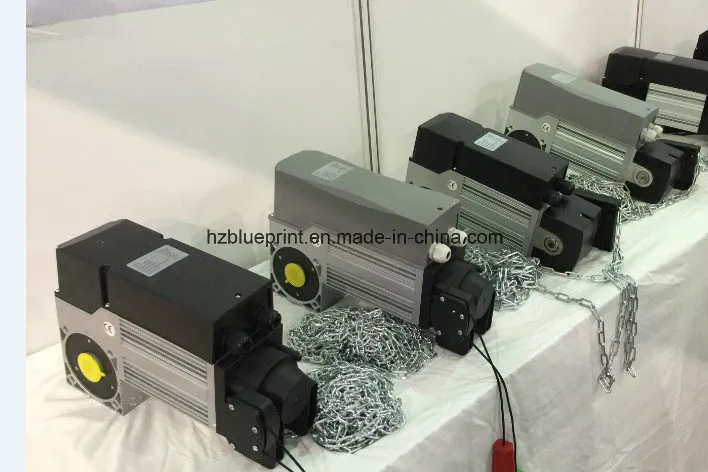

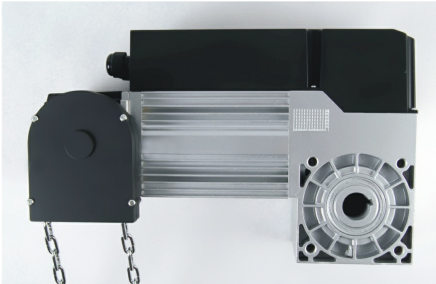

Torsion Motor
1 / 5
| Model | GK90S-C | GK150S-C | GK50-C |
|---|---|---|---|
| Power Supply | AC380V | AC380V | AC220V |
| Motor Power | 600W | 800W | 400W |
| Max. Output Torque | 90N.m | 150N.m | 50N.m |
| Load Running Time | 15min | ||
| Thermal Protection | 120 ºC | ||
| Noise Level | <=58dB | ||
| Power Extrication | Drawstring Extrication | ||
| Limit Way | Cam Limit / Electronic Limit (Optional) | ||
| Output Shaft Aperture | φ25.4mm | ||
| Environment Temp | -20ºC ~ +45ºC | ||
| Max. Door Area (㎡) | 45 | 60 | 25 |

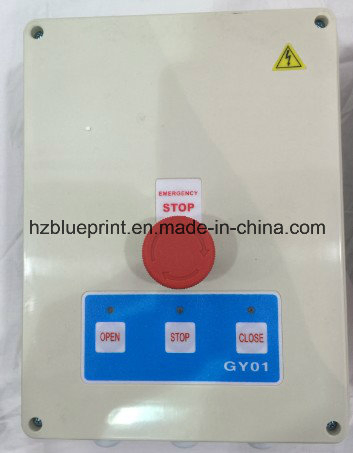

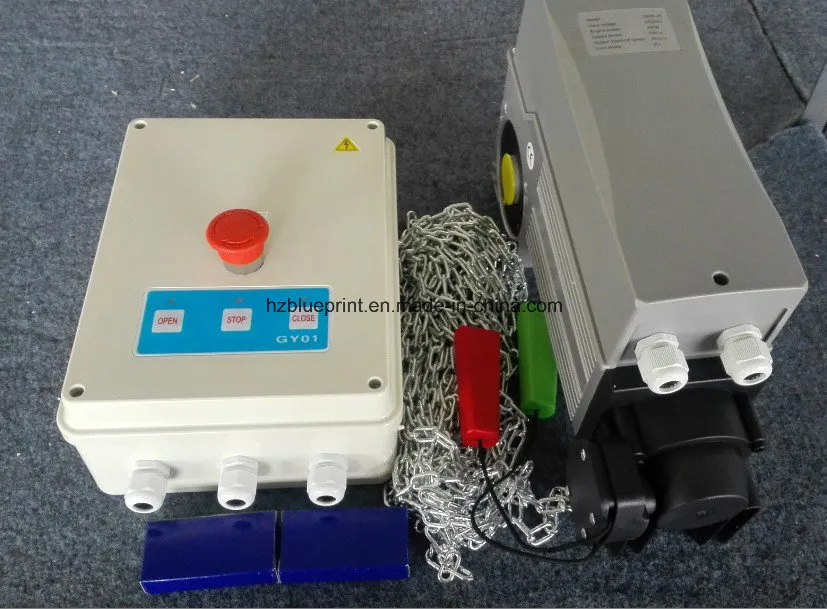

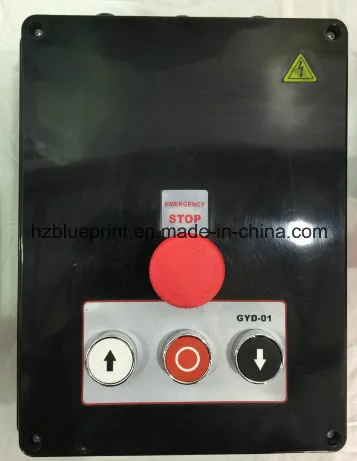

Electrical Control Box: Equipped with intuitive Open, Close, and Stop buttons. Includes a prominent red emergency switch to instantly disconnect power. To reset, simply rotate the switch in the indicated arrow direction.
Connection Terminals: Supports easy integration with infrared photocells, airbags, door-in-door safety switches, three-button switches, single-button switches, and warning lights.
Advanced Control Logic: Compatible with AC220V and AC380V. Features include normal open/close limit switch settings, maximum motor runtime configuration, auto-close timing, and robust overload/over-current protection.
Remote Control: Utilizes hopping code programming for high-security transmitter pairing.
Reliability: Adopts double limit cams for enhanced operator safety and reliability. It can output passive signals to meet specific user requirements or external system integrations.
