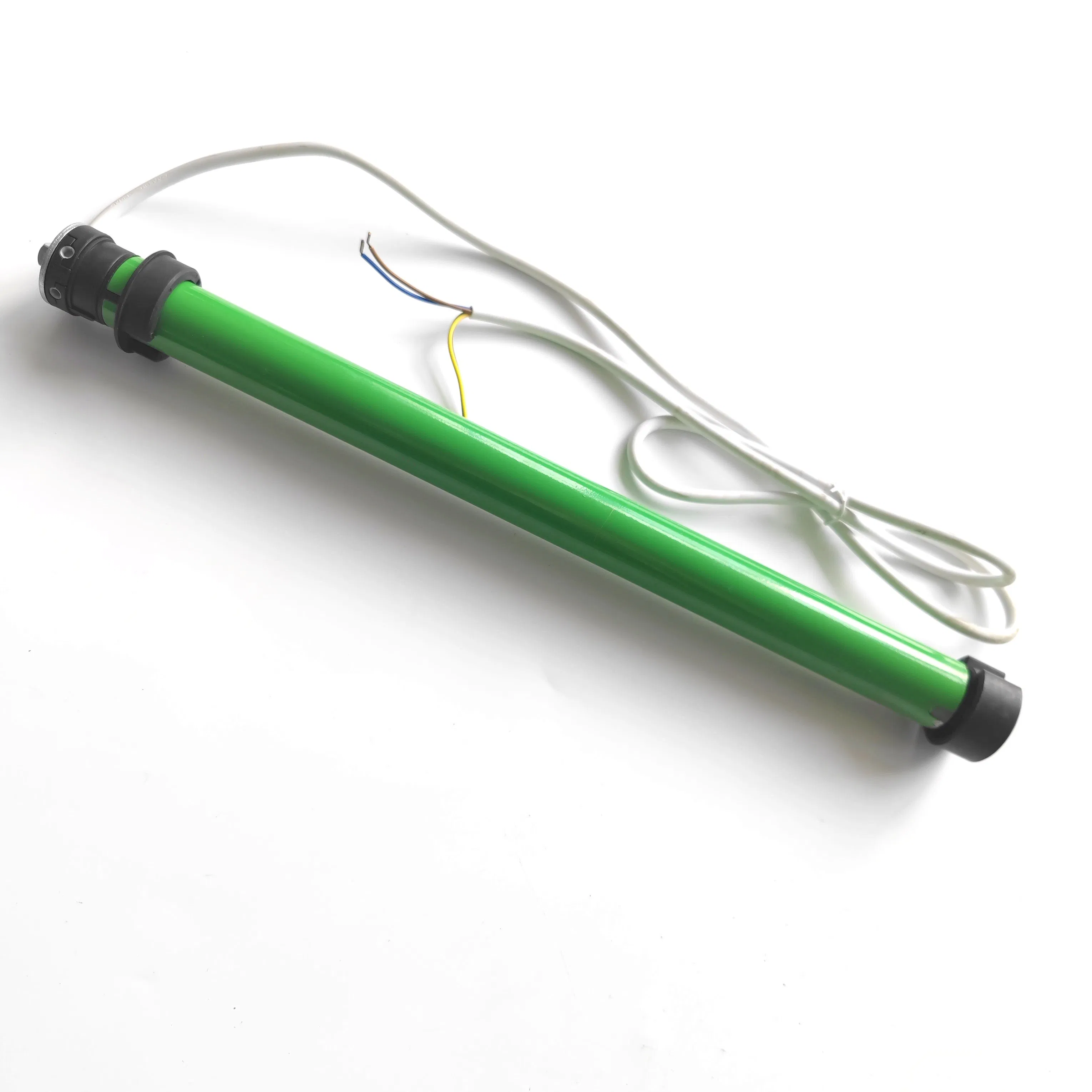

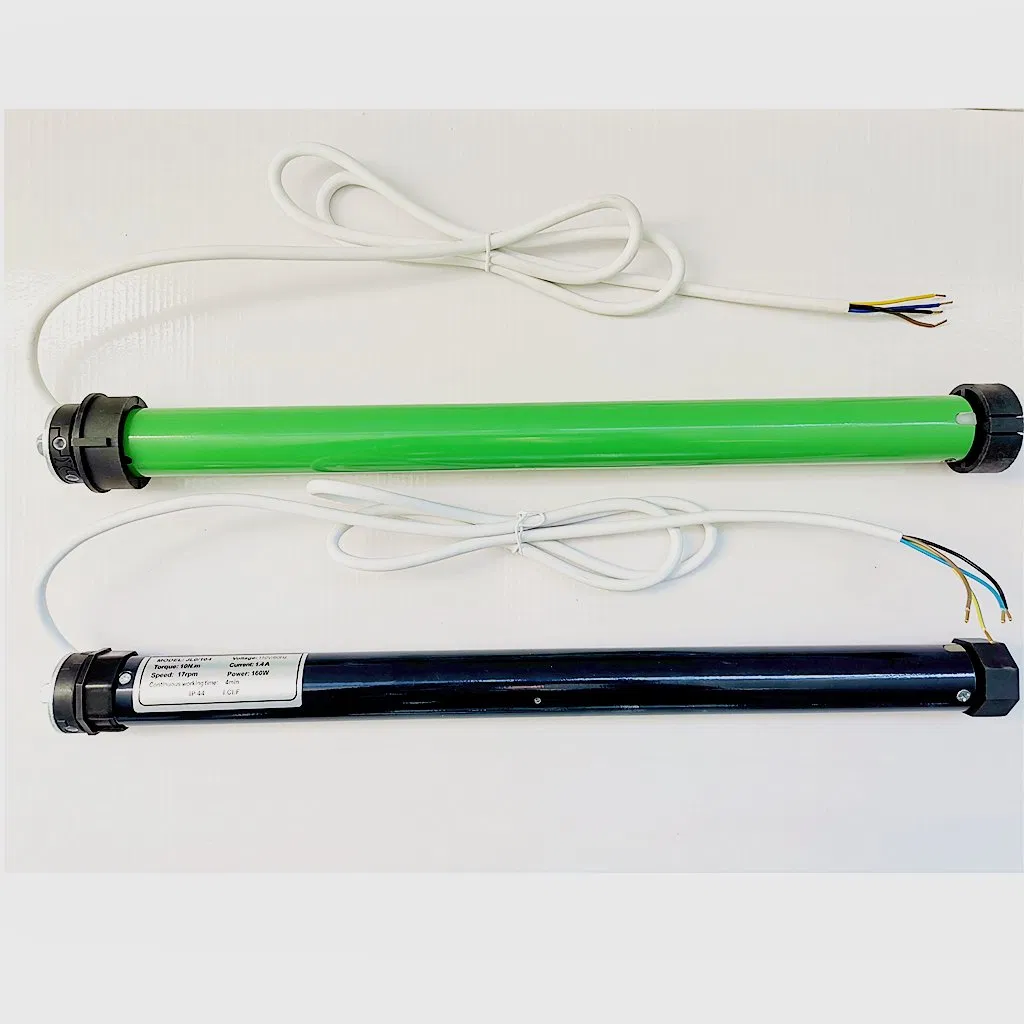

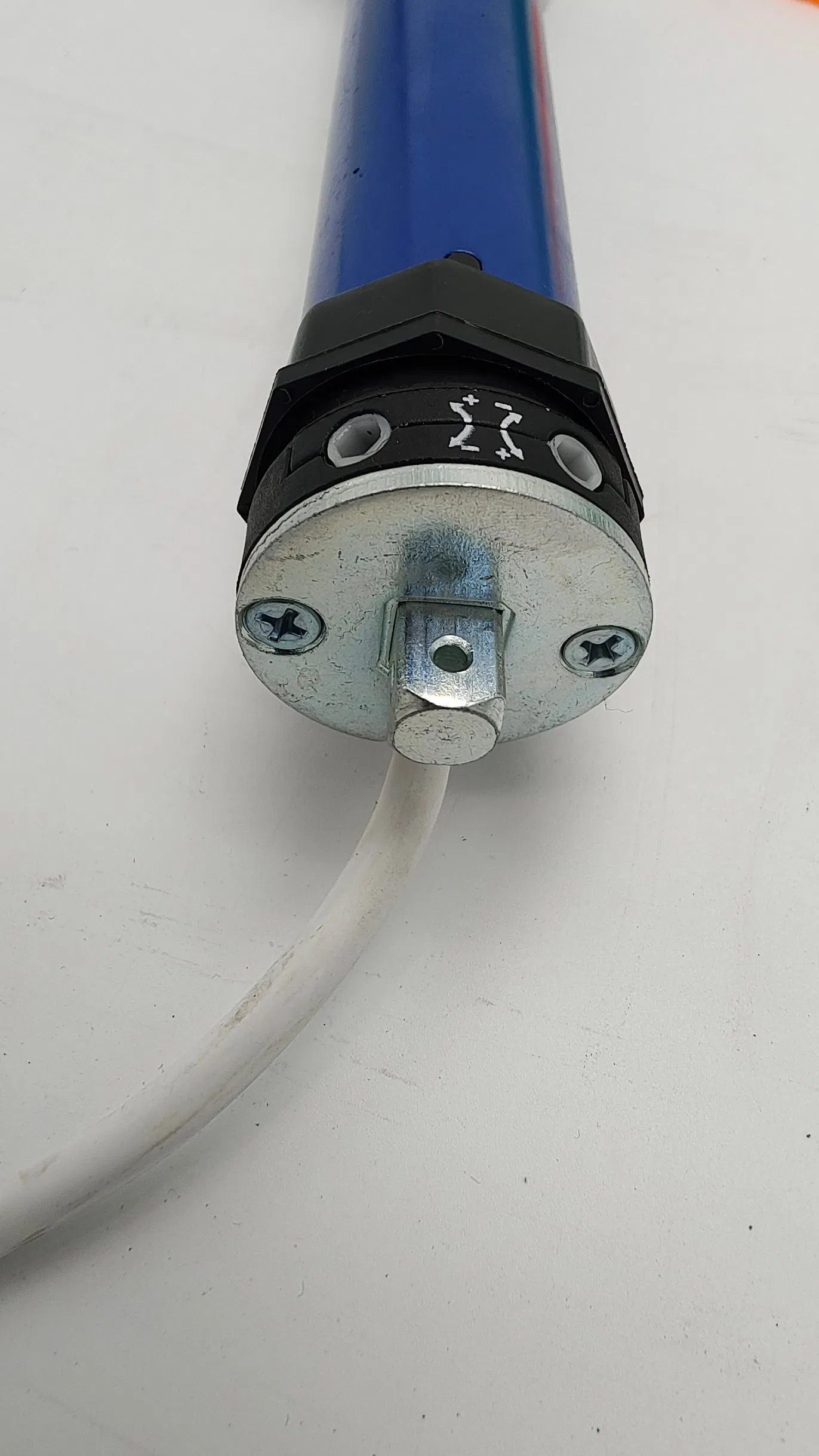

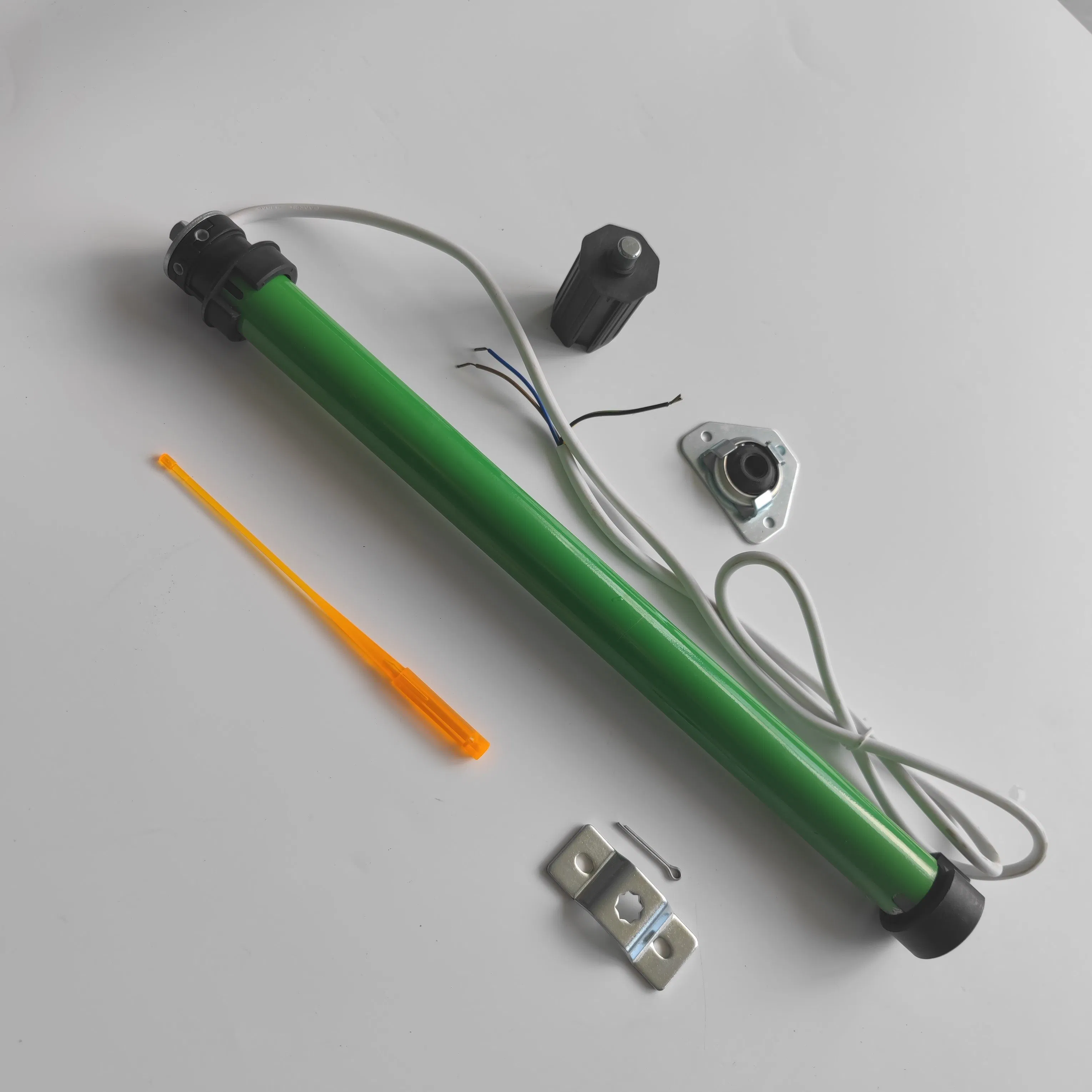

Torsion Motor
1 / 5
| Parameter | Value | Value |
|---|---|---|
| Model | YM35-3S | YM35-3S |
| Rated Torque(N.m) | 3 | 3 |
| Rated Speed(rpm) | 17/28 | 18/30 |
| Rated Power(W) | 70/120 | 70/120 |
| Rated Current(A) | 0.5/0.6 | 0.7/0.8 |
| Running Time(min) | >4 | >4 |
| Limit Rating(turn) | 35 | 35 |
| Complete Length(mm) | 520 | 520 |
| Complete Weight(KG) | 1.5 | 1.5 |
| Rated Voltage(V) | 220-230 | 100-110 |
| Rated Frequency(Hz) | 50 | 60 |
| Tube Diameter(mm) | 35 | 35 |

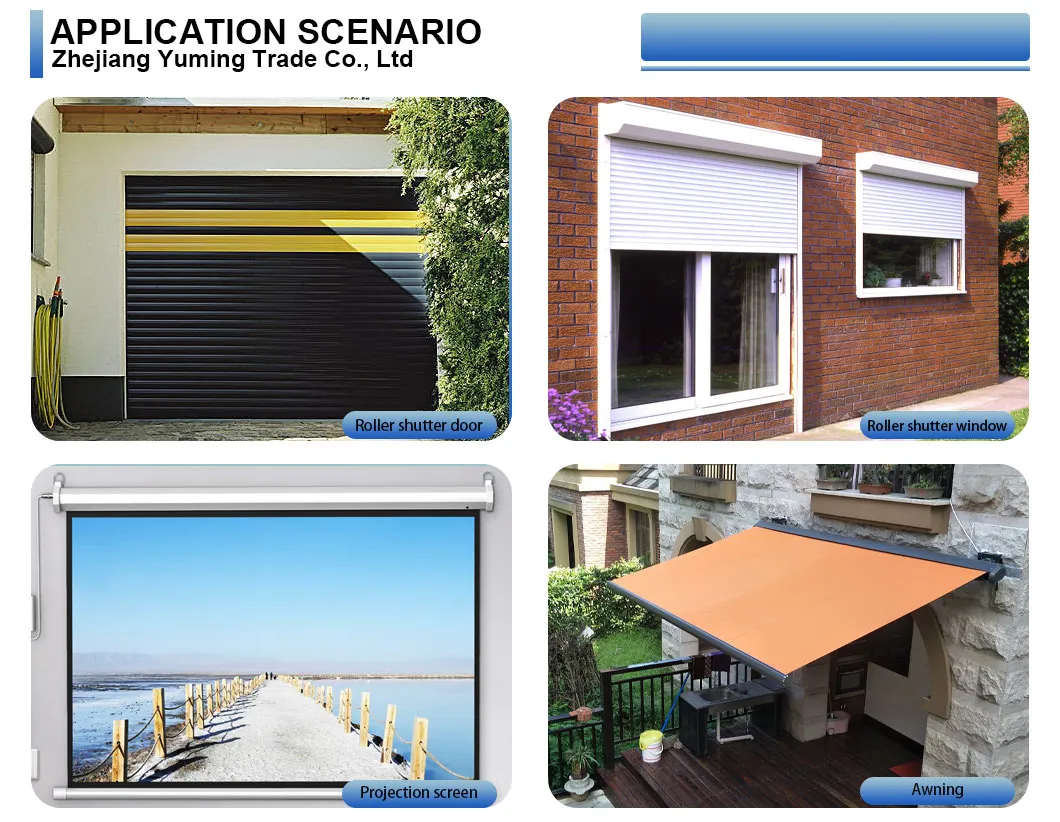

The tubular motor can be used in roller shutters, garage doors & windows, projection screens, and awnings.
