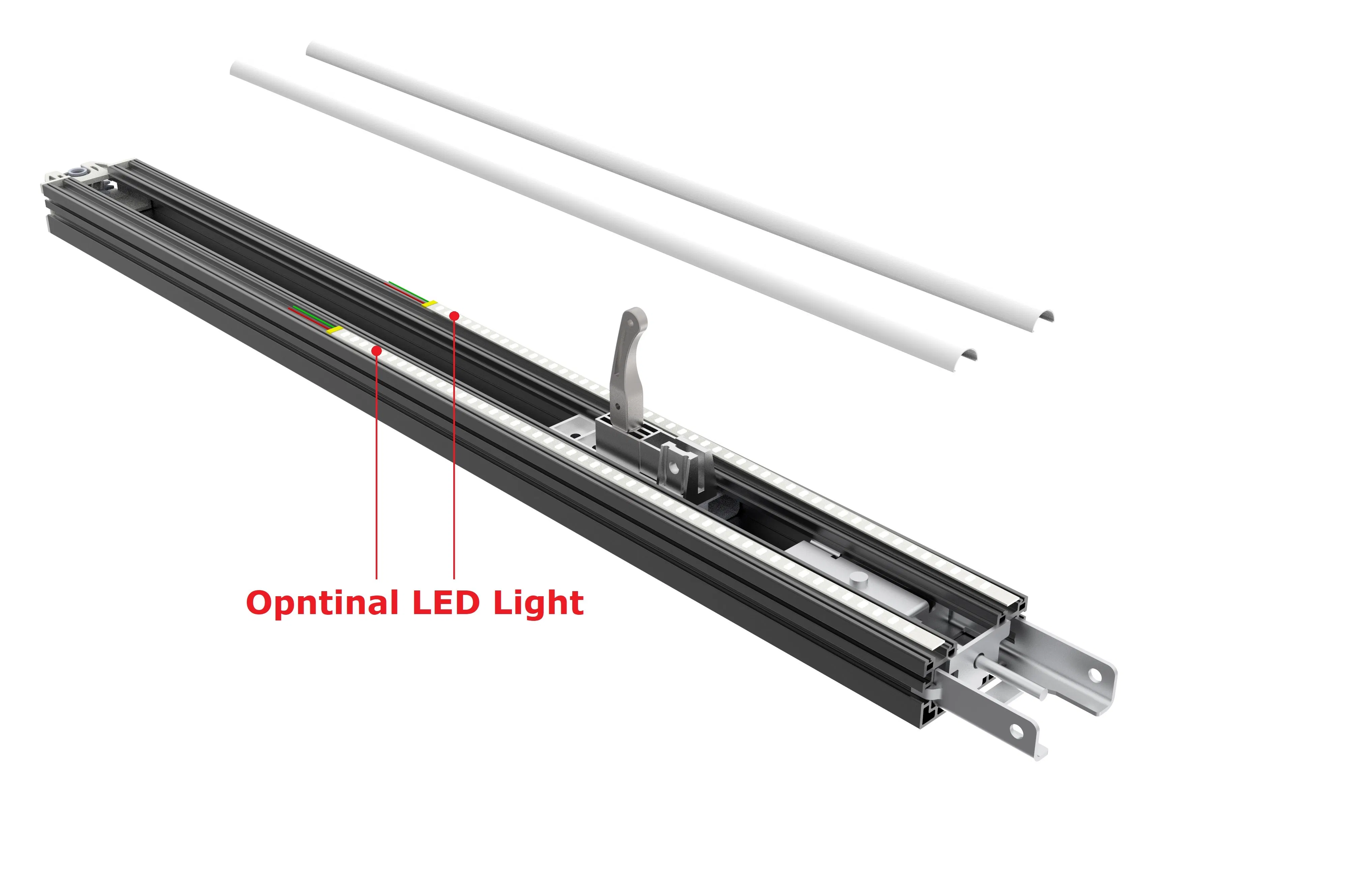

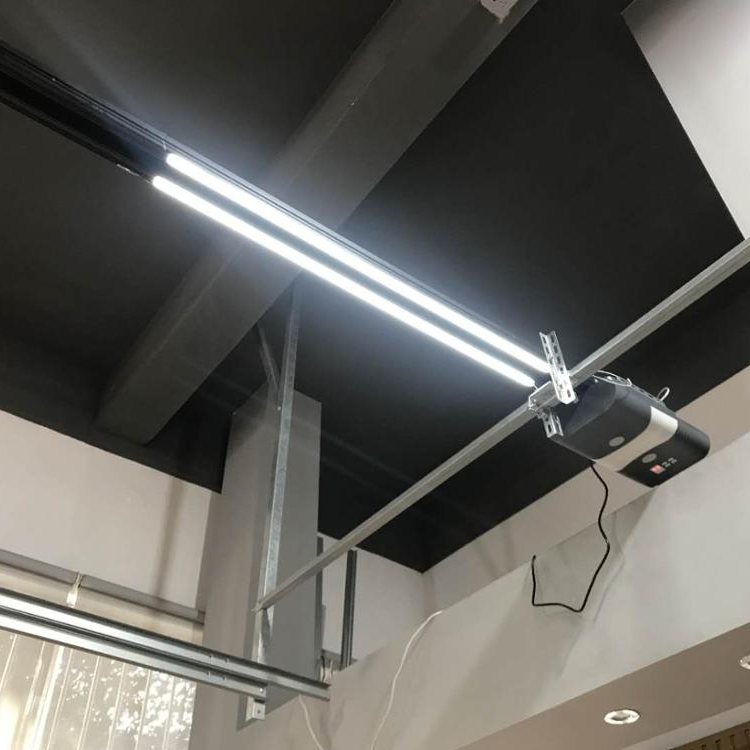

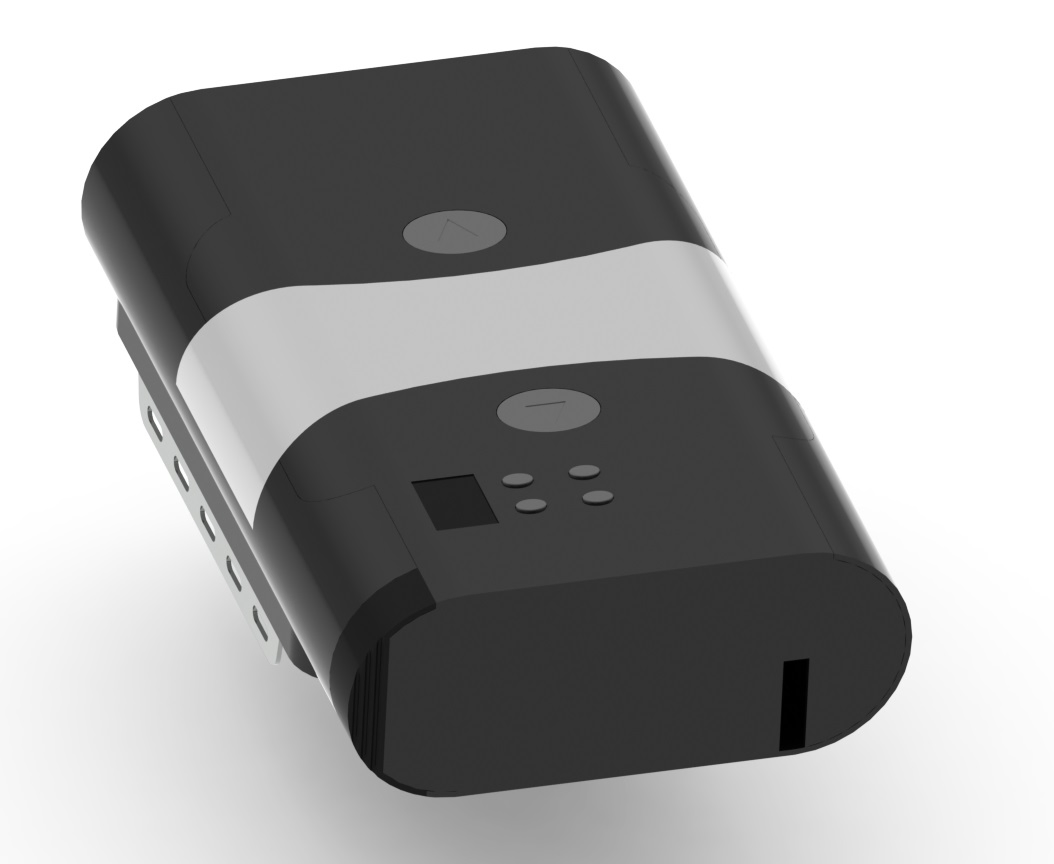

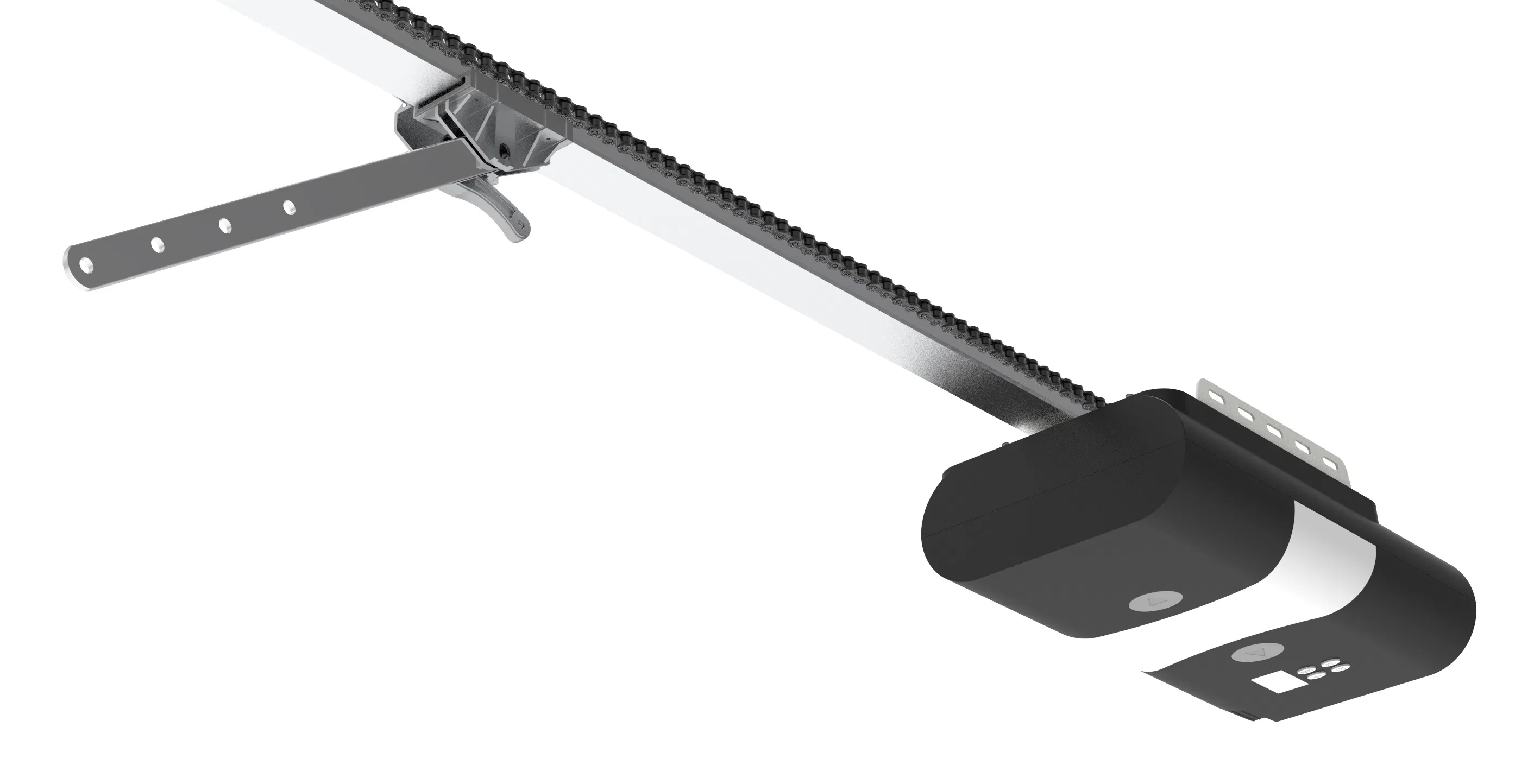

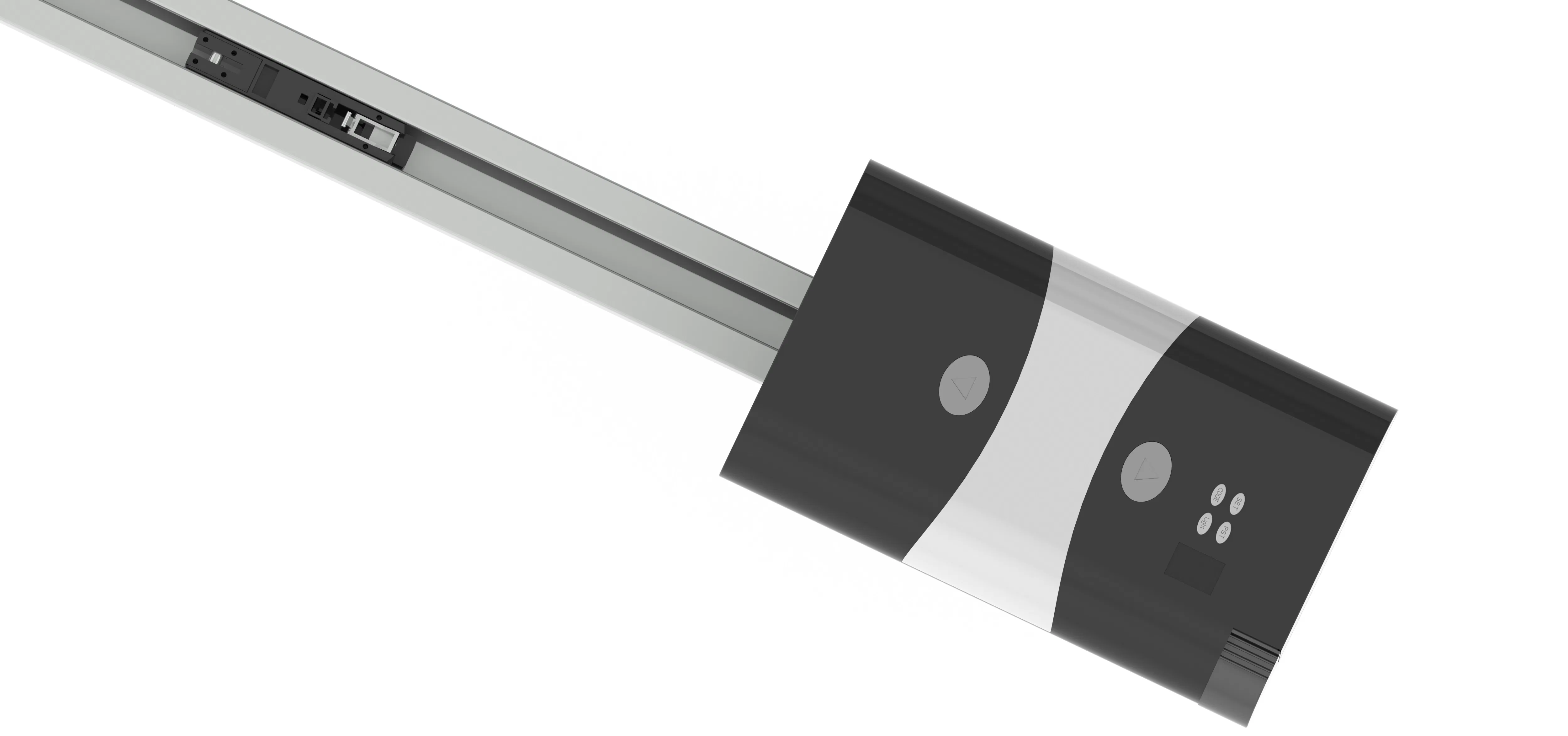

Amercian Design Garage Door Opener Motor with Aluminum Rail Optional LED Light

1 / 5

Amercian Design Garage Door Opener Motor with Aluminum Rail Optional LED Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Advanced serious

Excitation Mode

Series Excitation

Function

Driving, Open and Close Garage Door

Casing Protection

Protection Type

Number of Poles

Structure

Brush

Certification

Ce, Ce-Red, LVD, EMC, En12453&12445, TUV, C-Tick

Lifting Speed

160mm/S

Case Material

Plastic / Aluminum

Base Material

Steel

Color

Black / Grey / Aluminum

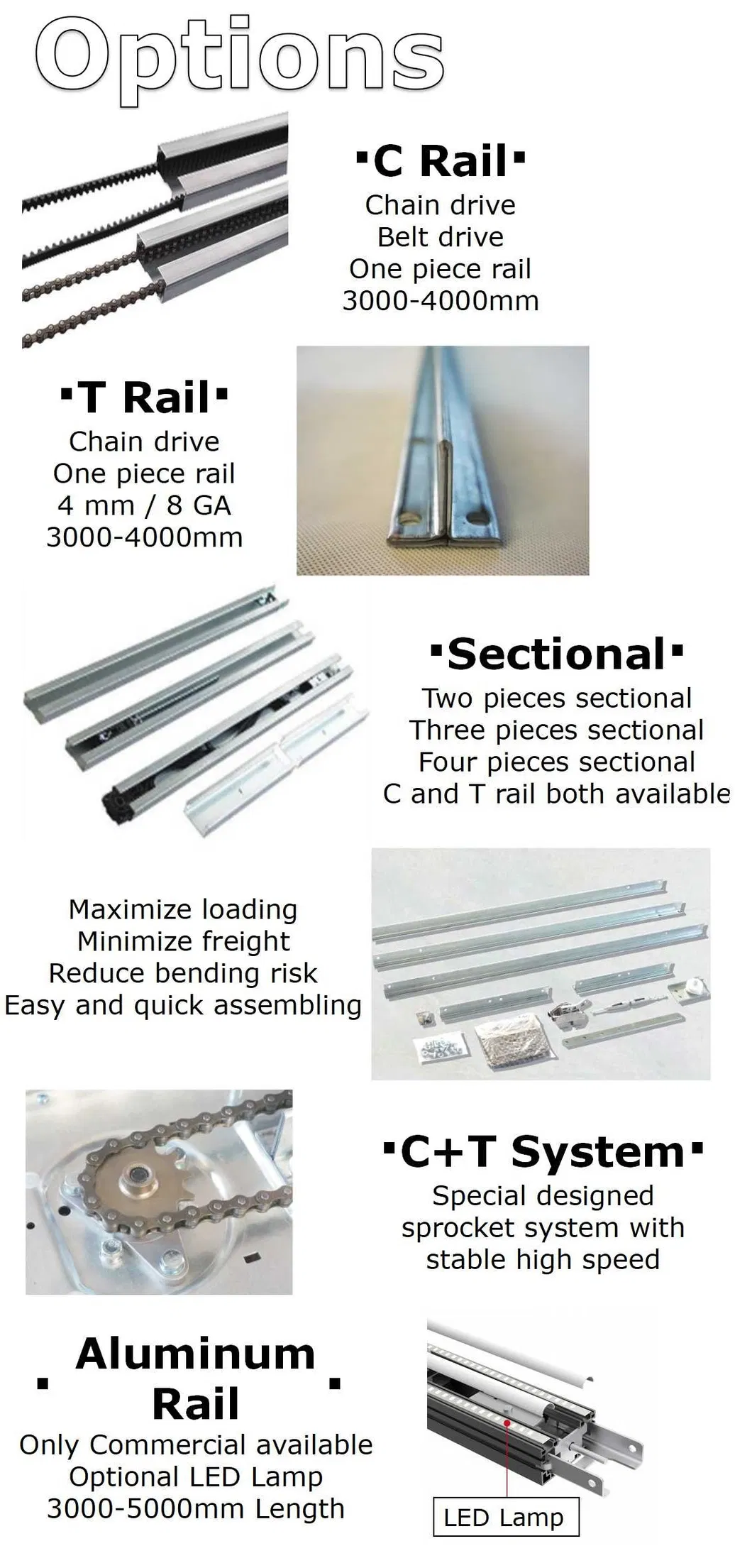

Rail Length

3000~4000mm

Drive Option

Chain Drive / Belt Drive

Specification

600N / 1000 / 1200N

Origin

China

Production Capacity

1000000 sets / Year

Product Description

🚀 ADVANCED SERIES

Available Power: 600N / 1000N / 1200N / 1500N

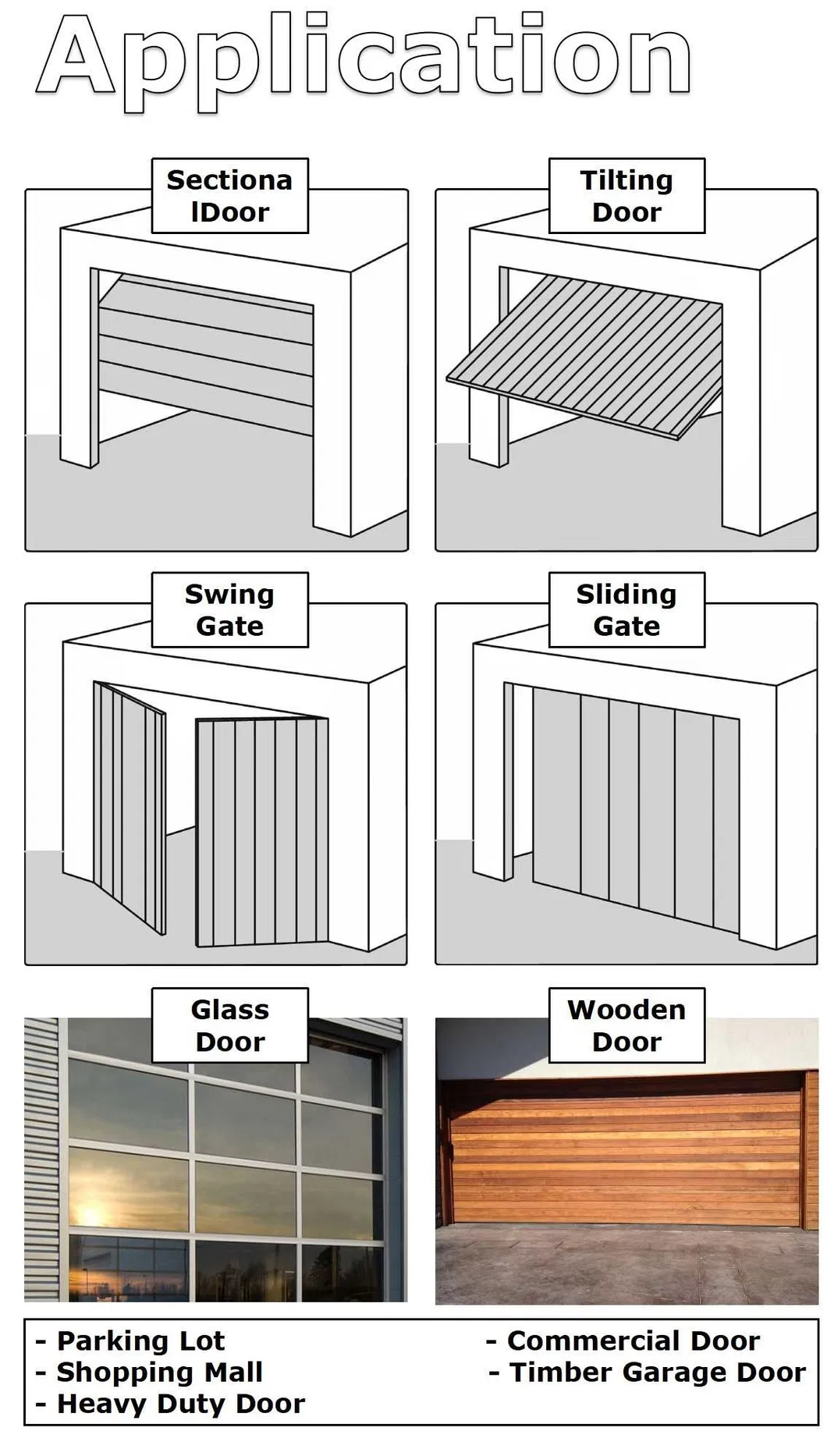

Application: Residential and Commercial

Model	600N / Speed	1000N / Speed	1200N	1500N
Input voltage	220-240V / 110-127V, 50-60Hz
Max. opening speed	160mm/s or 200mm/s (Speed model)
Max. door height	2400-5000mm			2100-4200mm
Bottom base material	Metal
Drive mechanism	Chain/Belt			Chain
Max. door size	10 m²	15 m²	18 m²	25 m²
Max. door load	80 kg	100 kg	130 kg	200 kg

Soft-start/stop	More Information Display
Automatic Closing Time Setting	Automatic Closing Height Setting
Maintenance Alarm	Terminal Devices Supported
Maximal Remote Quantity Setting	Travel Speed Setting
Transformer Overload Protection	Reversal Height Setting
433MHz/Rolling Code	Photo Cell ON/OFF Setting
Status Display Remote	Electronic Travel Limit Setting
Reversal Force Setting	L.E.D Off Delay Time Setting

🛠️ Why Choose Our Openers?

Traditional openers often face problems like:

Losing traveling limit after hundreds of operations.
Doors failing to close or open fully.
Need for frequent re-programming.

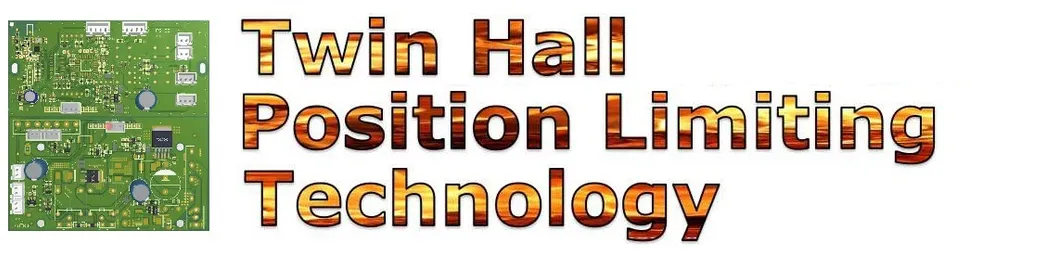

Our solution: Build-in twin-encoder & Synchronizing device

Features: Higher precision of position limit, no external mechanical switches, and self-adjustment for different door weights and maintenance conditions.

Frequently Asked Questions

What is the maximum door size the 1500N model can handle?

The 1500N high-power model is designed for large doors, supporting a maximum door size of up to 25 m² and a load capacity of up to 200 kg.

What are the benefits of the built-in twin-encoder?

The twin-encoder and synchronizing device provide much higher precision for position limits. This eliminates traveling deviation and the need for external mechanical switches, significantly extending the product's lifetime.

Does this opener support both chain and belt drives?

Yes, the system is compatible with both Chain Drive and Belt Drive mechanisms, allowing you to choose based on your specific noise and durability requirements.

Is it suitable for both residential and commercial use?

Yes, the Advanced series is engineered for versatility, making it ideal for both high-end residential garage doors and heavy-duty commercial applications.

What safety certifications does the product have?

Our openers are fully certified with CE, CE-Red, LVD, EMC, TUV, and C-Tick, ensuring they meet the highest international safety and quality standards.

Can the opening speed be adjusted?

Yes, the "Speed" models offer a travel speed of up to 200mm/s, and the system allows for electronic travel limit and reversal force settings.
