Torsion Motor
1 / 5

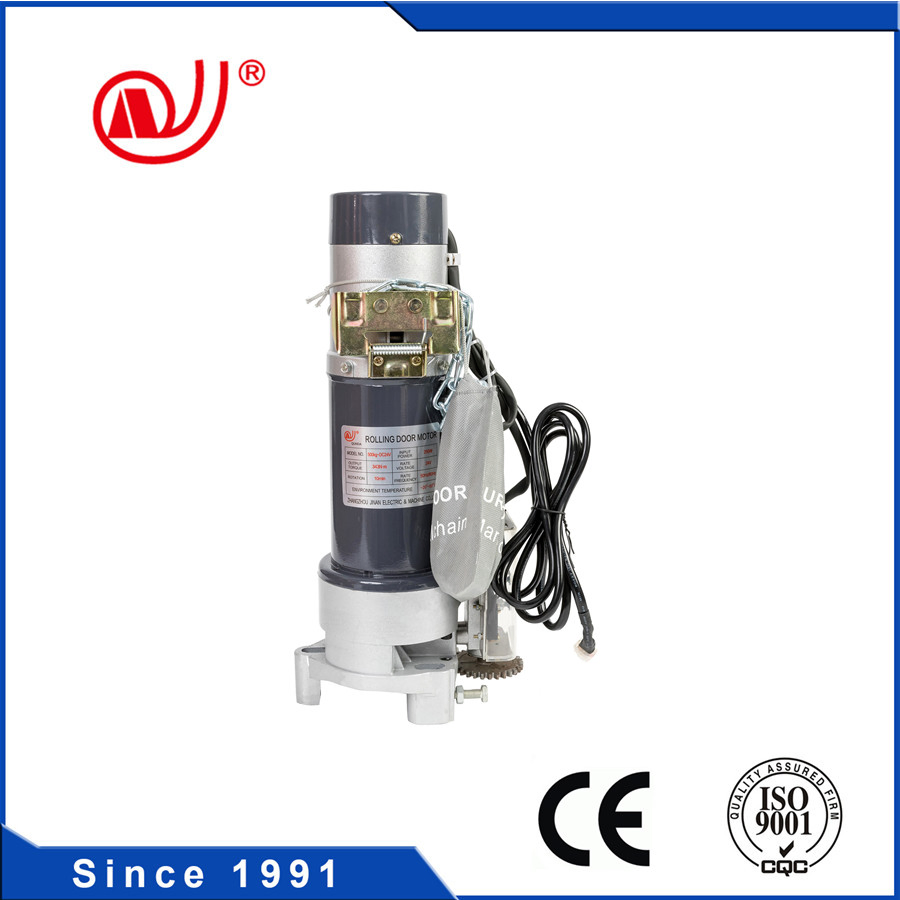

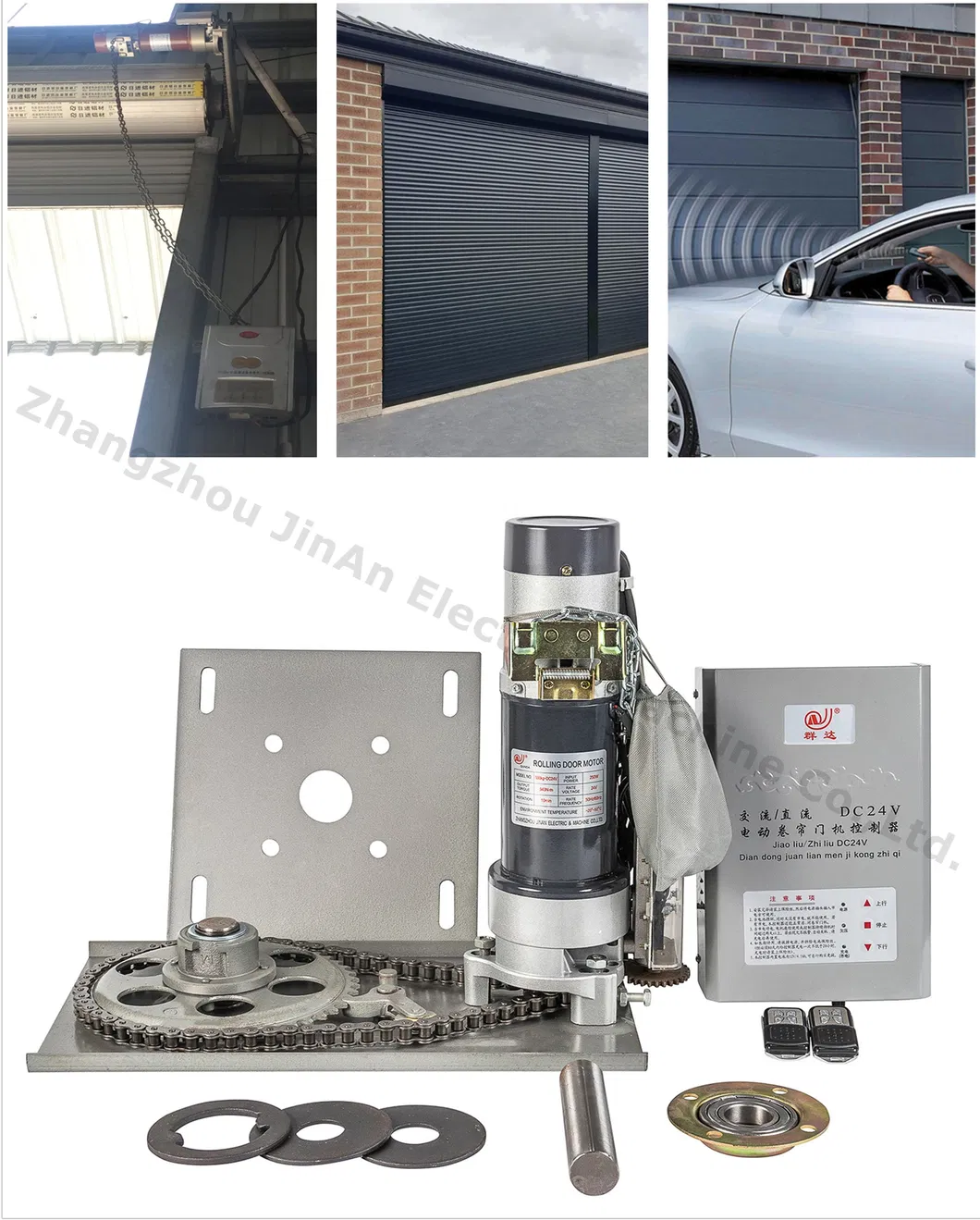

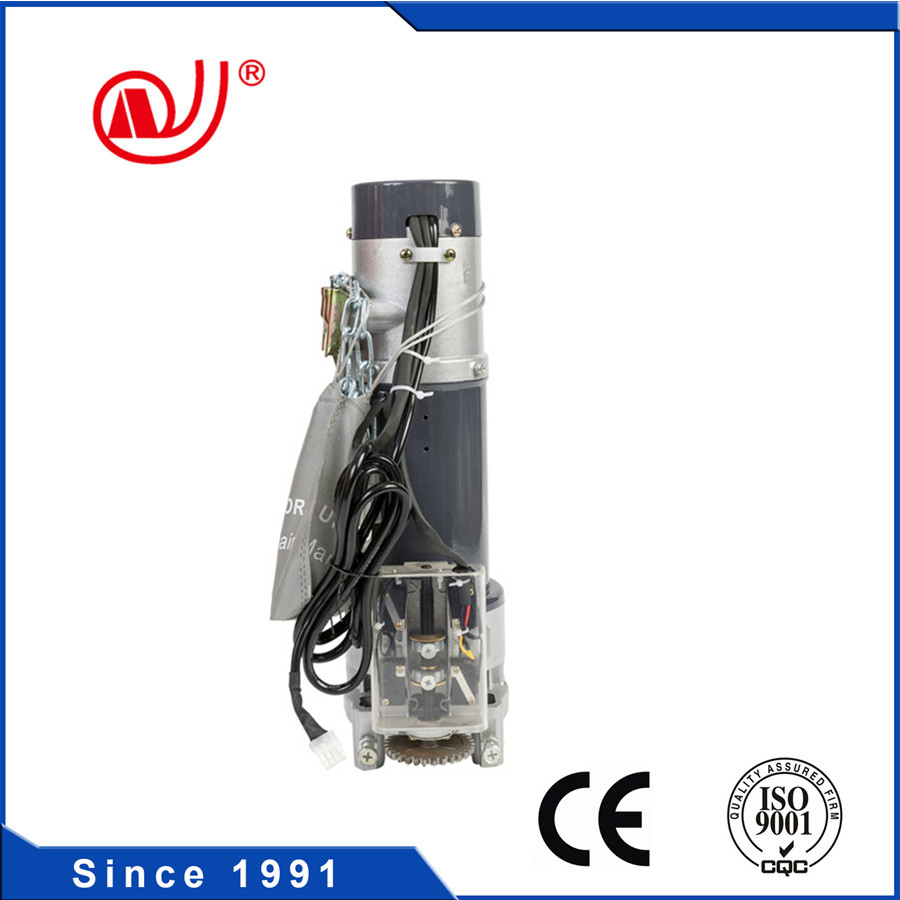

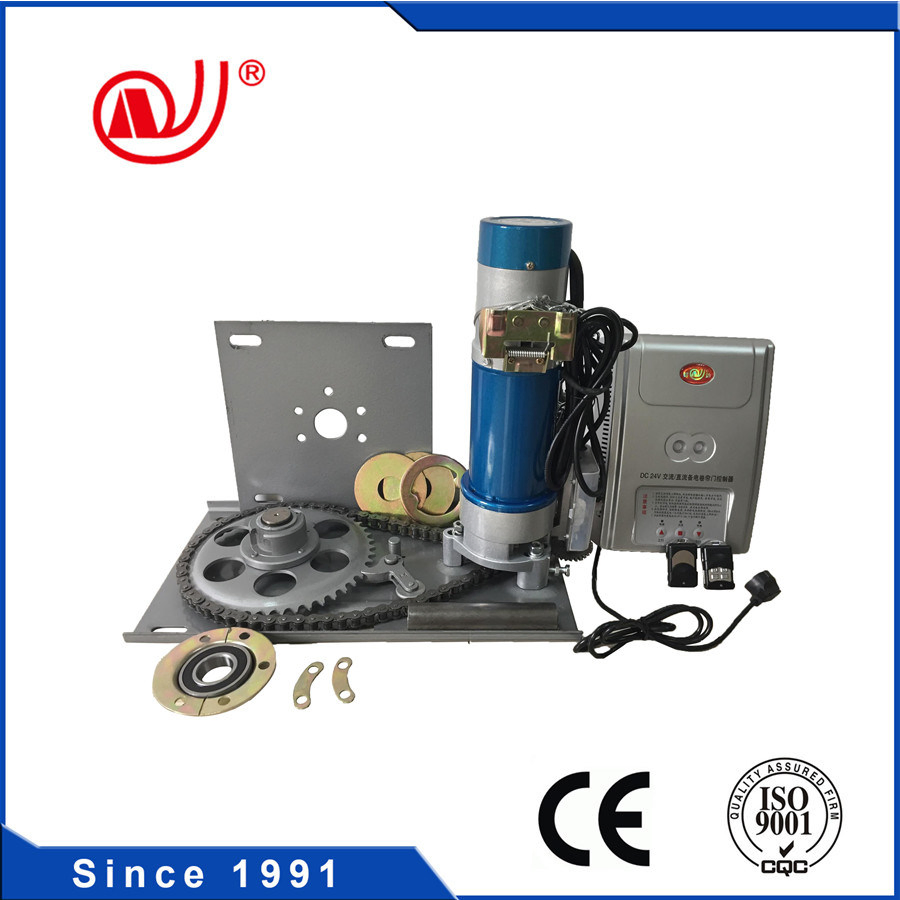

Our DC Rolling Door Motor is widely used for opening and closing the rolling shutter door of industrial door, supermarket door, commercial door, storehouse, cinema, hotel and so on. It can be operated by electricity and manual. The DC Rolling Door Motor works when the power off with a backup battery.

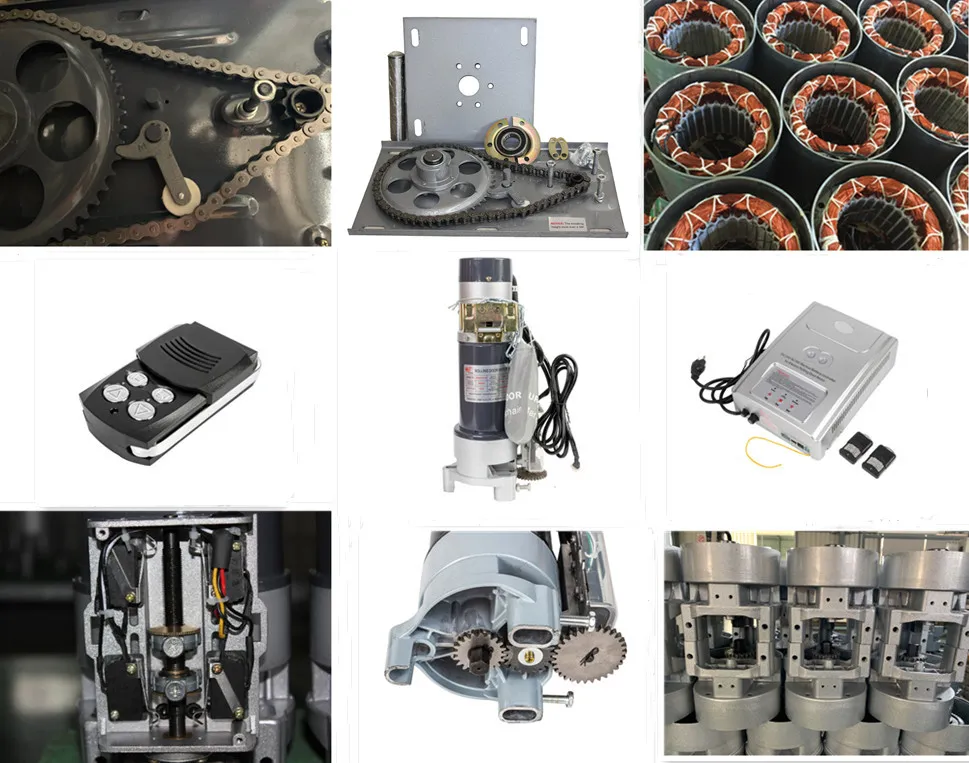

Aluminum alloy, solid and light but durable and easy to install.
Low energy consumption with minimal vibration for smooth operation.

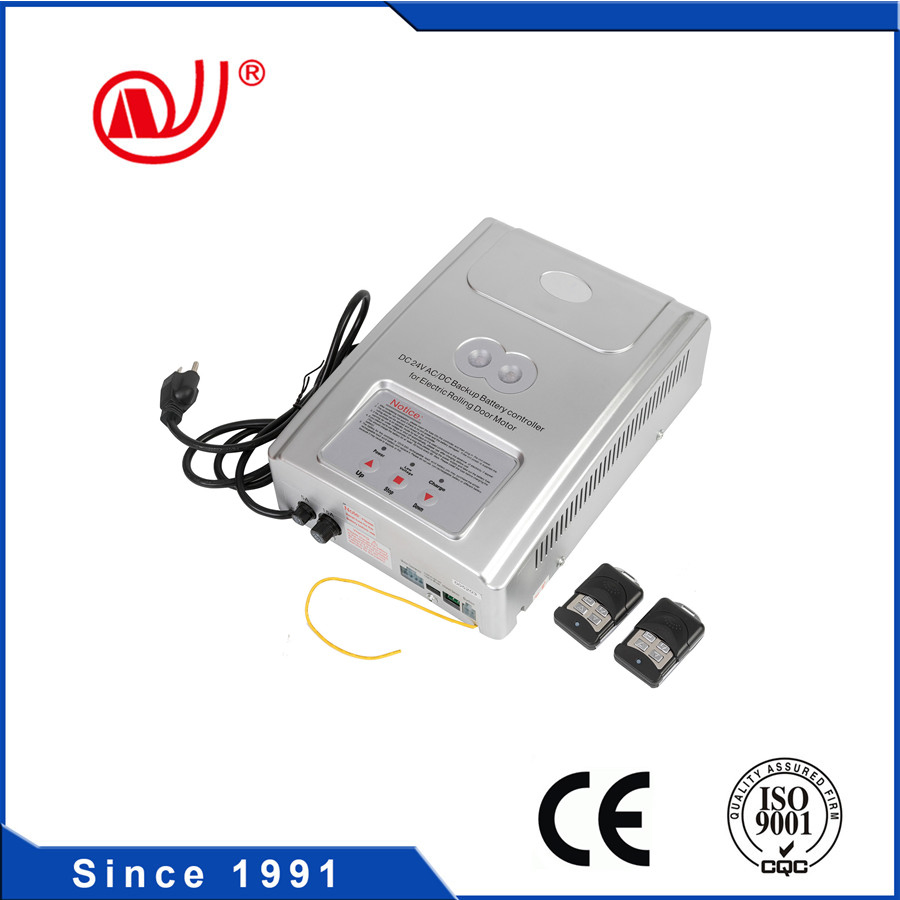

Transmitter-based control for easy operation and a large control range.
Equipped with a highly reliable backup battery that automatically functions when power is off.
Integrated anti-dropping device to prevent accidental injury and ensure complete safety.
| Model No. | Max Lifting Weight (kg) | Max Lifting Height (m) | Rated Input Power (W) | Output Torque (N.m) | Big Reel Sprocket Rotation (r/min) | Chain No. |
|---|---|---|---|---|---|---|
| 220V/230V 50HZ/60HZ AC Motors | ||||||
| AC300KG-1P | 300 | 6.5 | 450 | 168 | 6.2 | 10A |
| AC500KG-1P | 500 | 6.5 | 450 | 343 | 6.2 | 10A |
| AC600KG-1P | 600 | 6.5 | 680 | 412 | 6.2 | 10A |
| AC800KG-1P | 800 | 7 | 700 | 607 | 4.2 | 10A |
| AC1000KG-1P | 1000 | 7 | 700 | 1102 | 3.5 | 12A |
| 380V/415V 50HZ/60HZ AC Motors | ||||||
| AC1000KG-3P | 1000 | 8 | 400 | 1102 | 6.5 | 12A |
| AC1300KG-3P | 1300 | 8 | 600 | 1372 | 6.5 | 12A |
| AC1500KG-3P | 1500 | 8 | 600 | 1610 | 5.7 | 12A |
| AC2000KG-3P | 2000 | 8 | 800 | 2200 | 5.7 | 12A |
| 24V DC Motors | ||||||
| 300KG-DC24V | 300 | 6.5 | 200 | 168 | 4.7 | 10A |
| 500KG-DC24V | 500 | 6.5 | 250 | 343 | 4.7 | 10A |
| 600KG-DC24V | 600 | 6.5 | 280 | 412 | 4.7 | 10A |
Packing: One set shipped across two protective cartons. Inner plastic bags provide moisture protection with strong outer cartons.
* Outside cartons are fully customizable to meet customer demands, including customized logo printing or customized layouts.
Loading Capacity: A standard 20 GP container accommodates approximately 520 to 550 sets of AC motors, or 480 to 520 sets of DC motors.
Delivery Lead Time: Shipment will be completed within 10 to 45 days following receipt of deposit, relative to the order size and customizable requirements.
AC600KG-1P | AC1000KG-1P | AC1500KG-3P | DC600KG-24V

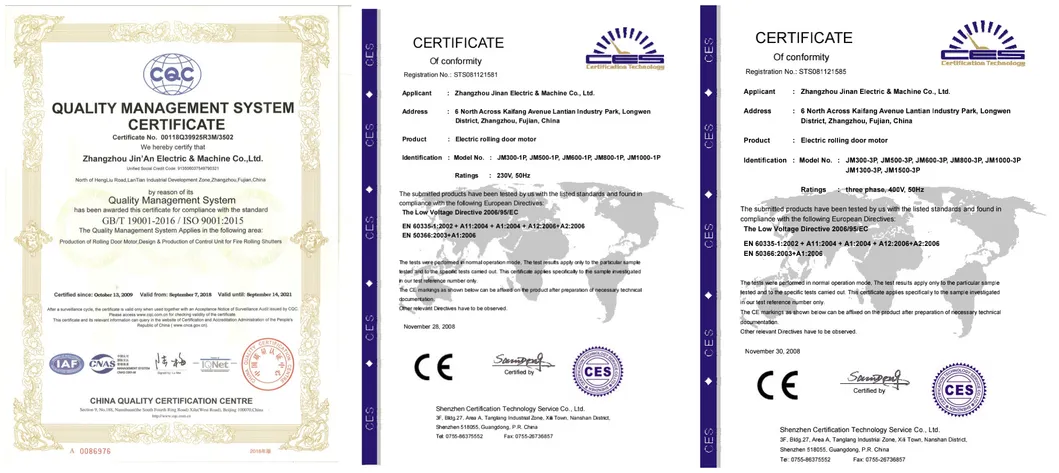

We have been specializing in developing and producing all kinds of electric rolling door motors for more than 30 years with CE and ISO9001:2015 approvals. Featuring robust design, high-stability performance, large output power, ultra-quiet running operations, convenient installation steps, and long functional lifespan. Our motors are highly popular with our worldwide customers in South Africa, Dubai, Iran, India, Malaysia, Myanmar, Thailand, Brazil, and beyond. We welcome customers globally to partner with us!

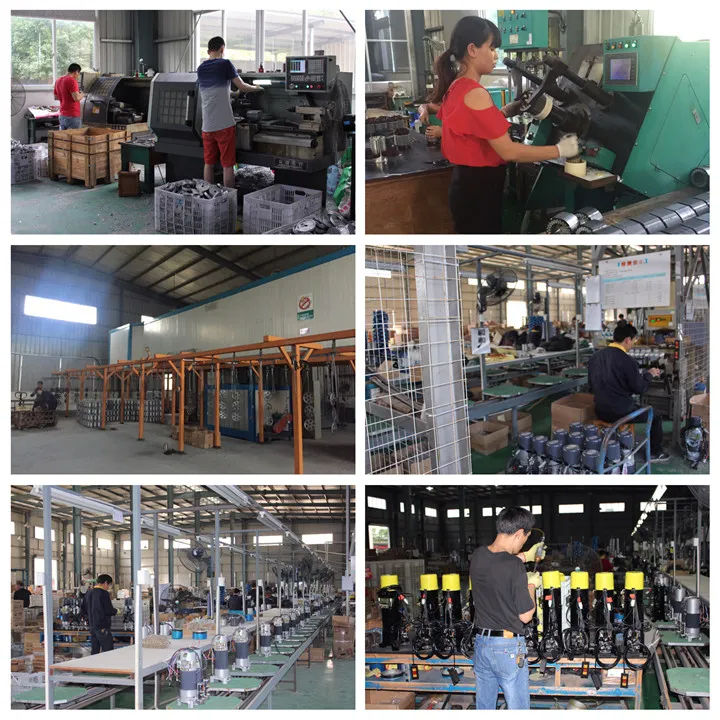

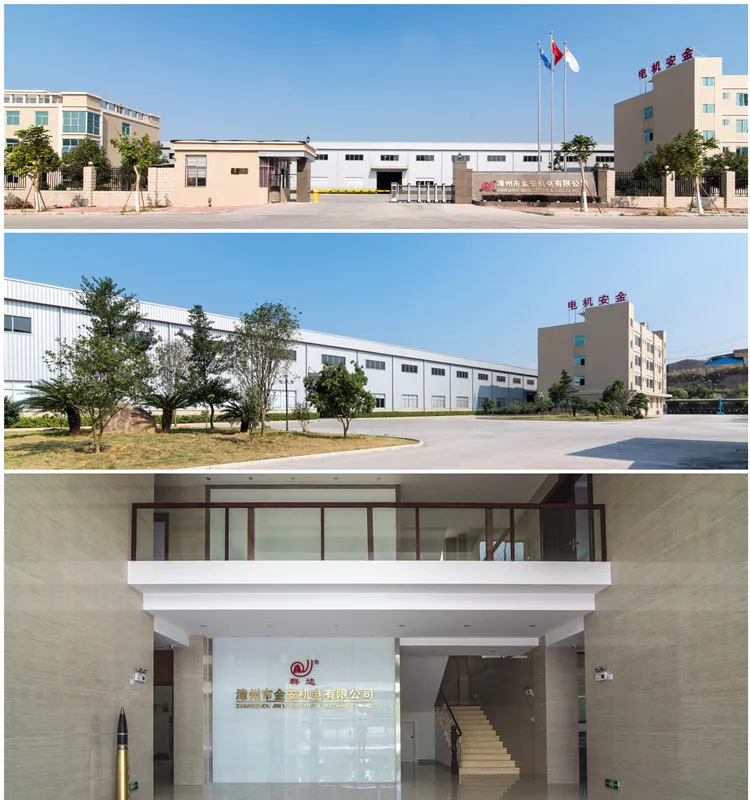

Yes, we are a professional manufacturer of rolling door motors with our own dedicated manufacturing facility.
Normally, if products are in stock, it is 7-10 days. If the products are not in stock, it will take 15-35 days based on your specific order volume and requirements.
Yes! OEM service is completely accepted. Please get in touch with your requirements, and we will formulate competitive quotes and custom samples as quickly as possible.
The main material is 100% Copper Wire. Aluminum Wire is also available as an option for AC motors.
We welcome any order volume! Sample orders to test the build and performance quality are readily available.
We accept Company Bank Transfers. For sample orders, it requires 100% T/T in advance. For standard wholesale orders, 30% T/T is required in advance, with the remaining 70% balance settled before shipping.
Thank you so much for visiting our page! We sincerely look forward to your inquiry and welcome you to leave your message or contact us directly.
