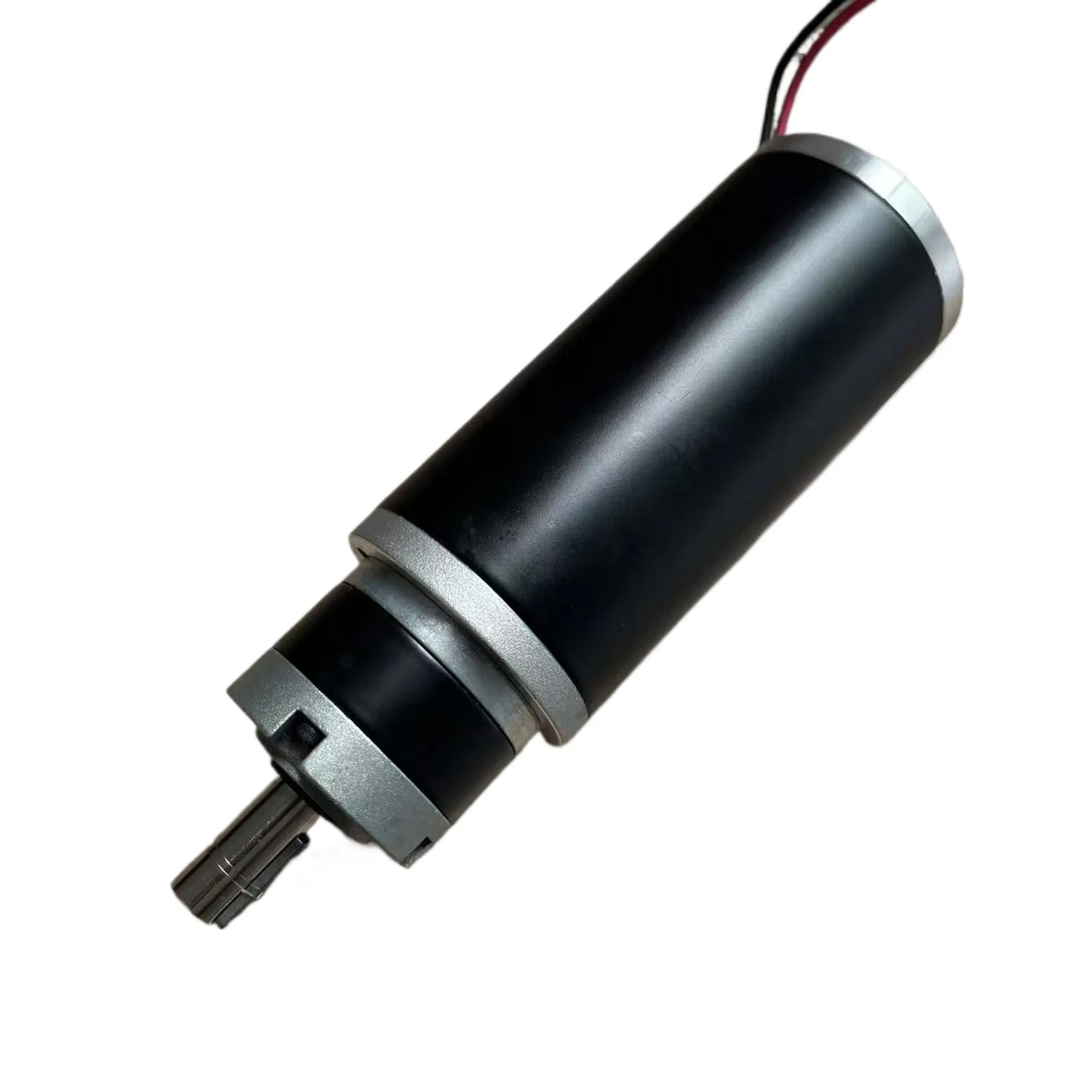

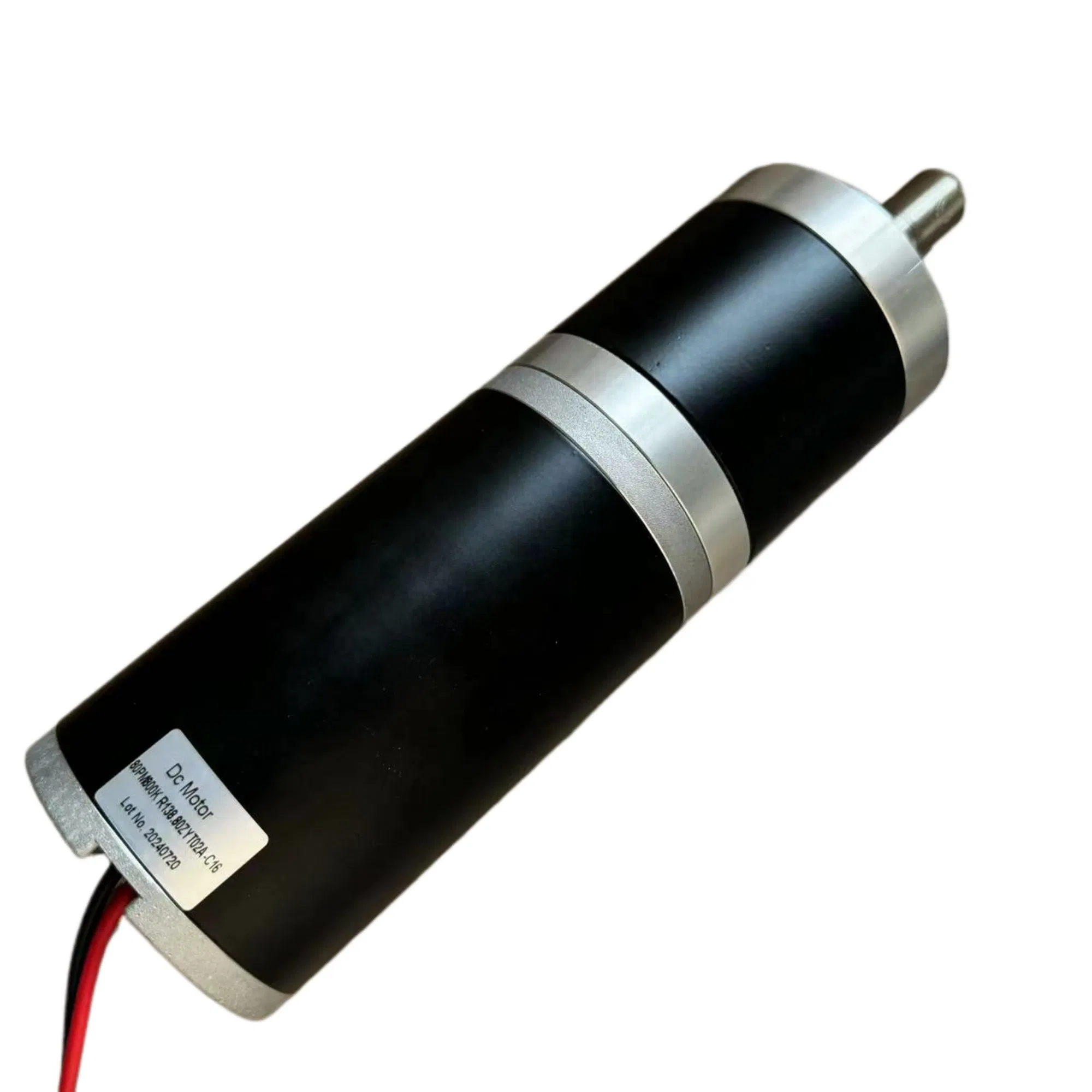

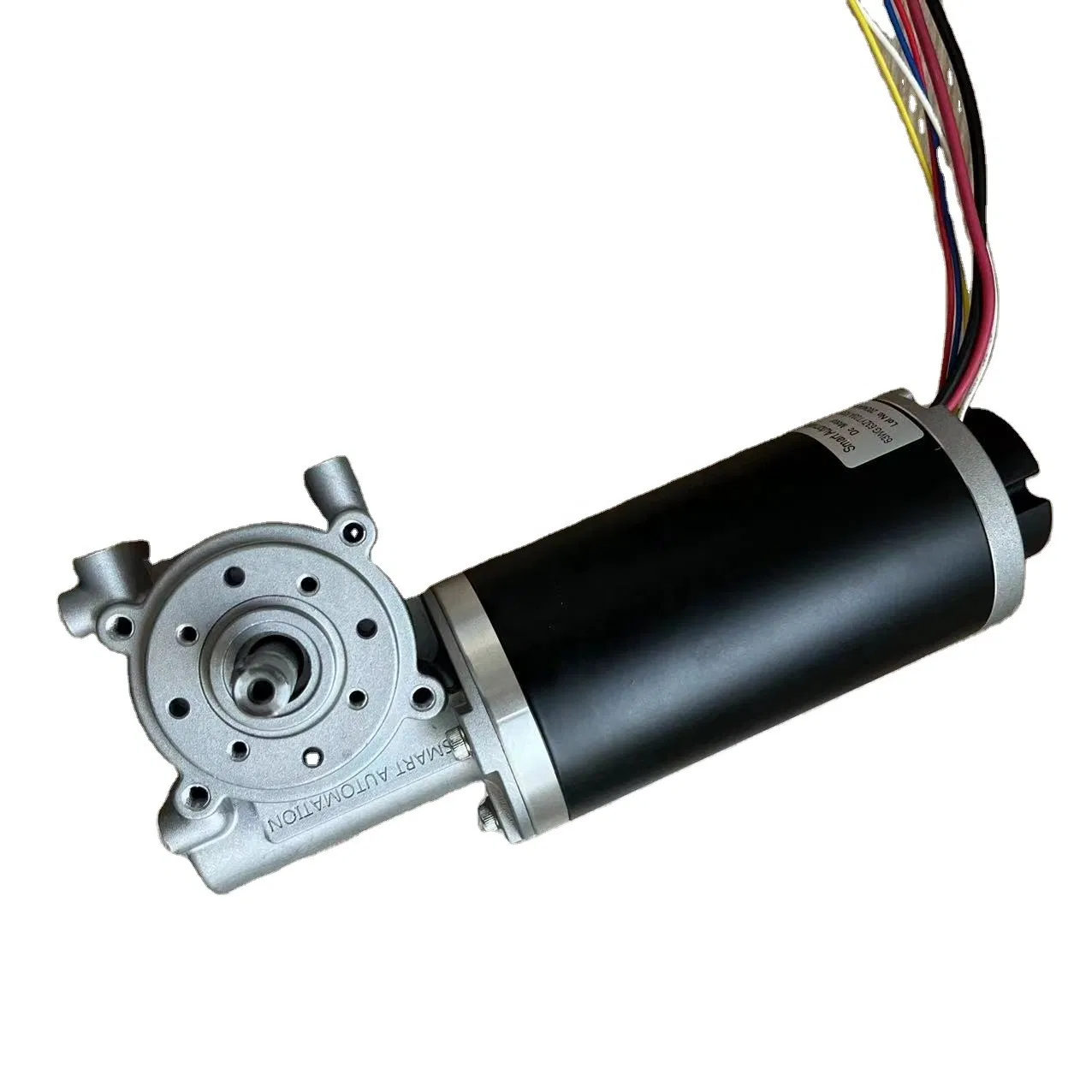

DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder

1 / 5

DC Automatic Door Opener Motor 12V 24V 36V 48V for Sliding Swing Rolling Elevator Garage Door Lift Open and Close with Worm Planetary Gearbox Encoder

Send Inquiry

Product Description

Brush/Brushless DC Motor & Gear Motor for Door Opener

🛠️

Customizable Solutions: We provide customizable voltage, dimensions, performance, shafts, and mounting options to meet your specific requirements.

🔌

Integrated Components: Available with integrated encoders, gearboxes, brakes, and more for a complete motion control solution.

Please Send Inquiry for the Best and Most Cost-Effective Proposal.

Technical Specifications & Options

Diameter	30mm, 36mm, 38mm, 42mm, 52mm, 57mm, 60mm, 63mm, 70mm, 76mm, 80mm, 86mm, 90mm
Rated Voltage	12V, 24V, 36V, 48V
Rated Torque	Up to 3Nm (with gearbox up to 120Nm)
Rated Speed	1rpm up to 15,000rpm
Rated Power	10W up to 1,000W
Protection Class	IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMI	EMI suppression available
Thermal	Thermal protection available
Gearbox	Option with planetary or worm gearbox assembled
Brake	Option with electric brake assembled
Encoder	Option with Optical or Magnetic encoders assembled
Controller	Option with controller integrated for BLDC Motors

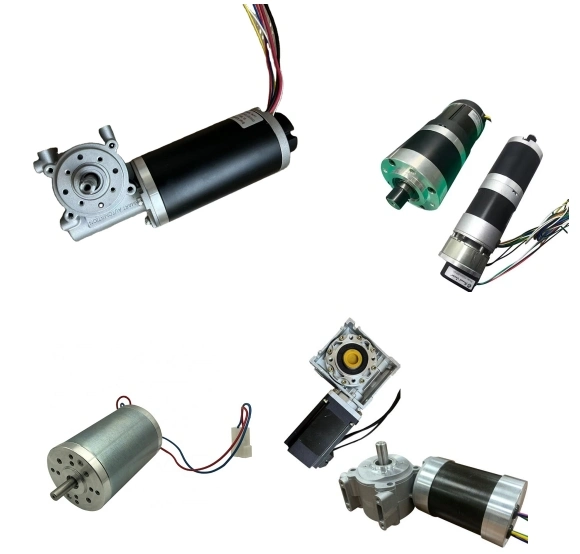

Customized DC Door/Gate Motors:

Available in Brushed or Brushless versions
Configurable with Planetary or Worm gearboxes
Integrated Electric Brake options
High-precision Optical or Magnetic Encoders

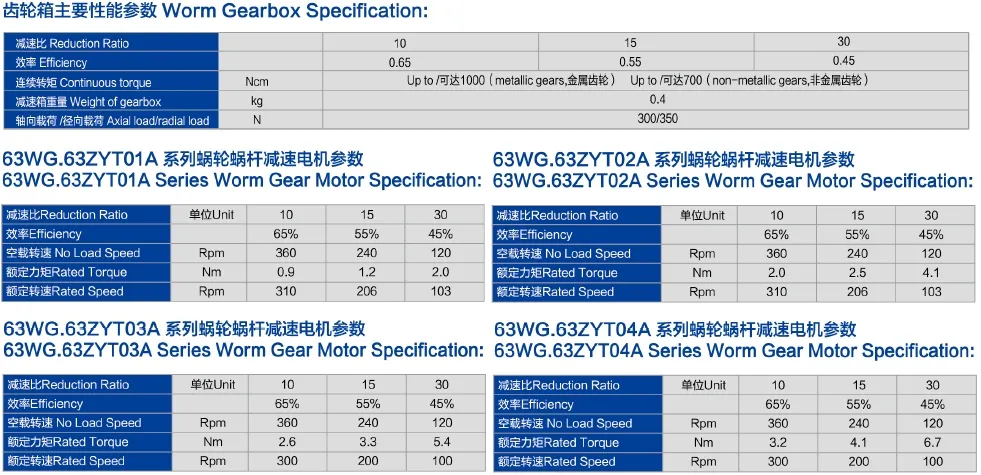

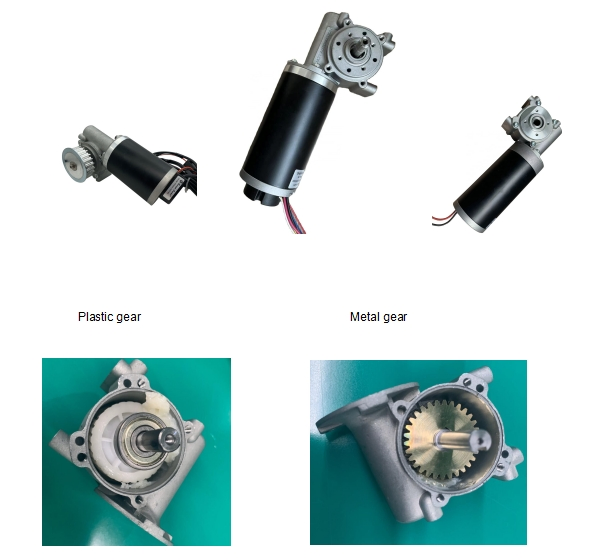

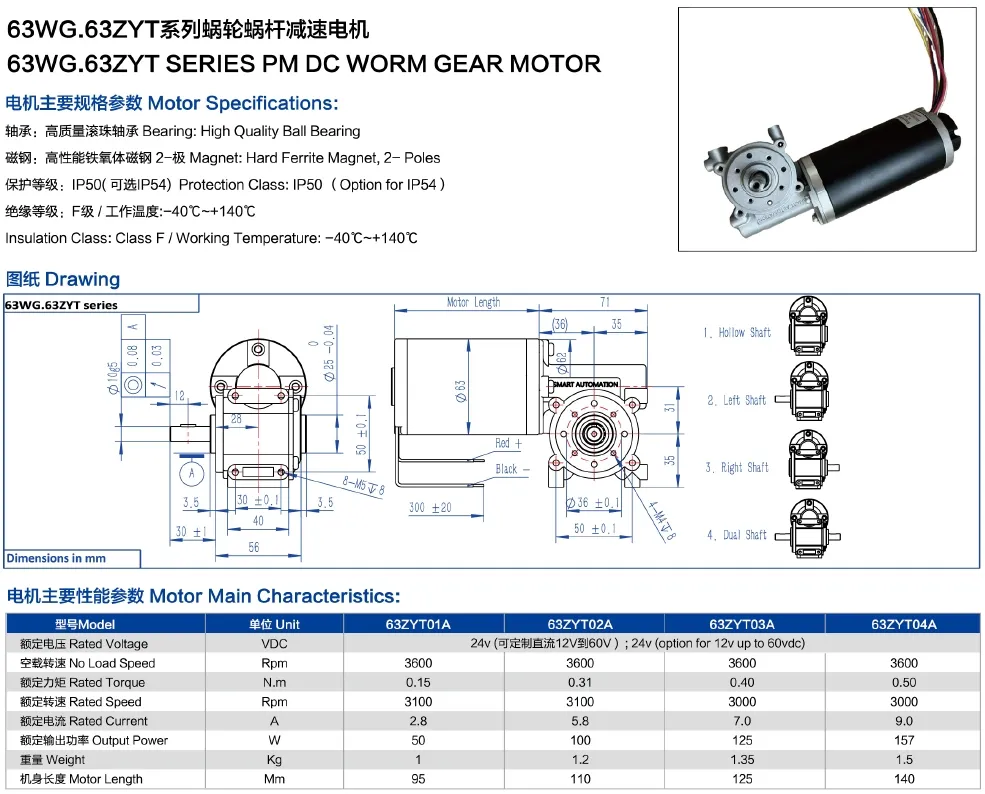

1. Typical Model: 63WG.63ZYT Series PM DC Worm Gear Motor

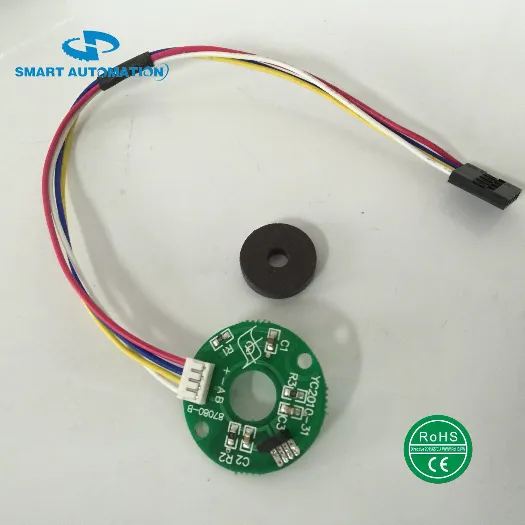

Encoder Options: Support for both optical and magnetic encoders.

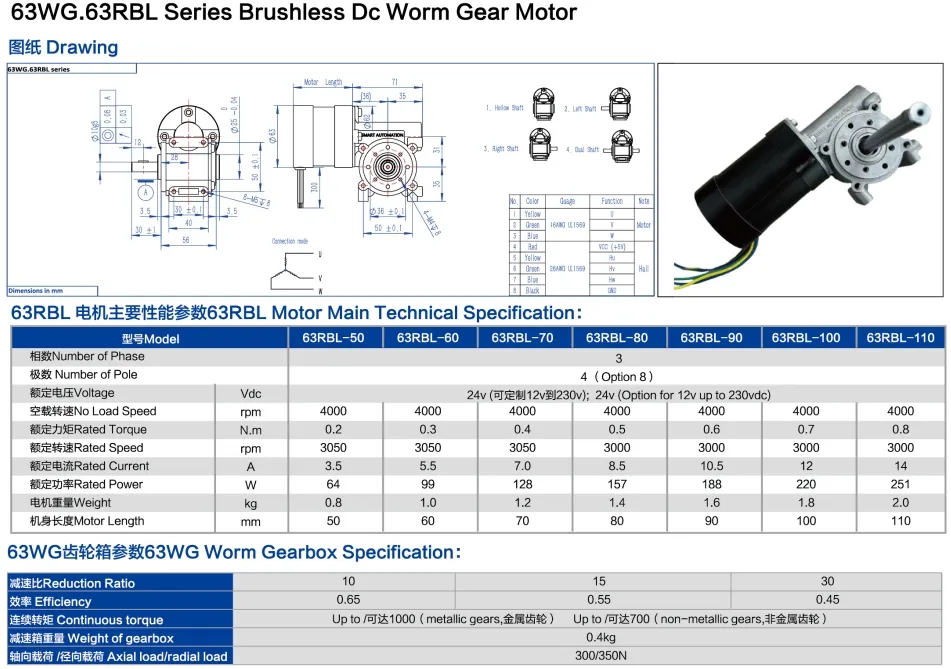

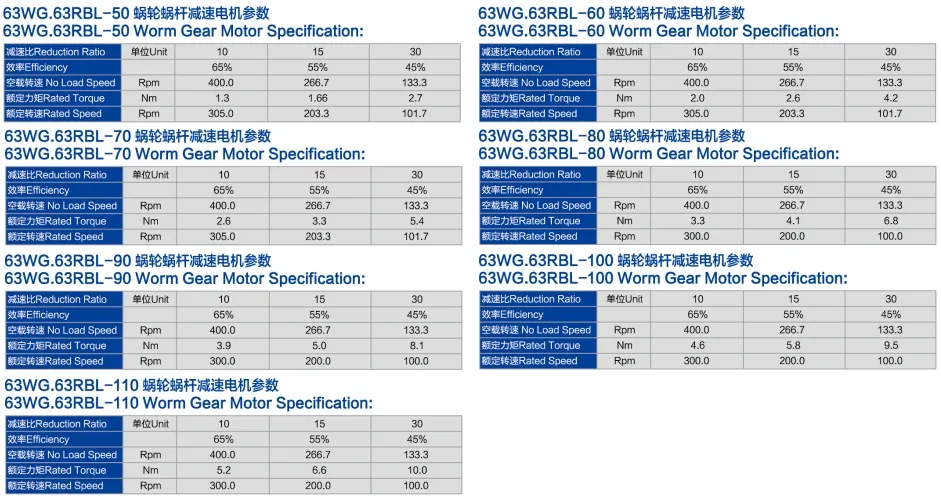

2. Typical Model: 63WG.63RBL Series BLDC Worm Gear Motor

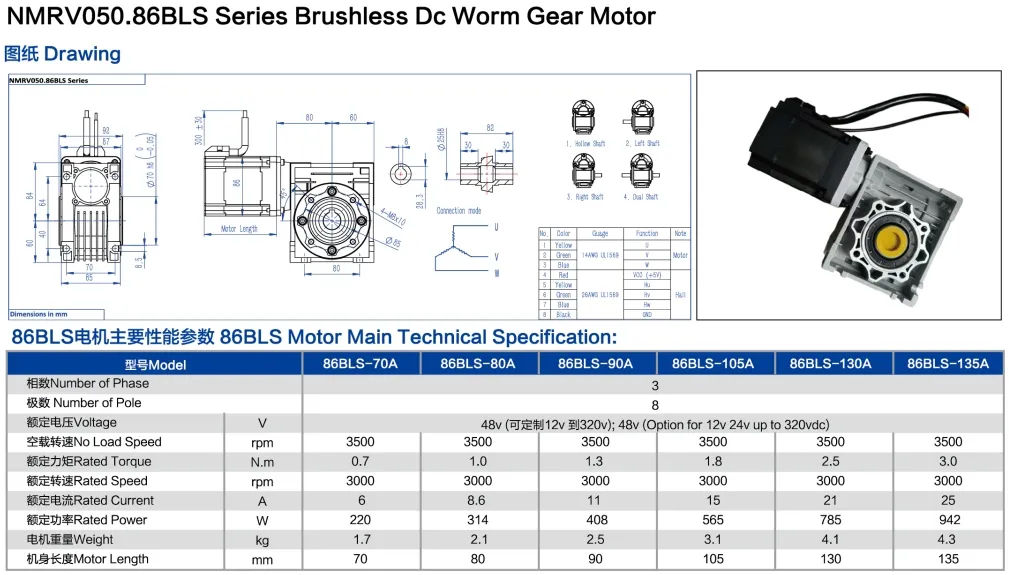

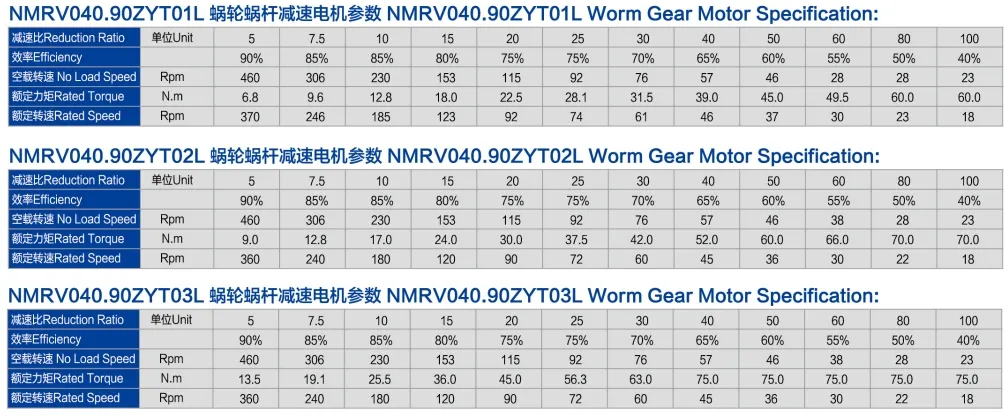

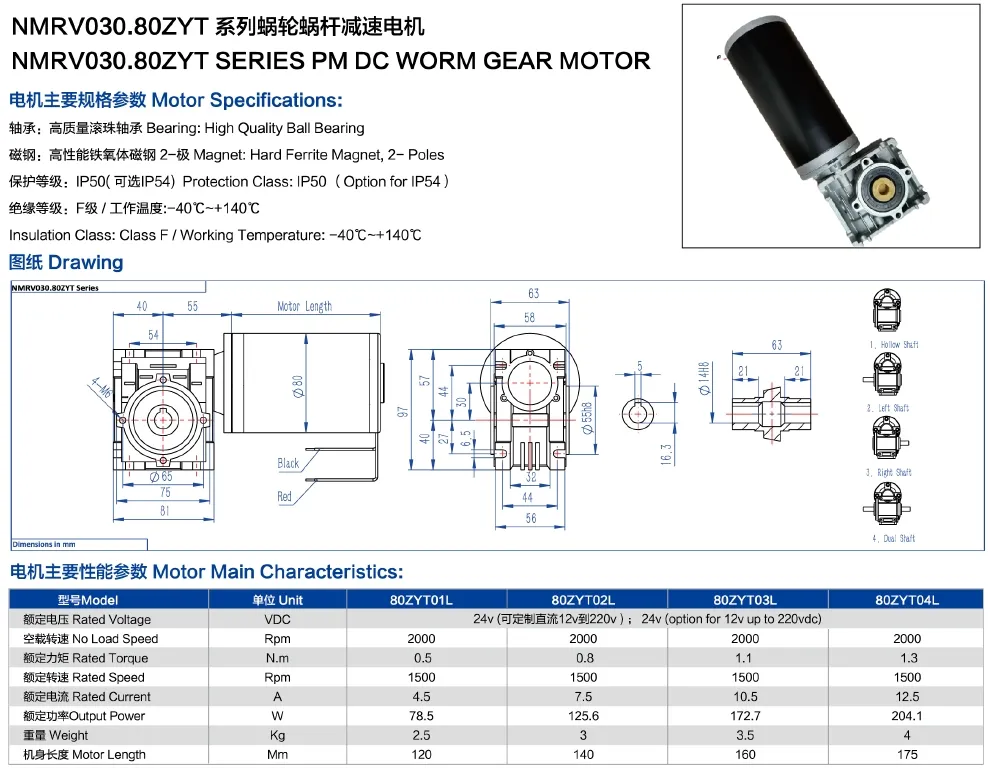

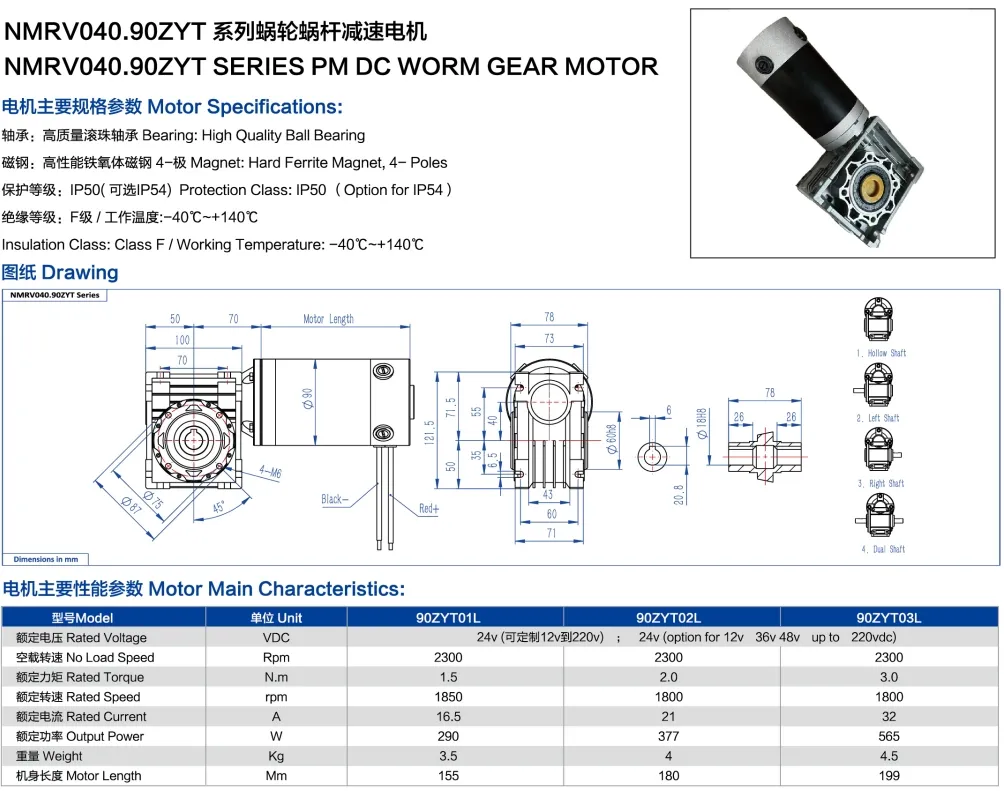

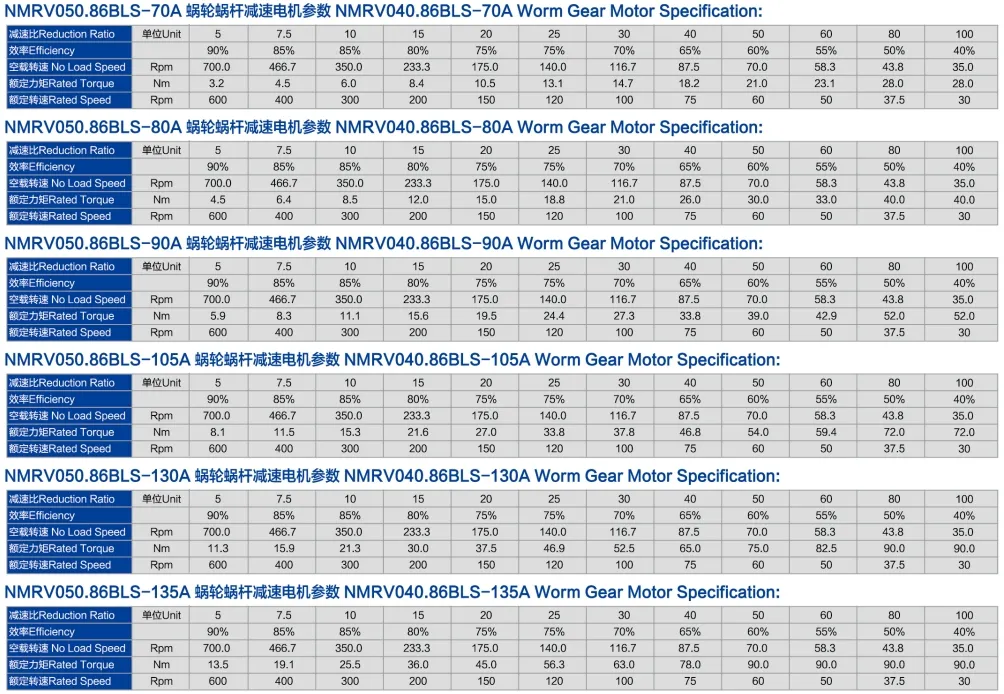

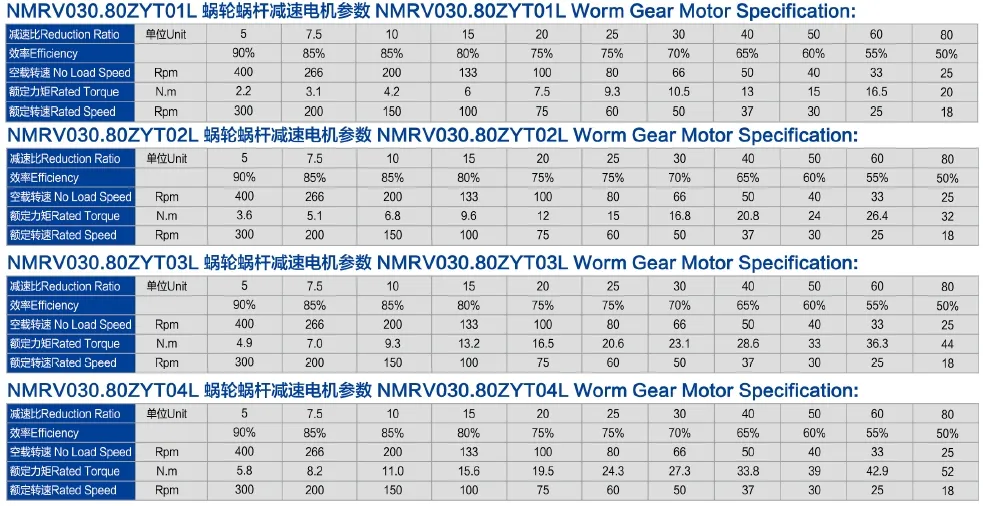

3. More Typical Models

Below are some of our standard models. Please contact us for a full catalog or customized motor specifications.

Frequently Asked Questions

Q1: What voltages are available for your door opener motors? A: We offer standard voltages including 12V, 24V, 36V, and 48V DC, which can be further customized based on your application needs.

Q2: Can I get a motor with a high protection rating for outdoor use? A: Yes, we provide several protection levels ranging from IP40 up to IP67, making them suitable for various environments.

Q3: What types of gearboxes can be integrated with the motors? A: You can choose between planetary gearboxes or worm gearboxes depending on your torque and space requirements.

Q4: Is it possible to add an encoder for precise position control? A: Absolutely. We offer options for both optical and magnetic encoders to be assembled directly onto the motor.

Q5: What is the maximum torque capacity of your gear motors? A: While the base motor provides up to 3Nm, the torque can be increased up to 120Nm when integrated with a gearbox.

Q6: Do you support customized motor shafts and mounting? A: Yes, we specialize in customizable shafts, dimensions, and mounting configurations to ensure the motor fits perfectly into your existing door opener system.
