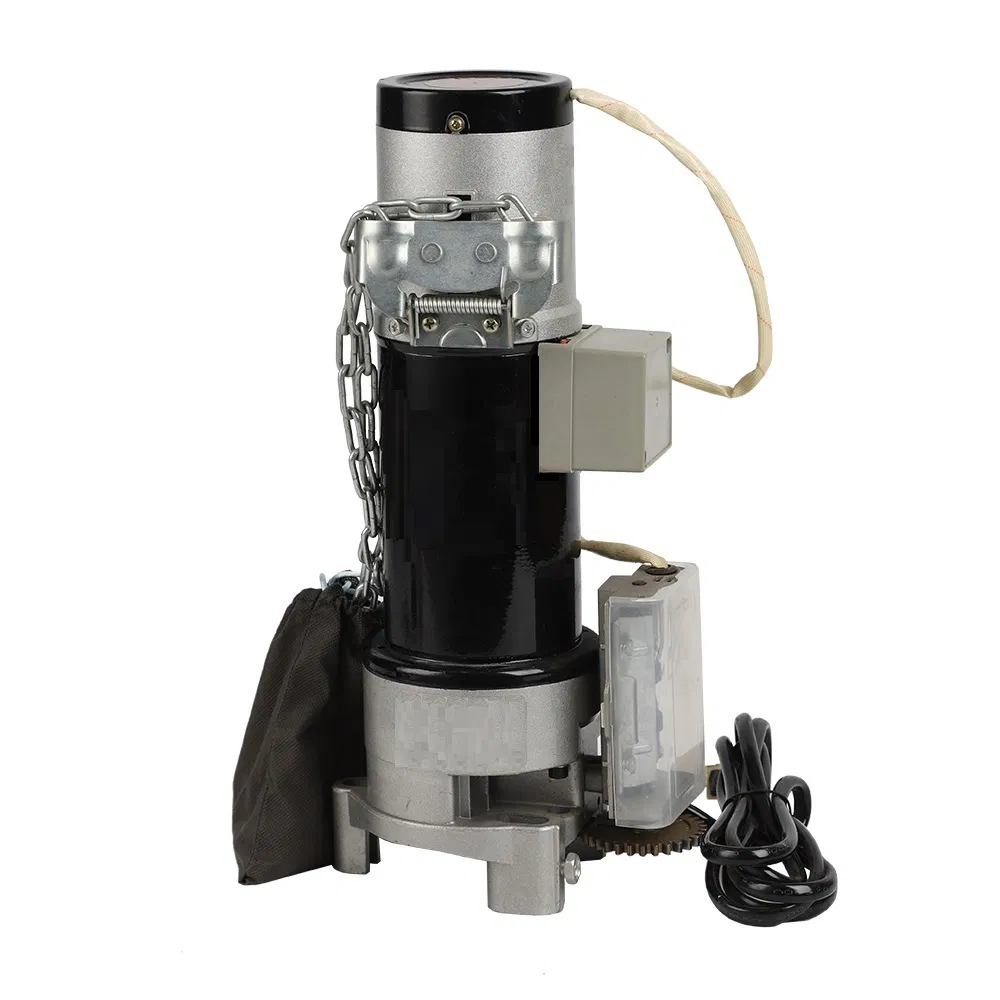

Electric Door Roller & Electric Roller Shutter & Door Motor AC1200kgs-1p, AC1200kgs-3p

Product Description

We are one professional supplier of electric rolling door motor. We developed and supply for our customers roller shutter door motor (300KG-2000KG), and AC-DC rolling door motor, fire-proof rolling door motor and accessories. Our products are made of aluminum alloy casing with a light weight, low noise, long life, power strong, safe, durable quality, anti-roll over. Most of them are widely used in shopping malls, garages, hotels, factories and so on. In addition, we also provide many extra services for customers.
Customize Brand, Color & Packing
We offer customized logo services, allowing you to brand your product with your company's name or logo, perfect for businesses looking to re-sell our products as their own.
Reliable Performance
With a 1-year warranty and free spare parts, you can trust our product to provide reliable performance for years to come. Our customer support team is always available to address any concerns.
Low Noise Operation

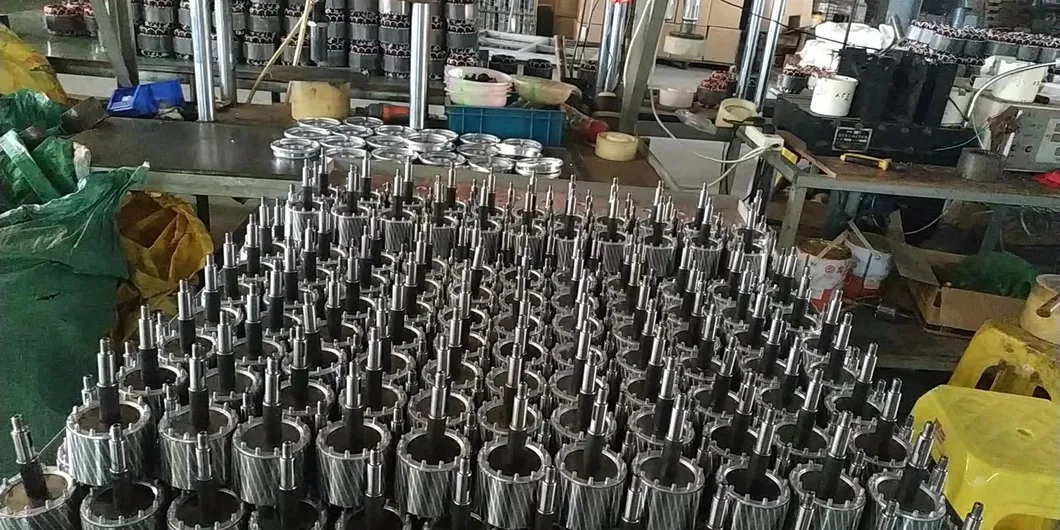

Our motor winding is made from high-quality copper/aluminum, ensuring a low noise operation that won't disturb you or your neighbors.
Multi-Phase Compatibility
This motor is compatible with both single and three-phase power sources, making it a versatile option for various applications.
Technical Specifications
Electric Rolling Door Motor Technical Parameters
Type Rated Power (W) Rated Lifting Strength (KG) Maximum Output Torque (N.m) Output Speed (r/min) Maximum Lift Height (M) Use Chain No Continued Work Time (Min)
600 KG-1P 200 350 168 4.8 6 10A 5
600 KG-1P 250 450 343 4.8 6 10A 5
600 KG-1P 300 500 412 4.8 6 10A 5
600 KG-1P 370 600 412 4.8 6 10A 5
800 KG-1P 550 800 647 3.94 9 10A 8
1000 KG-1P/3P 550 1000 809 3.75 9 12A 13
1300 KG-1P/3P 600 1300 1401 4.4 9 12A 13
1500 KG-1P/3P 800 1500 1617 5.2 9 16A 13
2000 KG-3P 1500 2000 2450 6.0 13 16A 13
Fire-proof Motor Technical Parameters
Type Rated Power (W) Rated Lifting Strength (KG) Maximum Output Torque (N.m) Output Speed (r/min) Maximum Lift Height (M) Use Chain No Continued Work Time (Min)
F-600 KG-3P 250 600 412 4.8 6 10A 5
F-800 KG-3P 300 800 590 3.94 9 10A 5
F-1000 KG-3P 300 1000 617 3.75 9 12A 5
F-1500 KG-3P 800 1500 1617 5.2 9 12A 5
F-2000 KG-3P 1500 2000 2450 3.6 16 16A 13

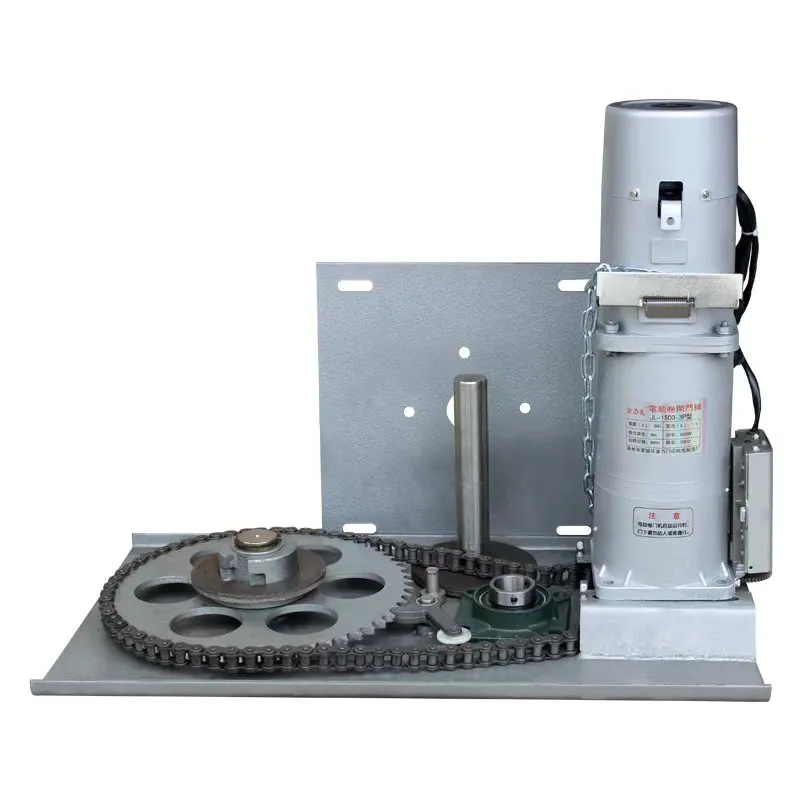

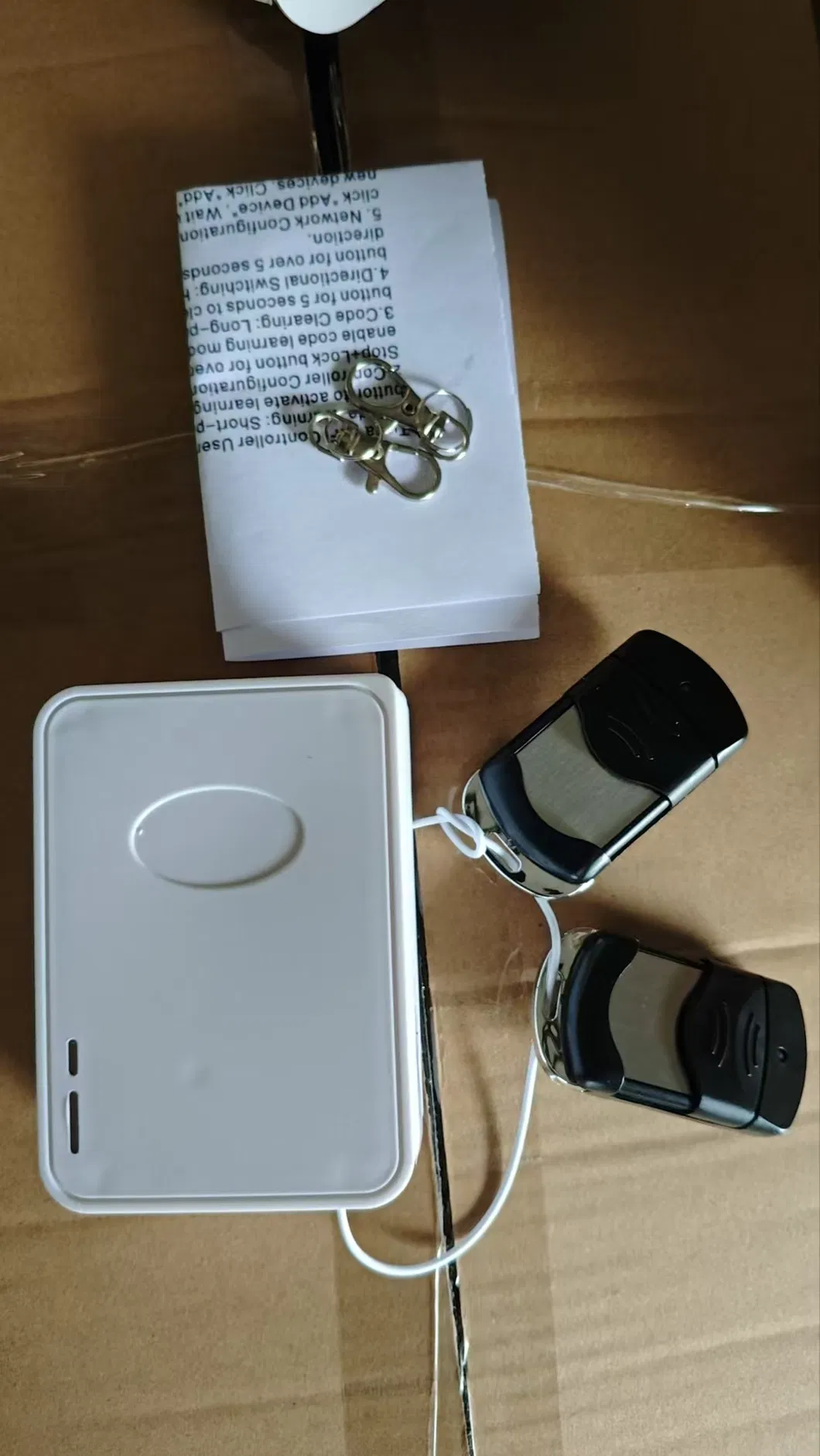

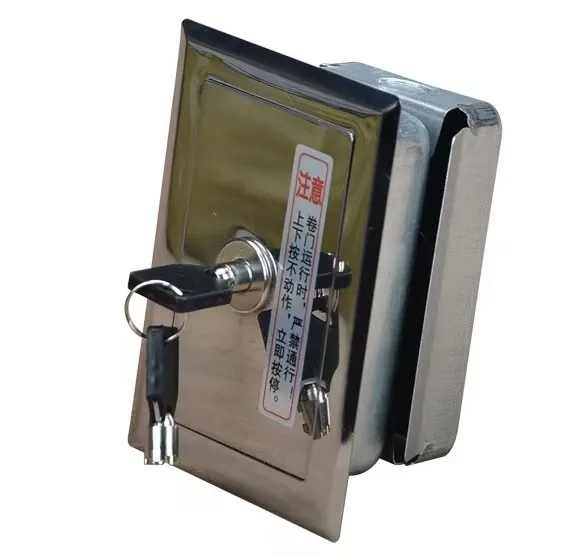

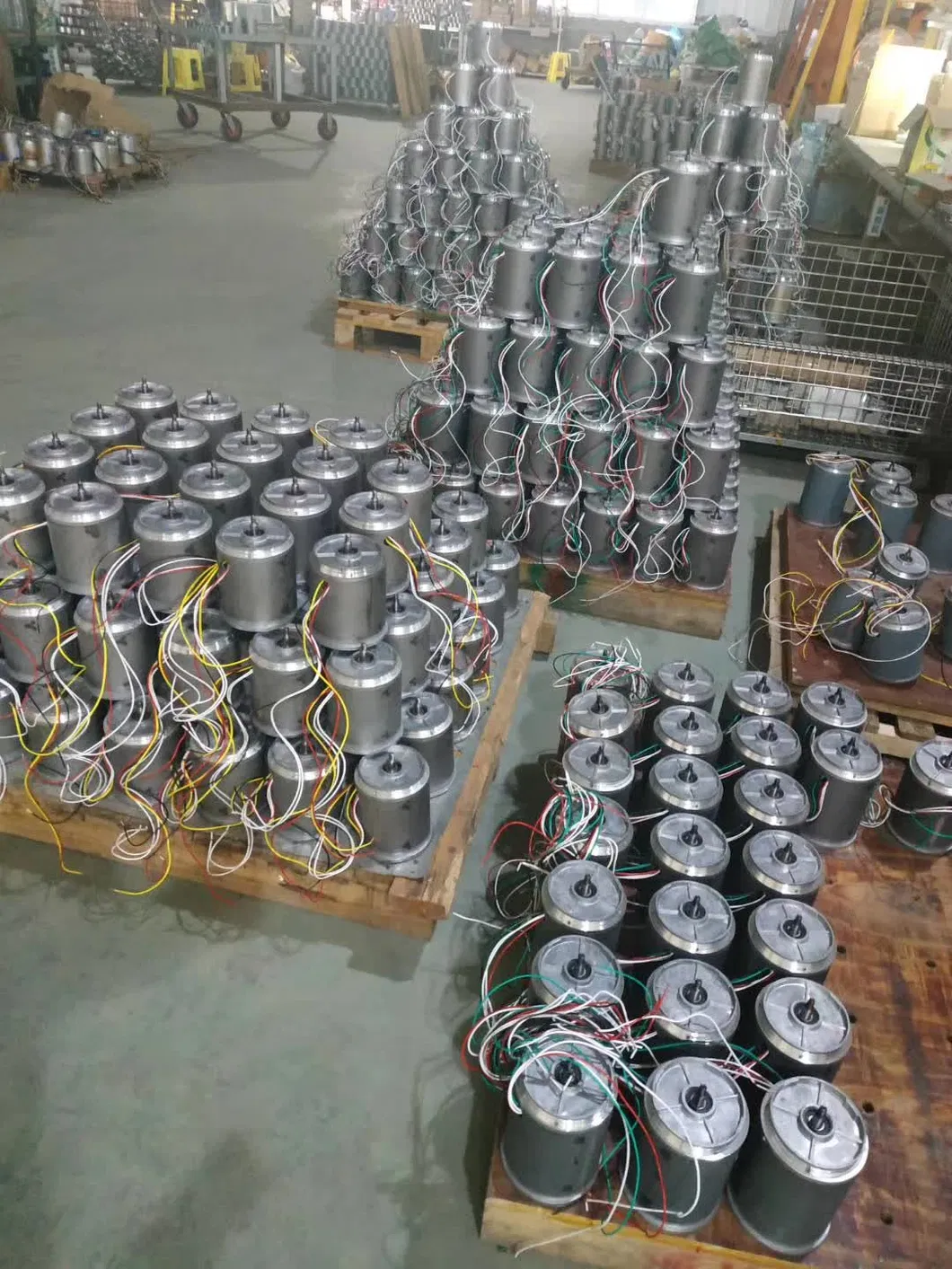

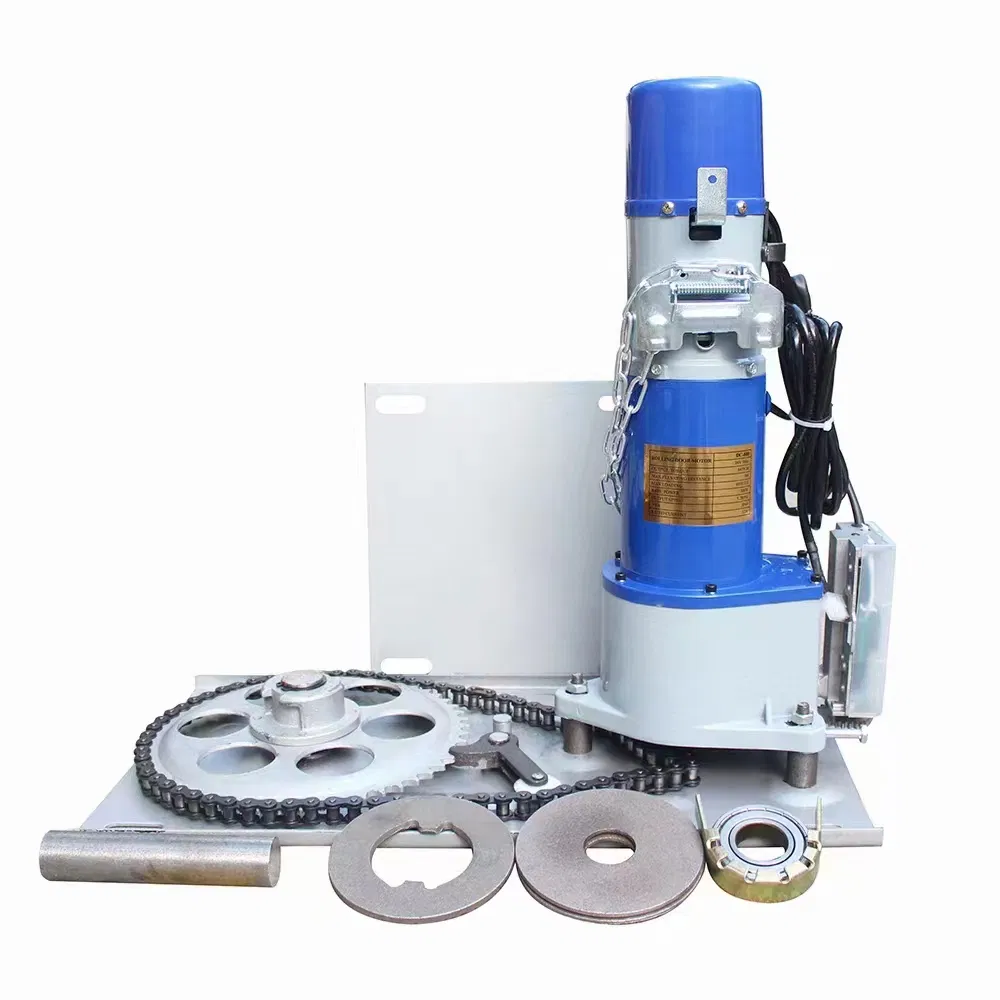

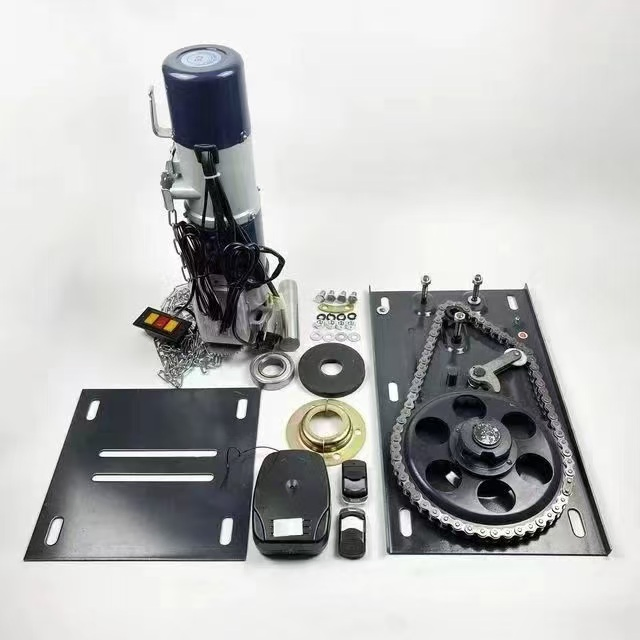

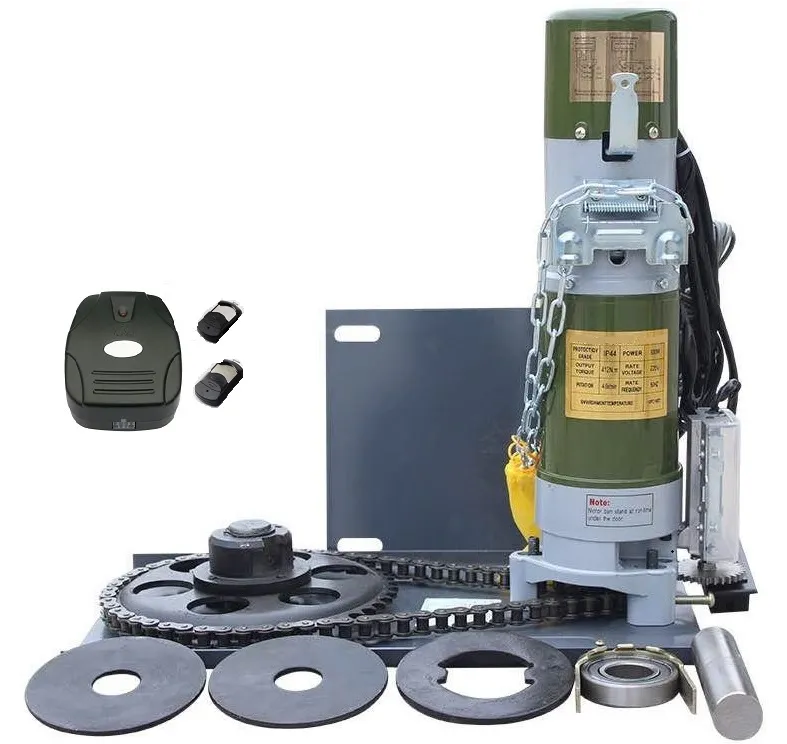

Product Gallery
Frequently Asked Questions
What is the range of lifting capacity for your rolling door motors?
We specialize in developing and supplying a wide array of roller shutter door motors with lifting capacities spanning from 300KG up to 2000KG, including standard AC-DC variations and specialized fire-proof models.
What materials are used in the manufacturing of your motors?
Our products feature high-quality aluminum alloy casings, ensuring lightweight installation. Additionally, our high-grade copper/aluminum motor windings offer exceptional durability, long service life, and robust operating power.
Are your rolling door motors suitable for residential and commercial projects?
Yes. Our electric door motors are engineered for versatility and safety, making them ideal for high-frequency settings like shopping malls, residential garages, hotels, commercial warehouses, and industrial factories.
Do you offer OEM, custom branding, or packaging services?
Absolutely. We offer complete custom branding solutions. You can easily customize the brand logo, casing color, and outer packaging to seamlessly distribute and resell the products under your corporate brand name.
What power phase requirements do the motors support?
Our rolling door motors are designed with multi-phase compatibility. They work reliably with both single-phase (1P) and three-phase (3P) power systems, catering to diverse local electrical standards globally.
What kind of warranty and after-sales support do you provide?
All our rolling door motors come with a 1-year product warranty. We also supply free replacement spare parts along with dedicated, continuous customer support to resolve any operation or maintenance concerns immediately.
