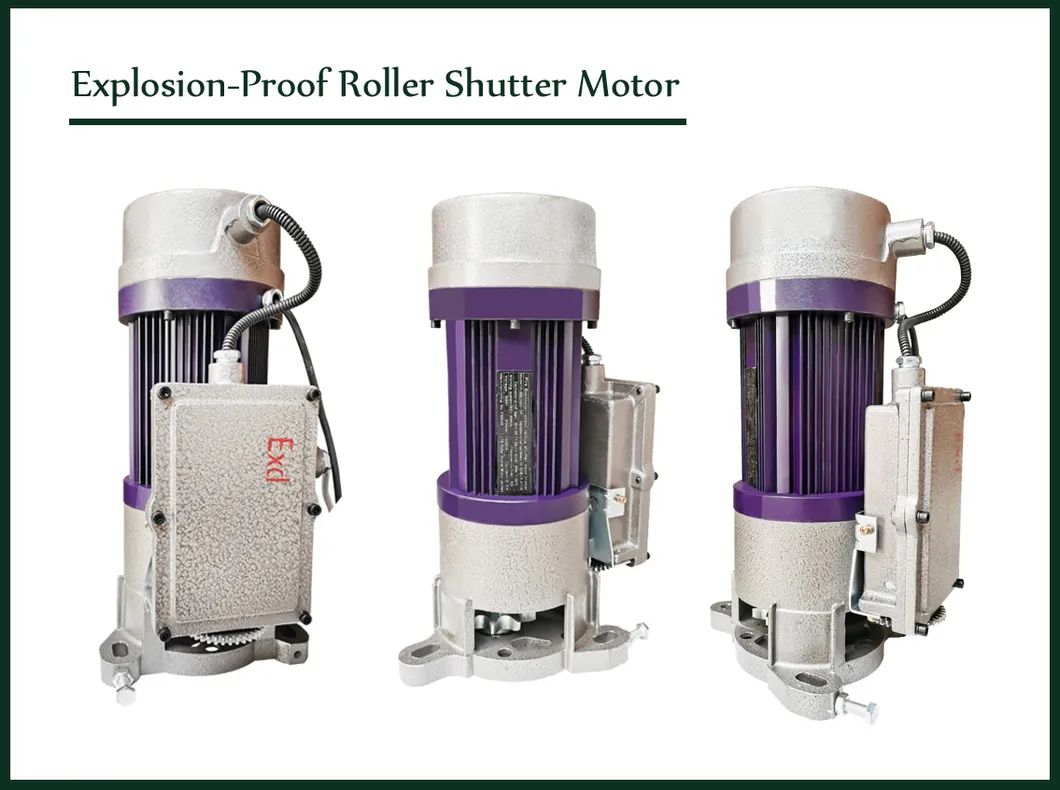

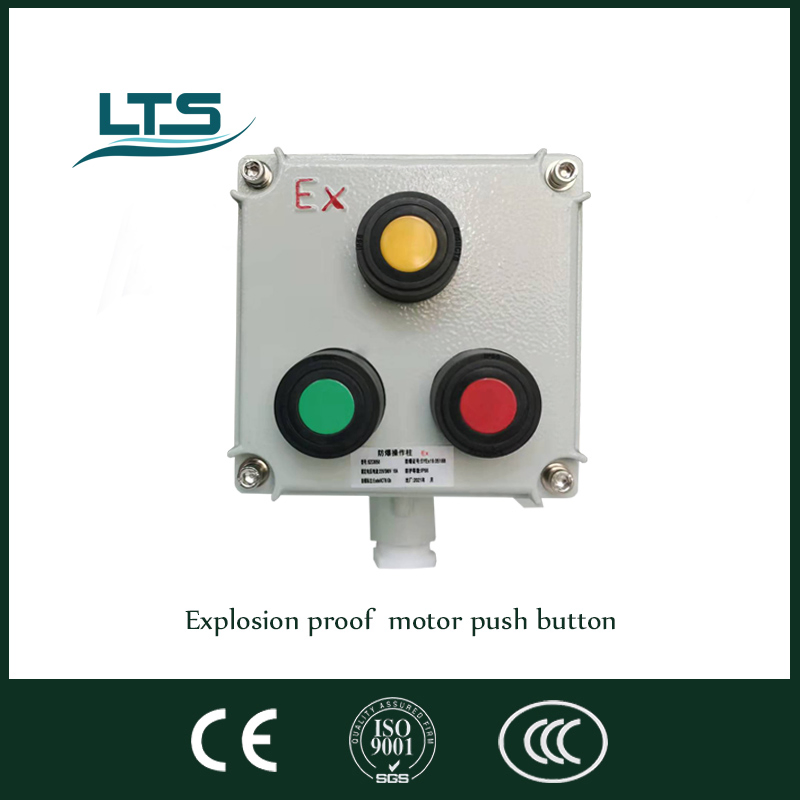

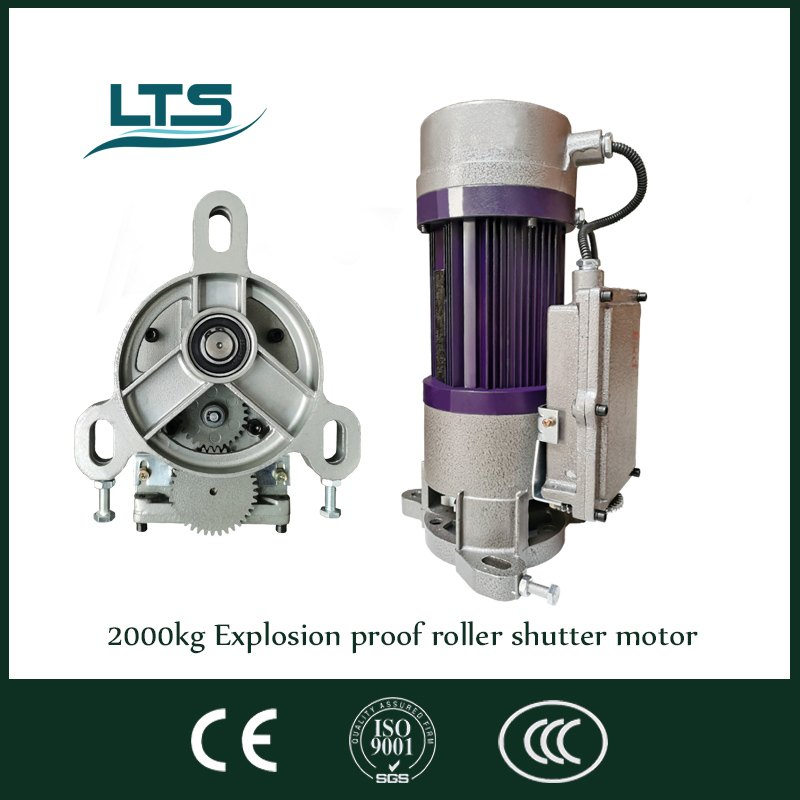

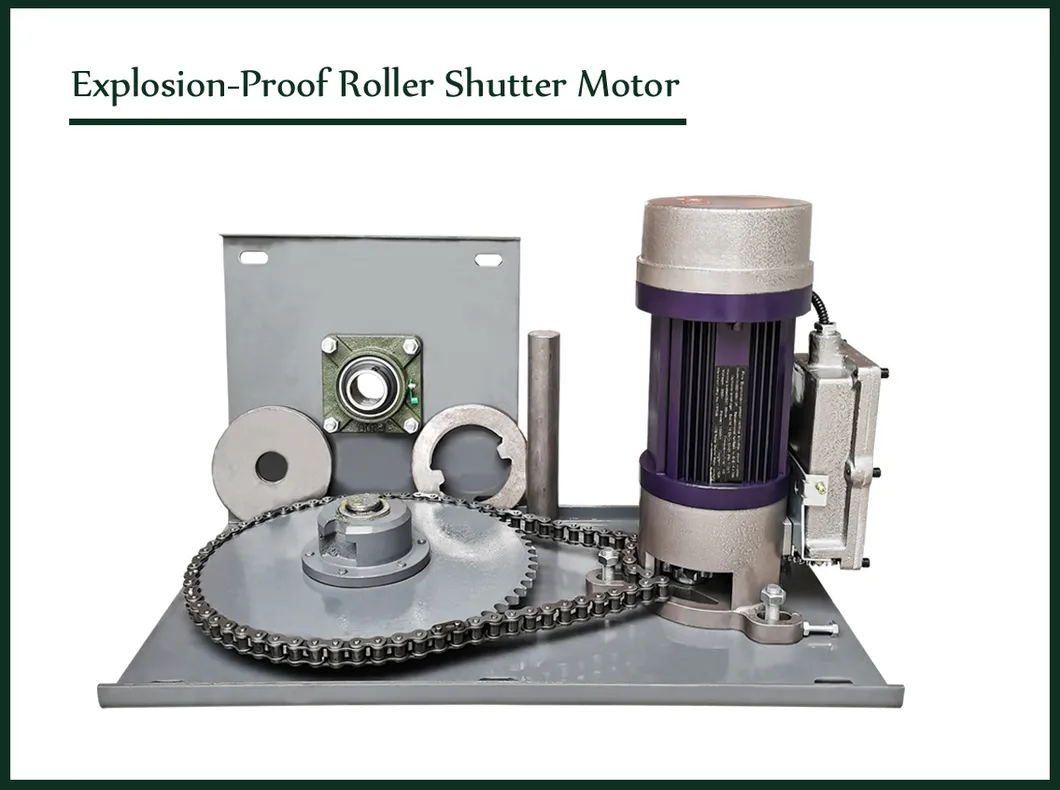

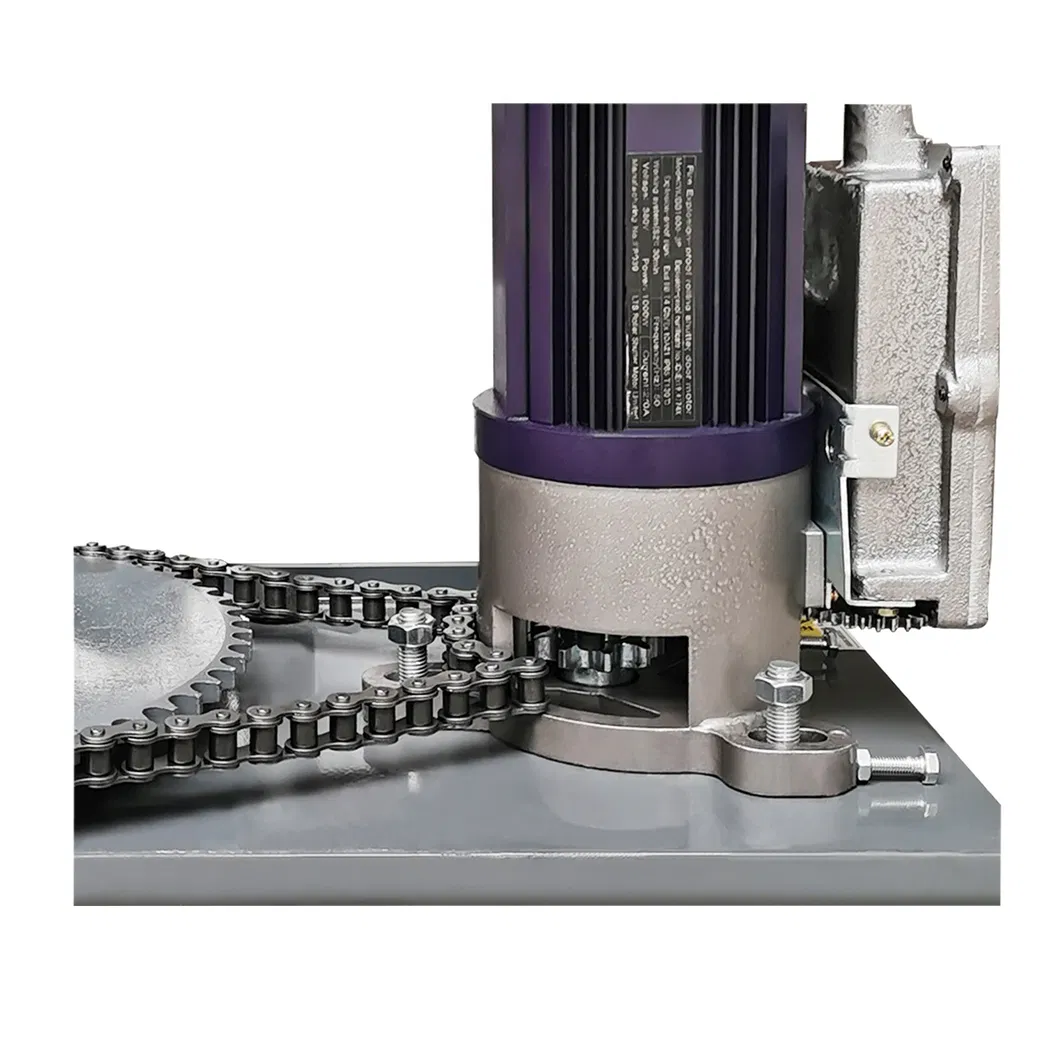

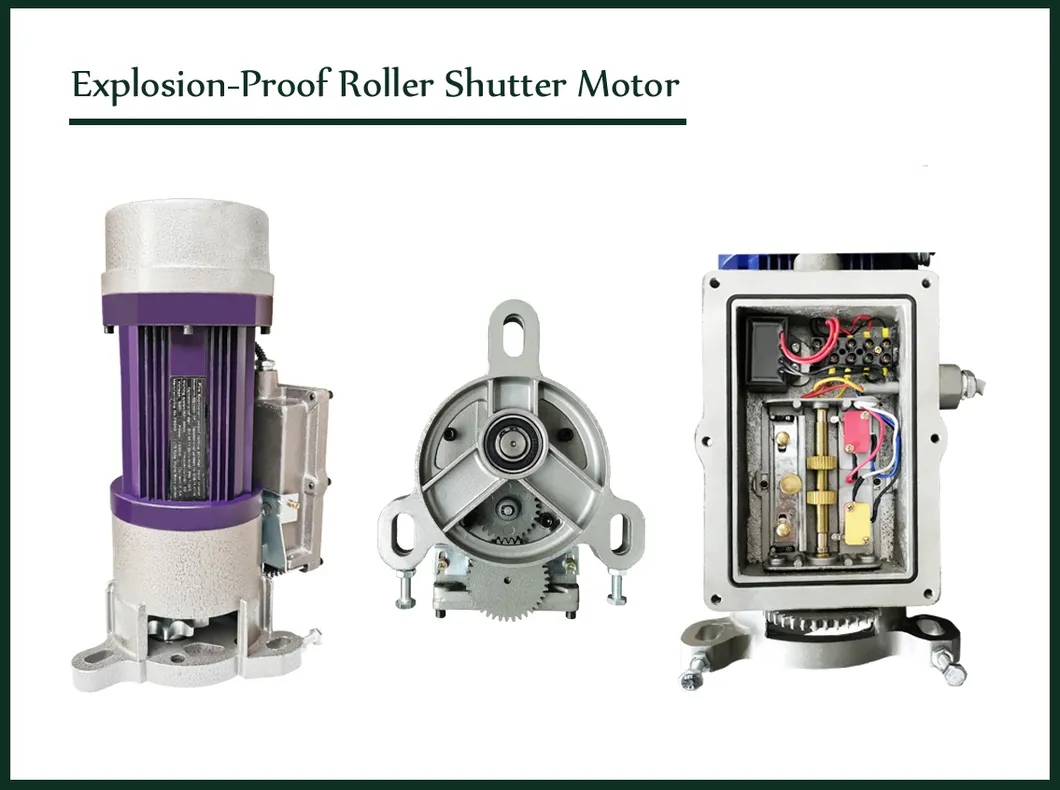

The explosion proof roller shutter motor is suitable for gas stations, chemical plants and other hazardous environments where explosion-proof shutter doors are required. The action button switch can automatically complete the shutter opening or closing. Under special conditions (such as power outages, fire, or electrical faults), the system can be safely manipulated using manual control.
| Model | Rated voltage / Frequency | Rated Power(W) | Max Lifting (kgs/f) | Rated Current(A) | Rated speed(r/min) | Max lifting height | Ambient temp range |
|---|---|---|---|---|---|---|---|
| EP-600-1P | 220 V / 50 Hz | 370 | 600 | 2.2 | 5.4 | 6 meters | -20°C ~ +50°C |
| EP-600-3P | 380V / 50 Hz | 700 | 600 | 1.4 | 5.4 | 6 meters | -20°C ~ +50°C |
| EP-800-3P | 380 V / 50 Hz | 800 | 800 | 1.6 | 3.9 | 9 meters | -20°C ~ +50°C |
| EP-1000-3P | 380V / 50 Hz | 1000 | 1000 | 2 | 3.9 | 9 meters | -20°C ~ +50°C |
| EP-1500-3P | 380V / 50 Hz | 1200 | 1500 | 2.3 | 3 | 9 meters | -20°C ~ +50°C |
| EP-2000-3P | 380 V / 50 Hz | 1300 | 2000 | 2.5 | 3 | 9 meters | -20°C ~ +50°C |
| EP-3000-3P | 380V / 50 Hz | 1500 | 3000 | 5 | 3.3 | 12 meters | -20°C ~ +50°C |
| EP-4000-3P | 380 V / 50 Hz | 3000 | 4000 | 7.8 | 3.2 | 12 meters | -20°C ~ +50°C |

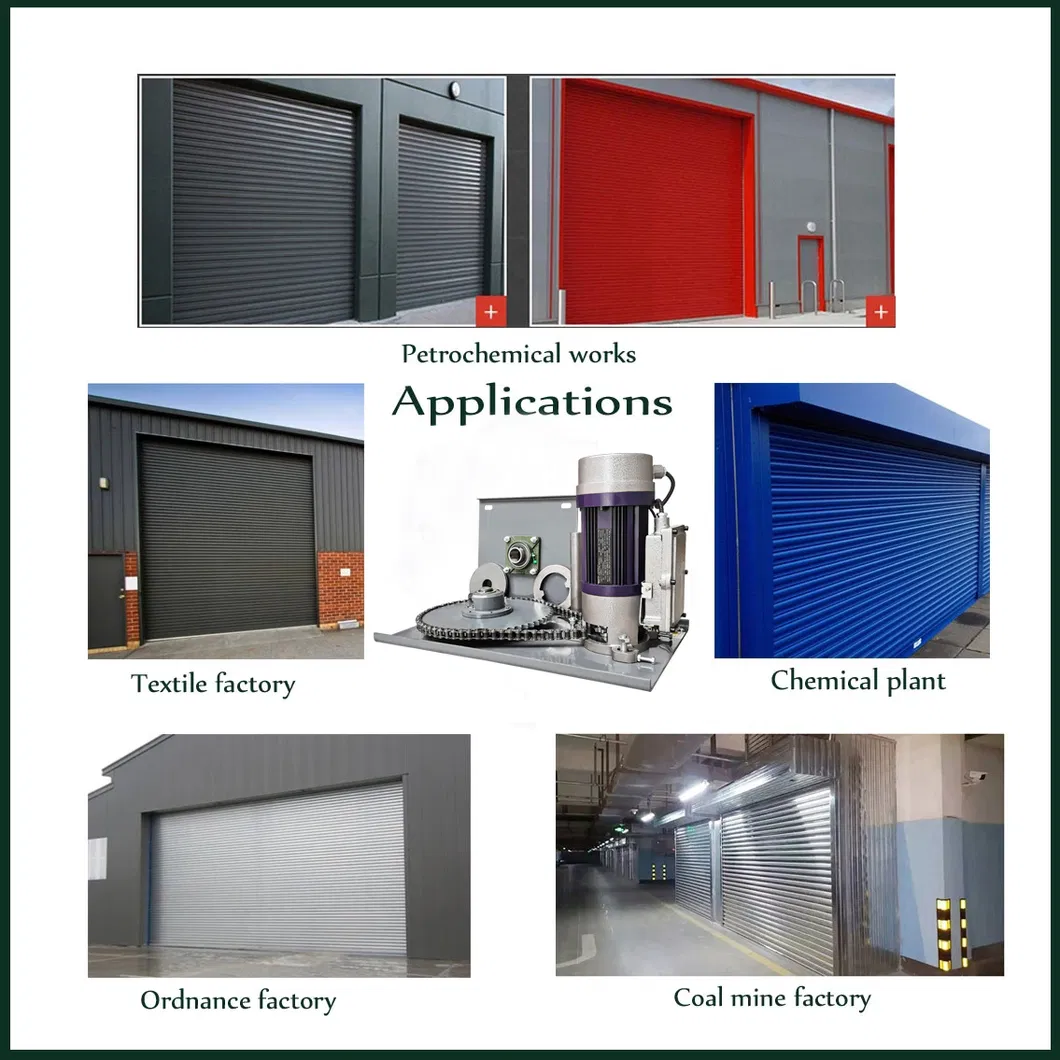

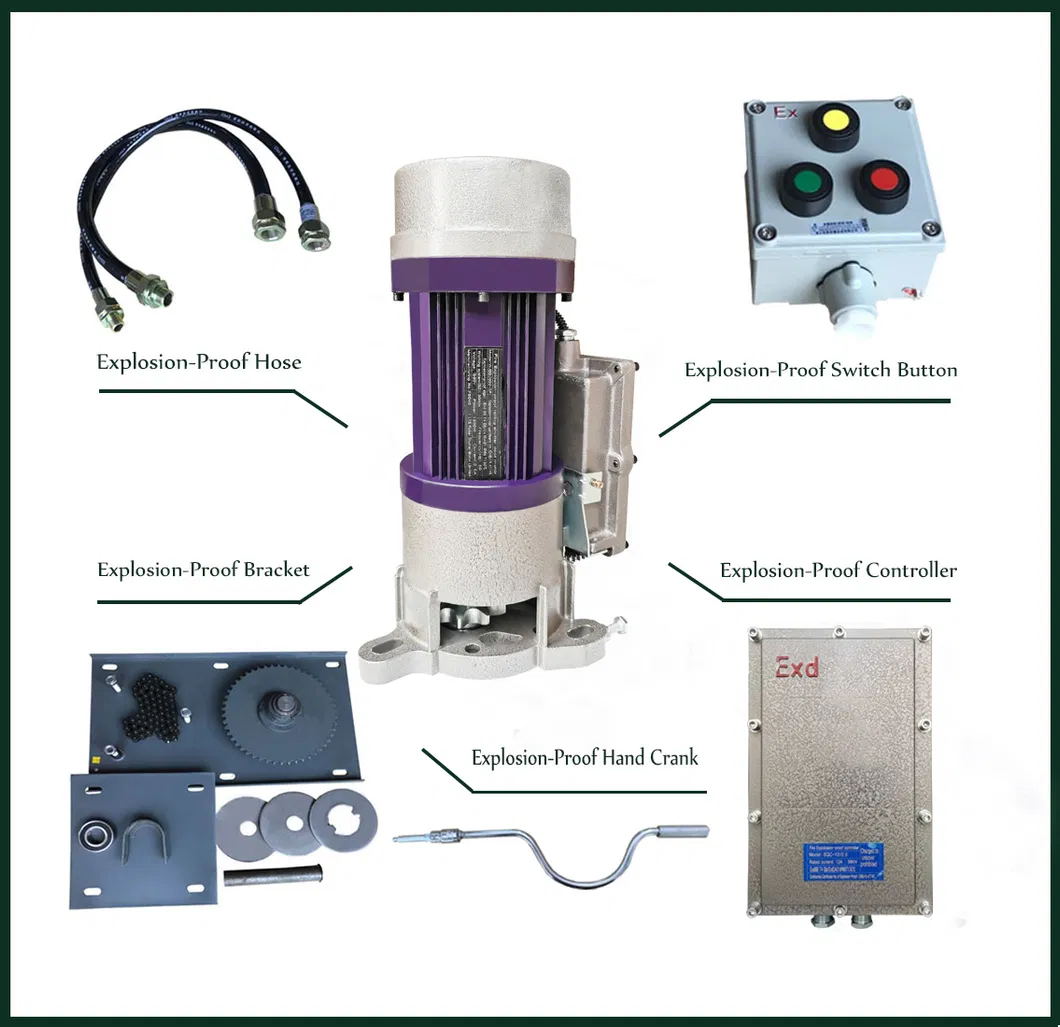

Explosion proof roller shutter motors are suitable for gas stations, chemical plants, and other safety-critical environments that mandate robust, spark-free security doors. The automated action buttons control shutter operations, while a secure manual override configuration ensures safe functionality during power cuts, fire threats, or technical faults.
