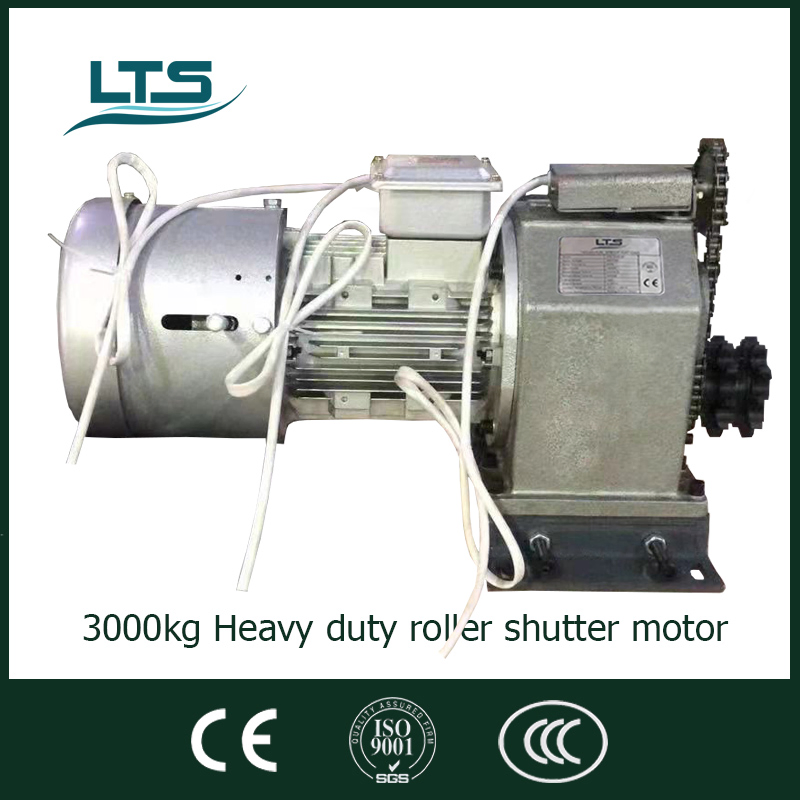

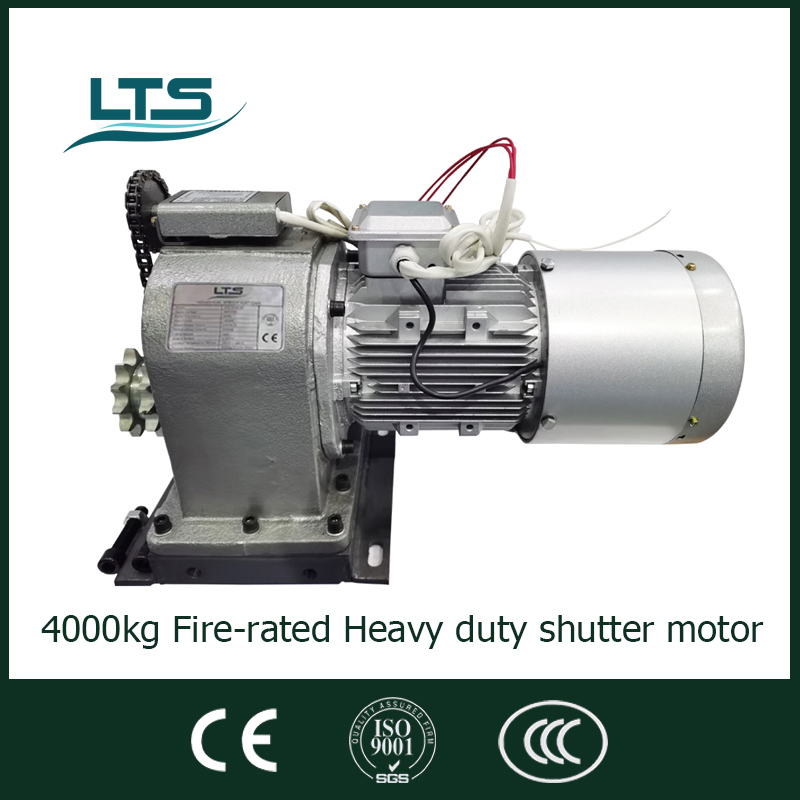

3000-3p Fire Rated Heavy Duty Shutter Motor 4000kg Fire-Proof Operator

Basic Info.

Model NO. FJJ-3000-3P

Number of Stator Three-Phase

Function Driving

Casing Protection Closed Type

Number of Poles 6

Starting Mode Auto-induction Voltage-reduced Starting

Certification ISO9001, CE

Voltage 380V

Frequency 50Hz

Rated Current 2.5A

Rated Speed 3 Rpm

Rated Power 1500W

Transport Package Wooden Box

Specification 1100*800*780

Origin China

HS Code 8425110000

Production Capacity 50000 Sets/Per Year

Product Description

Fire-rated shutter motors are suitable for driving rolling shutter doors in shopping malls, large warehouses, large workshops, and other buildings. Supporting the use of an intelligent fire shutter controller, in the event of a fire within the building, the fire shutter closes automatically to partition smoke in the fire risk area. With fire intelligent drive control, these motors are widely used in buildings, garages, shopping malls, factories, warehouses, docks, airports, and other construction sites, representing the ideal choice for modern building fire safety.

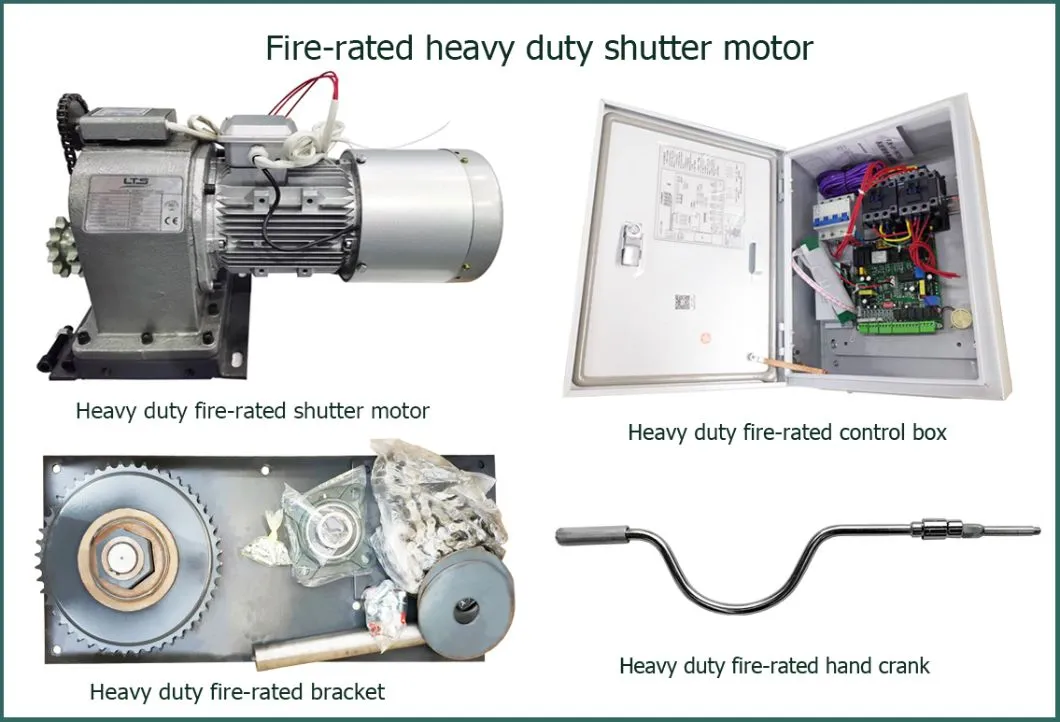

3000-3p Fire Rated Heavy Duty Shutter Motor 4000kg Fire-Proof Operator

Product Features / Advantages / Benefits

Large motor power and strong lifting force, suitable for large rolling doors
Stylish design, up-to-date Technology
Overheat protection and overload protection
Low noise
Easy manual operation when power failure
Precise/accurate Limit switch
Easy to install and adjust
Low maintenance
Security, with anti-fall protection device
Long service life, Durable

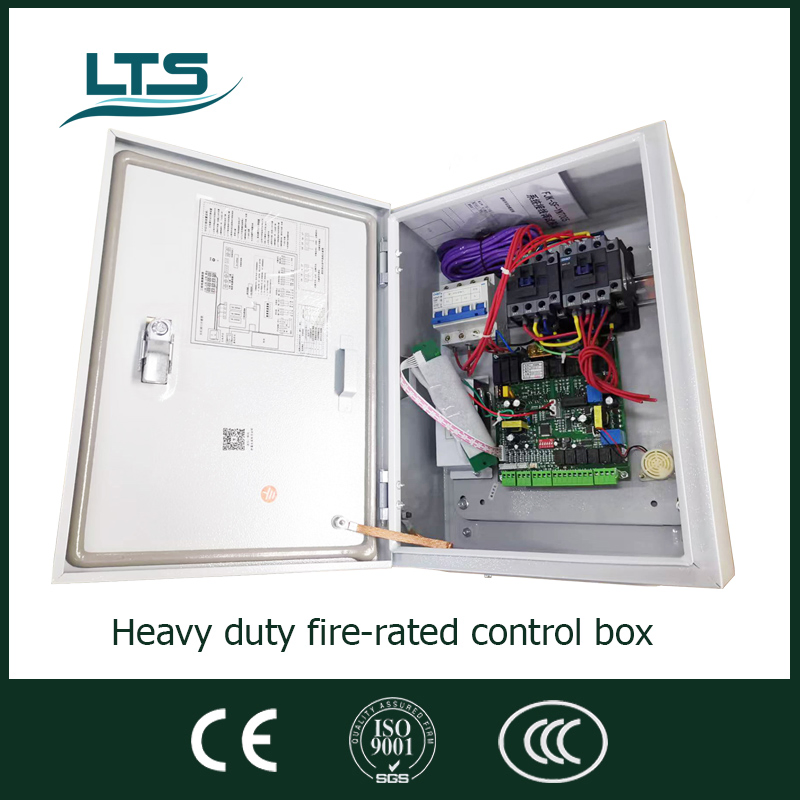

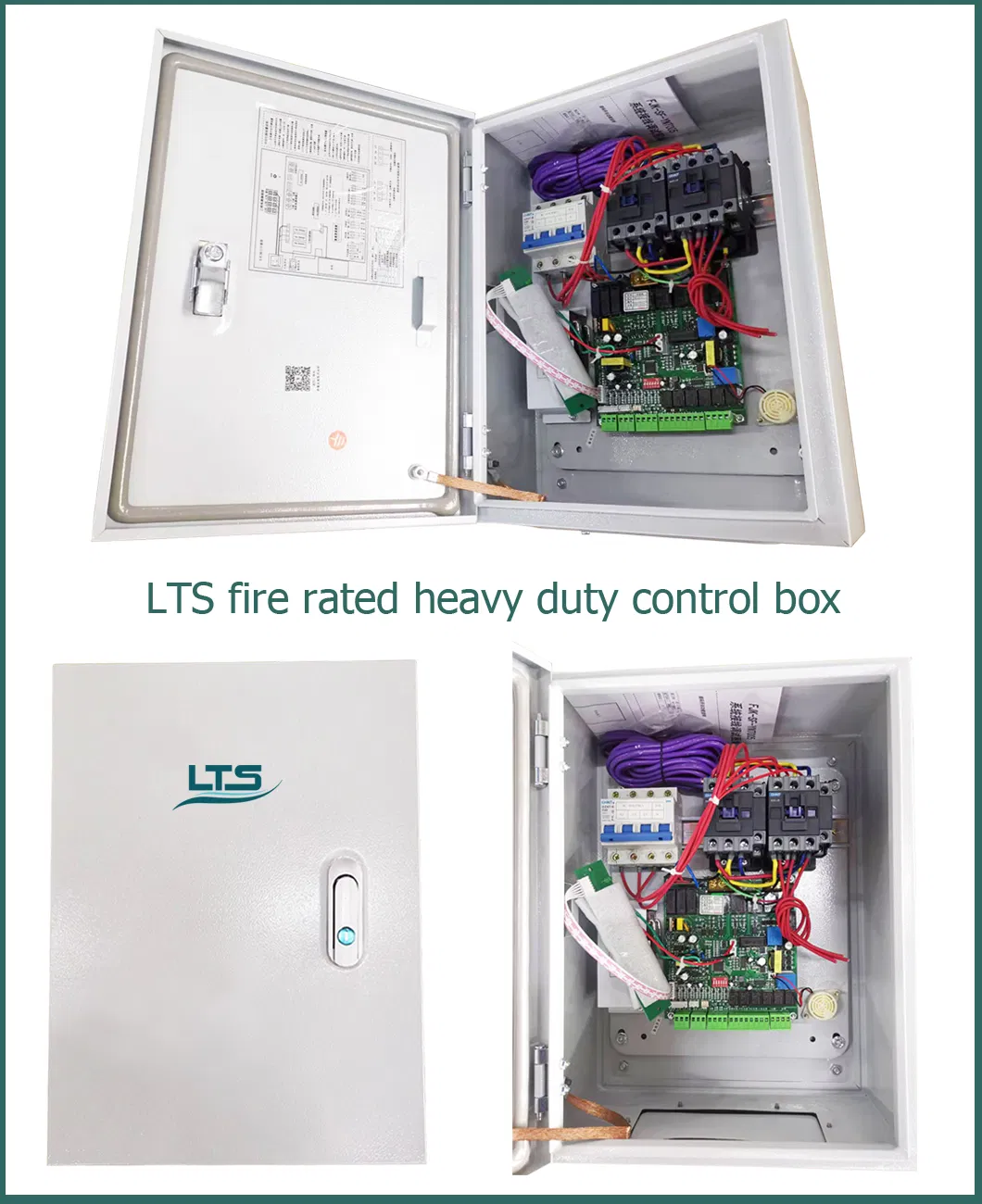

Fire-Rated Heavy Duty Control System Features

Made of advanced microchip technology, with 20 programmable functions.
Circuit capacity reacts quickly.
Multiple plug sockets can be connected to a smoke sensor, temperature sensor, and the fire center control signal linkage.
Easy to install.

Technical Specifications

Model	Rated voltage / Frequency	Input power	Rated output torque	Max lifting capacity	Rated current	Rated output speed	Max lifting height	Continuous working time	Ambient temp range
Three Phases
FJJ-600-3P	380 V / 50 Hz	710W	412N.m	600 KGS	3.3 A	4.8 r/min	6 meters	7 Min	-20°C ~ +50°C
FJJ-800-3P	380 V / 50 Hz	780W	647 N.m	800 KGS	4.7 A	4 r/min	7 meters	7 Min	-20°C ~ +50°C
FJJ-1000-3P	380 V / 50 Hz	780 W	809 N.m	1000 KGS	2.8 A	3.5 r/min	7 meters	15 Min	-20°C ~ +50°C
FJJ-1300-3P	380 V / 50 Hz	1050W	1401 N.m	1300 KGS	3.2 A	4.4 r/min	7 meters	15 Min	-20°C ~ +50°C
FJJ-1500-3P	380 V / 50 Hz	1250W	1617 N.m	1500 KGS	3.8 A	5.2 r/min	8 meters	15 Min	-20°C ~ +50°C
FJJ-2000-3P	380 V / 50 Hz	1350W	2450 N.m	2000 KGS	4.1 A	3.6 r/min	12 meters	15 Min	-20°C ~ +50°C
FJJ-3000-3P	380 V / 50 Hz	1500W	3450 N.m	3000 KGS	4 A	3.3 r/min	12 meters	30 Min	-20°C ~ +50°C
FJJ-4000-3P	380 V / 50 Hz	3000W	5500 N.m	4000 KGS	7.8A	3.2 r/min	12 meters	30 Min	-20°C ~ +50°C

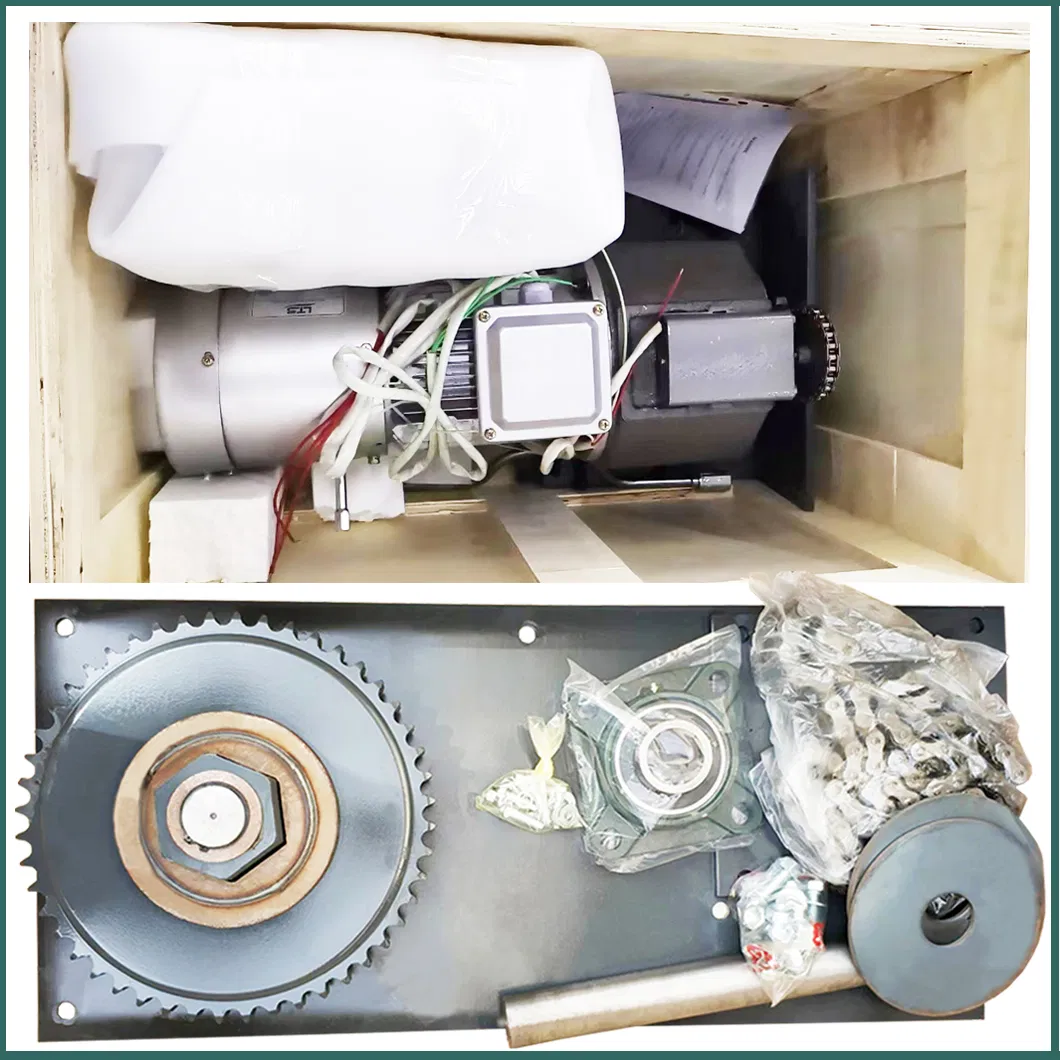

Packing Detail

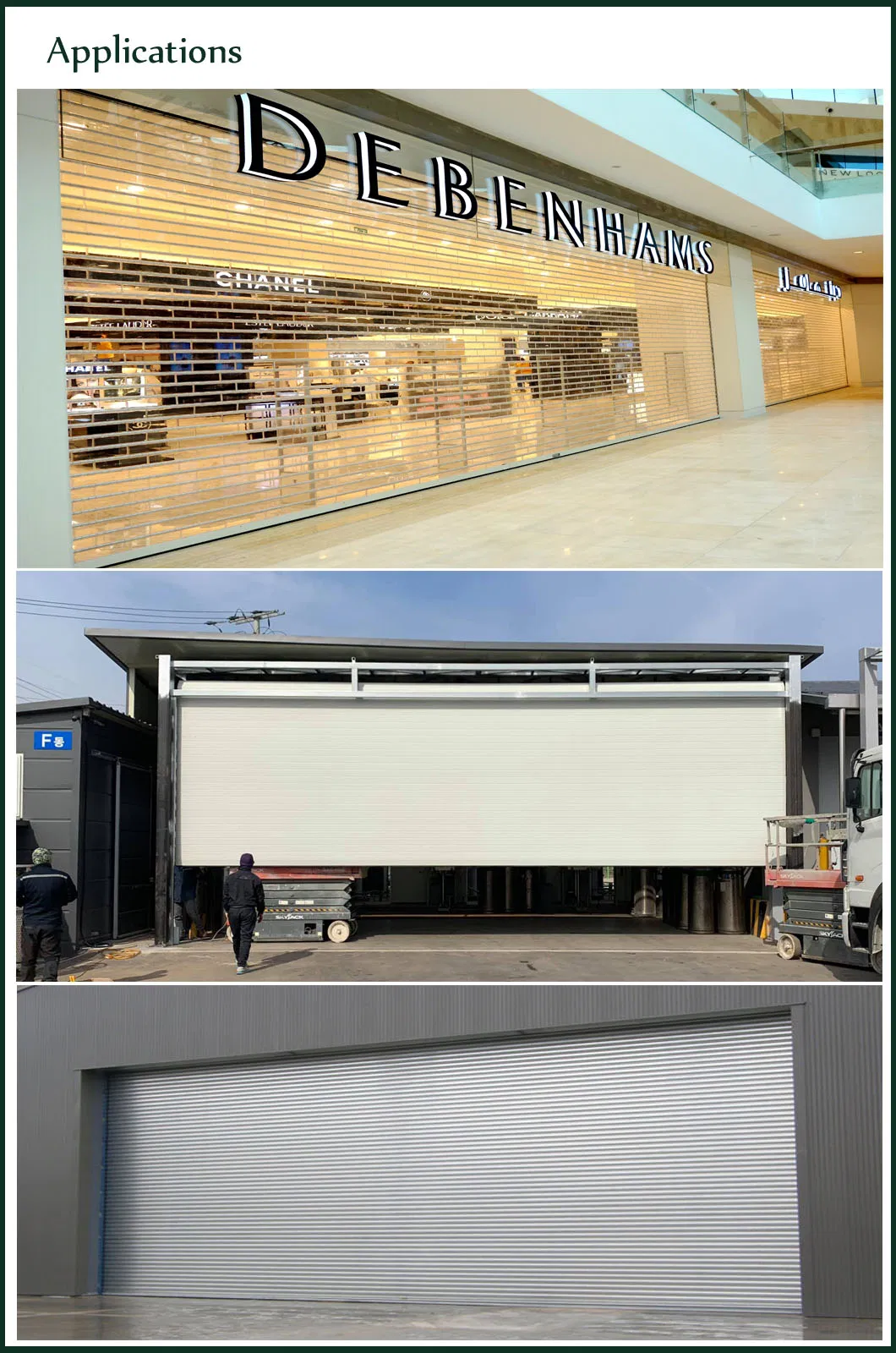

Applications

Certifications

Frequently Asked Questions

Q1: What are the primary applications of these fire-rated shutter motors?

A1: These heavy-duty motors are specifically designed to drive rolling shutter doors in commercial and industrial settings, such as shopping malls, large warehouses, workshops, garages, airports, and other large public or industrial buildings where fire containment is critical.

Q2: How does the fire-rated control system react during a fire event?

A2: The control system is built with advanced microchip technology and multiple ports, enabling integration with smoke sensors, temperature sensors, and the main fire control system. Upon detecting fire or receiving a linkage signal, it intelligently triggers the motor to close the fire shutters, effectively isolating smoke and heat.

Q3: What safety features are integrated into these heavy-duty shutter motors?

A3: The motors are equipped with built-in overheat and overload protection systems, precise limit switches for accurate stop positions, and a specialized anti-fall protection device to ensure maximum operational safety.

Q4: Are these motors easy to operate manually during a power failure?

A4: Yes. The fire-rated shutter motor features a highly reliable and user-friendly manual operation mechanism, allowing users to safely open or close the rolling doors during emergency power outages.

Q5: What is the ambient temperature range for these shutter motors?

A5: They are engineered to operate stably in challenging environments, with a tested ambient temperature performance range spanning from -20°C to +50°C.

Q6: Do these motors support different phases and voltages?

A6: These heavy-duty models are configured for three-phase (380V / 50Hz) power systems to deliver large motor power, stable performance, and robust lifting capacities ranging from 600 kg up to 4000 kg.
