High Speed Door Control System Industrial Automatic Slide Gate Opener Motor Electric Rolling Shutter Door Motor

1 / 5

High Speed Door Control System Industrial Automatic Slide Gate Opener Motor Electric Rolling Shutter Door Motor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview
Product Description
FAQ

Basic Info.

Model NO.

DM400

Excitation Mode

Compound

Function

Control, Driving

Casing Protection

Protection Type

Number of Poles

Structure & Principle

Brushless

Certification

ISO9001

Motor Type

Worm Gear Servo Motor

Rated Power

0.75kw

Rated Voltage

DC48V

Rated Current

Lifting Weight

50kg

Door Size Limit

10m²

Insulation Grade

Ambient Temp.

-40~+50℃

Protection Grade

IP54

Control Voltage

DC24V, Max. Current 400 Ma

Position Control

Absolute Value Encoder or Mechanical Limit Switch

Overload Capacity

150% Rated Current for 1 Minute

Transport Package

Inside Carton+Outside Carton

Specification

60mm

Origin

Guangdong

Capacity

10000PCS/Year

Product Description

Features:

Leading power-cut braking technology: Motor is isolated from controller's HV output circuit. Contact point is disconnected after stopping. No charged door body spontaneous combustion, fire and electric leakage hazards! Quiet, soft braking, more stable operation and safer braking.
Simple Installation: There are only 2 connecting cables between motor reducer and electric box. Simple installation and wiring on site.
Flexible Limits: Absolute value encoder or mechanical limit switch can be selected.

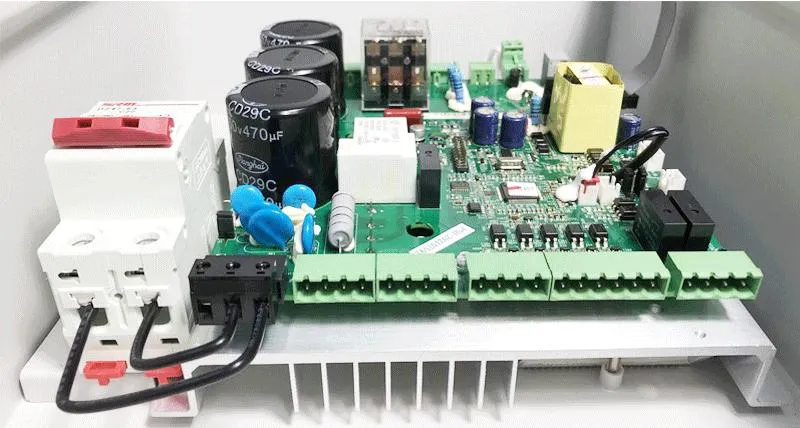

IPM Controller: Controller adopts IPM intelligent module with compact structure and has stronger functionalities.
Advanced Functionality: It has inching/manual/automatic, fully open/partially open, single button, adjustable light ineffective position, interlocking, double-door interlocking automatic door opening, air curtain machine control, door opening in place, door closing in place, fault output, RS485 Internet of Things remote control functionalities.
Unified Dimensions: Unified installation dimensions 220V/0.75KW, 1.5KW and 2.2KW.
User-Friendly Interface: Simple and friendly operation interface, convenient debugging and maintenance.
Real-time Monitoring: Real-time monitoring on signal and alarm, and one-key to restore factory preset value.

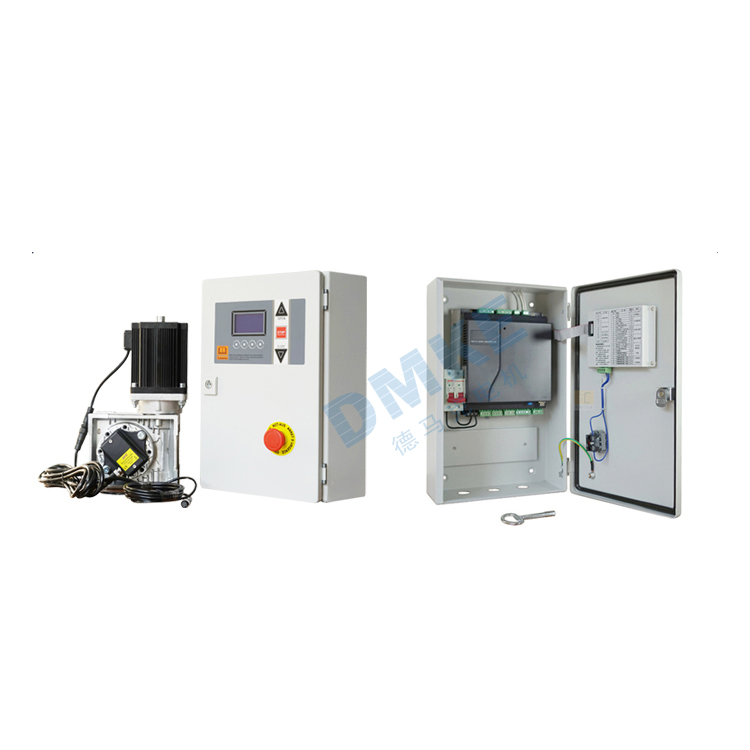

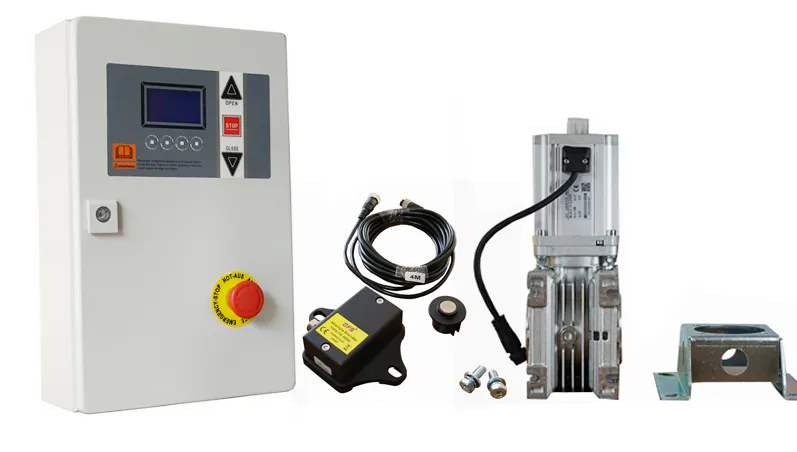

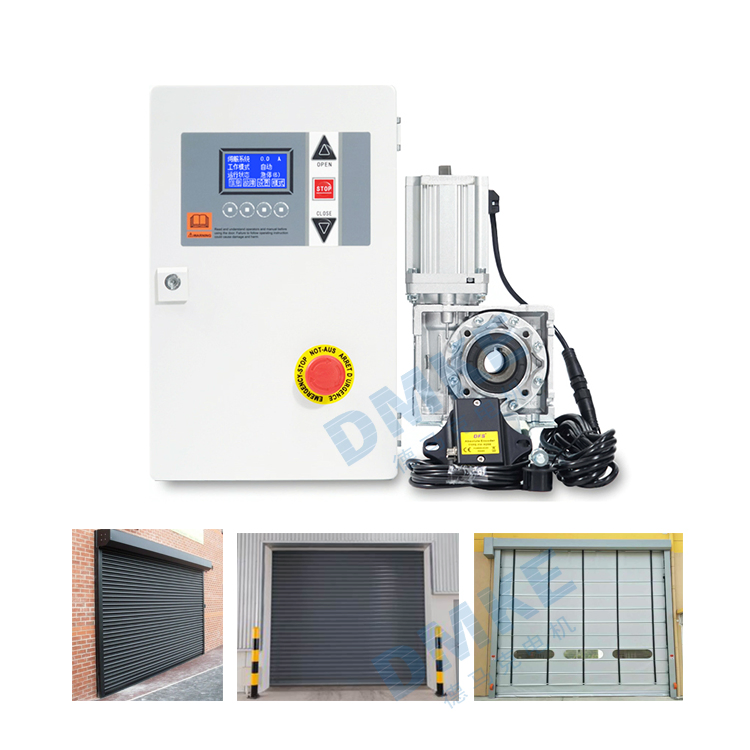

The DM400 series products include a set of servo control boxes, servo motors, and absolute encoders, which are used to support the control of PVC fast rolling shutter doors, stacking doors, hard fast rolling doors, sliding doors and other industrial categories. Plug and play, stable performance, friendly interface for control parameters, powerful functions, easy to debug and maintain.

IPM Intelligent Power Module Design

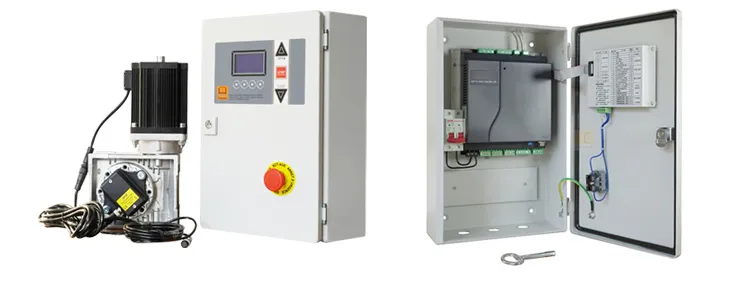

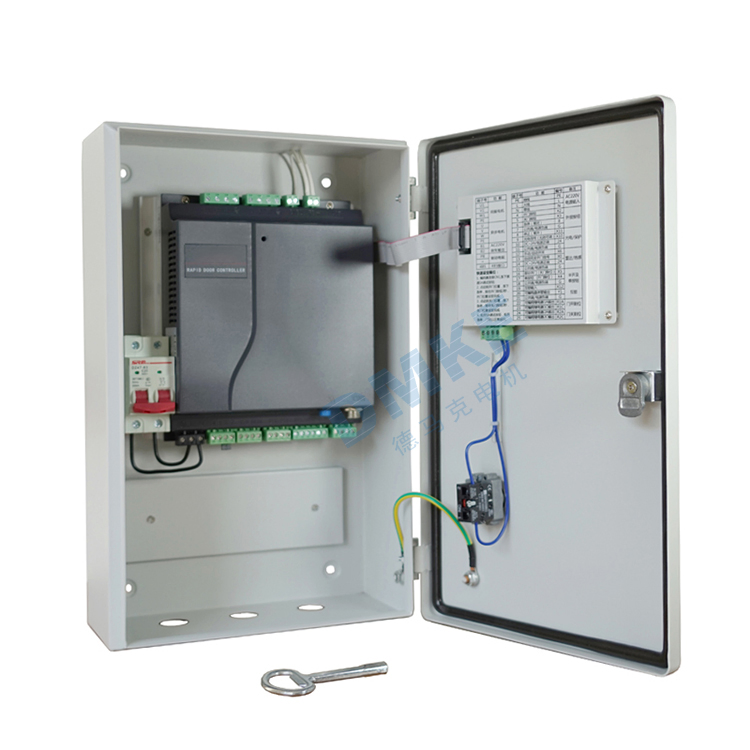

The control box adopts the leading IPM intelligent power module design, the structure is clean and compact, and only two cables are connected between the control box and the motor, plug and play.

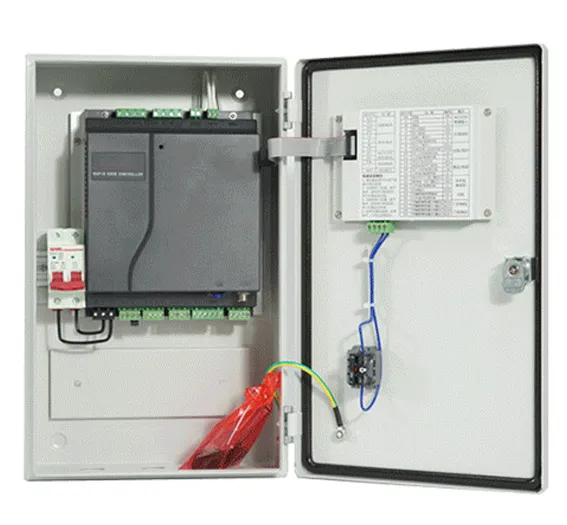

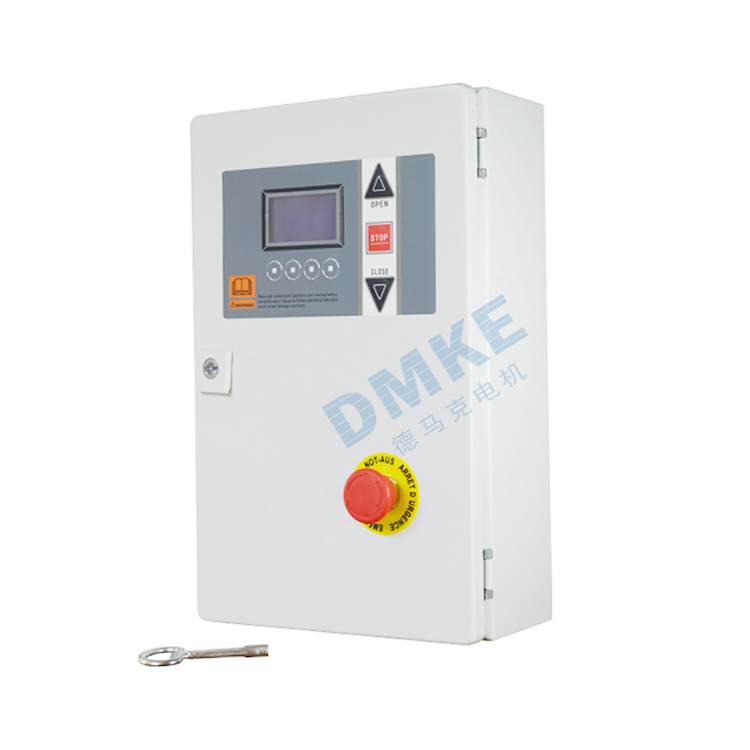

Servo Control Box Panel & Specifications

Control Box Specification
Model	DM400	DM401	DM402
Rated Power	0.75kw	1.5kw	2.2kw
Shell Size (L x H x D)	250 x 400 x 130 mm
Power Supply Voltage	Single-phase AC220V~240V 50~60Hz
Control Voltage	DC24V, Max. current 400 mA
Position Control	Absolute value encoder or mechanical limit switch
Overload Capacity	150% rated current for 1 minute
Operating Ambient Temp.	-10~50ºC
Place of Use	Free from oil mist, dust, corrosive or flammable gas, etc.
Weight	6Kg

Motor Specifications

Motor Specification
Motor Model	DM-2430	DM-4030	DM-6030
Rated Power	0.75KW	1.5KW	2.2KW
Rated Current	3A	5A	6A
Lifting Weight	50KG	100KG	150KG
Applicable Door Size	10M²	30M²	50M²
Rated Voltage	AC220V
Insulation Grade	F
Operating Ambient Temp.	-40~+50ºC
Protection Grade	IP54

Servo Motor Size Drawings & Encoder

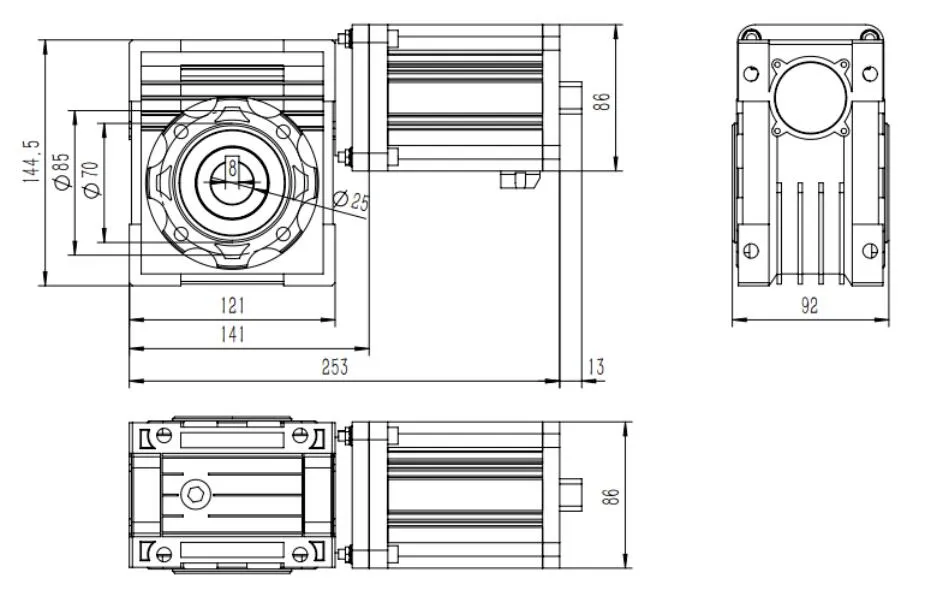

0.75KW Servo Motor Size Drawing

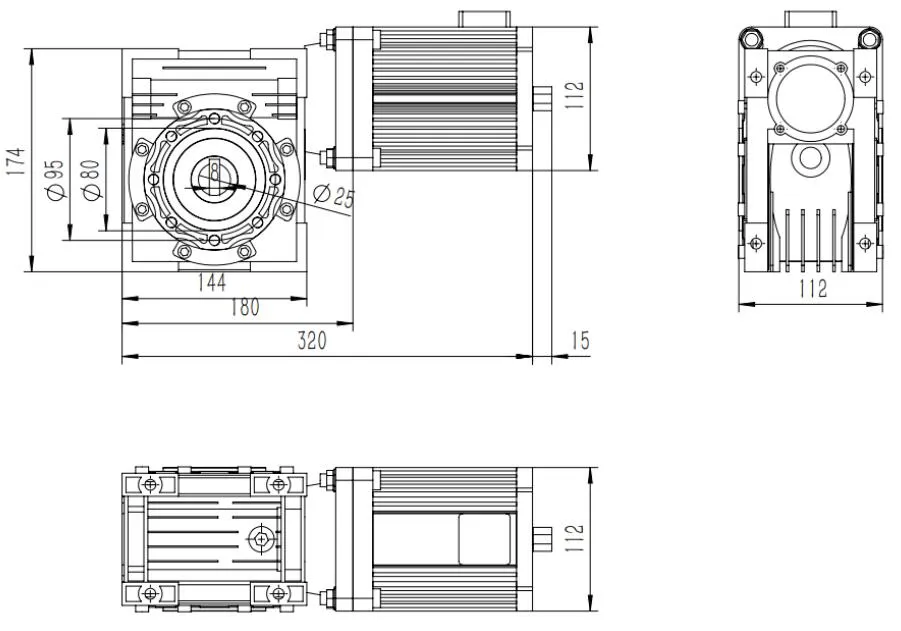

1.5KW Servo Motor Size Drawing

Absolute value encoder

Frequently Asked Questions

Q What kind of motors can be provided?

Currently, permanent magnet brushless DC motors, DC gear motors, micro DC motors, planetary gear motors, DC servo motors, and brush DC motors are provided, with a diameter range from 16 to 220mm and a power range from 5W to 20KW.

Q Is there a Minimum Order Quantity (MOQ) for the motors?

No. 1 piece can be accepted for sample making to accommodate your testing process. The price for sample making will feature a 10% to 30% difference compared to bulk pricing based on the specific style.

Q Is it possible to provide a price list?

All motors are highly customized based on distinct performance specifications such as power, voltage, gear ratio, rated torque, and shaft diameter. Pricing also varies according to the order volume, making a standardized price list difficult to establish. Please share your required technical parameters and quantities, and a detailed customized quote will be provided.

Q Are the motors reversible?

Yes, nearly all DC and AC motors are fully reversible. Technical support is readily available to guide you on how to set up this functionality through different wiring configurations.

Q Is it possible to develop customized motors if tooling costs are covered?

Yes. Please share your comprehensive requirements including performance targets, dimensions, expected annual quantities, and target price, and a full engineering evaluation will be conducted for your project.

Q What are the standard delivery lead times?

For micro brush DC gear motors, the sample delivery time is 2-5 days, with bulk delivery around 15-20 days depending on the volume. For brushless DC motors, sample delivery is about 10-15 days, and bulk orders take 15-20 days.

Product Detail

High Speed Door Control System Industrial Automatic Slide Gate Opener Motor Electric Rolling Shutter Door Motor
