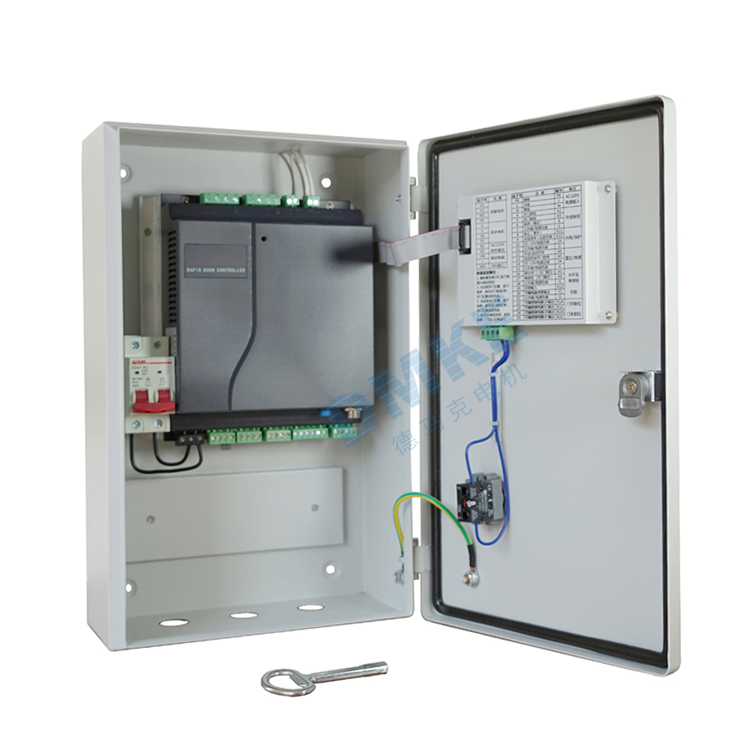

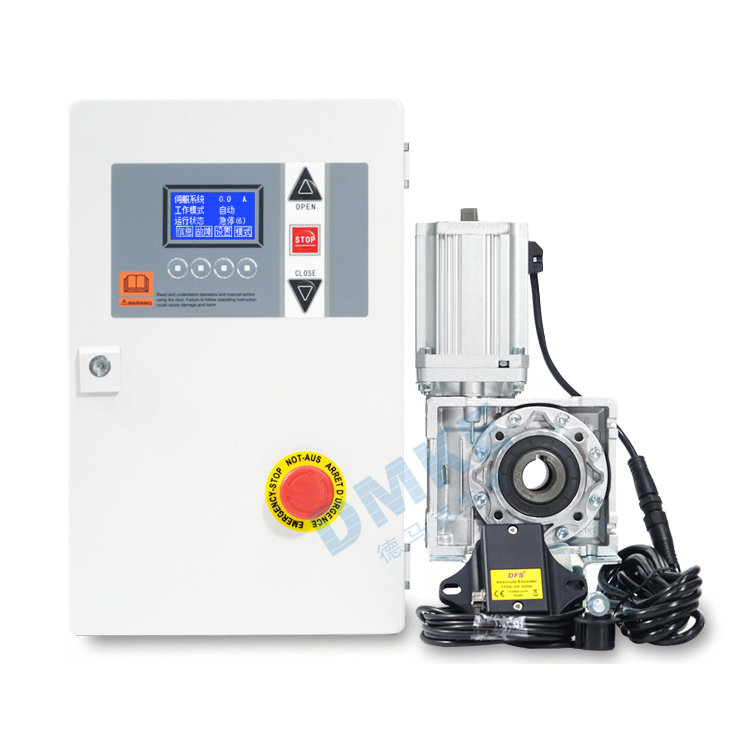

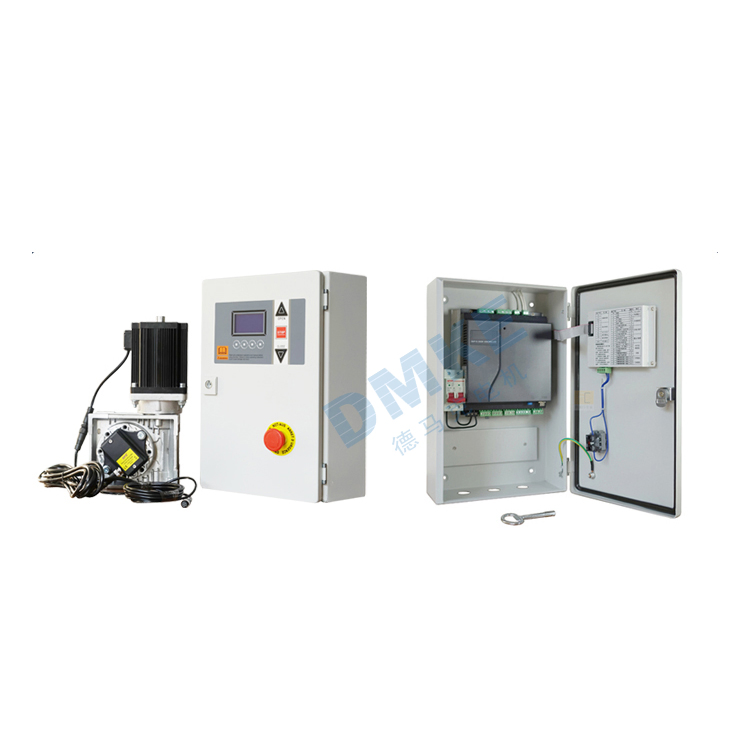

Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
1 / 5
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor
Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor

Industrial Hi Speed Rolling Shutter Side Door Motor Kit Motorised Gate Automatic Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
DM400
Excitation Mode
Compound
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
4
Structure
Brushless
Certification
ISO9001
Motor Type
Worm Gear Servo Motor
Rated Power
0.75kw
Rated Voltage
DC48V
Protection Grade
IP54
Insulation Grade
F
Product Overview

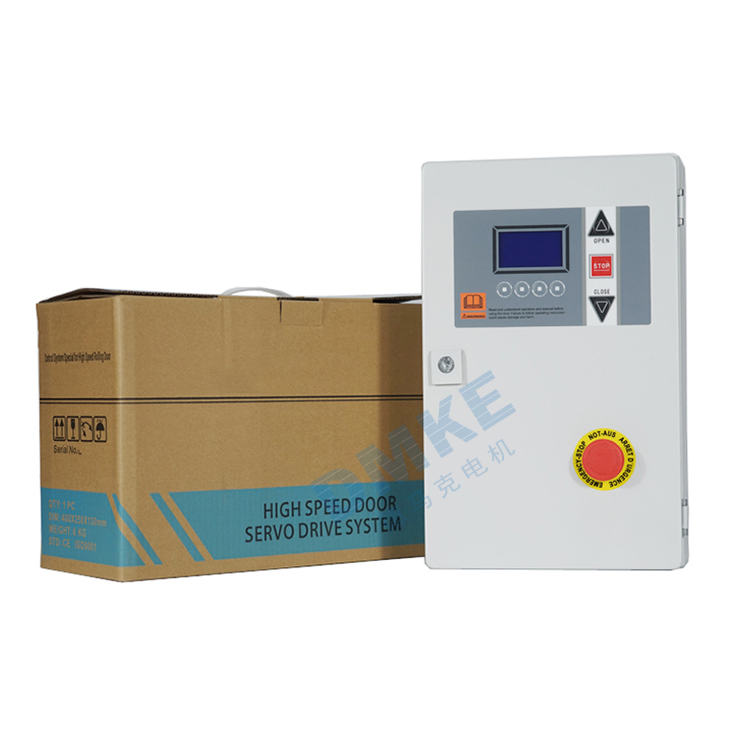

Industrial Hi Speed Rolling Shutter Side Door Motor Kit
The DM400 series products include a set of servo control boxes, servo motors, and absolute encoders. They are designed for PVC fast rolling shutter doors, stacking doors, hard fast rolling doors, and sliding doors. Featuring plug-and-play functionality, stable performance, and a user-friendly interface.
Core Features & Advantages
1
Leading power-cut braking technology. Motor is isolated from HV output; no spontaneous combustion or leakage hazards.
2
Simplified wiring: only 2 connecting cables between the motor reducer and the electric box.
3
Flexible position control: Absolute value encoder or mechanical limit switch options.
4
IPM intelligent module: Compact structure with robust functionalities.
5
Multi-mode operation: Inching, manual, automatic, and RS485 IoT remote control capabilities.
6
Real-time monitoring: Signal and alarm tracking with one-key factory reset.

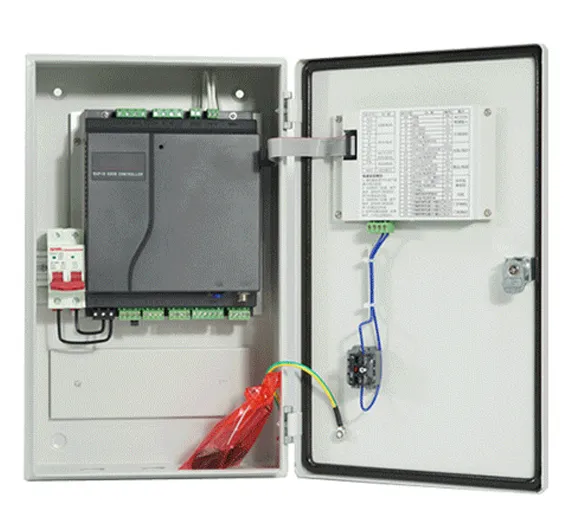

IPM Power Module

IPM Power Module Design

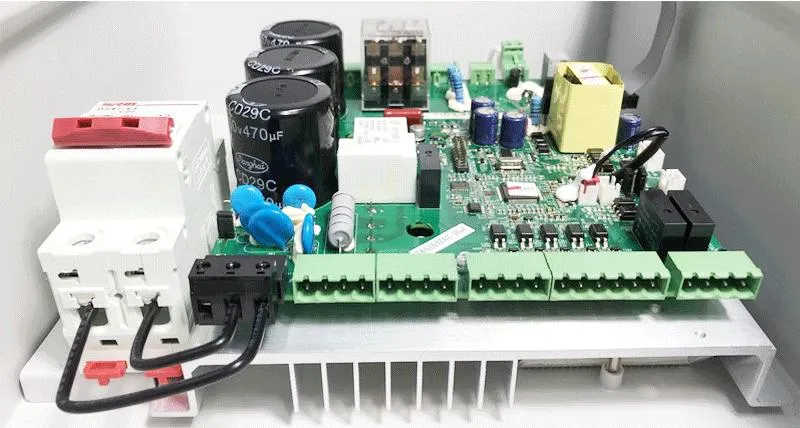

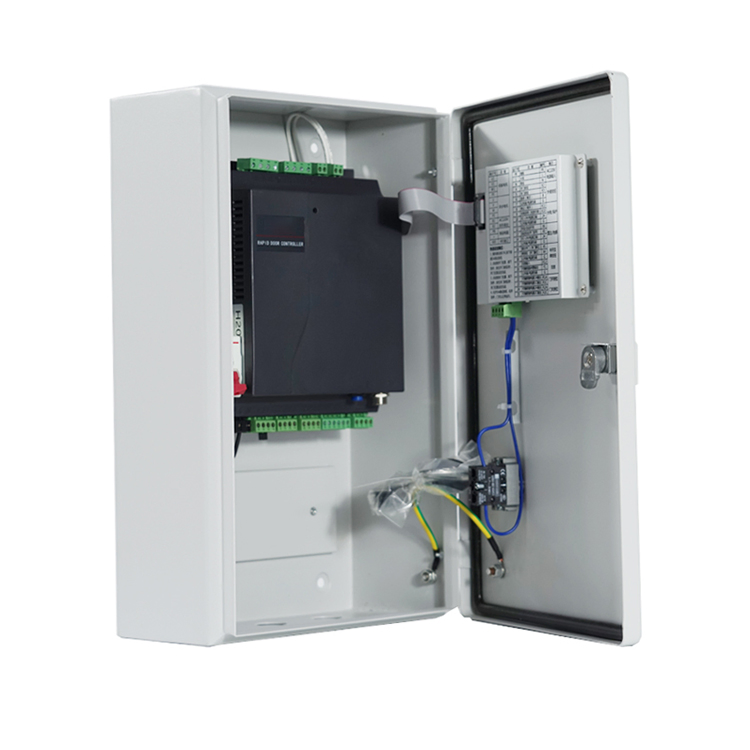

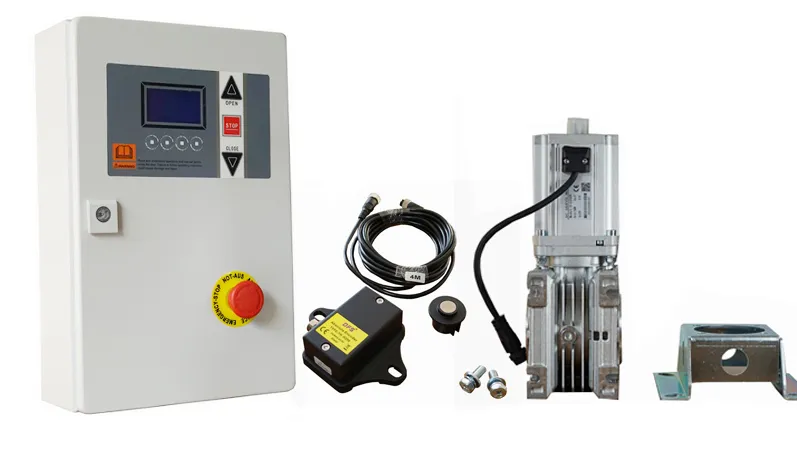

Control Box Panel

Servo Control Box Panel

Control Box Specifications
Control Box
Model DM400 DM401 DM402
Rated Power0.75kw1.5kw2.2kw
Shell Size250 x 400 x 130 mm
Power SupplySingle-phase AC220V~240V 50~60Hz
Control VoltageDC24V, Max. current 400 mA
Overload Capacity150% rated current for 1 minute
Ambient Temp-10~50ºC
Motor Specifications
Motor Details
Motor Model DM-2430 DM-4030 DM-6030
Rated Power0.75KW1.5KW2.2KW
Rated Current3A5A6A
Lifting Weight50KG100KG150KG
Door Size10M²30M²50M²
Protection GradeIP54
Technical Drawings

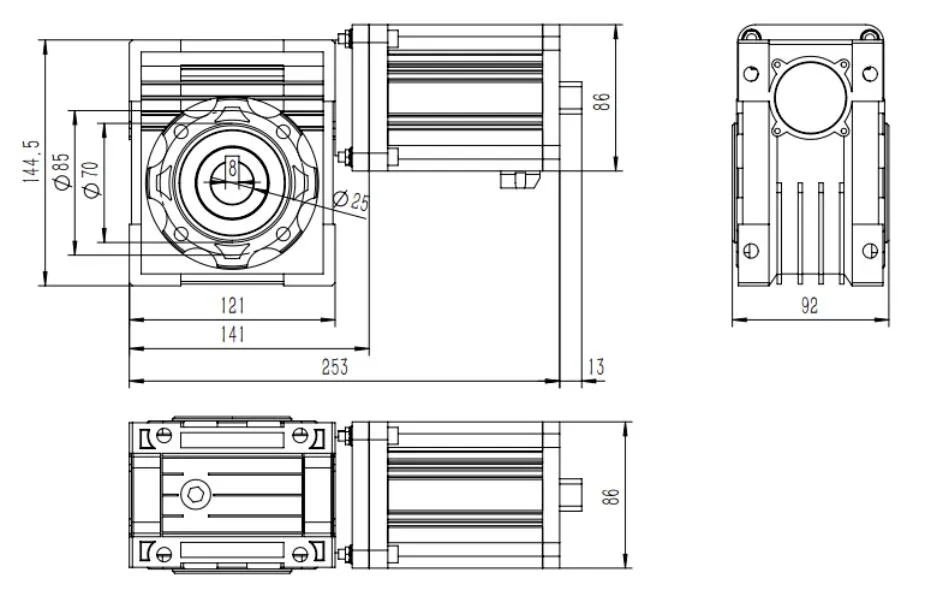

0.75KW Drawing

0.75KW Servo Motor Drawing

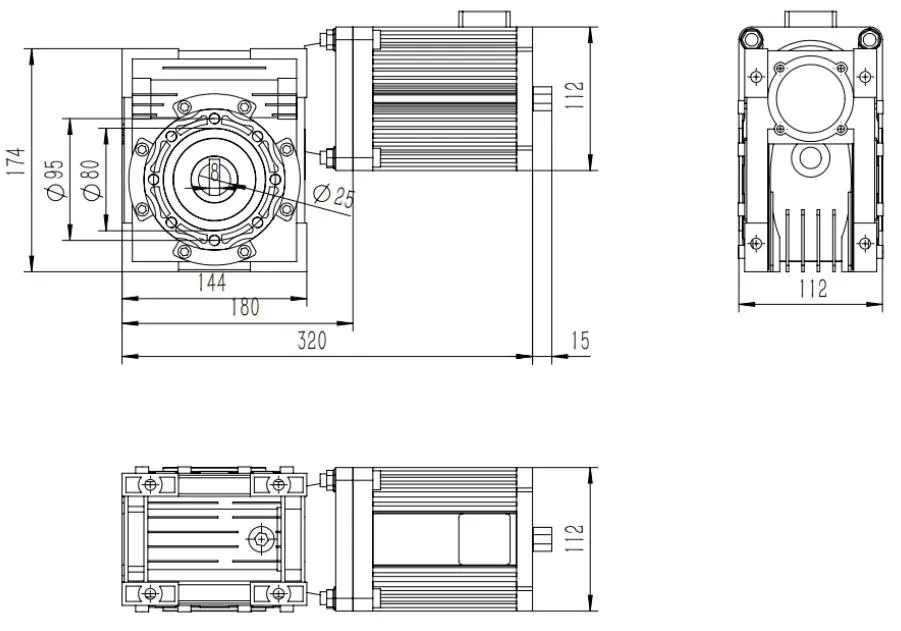

1.5KW Drawing

1.5KW Servo Motor Drawing

Encoder Drawing

Absolute Value Encoder

About Our Production

Specializing in high-precision micro DC gear motors, brushless motors, and DC servo controllers. Products range from 5 watt to 20 kilowatt, widely applied in automated guided vehicles, robotics, medical equipment, and industrial automation systems.

Frequently Asked Questions
What types of motors do you provide?
We provide permanent magnet brushless DC motors, DC gear motors, planetary gear motors, and DC servo motors with power ranges from 5W to 20KW.
Is there a Minimum Order Quantity (MOQ)?
No, we can accept 1 piece for sample testing. Sample pricing may vary slightly from bulk rates.
Can you provide a standard price list?
Since our motors are customized based on voltage, gear ratio, and torque requirements, pricing depends on specific needs and quantities.
Are the motors reversible?
Yes, nearly all our DC and AC motors are reversible. Technical support is available for wire connection guidance.
What is the typical delivery time?
Samples typically take 2-15 days depending on the motor type. Bulk orders usually take between 15-20 days.
What are your warranty terms?
We provide a standard one-year warranty on our motor products.
