Ce , Ce - Red, LVD, EMC,En12453&12445, TUV, C-Tick
Brand
OEM
Lifting Speed
160mm/S
Case Material
Plastic / Aluminum
Base Material
Steel
Color
Black / Grey / Aluminum / Customizing Available
Rail Length
3000~4000mm

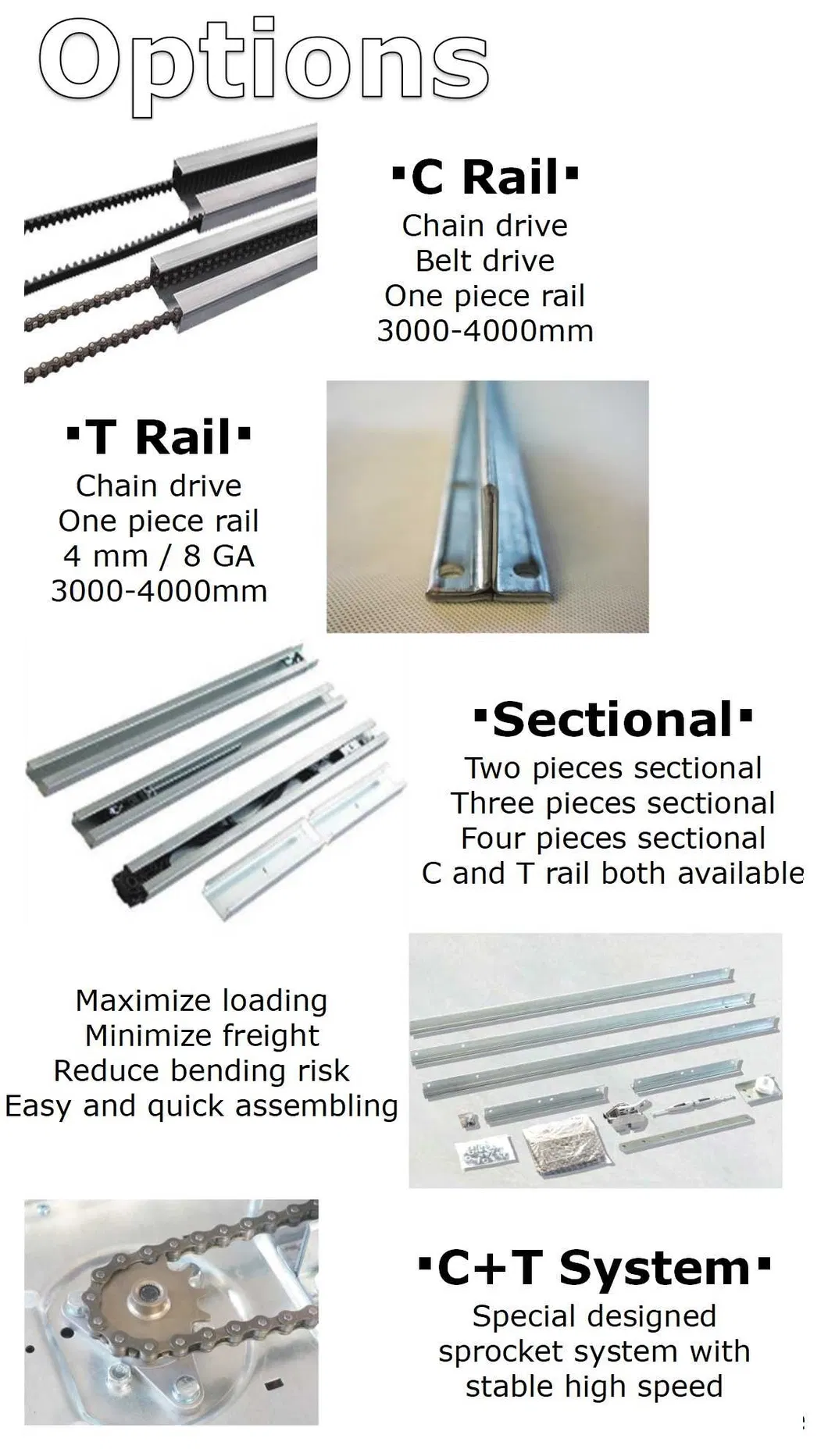

Drive Option
Chain Drive / Belt Drive
Transport Package
Carton/ Wooden Box/ Pallet
Specification
600N / 1000 / 1200N
Trademark
OEM
Origin
China
HS Code
8501520000
Production Capacity
1000000sets / Year
Product Description

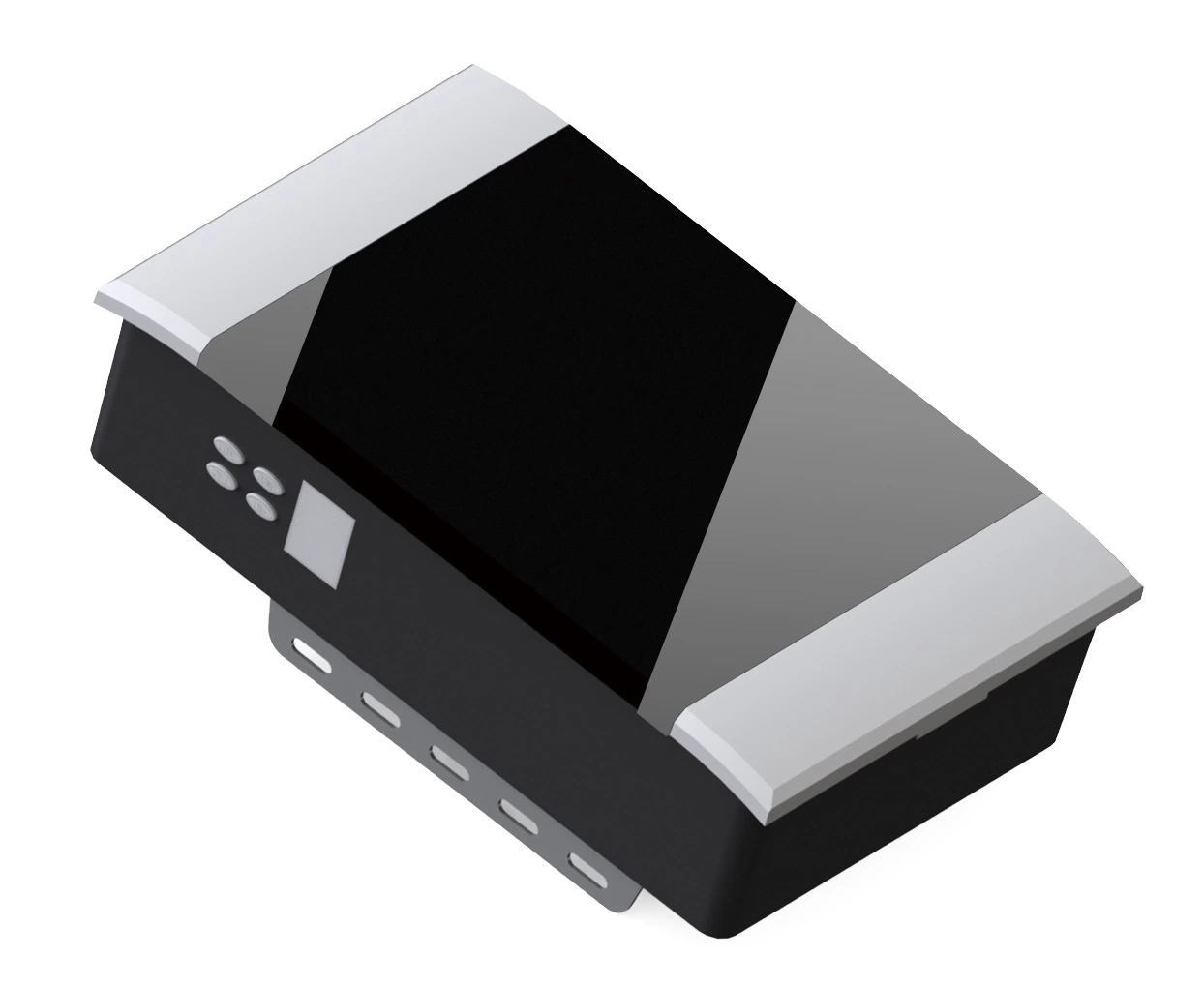

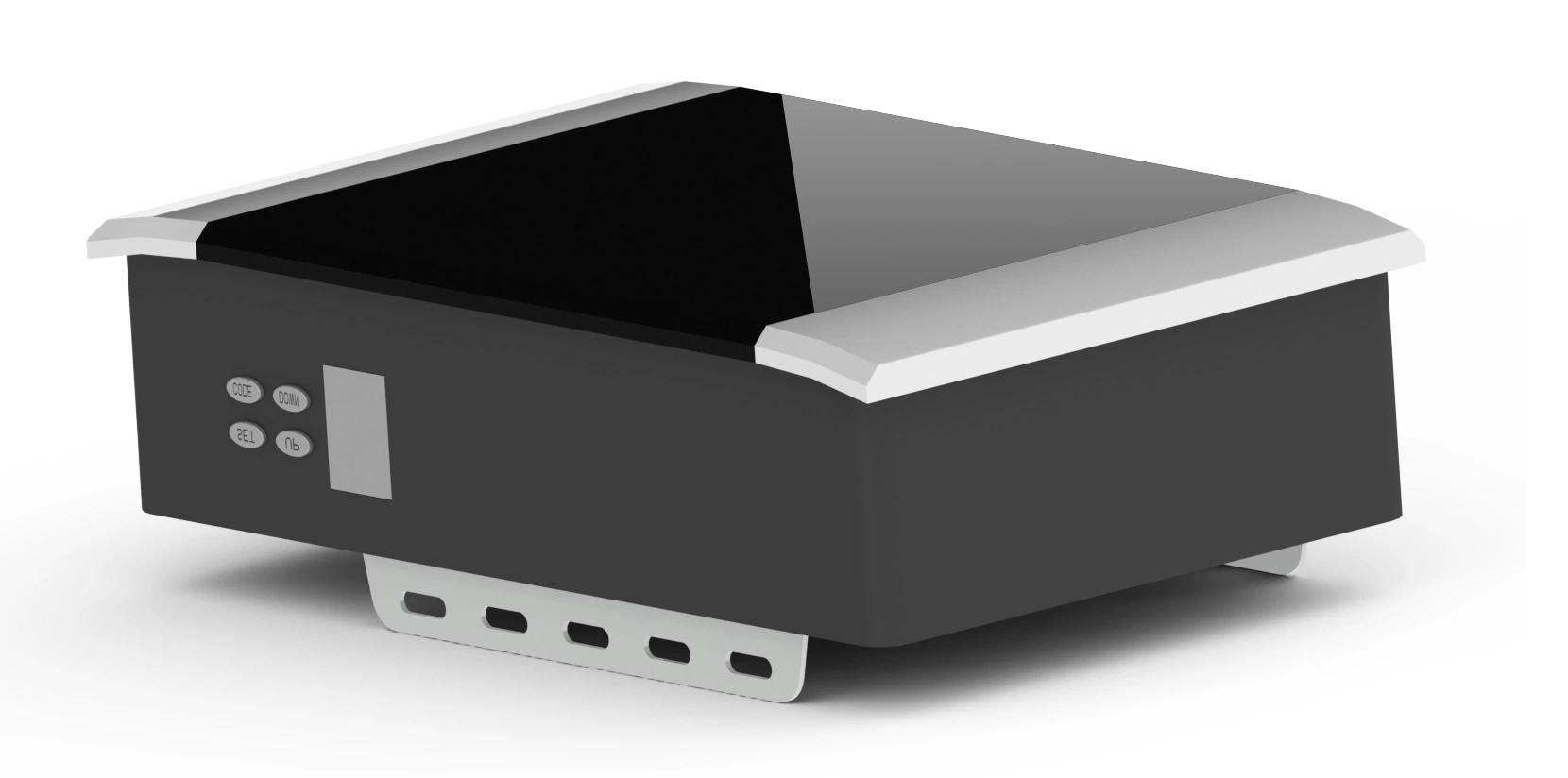

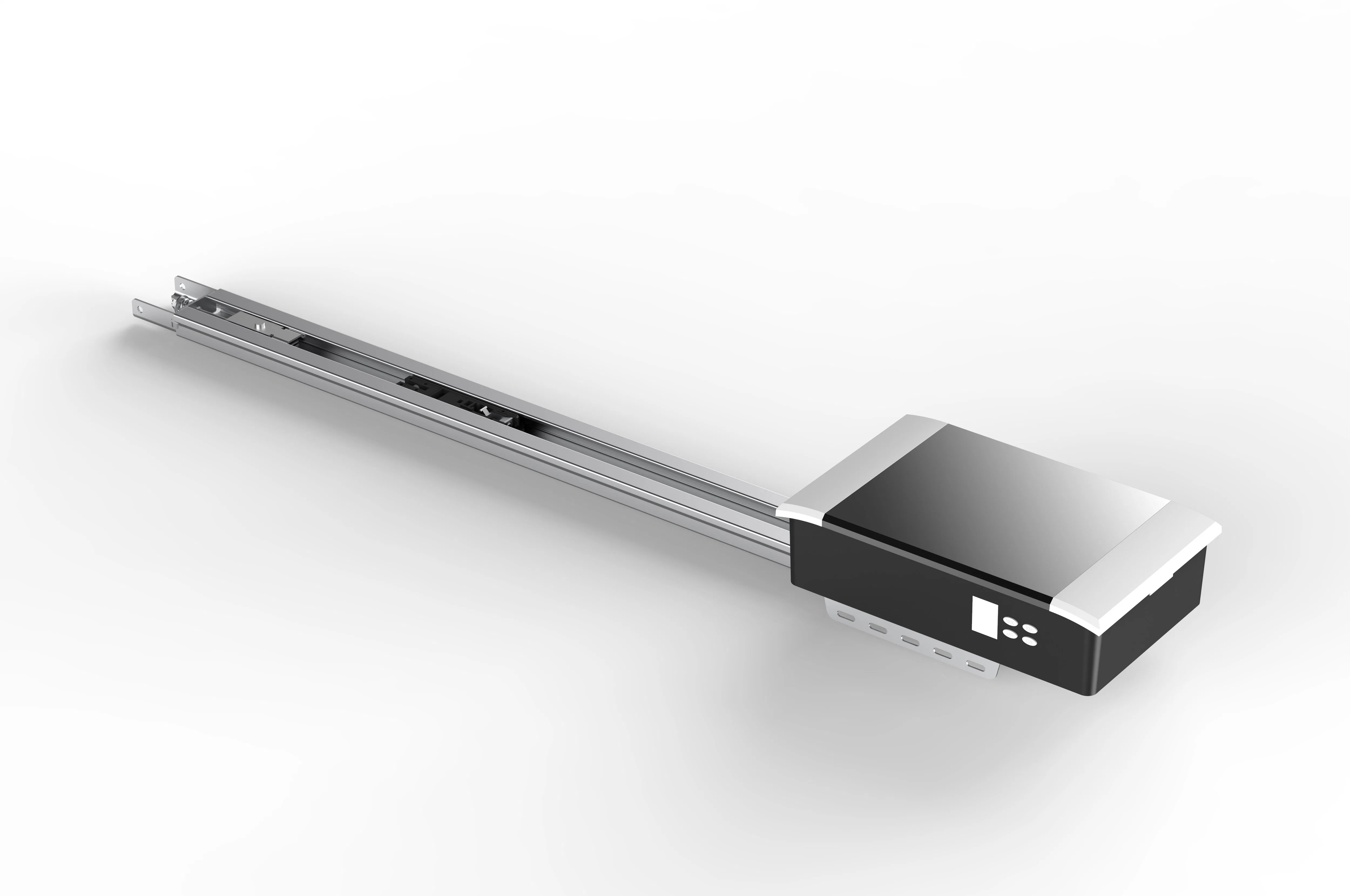

UNO
600N / 1000N / 1200N — 600N Speed / 1000N Speed

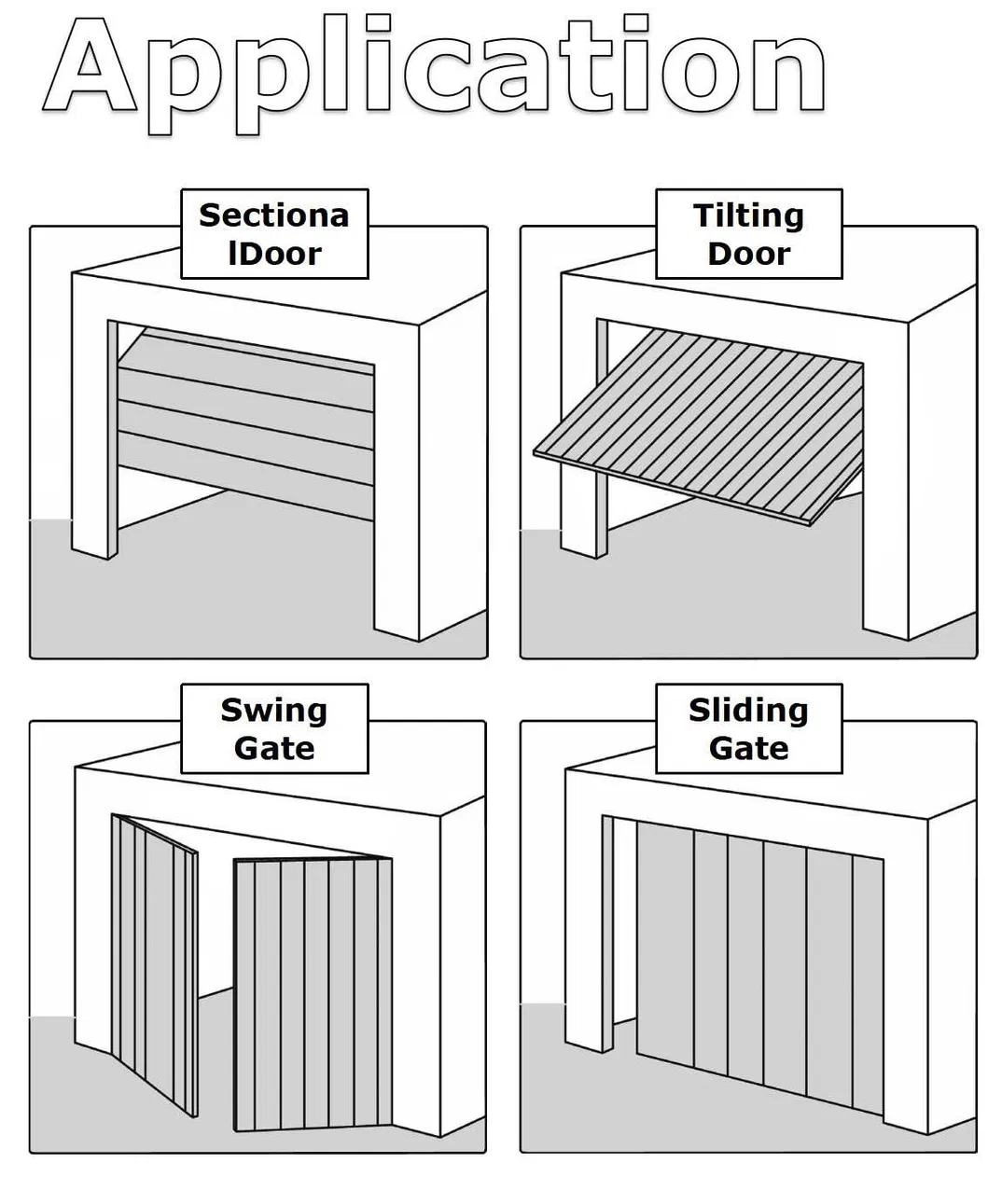

Home automation for garage doors
Model
600N / 600N Speed
1000N / 1000N Speed
1200N
Input voltage
220-240V / 110-127V , 50-60Hz
Max. opening speed
160mm/s or 200mm/s ( Speed model)
Max. door height
2400-5000mm
Bottom base material
Metal

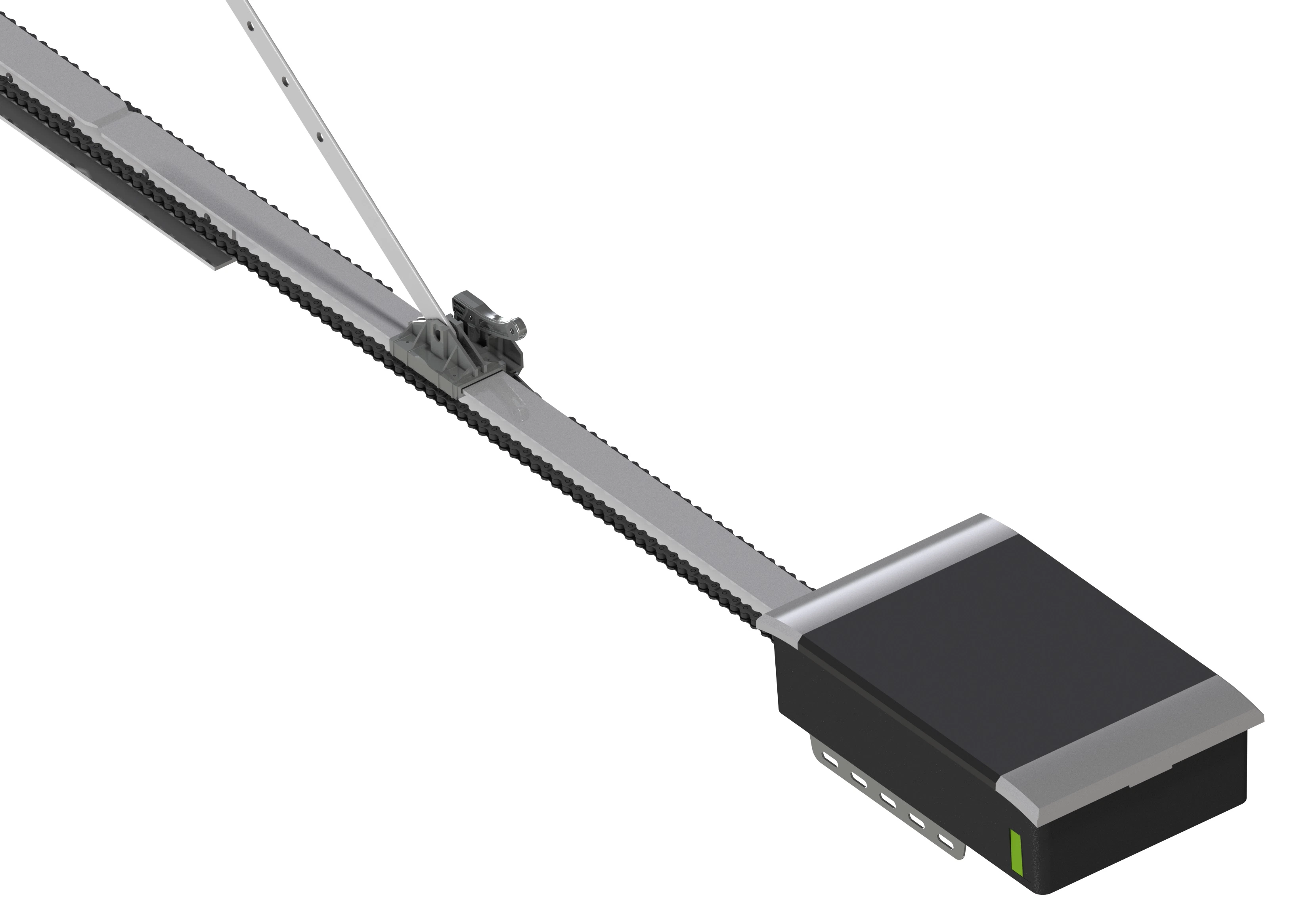

Drive mechanism
Chain/Belt
Max. door size
10 m2
15 m2
18 m2
Max. door load
80 kg
100 kg
130 kg
Key Performance Features
Soft-start/stop
More Information Display
Automatic Closing Time Setting
Automatic Closing Height Setting
Maintenance Alarm

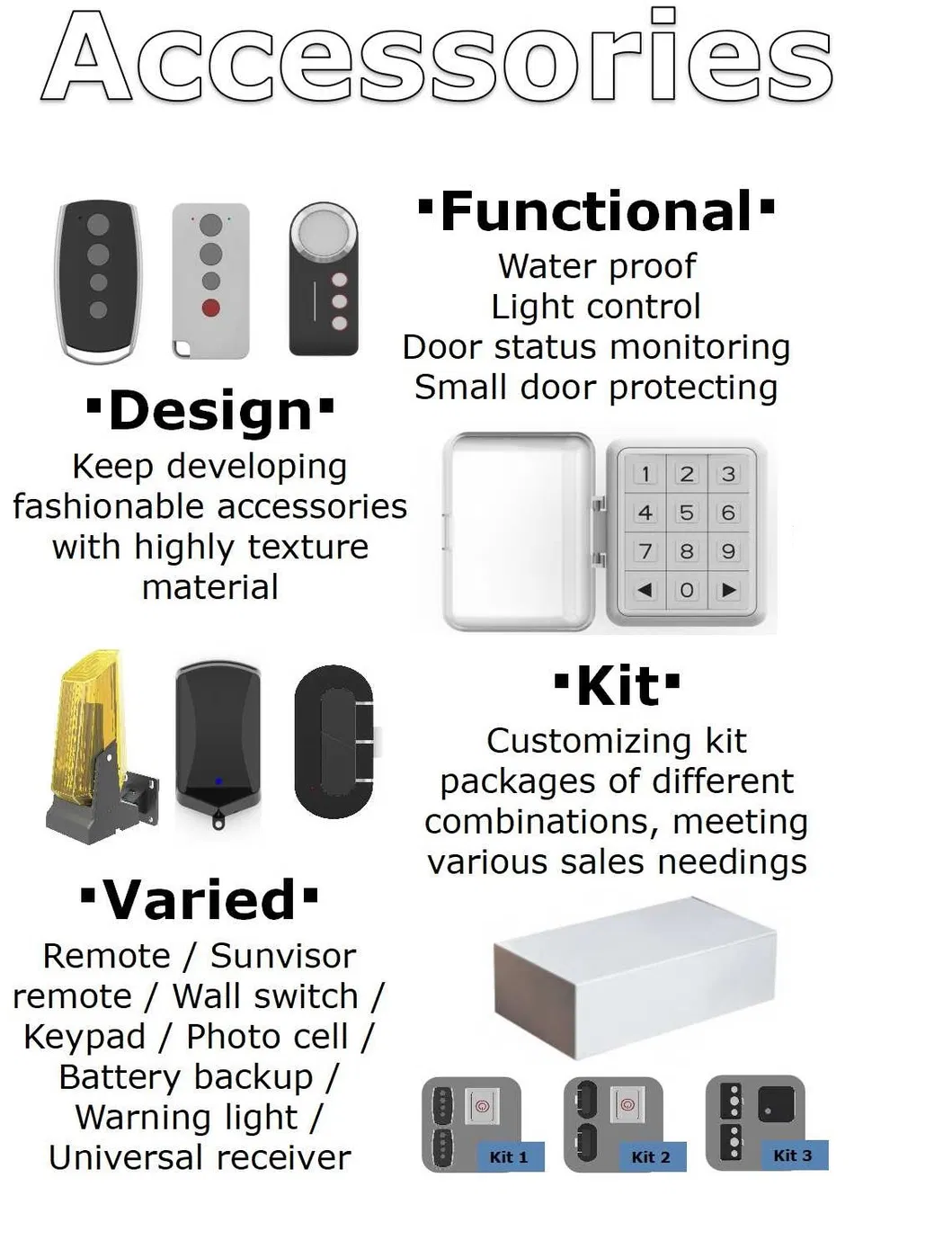

Terminal Devices Supported
Maximal Remote Quantity Setting
Travel Speed Setting
Transformer Overload Protection
Reversal Height Setting
433MHz/Rolling Code
Photo Cell ON/OFF Setting
Status Display Remote
Electronic Travel Limit Setting
Reversal Force Setting
L.E.D Off Delay Time Setting (1min *N N=1--9)
Have you ever met following problems?
Losing traveling limit after hundreds of operations?
Doors couldn't totally close or open after hundreds of operations?
Openers need to be re-programed after hundreds of operations?
Our Solution: Less Maintenance & Precision Control
All standard operational issues are eliminated thanks to advanced integration features:

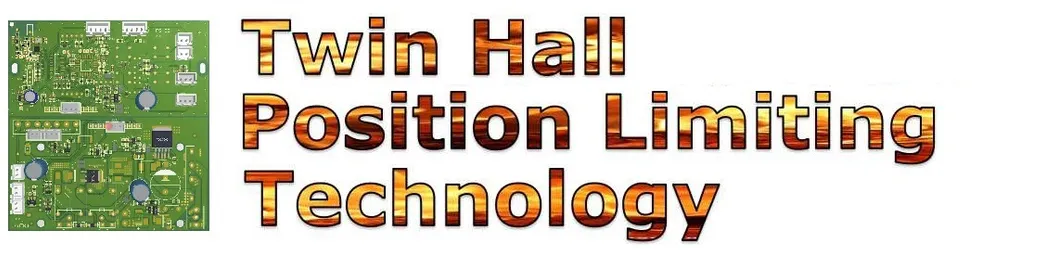

Build-in twin-encoder & Synchronizing device
Higher precision of position limit
No more external mechanical switch
Self-adjustment for different doors (different weights, springs, and maintenance conditions)
Frequently Asked Questions (FAQ)
What driving power sizes are available for the Uno serious opener?
The Uno series residential garage door opener motor is available in three powerful pulling forces: 600N, 1000N, and 1200N options to perfectly fit different door sizes and loads.
How does the build-in twin-encoder ensure less maintenance?
The integrated twin-encoder and synchronizing device deliver a highly precise position limit. This eliminates traveling deviations, prevents losing limit settings, and removes the need for external mechanical switches and frequent re-programming.
What types of drives are supported by the Uno motor?
The motor supports both Chain Drive and Belt Drive operations, allowing you to configure the setup according to noise and durability preferences.
Does the opener adapt to varying door conditions?
Yes. The system utilizes advanced self-adjustment capabilities, dynamically adapting to doors of different weights, spring conditions, and varied maintenance statuses automatically.
What safety certifications does the Uno serious garage door opener hold?
This residential garage door opener is manufactured to meet rigorous quality standards and holds multiple certifications, including CE, CE-Red, LVD, EMC, En12453&12445, TUV, and C-Tick.
What adjustments and customization options are offered?
The system features flexible configurations, including electronic travel limits, automatic closing times/heights, travel speed settings, reversal forces/height settings, and status display remotes.
